215C

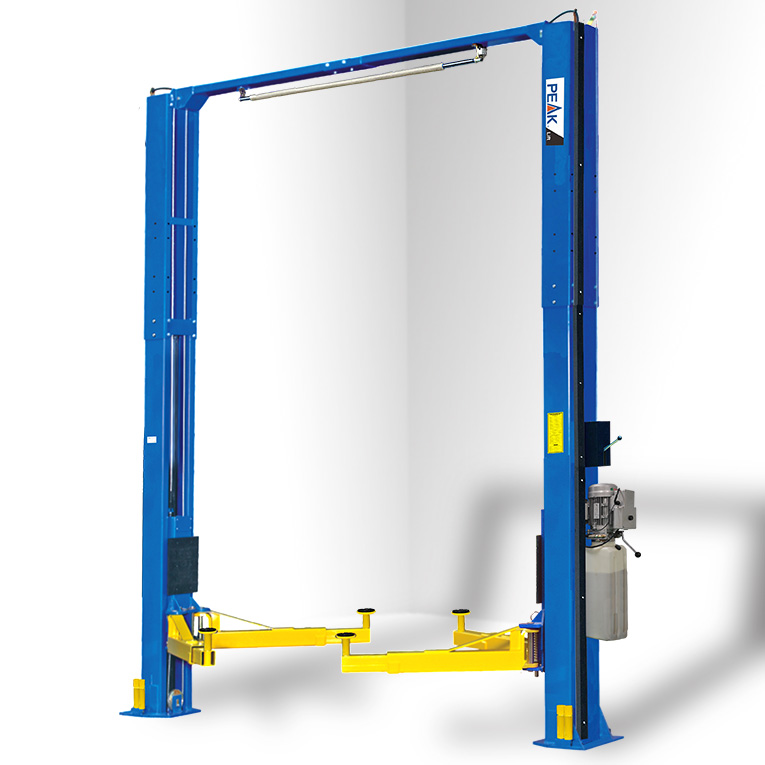

CLEAR FLOOR DIRECT-DRIVED TWO-POST LIFT
Borned for higher and heavier. The new 215C is ideal design to raise heavy duty vehicles, from van to heavy duty truck at easiness. It's also introduced with the Peak 3in1 intergrated technology to provide 3 extremely heights setting with 1 set cables only.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

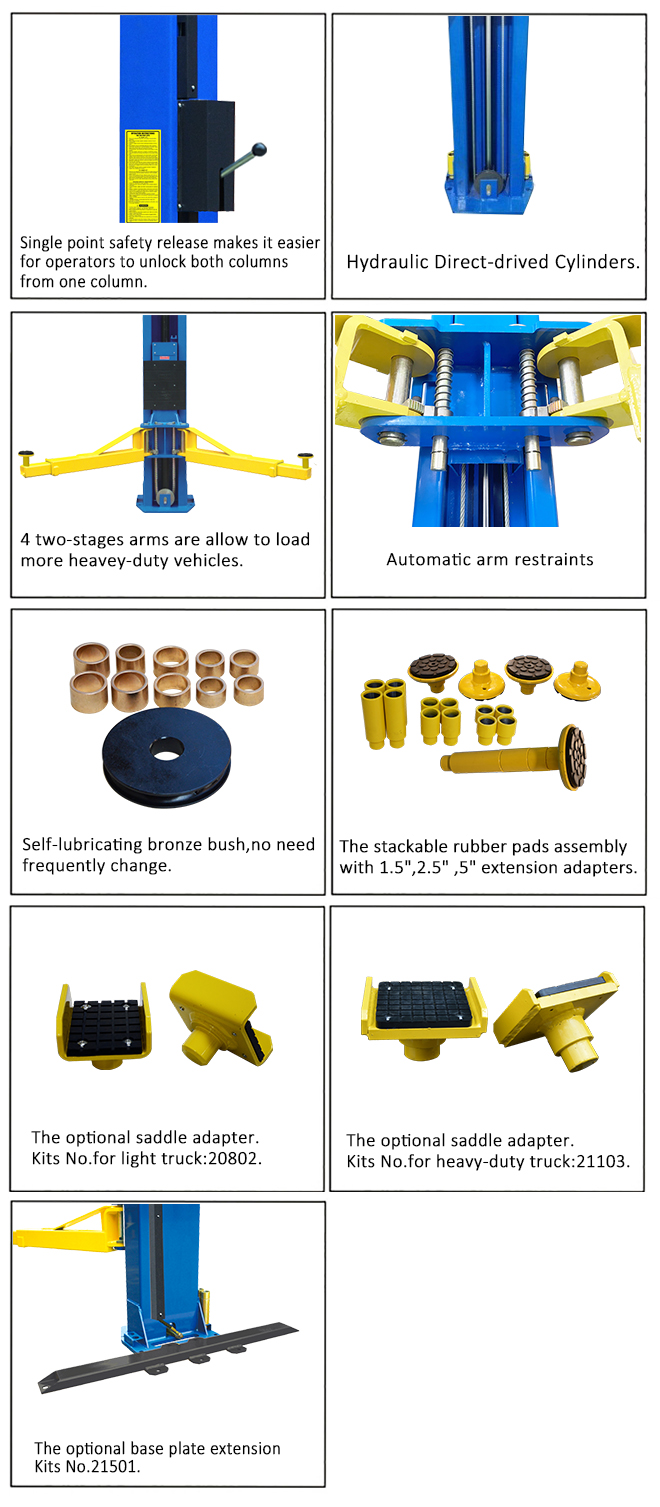

• 6800kg (15,000 Lbs) Capacity.
• Dual hydraulic direct-drived cylinders,designed and made on high standard,high quality seals for cylinder.
• 4 two-stage rugged arms are allow to load more heavy-duty vehicles.
• Aero sync cables used for synchronization. 1 set cables availabe for 3 heights setting.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release.
• Clearfloor design, provide unobstructed floor space.
• Overhead safety shut-off device.
• Super high design, max. height up to 5030mm.
• Automatic arms restraints.

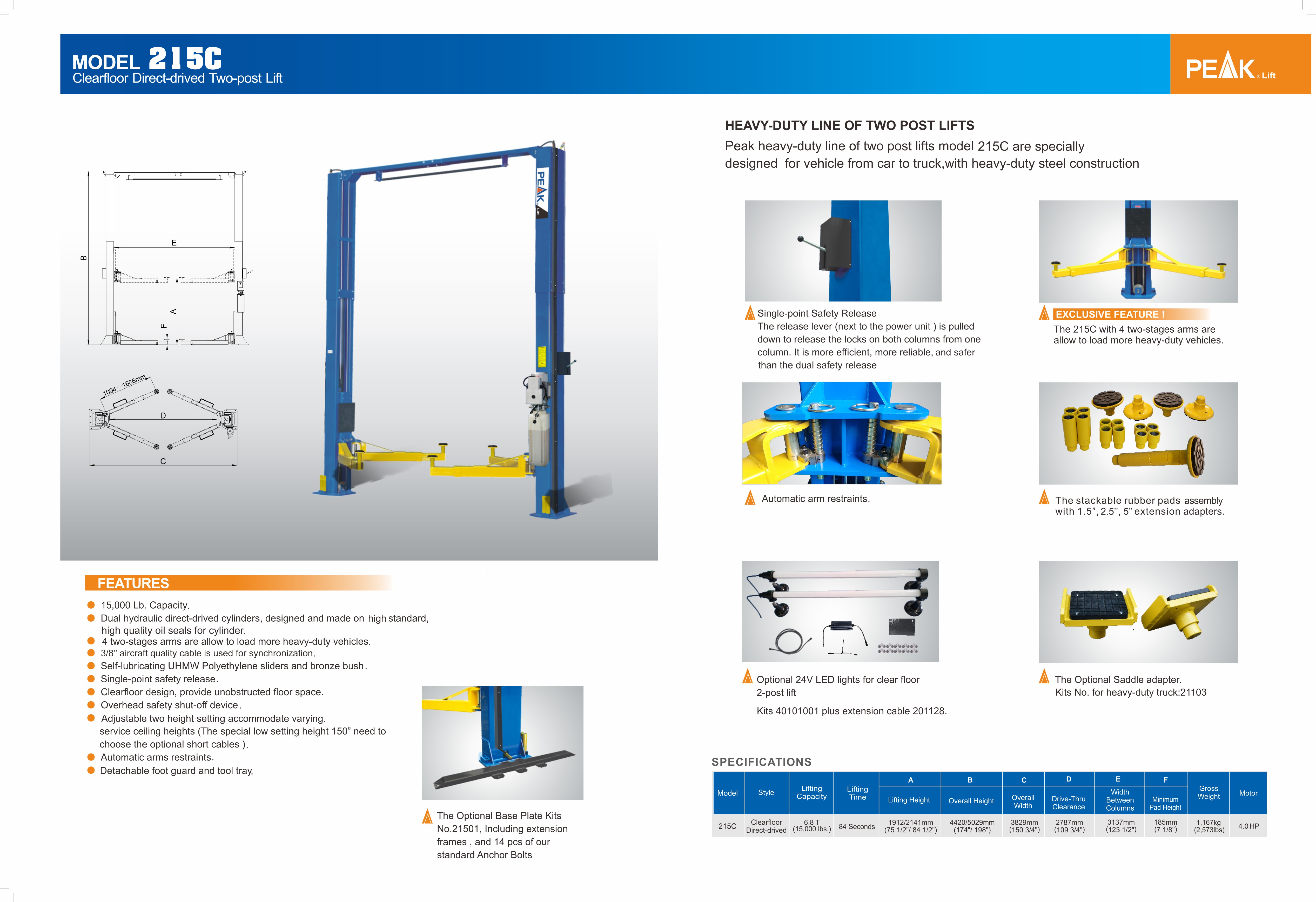

| Model 215C | | Clearfloor Direct-drived |
| Lifting Capacity | | 6800kg (15,000 lbs) |
| Lifting Time | | 84s |
| Max. Lifting height: (w/o extension adapter) | A | 1912mm (75 1/4" ) |
| Max. Lifting height: (w/ extension adapter) | 2141mm (84 1/4" ) |
| Max. lock height: (w/o extension adapter) | 1862mm (73 5/16" ) |
| Max. lock height: (w/ extension adapter) | 2091mm (82 5/16" ) |
| Overall Height:(low setting) | B | 4420mm(174") |
| Overall Height:(Medium setting) | 4725mm (186") |
| Overall Height:(High setting) | 5030mm (198") |
| Overall Width | C | 3829mm (150 3/4") |
| Drive-Thru Clearance | D | 2787mm (109 3/4") |
| Width Between Columns | E | 3137mm (123 1/2") |
| Minimum Pad Height | F | 185mm (7 1/4") |
| Gross Weight | | 1167kg (2,573 lbs) |
| Motor | | 2.0HP/4.0HP |
| QTY of Container | | 14 Units/20'GP |
| Packing Dimension | | 2950 X 540 X 1065 mm
|
