115
211SACH

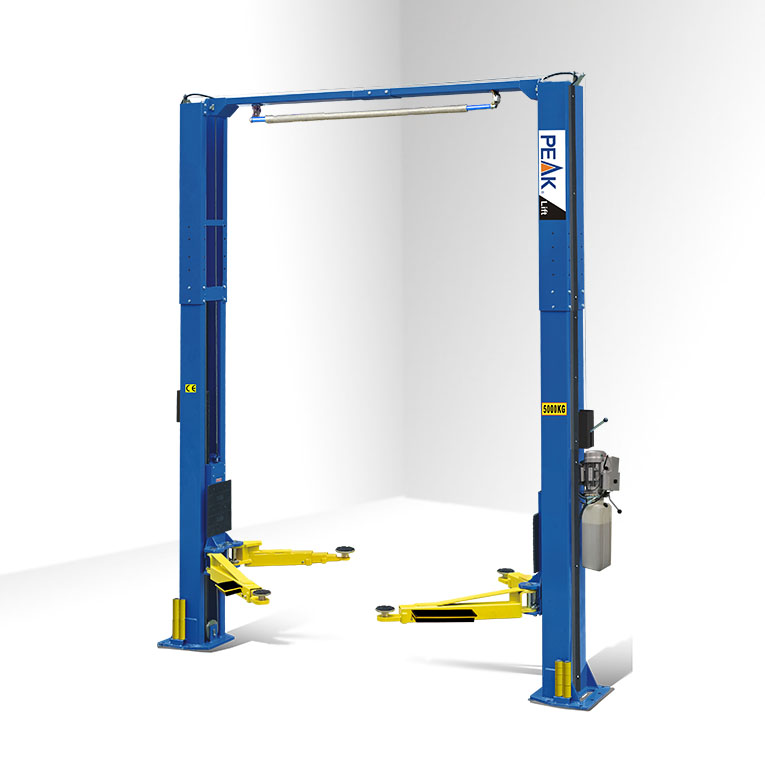

CLEAR FLOOR DIRECT-DRIVED TWO-POST LIFT
211SACH is newly updated with Peak 3in1 technology, one lift three heights to accommodate the different vehicles and workshops.
Superasymmetric arms make it possible to load the cars or trucks on symmetric or asymmetric configurations.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

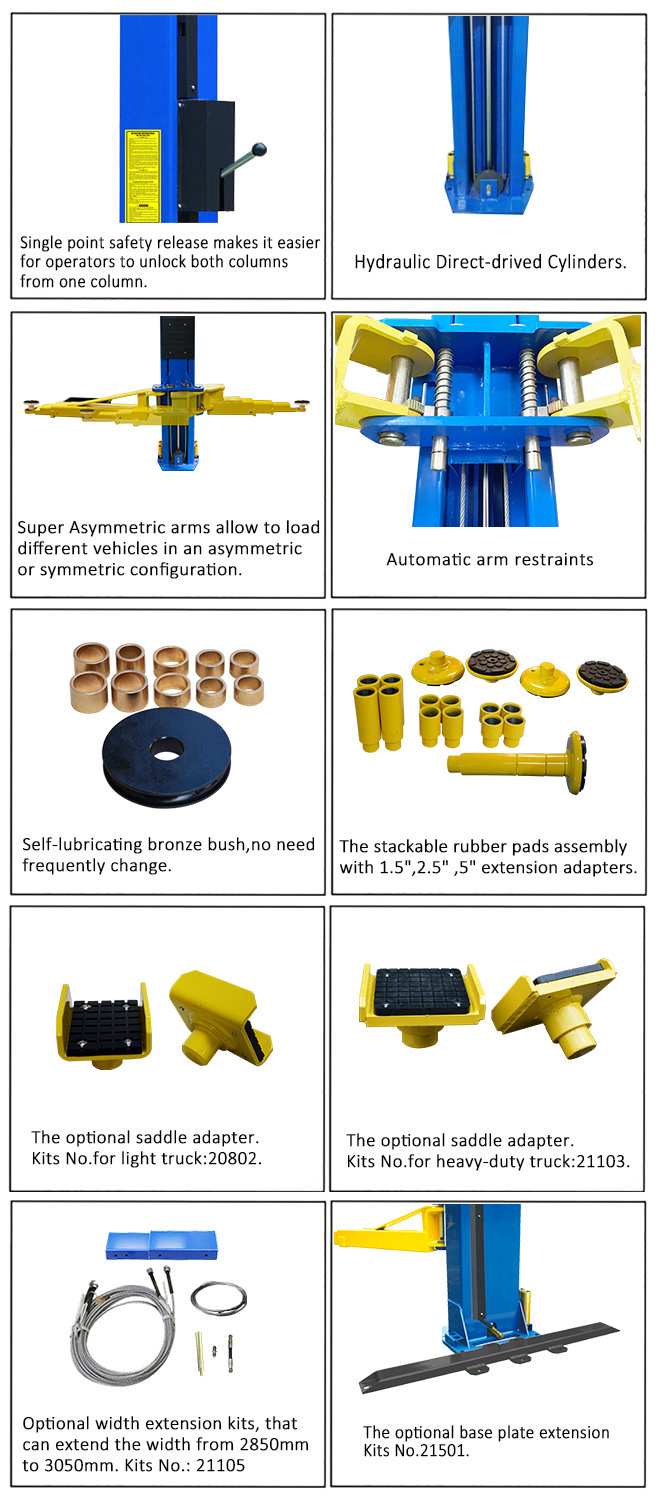

• 5000kg (11,000 lbs) Capacity. Heavy duty steel construction.
• Dual hydraulic direct-drived cylinders,designed and made on high standard.
• Super asymmetric arms allow to load different vehicles in an asymmetric or symmetric configuration.
• Three adjustable height setting accommodate varying service ceiling heights.
• Aero cables used for synchronization.
• Self-lubricating UHMW Polyethylene sliders and bronze bush.
• Single-point safety release. Easy to unlock both columns from one column.
• Clear floor design, provide unobstructed floor space.
• Overhead safety shut-off device.
• Automatic arms restraints.
• Stackable adapters 1.5”, 2.5”, 5”as standard.

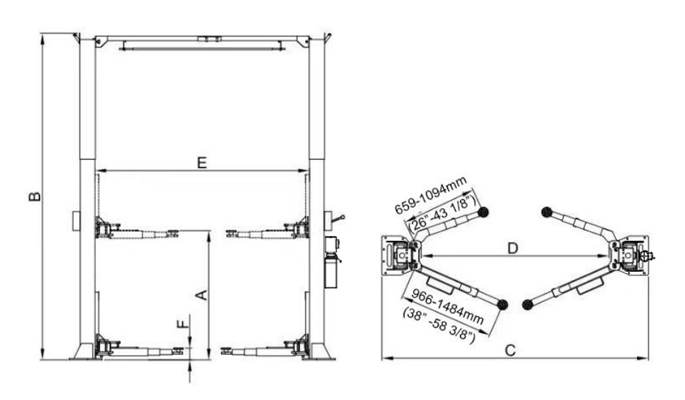

| Model 211SACH | | Clearfloor Direct-drived |
| Lifting Capacity | | 5000kg (11,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1817mm (71 1/2" ) |
| Max. Lifting height: (w/ extension adapter) | 2046mm (80 1/2" ) |
| Max. lock height: (w/o extension adapter) | 1767mm (69 1/2" ) |
| Max. lock height: (w/ extension adapter) | 1996mm (78 1/2" ) |
| Overall Height:(low setting) | B | 3635mm (143 1/8") |
| Overall Height:(Medium setting) | 3851mm (151 5/8") |
| Overall Height:(High setting) | 4066mm (160 3/32") |
| Overall Width | C | 3542mm (139 7/16") |
| Drive-Thru Clearance | D | 2495mm (98 1/4") |
| Width Between Columns | E | 2850mm (112 7/32") |
| Minimum Pad Height | F | 90mm (3 1/2") |
| Gross Weight | | 925kg (2,039 lbs) |
| Motor | | 2.0HP/4.0HP |
| QTY of Container | | 20 Units/20'GP |
| Packing Dimension | | 2950 X 540 X 780 mm |
