212C
CLEAR FLOOR DIRECT-DRIVED TWO-POST LIFT
The new 212C is an especially robust lift that can easily lift up heavy duty vehicles and trucks.
Thanks to Peak 3in1 technology, it also integrates with 3 adjustable heights for various demands.
The strengthened three-stage arms are flexible adjusted to service different vehicles.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

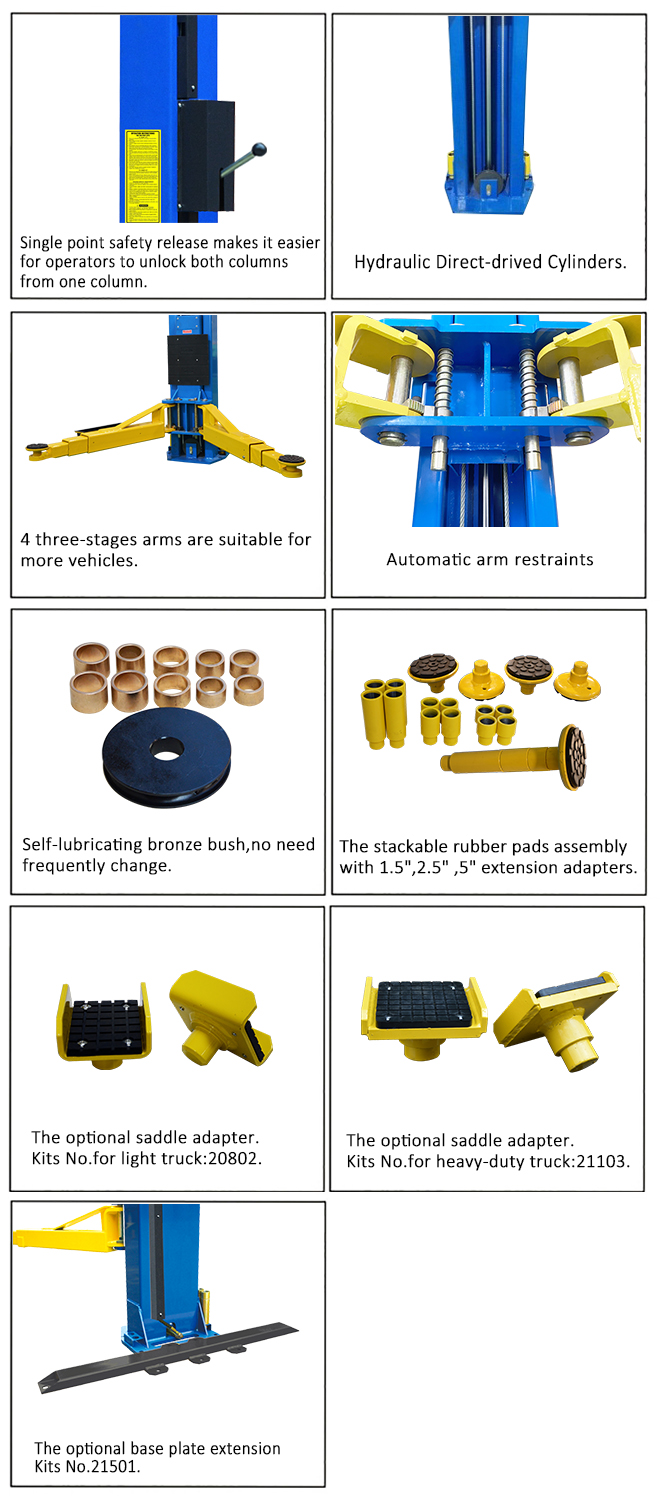

• Heavy duty design, 5500kg (12,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Overhead safety shut-off device prevents vehicle damage;
• The width between columns is extremely wide over 3100mm ;
• Extremely high design, comes standard with 3 adjustable heights settings;
• 3in1 aero cables are used for synchronization ;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Single-screw rubber pad with pin dia 50mm, comes with 3" and 6" extension adapter;
• Saddle adapters also come as standard.
• Automatic arms restraints;
• Toe guards and tool trays come as standard.
Model 212C | | Clearfloor Direct-drived |
Lifting Capacity | | 5500kg (12,000 lbs) |
Lifting Time | | 69s |
Max. Lifting height: (w/o extension adapter) | A | 1842mm (72 1/2")~1876mm(73 7/8") |
Max. Lifting height: (w/ extension adapter) | 2071mm (81 17/32")~2105mm(82 7/8") |
Max. lock height: (w/o extension adapter) | 1792mm (70 9/16")~1826mm(73 5/16") |
Max. lock height: (w/ extension adapter) | 2021mm (79 9/16")~2055mm(80 15/16") |
Overall Height:(low setting) | B | 4420mm(174") |
Overall Height:(Medium setting) | 4725mm (186") |
Overall Height:(High setting) | 5030mm (198") |
Overall Width | C | 3829mm (150 3/4") |
Drive-Thru Clearance | D | 2787mm (109 3/4") |
Width Between Columns | E | 3137mm (123 1/2") |
Minimum Pad Height | F | 102mm (4") |
Gross Weight | | 1064kg (2,346 lbs) |
Motor | | 3.0HP |
QTY of Container | | 14 Units/20'GP |
Packing Dimension | | 2950 X 540 X 1065 mm |
