121
208C

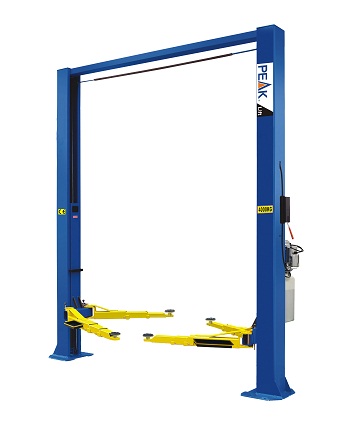

Clear Floor two post lift
Starts your success
A reliable lift, manufactured under PEAK's princinple of world class car lifts, is the key to starting your success. It can easily handle your busy daily service for most vehicle in the market with simple opeation, strong safety design and durability in use. It's equipped with 4 three-stage arms and Single-point lock release mechanism.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

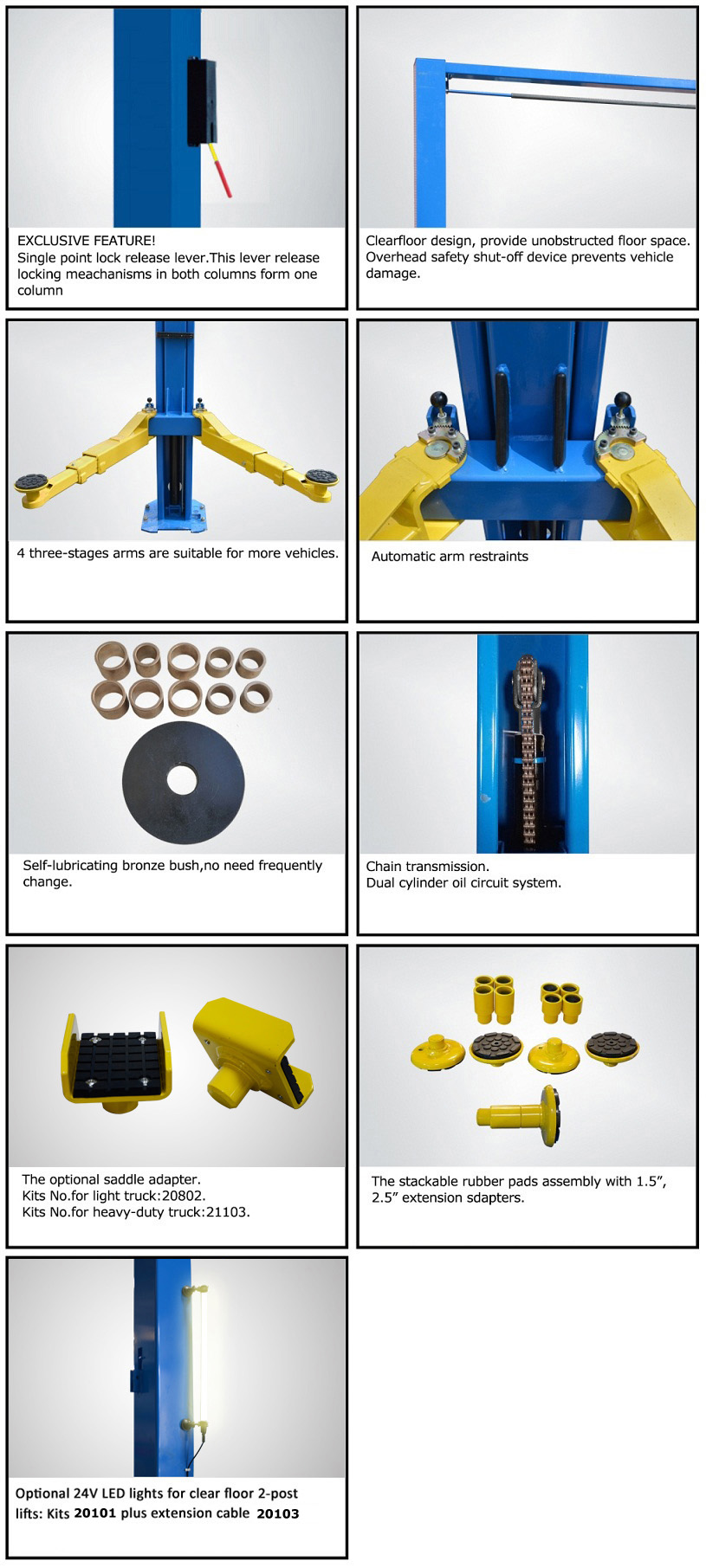

• 4000kg (9,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;
• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Overhead safety shut-off device prevents vehicle damage;
• Extremely long carriages are equipped to enhance the stability and durability;
• Aero cables are used for synchronization ;
• Self-lubricating UHMW polyethylene sliders and bronze bush;
• Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Single-screw rubber pad with pin dia. 38mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

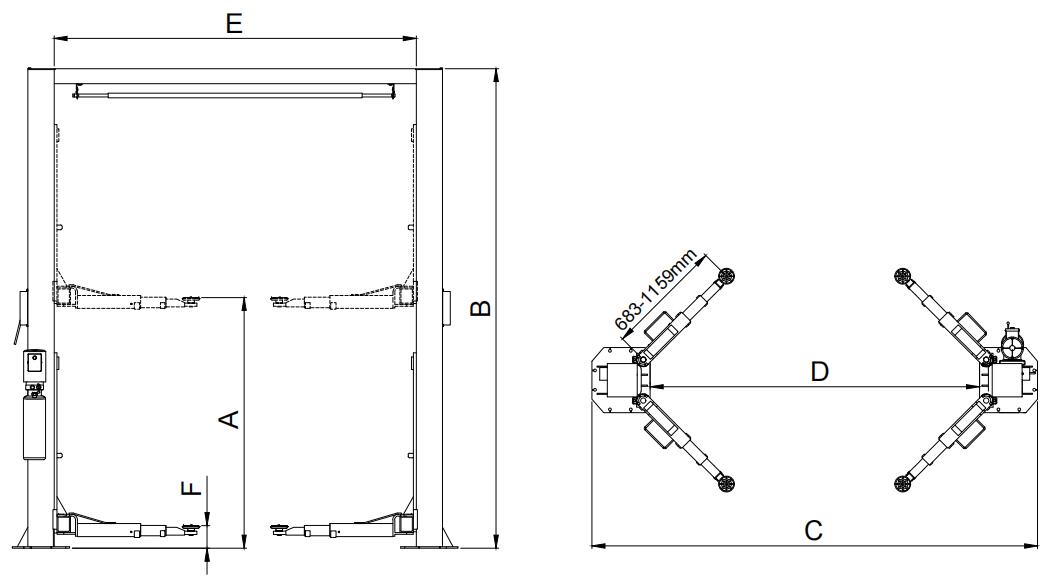

| Model 208C | | Clear Floor two post lift |
| Lifting Capacity | | 4000kg (9,000 lbs) |
| Lifting Time | | 37s |
| Max. Lifting height: (w/o extension adapter) | A | 1814mm(71 7/16" )~1846mm(72 11/16") |
| Max. Lifting height: (w/ extension adapter) | 1890mm(74 5/8")~1922mm(75 11/16") |
| Max. lock height: (w/o extension adapter) | 1774mm(69 13/16" )~1806mm( 71 1/8") |
| Max. lock height: (w/ extension adapter) | 1850mm(72 13/16" )~1882mm(74 1/16") |
| Overall Height | B | 3602mm (141 13/16") |
| Overall Width | C | 3390mm (133 1/2") |
| Drive-Thru Clearance | D | 2554mm (100 9/16") |
| Width Between Columns | E | 2780mm (109 7/16") |
| Minimum Pad Height | F | 89mm (3 1/2") |
| Gross Weight | | 621kg (1,369 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 15 Units/20'GP
40 Units/40'GP |
| Packing Dimension | | 3660 X 450 X 750 mm |
