ALIGNMENT FOUR-POST LIFT
As another line of PEAK family, our four post lifts share the same name of quality, longevity, safety and with more flexible option.
The PEAK model 409A delivers the ultimate in convenience, versatility, safety and durability, you can raise your alignment business to peak performance levels. Capable of lifting vehicles weighing up to 9,000 lbs., the model 409A has the power and reliability to expand coverage from cars, light trucks, and most motor homes.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

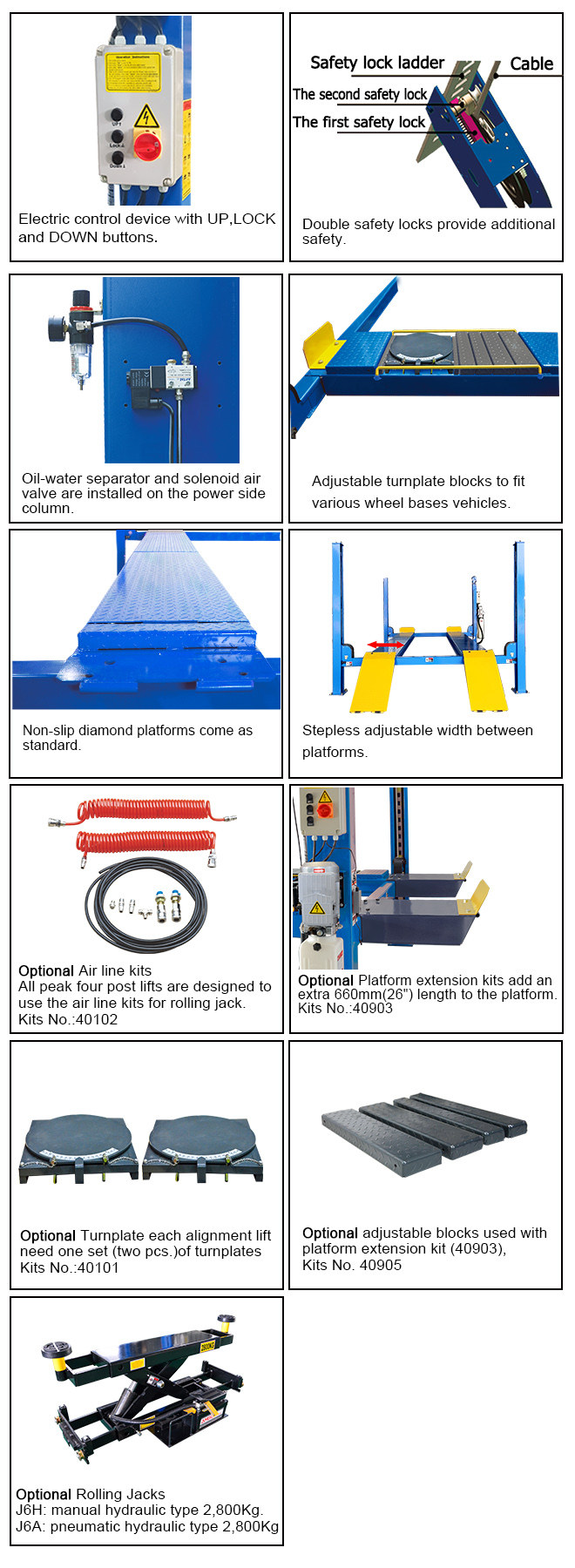

• Electric-air control operation system.
• Mechanical self-lock and air-drived safety release.
• Electrical hydraulic power system, cable-drived.
• Skid proof diamond platform.
• Adjustable turntable positions to fit the different wheel base.
• Adjustable lifting platform: Off-side platform can be adjusts the mounting position left or right as required. The standard distance between two platforms is 1100mm and maximum distance is 1300mm.
• Dual safety device: In case the primary safety locks are out of operation,the lift would also be locked automatically by a second safety device.
• Optional Jack and Turnplate.
| Model 409A | Alignment Four-post Lift |
| Lifting Capacity | 4000kg (9,000 lbs) |
| Lifting Time | 45 S |
| Overall Length (Inc Ramps) A | 5512mm (217") |
| Overall Length (No Ramps) B | 4600mm (181 1/8") |
| Overall Width C | 3208mm (126 1/4") |
| Width Between Columns D | 2852mm (112 1/4") |
| Max.Lifting Height E | 1915mm (75 3/8") |
| Overall Height F | 2185mm (86") |
| Minimum Height G | 220mm (8 5/8") |
| Max.Underneath Height H | 1724mm (67 7/8") |
| Drive-Thru Clearance I | 2498mm (98 3/8") |
| Width Between Runways J | 1100mm (43 1/4") /Max.1300mm (51 1/8") |
| Outside Edge of Runways K | 2116mm (83 1/4")/Max.2316mm (91 1/8") |
| Min. Four Wheel Align L | 2000mm (78 3/4") |
| Max. Four Wheel Align M | 3460mm (136 3/4") |
| Max. Two Wheel Align N | 3600mm (141 3/4") |
| Gross Weight | 1147Kg (2,529 lbs) |
| Motor | 3.0 HP/2.0HP |
| QTY of Container | 12 Units/20'GP |
| Packing Dimension | 4700 X 560 X 715 |
