PX12A

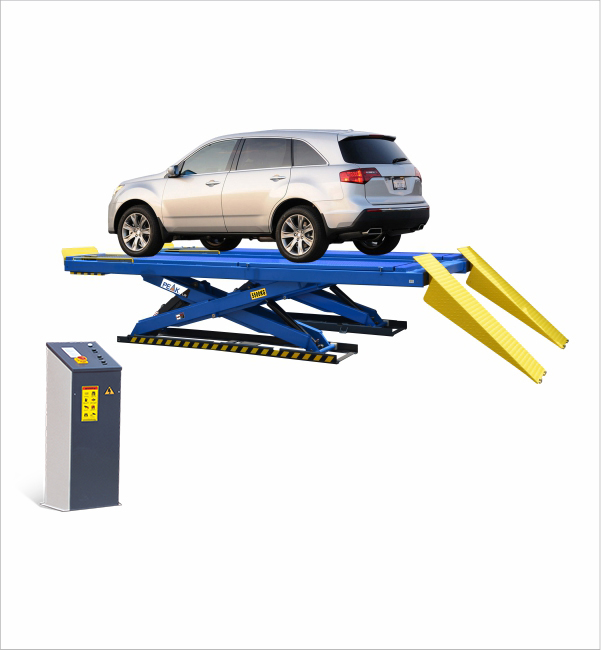

ALIGNMENT SCISSORS LIFT
The Heavy-duty scissors lifts use four cylinders to support and each both cylinders are designed working synchronously.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

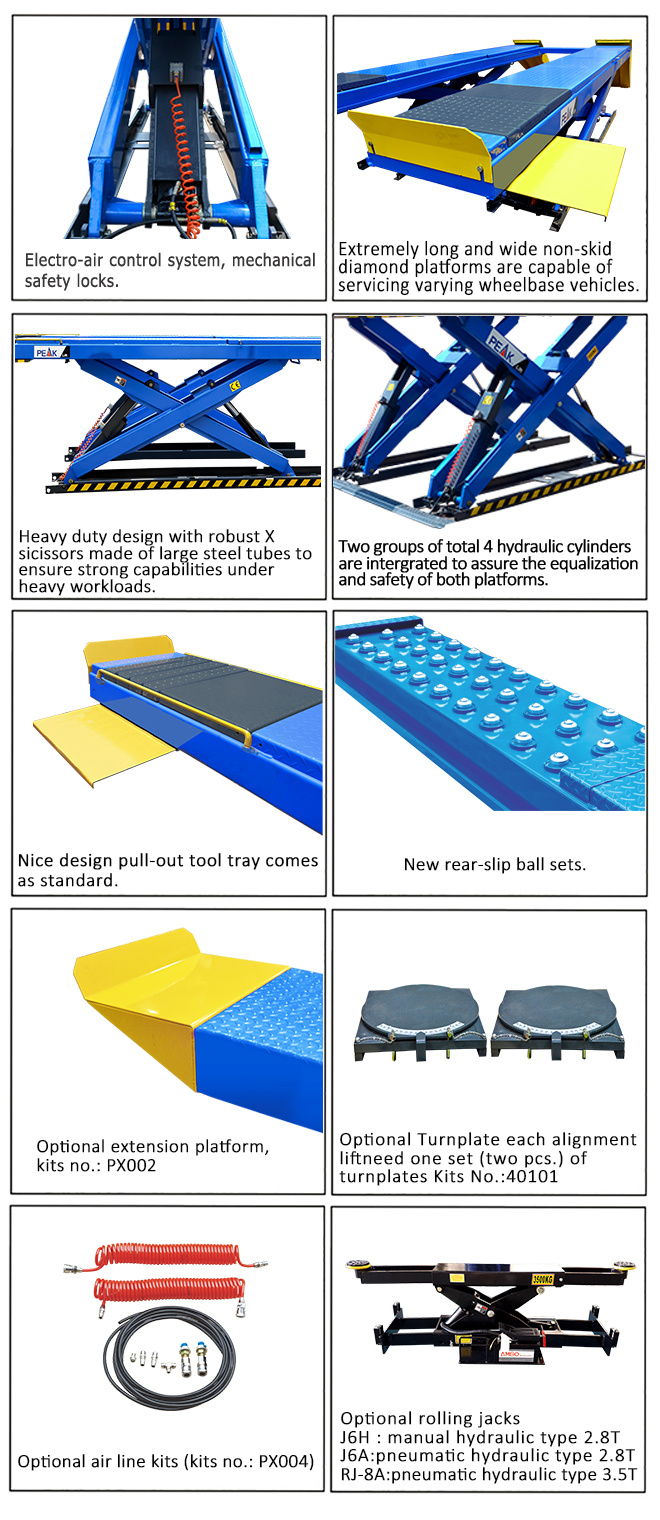

• 2-dual synchronous cylinders are applied to assure the lifting level on both platforms.
• Electro-air control system, safety self-lock mechanism.
• Skid proof diamond runway.
• Integrated rear slip-plates.
• Heavy duty design,the X serial scissors lifts use 150 x75 mmtube to make it strong
and assure the runways remain level during working.
• Optional Jack and Turnplate.
| Model PX12A | Alignment Scissors Lift |
| Lifting Capacity | 5500kg (12,000 lbs) |
| Lifting Time | 75s |
| Max. Lifting Height | A1 1870mm (73 5/8") |
| Minimum Height | A2 300mm (11 3/4") |
| Runway Length | B 5018mm (197 1/2") |
| Overall Width | C 2290mm (90 1/8") |
| Width Between Runways | D 1040mm (41") |
| Overall Length(Inc. Ramps) | E 6554mm (258") |
| Min. Four Wheel Align | F 2080mm (81 7/8") |
| Max. Four Wheel Align | G 4260mm (167 3/4") |
| Max. Two Wheel Align | H 4420mm (174") |
| Gross Weight | 2624kg (5,785 lbs) |
| Motor | 4.0HP |

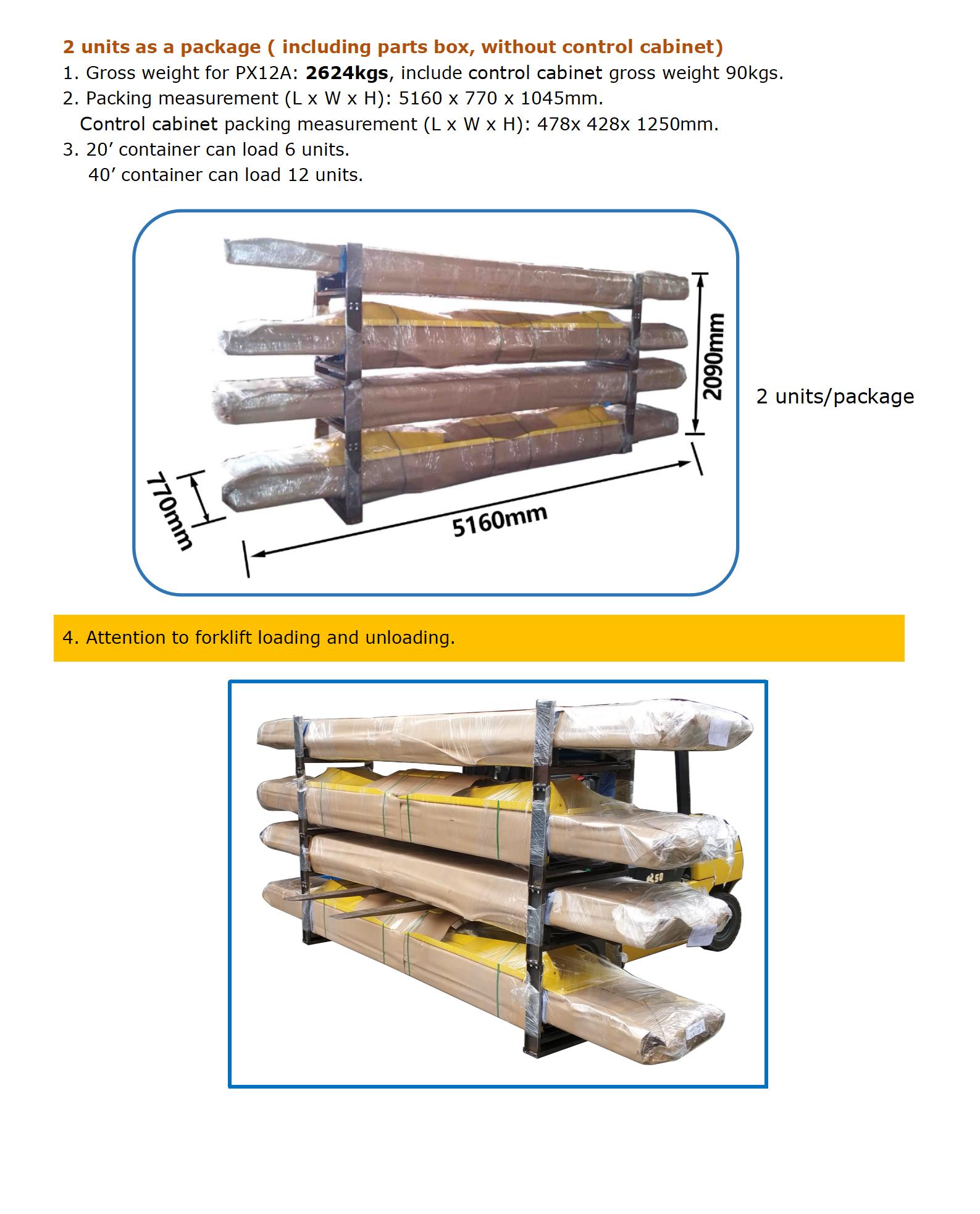

| QTY Of Container | 6 Units/20'GP |
| Packing Dimension | 5160 X 770 X 1045mm |
| Packing Dimension | 478 X 428 X 1235 mm (Control Cabinet) |
| | |
|
|
