SX07

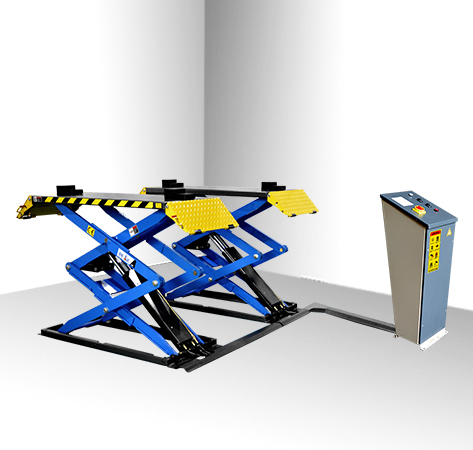

Full rise surface-mount scissors lift
Safe for everywhere
This full-rise lift provides a excellent height and unobstruct access for working underneath vehicles. It is ideal for limited space and perfect for tire and body works. With its low profile design, it also ensures an easy access for various vehicles, include low chassis vehicles. The sturdy structure is equipped with PEAK hydaulic lock technology, delivering exceptional performance and ensuring safety at anywhere.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

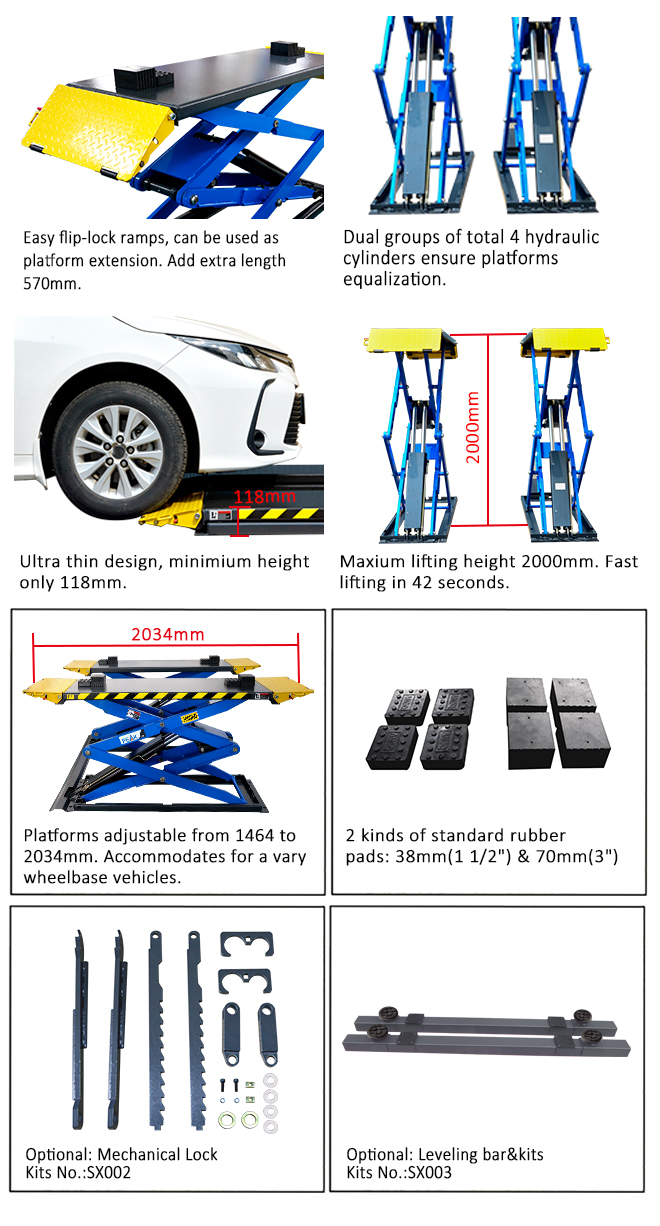

● Lifting capacity: 3000KG(7,000lbs)
● Dual groups of total 4 hydraulic cylinders ensure platforms equalization.
● Automatic electrical safety device control. No need extra air.
● Automatic hydraulic safety lock system.
● Low profile design. Minimum height only 115mm
● Full rise scissors. Max lifting height: 2000mm
● Strong ramps can easy fixed and used as extension platform, extended to a total length 2032mm.
● Automatic safety stop device at 300mm from ground when lowering.

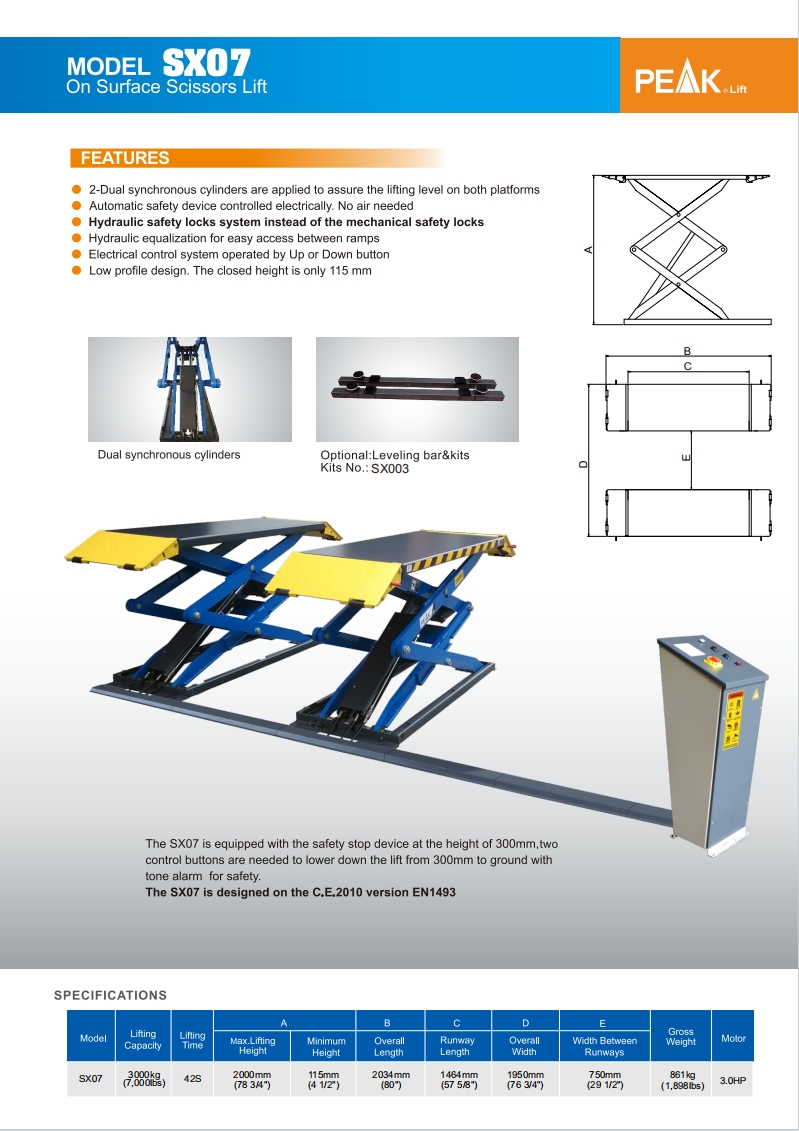

| Model | SX07 |
| Lifting Capacity | 3000kg |
| Lifting Time | 42s |
| Max. Lifting Height | A1 2000mm (78 3/4") |
| Minimum Height | A2 115mm (4 1/2") |
| Overall Length | B 2032mm (80") |
| Runway Length | C 1464mm (57 5/8") |
| Overall Width | D 1950mm (76 3/4") |
| Width Between Runways | E 750mm (29 1/2") |
| Gross Weight | 871kg (1,920 lbs) |
| Motor | 3.0HP |
| QTY of Container | 28 Units/20'GP |

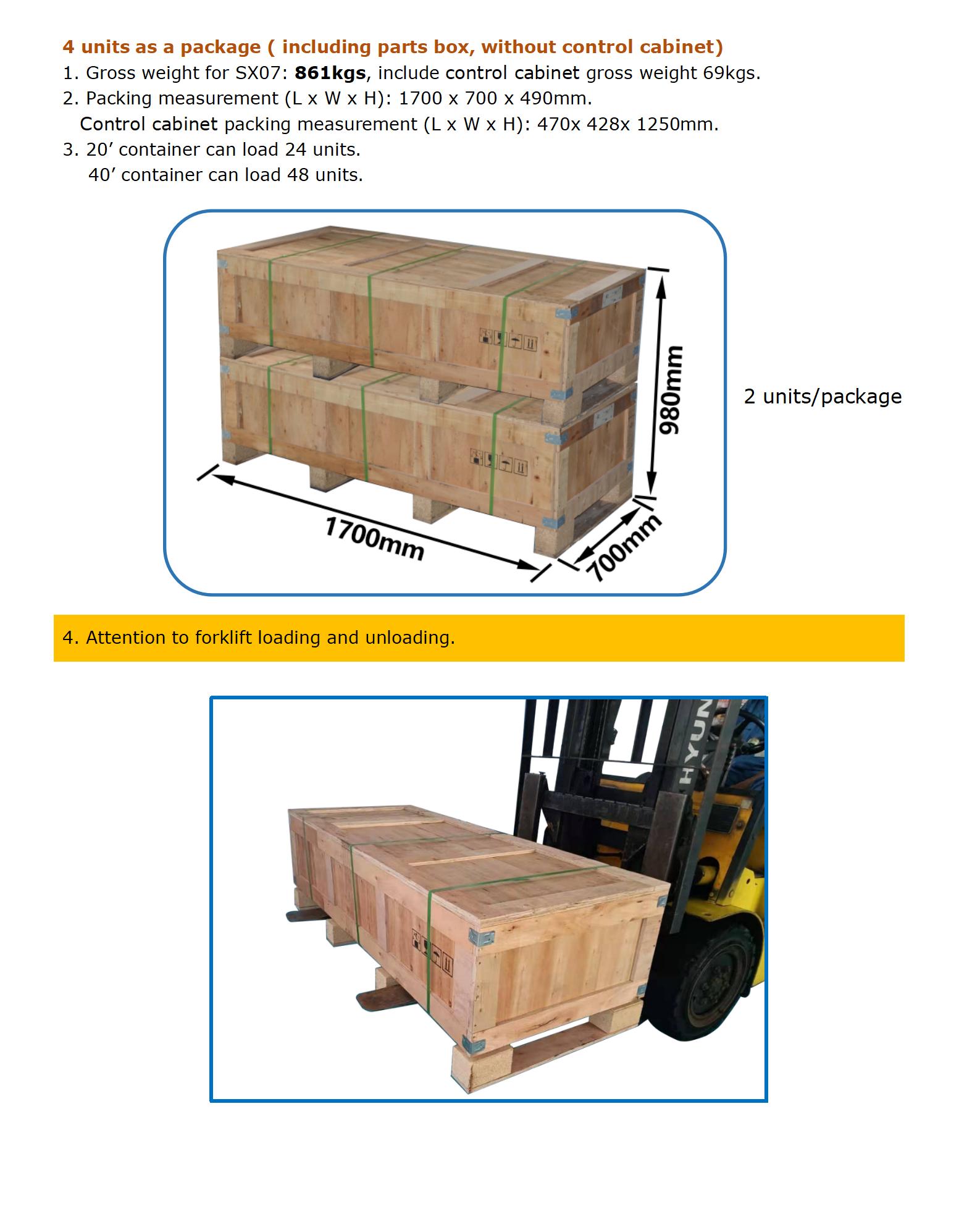

| Packing Dimension | 1700x700x490mm(Lift) |
| Packing Dimension | 1250x478x428mm(Control Cabinet) |
| | |
