235
PX09

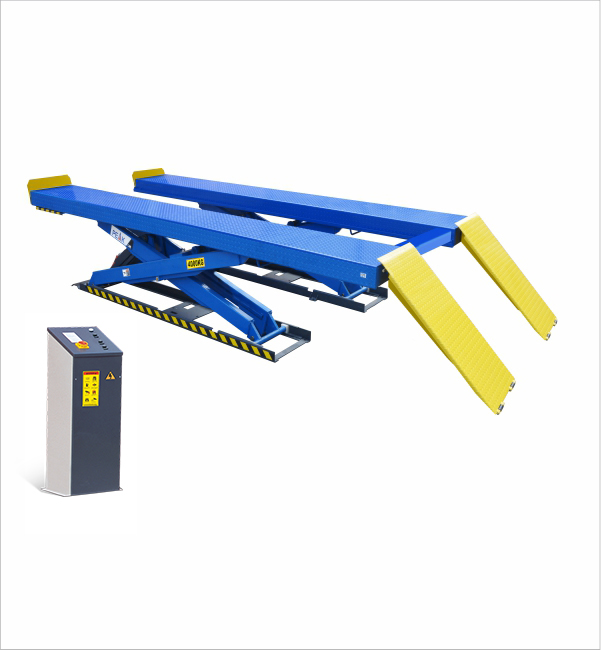

NON-ALIGNMENT SCISSORS LIFT
PEAK Scissors lifts, the same as PEAK other lifts, adhere to the principle of safety, durability, convenience and best performance. By the strict control of design, material-selection, manufacturing and examination, assure PEAK Scissors lifts offer you the best quality.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

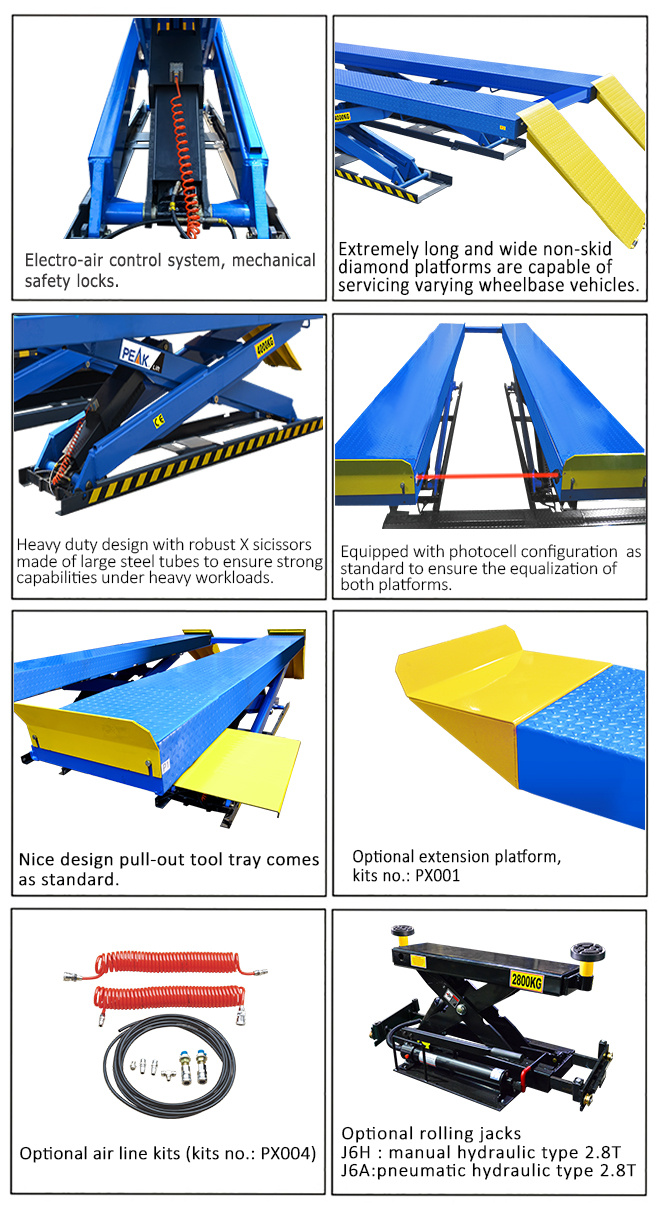

• Dual synchronous cylinders are applied to assure the lifting level on both platforms.
• Electro-air control system, mechanical safety locks.
• Non-skid diamond platform to avoid skidding.
• Heavy duty design, the X serial scissors lifts use large steel tube to make it strong and
assure the runways remain level during working.
• Optional Jack.
| Model PX09 | Non-alignment Scissors Lift |
| Lifting Capacity | 4000kg (9,000 lbs) |
| Lifting Time | 55 Seconds |
| Max. Lifting Height | A1 1870mm (73 5/8") |
| Minimum Height | A2 300mm (11 3/4") |
| Runway Length | B 4828mm (190 3/4") |
| Overall Width | C 2190mm (86 1/4") |
| Width Between Runway | D 940mm (37") |
| Overall Length(Inc. Ramps) | E 6594mm (259 5/8") |
| Gross Weight | 1835kg(4,045 lbs) |
| Motor | 3.0HP |
| QTY of Container | 6 Units/20'GP |

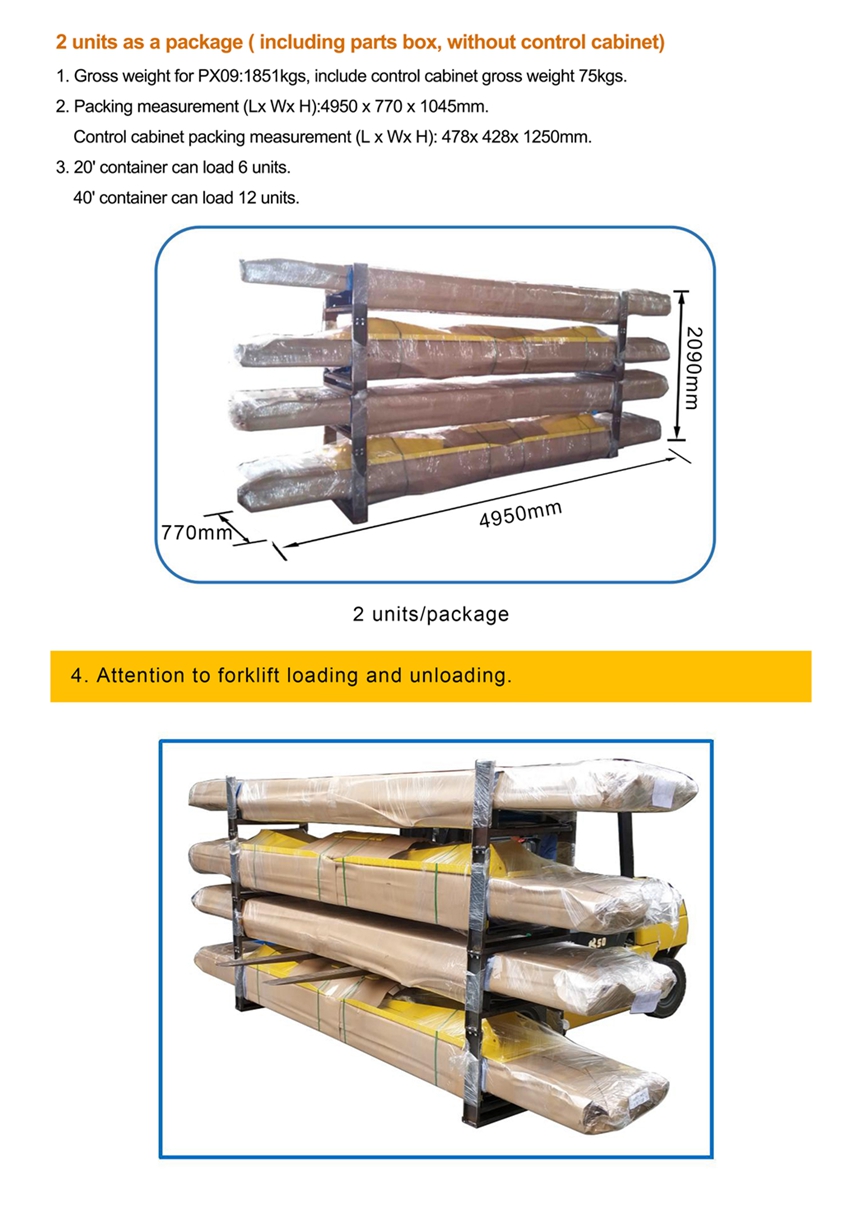

| Packing Dimension | 4950 x 770 x 1045mm |
| Packing Dimension | 478 X 428 X 1235mm(Control Cabinet) |
| | |
