J6A
J6A is a low profile rolling Jack with 6,000-lbs (2.8T) capacity that making it a perfect supplement to any four-post & scissors lifts with capacity less than 12,000lbs(5.5T).
It uses our patent ‘float rolling’ design technology to make the jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
| Model | | J6A |
| Lifting Capacity | | 2800kg (6,000 lbs) |
| Lifting Time | | 50s |
| Arm Pads Reach | A | 840-1357mm (33 1/8-53 3/8”) |
| Min.Height | B | 210mm (8 1/4") |
| Support Base Width | C | 854-1342mm (33 5/8"-52 7/8") |
| Min.rubber pad Height | D | 215mm (8 1/2") |
| Max. Lifting Height (Without adapters) | E | 445mm (17 1/2") |
| Max. Lifting Height (With adapters) | | 547mm (212 1/2") |
| Overall Width | F | 510mm (20”) |
| Air Pressure | | 0.8Mpa |
| Pump | | Pneumatic Pump |

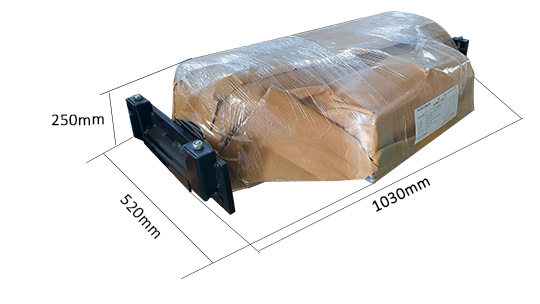

Gross weight for J6A: 116kgs
