J6A
J6A is a low profile rolling Jack with 2800kg (6,000-lbs) capacity that making it a perfect supplement to any four-post & scissors lifts with capacity less than 5500kg (12,000lbs).
It uses our patent float rolling design technology to make the jack smoothly moved on the rail and sitting in the groove stably when lifting a vehicle.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise

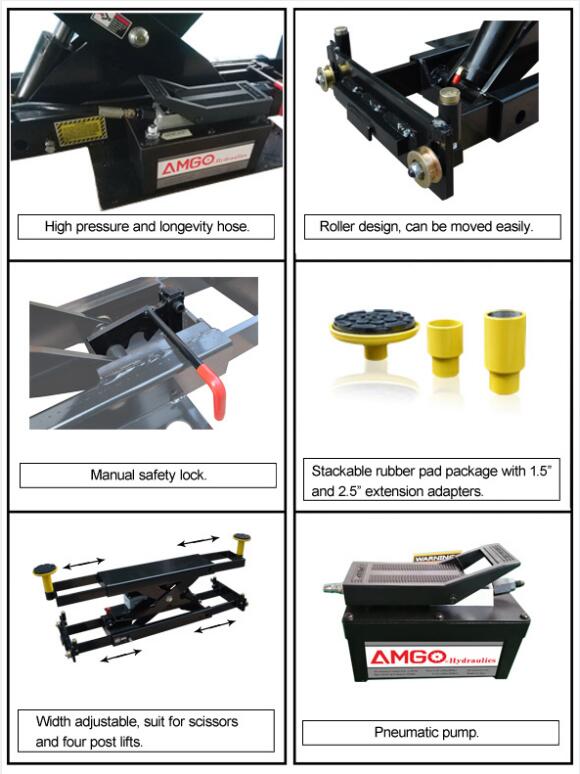

● Equipped with pneumatic hydraulic pump.
● Come standard with 2.5" extension adapters & durable Rubber Pads Assy.
● Adjustable arms for easy position and adjust to the desired supporting point
● Manual safety lock provides two lock positions that convenient you to find the comfortable work height.
● Extendable lower sliding Assy. fitting for width between runways from 856mm to 1,342mm .
● Ergonomically guardrail help to protect oil hose as well as for easily moving the Jack.
| Model | | J6A |
| Lifting Capacity | | 2800kg (6,000 lbs) |
| Lifting Time | | 22s |
| Arm Pads Reach | A | 840-1357mm (33 1/16"-53 7/16”) |
| Min.Height | B | 215mm (8 7/16") |
| Support Base Width | C | 848-1330mm (33 3/8"-52 3/8") |
| Min.rubber pad Height | D | 224mm (8 13/16") |
| Max. Lifting Height (Without adapters) | E | 456mm (17 15/16") |
| Max. Lifting Height (With adapters) | | 520mm (20 1/2") |
| Overall Width | F | 510mm (20”) |
| Gross Weight Air Pressure | | 116KG(256lbs) 0.8Mpa |
| Pump | | Pneumatic Pump |

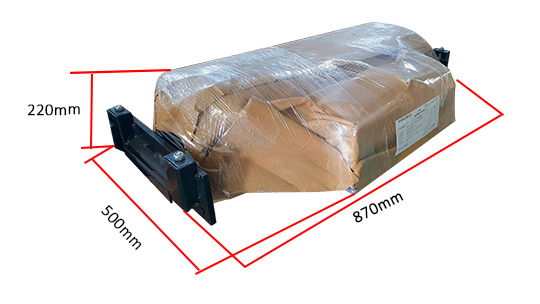

Gross weight for J6A: 116kgs
