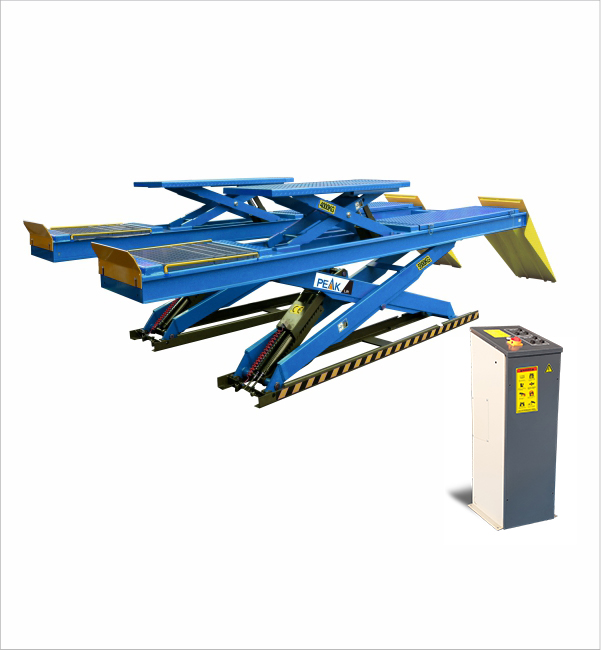

DX-5500A
DOUBLE SCISSORS ALIGNMENT LIFT
Excellent and Heavy-Duty
It's a heavy-duty version of DX-4000A, with a load capacity of up to 5500KG. It features photo cell devices for absolute synchronization. This equipment can expand your business to service larger, heavier vehicles. The built-in auxiliary scissors can lift the wheels off the runways, providing convenience for tire and suspension works.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
● Main scissors lifting capacity: 5500kg (12,000lbs)
● Secondly scissors lifting capacity: 4000kg (9,000lbs)
● Synchronization cylinders system equipped with hose burst valves.
● 24V control system with photocells device.
● The safety stop device at the height of 600mm, both control buttons are needed to lower down the lift from 600mm to ground with tone alarm for safety.

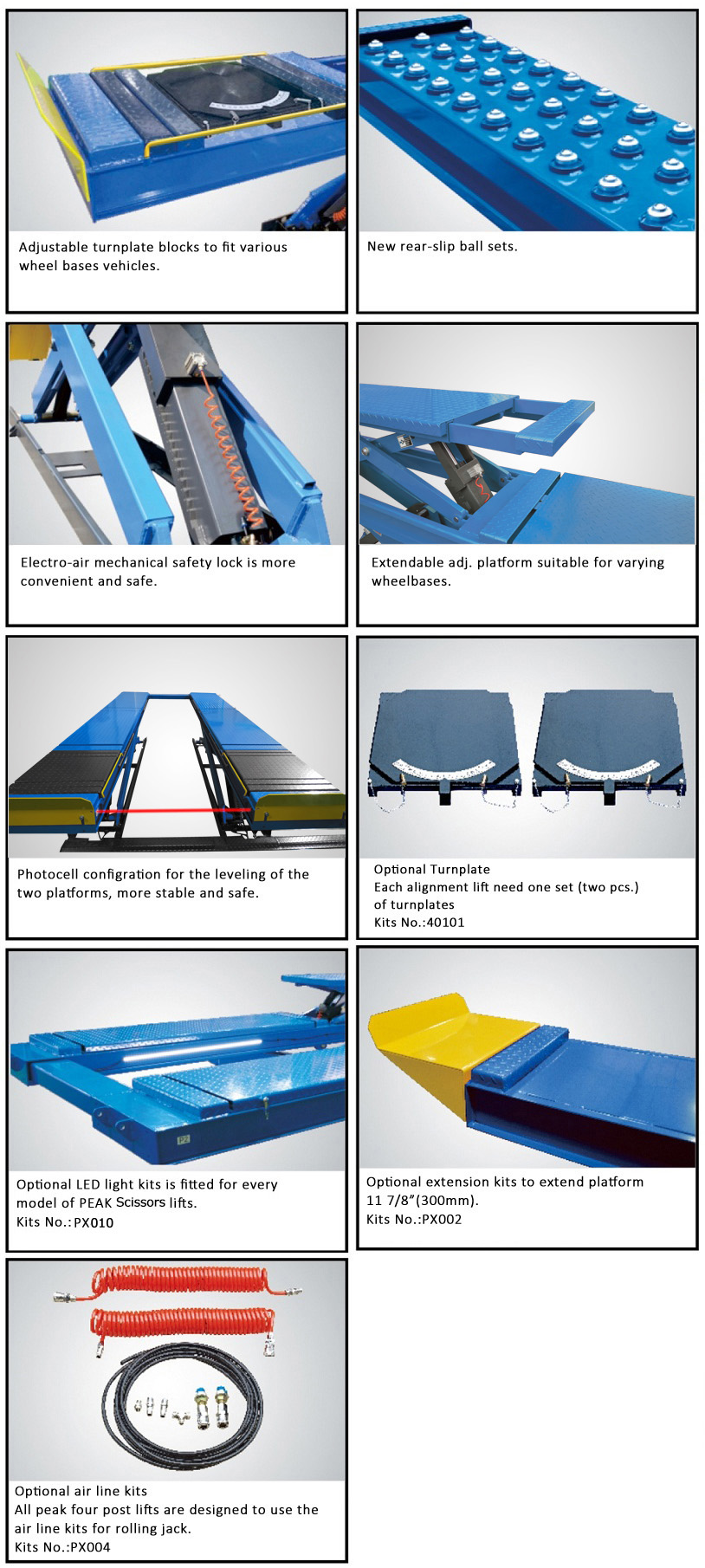

● Skid proof diamond runways and adjustable turnplate blocks.
● Self-lubricating UHMW polyethylene sliders and bronze bush.
| Model DX-5500A | Double Scissors Lift |
| Lifting Capacity | 5500kg (12,000 lbs) |
| Lifting Time | 64s |
| Max. Lifting Height | A1 1870mm (73 5/8") |
| Minimum Height | A2 320mm (12 5/8") |
| Runway Length | B 4991mm (196 1/2") |
| Overall Width | C 2190mm (86 1/4") |
| Width Between Runways | D 940mm (37") |
| Overall Length (Inc. Ramps) | E 6527mm (257") |
| Min. Four Wheel Align | F 2180mm (85 7/8") |
| Max. Four Wheel Align | G 4230mm (166 1/2") |
| Max. Two Wheel Align | H 4390mm (172 7/8") |
| Lifting Capacity Of Sub Lift | 4000kg (9,000 lbs) |
| Lifting Height Of Sub Lift | I 420mm (16 1/2") |
| Runway Length Of Sub Lift | J 1600~1880mm (63"~74”) |
| Gross Weight | 2588kg (5,706 lbs) |
| Motor | 3.0HP |
| QTY Of Container | 6 Units /20'GP |
| Packing Dimension | 5240 X 770 X 1045 mm |
