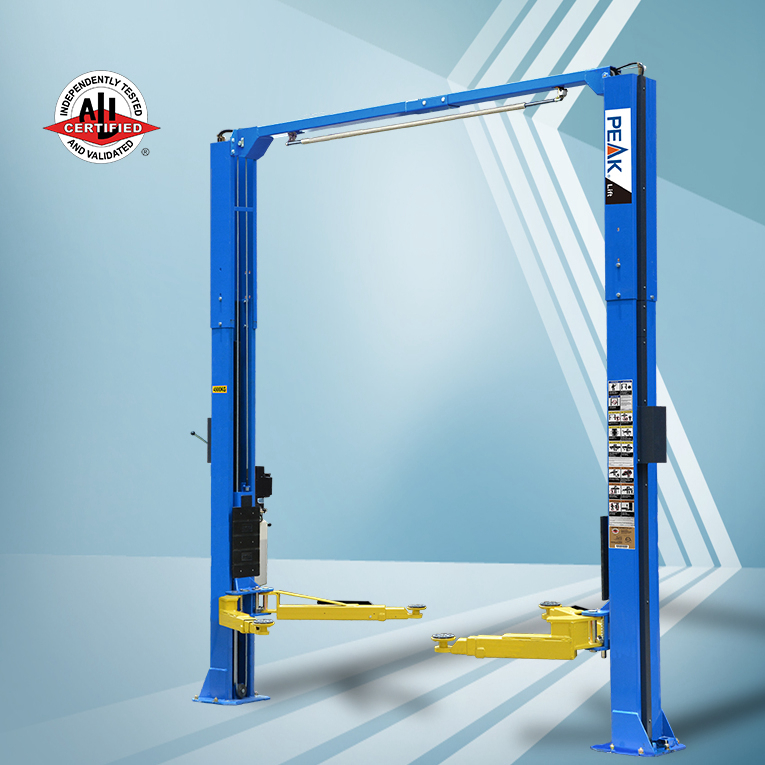

PEAK Manufacturer for Car Lifts

• 4500kg (10,000lbs) capacity.
• Dual hydraulic direct-drived cylinders made on high standard.
•

to load different vehicles in an asymmetric or symmetric configuration.
• Aero cable used for synchronization.

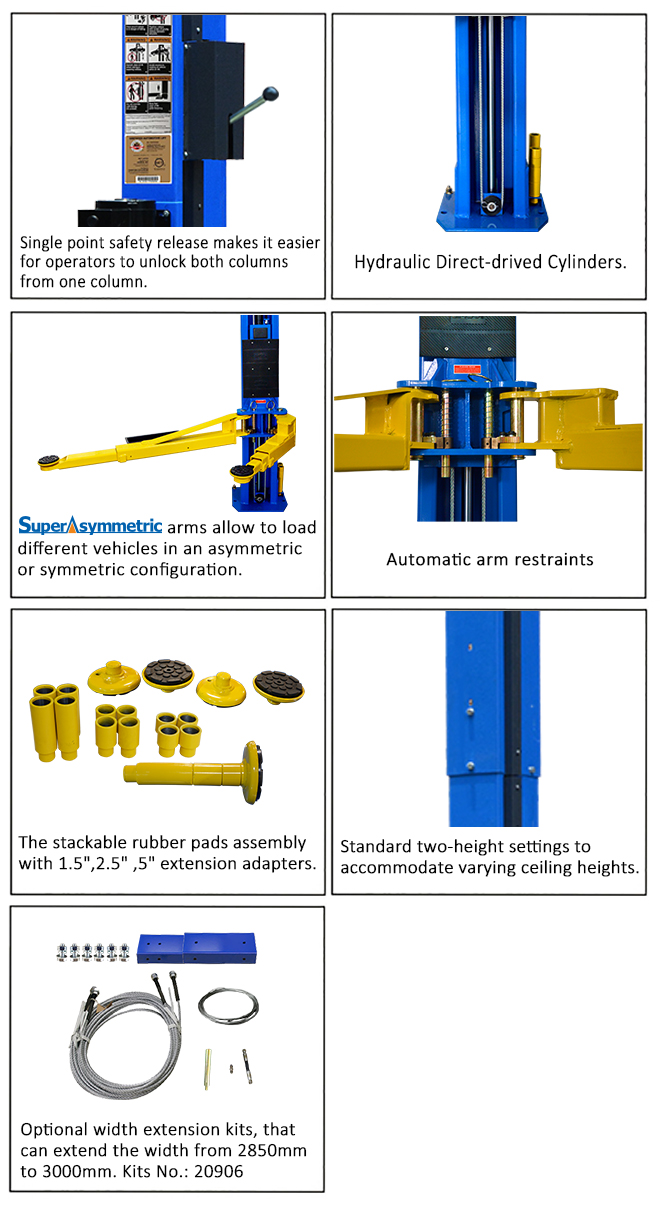

• Single-point safety release, allow technican to disengage both column simultaneously.
• Self-lubricating UHMW Polyethylene sliders.
• Clear-floor design, provide unobstructed floor use.
• Overhead safety shut-off device prevents vehicle damage.
• Stackable rubber pads and 1.5'',2.5'',5''adapters as standard supply.
• Standard two height settings accommodate varying ceiling heights.
• Standard door guards.
• Standard toe guards on lifting arms.

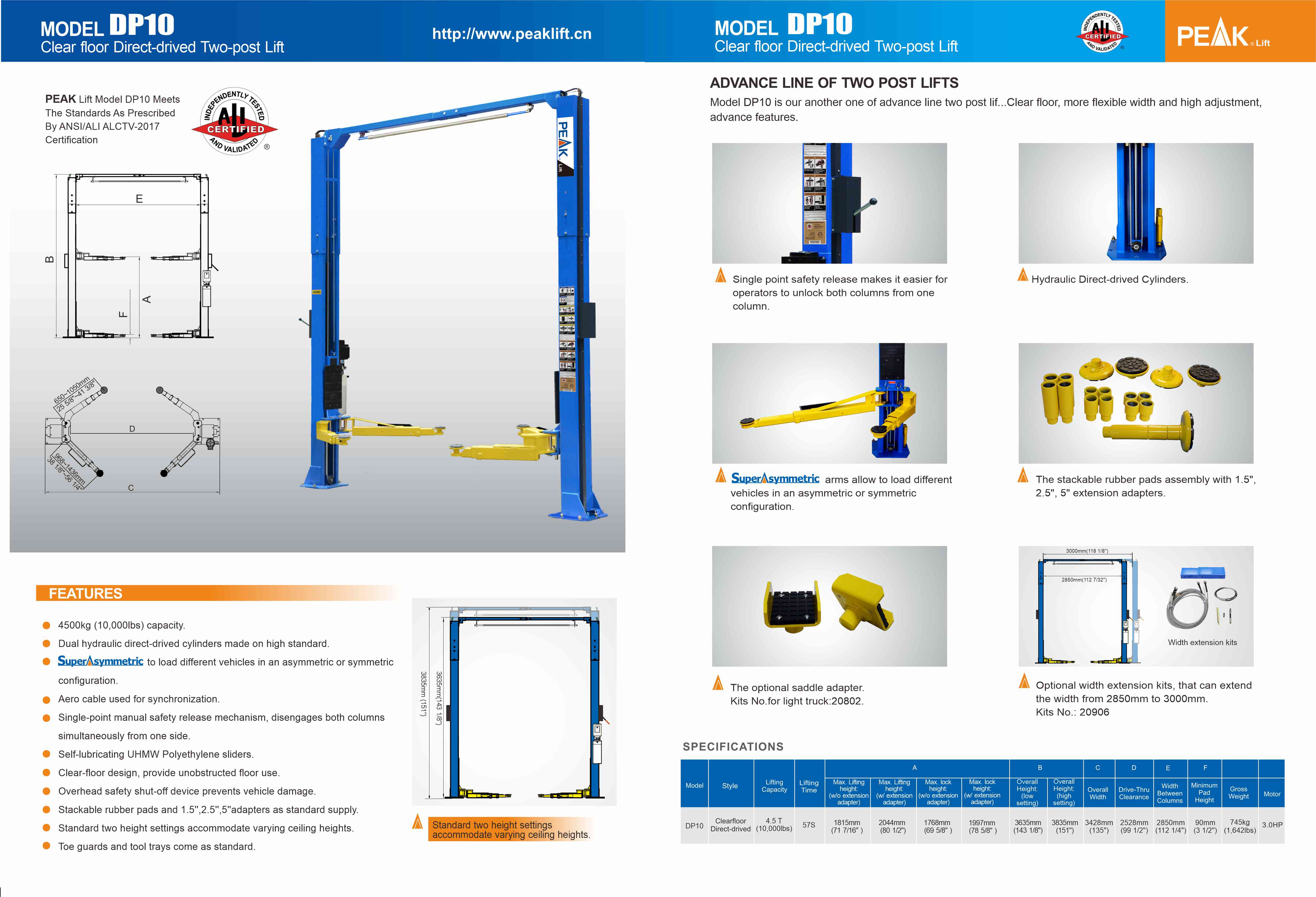

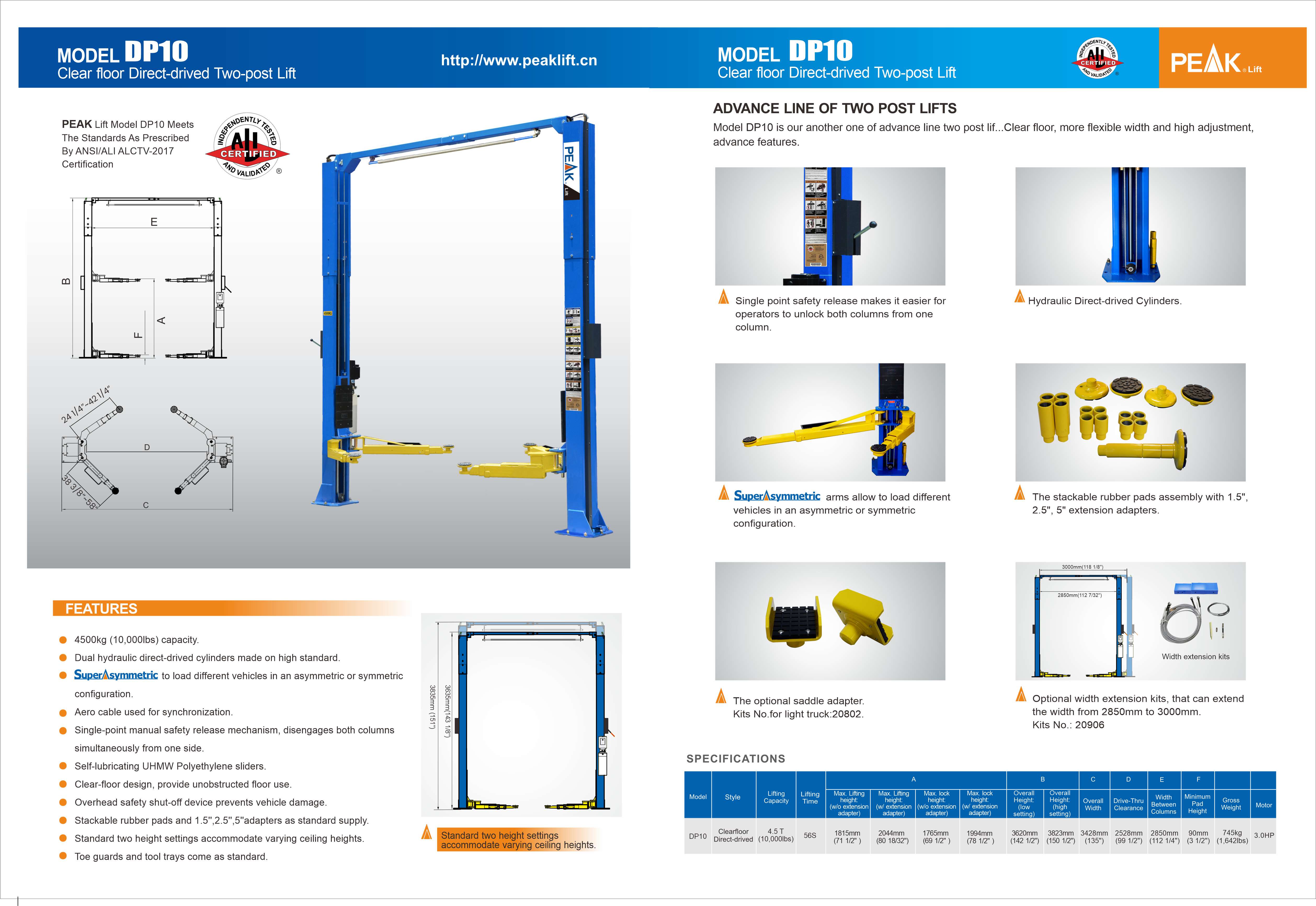

Model DP10		Clearfloor Direct-drived
Lifting Capacity		4500kg (10,000 lbs)
Lifting Time		57s

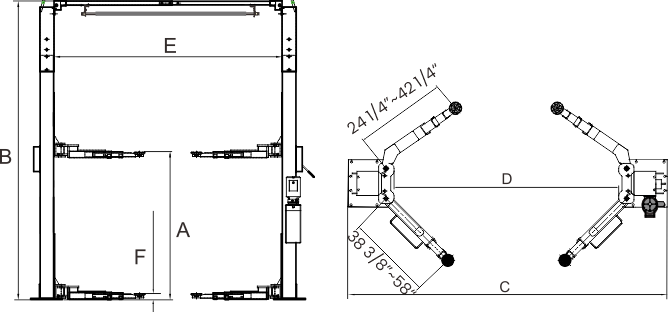

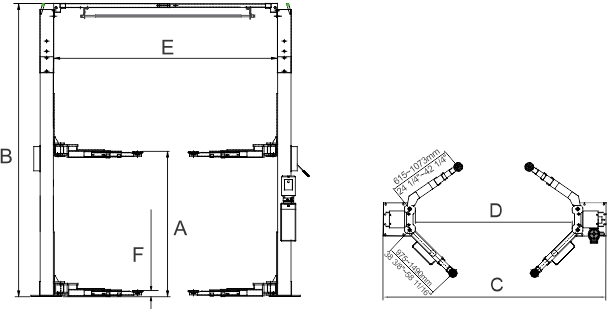

Max. Lifting height: (w/o extension adapter)	A	1815mm (72 15/32" )
Max. Lifting height: (w/ extension adapter)		2044mm (80 15/32" )
Max. lock height: (w/o extension adapter)		1768mm (69 5/8" )
Max. lock height: (w/ extension adapter)		1997mm (78 5/8" )
Overall Height:(low setting)	B	3635mm (143 1/8")
Overall Height:(Medium setting)	B	3835mm (151")
Overall Width	C	3428mm (135")
Drive-Thru Clearance	D	2528mm (99 1/2")
Width Between Columns	E	2850mm (112 7/32")
Minimum Pad Height	F	90mm (3 9/16")
Gross Weight		745kg (1,642 lbs)
Motor		3.0HP

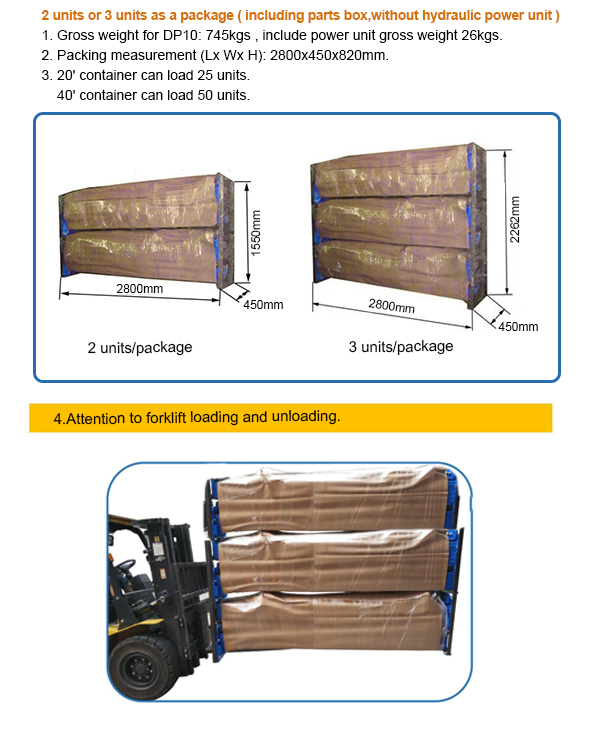

QTY of Container		25 Units/20'GP 50 Units/40'GP
Packing Dimension		2800 X 450 X 820 mm
