KHL-5500
General Service Four Post Lift
Reliable for Extensive works
Boasted a lifting capacity at 5500KG, the KHL-5500 is reliable for daily business needs, servicing various vehicles from passenger cars and light trucks to motor homes. Its robust structure is equipped with dual safety devices and diamond platforms, and featured manual lock release as standard,
ensuring safety, durability, and universality
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
● Lifting capacity: 5500KG(12,000lbs)
● Non-skid diamond platform.
● Peak patent design concealed safety lock control device, manual single-point lock release.
● Dual safety devices: both primary safety locks and cable-slack protection system.
● High quality hydraulic cylinder utilizes imported oil seals.
● No need extra air source.
● 1/2" Aero standard cables included as stanadard.
● Hidden installation of oil hoses and cables to avoid exposure outside.

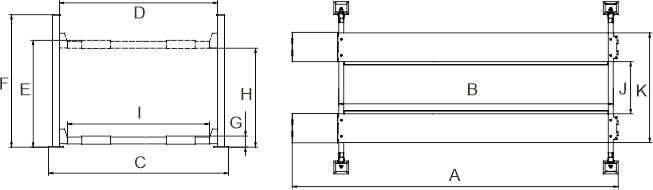

| Model KHL-5500 | | General Service Four Post Lift |
| Lifting Capacity | | 5500kg (12,000lbs) |
| Lifting Time | | 60s |
| Overall Length (Inc Ramps) | A | 6012mm (236 11/16") |
| Overall Length (No Ramps) | B | 4938mm (194 7/16") |
| Overall Width | C | 3126mm (123 1/16") |
| Width Between Columns | D | 2766mm (108 7/8") |
| Max.Lifting Height | E | 1880mm (74") |
| Max. Lock Height to top of runway | 1800mm (70 7/8") |
| Overall Height | F | 2105mm (82 7/8") |
| Minimum Height | G | 155mm (6 1/8") |
| Max.Underneath Height | H | 1740mm (68 1/2") |
| Max. Lock Underneath runway | 1660mm (65 3/8") |
| Drive-Thru Clearance | I | 2498mm (98 3/8") |
| Width Between Runways | J | 1077mm(42 7/16") |
| Outside Edge of Runways | K | 2093mm (82 7/16") |
| Gross Weight | | 1002kg (2,209lbs) |
| Motor | | 3.0 HP |
| QTY of Container | | 12 Units/20'GP 24 Units/40'GP |
|
| | |
