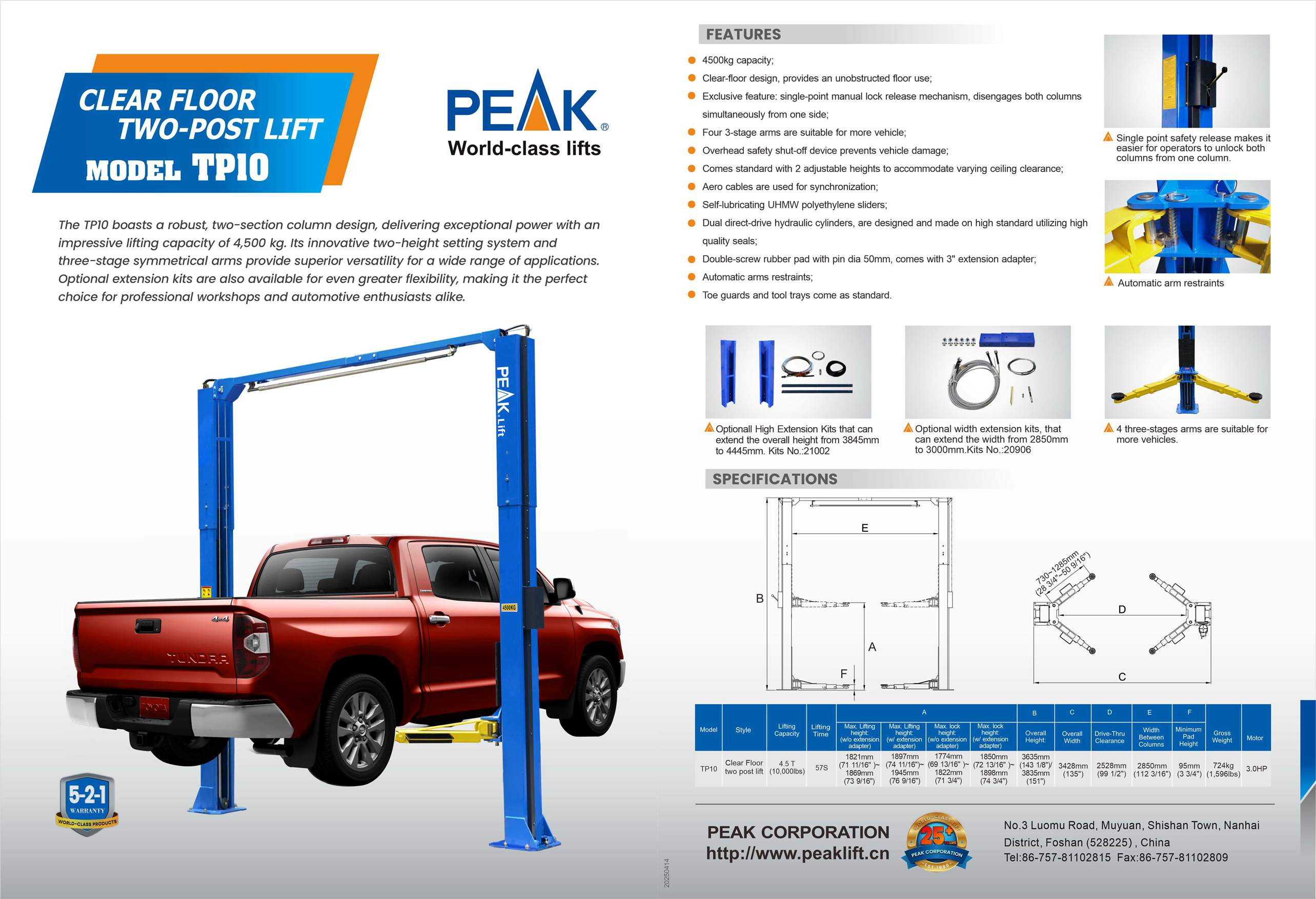

Clear Floor two post lift
The TP10 boasts a robust, two-section column design, delivering exceptional power with an impressive lifting capacity of 4,500 kg. Its innovative two-height setting system and three-stage symmetrical arms provide superior versatility for a wide range of applications. Optional extension kits are also available for even greater flexibility, making it the perfect choice for professional workshops and automotive enthusiasts alike.
Product has been successfully added to cart
Shopping Cart Total kinds of merchandise
• 4500kg (10,000 lbs) capacity;
• Clear-floor design, provides an unobstructed floor use;

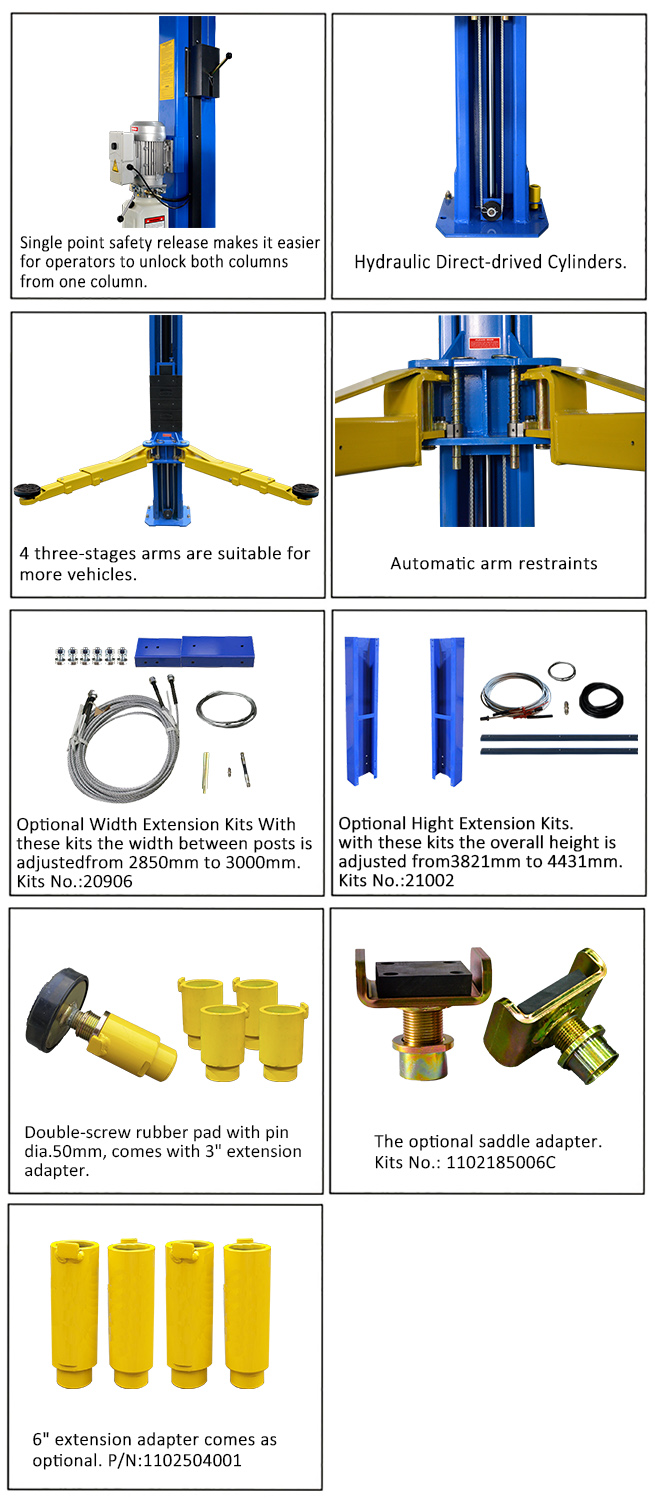

• Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
• Four 3-stage arms are suitable for more vehicle;
• Overhead safety shut-off device prevents vehicle damage;
• Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
• Aero cables are used for synchronization;
• Self-lubricating UHMW polyethylene sliders;
• Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
• Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
• Automatic arms restraints;
• Toe guards and tool trays come as standard.

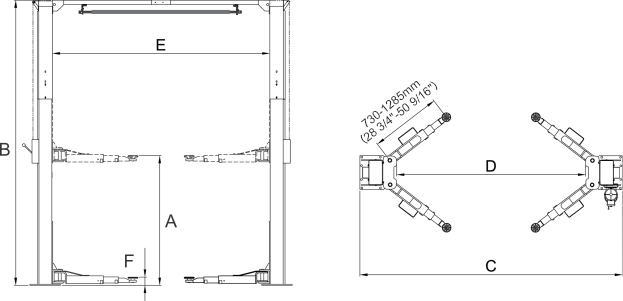

| Model TP10 | | Clear Floor two post lift |
| Lifting Capacity | | 4500kg (10,000 lbs) |
| Lifting Time | | 57s |
| Max. Lifting height: (w/o extension adapter) | A | 1821mm (71 11/16" )~1869mm(73 9/16") |
| Max. Lifting height: (w/ extension adapter) | 1897mm (74 11/16")~1945mm(76 9/16") |
| Max. lock height: (w/o extension adapter) | 1774mm (69 13/16" )~1822mm(71 3/4") |
| Max. lock height: (w/ extension adapter) | 1850mm (72 13/16" )~1898mm(74 3/4") |
| Overall Height | B | 3635mm (143 1/8") |
| 3835mm（151"） |
| Overall Width | C | 3428mm (135") |
| Drive-Thru Clearance | D | 2528mm (99 1/2") |
| Width Between Columns | E | 2850mm (112 3/16") |
| Minimum Pad Height | F | 95mm (3 3/4") |
| Gross Weight | | 724kg (1,596 lbs) |
| Motor | | 3.0HP |
| QTY of Container | | 25 Units/20'GP
50 Units/40'GP |

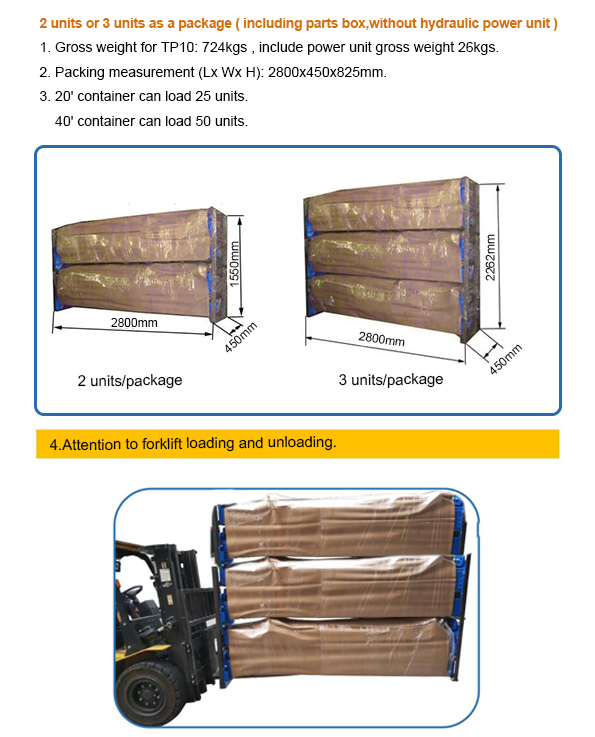

| Packing Dimension | | 2800 X 450 X 825 mm |
