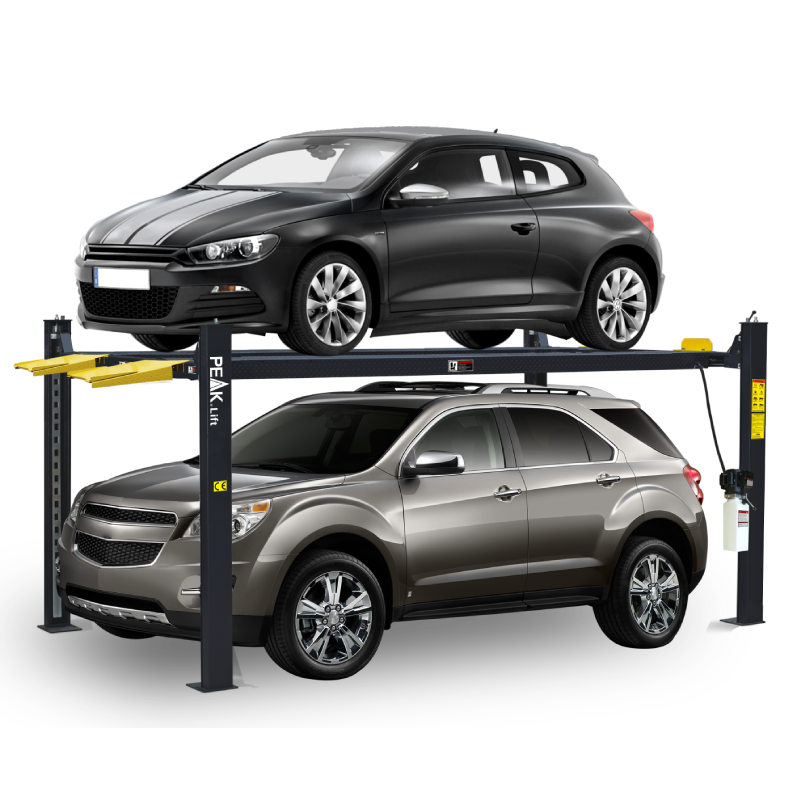

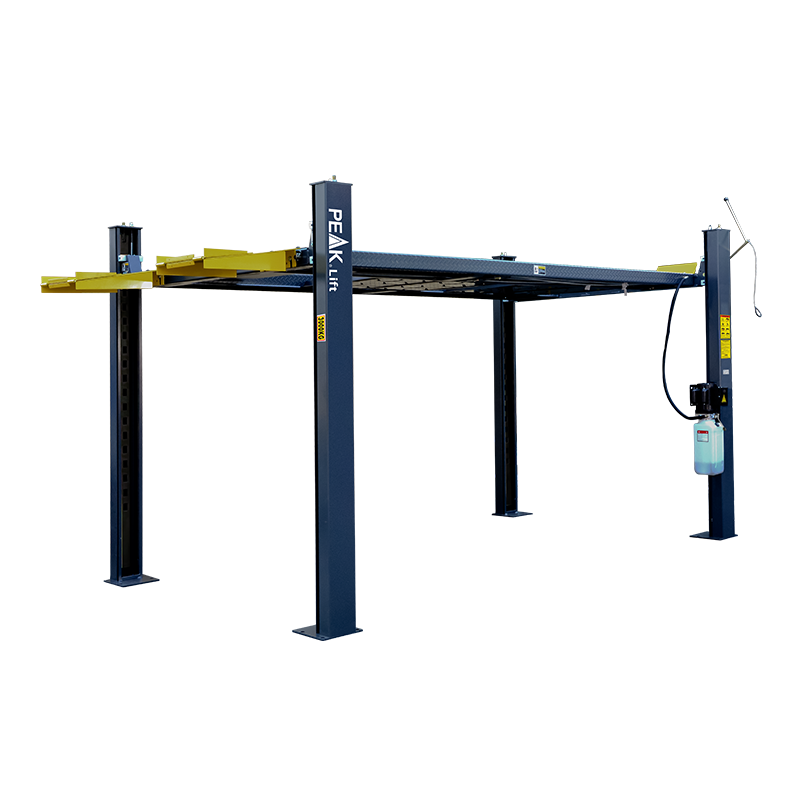

407-HP
4-Post Parking Lift
4-Post Parking Lift
As an advanced version of 407-P, 407-HP enhances parking comfort with an extra high-lifting feature, allowing taller vehicles over 2 meters to be comfortably accommodated.
- Lifting capacity: 3000KG (7000lbs);
- Commercial grade, compact design;
- Support back-to-back installation;
- 330mm higher than 407-P, with max lifting height over 2200mm;
- PEAK patented concealed safety lock control with single-point manual release;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Double-
shaped columns for enhanced strength; - Foldable drive-on ramps;
- Power side column can be installed at any corner;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 407-HP | 4-Post Parking Lift | |
| Lifting Capacity | 3000kg(6,600 Ibs) | |
| Lifting Time | 35s | |
| Overall Length (Inc Ramps ) | A | 5008mm(197 1/8") |
| Outside edge of crossbeams | B | 3987mm (157") |
| Overall Width | C | 2409mm (94 7/8") |
| Width Between Posts | D | 2167mm (85 3/8") |
| Max. Lifting Height |
E |
2207mm (86 7/8") |
| Max. Locking Height | 2127mm (83 3/4") | |
| Overall Height | F | 2455mm(96 5/8") |
| Minimum Height | G | 125mm (4 15/16") |
| Max. Underneath Height | H | 2107mm (82 15/16") |
| Max. Lock Underneath runway | 2027mm (79 13/16") | |
| Drive-Thru Clearance | I | 1956mm (77") |
| Width Between Runways | J | 940mm (37") |
| Outside Edge of Runways | K | 1890mm (74 3/8") |
| Gross Weight | 687kg (1,515 lbs) | |
| Motor | 3.0HP,220V |
-

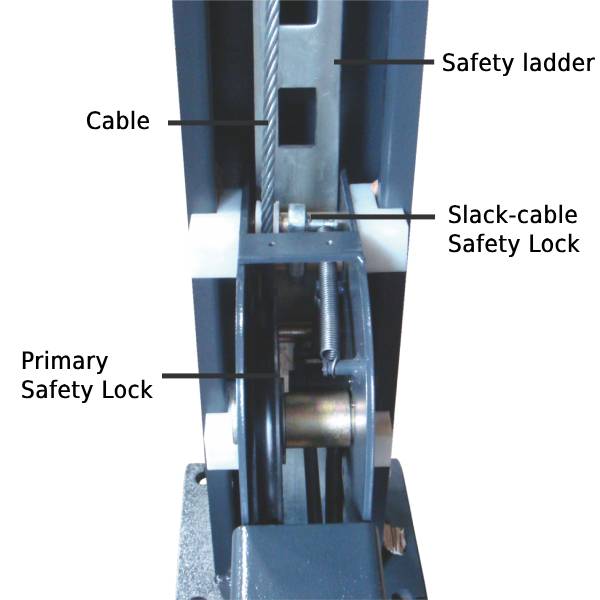

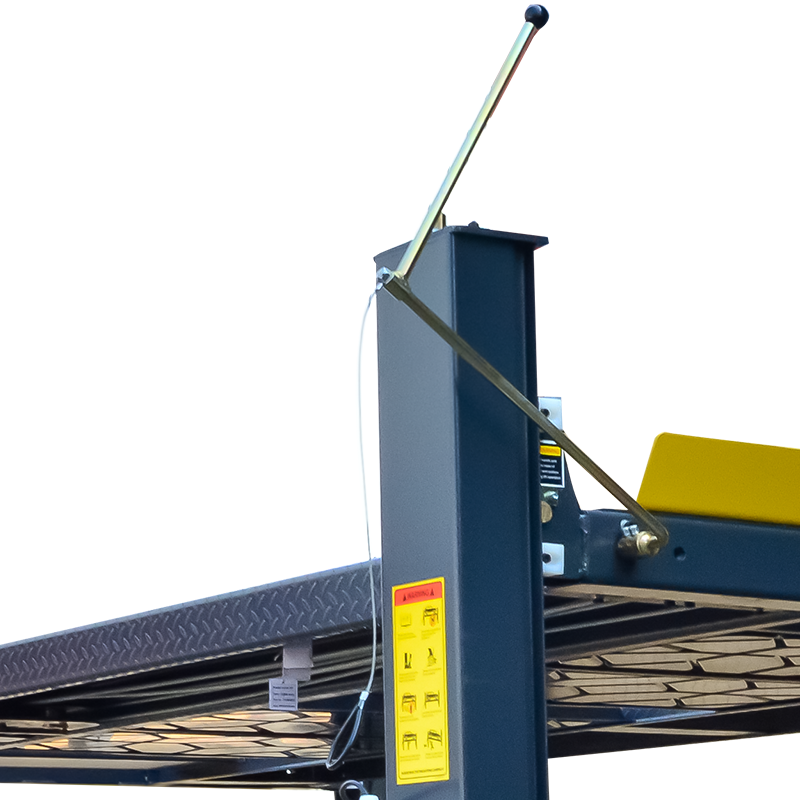

PEAK patented concealed safety lock control with single-point manual release.
-
Double safety locks provide additional safety.
-

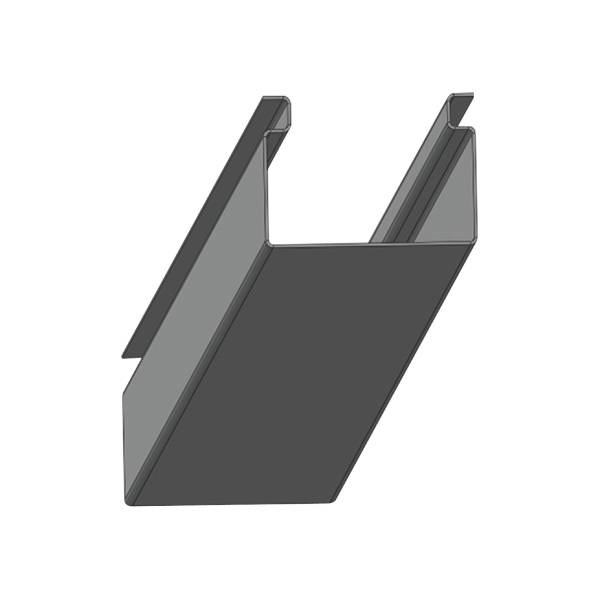

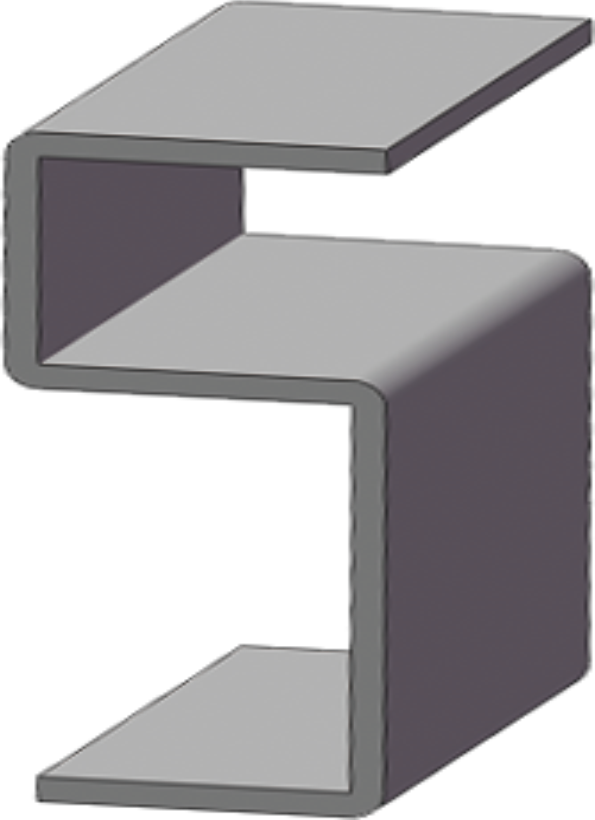

Exclusive feature, double-
shape column. -

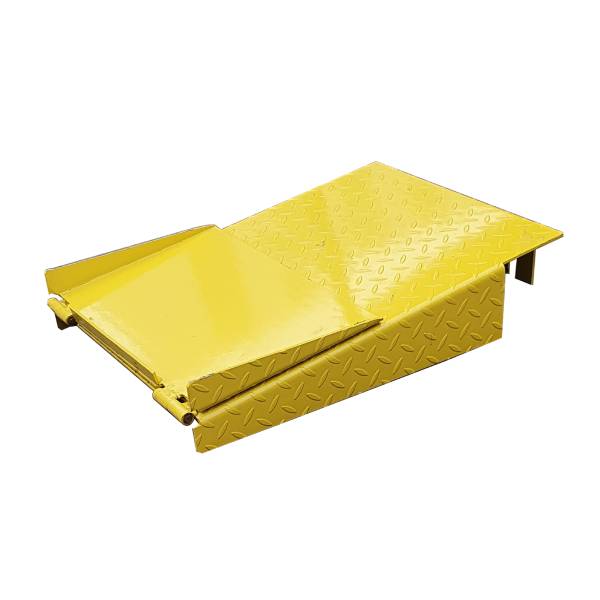

Foldable drive-on ramps (each lift 2 units).
-

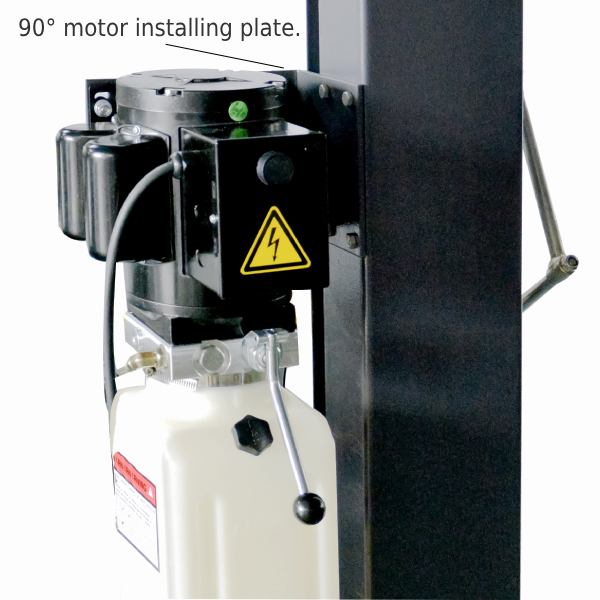

90° installation plate for installing the power unit at the side of a column.
-

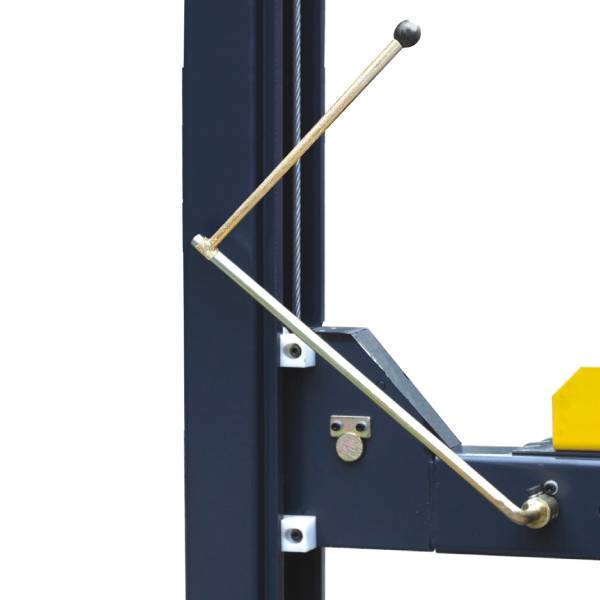

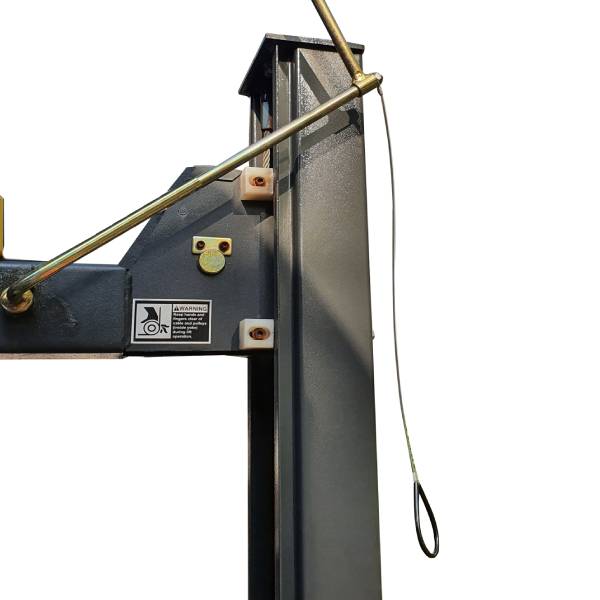

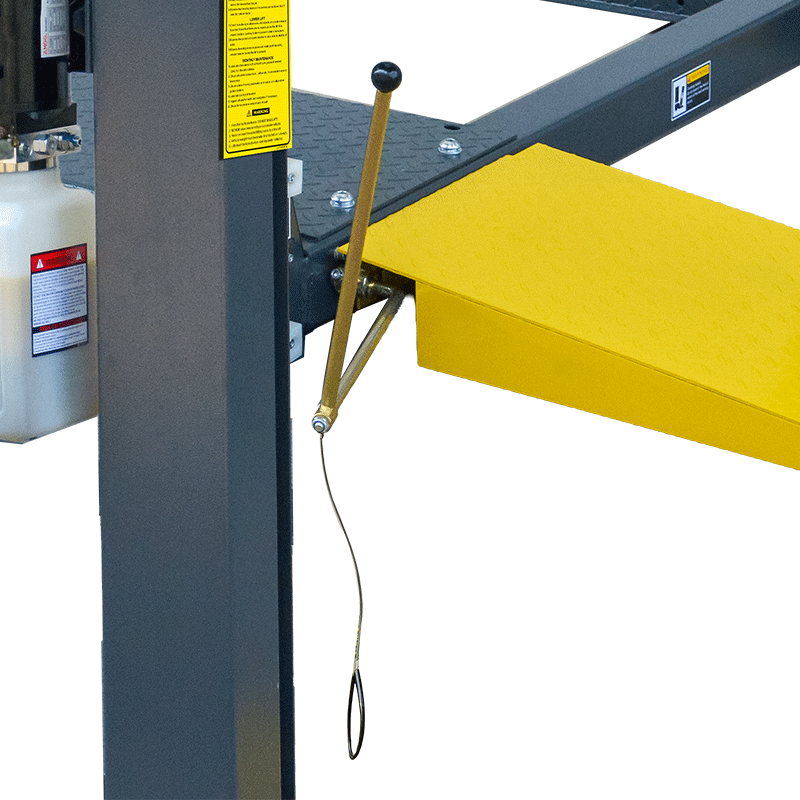

Designed with pull rope.
-

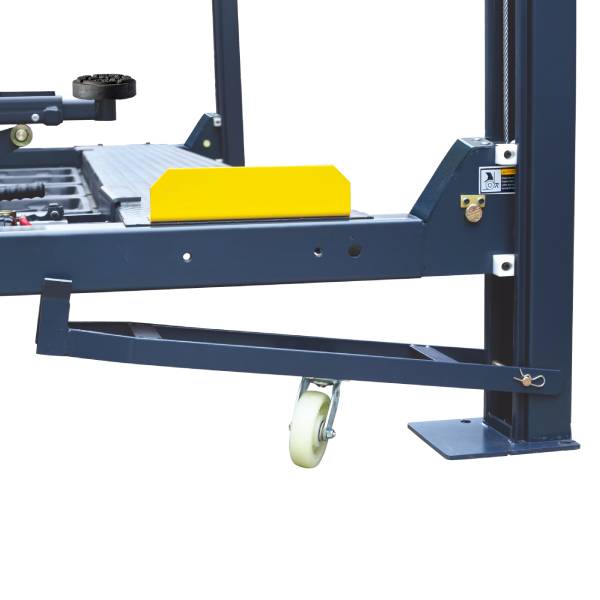

Optional Caster Kits help easily maneuver the parking lift. One set 4pcs.
Kits No.: 40801 -

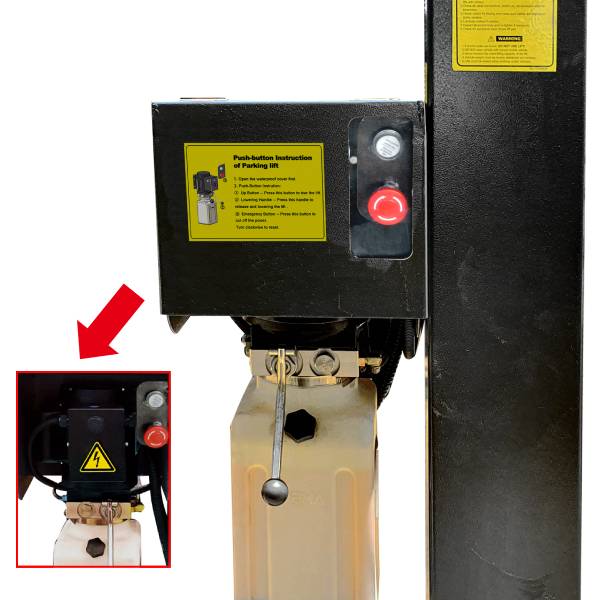

Optional Motor Protect cover for outdoor installation
Kits No.: 40810.
with emergency stop switch. -

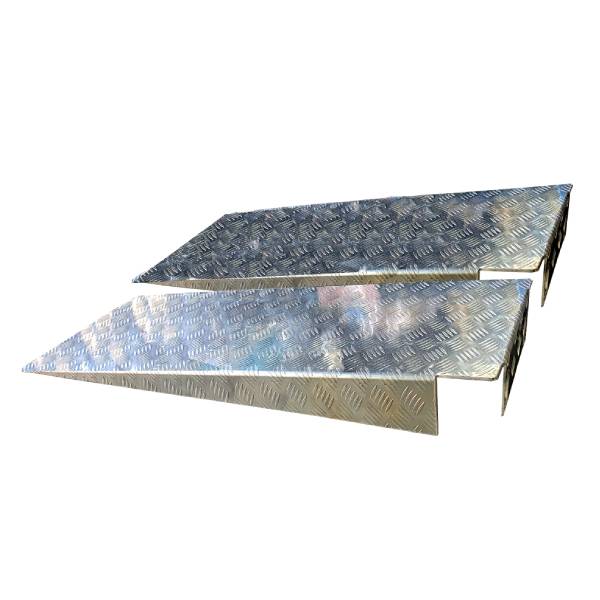

Optional extended aluminum alloy drive-in ramps. G.W.: 20KG/set, length: 1270mm.
Kits No.: 40814 -

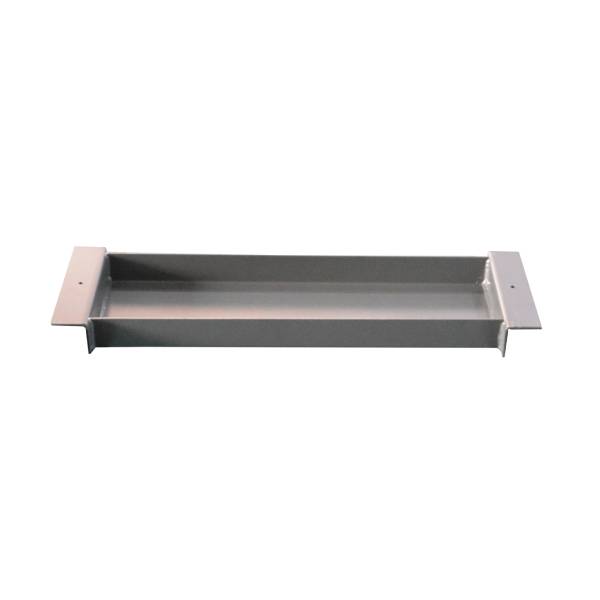

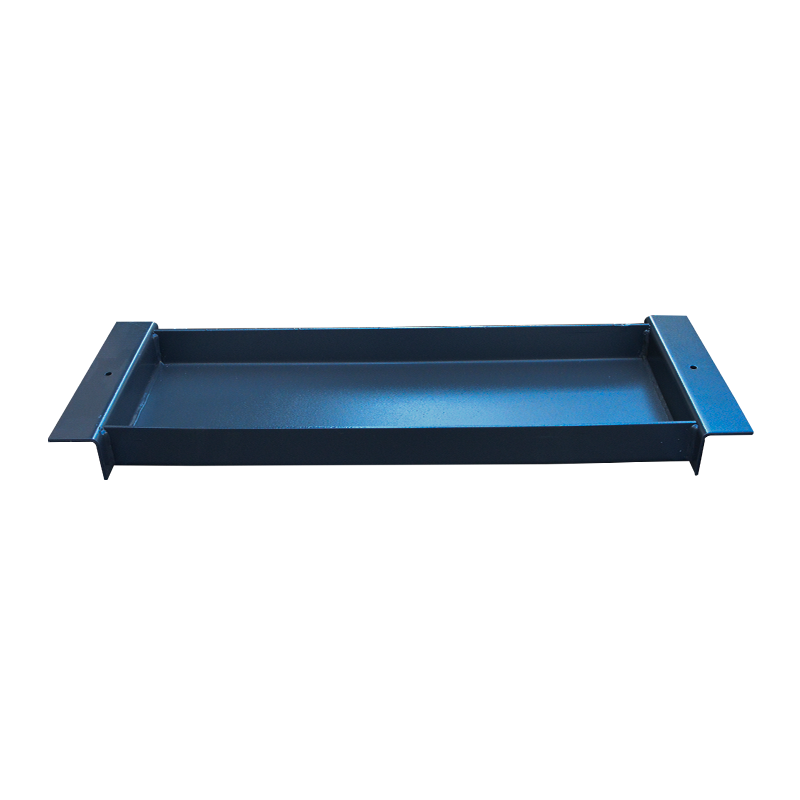

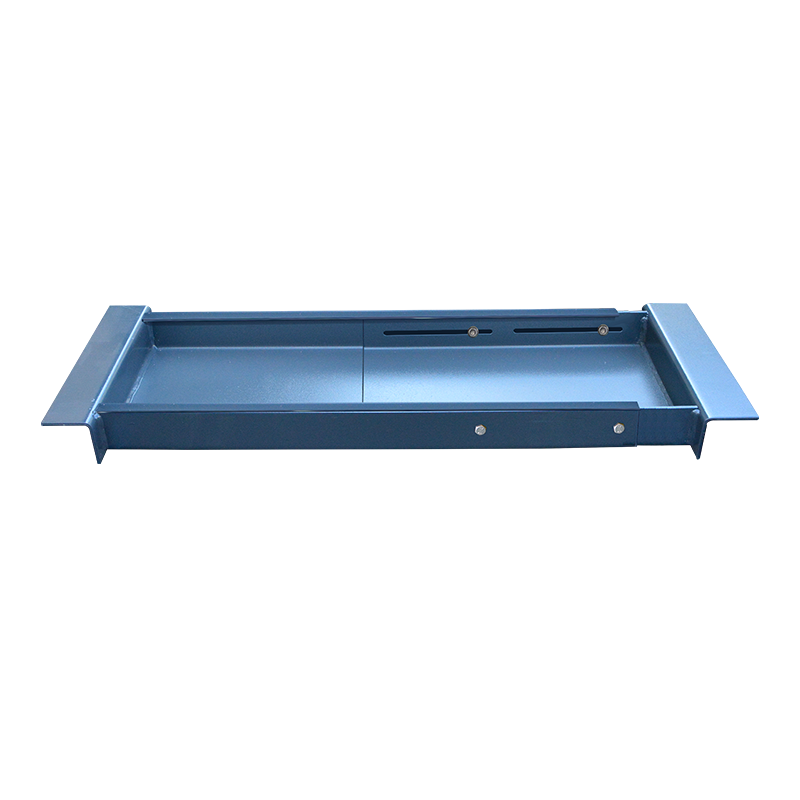

Optional Jack Tray
Kit No.: 40808 -

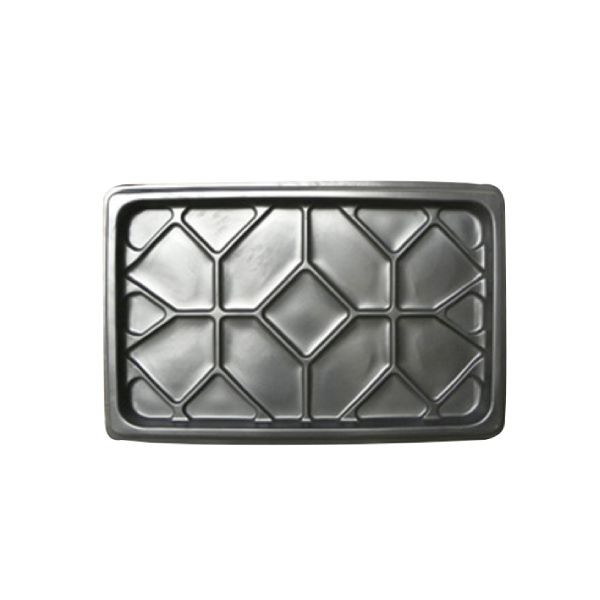

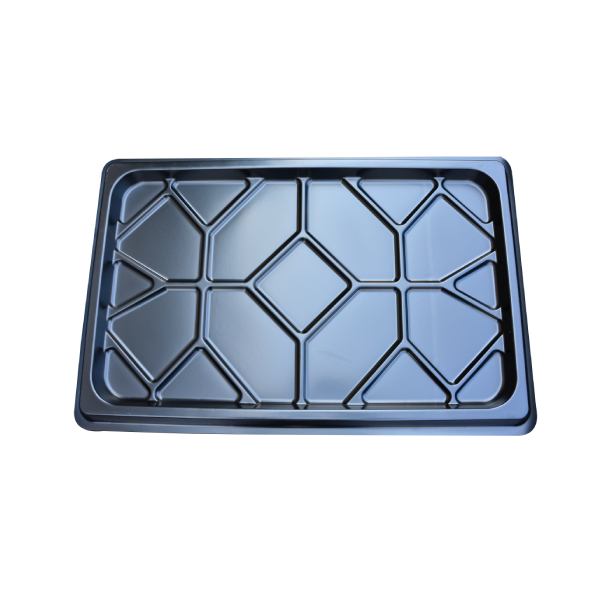

Optional plastic oil tray
Kits No.: 40806.
Dimension: 930x600mm (36 5/8" x 23 5/8") -

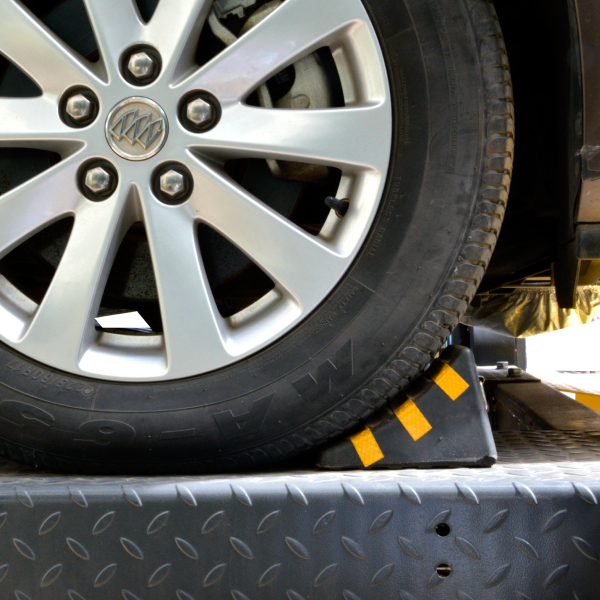

Optional rubber wheel chock
P/N: 40811 -

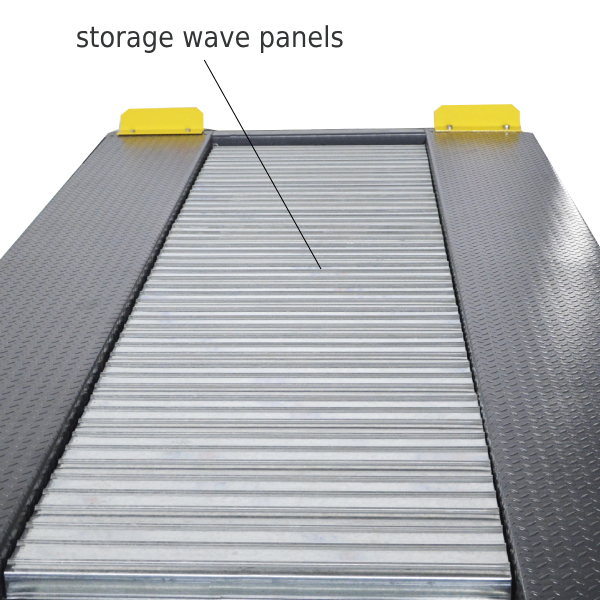

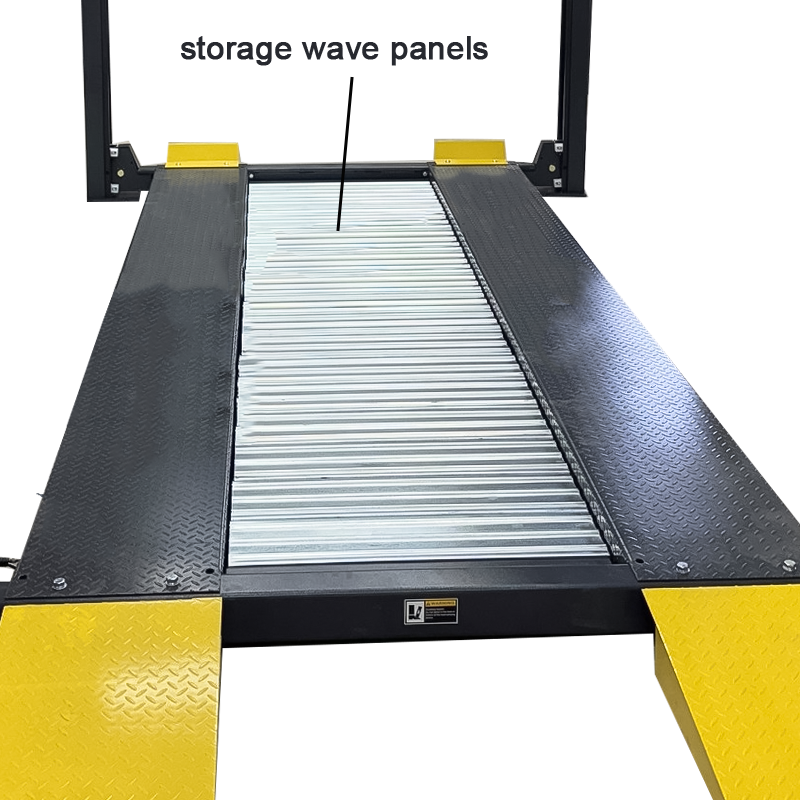

Optional storage wave panels
Kits No.: 40812. -

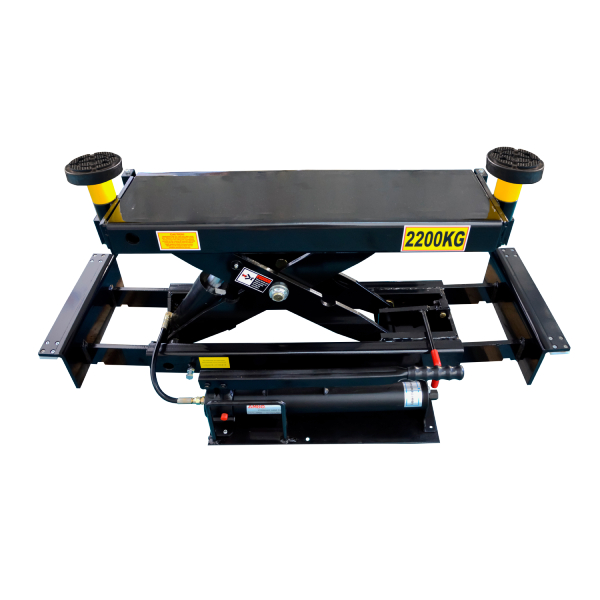

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg (5,000lbs).
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 407-HP: 687kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

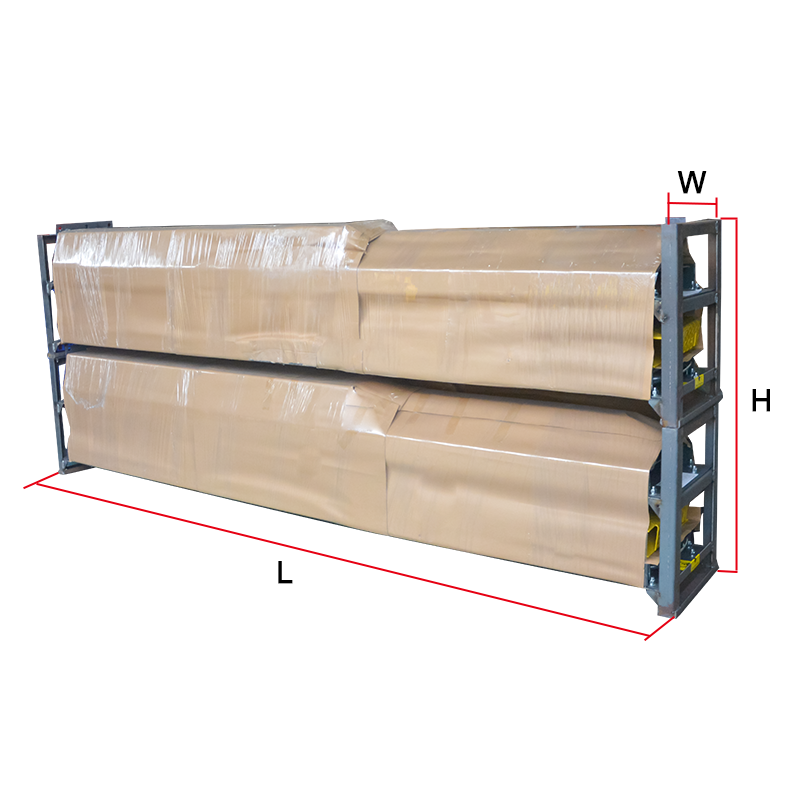

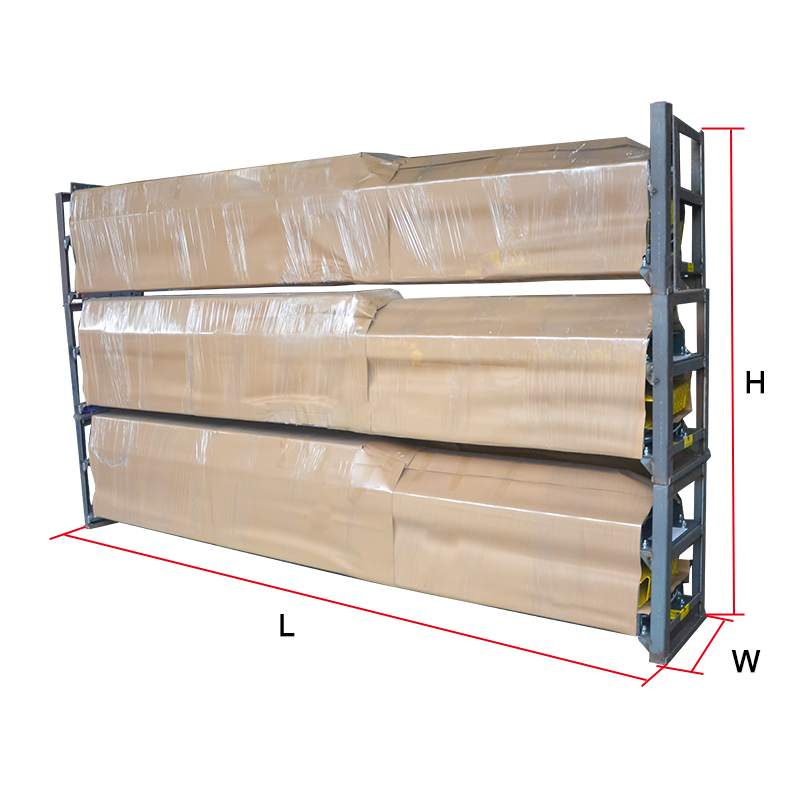

2 units/package,packing measurement (LxWxH): 4010x515x1485mm
-
3 units/package, packing measurement (LxWxH): 4010x515x2190mm
-
1 unit/ctn,packing measurement (LxWxH): 705x300x360mm
-
Attention to forklift loading and unloading
