407-P
4-Post Parking Lift
4-Post Parking Lift

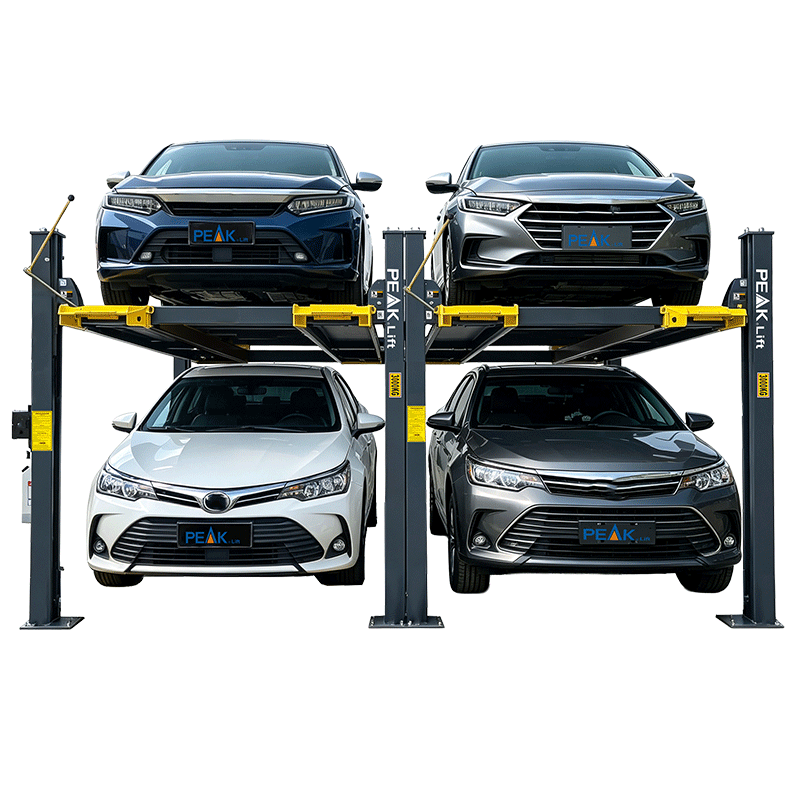

The commercial-grade 407-P features a compact, low-clearance design, making it the perfect solution for maximizing space. With a 3000KG capacity, it fits a wide range of vehicles and supports back-to-back installation, ideal for massive deployments.
- Lifting capacity: 3000KG (7000lbs);
- Commercial grade, compact design;
- Support back-to-back installation;
- PEAK patented concealed safety lock control with single-point manual release;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Double-
shaped columns for enhanced strength; - Foldable drive-on ramps;
- Power side column can be installed at any corner;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 407-P | 4-Post Parking Lift | |
| Lifting Capacity | 3000kg(6,600 Ibs) | |
| Lifting Time | 31s | |
| Overall Length (Inc Ramps ) | A | 4720mm(185 7/8") |
| Outside edge of crossbeams | B | 3700mm (145 11/16") |
| Overall Width | C | 2409mm (94 7/8") |
| Width Between Posts | D | 2167mm (85 3/8") |
| Max. Lifting Height |
E |
1865mm( 73 7/16") |
| Max. Locking Height | 1785mm( 70 1/4") | |
| Overall Height | F | 2105mm(82 7/8") |
| Minimum Height | G | 125mm (4 15/16") |
| Max. Underneath Height | H | 1765mm (69 1/2") |
| Max. Lock Underneath runway | 1685mm (66 5/16") | |
| Drive-Thru Clearance | I | 1956mm (77") |
| Width Between Runways | J | 940mm (37") |
| Outside Edge of Runways | K | 1890mm (74 3/8") |
| Gross Weight | 649kg (1,431 lbs) | |
| Motor | 3.0HP,220V |
-

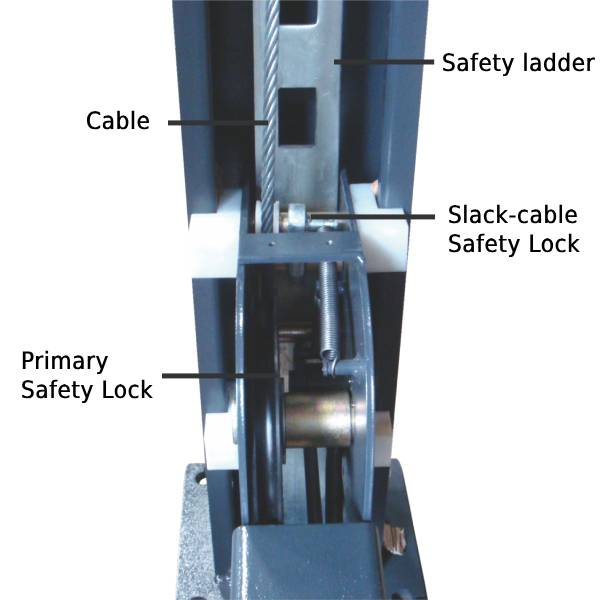

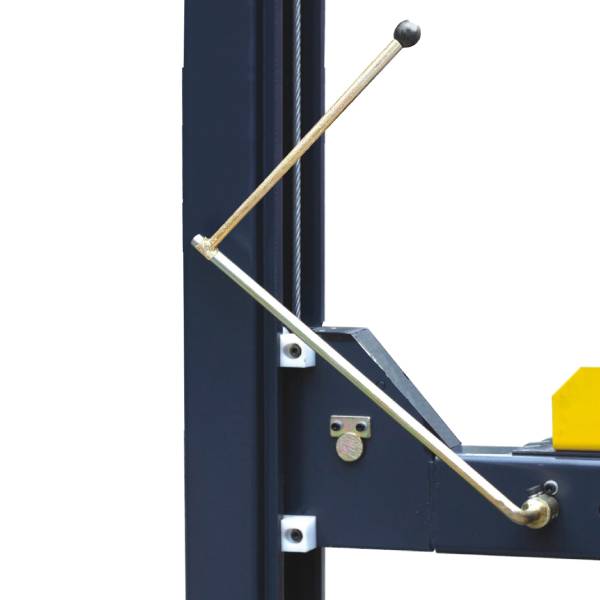

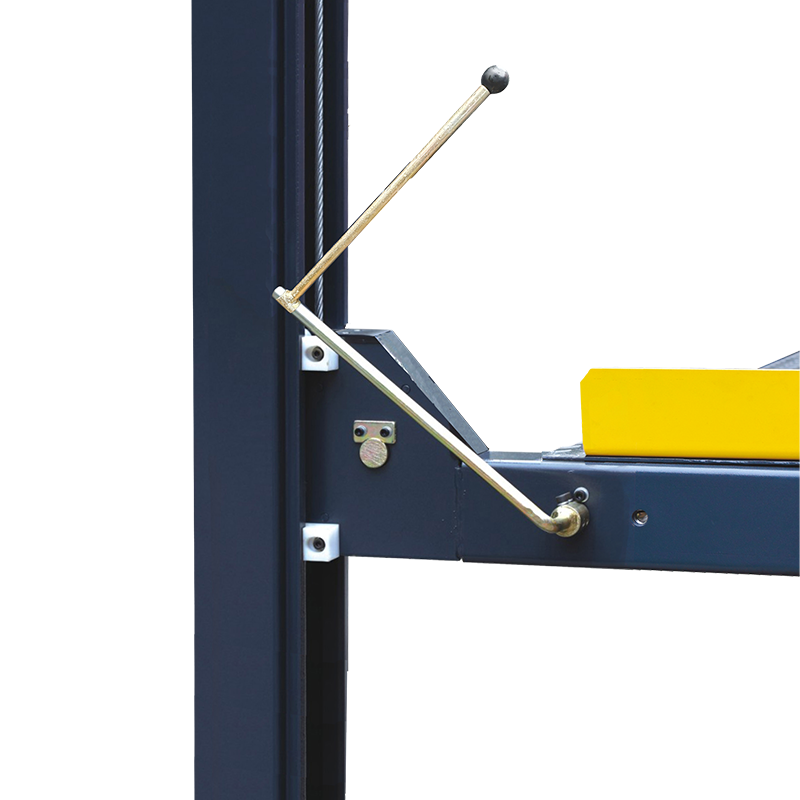

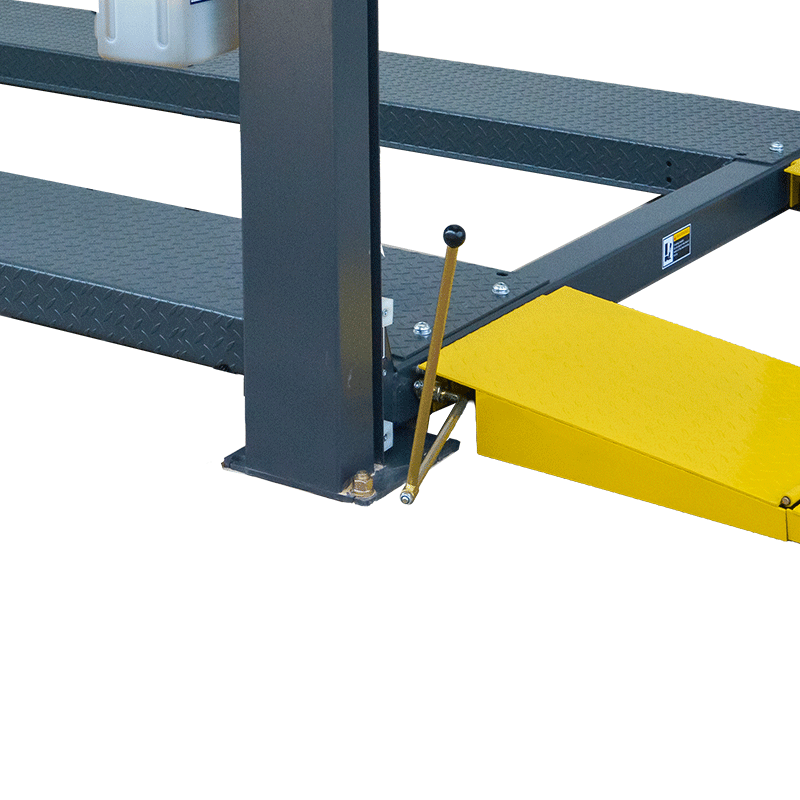

PEAK patented concealed safety lock control with single-point manual release.
-
Double safety locks provide additional safety.
-

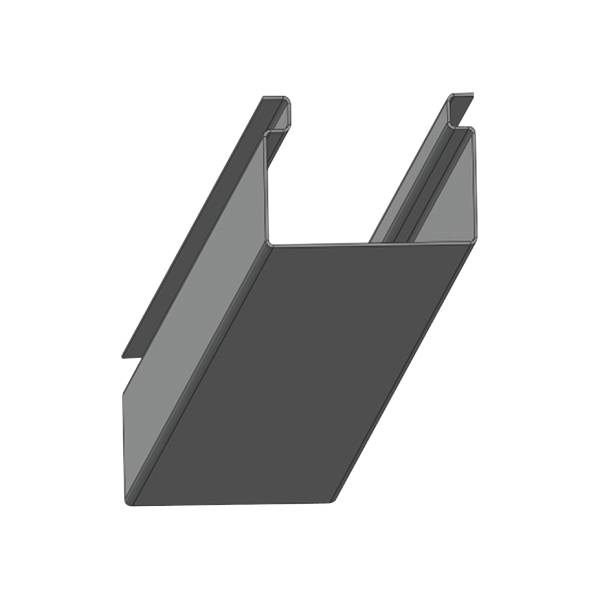

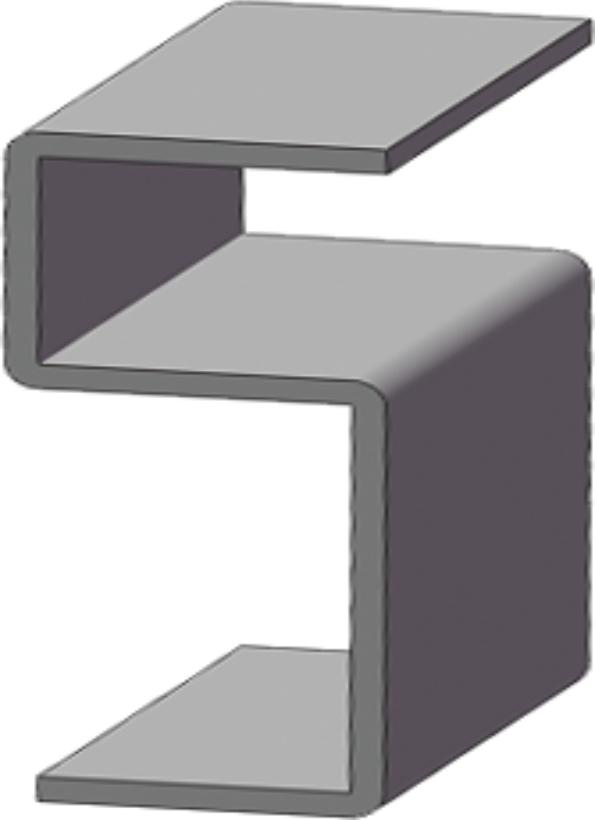

Exclusive feature, double-
shape column. -

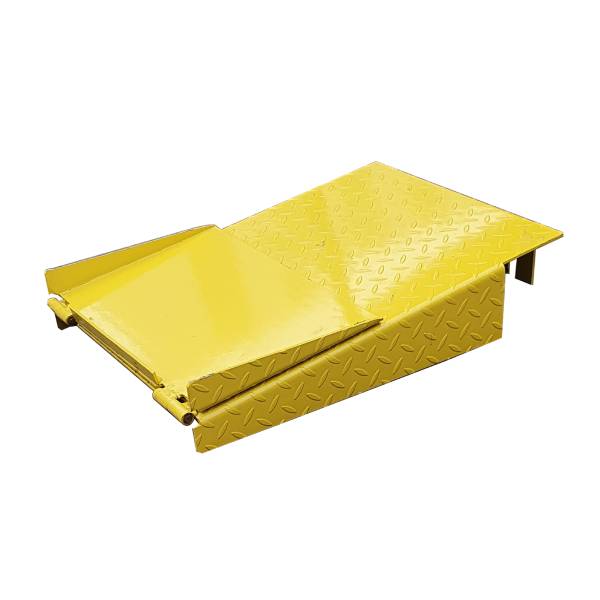

Foldable drive-on ramps (each lift 2 units).
-

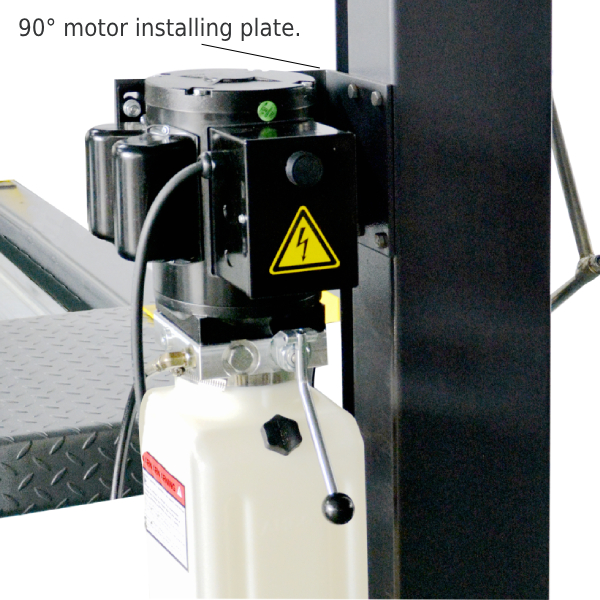

90° installation plate for installing the power unit at the side of a column.
-

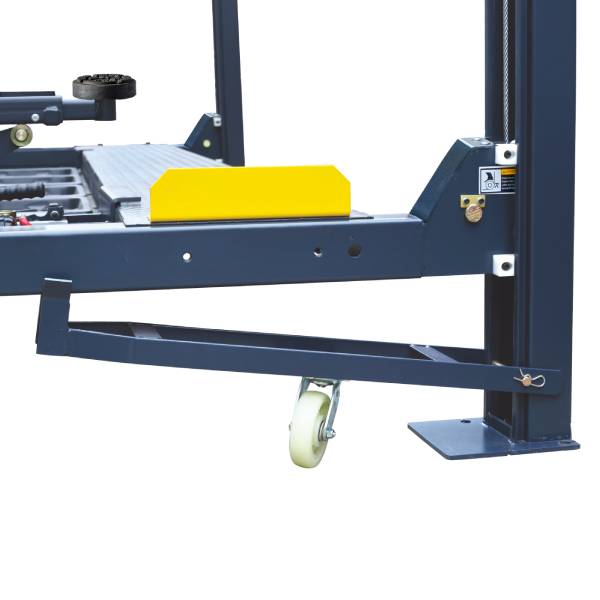

Optional Caster Kits help easily maneuver the parking lift. One set 4pcs.
Kits No.: 40801 -

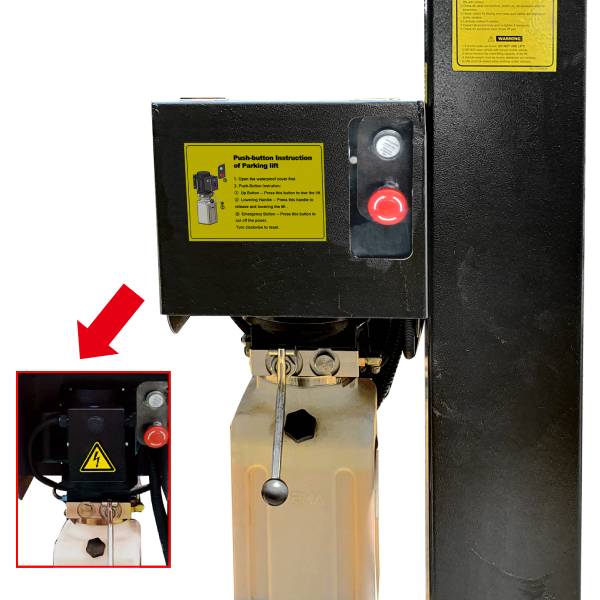

Optional Motor Protect cover for outdoor installation
Kits No.: 40810.
with emergency stop switch. -

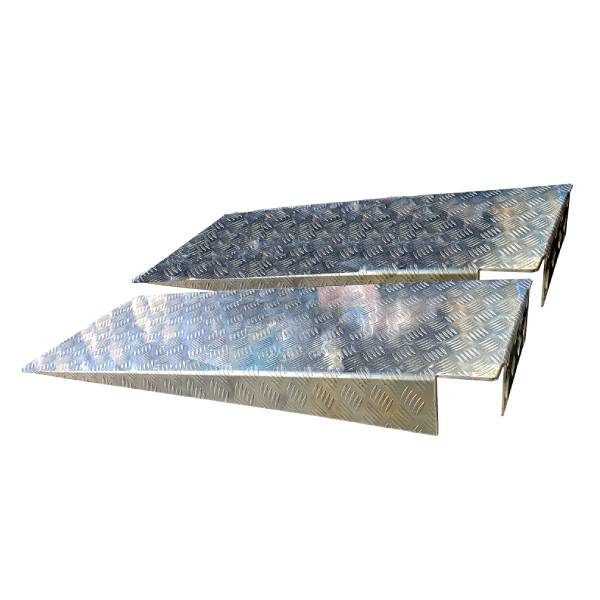

Optional extended aluminum alloy drive-in ramps. G.W.: 20KG/set, length: 1270mm.
Kits No.: 40814 -

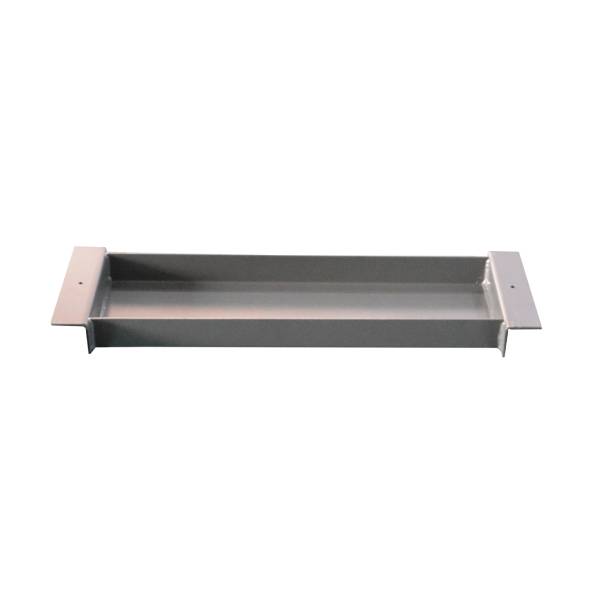

Optional Jack Tray
Kit No.: 40808 -

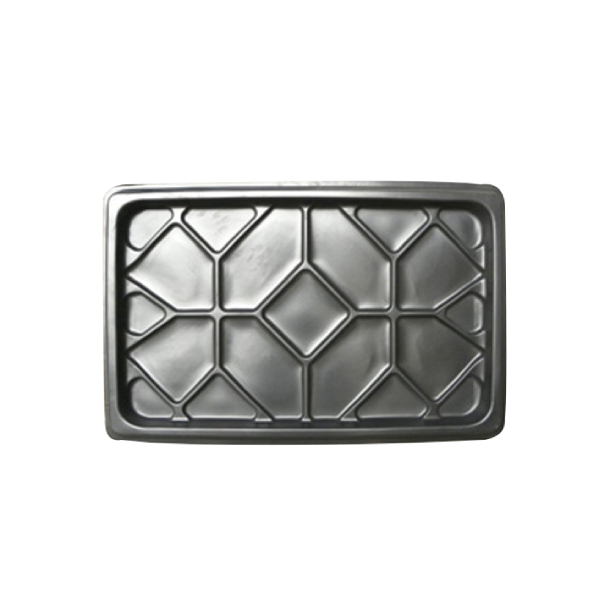

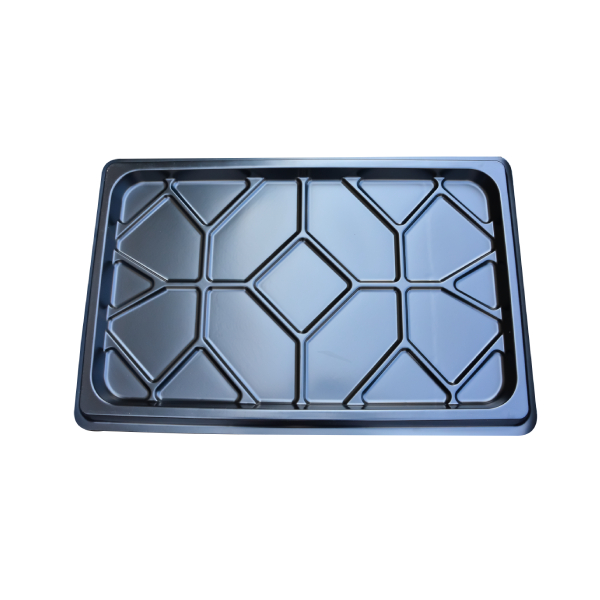

Optional plastic oil tray
Kits No.: 40806.
Dimension: 930x600mm (36 5/8" x 23 5/8") -

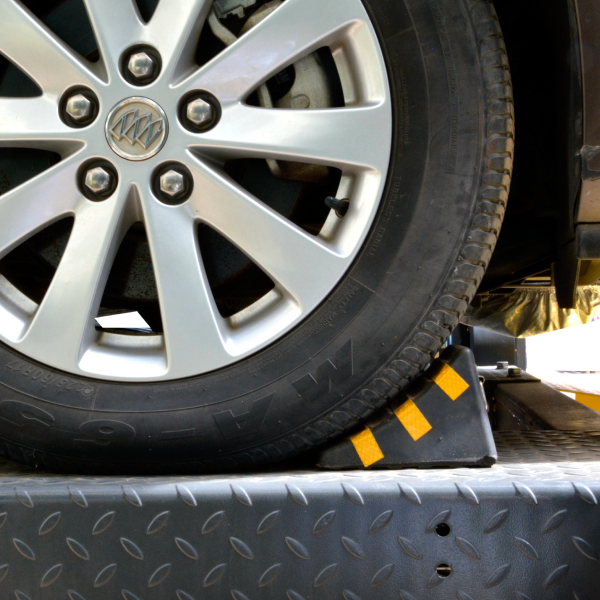

Optional rubber wheel chock
P/N: 40811 -

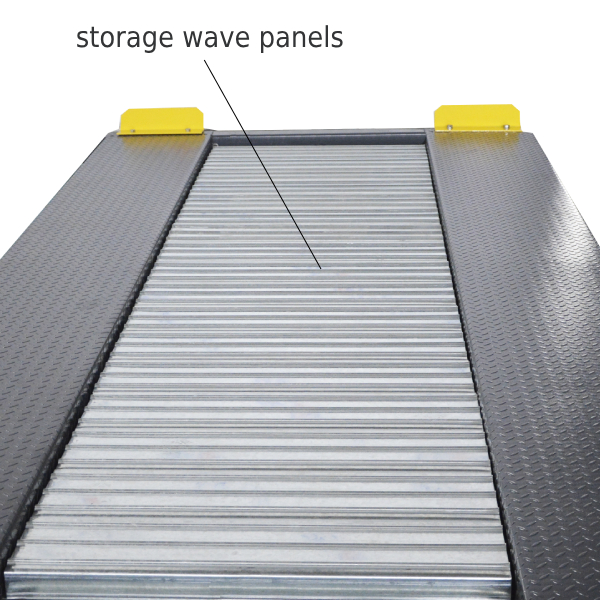

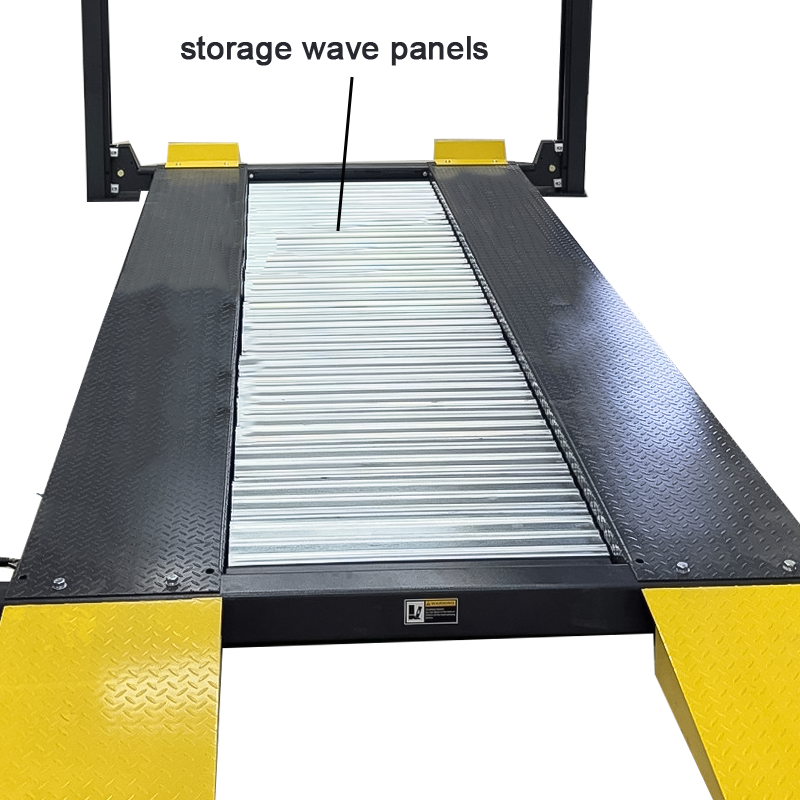

Optional storage wave panels
Kits No.: 40812. -

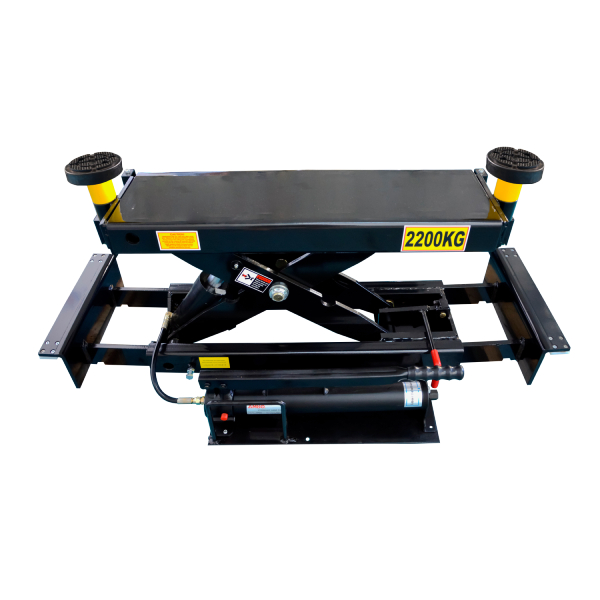

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg (5,000lbs).
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 407-P: 649kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 32 units.
-

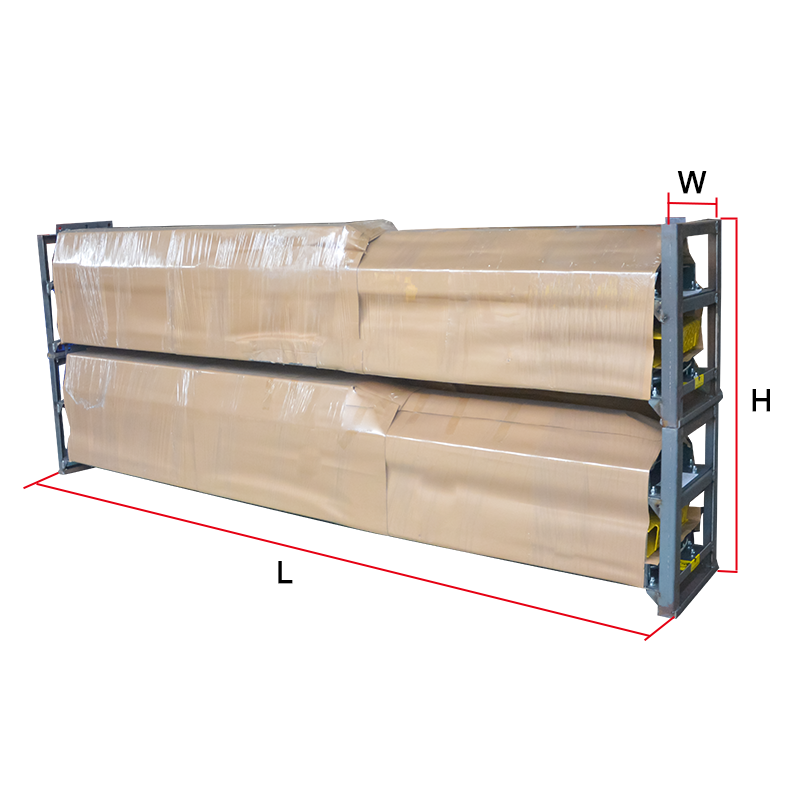

2 units/package,packing measurement (LxWxH): 3710x515x1485mm
-

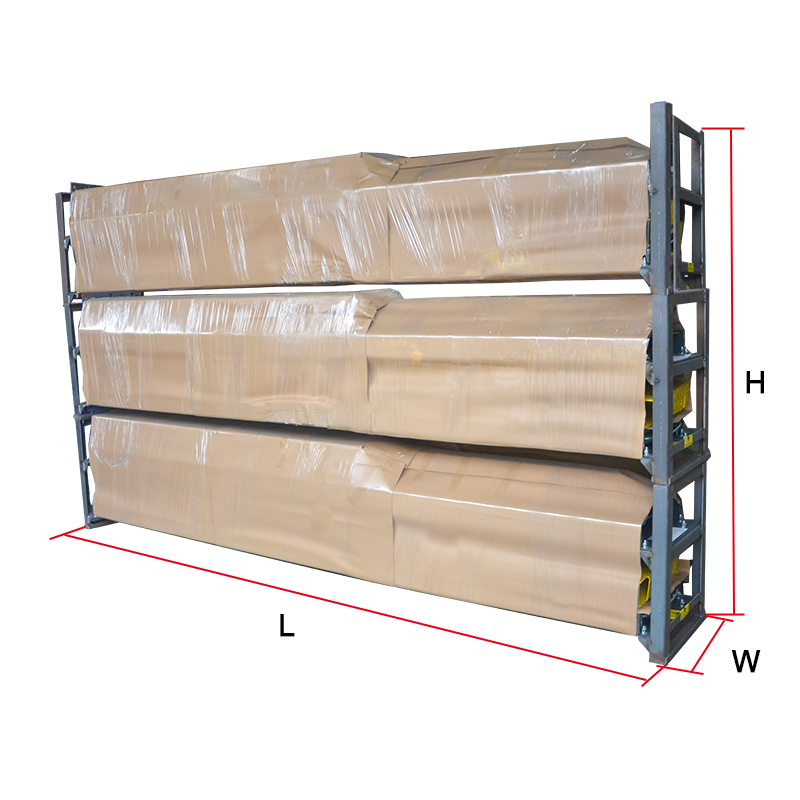

3 units/package, packing measurement (LxWxH): 3710x515x2190mm
-
1 unit/ctn,packing measurement (LxWxH): 705x300x360mm
-
Attention to forklift loading and unloading
