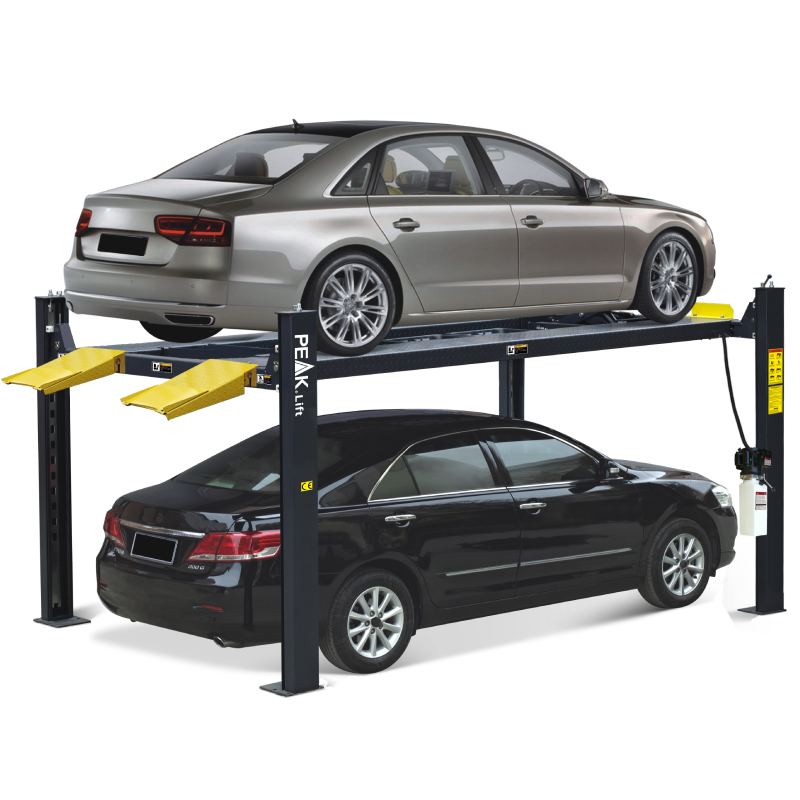

408-P
4-Post Parking Lift
4-Post Parking Lift
The Premium 408-P is another top-tier in our range of commercial parking lifts. Built for heavy-duty performance, it can lift up to 3,500KG and features a wider design for greater versatility with different vehicle types. Like the rest of the range, it is fitted with dual locks and patented concealed lock mechanism, ensuring rock solid stability and durability.
- Lifting capacity: 3500KG (8000lbs);
- Professional comfortable design;

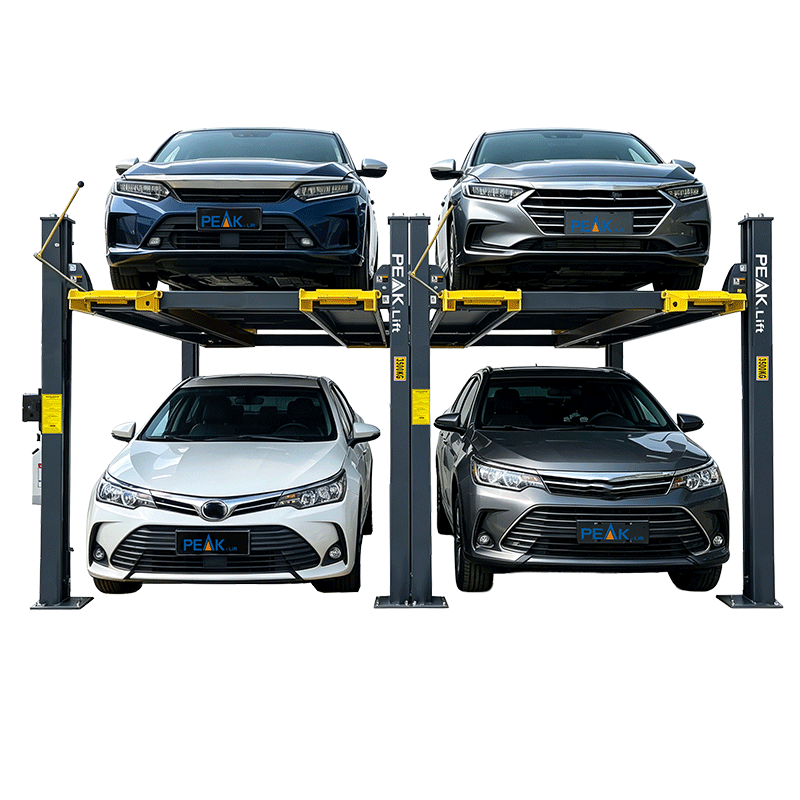

- Support back-to-back installation;
- PEAK patented concealed safety lock control with single-point manual release;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Double-
shaped columns for enhanced strength; - Foldable drive-on ramps;
- Power side column can be installed at any corner;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 408-P | 4-Post Parking Lift | |
| Lifting Capacity | 3500kg | |
| Lifting Time | 40s | |
| Overall Length (Inc Ramps ) | A | 5265mm(207 1/4") |
| Outside edge of crossbeams | B | 4238mm (166 7/8") |
| Overall Width | C | 2604mm (102 1/2") |
| Width Between Posts | D | 2358mm (92 7/8") |
| Max. Lifting Height |
E |
1875mm(73 13/16") |
| Max. Locking Height | 1795mm(70 11/16") | |
| Overall Height | F | 2105mm(82 7/8") |
| Minimum Height | G | 140mm (5 1/2") |
| Max. Underneath Height | H | 1755mm (69 1/16") |
| Max. Lock Underneath runway | 1675mm (65 15/16") | |
| Drive-Thru Clearance | I | 2074mm (81 5/8") |
| Width Between Runways | J | 940mm (37") |
| Outside Edge of Runways | K | 1890mm (74 3/8") |
| Gross Weight | 703kg (1,550lbs) | |
| Motor | 3.0HP,220V |
-

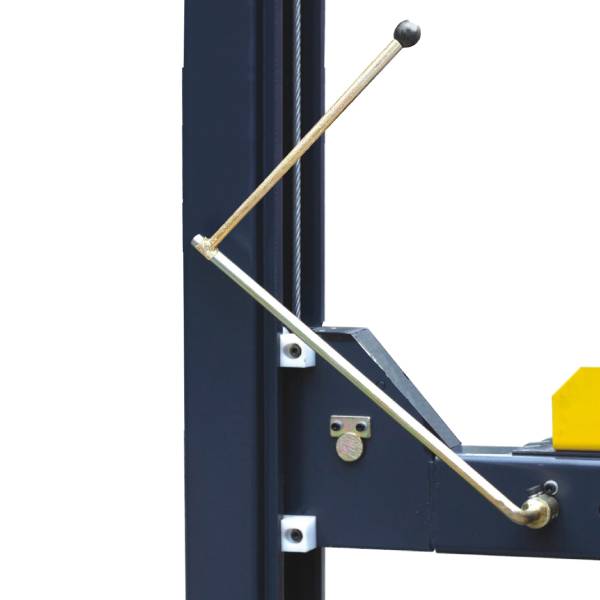

Hidden locking device and manual single-point safety lock release.
-

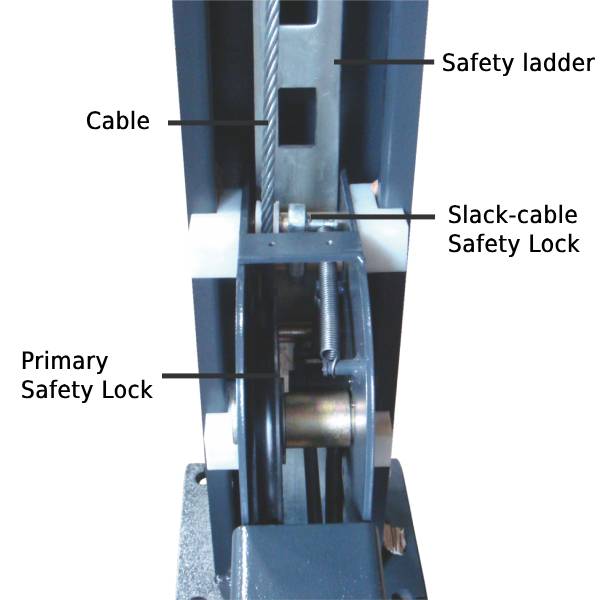

Double safety locks provide additional safety.
-

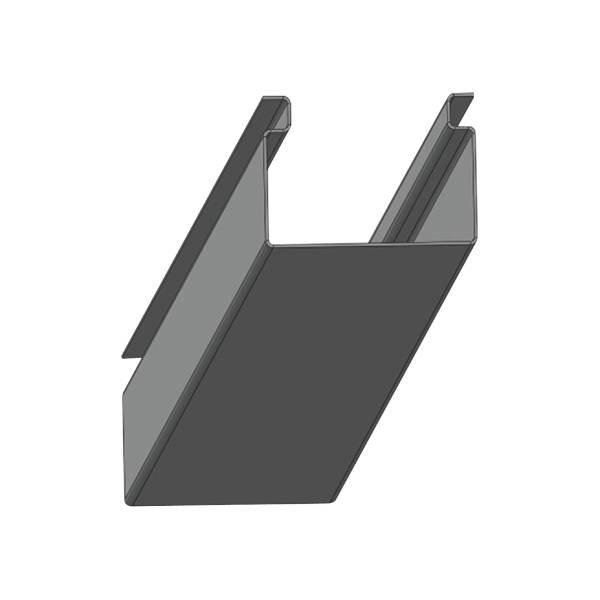

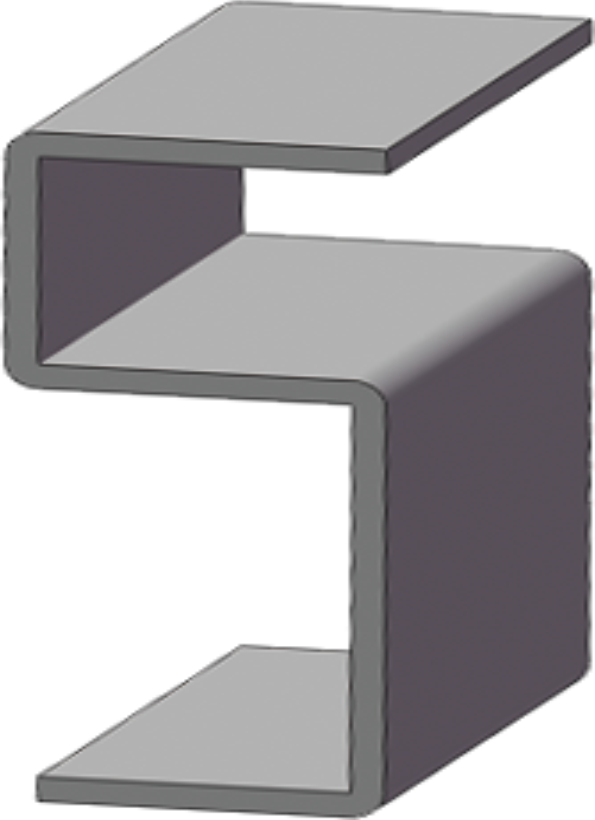

Exclusive feature, double-
shape column. -

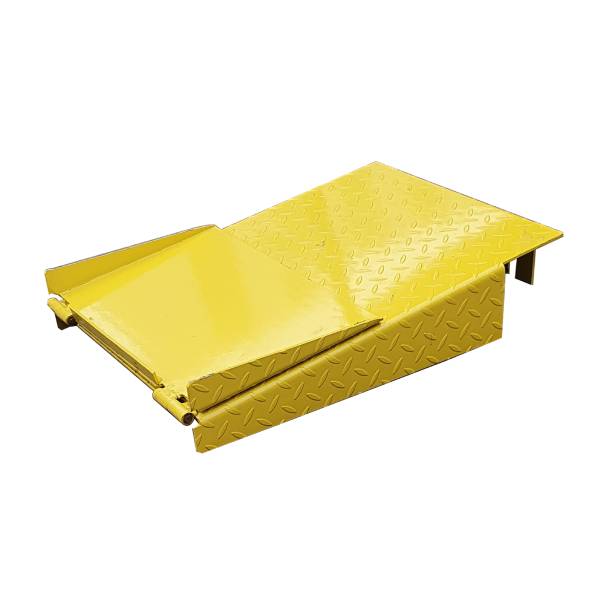

Foldable drive-on ramps (each lift 2 units).
-

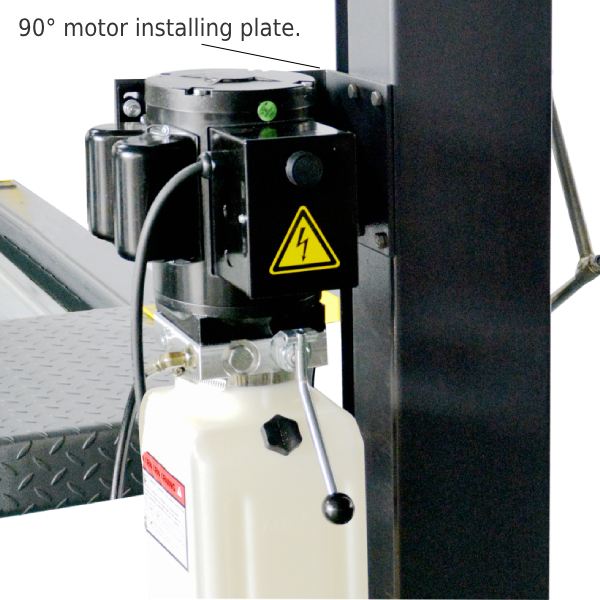

90° installation plate for installing the power unit at the side of a column.
-

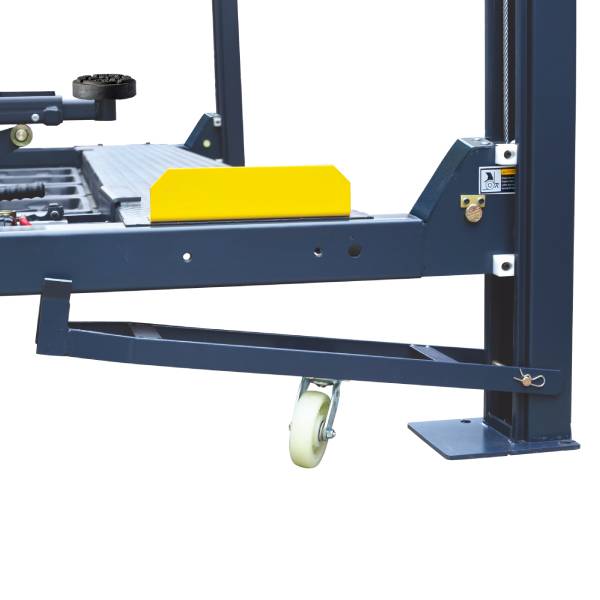

Optional Caster Kits help easily maneuver the parking lift. One set 4pcs.
Kits No.: 40801 -

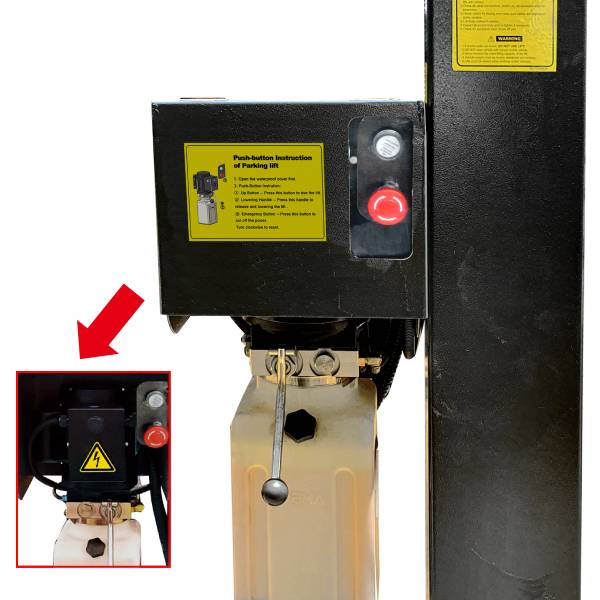

Optional Motor Protect cover for outdoor installation
Kits No.: 40810.
with emergency stop switch. -

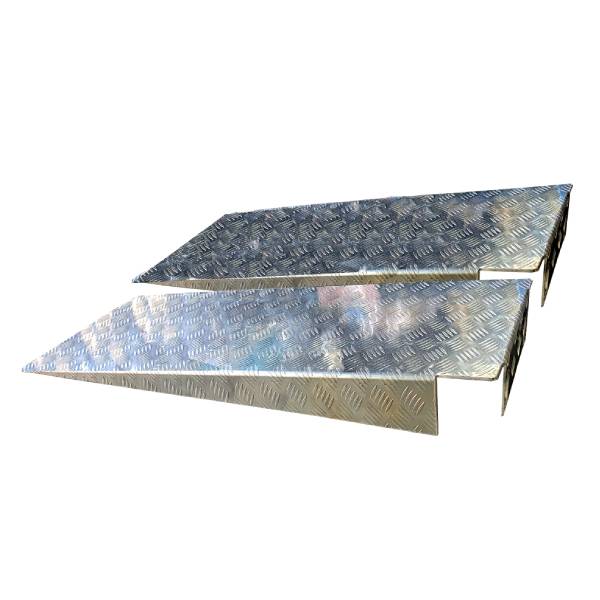

Optional extended aluminum alloy drive-in ramps. G.W.: 20KG/set, length: 1270mm.
Kits No.: 40805 -

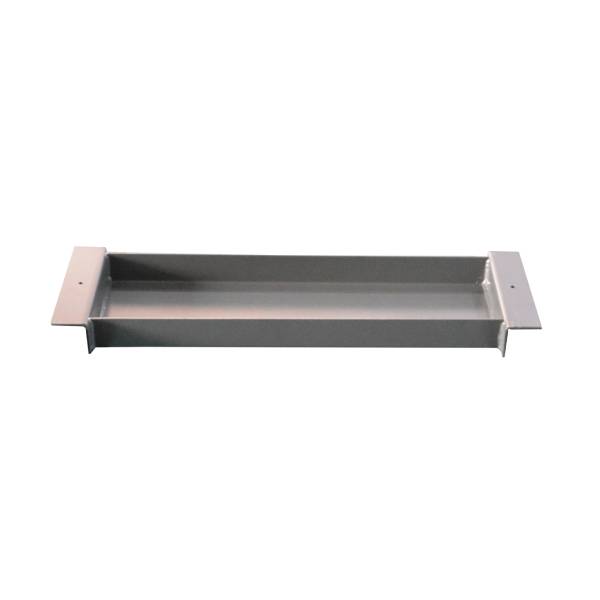

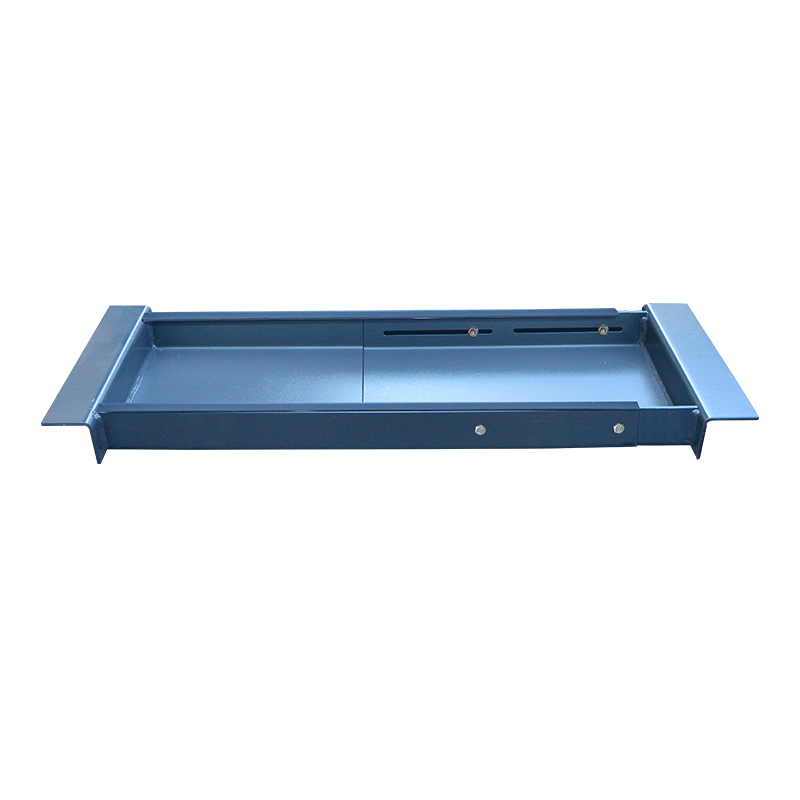

Optional Jack Tray
Kit No.: 40808 -

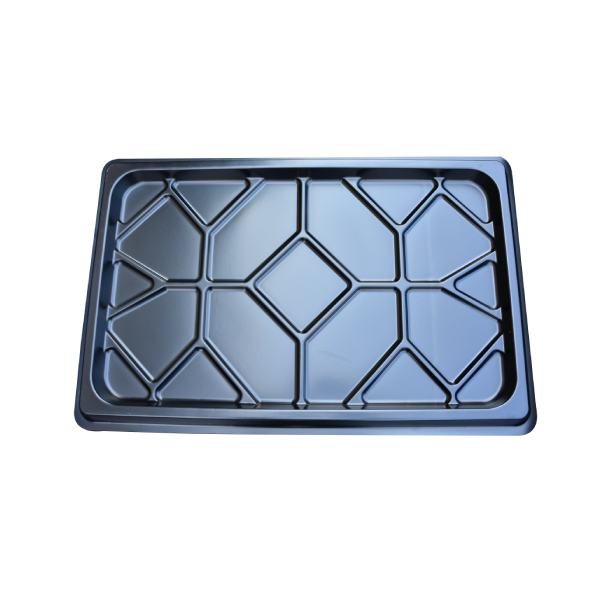

Optional plastic oil tray
Kits No.: 40806.
Dimension: 930x600mm (36 5/8" x 23 5/8") -

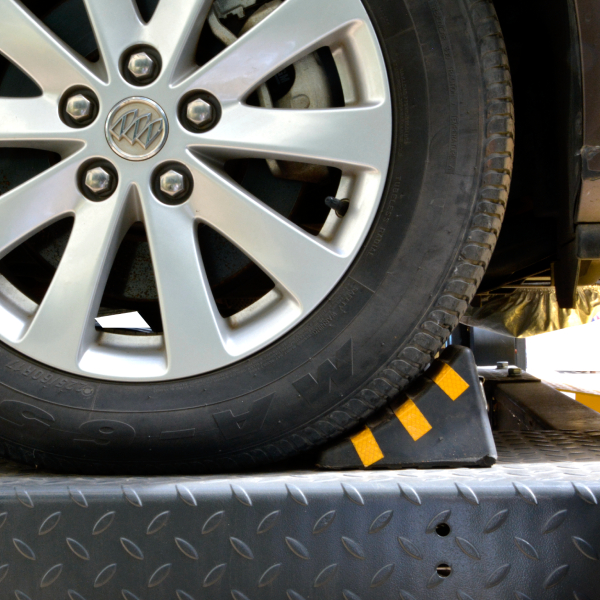

Optional rubber wheel chock
P/N: 40811 -

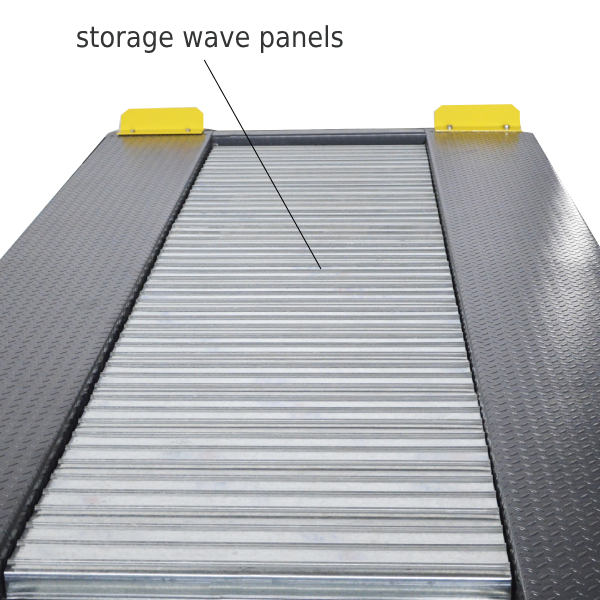

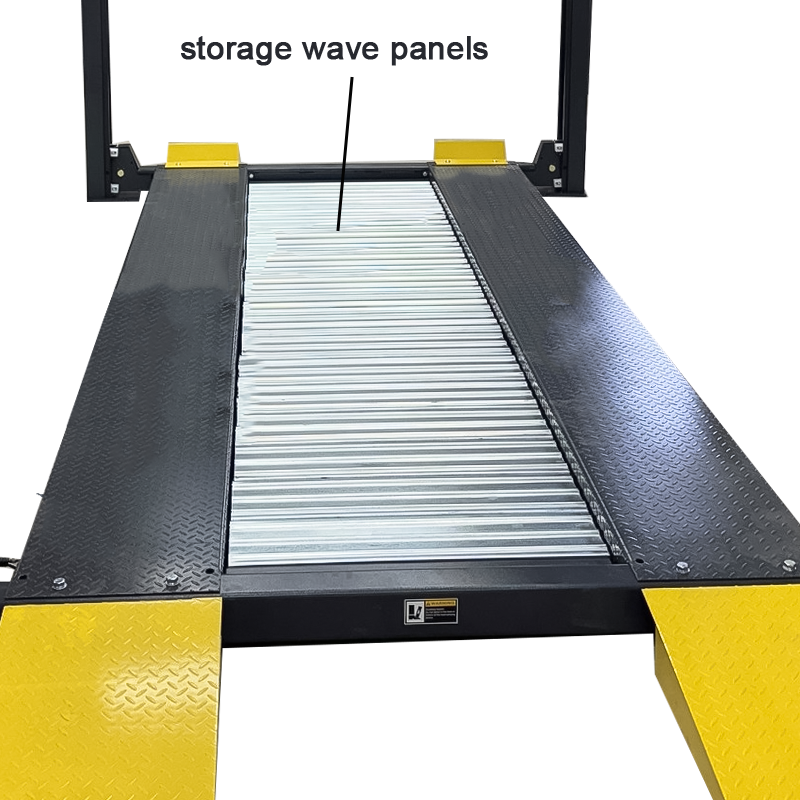

Optional storage wave panels
Kits No.: 40812. -

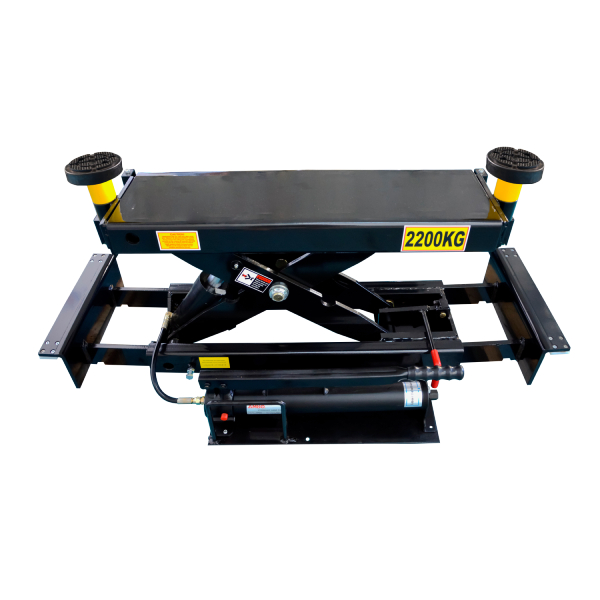

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg (5,000lbs).
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 408-P: 703kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

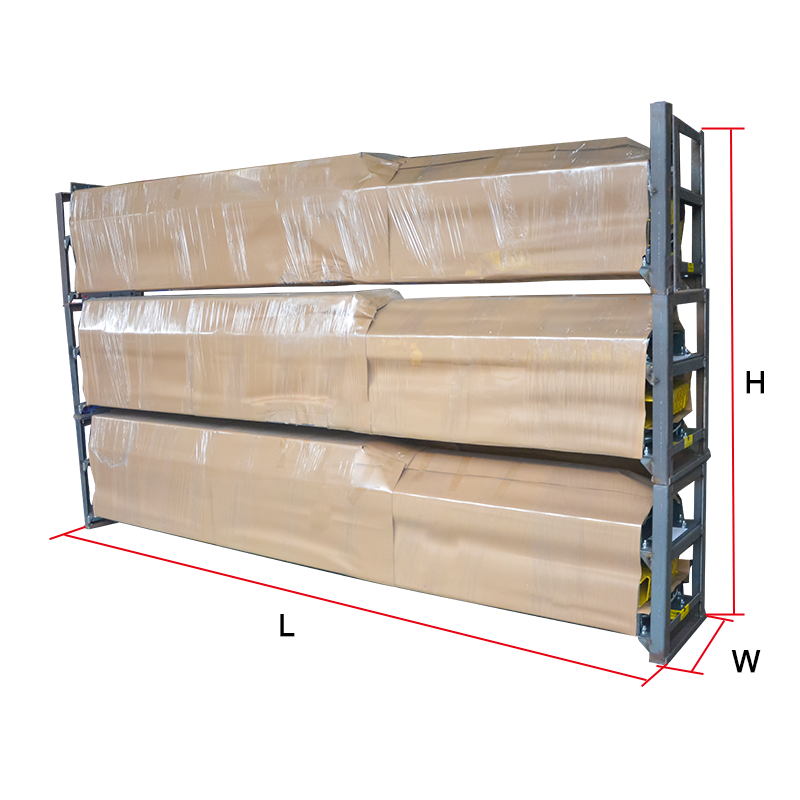

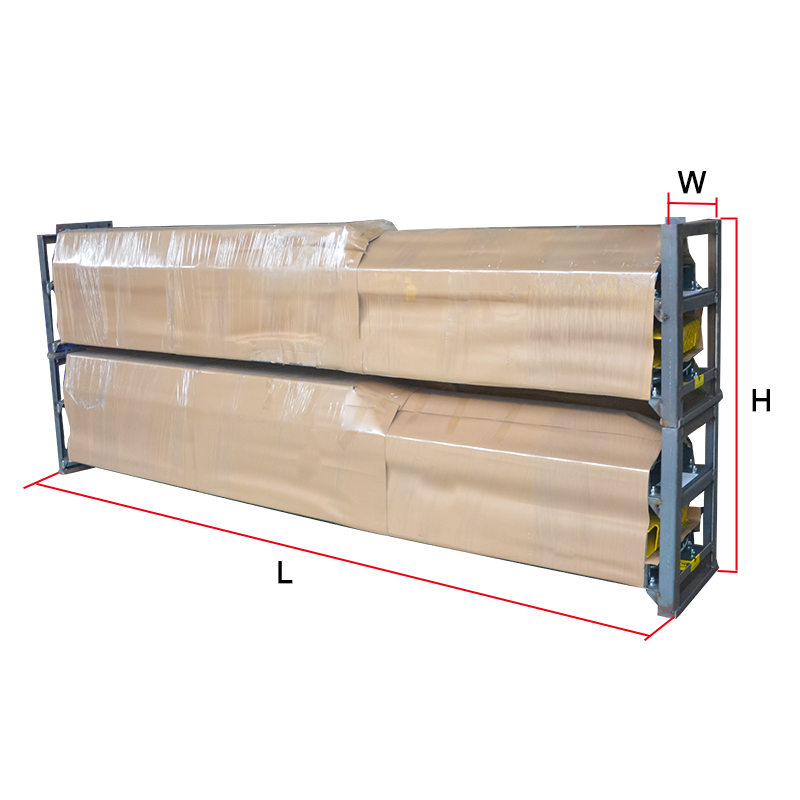

2 units/package,packing measurement (LxWxH): 4260x520x1515mm
-
3 units/package, packing measurement (LxWxH): 4260x520x2220mm
-
1 unit/ctn,packing measurement (LxWxH): 705x300x360mm
-
Attention to forklift loading and unloading
