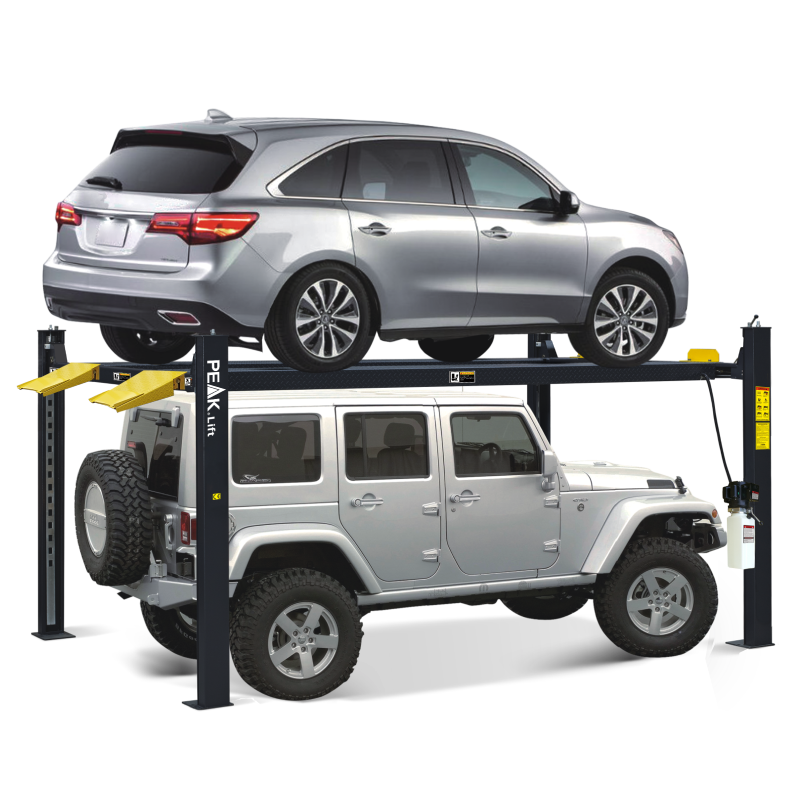

409-HP
4-Post Parking Lift
4-Post Parking Lift

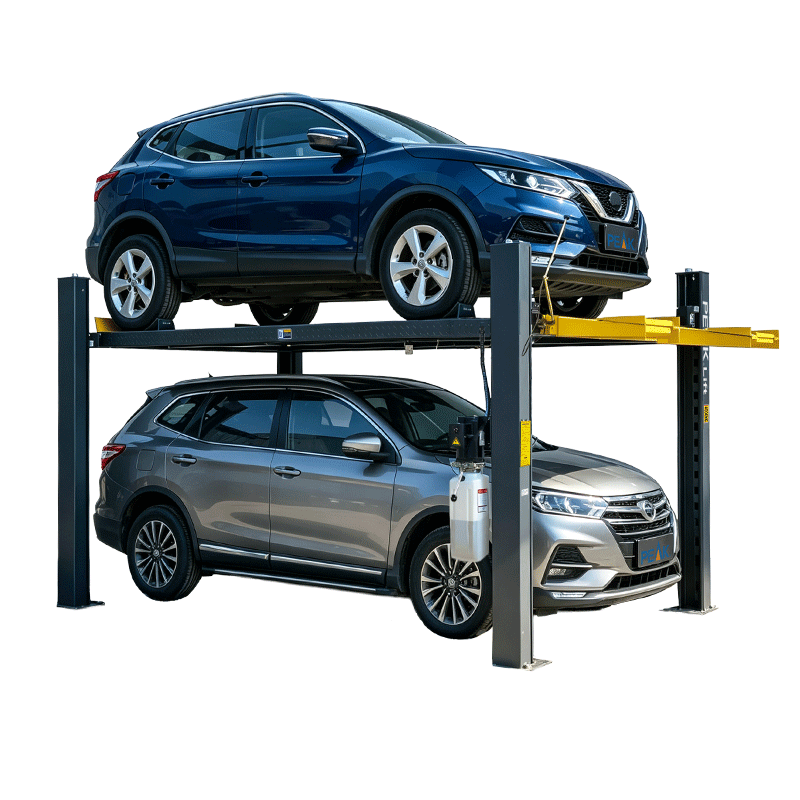

As the deluxe model in PEAK's line of commercial parking lifts, 409-HP is engineered to meet the most demanding requirements. Featuring extremely high-lifting and impressive 4000KG load capacity, 409-HP can accommodate a wide range of vehicles, including cars, SUVs, pickups, and light trucks.
- Lifting capacity: 4000KG (9000lbs);
- Deluxe design, provides unmatched parking experience;

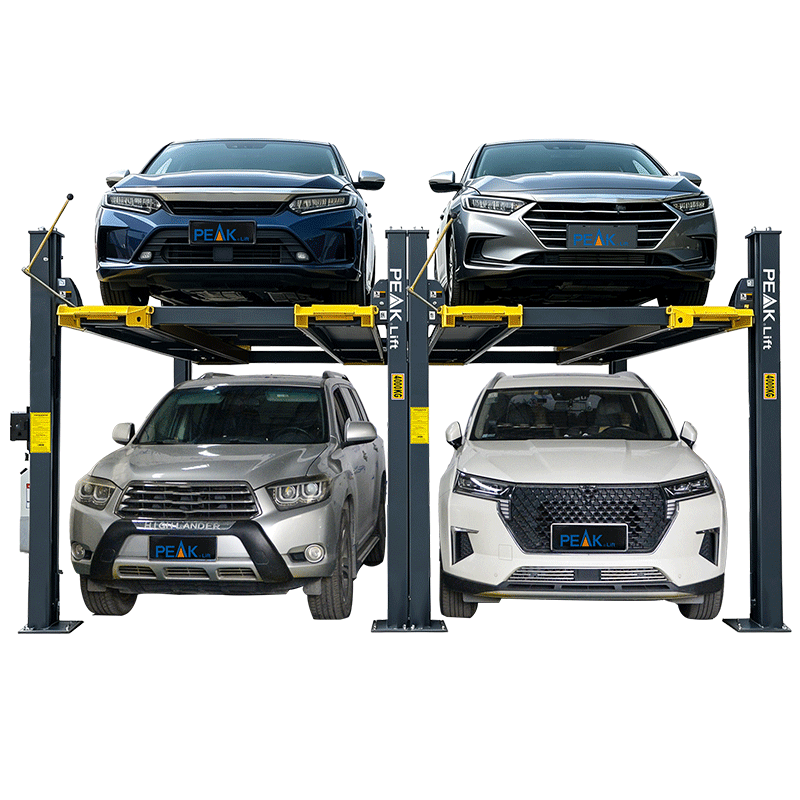

- Support back-to-back installation;
- High lifting capability over 2200mm, perfect for large vans and light trucks;
- PEAK patented concealed safety lock control with single-point manual release;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Double-
shaped columns for enhanced strength; - Foldable drive-on ramps;
- Power side column can be installed at any corner;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 409-HP | 4-Post Parking Lift | |
| Lifting Capacity | 4000kg | |
| Lifting Time | 67s | |
| Overall Length (Inc Ramps ) | A | 6049mm(238 1/8") |
| Outside edge of crossbeams | B | 5022mm (197 3/4") |
| Overall Width | C | 2777mm (109 5/16") |
| Width Between Posts | D | 2531mm (99 5/8") |
| Max. Lifting Height |
E |
2237mm ( 88 1/16") |
| Max. Locking Height | 2157mm ( 84 15/16") | |
| Overall Height | F | 2455mm(96 5/8") |
| Minimum Height | G | 155mm ( 6 1/8") |
| Max. Underneath Height | H | 2097mm ( 82 9/16") |
| Max. Lock Underneath runway | 2017mm ( 79 7/16") | |
| Drive-Thru Clearance | I | 2247mm (88 7/16") |
| Width Between Runways | J | 1077mm (42 3/8") |
| Outside Edge of Runways | K | 2093mm (82 3/8") |
| Gross Weight | 887kg (1,956lbs) | |
| Motor | 3.0HP,220V |
-

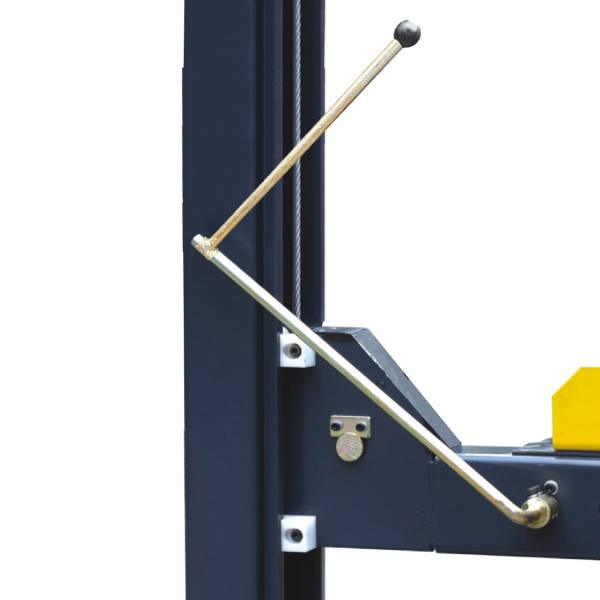

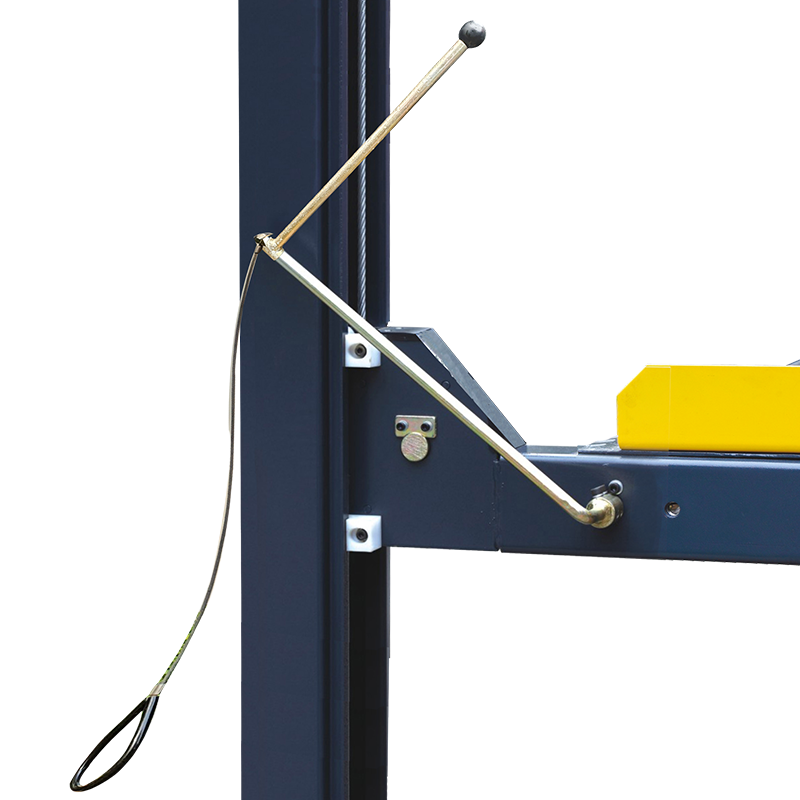

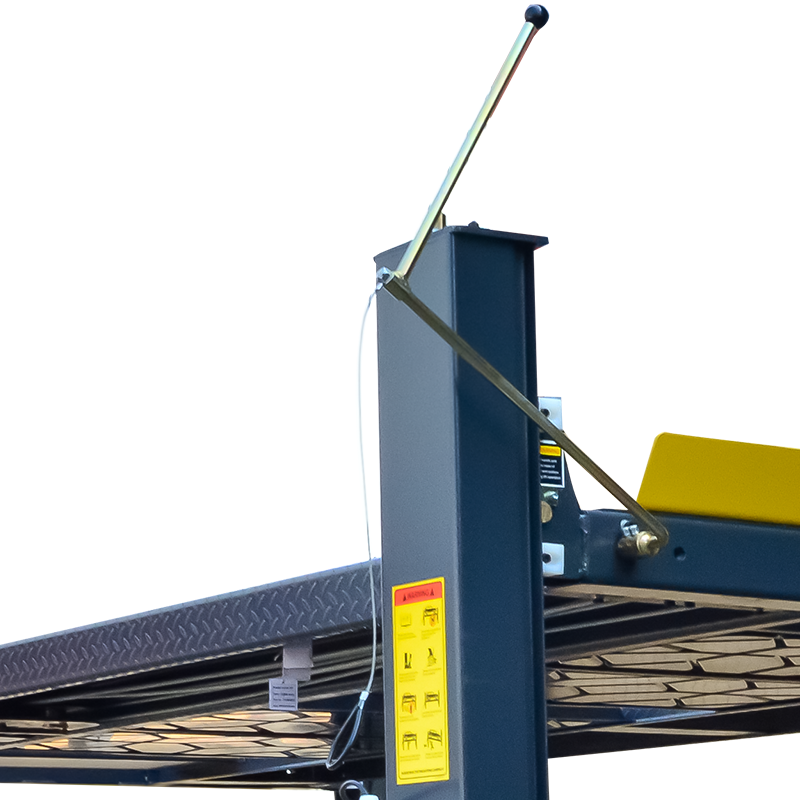

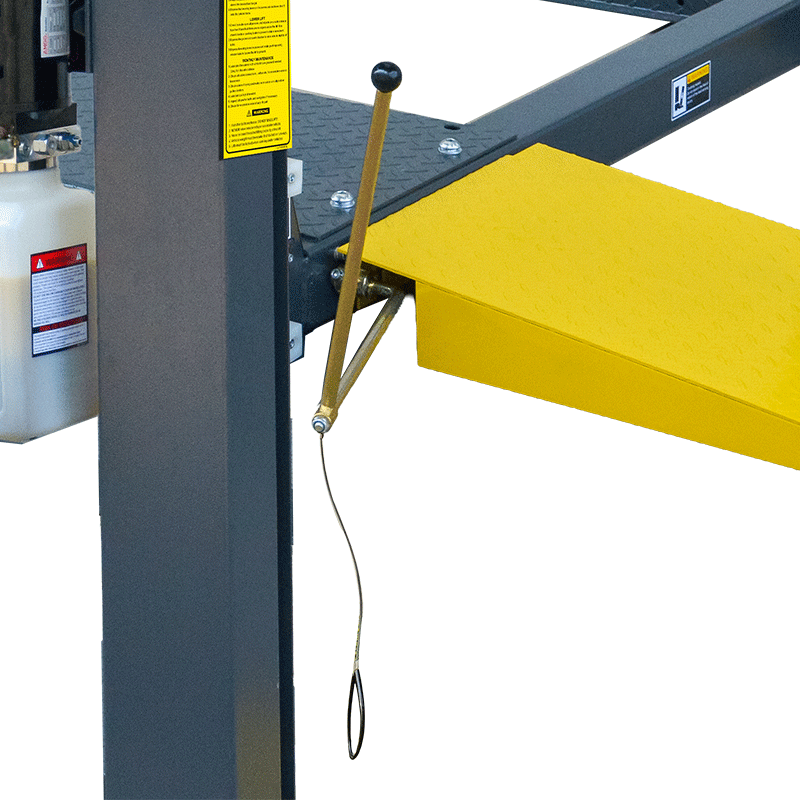

PEAK patented concealed safety lock control with single-point manual release.
-

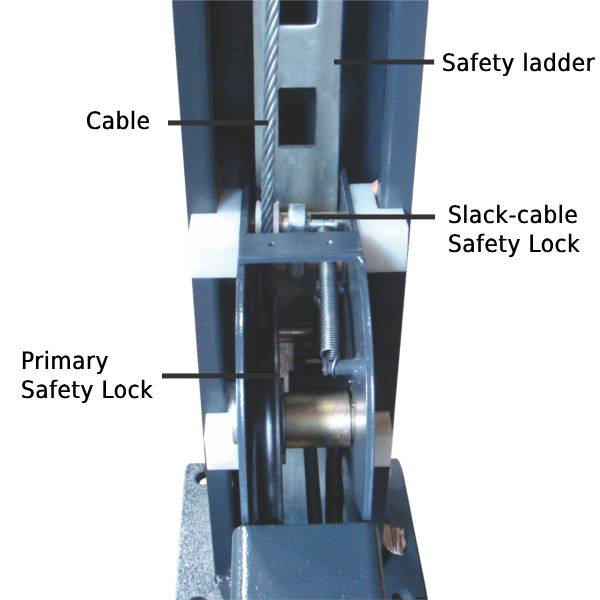

Double safety locks provide additional safety.
-

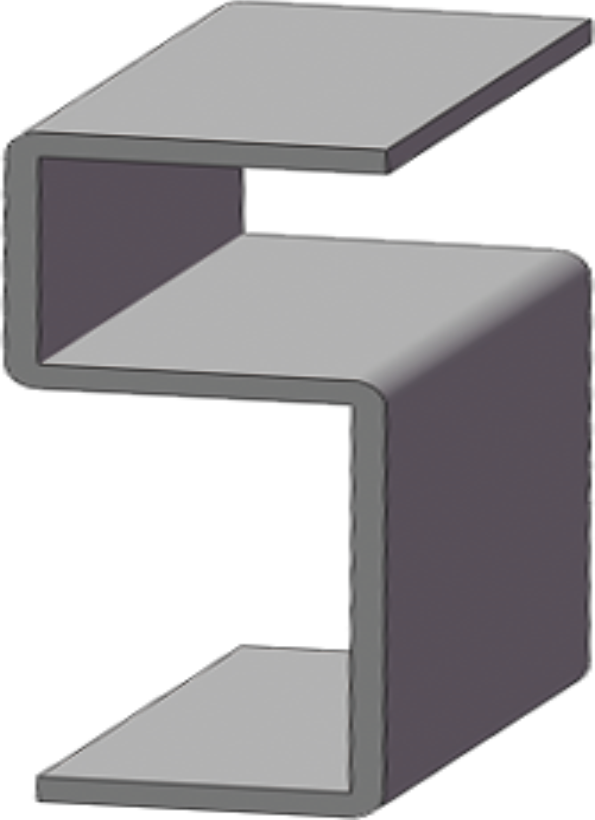

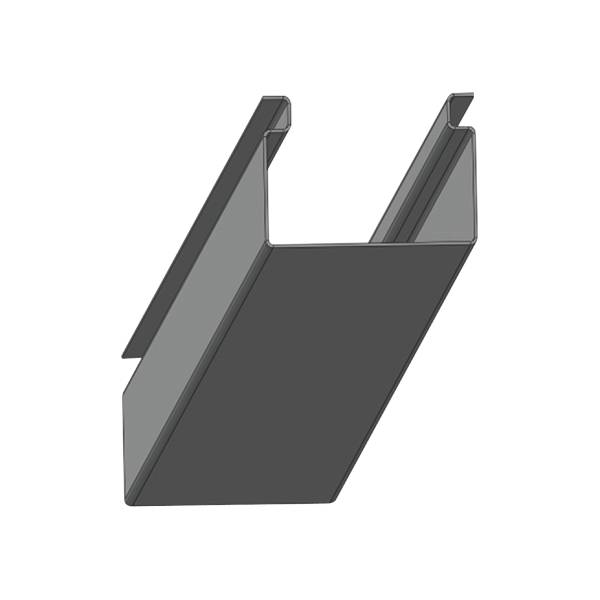

Exclusive feature, double-
shape column. -

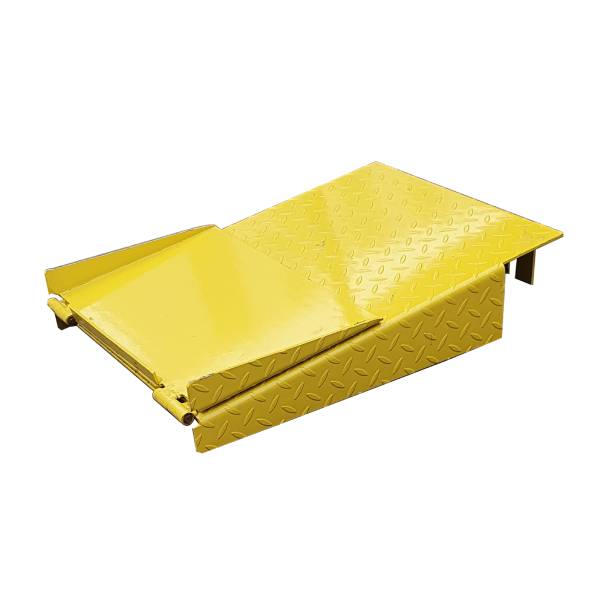

Foldable drive-on ramps (each lift 2 units).
-

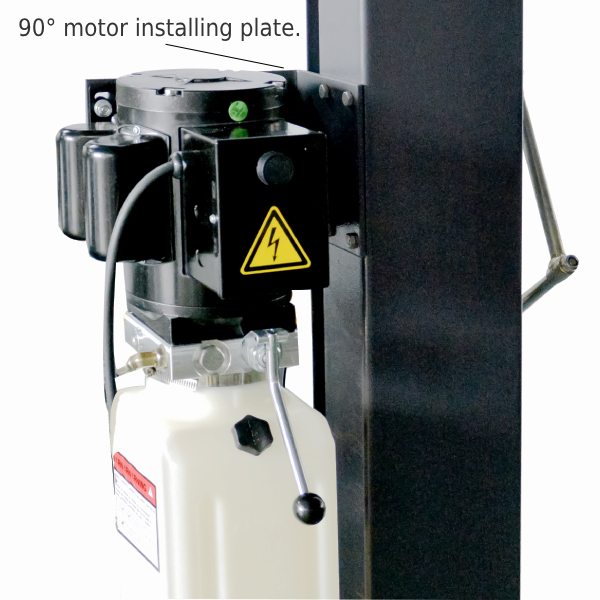

90° installation plate for installing the power unit at the side of a column.
-

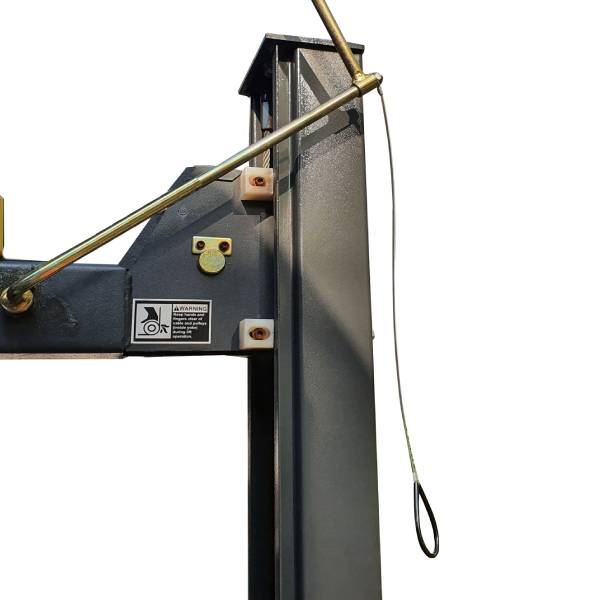

Designed with pull rope.
-

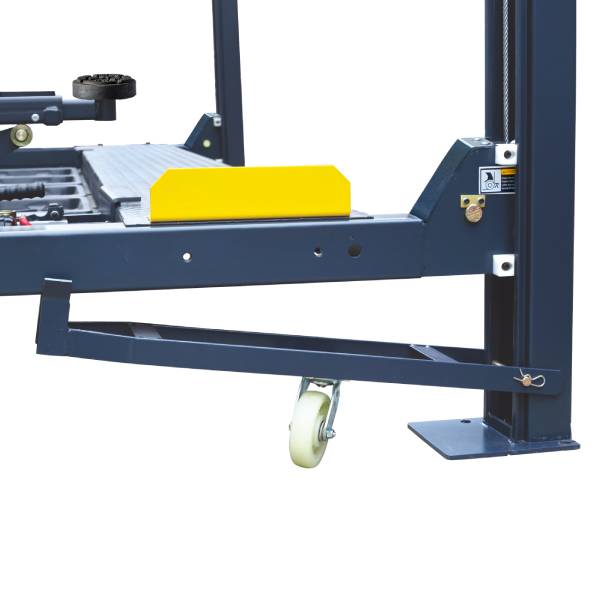

Optional Caster Kits help easily maneuver the parking lift. One set 4pcs.
Kits No.: 40801 -

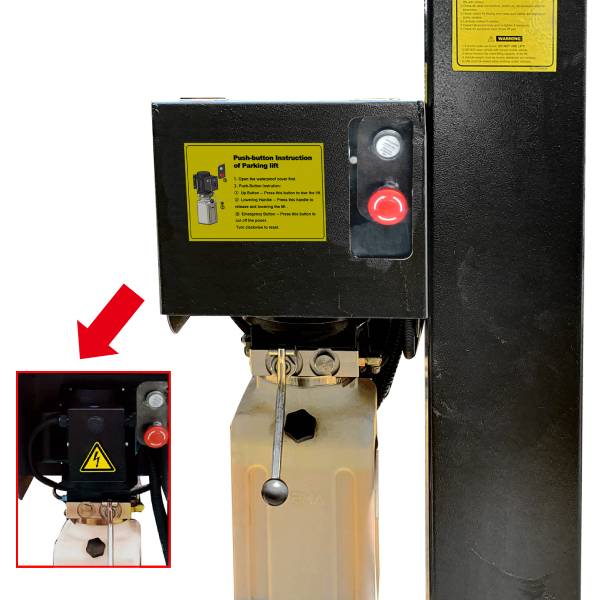

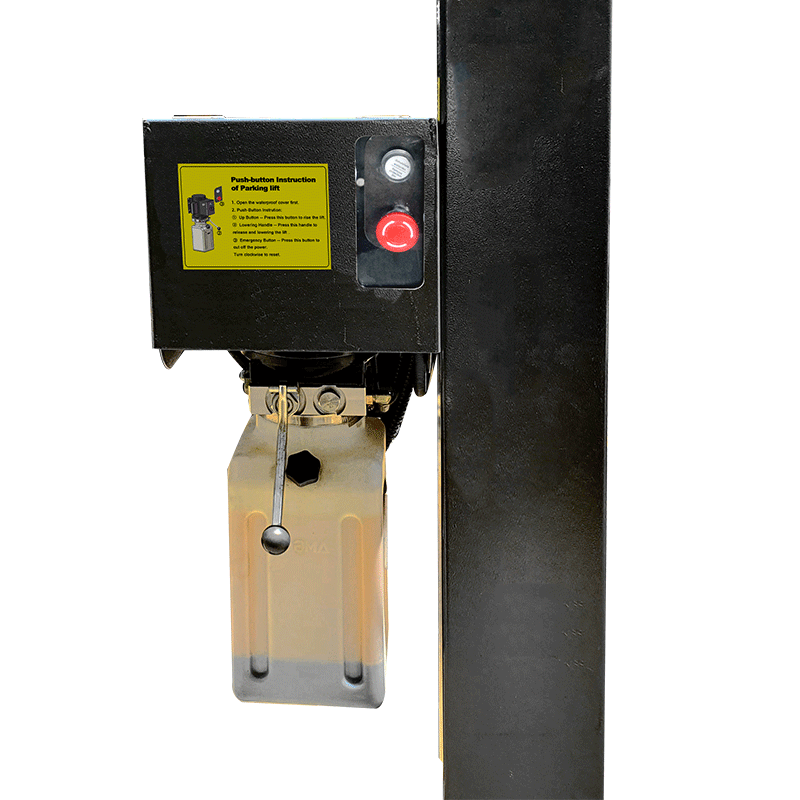

Optional Motor Protect cover for outdoor installation
Kits No.: 40810.
with emergency stop switch. -

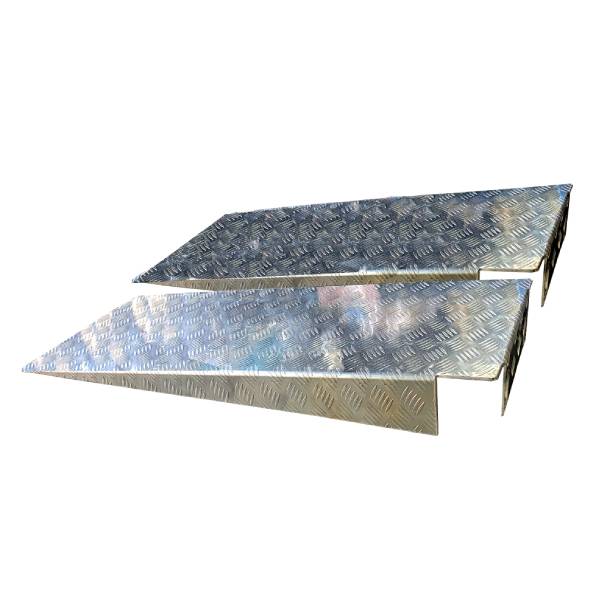

Optional extended aluminum alloy drive-in ramps. G.W.: 20KG/set, length: 1270mm.
Kits No.: 40815 -

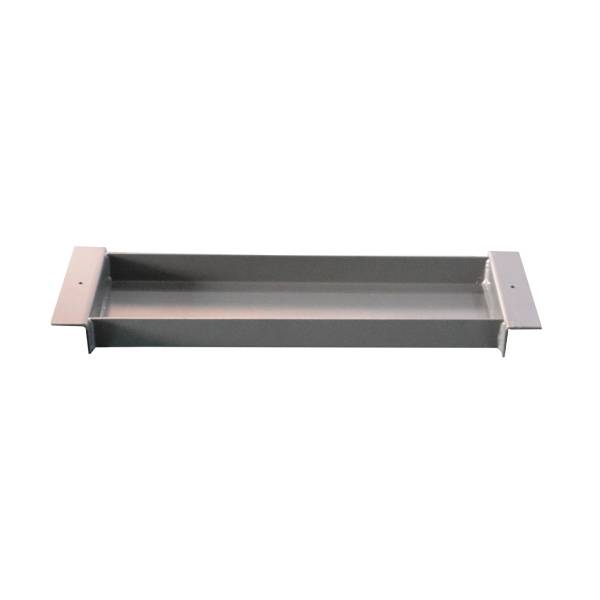

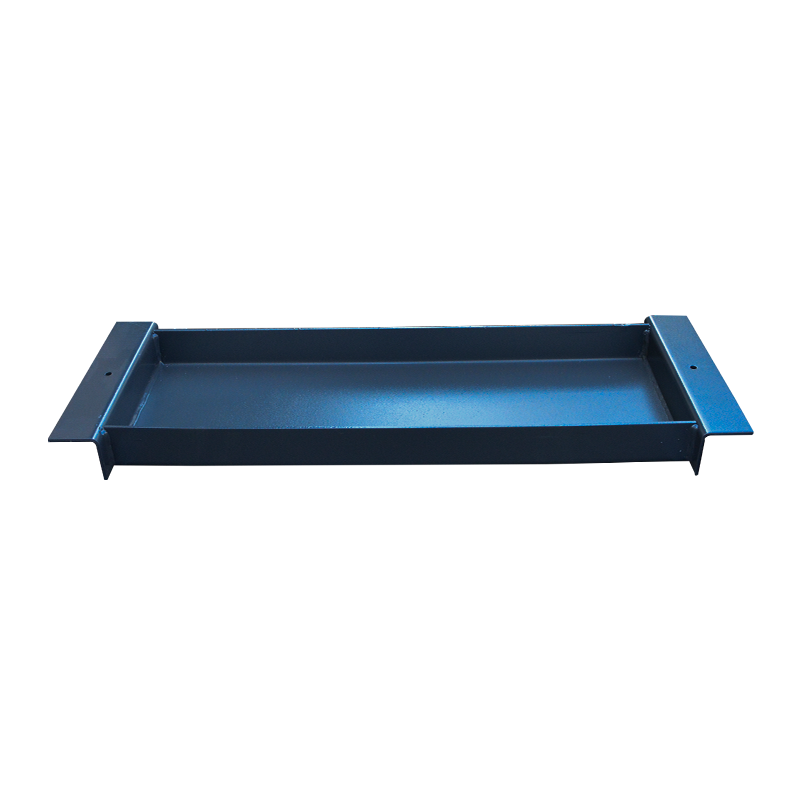

Optional Jack Tray
Kit No.: 40809 -

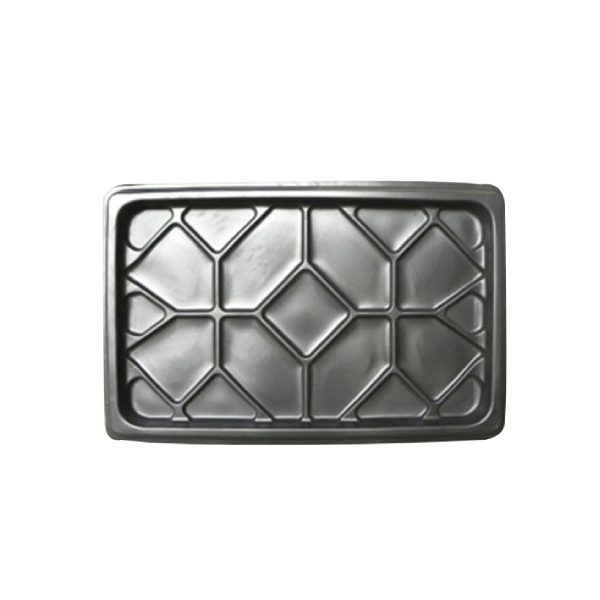

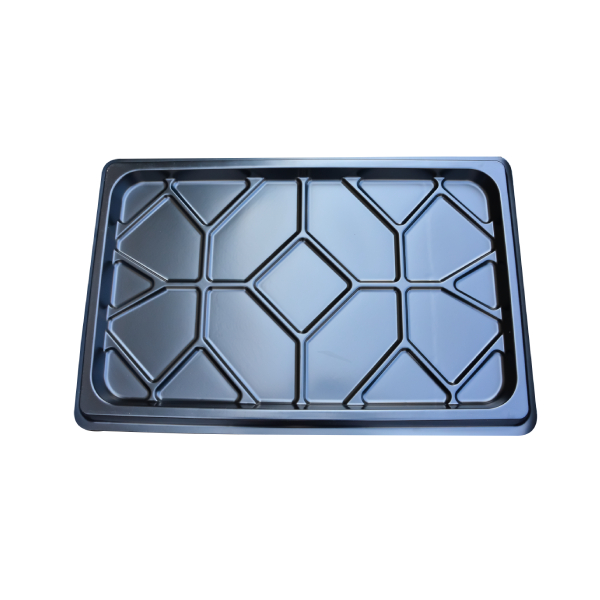

Optional plastic oil tray
Kits No.: 40807.
Dimension: 1067x600mm (42" x 23 5/8") -

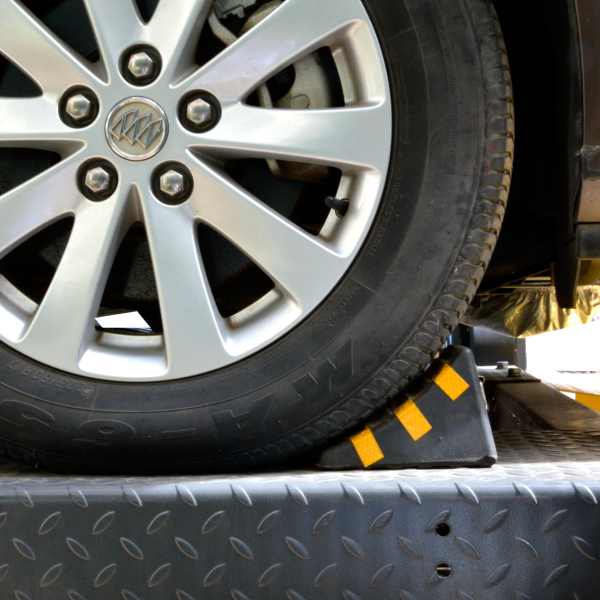

Optional rubber wheel chock
P/N: 40811 -

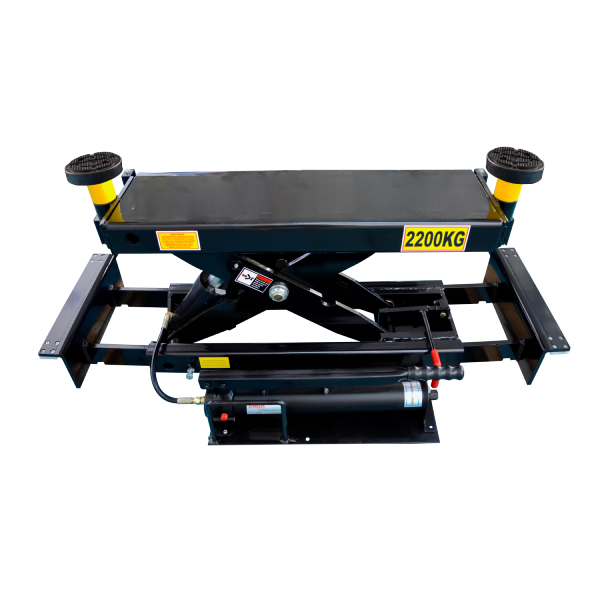

Optional J5H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2200kg (5,000lbs).
-

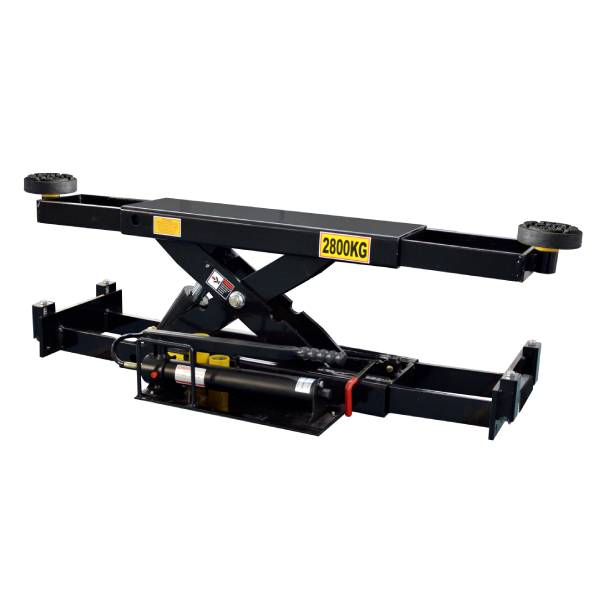

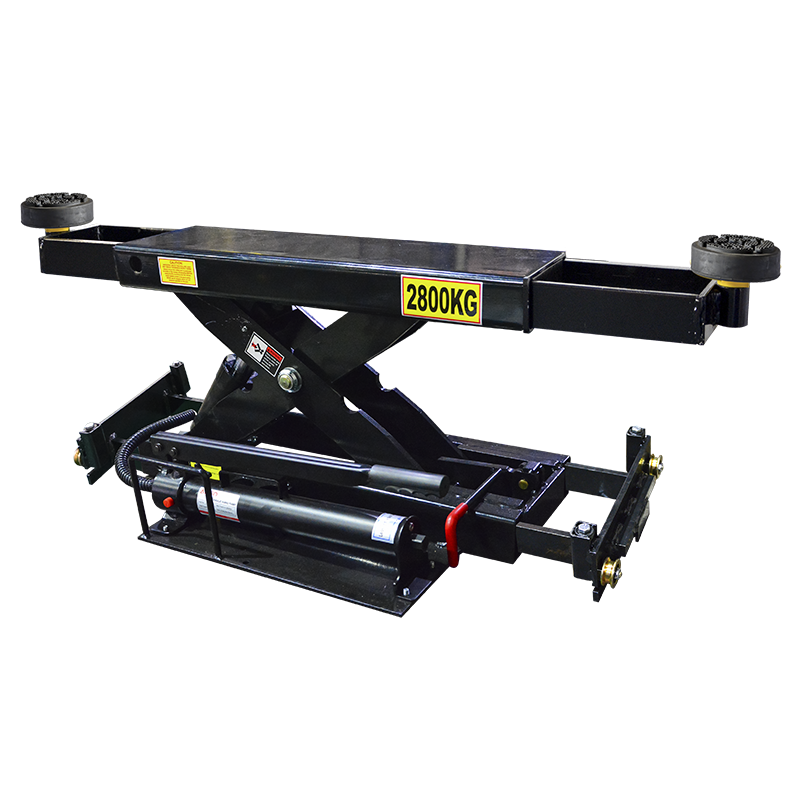

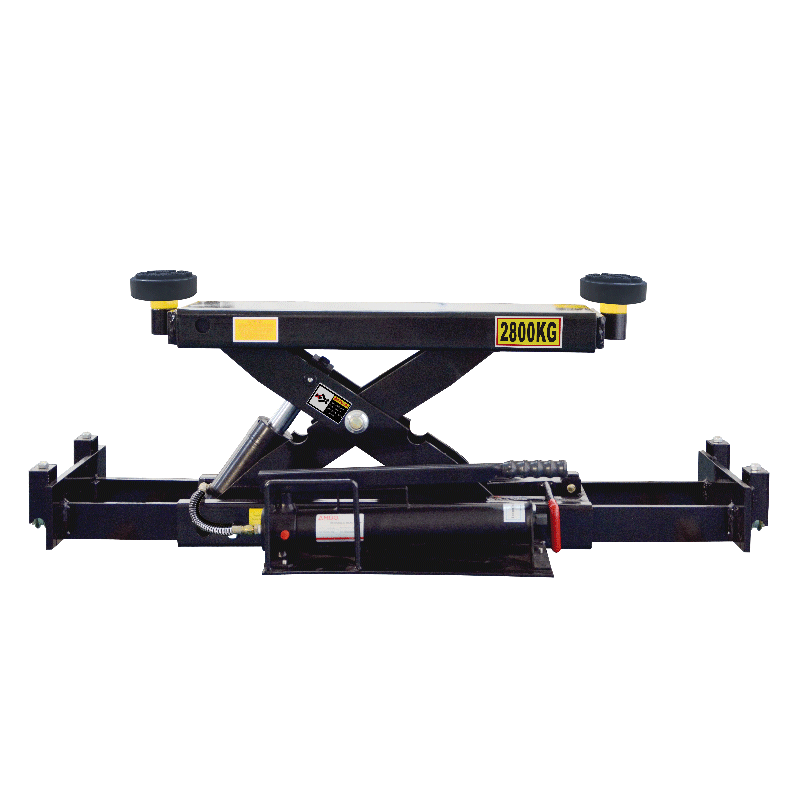

Optional J6H sliding jack with hand pump, 2.5" extension adapters included. Capacity 2800kg (6,000lbs).
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 409-HP: 887kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-

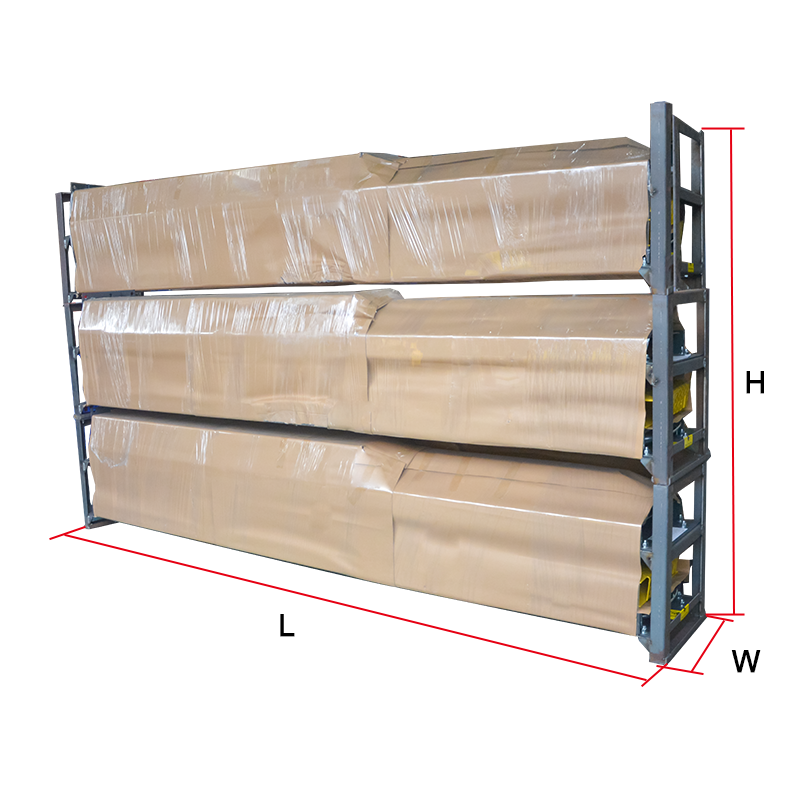

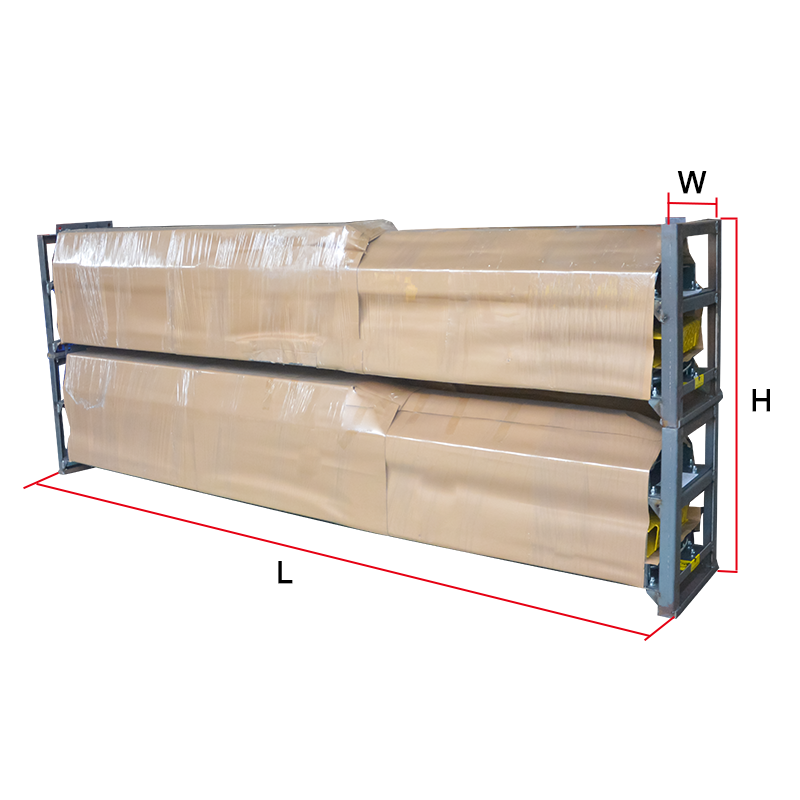

2 units/package,packing measurement (LxWxH): 5125x560x1450mm
-
3 units/package, packing measurement (LxWxH): 5125x560x2180mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
