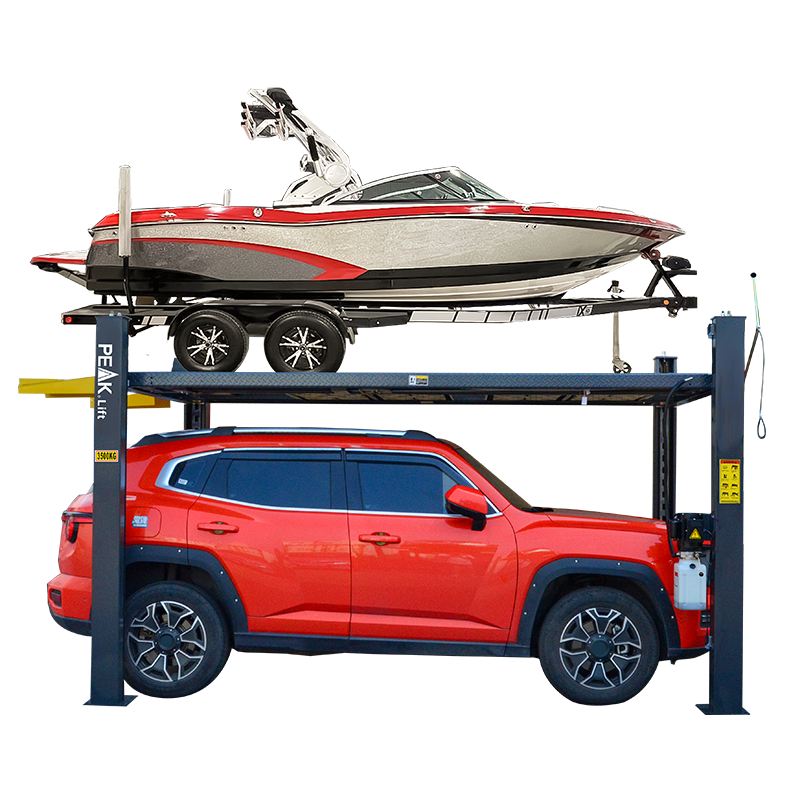

408-HPX
Boat Storage Lifts
A Revolution Boatstyle
Engineered to revolutionize the storage way of your recreational boats, the 408-HPX offers a generous drive-in clearance of over 2800mm and two adjustable width settings, delivering perfect fit for a wide variety of trailers with ease.
- Lifting capacity: 3500KG (8000lbs);
- Proprietary lock control system (patent no.: 2023232158140);
- Manual release, air-free operation;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Flexible installation,power side could be at any corner;
- Two widths settings come standard to accommodate various boats;
- Foldable drive-in ramps come standard
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 408-HPX | Boat Storage Lift | |
| Lifting Capacity | 3500kg | |
| Lifting Time | 46s | |
| Overall Length (Inc Ramps ) | A | 5642mm(222 1/8") |
| Outside edge of crossbeams | B | 4615mm (181 11/16") |
| Overall Width | C | 3344mm (131 5/8") |
| Width Between Posts | D | 3098mm (122") |
| Max. Lifting Height |
E |
2222mm(87 1/2") |
| Max. Locking Height | 2142mm(84 5/16") | |
| Overall Height | F | 2455mm(96 5/8") |
| Minimum Height | G | 140mm (5 1/2") |
| Max. Underneath Height | H | 2097mm (82 9/16") |
| Max. Lock Underneath runway | 2017mm (79 7/16") | |
| Drive-Thru Clearance | I | 2814mm (110 13/16") |
| Width Between Runways | J | 1181mm/1686mm (46 1/2" / 66 3/8") |
| Outside Edge of Runways | K | 2131mm/2636mm (83 7/8" / 103 3/4") |
| Gross Weight | 719kg (1,585lbs) | |
| Motor | 3.0HP,220V |
-
Adjustable trailer platform included as standard. Adj. range: 1077mm(42 3/8")~1682mm (66 3/16").
-

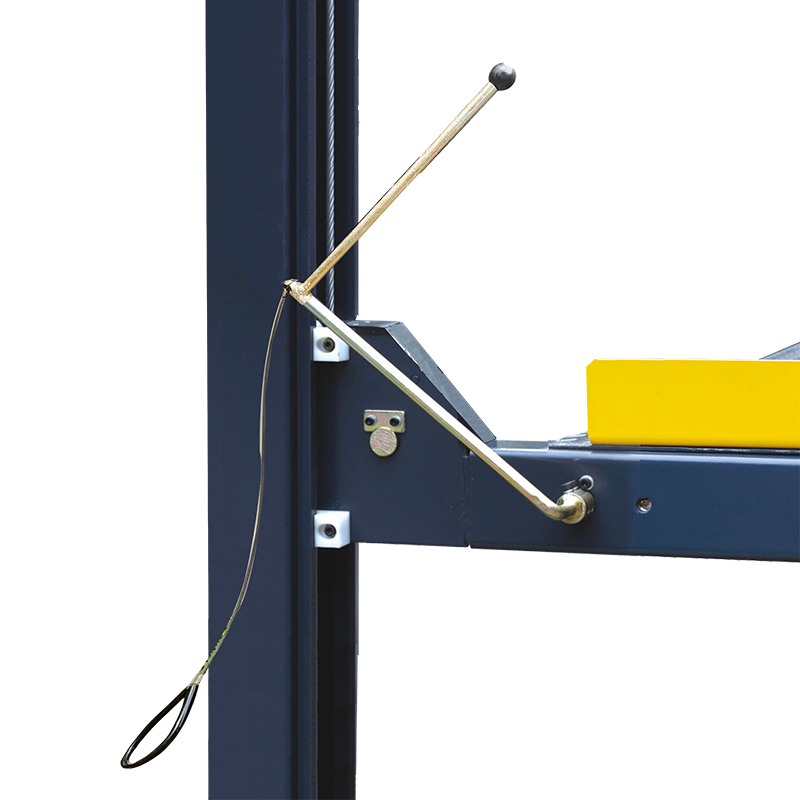

Proprietary lock control system (patent no.: 2023232158140);
-
Double safety locks provide additional safety.
-
Exclusive feature, double-
shape column. -
Foldable drive-on ramps (each lift 2 units).
-
90° installation plate for installing the power unit at the side of a column.
-
Optional Motor Protect cover for outdoor installation
Kits No.: 40810.
with emergency stop switch. -
Optional extended aluminum alloy drive-in ramps.
Kits No.: 40814 -
Optional rubber wheel chock
P/N: 40811 -
Optional Trailer Extended Platform adds an extra 609mm (24") length.
Kits No.:40818
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 408-HPX: 719kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-
2 units/package,packing measurement (LxWxH): 4260x520x1515mm
-
3 units/package, packing measurement (LxWxH): 4260x520x2220mm
-
1 unit/ctn,packing measurement (LxWxH): 705x300x360mm
-
Attention to forklift loading and unloading
