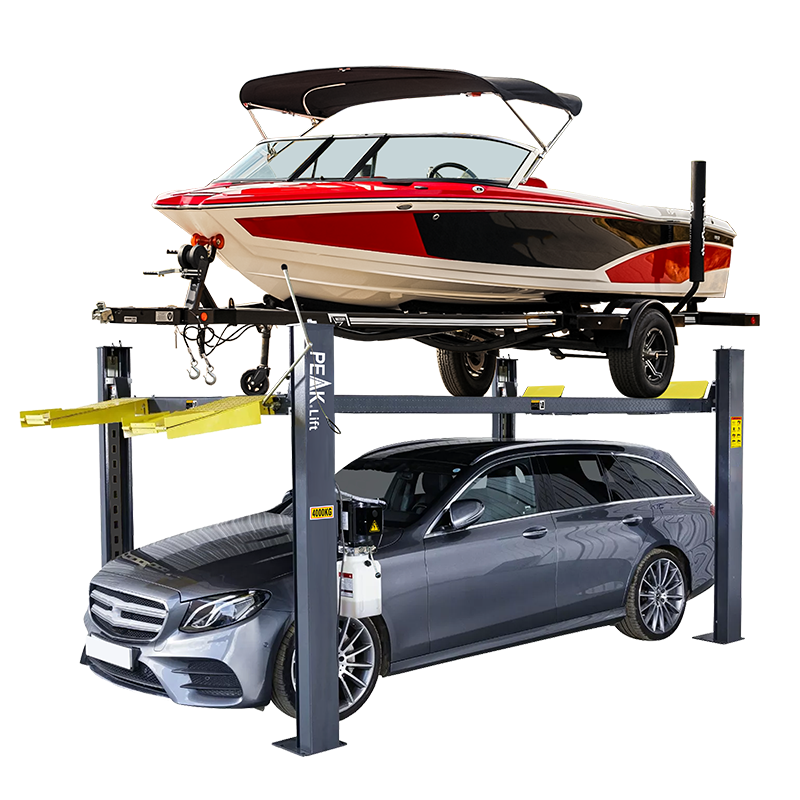

409-HPX
Boat Storage Lifts
Extended Capacity & Extended Length
Built for heavier loads, the 409-HPX steps up with a 4,000kg capacity and a longer frame than the 408-HPX, giving even larger boats a seamless and secure storage solution.
- Lifting capacity: 4000KG (9,000lbs);
- Proprietary lock control system (patent no.: 2023232158140);

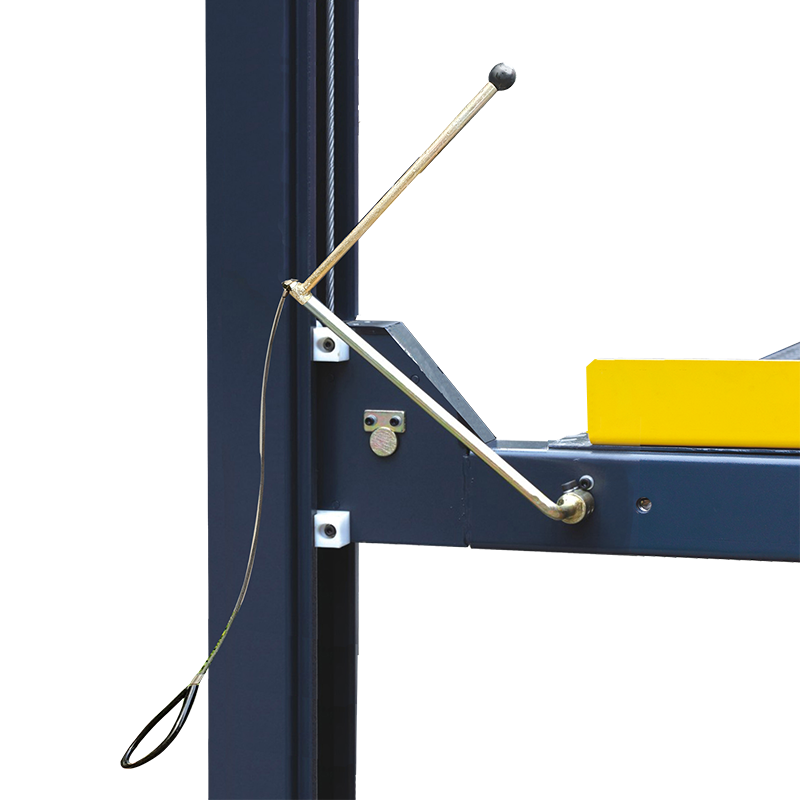

- Manual release, air-free operation;
- Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
- Integrated non-skid diamond platforms;
- Flexible installation,power side could be at any corner;
- Two widths settings come standard to accommodate various boats;
- Foldable drive-in ramps come standard
- High quality hydraulic cylinder design and manufactured at high standard.
- Extended length model, 407mm longer than 408-HPX, ideal for boats with extremely length.
| Model 409-HPX | Boat Storage Lift | |
| Lifting Capacity | 4000kg(9,000lbs) | |
| Lifting Time | 57s | |
| Overall Length (Inc Ramps ) | A | 6049mm(238 1/8") |
| Outside edge of crossbeams | B | 5022mm (197 3/4") |
| Overall Width | C | 3344mm (131 5/8") |
| Width Between Posts | D | 3098mm (122") |
| Max. Lifting Height |
E |
2232mm(87 7/8") |
| Max. Locking Height | 2152mm(84 3/4") | |
| Overall Height | F | 2455mm(96 5/8") |
| Minimum Height | G | 150mm (5 15/16") |
| Max. Underneath Height | H | 2097mm (82 9/16") |
| Max. Lock Underneath runway | 2017mm (79 7/16") | |
| Drive-Thru Clearance | I | 2814mm (110 13/16") |
| Width Between Runways | J | 1077mm/1620mm (42 3/8" / 63 3/4") |
| Outside Edge of Runways | K | 2093mm/2636mm (82 3/8" / 103 3/4") |
| Gross Weight | 898kg (1,980lbs) | |
| Motor | 3.0HP,220V |
-

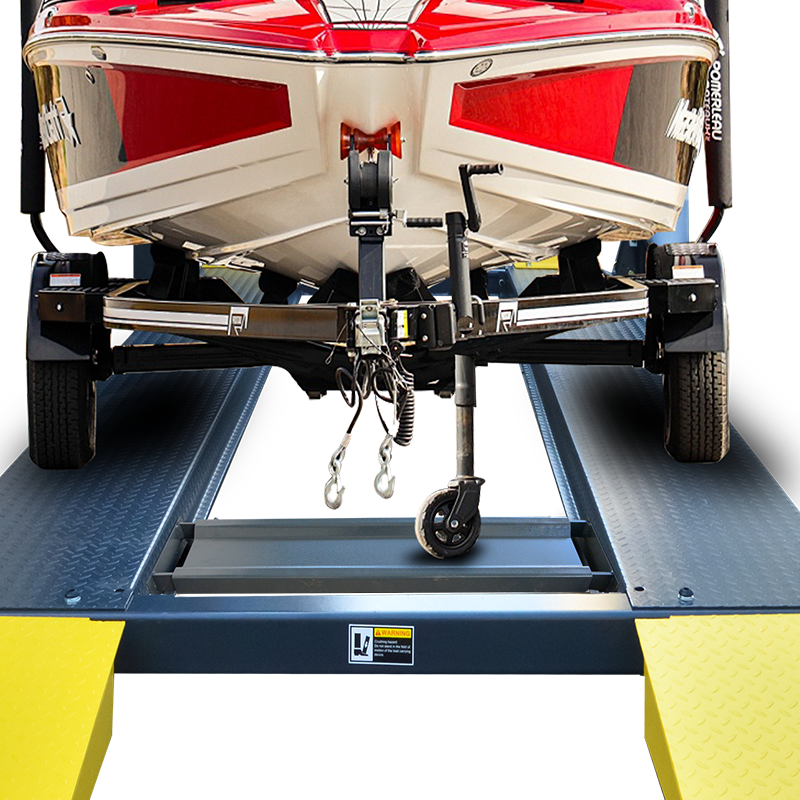

Adjustable trailer platform included as standard. Adj. range: 1077mm(42 3/8")~1682mm (66 3/16").
-
Proprietary lock control system (patent no.: 2023232158140);
-
Double safety locks provide additional safety.
-
Exclusive feature, double-
shape column. -
Foldable drive-on ramps (each lift 2 units).
-
90° installation plate for installing the power unit at the side of a column.
-
Optional Motor Protect cover for outdoor installation
Kits No.: 40810.
with emergency stop switch. -
Optional extended aluminum alloy drive-in ramps.
Kits No.: 40814 -
Optional rubber wheel chock
P/N: 40811 -
Optional Trailer Extended Platform adds an extra 609mm (24") length.
Kits No.:40818
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 409-HPX: 898kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 24 units.
-
2 units/package,packing measurement (LxWxH): 4260x520x1515mm
-
3 units/package, packing measurement (LxWxH): 4260x520x2220mm
-
1 unit/ctn,packing measurement (LxWxH): 705x300x360mm
-
Attention to forklift loading and unloading
