408-HPX

Boats & wide vehicles storage lift

A Revolution Boatstyle

Engineered to revolutionize the storage way of your recreational boats and large vehicles, the 408-HPX offers a generous drive-in clearance and two adjustable width settings, delivering perfect fit for a wide variety of types with ease.

Catalogue Downloads

Get Quotation

Lifting capacity: 3500KG (8000lbs);
Proprietary lock control system (patent no.: 2023232158140);
Manual release, air-free operation;
Dual safety devices mechanisms: both primary safety locks and cable-slack protection;
Integrated non-skid diamond platforms;
Flexible installation,power side could be at any corner;
Two widths settings come standard to accommodate various boats and vehicles;
Foldable drive-in ramps come standard;
High quality hydraulic cylinder design and manufactured at high standard.

Model 408-HPX		Boats and wide vehicles storage lift
Lifting Capacity		3500kg (8,000lbs)
Lifting Time		46s
Overall Length (Inc Ramps )	A	5642mm (222 1/8")
Outside edge of crossbeams	B	4615mm (181 11/16")
Overall Width	C	3314mm (130 1/2")
Width Between Posts	D	3068mm (120 13/16")
Max. Lifting Height	E	2227mm (87 11/16")
Max. Lock Height	E	2157mm (84 15/16")
Overall Height	F	2455mm (96 5/8")
Minimum Height	G	145mm (5 11/16")
Max. Underneath Height	H	2107mm (82 15/16")
Max. Underneath Lock Height	H	2037mm ( 80 3/16")
Drive-Thru Clearance	I	2784mm (109 5/8")
Width Between Runways	J	1181mm/1650mm (46 1/2" / 64 15/16")
Outside Edge of Runways	K	2131mm/2600mm (83 7/8" / 102 3/8")
Gross Weight		719kg (1,585lbs)
Motor		3.0HP,220V
Qty of Container		12 units/20GP

/attachment/1/source/PEAK-lift-408-hpx-boat-storage-lift-diagram_2812.png

Adjustable trailer platform included as standard. Adj. range: 1077mm~1682mm.
Proprietary lock control system (patent no.: 2023232158140);
Support back-to- back installation to save space.

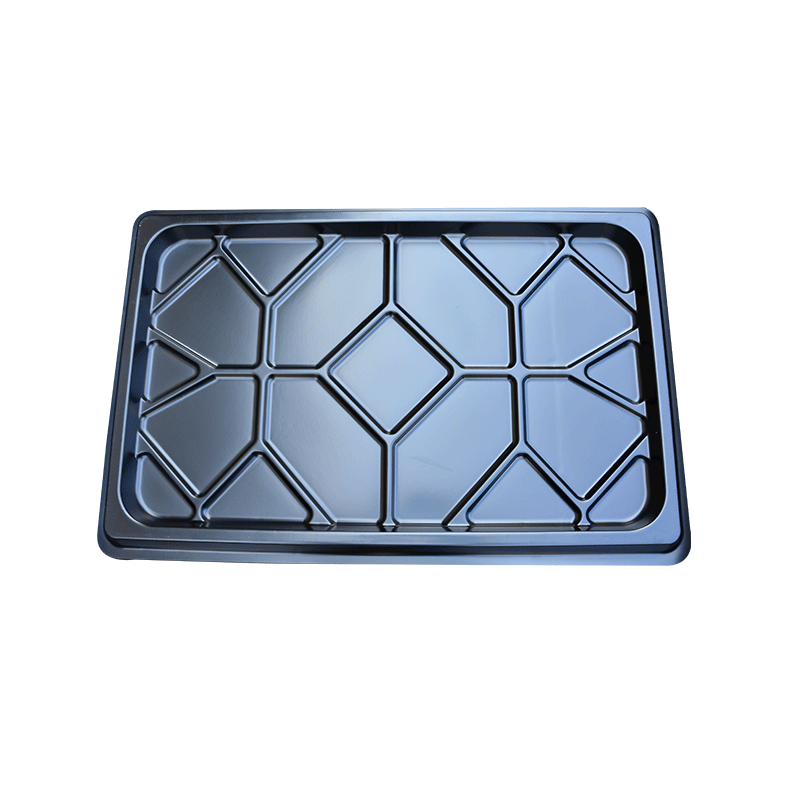

Optional Plastic Oil tray ( 1 set, 4 pcs), Kits No.: 40819.

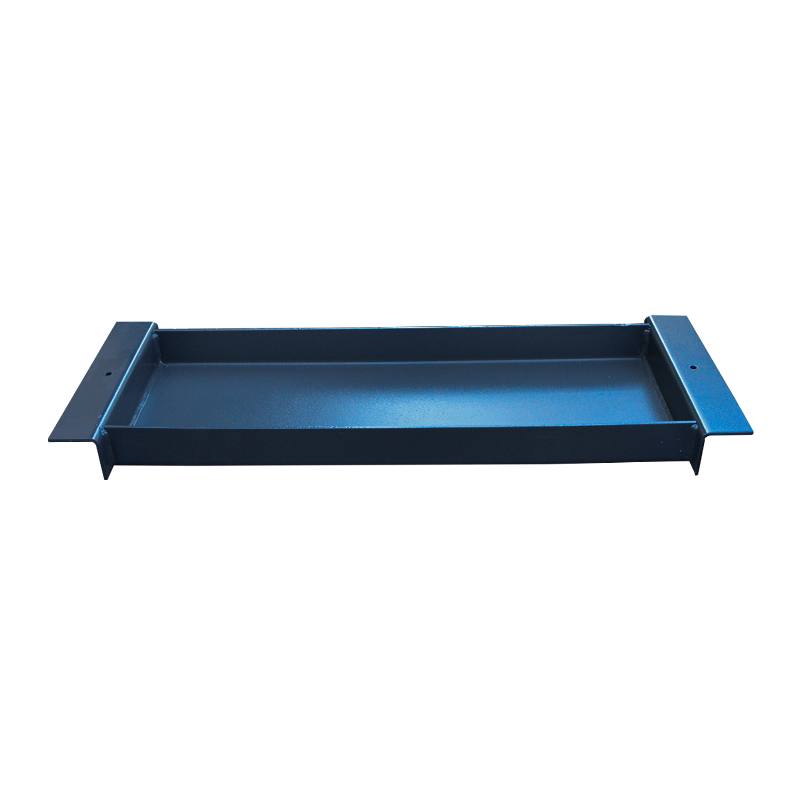

Optional adjustable Jack Tray (adj. range: 920-1181mm). Kits no. 40816.
Optional motor protective cover (with emergency stop switch), Kits No.: 40810.
Optional extended aluminum drive-in ramp. Kits No.: 40815, each lift needs 2 units.
Optional rubber wheel chock
P/N: 40811
Optional trailer extended platform adds an extra 609mm (24") length, Kits No.:40818
