SX10

On Surface Full-Rise Scissors Lift

Full Rise at Ease

Easy to install, minimal service required, the new SX10 sets a global safety benchmark by integrating both hydraulic and mechanical locking systems. Its heavy-duty single-scissor structure delivers a powerful 4500kg capacity, while the two-stage ramps at both ends ensure smooth, damage-free access for even low-clearance sports cars. The large extendable platforms readily accommodate a wide range of wheelbases, boosting your daily efficiency across diverse applications.

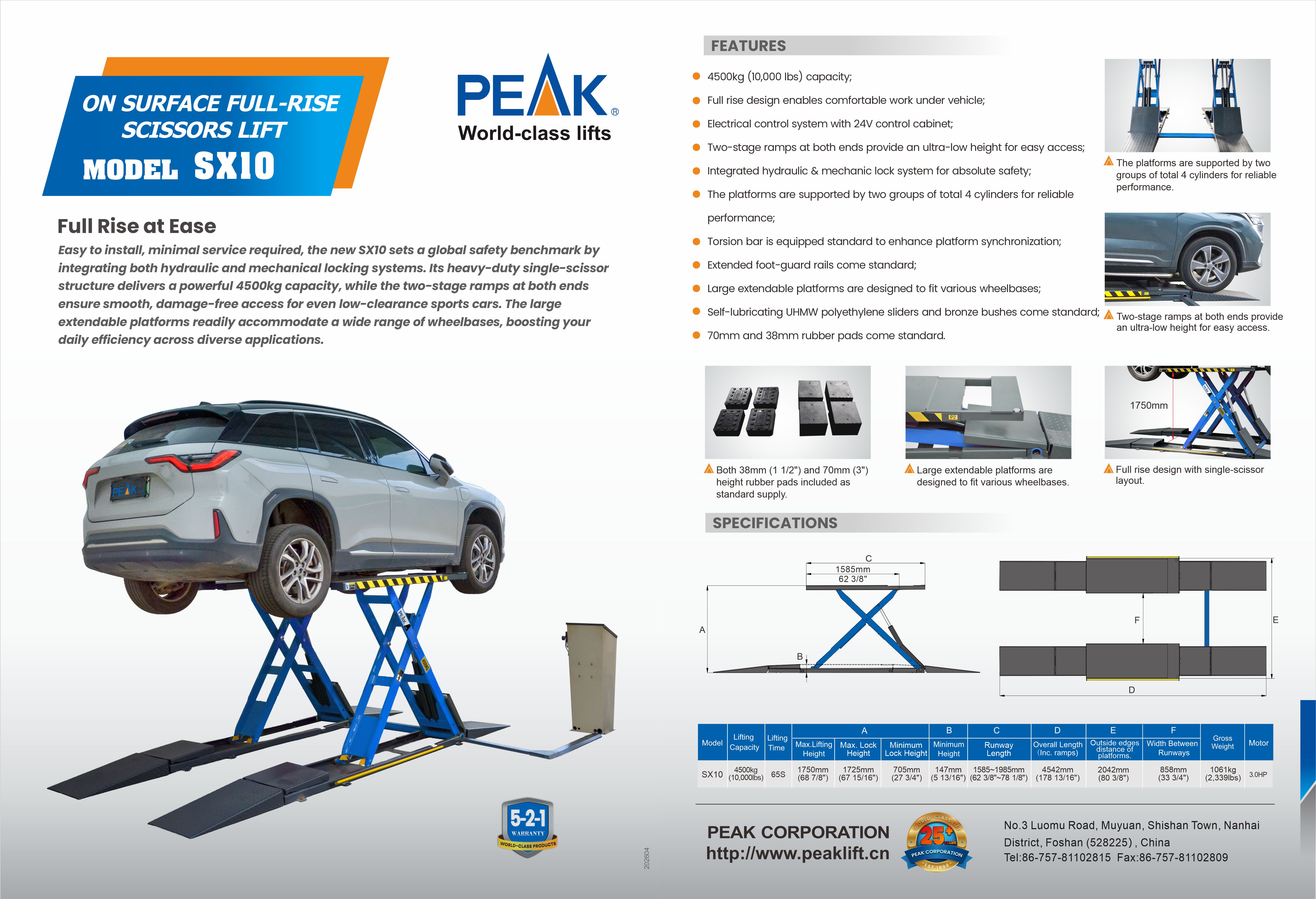

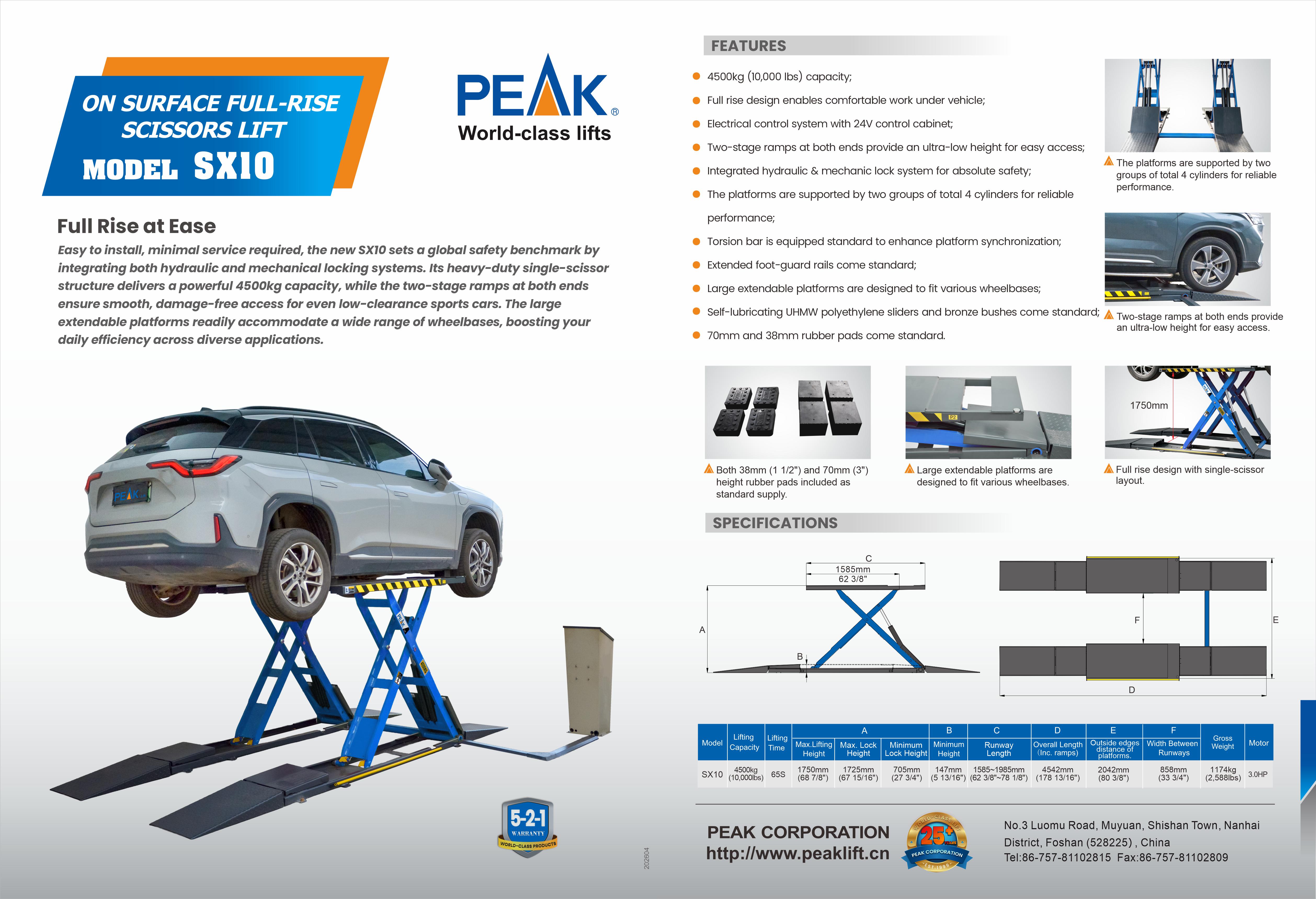

Catalogue Downloads

Get Quotation

4500kg (10,000 lbs) capacity;
Full rise design enables comfortable work under vehicle;
Electrical control system with 24V control cabinet;
Two-stage ramps at both ends provide an ultra-low height for easy access;
Integrated hydraulic & mechanic lock system for absolute safety;
The platforms are supported by two groups of total 4 cylinders for reliable performance;
Torsion bar is equipped standard to enhance platform synchronization;
Extended foot-guard rails come standard;
Large extendable platforms are designed to fit various wheelbases;
Self-lubricating UHMW polyethylene sliders and bronze bushes come standard;
70mm and 38mm rubber pads come standard.

Model		SX10
Lifting Capacity		4500kg(10,000LBS)
Lifting Time		65s
Max. Lifting Height	A	1750mm (68 7/8")
Max. Lock Height		1725mm (67 15/16")
Minimum Lock Height		705mm(27 3/4")
Minimum Height	B	147mm(5 13/16)
Runway Length	C	1585mm~1985mm (62 3/8"~78 1/8")
Overall Length( Inc. ramps)	D	4542mm (178 13/16")
Outside edges distance of platforms	E	2042mm (80 3/8")
Width Between Runways	F	858mm (33 3/4")
Gross Weight		1061kg (2,339lbs)
Motor		3.0HP

/attachment/1/source/Detail_image-sx10_3929.png

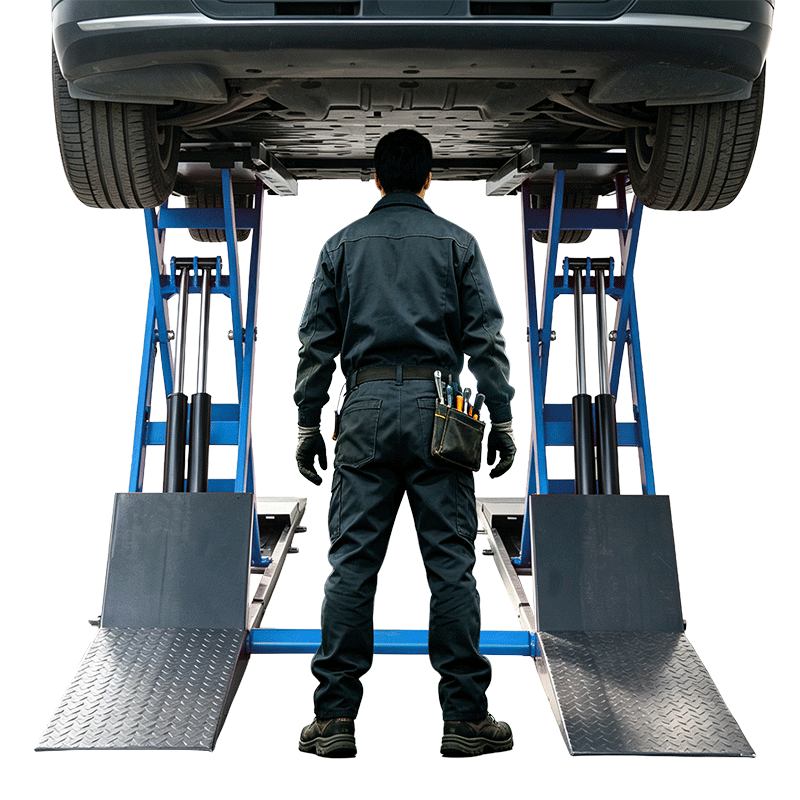

The platforms are supported by two groups of total 4 cylinders for reliable
performance.

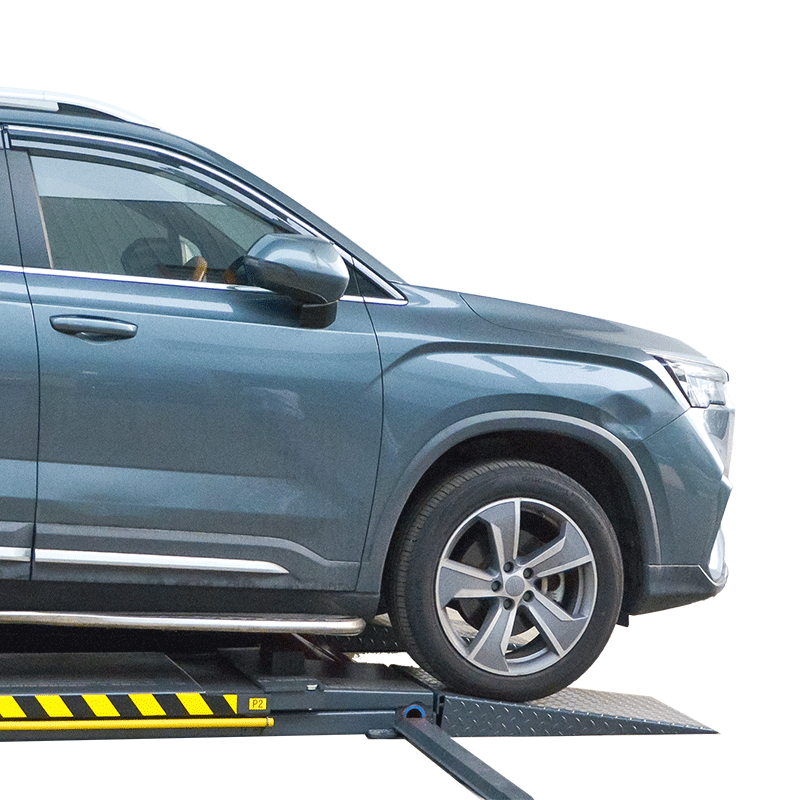

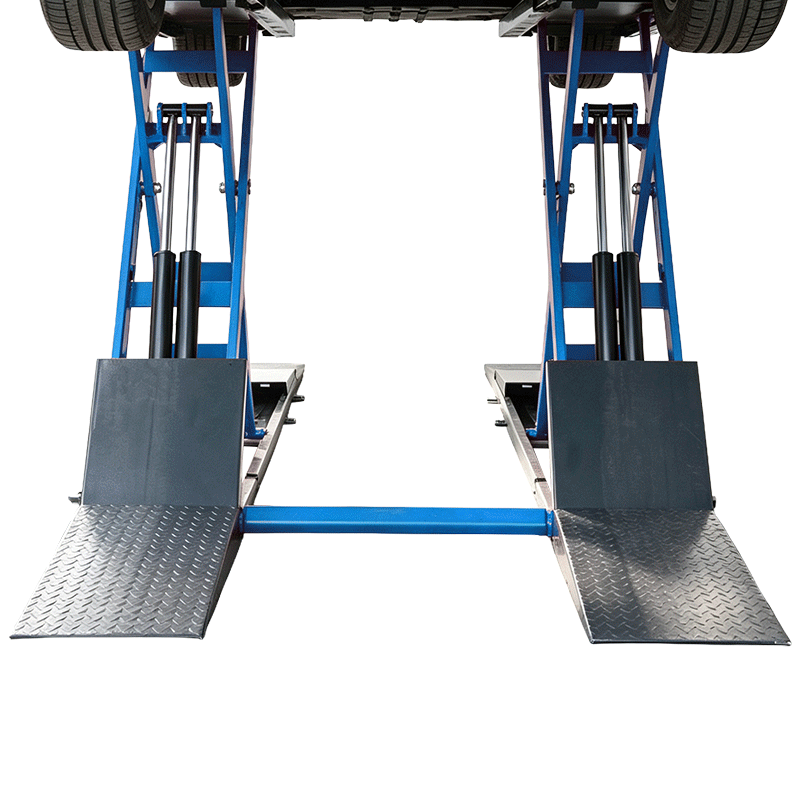

Two-stage ramps at both ends provide an ultra-low height for easy access.

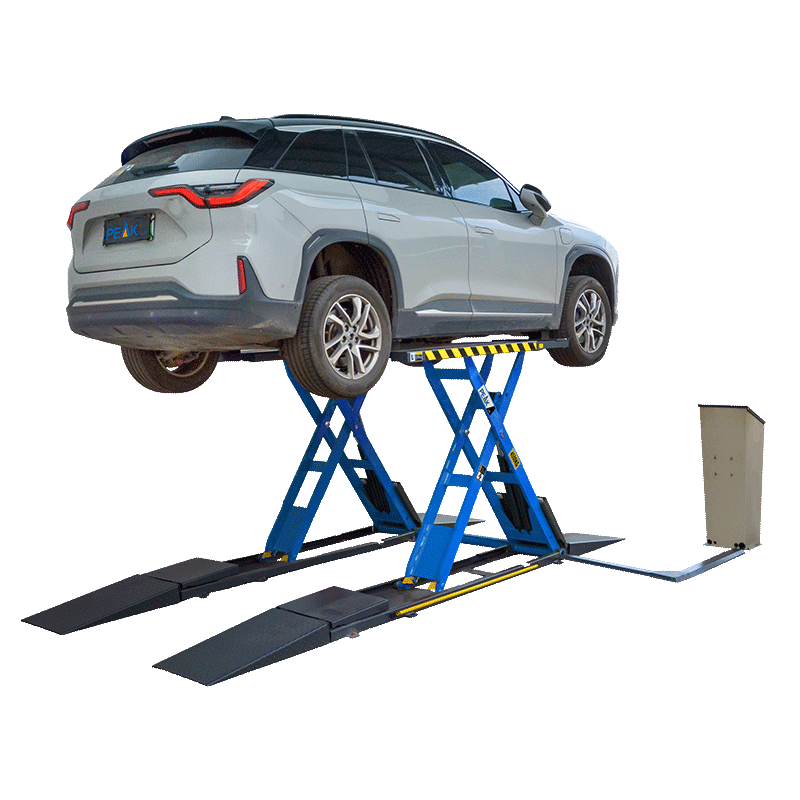

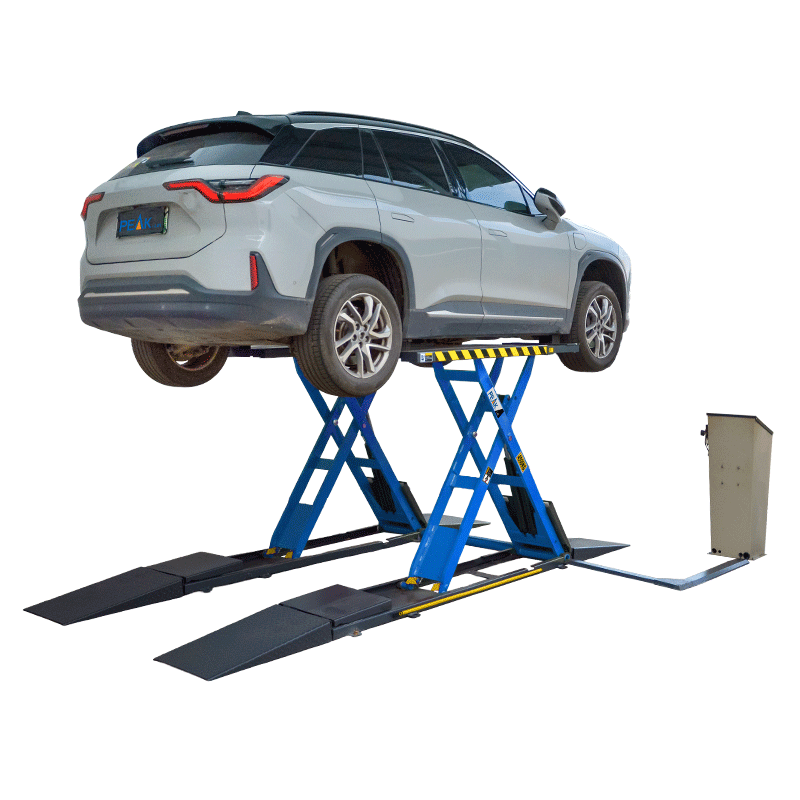

Full rise design with single-scissor layout.

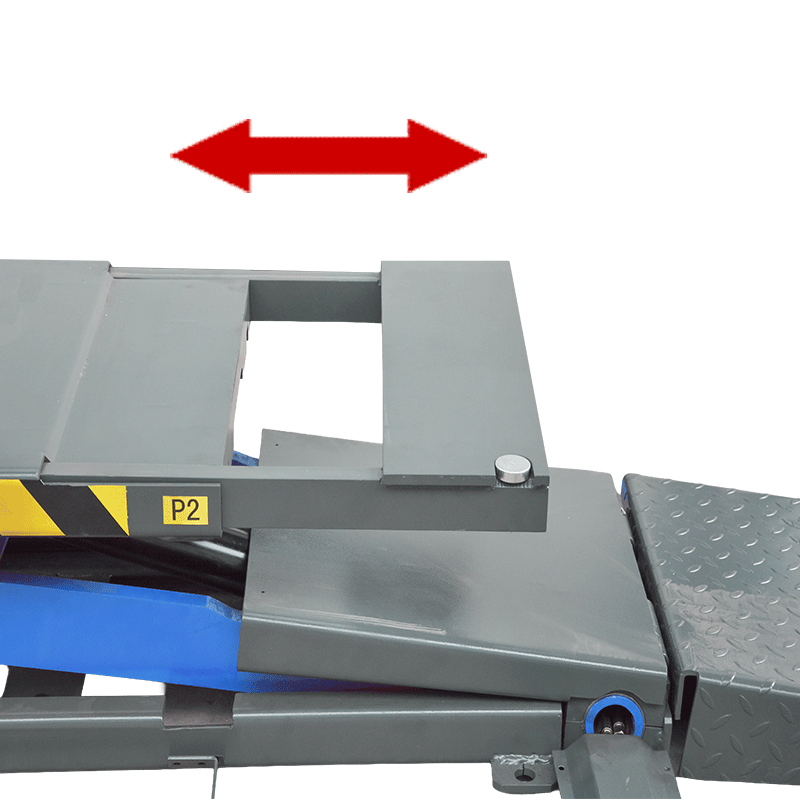

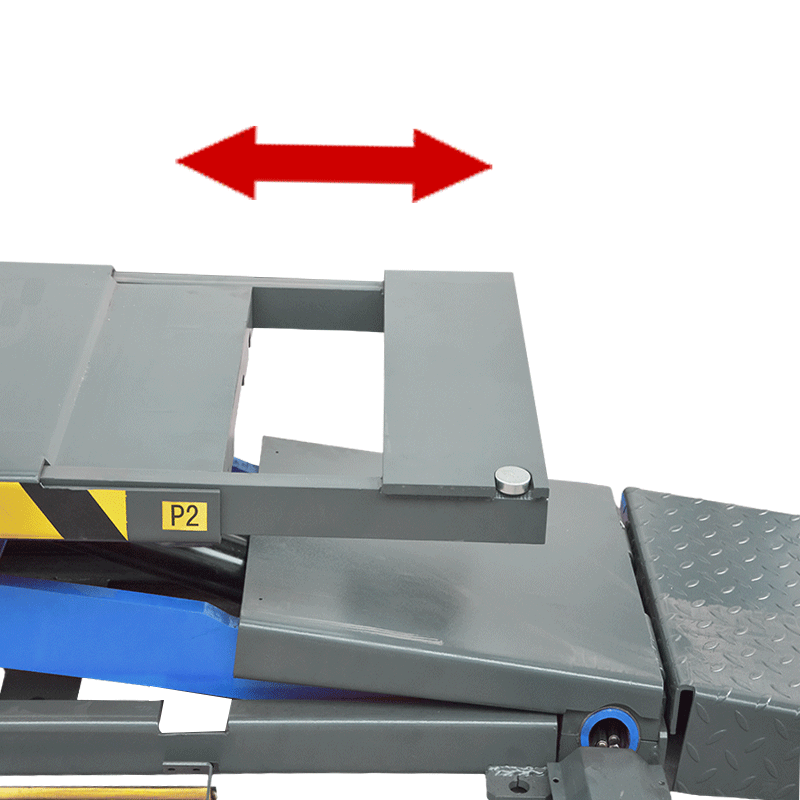

Large extendable platforms are designed to fit various wheelbases.

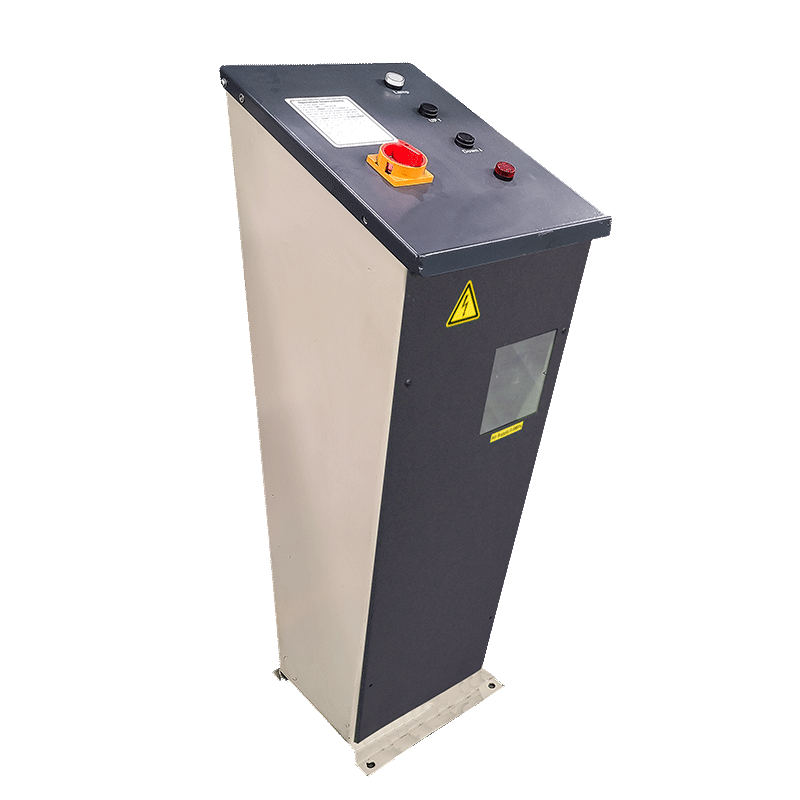

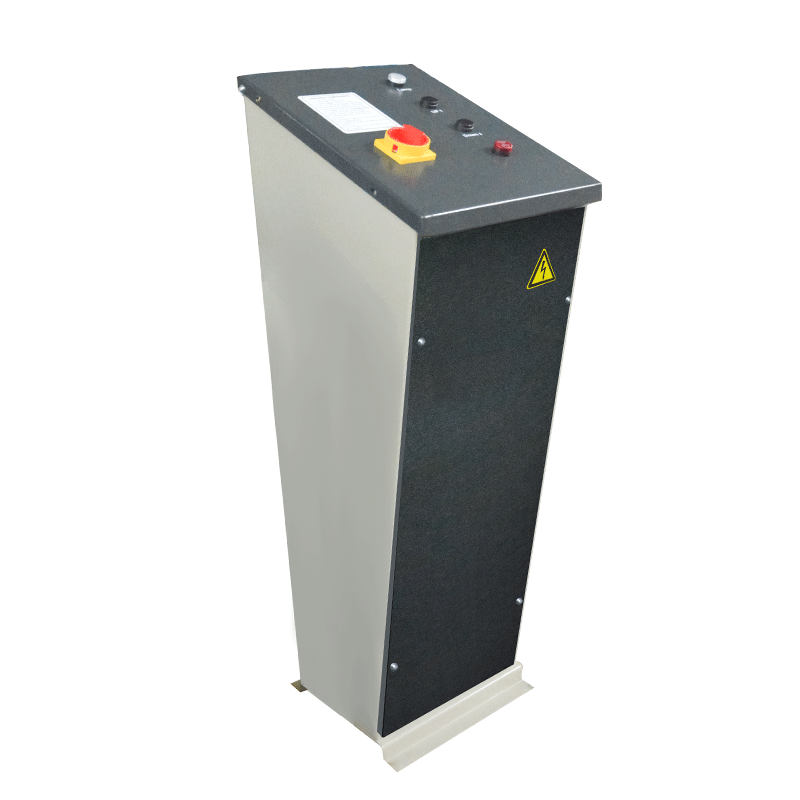

Electronic control system with control cabinet for enhanced safety.
Both 38mm (1 1/2") and 70mm (3") height rubber pads included as standard supply.
