4097X

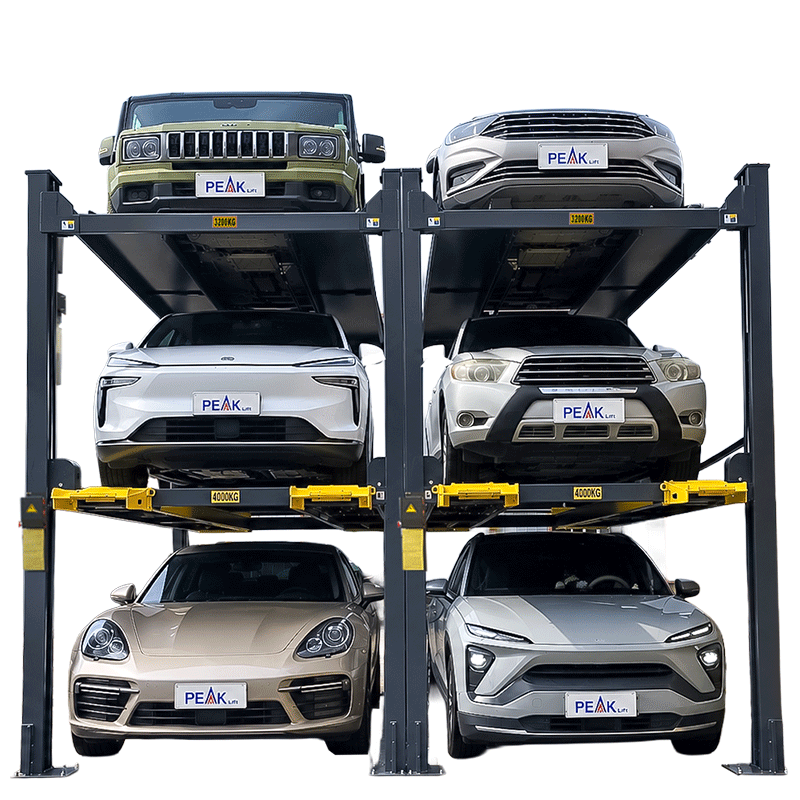

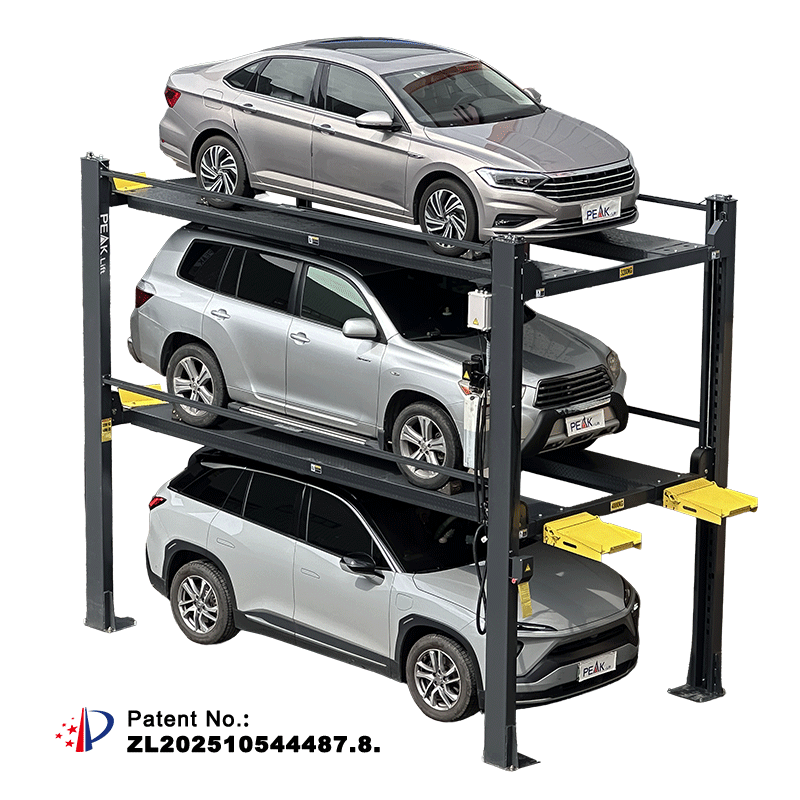

Triple Parking Four Post lifts
Do It All In One.
PEAK's 4097X represents a revolutionary advancement in parking solutions, enabling unmatched triple-parking capacity within a single compact space. Its innovative design eliminates bulky structures and incorporates embedded platforms with proprietary multi-functional ramps to ensure seamless vehicle access. The system is equipped with double-locking mechanisms operated with a single finger, enhancing ease of use while ensuring maximum security.
- Load capacity: 3000kg(7,000lbs) for upper platforms, 4000kg (9,000lbs) for lower platforms.
- Proprietary double-locking mechanisms incorporated in both upper and lower platforms ensure safe operation;
- Embedded design platforms, are consolidated with single set of drive-in ramps, offering a low clearance of only 179mm;
- Multi-functional drive-in ramps, quick assembly and disassembly, can be used as both tire stops and drive-in ramps;
- Simple push-to lock release operation by one finger ;
- Safety control devices protect the vehicle from collisions when the lower platforms are being lifted and prevent the upper platforms from separating from the lower ones when they are being lowered;
- Integrated non-skid diamond platforms;
- High quality hydraulic cylinder design and manufactured at high standard
| Model 4097X | Triple Parking 4 Post Lift | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | ||
| Overall Length (Inc Ramps ) | A | 6288mm(247 9/16") |
|
Outside edge of crossbeams |
B |
Lower: 5024mm (197 13/16") Upper: 5184mm(204 1/16") |
| Overall Width | C | 2894mm (113 15/16") |
| Width Between Posts | D | 2438mm (96") |
| Drive Throu Clearance | E | 2084mm(82 1/16") |
| Overall Height | F | 4320mm (170 1/16") |
| Minimum Height | G | 179mm (7 1/16") |
| Max. Lifting Height | H | 4022mm (158 3/8") |
| Max. Lock Height to Top of Runway | 3947mm （155 3/8"） | |
| Max. Height Underneath Runway | I | 3885mm (152 15/16") |
| Max. Lock Height Underneath Runway | 3810mm (150") | |
| Width Between Runways | J |
Lower: 970mm (38 3/16") Upper: 940mm (37") |
| Overall Width of Single Parking Unit | K |
Lower:1920mm (75 9/16") Upper: 2000mm (78 3/4") |
| Gross Weight | ||
| Motor | 3.0HP,220V |
-

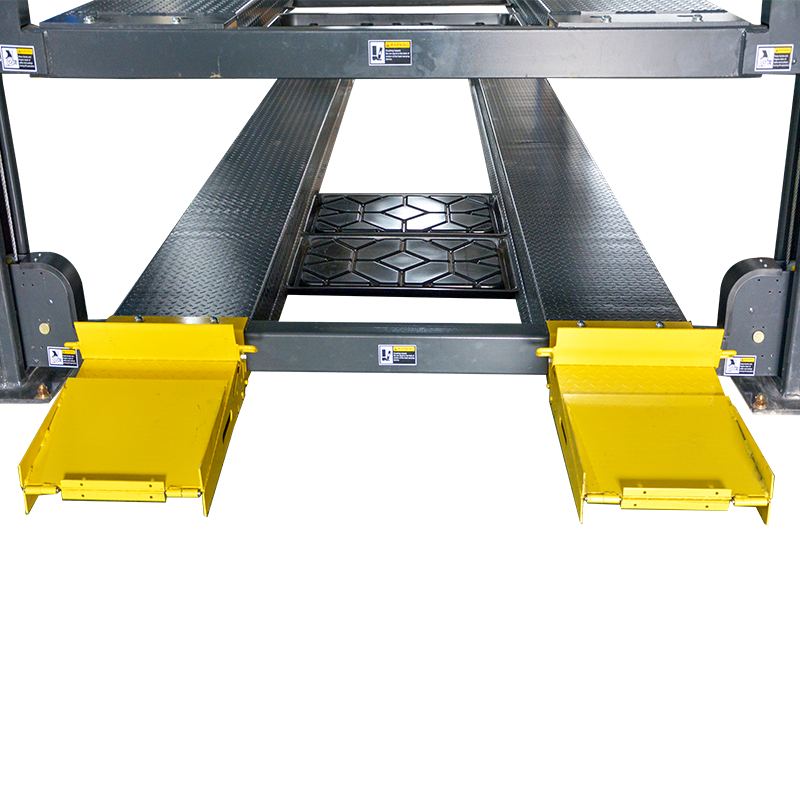

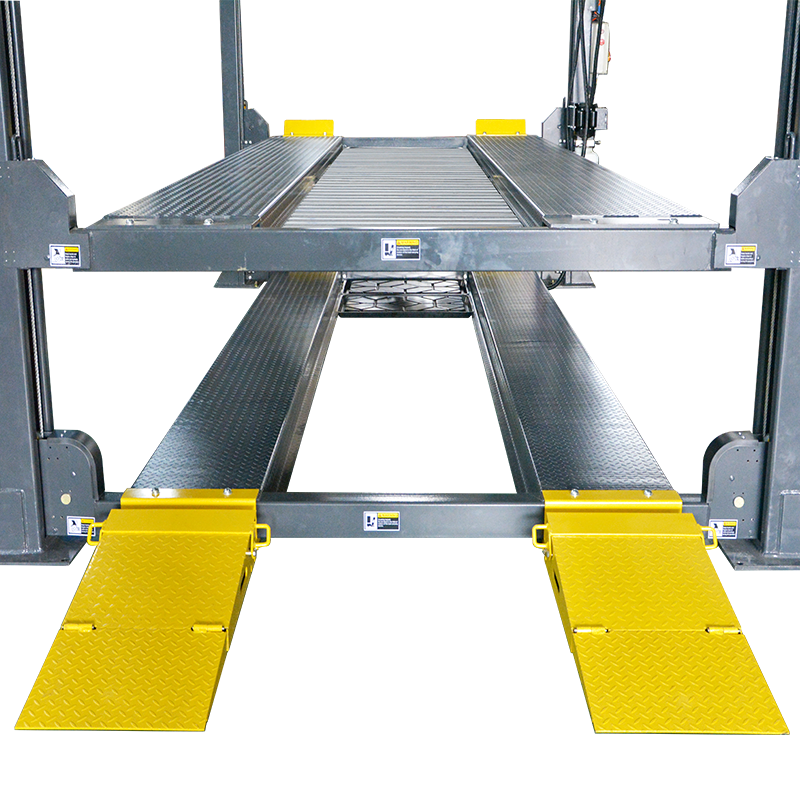

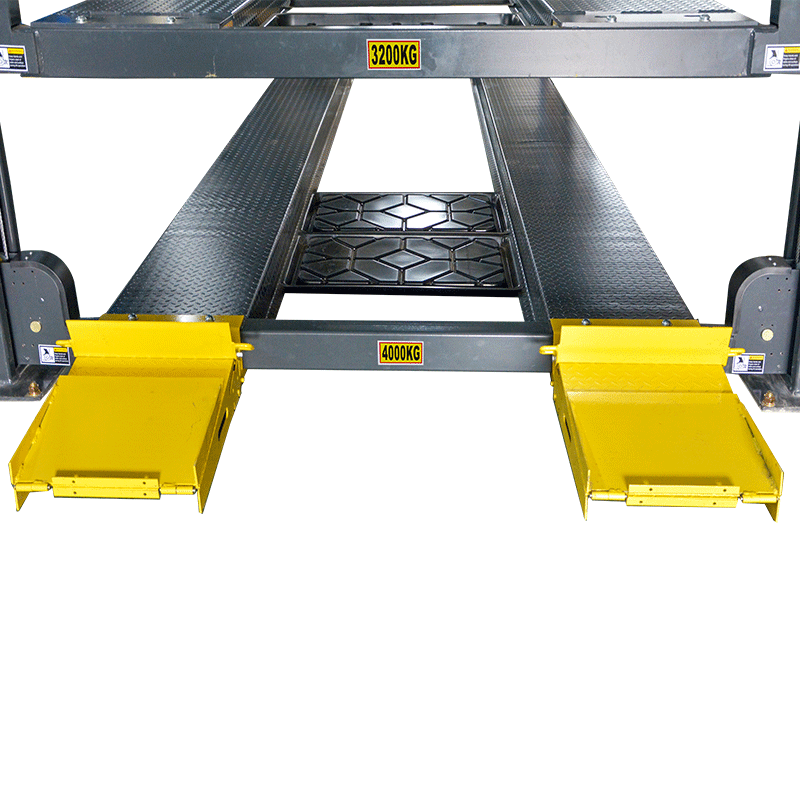

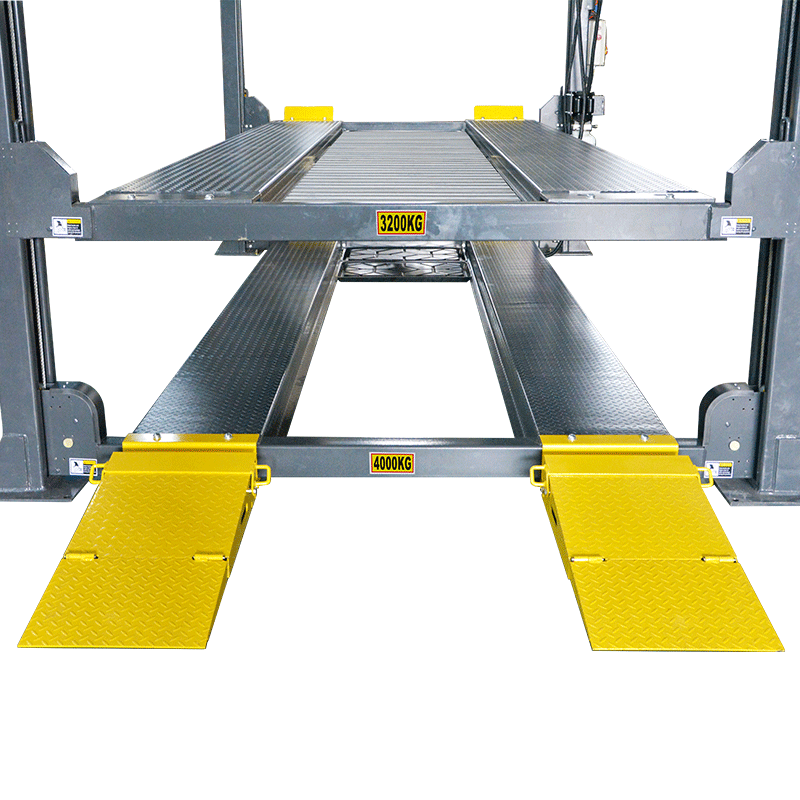

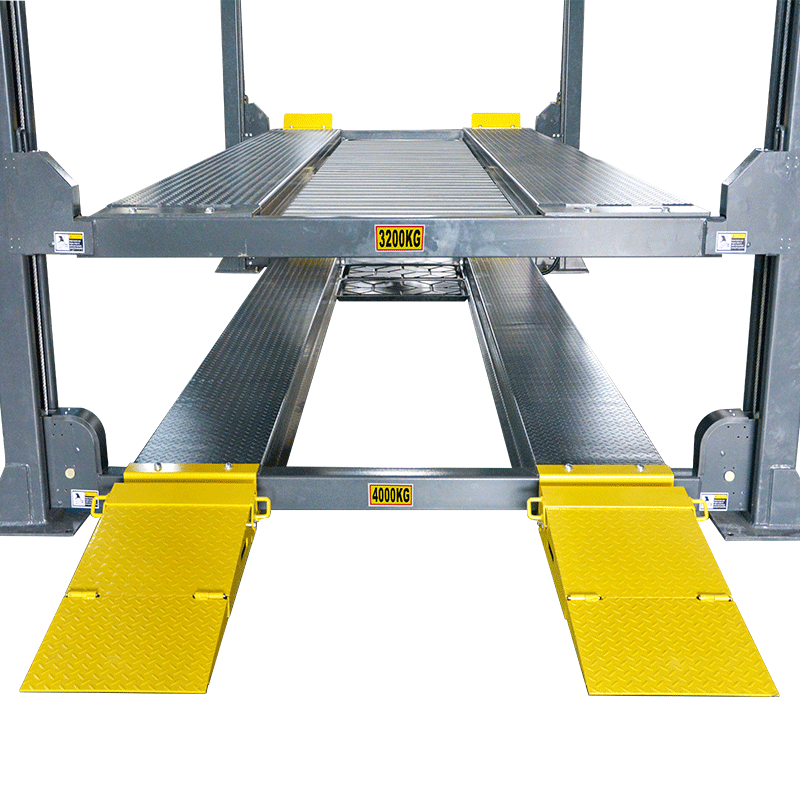

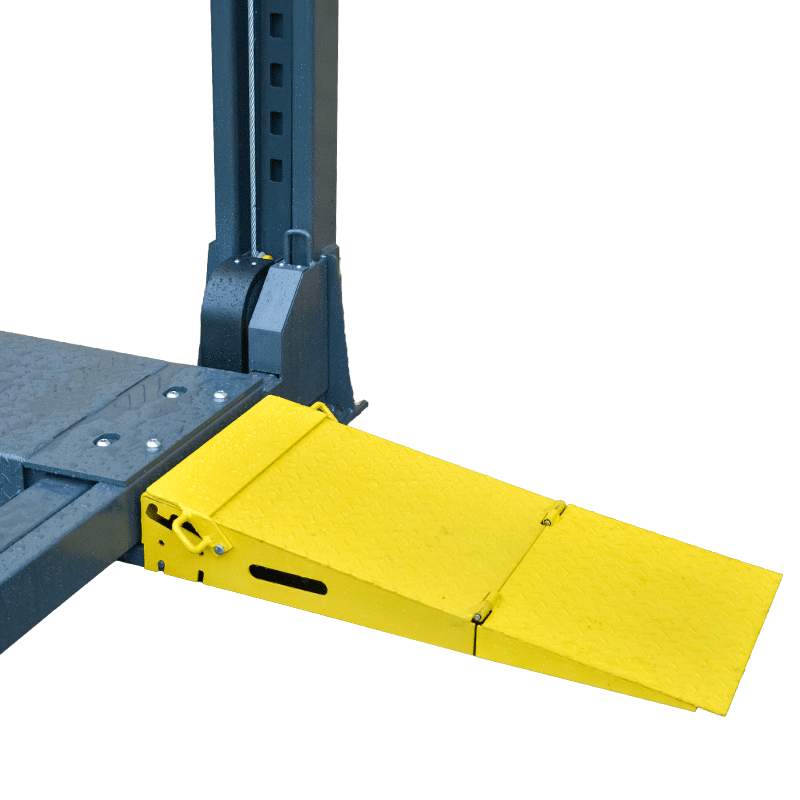

Proprietary drive-in ramps function as both tire stop and drive-in ramp,
with quick assembly and disassembly. -

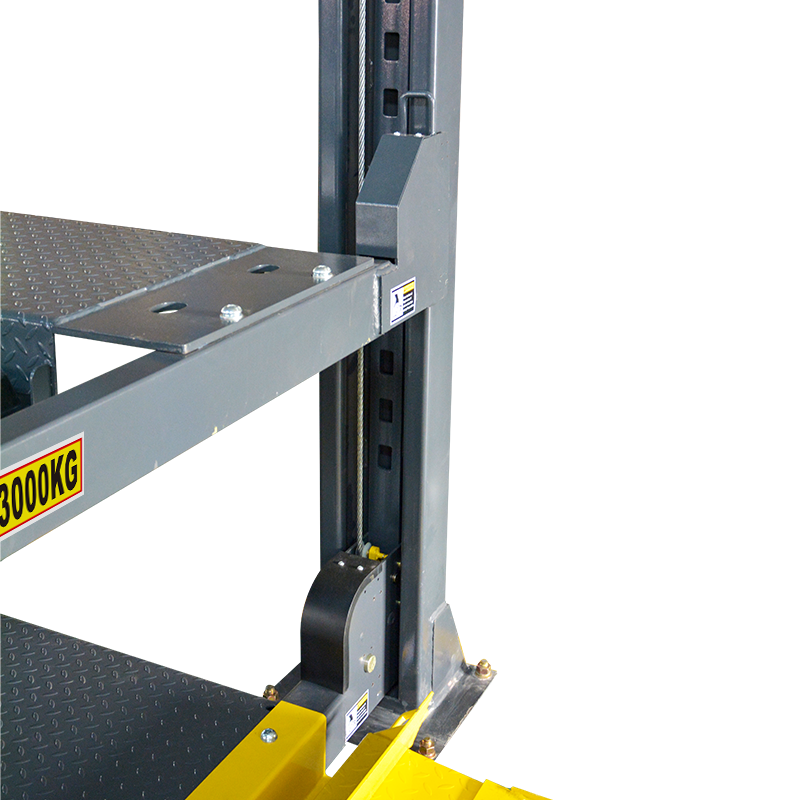

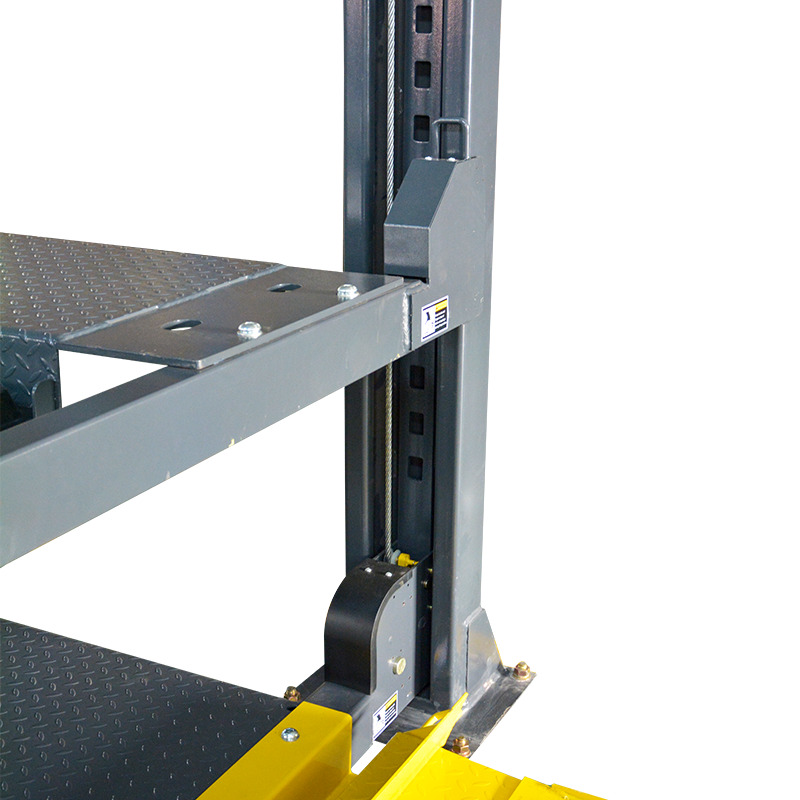

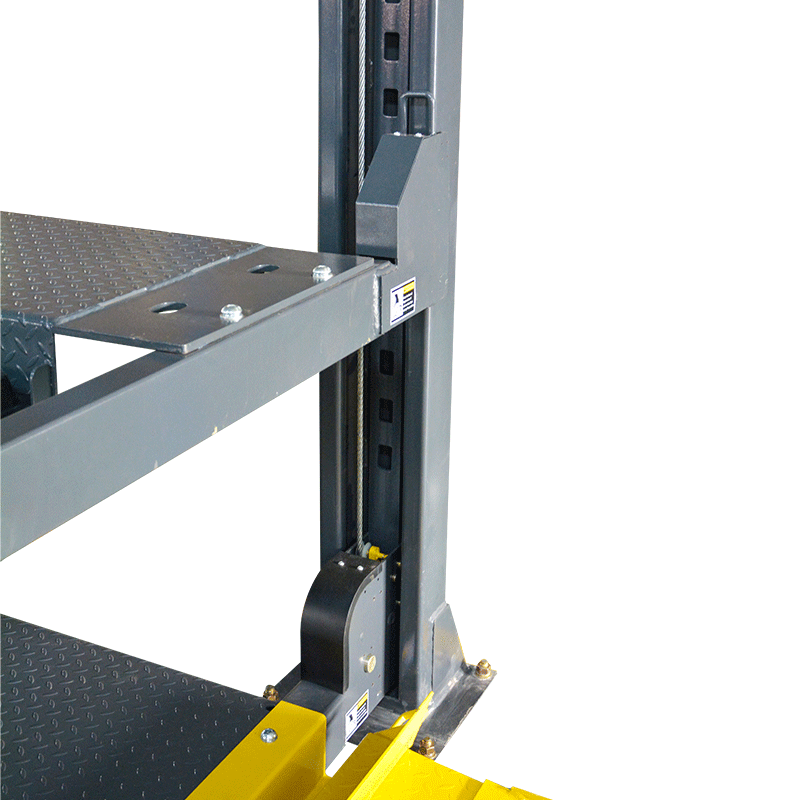

Double safety locks on both upper and lower platforms ensure safe
operation.
-

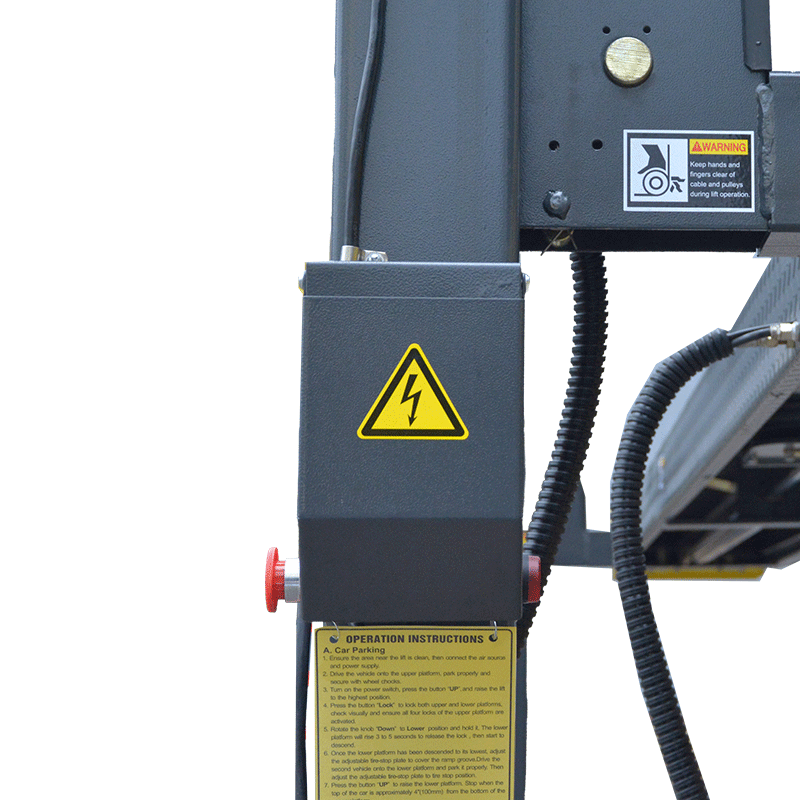

Effortless fingertip push operation;
-

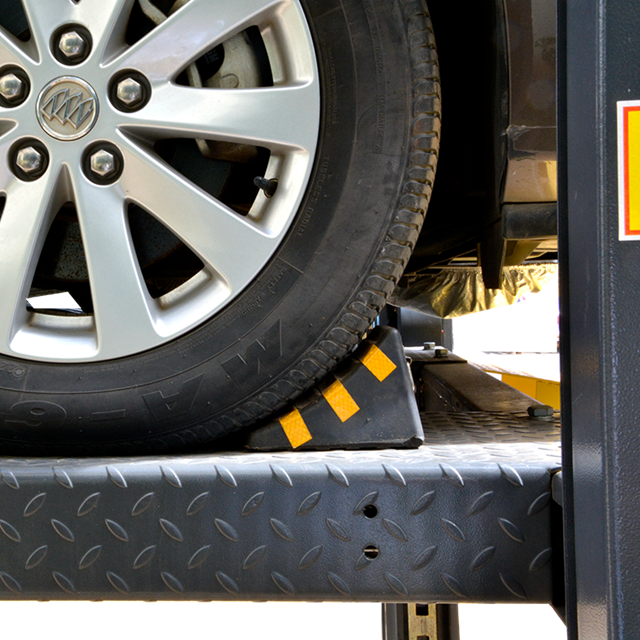

Standard rubber wheel chocks.
-

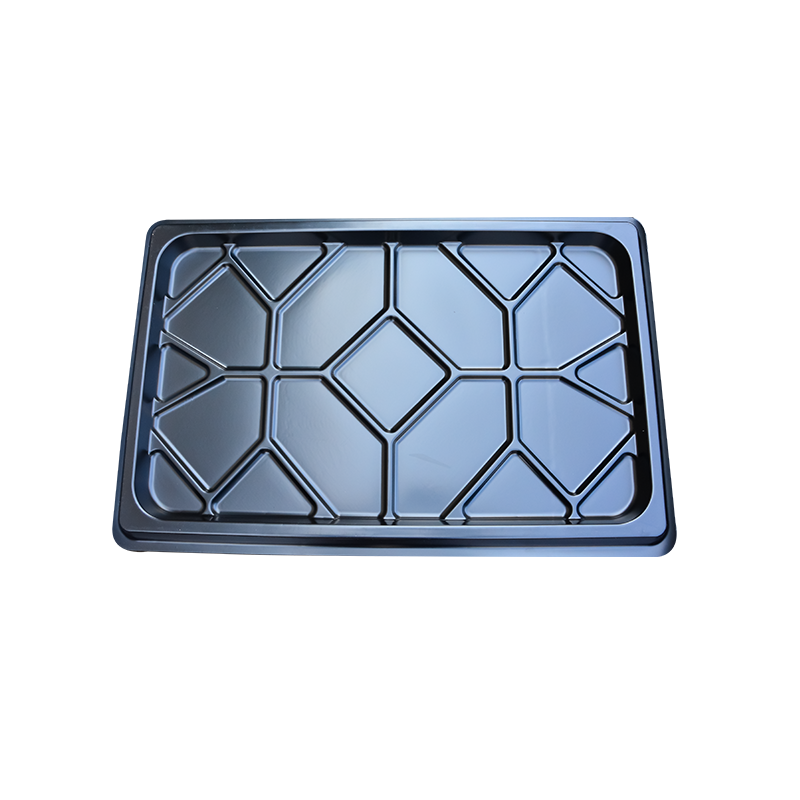

Optional plastic oil tray,
Kits No.40806. -
Optional storage wave panels
Kits No.40812 -
