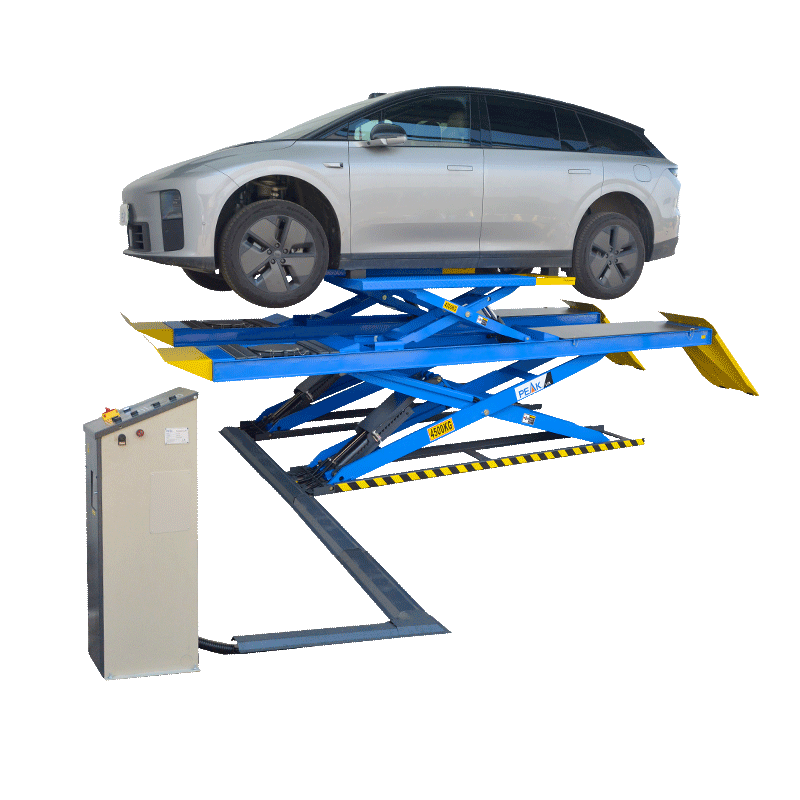

DX450A

Ultra-thin Double Scissors Lift

Built to Perform, Unmatched Safety

Rated at 4500kg, DX450A is a full-rise, double-scissors lift engineered specifically for the demands of your daily heavy-duty service. Its low-profile structure features a duplex dual-circuit hydraulic system and is equipped with integrated hydraulic and mechanical locking systems, making it one of the safest lifts in the world. With quick installation and minimal maintenance requirements, DX450A delivers superior garage efficiency, reliability, and long-term performance, making it the preferred solution among professional technicians and service facility managers.

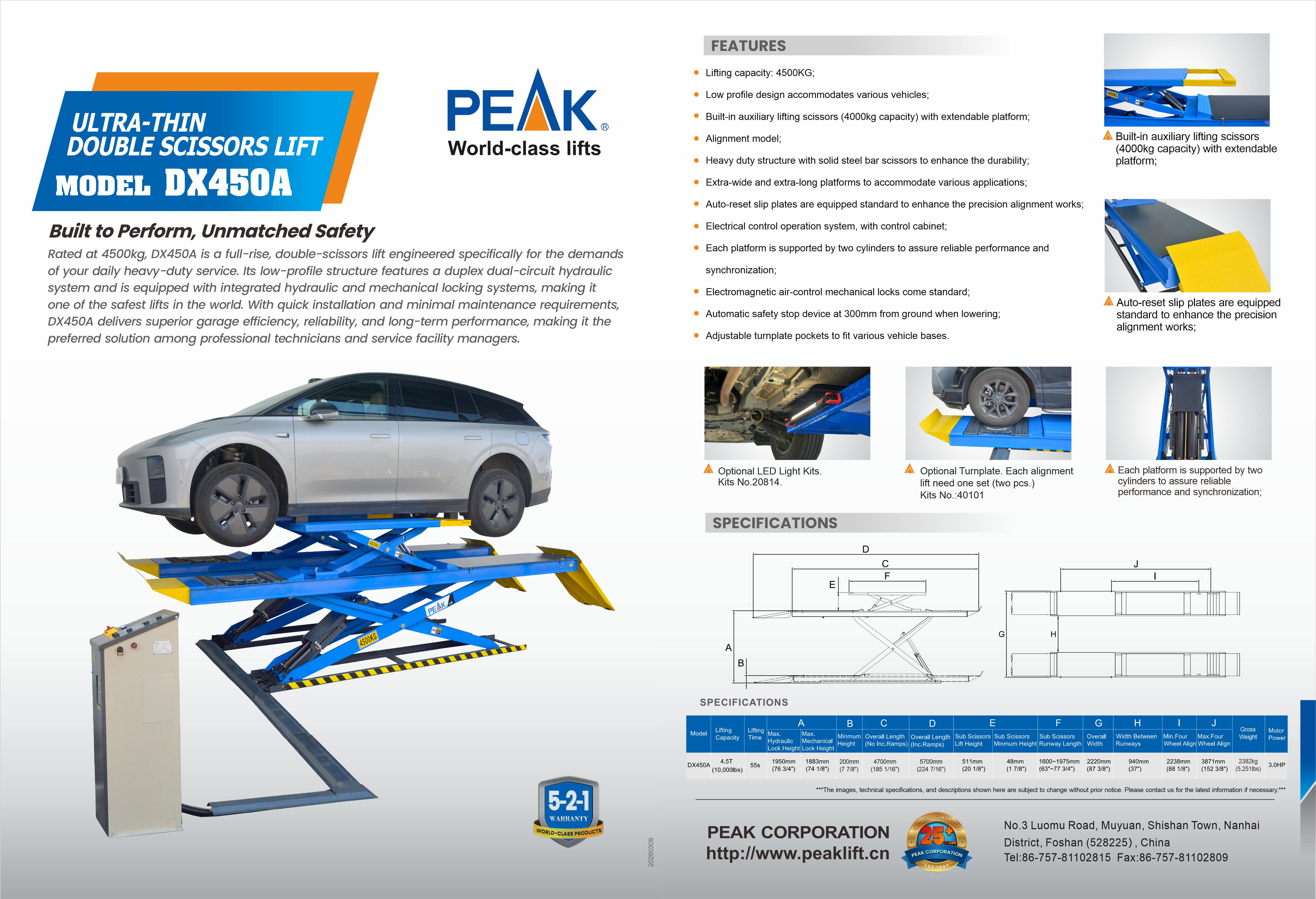

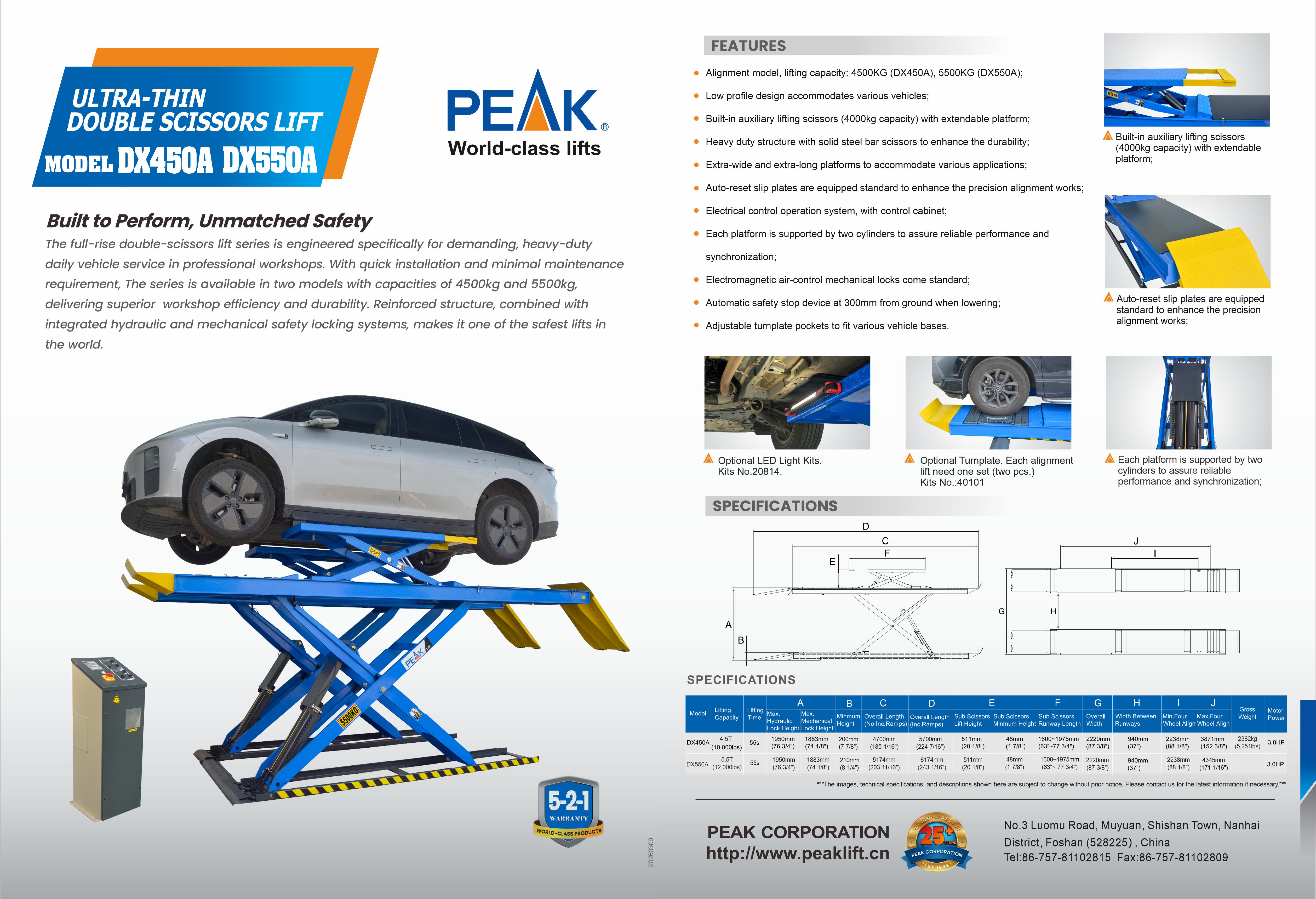

Catalogue Downloads

Get Quotation

Lifting capacity: 4500KG;
Low profile design accommodates various vehicles;
Built-in auxiliary lifting scissors (4000kg capacity) with extendable platform;
Alignment model;
Heavy duty structure with solid steel bar scissors to enhance the durability;
Extra-wide and extra-long platforms to accommodate various applications;
Auto-reset slip plates are equipped standard to enhance the precision alignment works;
Electrical control operation system, with control cabinet;
Each platform is supported by two cylinders to assure reliable performance and synchronization;
Electromagnetic air-control mechanical locks come standard;
Automatic safety stop device at 300mm from ground when lowering;
Adjustable turnplate pockets to fit various vehicle bases.

Model DX450A		Ultra-thin Double Scissors Lift
Lifting Capacity		4500kg (10,000lbs)
Lifting Time		55s
Max. Hydraulic Lock Height	A	1950mm (76 3/4")
Max. Mechanical Height		1883mm (74 1/8")
Minimum Height	B	200mm (7 7/8")
Overall Length (No Inc.Ramps)	C	4700mm ( 185 1/16")
Overall Length (Inc.Ramps)	D	5700mm (224 7/16")
Sub Scissors Lift Height	E	511mm (20 1/8")
Sub Scissors Minmum Height		48mm (1 7/8")
Sub Scissors Runway Length	F	1600~1975mm (63"~77 3/4")
Overall Width	G	2220mm (87 3/8")
Width Between Runways	H	940mm (37")
Min.Four Wheel Align	I	2238mm (88 1/8")
Max.Four Wheel Align	J	3871mm (152 3/8")
Gross Weight		2382kg (5,251lbs)
Motor		3.0HP

/attachment/1/source/DX450A-Imgage-2026_3978.png

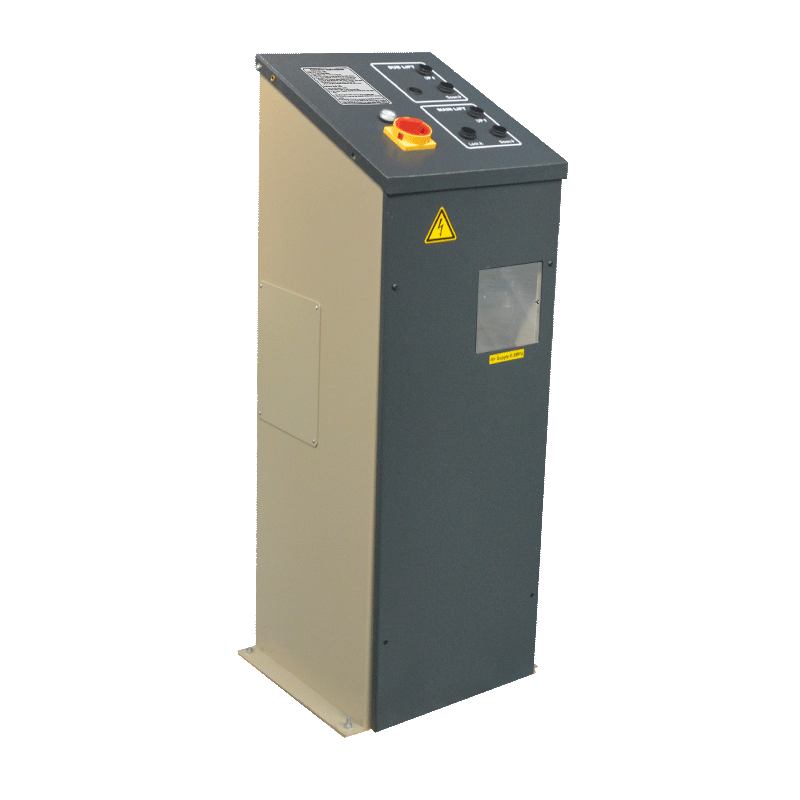

Control cabinet can be installed on the left or right side.

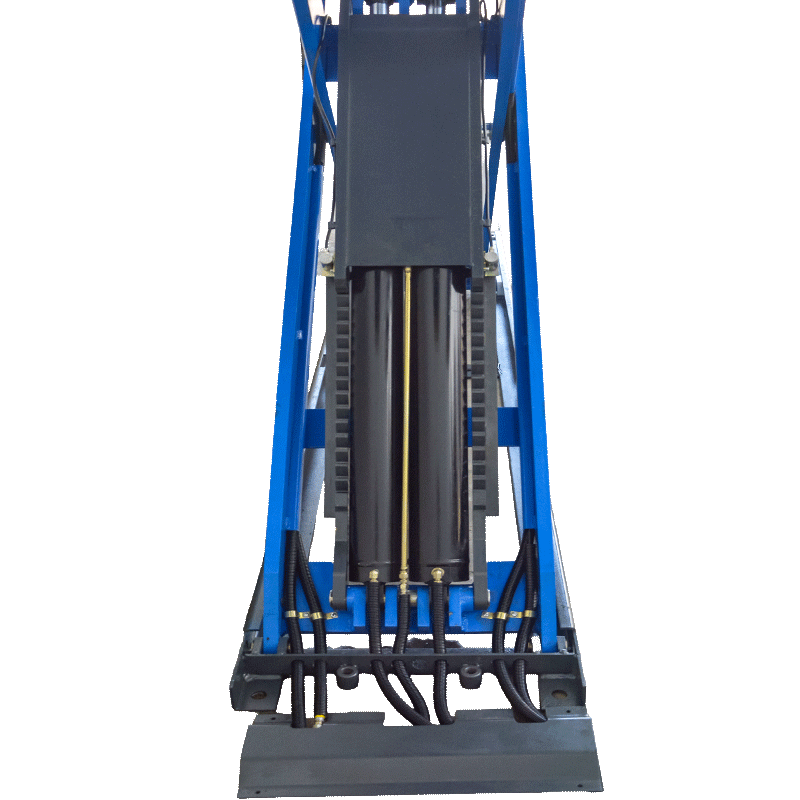

Each platform is supported by two cylinders to assure reliable performance and synchronization.

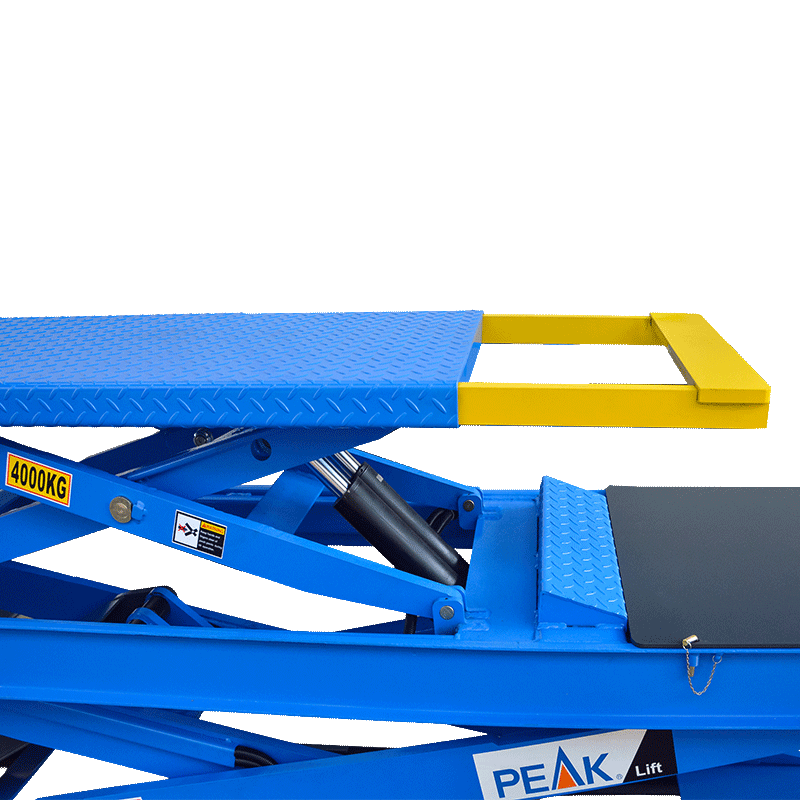

Built-in auxiliary lifting scissors (4000kg capacity) with extendable platform.

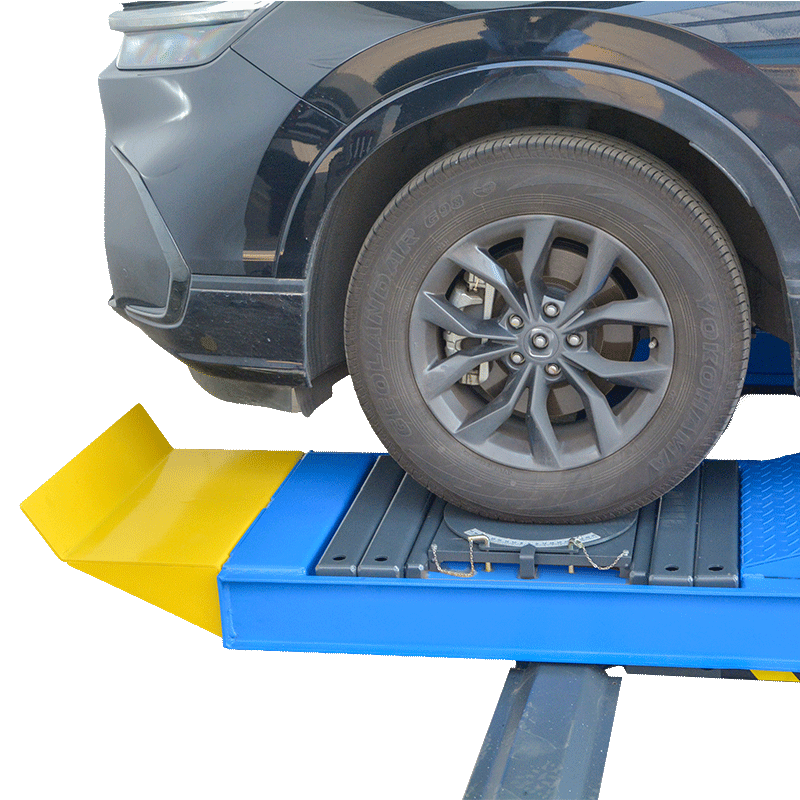

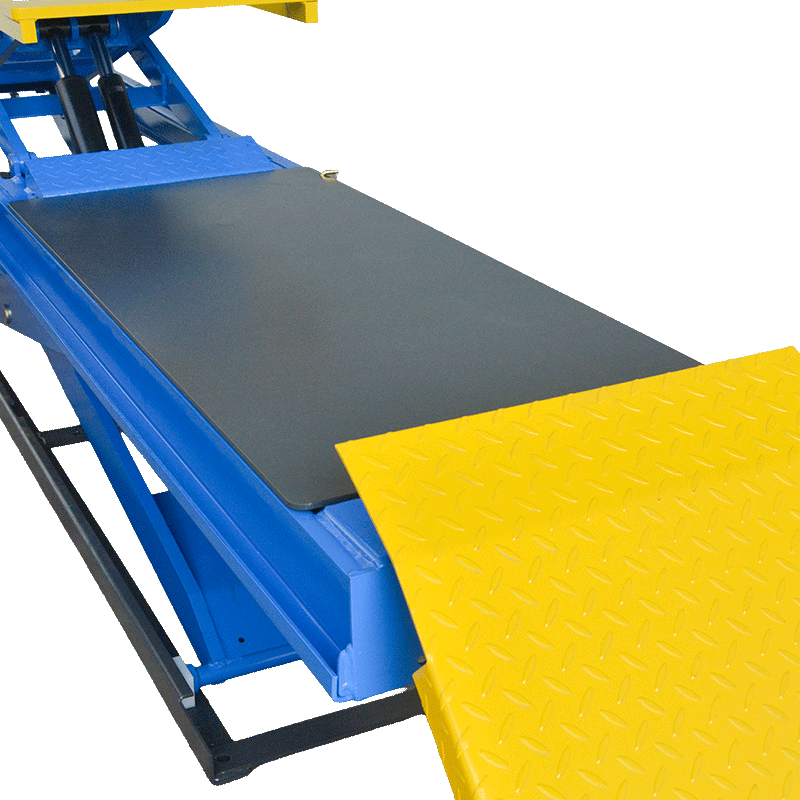

Auto-reset slip plates are equipped standard to enhance the precision alignment works.

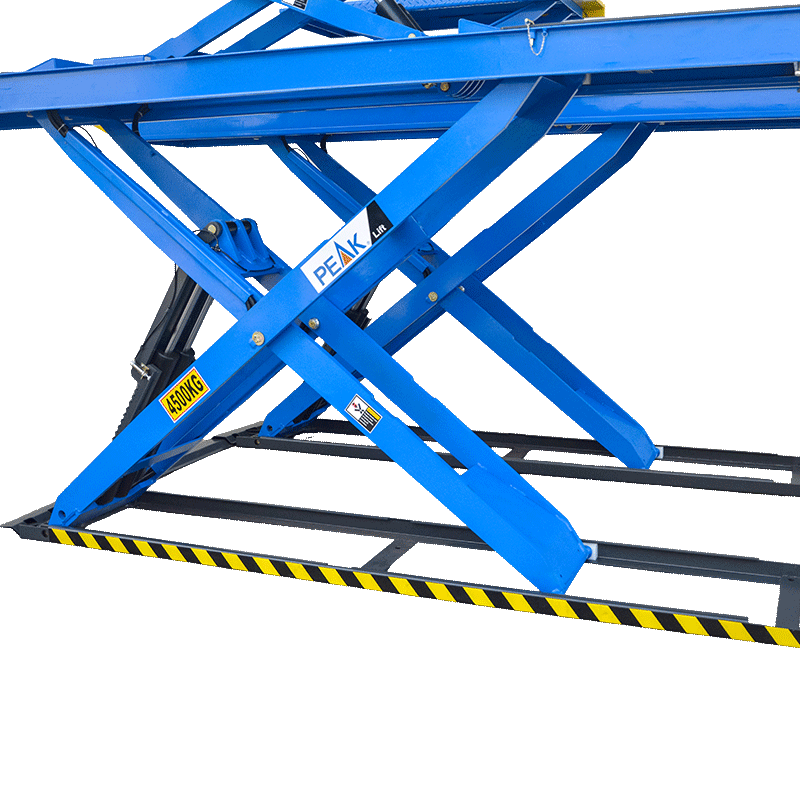

Heavy duty structure with solid steel bar scissors to enhance the durability.
Adjustable turnplate pockets to fit various vehicle bases.

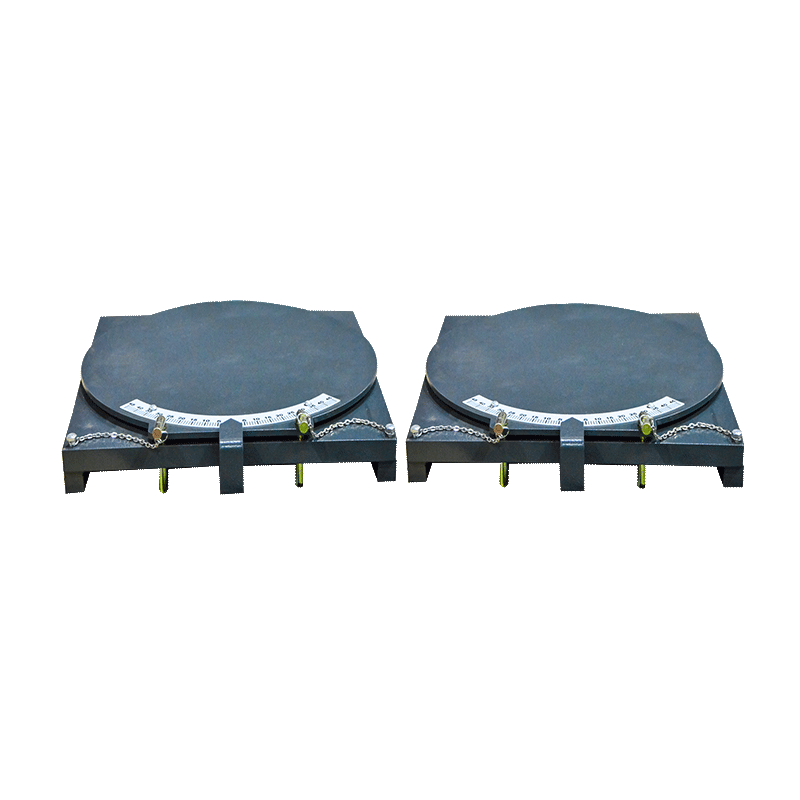

Optional Turnplate. Each alignment lift need one set (two pcs.) Kits No.:40101

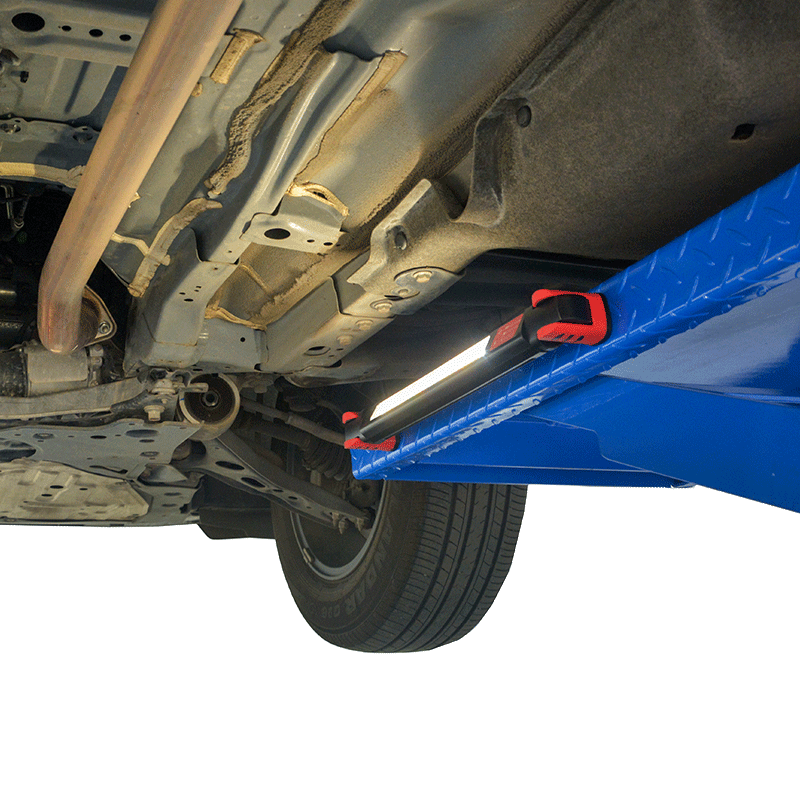

Optional LED Light Kits. Kits No.20814.

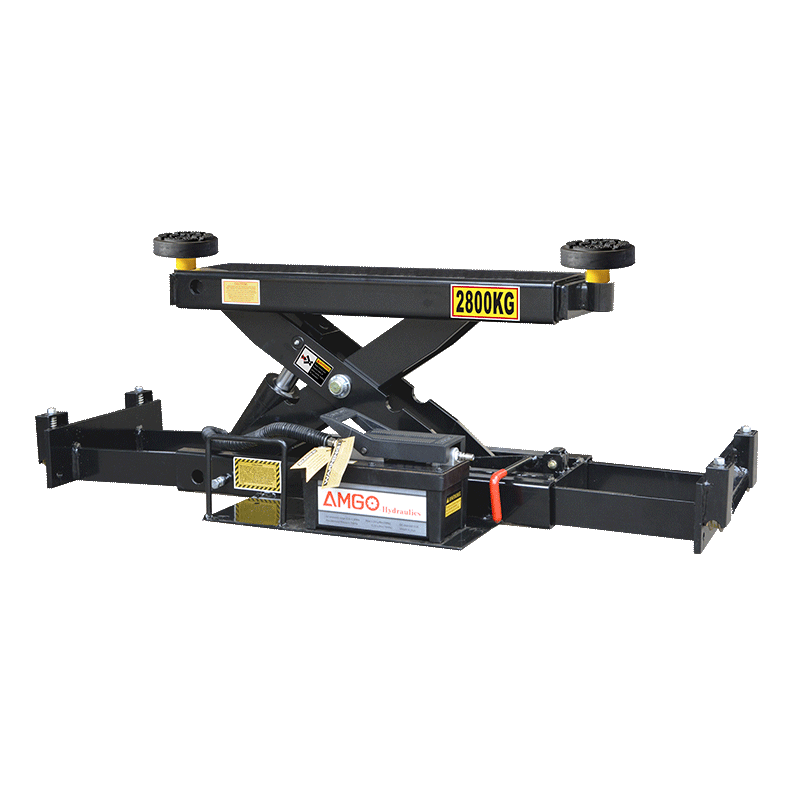

Optional rolling jacks RJ-6A: pneumatic hydraulic type 2.8T.
