410A

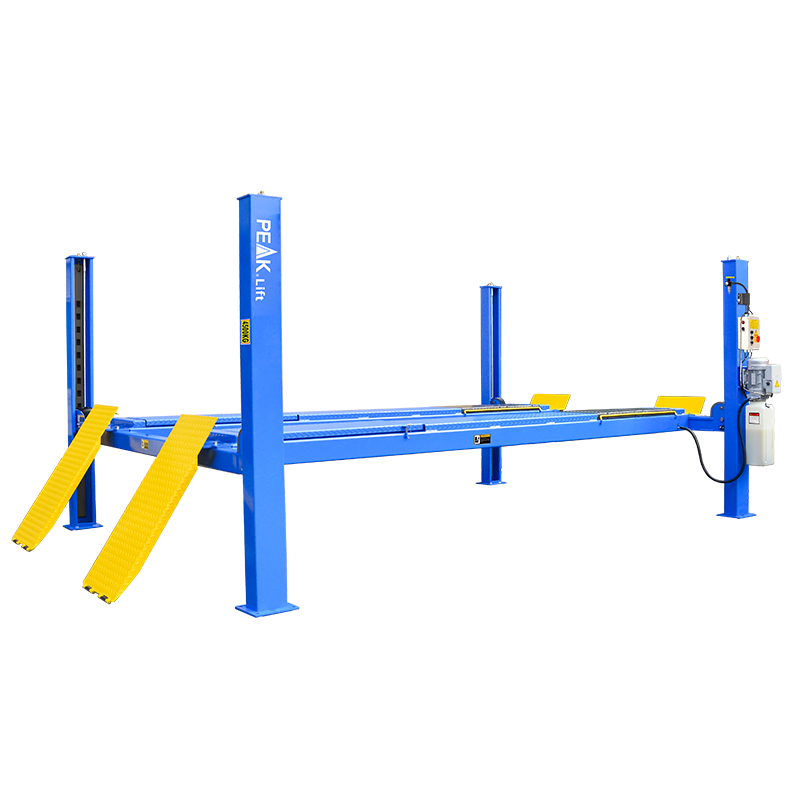

Alignment Four Post Lift
Confortable for alignment
The more-wider alignment lift brings a more confortable way to your alignment service. The wheels have more space to turns around and be accurately detected.
- Lifting capacity: 4500KG.
- 24V electrical control operation system.
- High quality hydraulic cylinder design and manufactured at high standard.
- Mechanical self-locking and air-release safety lock system.

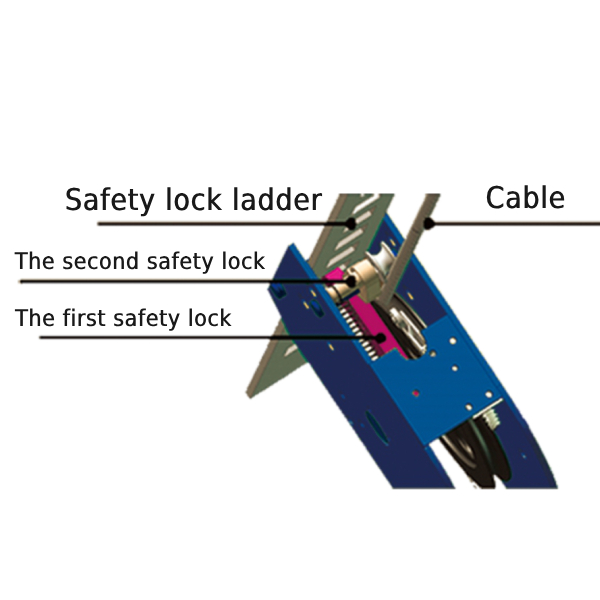

- Dual safety devices mechanism: both primary safety locks and cable-slack protection system.
- Non-skid diamond platforms.
- Stepless adjustable width between platforms.
- Adjustable turnplate pockets to fit various wheel bases.
| Model 410A | Alignment Four Post Lift | |
| Lifting Capacity | 4500kg (10,000 Ibs) | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 5910mm (232 5/8") |
| Overall Length (No Ramps) | B | 4998mm (196 3/4") |
| Overall Width | C | 3356mm (132 1/8") |
| Width Between Columns | D | 3000mm (118 1/8") |
| Max. Lifting Height | E |
1920mm(75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") | |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm(65 3/8") | |
| Drive-Thru Clearance | I | 2646mm (104 1/8") |
| Width Between Runways | J |
1100mm (43 1/4") Min.85mm (3 3/8")~ Max.1365mm(53 3/4") |
| Outside Edge of Runways | K |
2116mm (83 1/4") Min.1101mm(43 3/8")~ Max. 2381mm(93 3/4") |
| Min. Four Wheel Align | L | 2080mm (81 7/8") |
| Max. Four Wheel Align | M | 3850mm (151 1/2") |
| Max. Two Wheel Align | N | 4000mm (157 1/2") |
| Gross Weight | 1282kg (2,826lbs) | |
| Motor | 3.0HP |
-

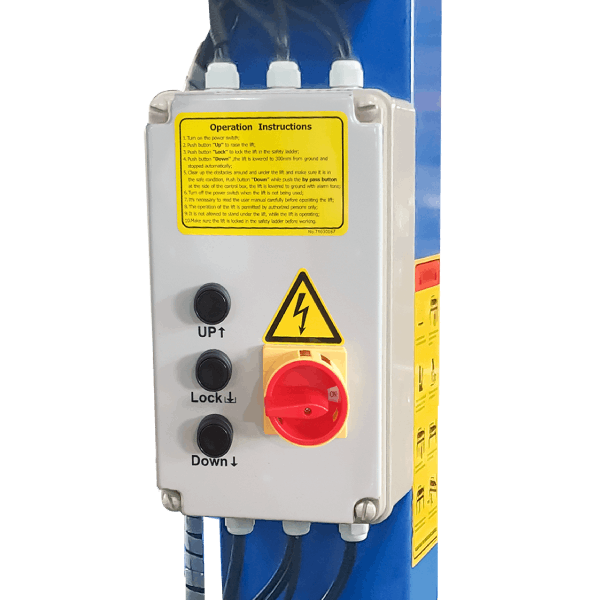

Electric control device with UP, LOCK and DOWN buttons.
-
Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

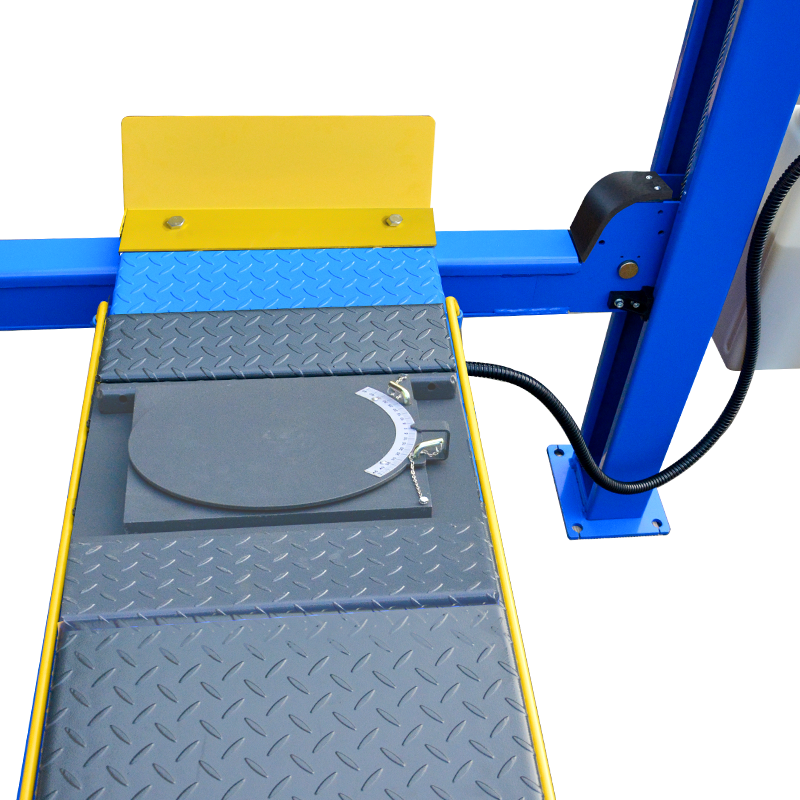

Adjustable turnplate blocks to fit various wheel bases vehicles.
-

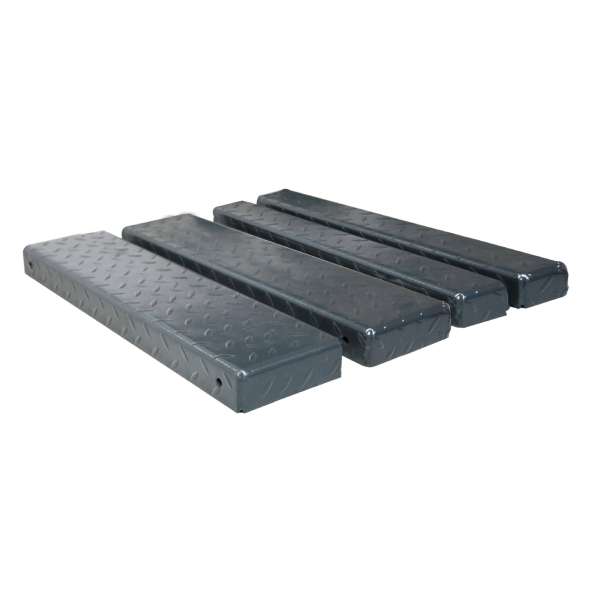

Non-slip diamond platforms come as standard.
-

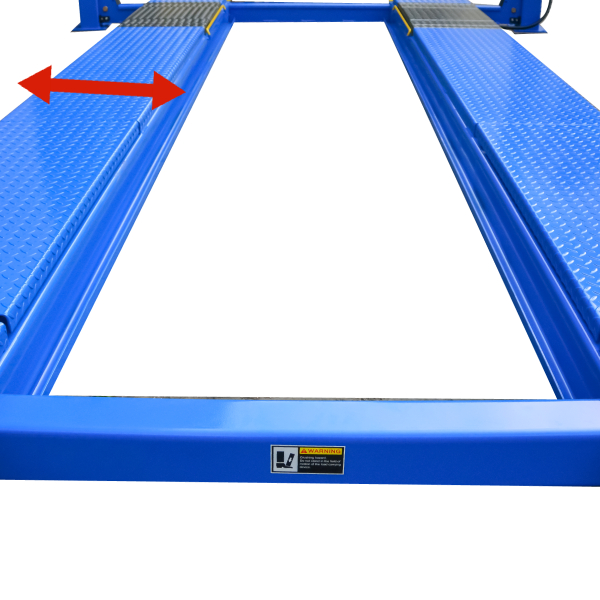

Stepless adjustable width between platforms.
-

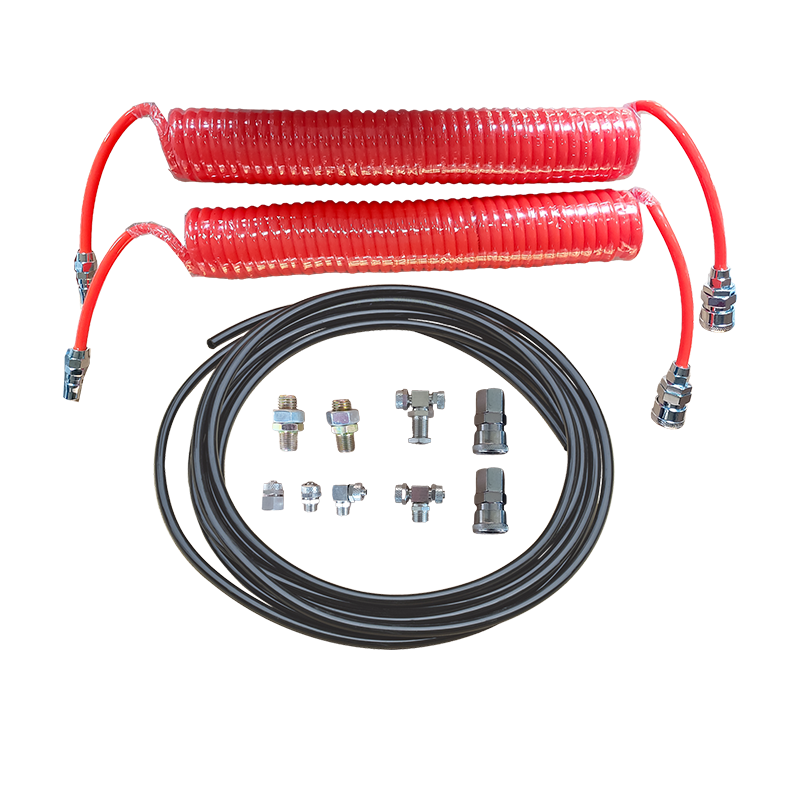

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -
Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 40903 -

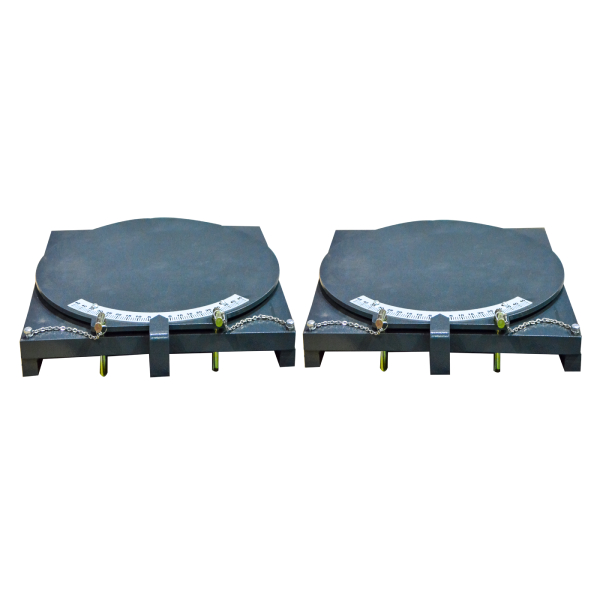

Optional Turnplate
Each alignment lift need one set (two pcs.) of turnplates.
Kits No.: 40101 -

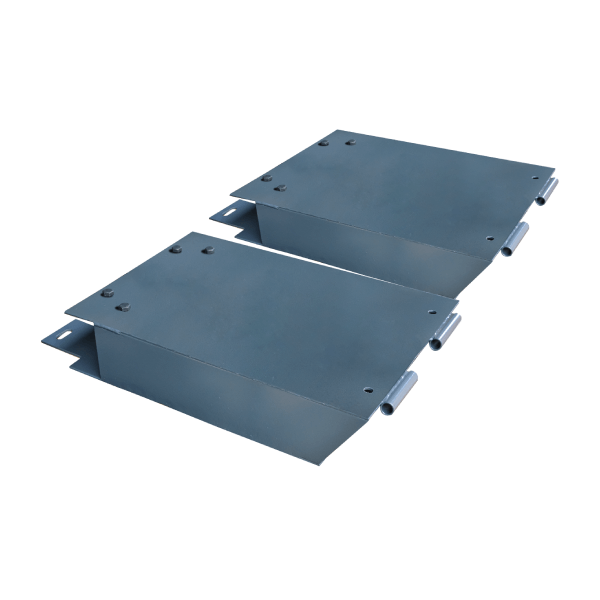

Optional adjustable blocks used with platform extension kit (40903).
Kits No.: 40905 -

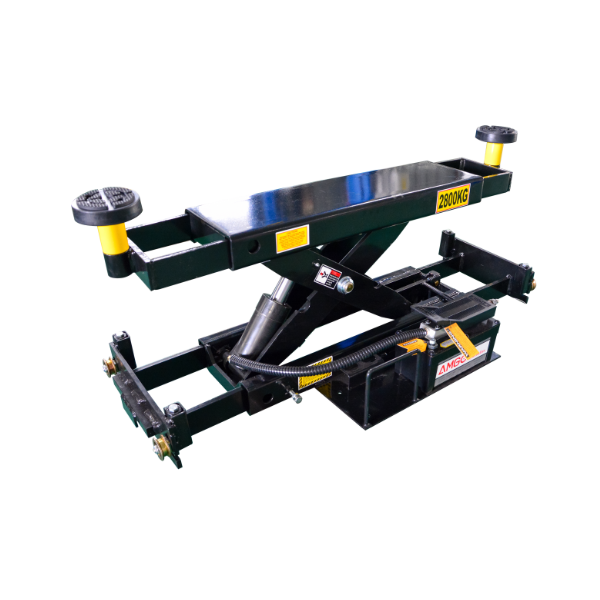

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 410A: 1282kgs , include power unit gross weight 25kgs.
- 20'GP loading capacity: 12 units.
- 40'GP loading capacity: 24 units.
-

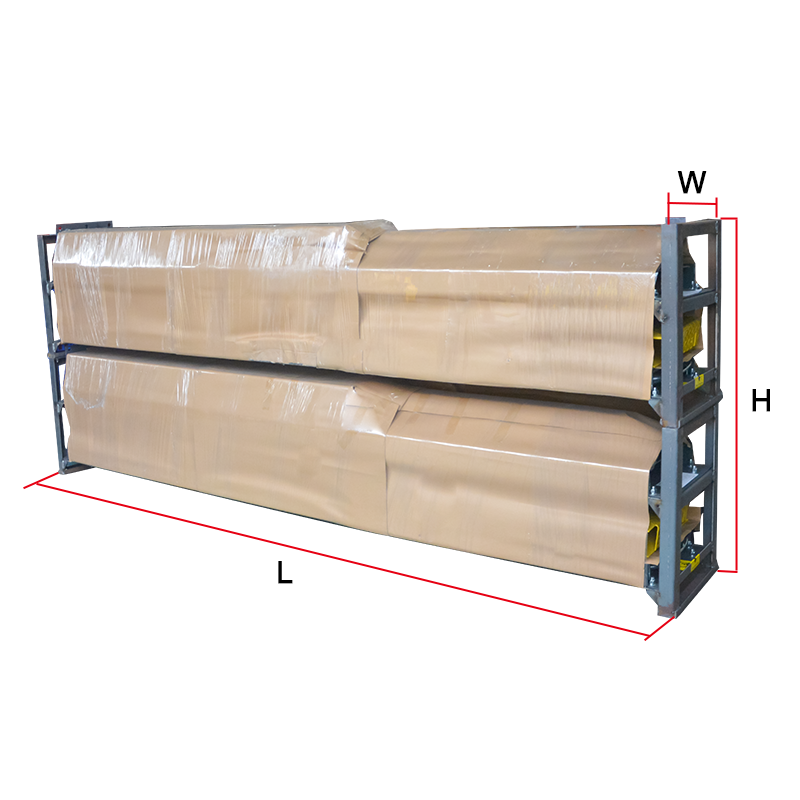

2 units/package, packing measurement (LxWxH): 5070x560x1440mm
-

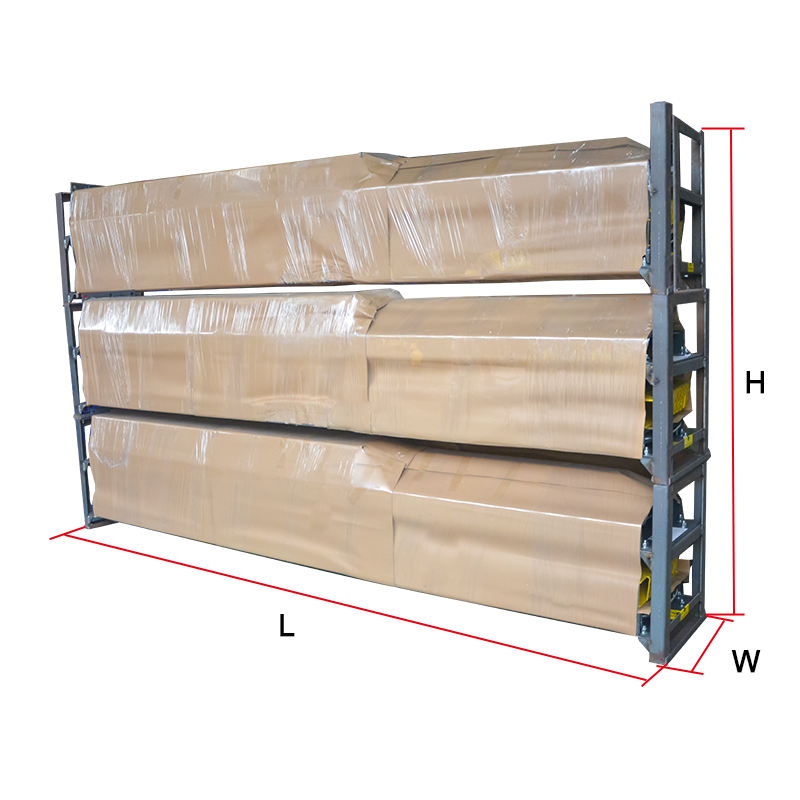

3 units/package, packing measurement (LxWxH): 5070x560x2145mm
-

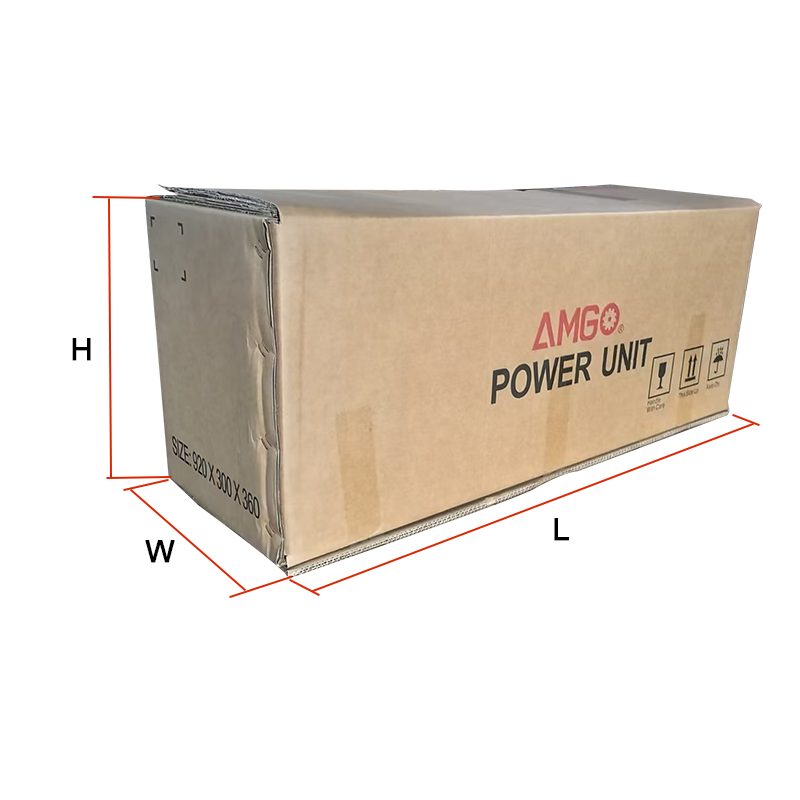

1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
-
Attention to forklift transhipping
