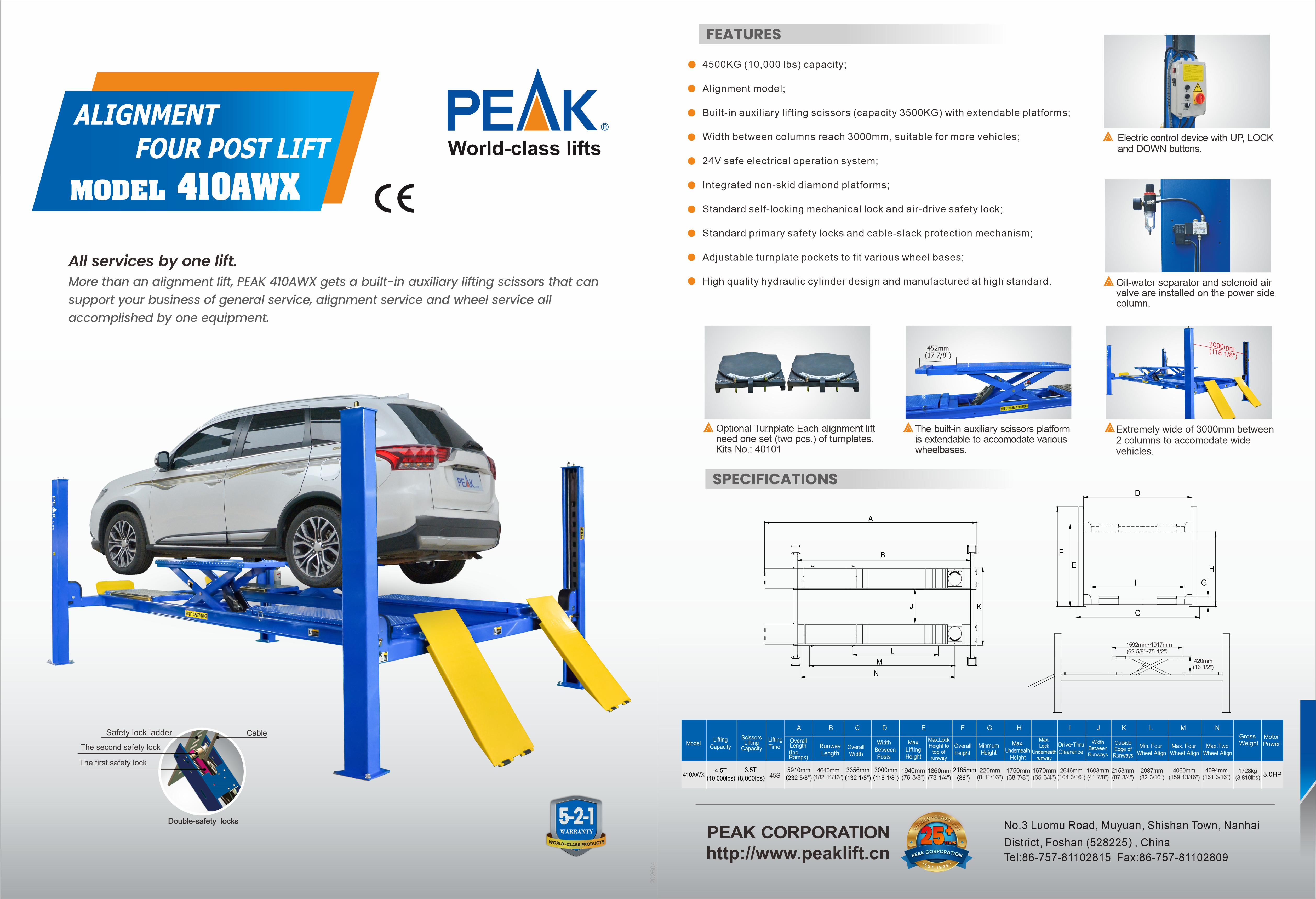

410AWX

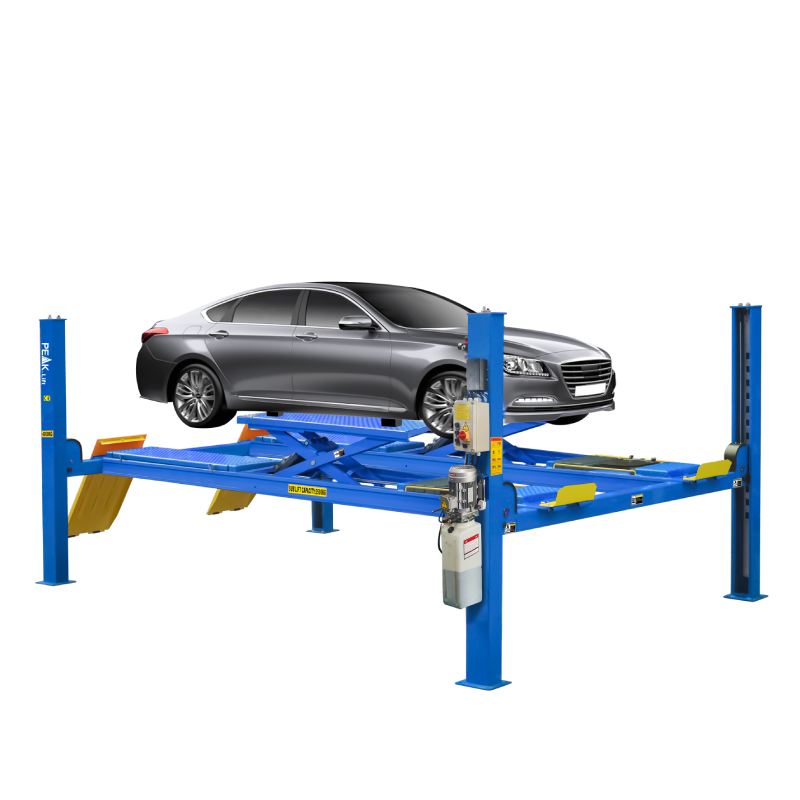

Alignment Four Post Lift
All services by one lift.
More than an alignment lift, PEAK 410AWX gets a built-in auxiliary lifting scissors that can support your business of general service, alignment service and wheel service all accomplished by one equipment.
- 4500KG (10,000 lbs) capacity;
- Alignment model;
- Built-in auxiliary lifting scissors (capacity 3500KG) with extendable platforms;
- Width between columns reach 3000mm, suitable for more vehicles;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- Adjustable turnplate pockets to fit various wheel bases;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 410AWX | Alignment Four Post Lift | |
| Lifting Capacity | 4500kg (10,000 Ibs) | |
| Scissors Lifting Capacity | 3500kg (8,000lbs) | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 5910mm (232 5/8") |
| Overall Length (No Ramps) | B | 4998mm (196 3/4") |
| Overall Width | C | 3356mm (132 1/8") |
| Width Between Columns | D | 3000mm (118 1/8") |
| Max. Lifting Height | E | 1920mm(75 5/8") |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Drive-Thru Clearance | I | 2646mm (104 1/8") |
| Width Between Runways | J |
1063mm (41 7/8") |
| Outside Edge of Runways | K |
2153mm (87 3/4") |
| Min. Four Wheel Align | L | 2080mm (81 7/8") |
| Max. Four Wheel Align | M | 3905mm (153 3/4") |
| Max. Two Wheel Align | N | 4050mm (159 1/2") |
| Scissors Lifting Height | O | 420mm (16 1/2") |
| Scissors Runway Lenght | P | 1592-1917mm (62 5/8"-75 1/2") |
| Gross Weight | 1728kg (3,810lbs) | |
| Motor | 3.0HP |
-

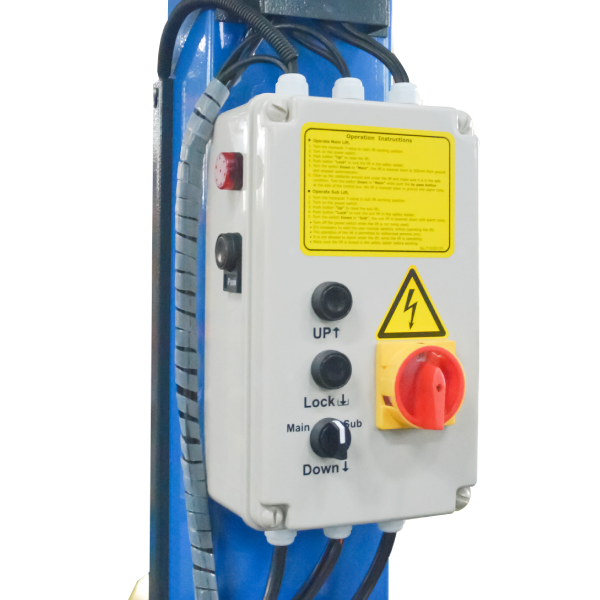

Electric control device with UP, LOCK and DOWN buttons.
-

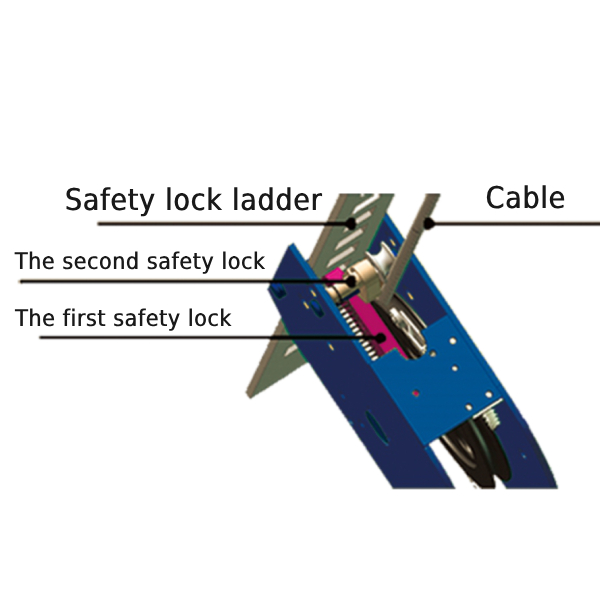

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

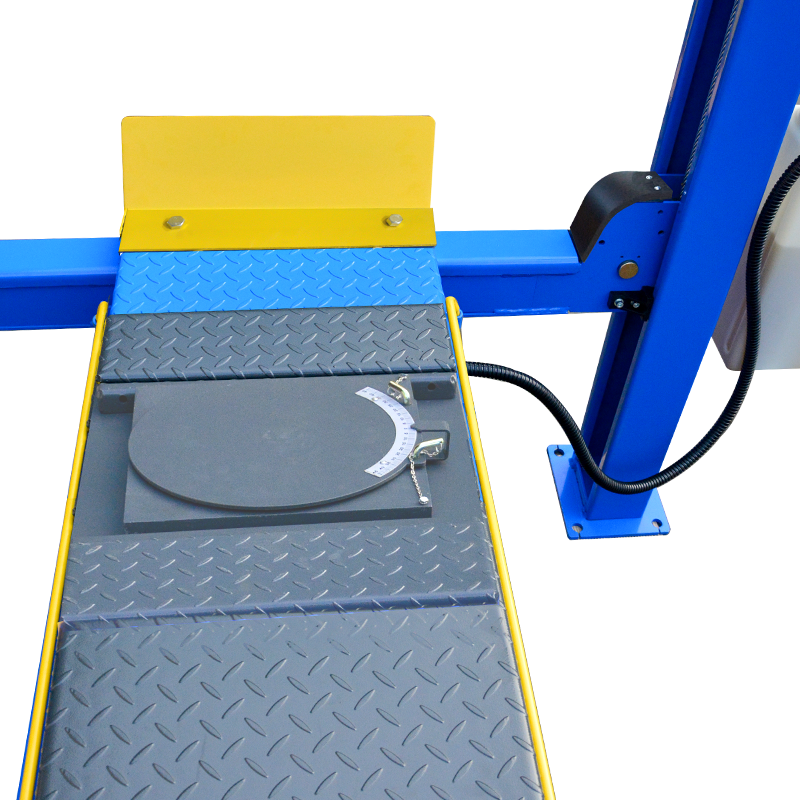

Adjustable turnplate blocks to fit various wheel bases vehicles.
-
Extremely wide of 3000mm between 2 columns to accomodate wide vehicles.
-

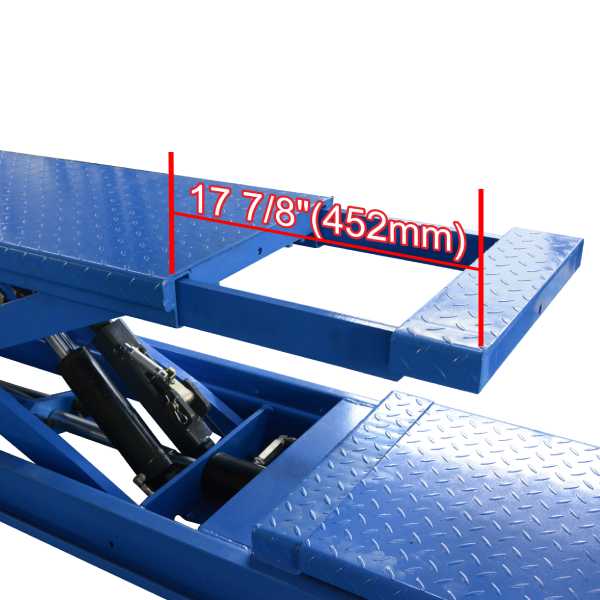

The built-in auxiliary scissors platform is extendable to accomodate various wheelbases.
-
Non-slip diamond platforms come as standard.
-

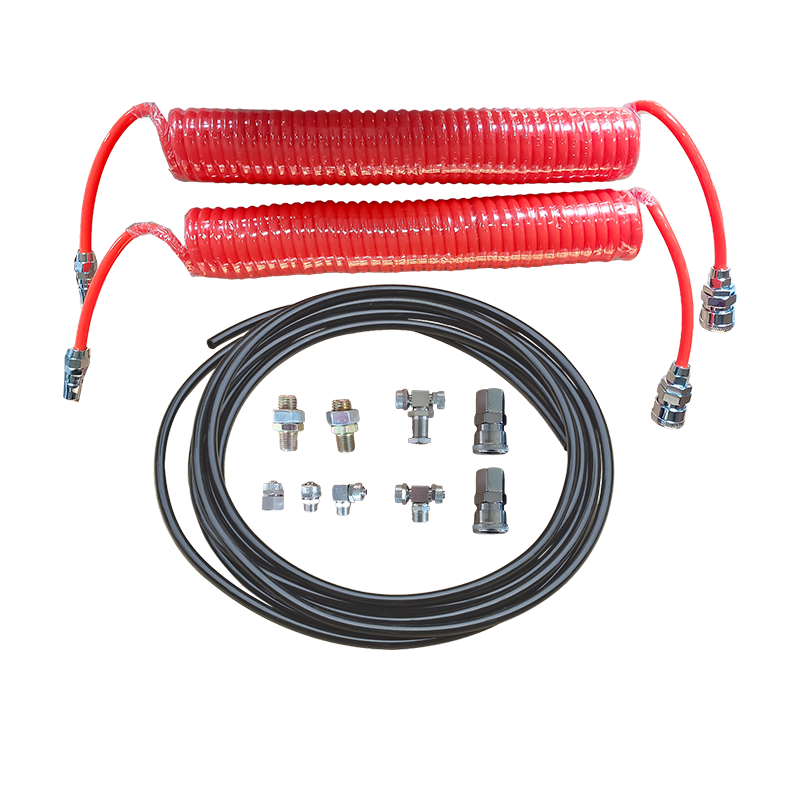

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

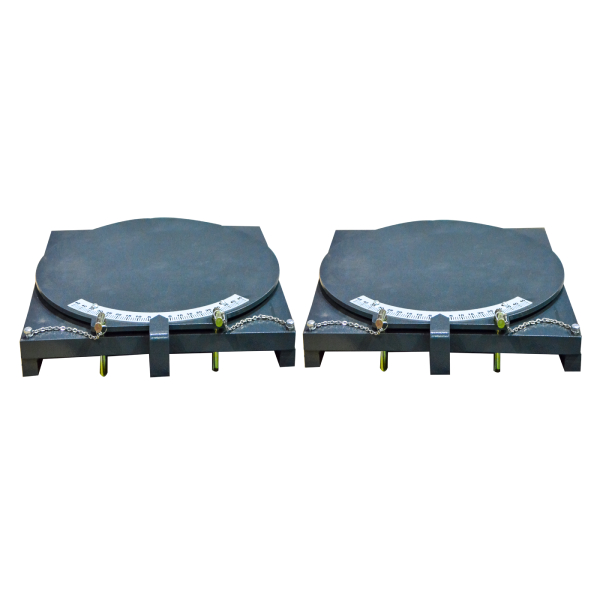

Optional Turnplate
Each alignment lift need one set (two pcs.) of turnplates.
Kits No.: 40101 -

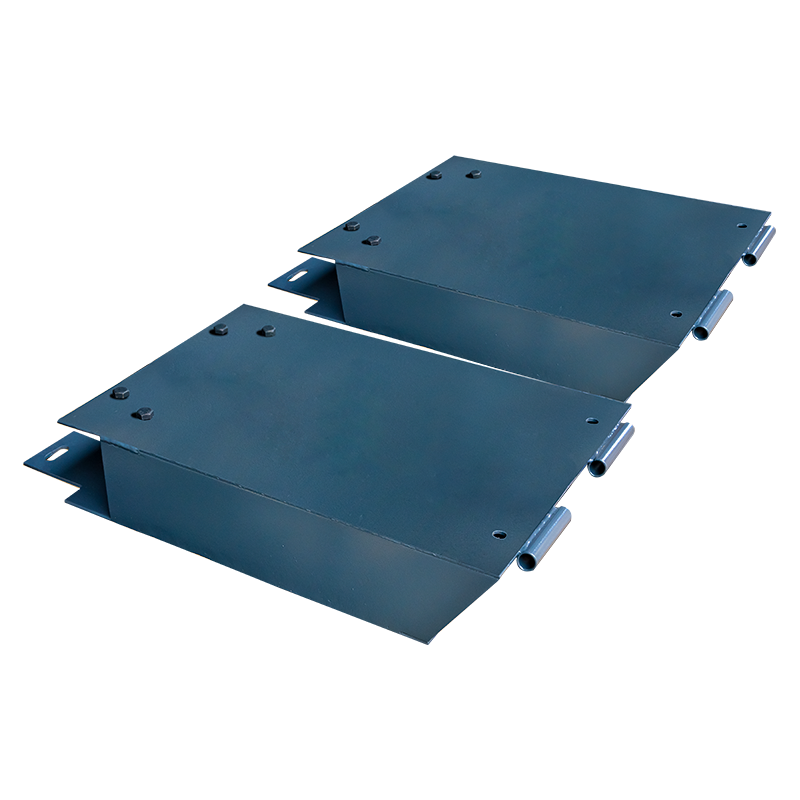

Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 40903 -

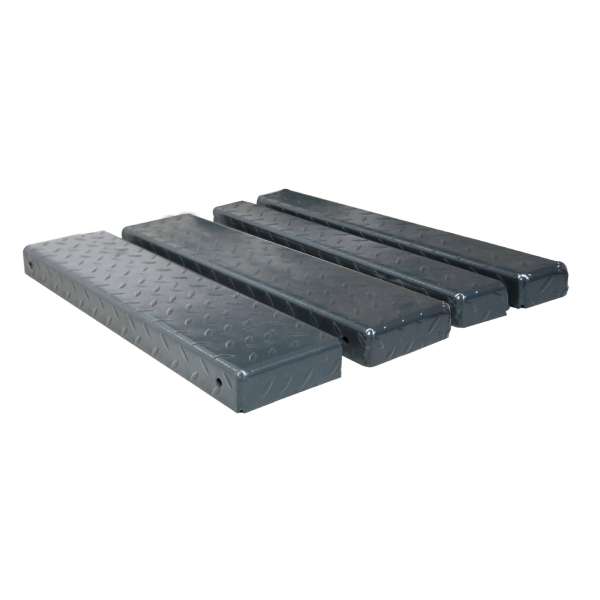

Optional adjustable blocks used with platform extension kit (40903).
Kits No.: 40905 -

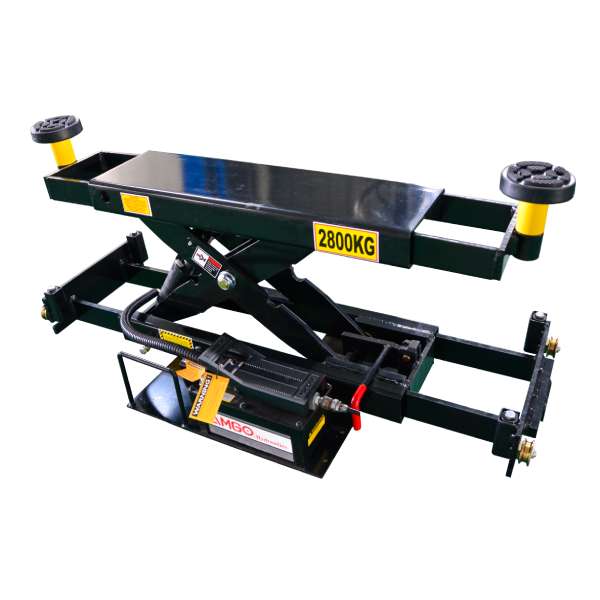

Optional rolling jacks
J6A: pneumatic hydraulic type 2.8T
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Single lift gross weight for 410AWX: 1728kgs , include power unit gross weight 25kgs.
- 20'GP loading capacity: 12 units.
- 40'GP loading capacity: 24 units.
-

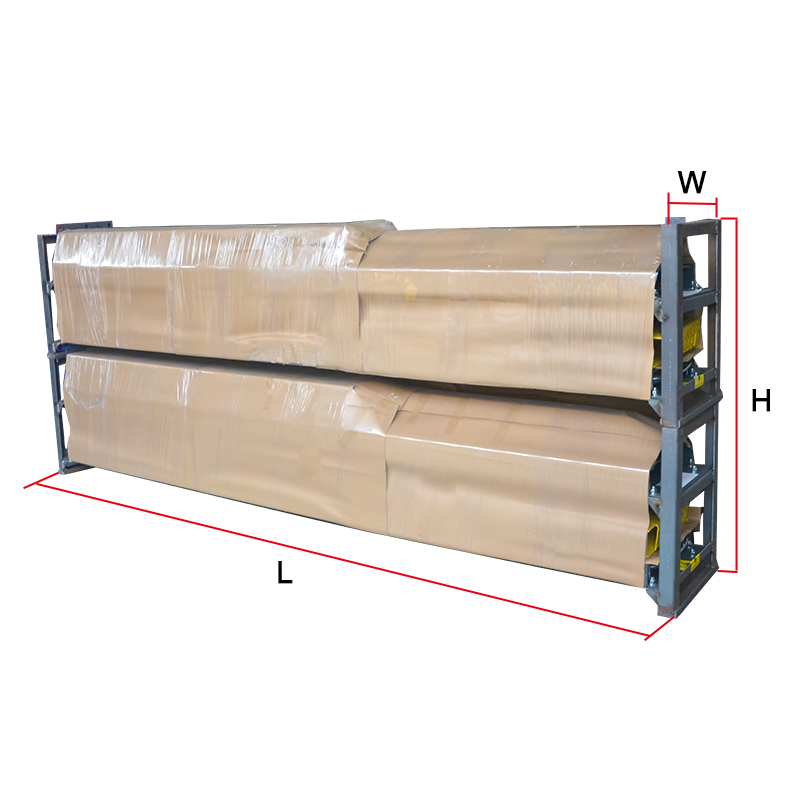

2 units/package,packing measurement (LxWxH): 5070x560x1440mm
-

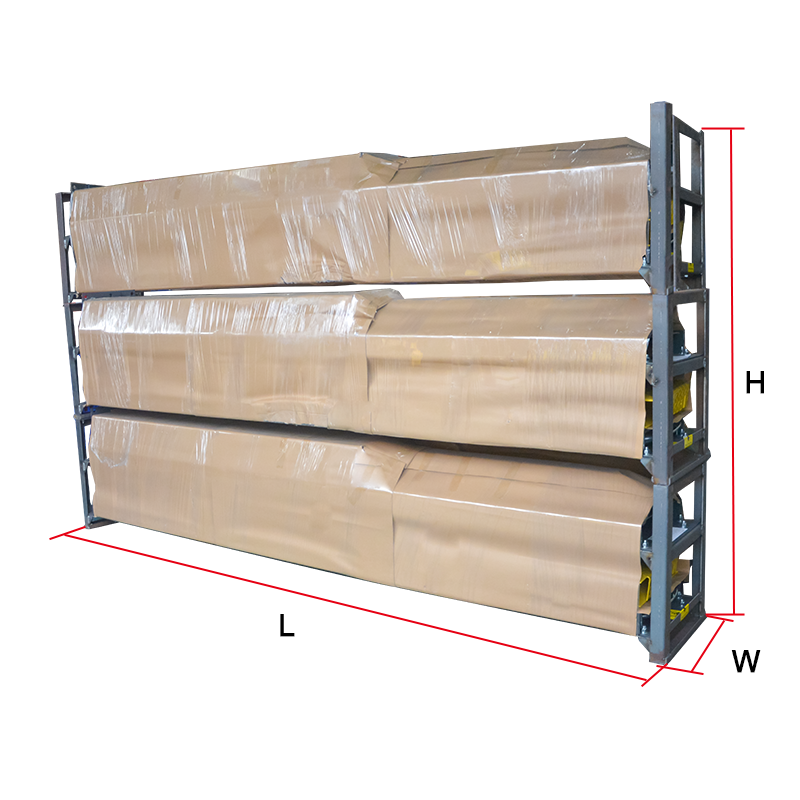

3 units/package, packing measurement (LxWxH): 5070x560x2145mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

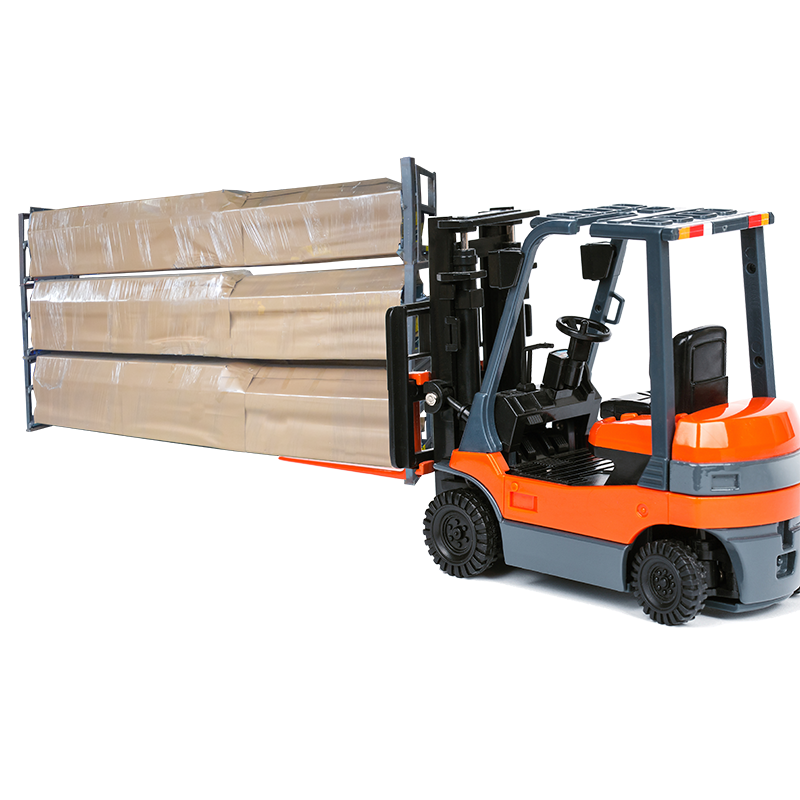

Attention to forklift loading and unloading
-

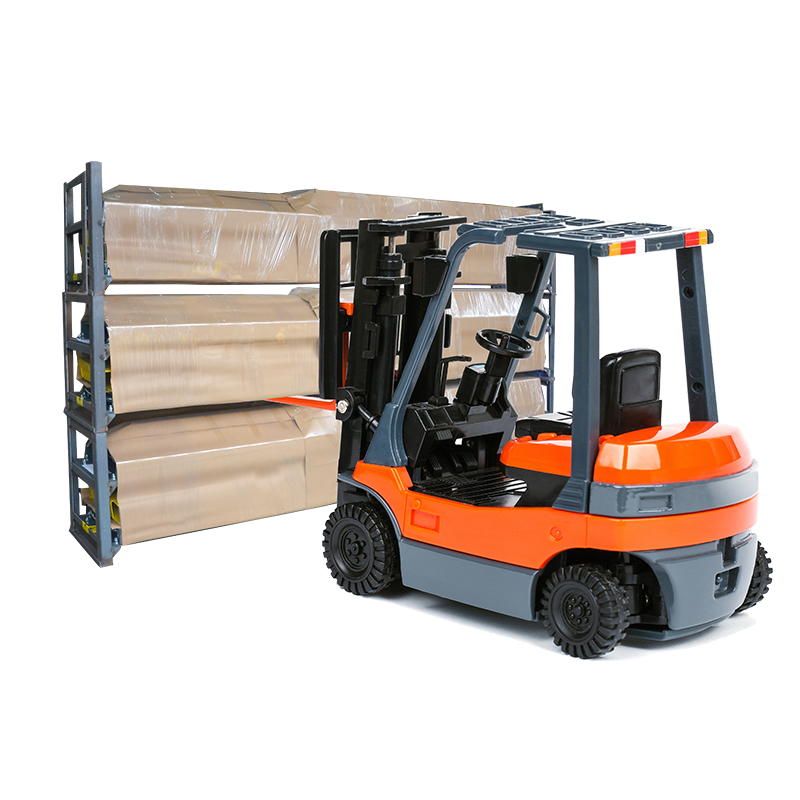

Attention to forklift transhipping
