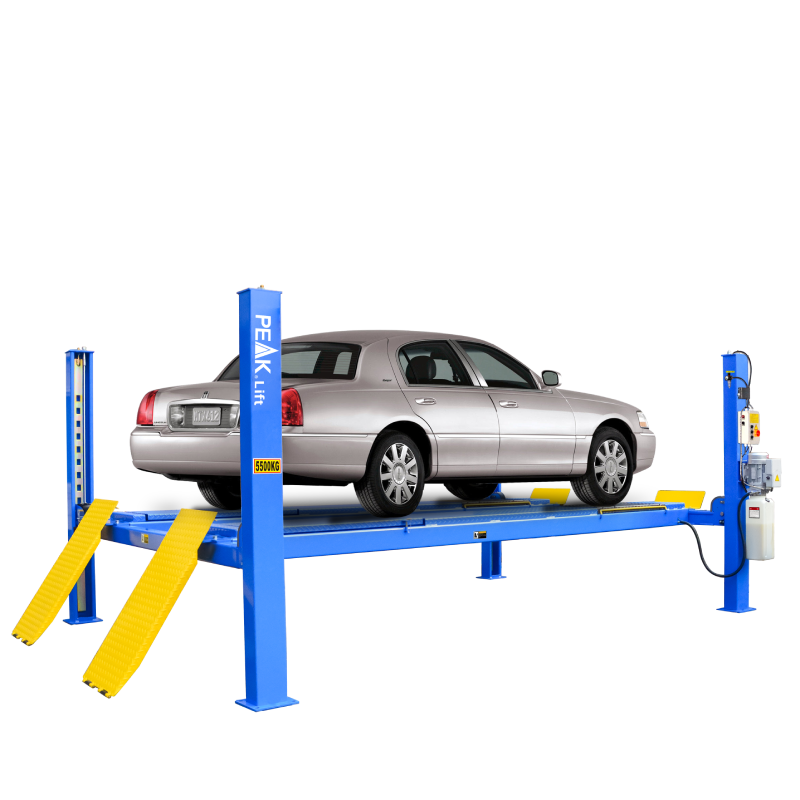

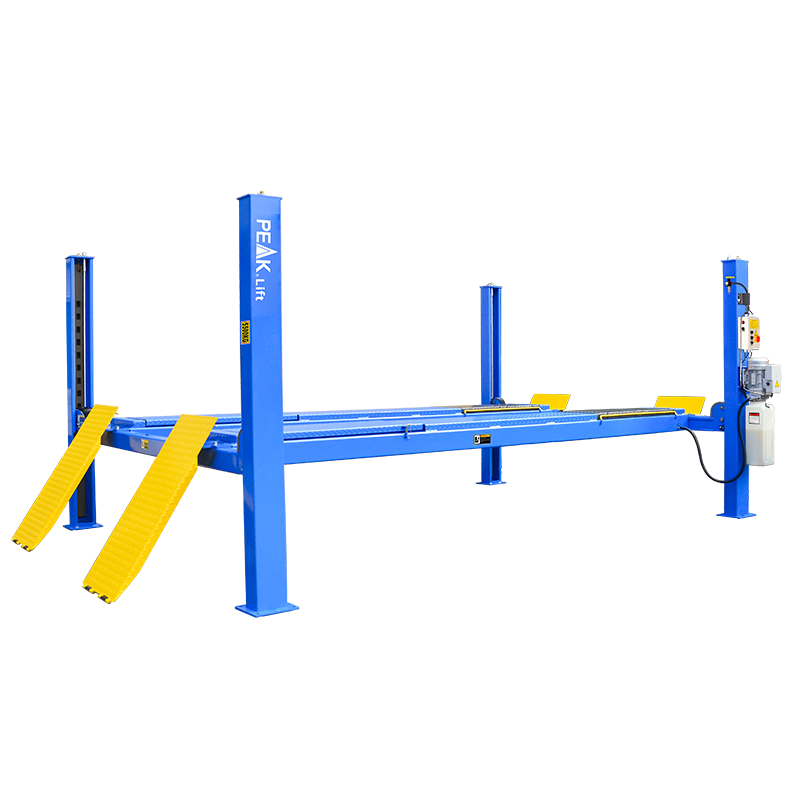

412A
Alignment Four Post Lift
Excellent Alignment Service
PEAK 412A delivers the excellent alignment perfomance for various vehicles max to 5500KG. It's powerful and reliable to expand your service business from cars to trucks.
- 4500KG (12,000 lbs) capacity;
- Heavy duty design, alignment model;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- Adjustable turnplate pockets to fit various wheel bases;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 412A | Alignment Four Post Lift | |
| Lifting Capacity | 5500kg (12,000 Ibs) | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 6092mm (239 13/16") |
| Overall Length (No Ramps) | B | 5180mm (203 15/16") |
| Overall Width | C | 3208mm (126 1/4") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max. Lifting Height | E |
1920mm(75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") | |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm(65 3/8") | |
| Drive-Thru Clearance | I | 2498mm (98 3/8") |
| Width Between Runways | J |
1100mm (43 1/4") Min.1000mm (39 3/8")~ Max.1300mm(51 1/8") |
| Outside Edge of Runways | K |
2116mm (83 1/4") Min.2016mm(79 3/8")~ Max. 2316mm(91 1/8") |
| Min. Four Wheel Align | L | 2080mm (81 7/8") |
| Max. Four Wheel Align | M | 4080mm (160 5/8") |
| Max. Two Wheel Align | N | 4230mm (166 9/16") |
| Gross Weight | 1334kg (2,941lbs) | |
| Motor | 3.0HP |
-

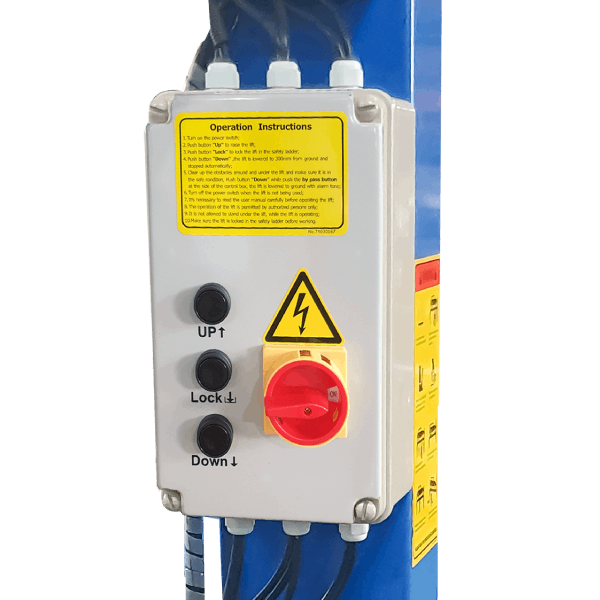

Electric control device with UP, LOCK and DOWN buttons.
-

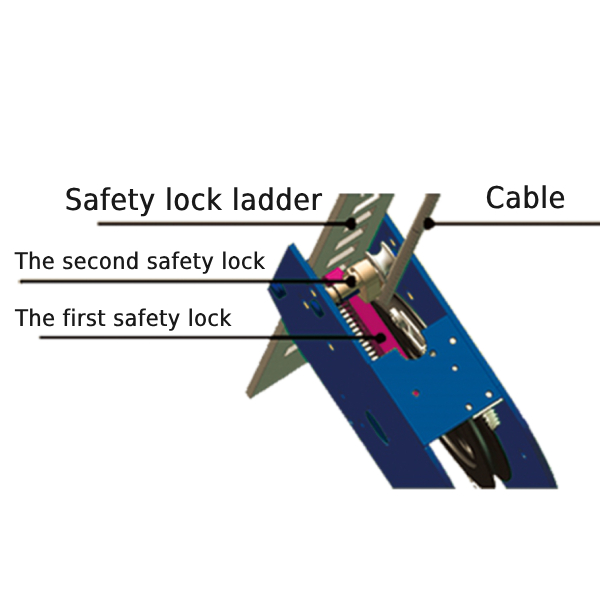

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

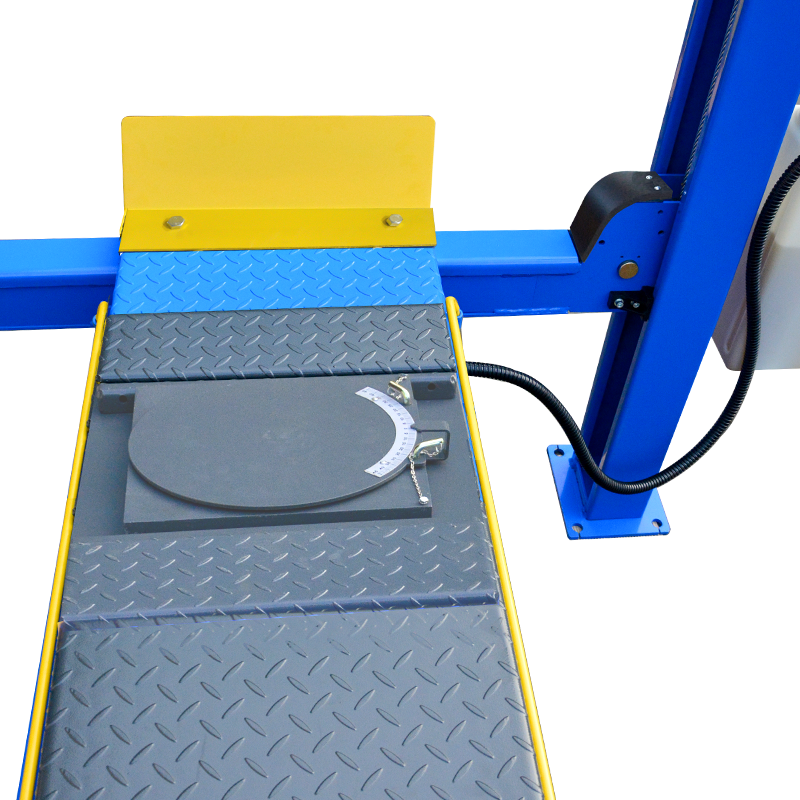

Adjustable turnplate blocks to fit various wheel bases vehicles.
-
Non-slip diamond platforms come as standard.
-

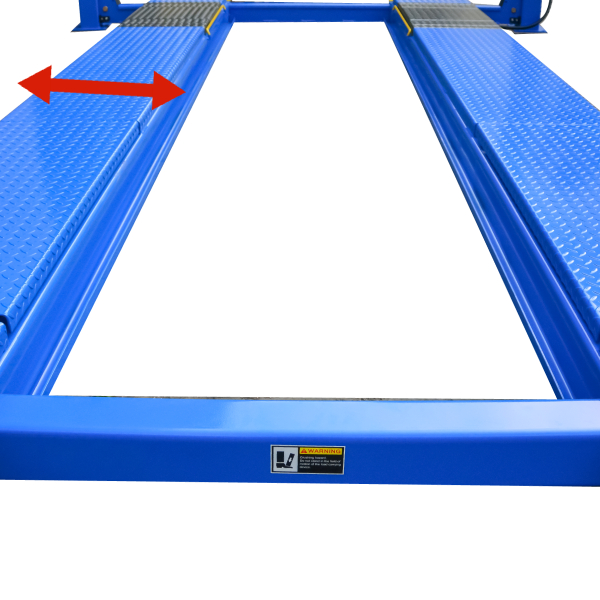

Stepless adjustable width between platforms.
-

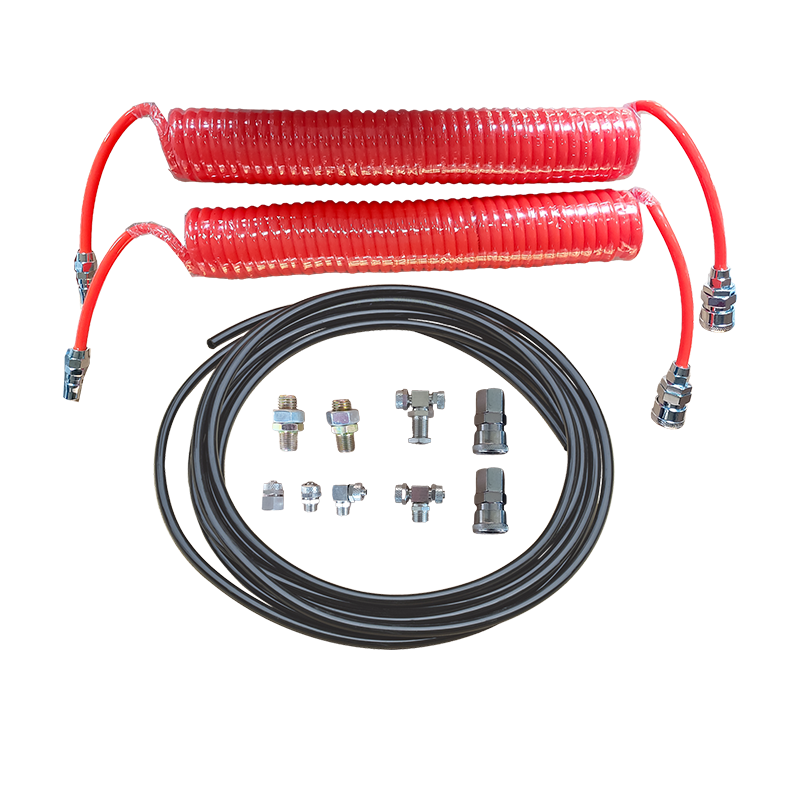

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -

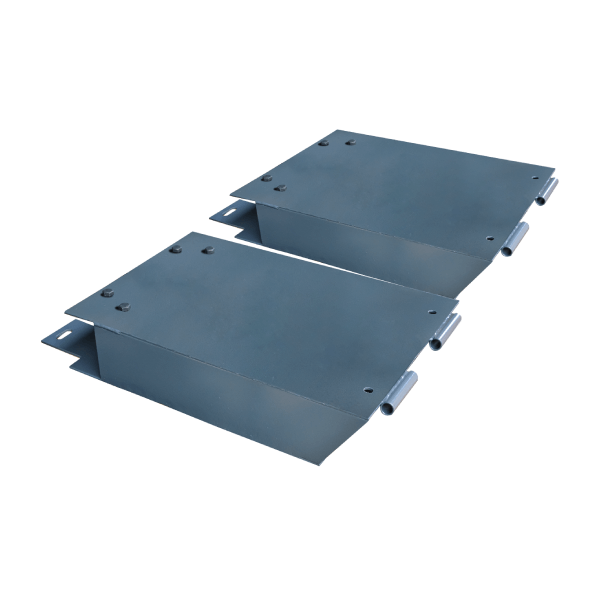

Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 41203 -

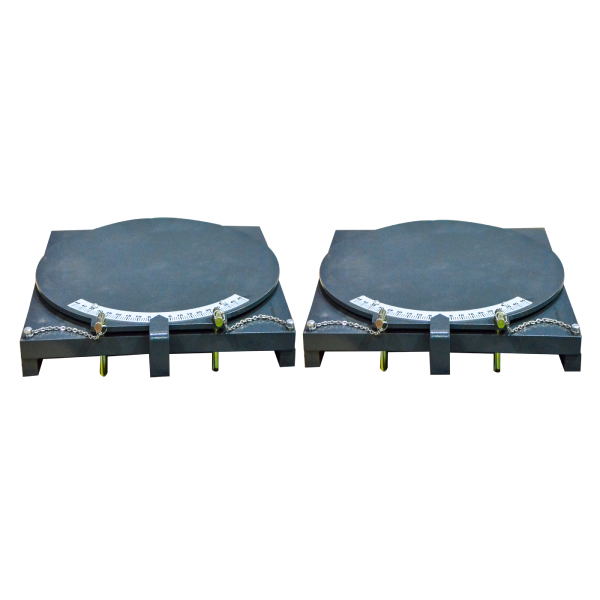

Optional Turnplate
Each alignment lift need one set (two pcs.) of turnplates.
Kits No.: 40101 -

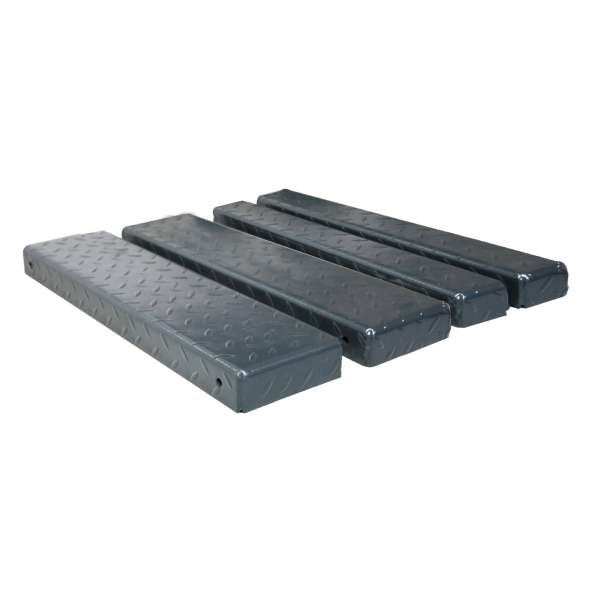

Optional adjustable blocks used with platform extension kit (41203).
Kits No.: 40905 -

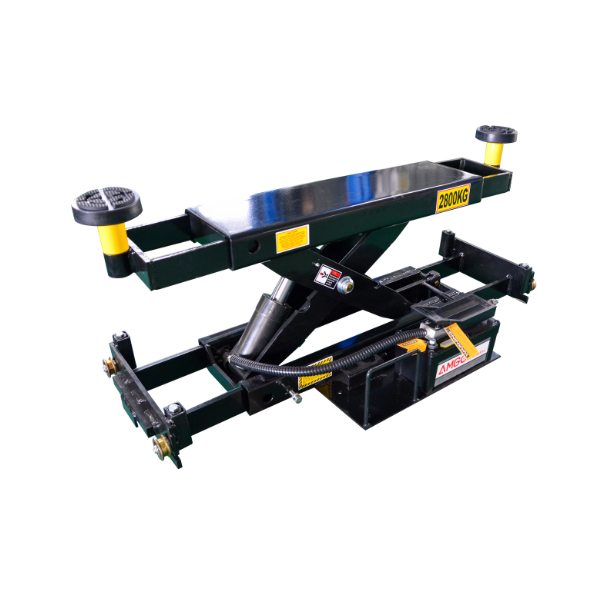

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 412A: 1334kgs , include power unit gross weight 26kgs.
- 20'GP loading capacity: 12 units.
- 40'GP loading capacity: 24 units.
-

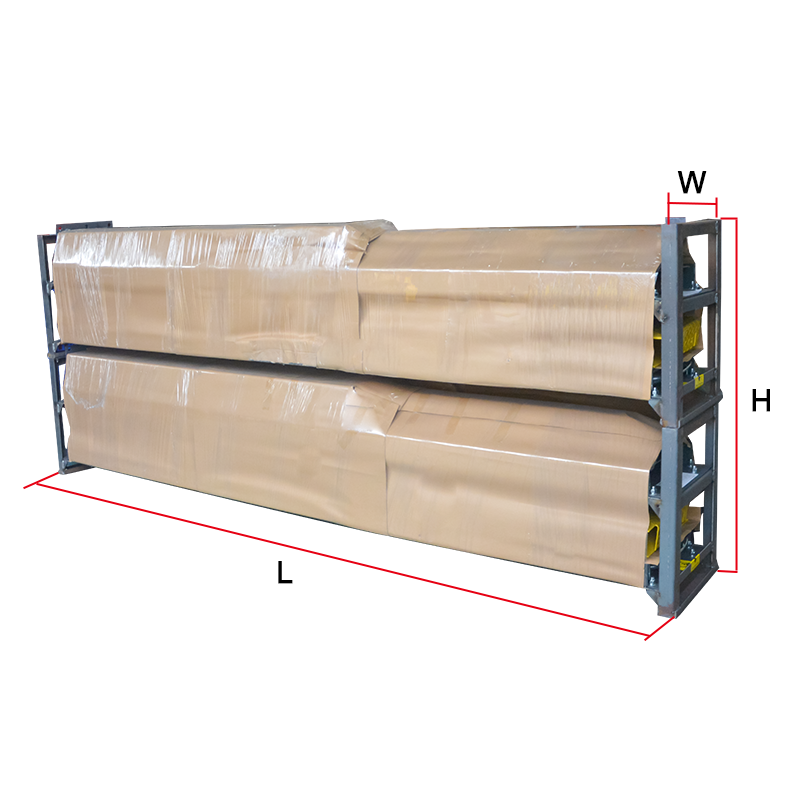

2 units/package,packing measurement (LxWxH): 5170x560x1440mm
-

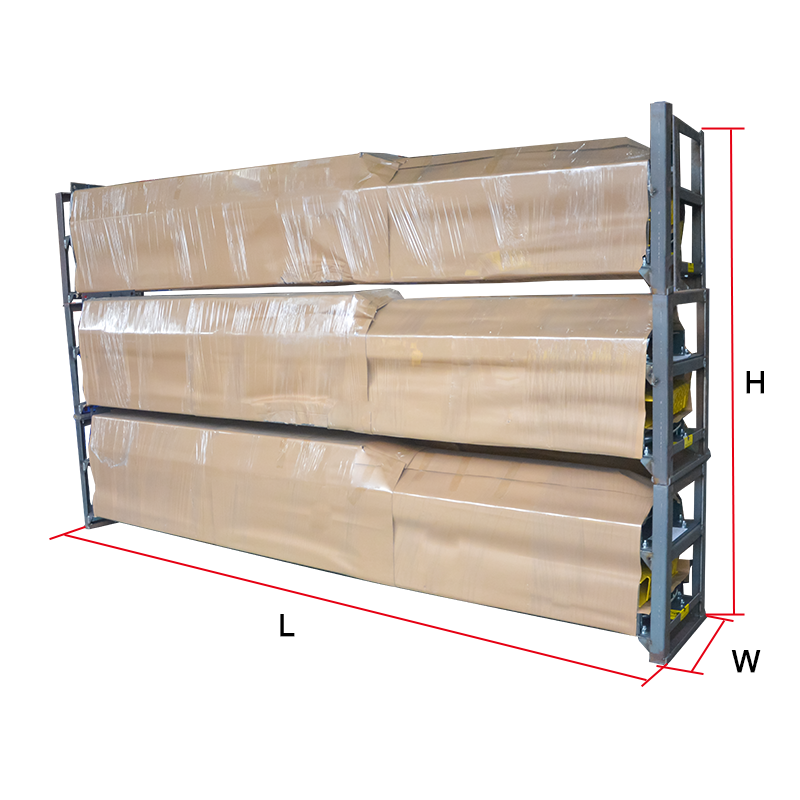

3 units/package, packing measurement (LxWxH):5170x560x2135mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-
Attention to forklift loading and unloading
-
Attention to forklift transhipping
