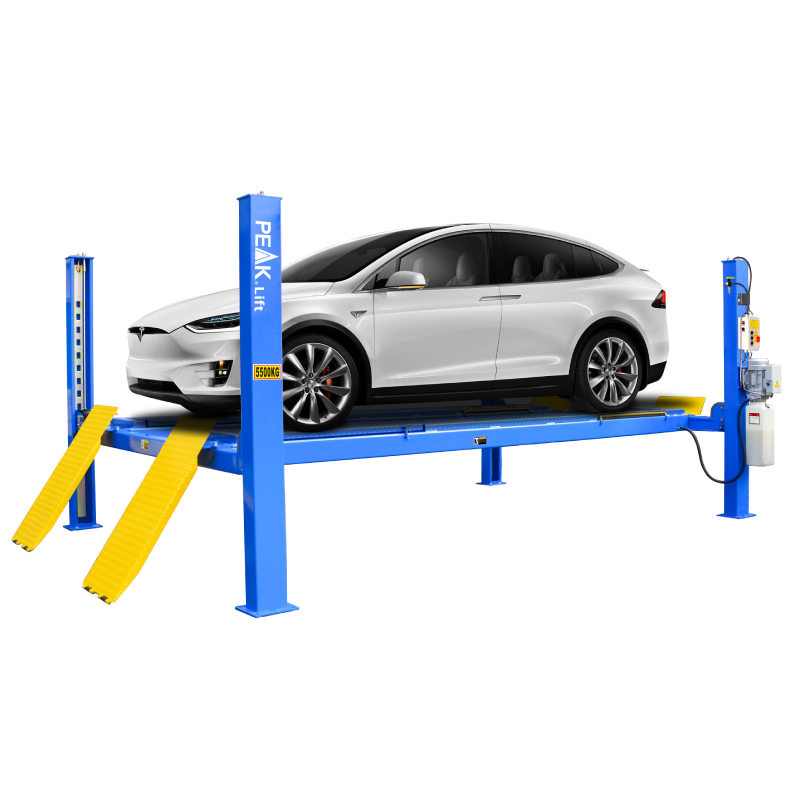

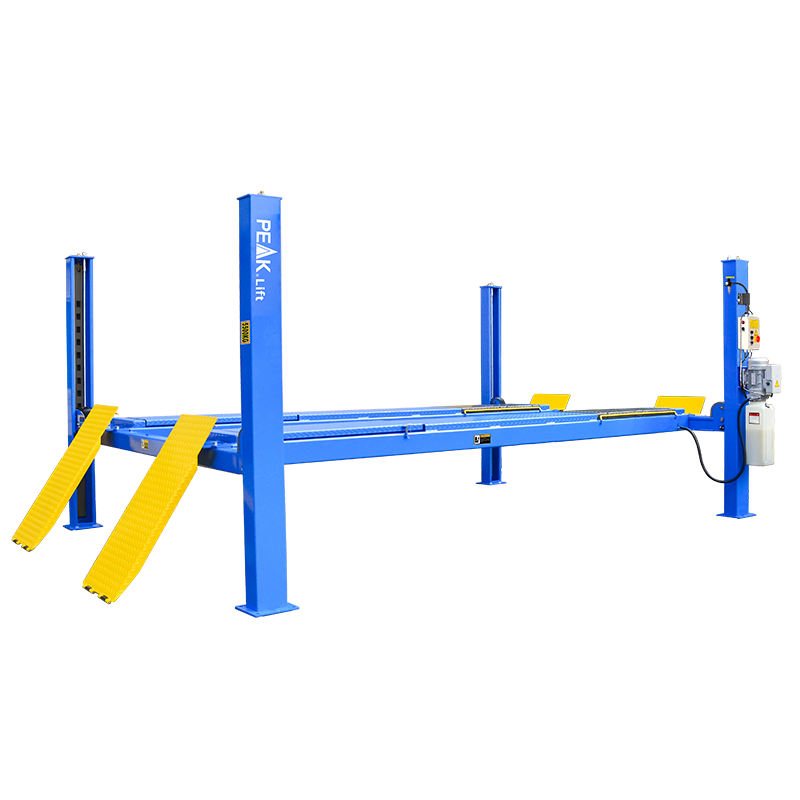

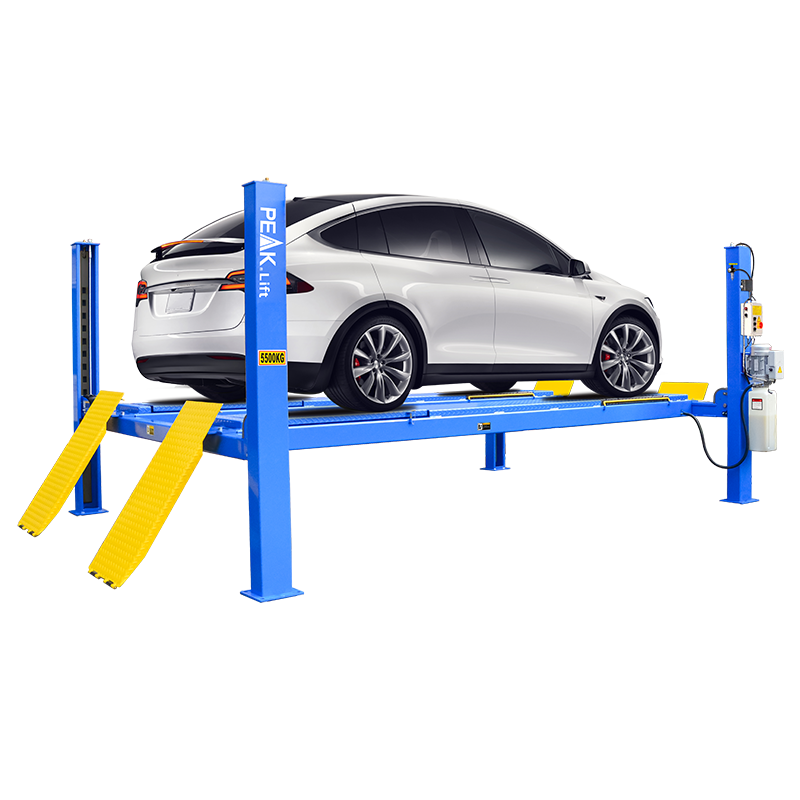

412AX
Alignment Four Post Lift
Excellent with more-wider
Another excellent more-wider alignment models of Peak 4 post lift family. More width, and more capacity, PEAK 412AX is excellent to encourage yours workshop business.
- 4500KG (12,000 lbs) capacity;
- Heavy duty design, alignment model;
- Width between columns reach 3000mm, suitable for more vehicles;
- 24V safe electrical operation system;
- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- Adjustable turnplate pockets to fit various wheel bases;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model 412AX | Alignment Four Post Lift | |
| Lifting Capacity | 5500kg (12,000 Ibs) | |
| Lifting Time | 63s | |
| Overall Length (Inc Ramps) | A | 6092mm (239 13/16") |
| Overall Length (No Ramps) | B | 5180mm (203 15/16") |
| Overall Width | C | 3356mm (132 1/8") |
| Width Between Columns | D | 3000mm (118 1/8") |
| Max. Lifting Height | E |
1920mm(75 5/8") |
| Max. Lock Height to top of runway | 1850mm (72 7/8") | |
| Overall Height | F | 2185mm(86") |
| Minimum Height | G | 220mm (8 5/8") |
| Max. Underneath Height | H | 1730mm (68 1/8") |
| Max. Lock Underneath runway | 1660mm(65 3/8") | |
| Drive-Thru Clearance | I | 2646mm (104 1/4") |
| Width Between Runways | J |
1100mm (43 1/4") Min.1000mm (43 3/8")~ Max.1375mm(54 1/8") |
| Outside Edge of Runways | K |
2116mm (83 1/4") Min.2016mm(79 3/8")~ Max. 2391mm(94 1/8") |
| Min. Four Wheel Align | L | 2080mm (81 7/8") |
| Max. Four Wheel Align | M | 4080mm (160 5/8") |
| Max. Two Wheel Align | N | 4230mm (166 9/16") |
| Gross Weight | 1338kg (2,950 lbs) | |
| Motor | 3.0HP |
-

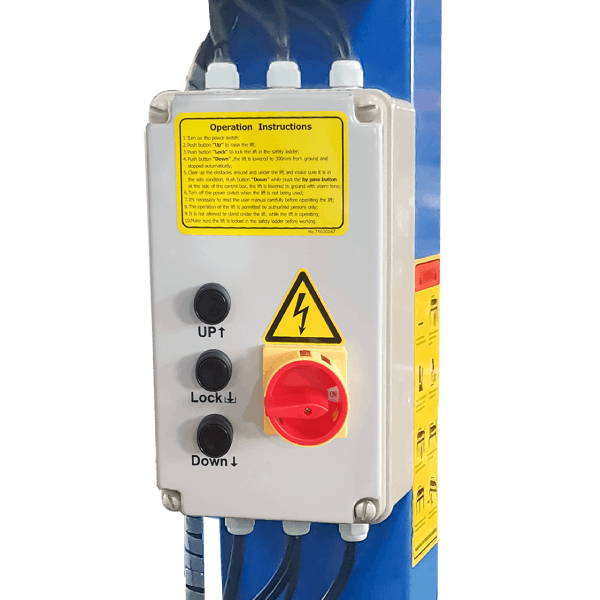

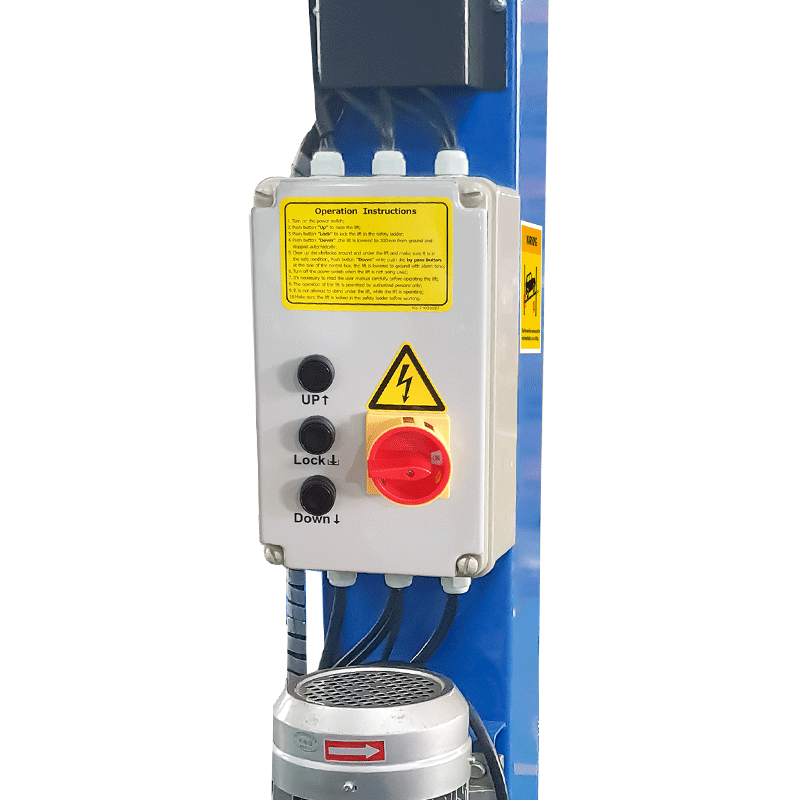

Electric control device with UP, LOCK and DOWN buttons.
-

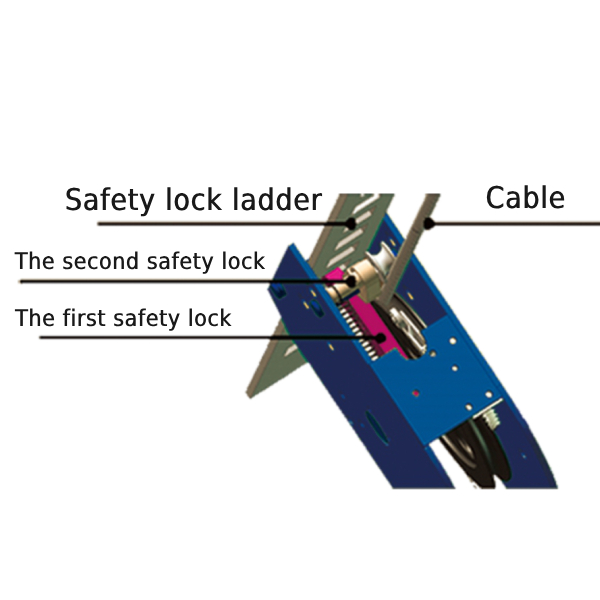

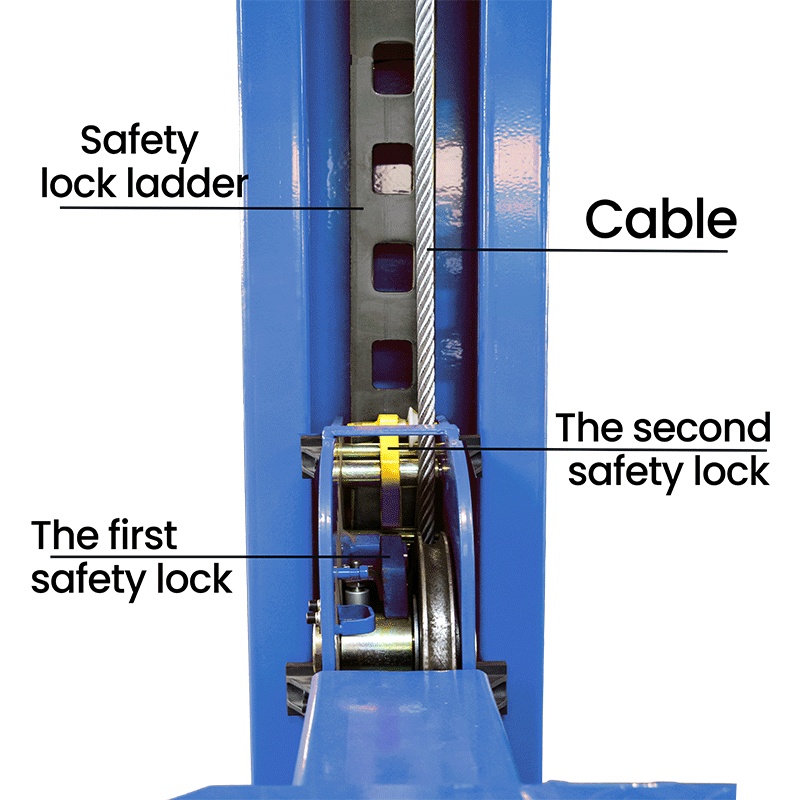

Double safety locks provide additional safety.
-
Oil-water separator and solenoid air valve are installed on the power side column.
-

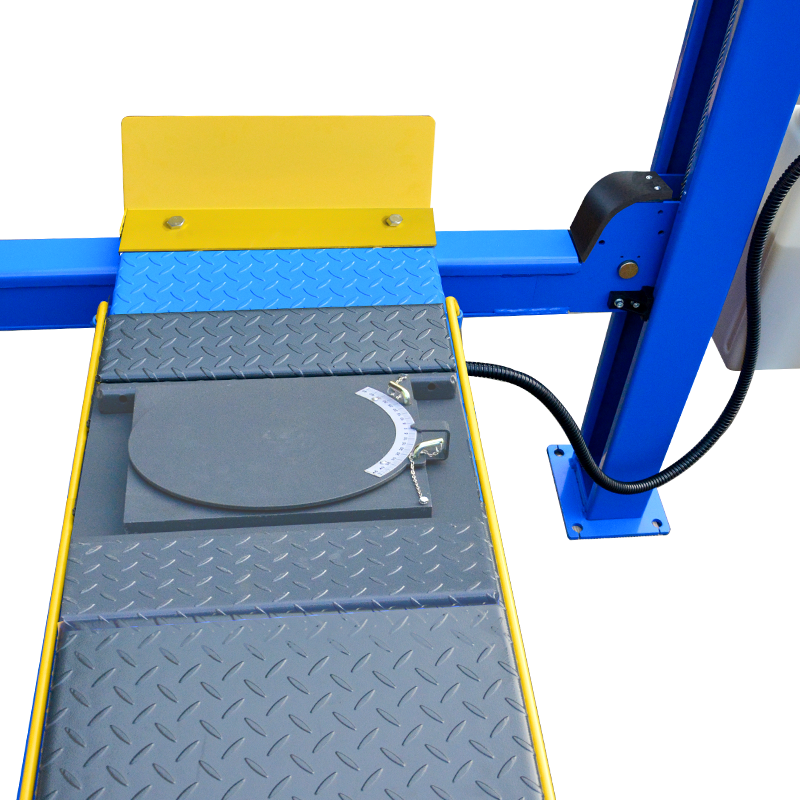

Adjustable turnplate blocks to fit various wheel bases vehicles.
-
Non-slip diamond platforms come as standard.
-

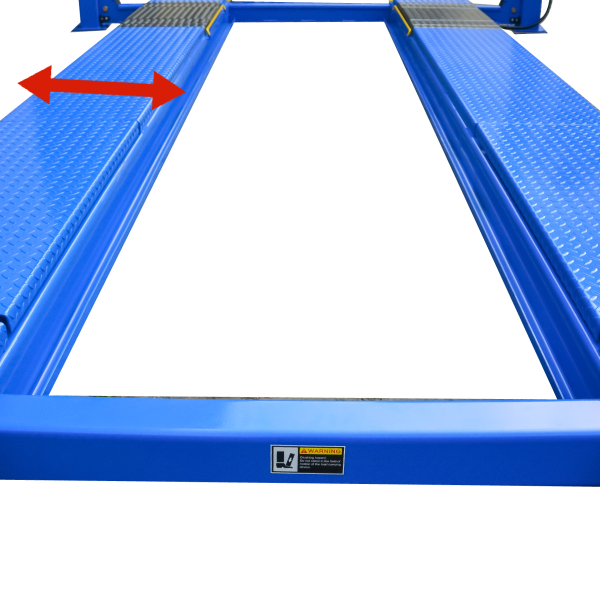

Stepless adjustable width between platforms.
-

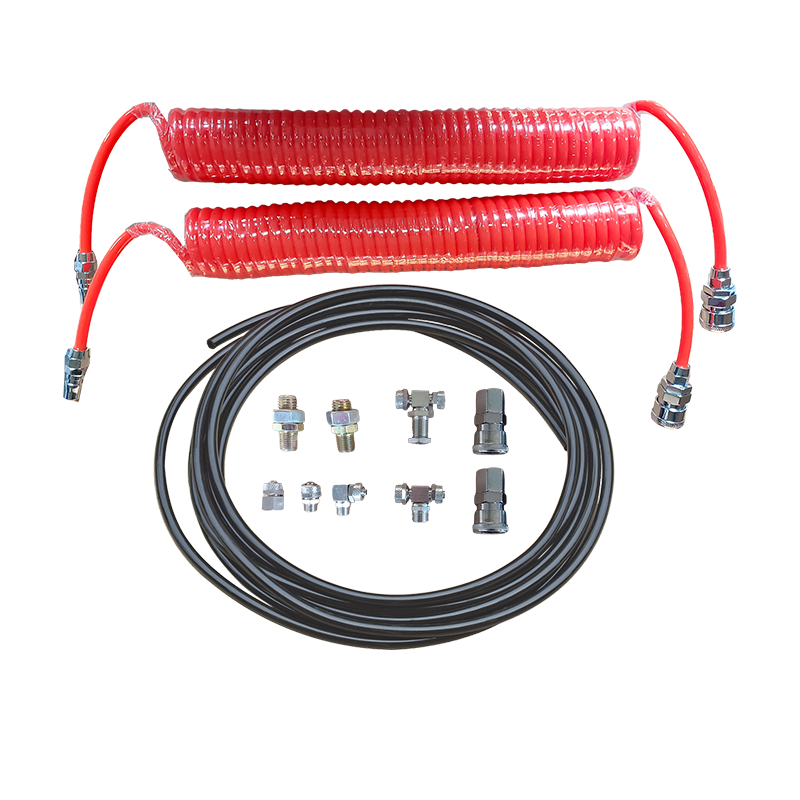

Optional Air Line Kits
All peak four post lifts are designed to use the air line kits for rolling jack.
Kits No.: 40102 -
Optional Platform Extension Kits add an extra 660mm (26") length to the platform.
Kits No.: 41203 -

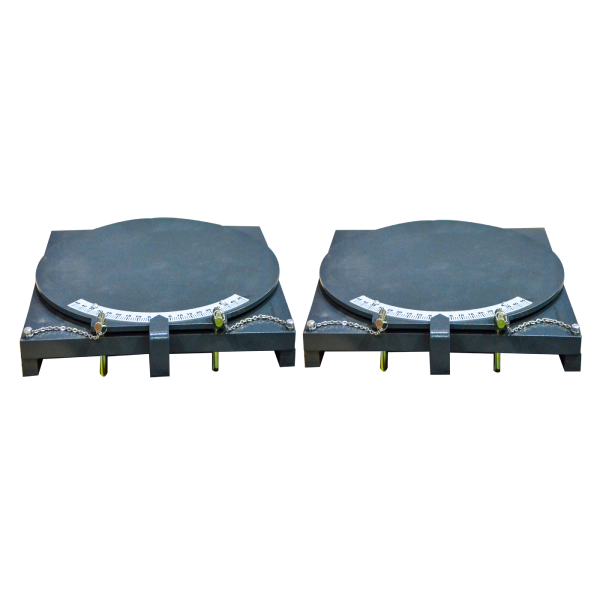

Optional Turnplate
Each alignment lift need one set (two pcs.) of turnplates.
Kits No.: 40101 -

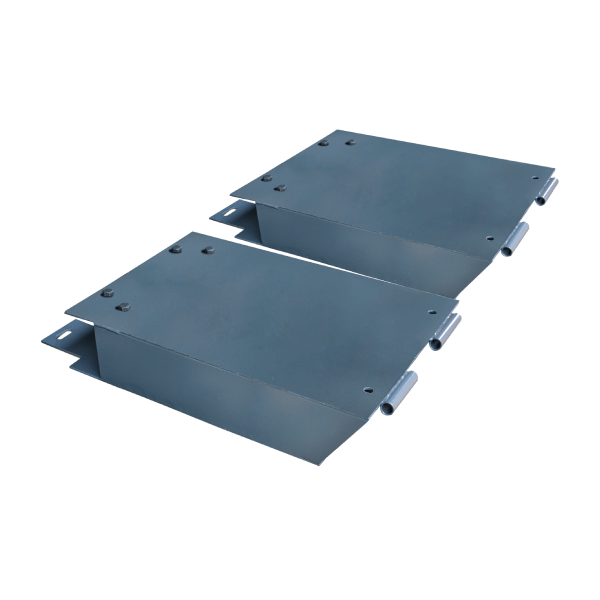

Optional adjustable blocks used with platform extension kit (41203).
Kits No.: 40905 -

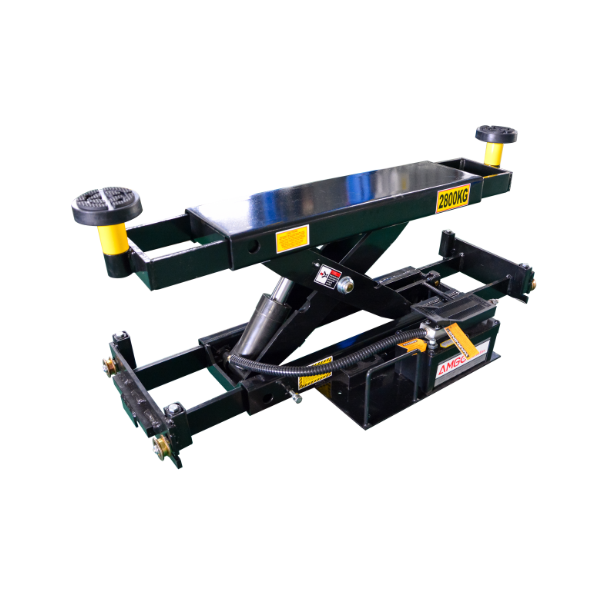

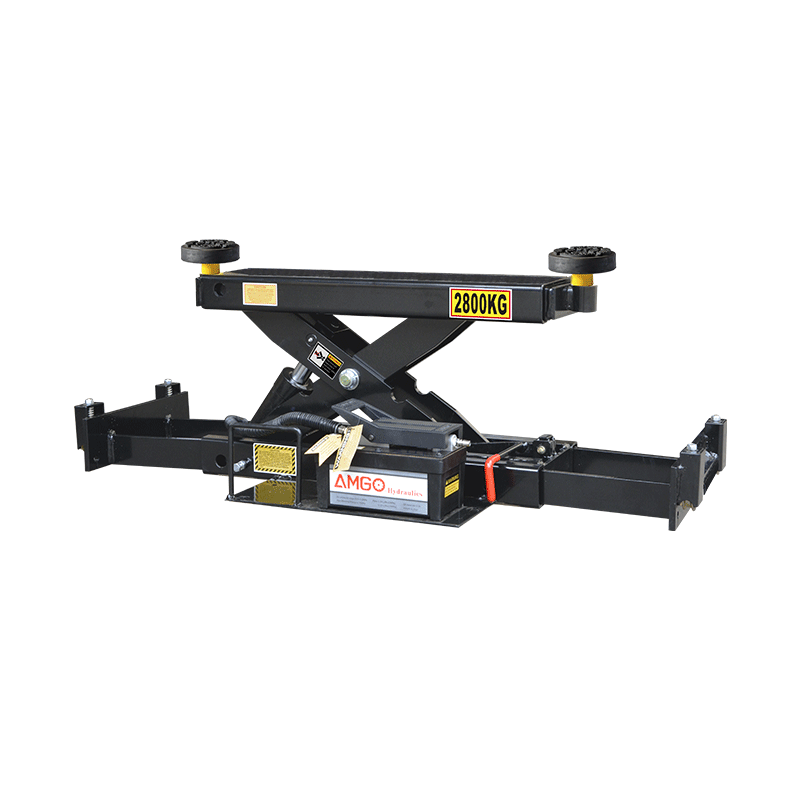

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 412AX: 1338kgs , include power unit gross weight 26kgs.
- 20'GP loading capacity: 12 units.
- 40'GP loading capacity: 24 units.
-

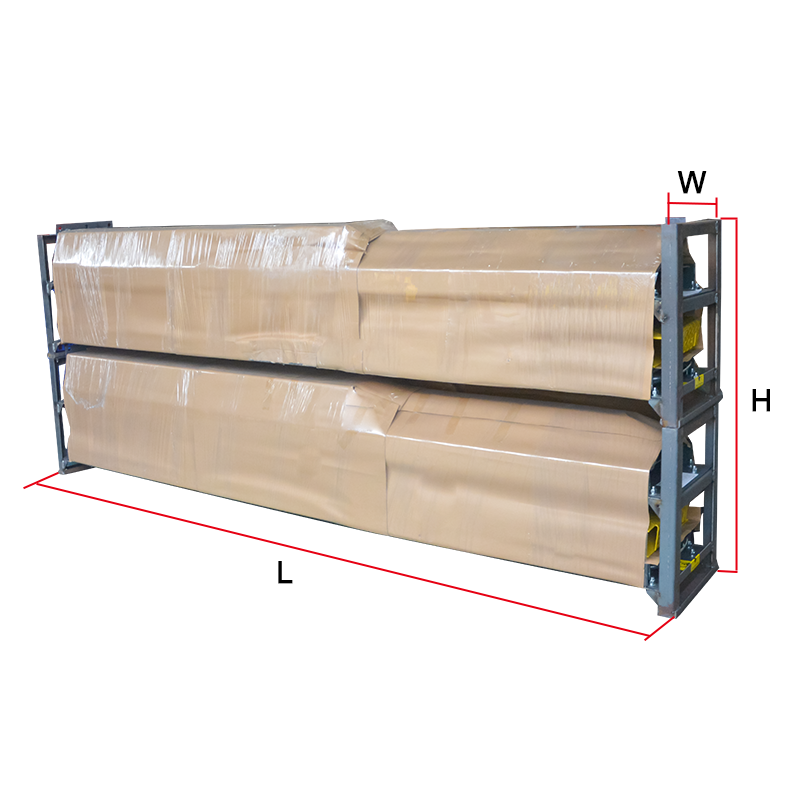

2 units/package, packing measurement (LxWxH): 5170x560x1440mm
-

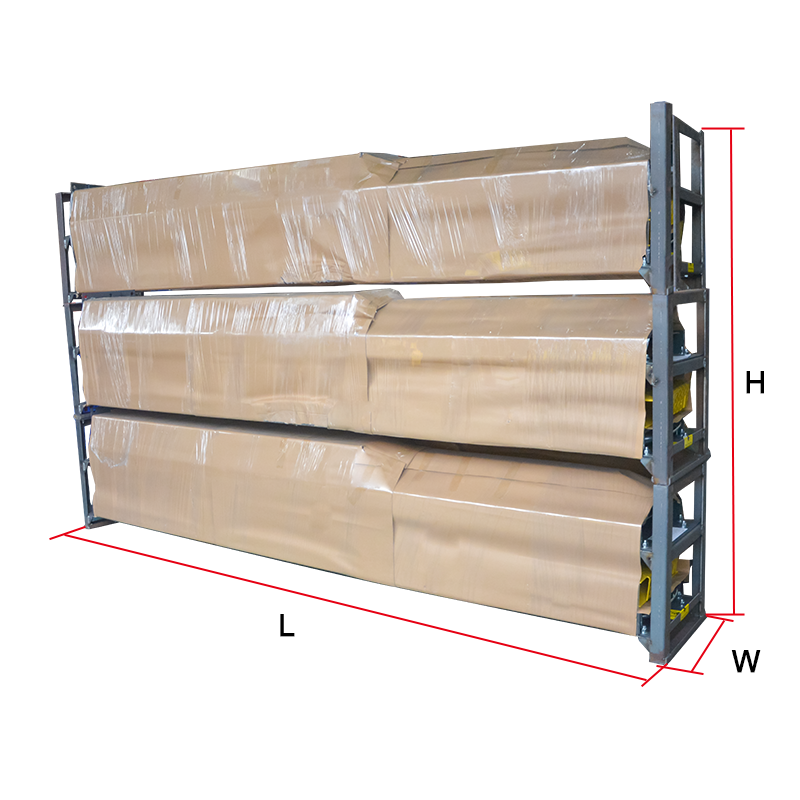

3 units/package, packing measurement (LxWxH): 5170x560x2135mm
-
1 unit/ctn,packing measurement (LxWxH): 1005x300x360mm
-
Attention to forklift loading and unloading
-
Attention to forklift transhipping
