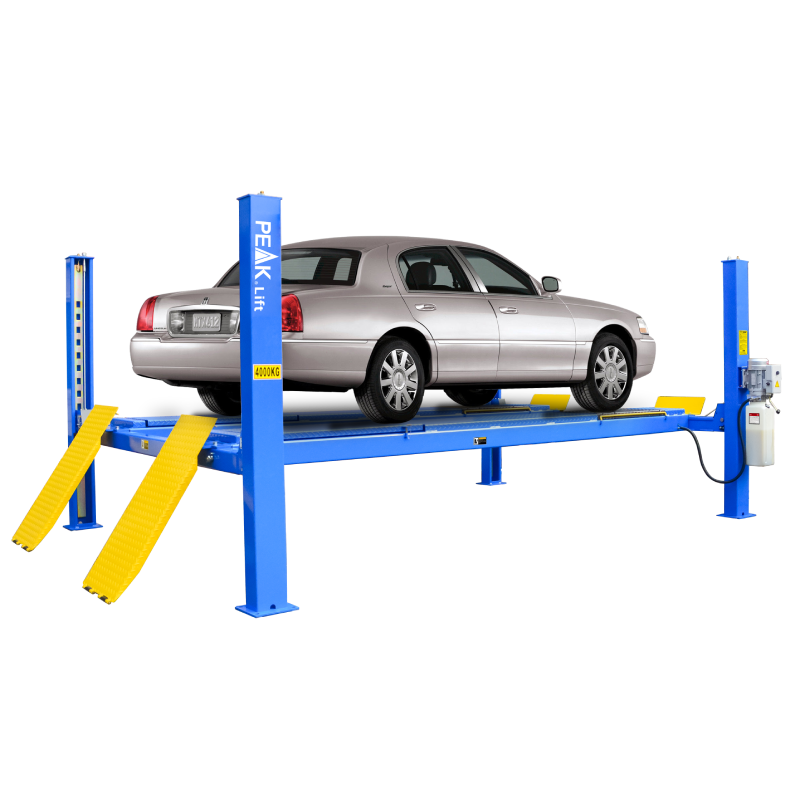

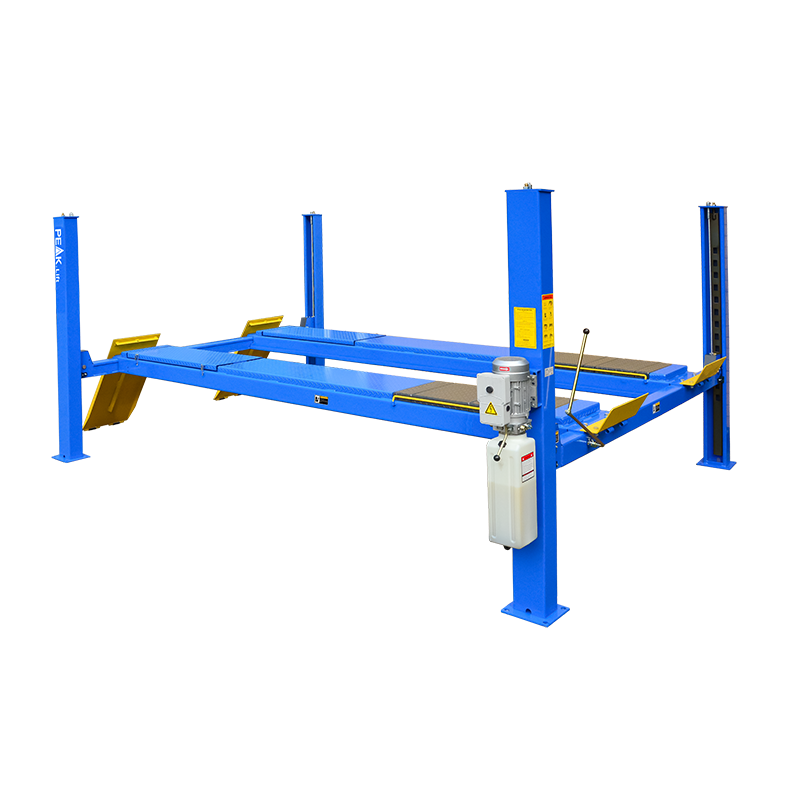

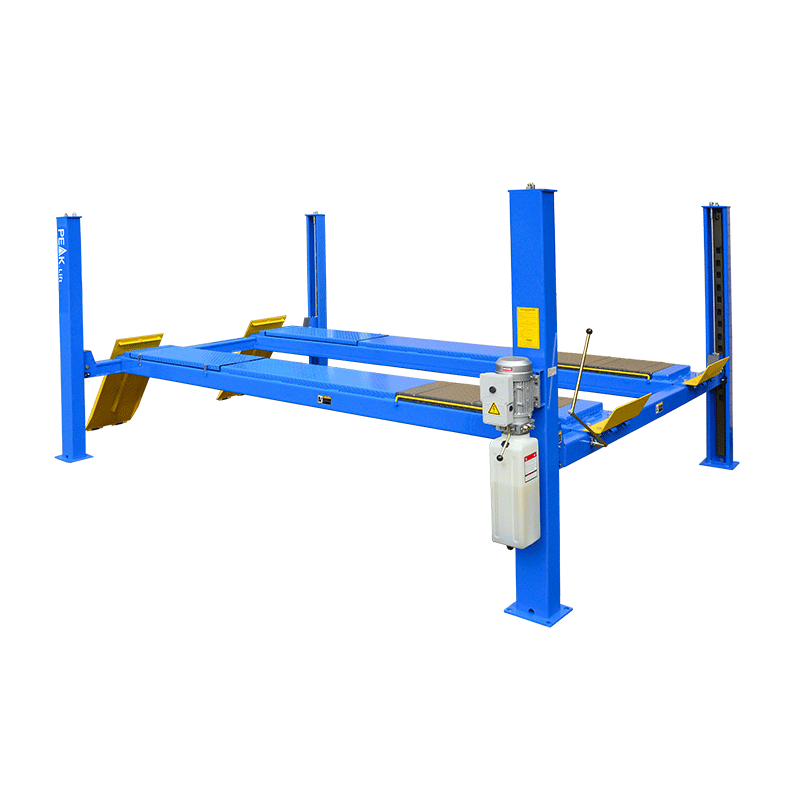

KHL-4000A
Alignment Four Post Lift
Efficient Alignment Service
As an alignment model, the KHL-4000A offers the same advantages as the KHL-4000, providing effective alignment performance for a variety of vehicles weighing up to 4000KG.
- Lifting capacity: 4000KG（9000lbs);
- Alignment model;
- Peak patent design concealed safety lock control device, manual single-point lock release;
- No need extra air source;

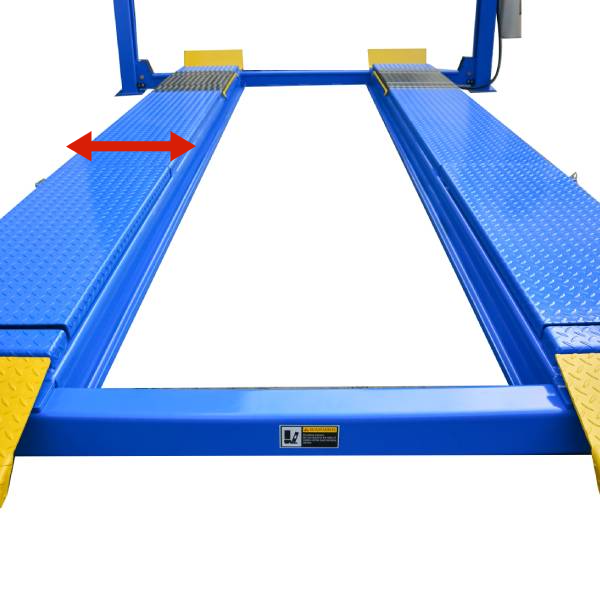

- Stelpless adjustable width between platforms;
- Integrated non-skid diamond platforms;
- Standard self-locking mechanical lock and air-drive safety lock;
- Standard primary safety locks and cable-slack protection mechanism;
- Adjustable turnplate pockets to fit various wheel bases;
- High quality hydraulic cylinder design and manufactured at high standard.
| Model KHL-4000A | Alignment Four Post Lift | |
| Lifting Capacity | 4000kg (9,000 Ibs) | |
| Lifting Time | 45s | |
| Overall Length (Inc Ramps) | A | 5516mm (217 3/16") |
| Overall Length (No Ramps) | B | 4604mm (181 1/4") |
| Overall Width | C | 3212mm (126 7/16") |
| Width Between Columns | D | 2852mm (112 1/4") |
| Max. Lifting Height | E |
1942mm(76 7/16") |
| Max. Lock Height to top of runway | 1862mm (73 5/16") | |
| Overall Height | F | 2105mm(82 7/8") |
| Minimum Height | G | 217mm (8 9/16") |
| Max. Underneath Height | H | 1752mm (69") |
| Max. Lock Underneath runway | 1672mm(65 13/16") | |
| Drive-Thru Clearance | I | 2584mm (101 3/4") |
| Width Between Runways | J |
1077mm (42 7/16") Min.85mm (3 3/8")~ Max.1322mm(52 1/16") |
| Outside Edge of Runways | K |
2093mm (82 7/16") Min.1100mm(43 3/8")~ Max. 2316mm(91 1/8") |
| Min. Four Wheel Align | L | 2000mm (78 3/4") |
| Max. Four Wheel Align | M | 3450mm (135 13/16") |
| Max. Two Wheel Align | N | 3600mm (141 3/4") |
| Gross Weight | 1020kg (2,249 lbs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP 24 Units/40'GP |
|
| Packing Dimension | 4640 x 560 x 790 mm |
-
High quality hydraulic cylinder utilizes imported oil seals.
-

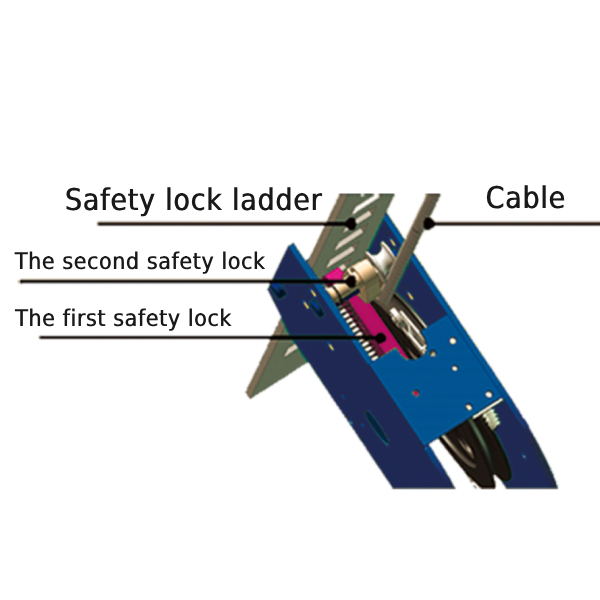

Double safety locks provide additional safety.
-
Aero standard cables.
-

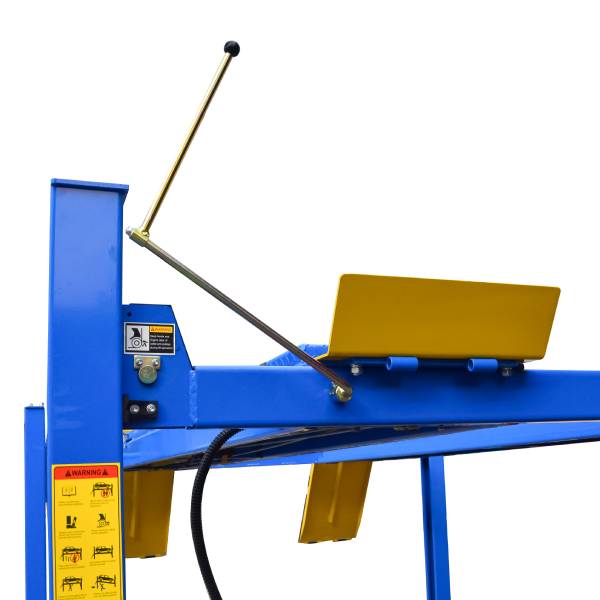

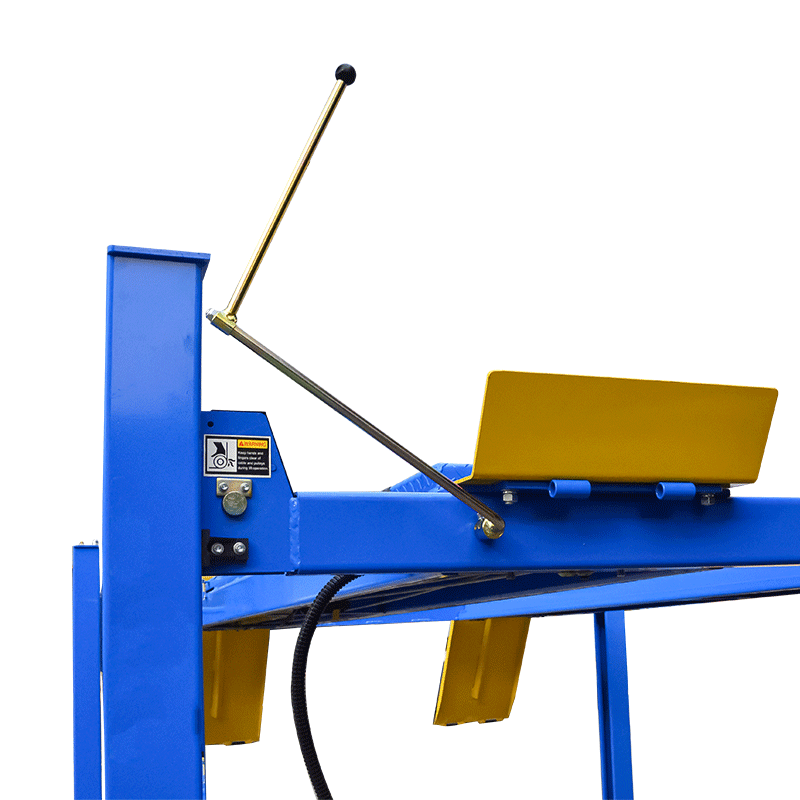

Hidden safety locks with manual single-point lock release.
-
Non-slip diamond platforms come as standard.
-

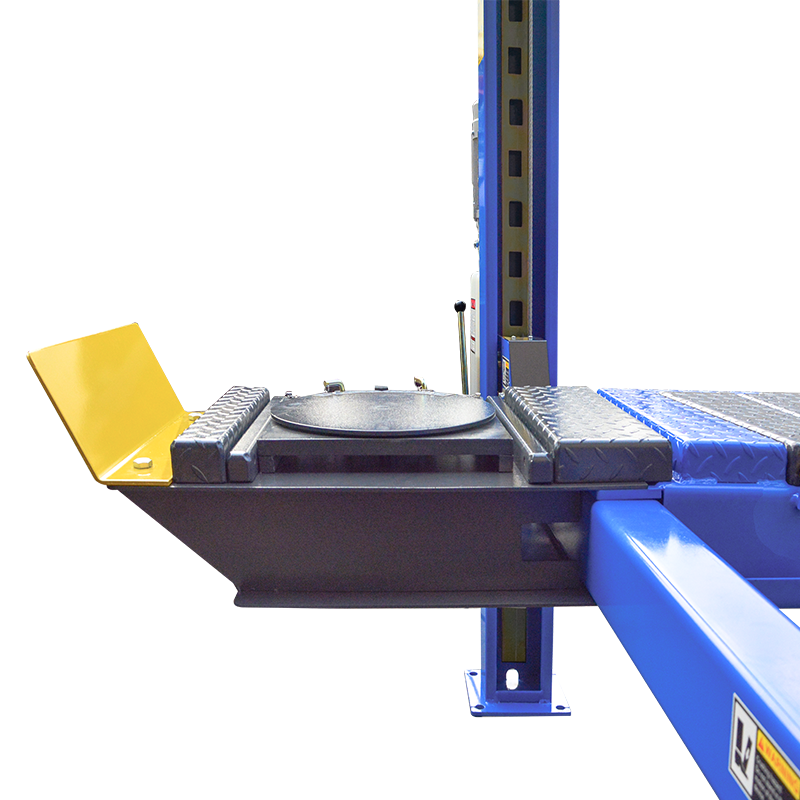

Adjustable turnplate blocks to fit various wheel bases vehicles.
-

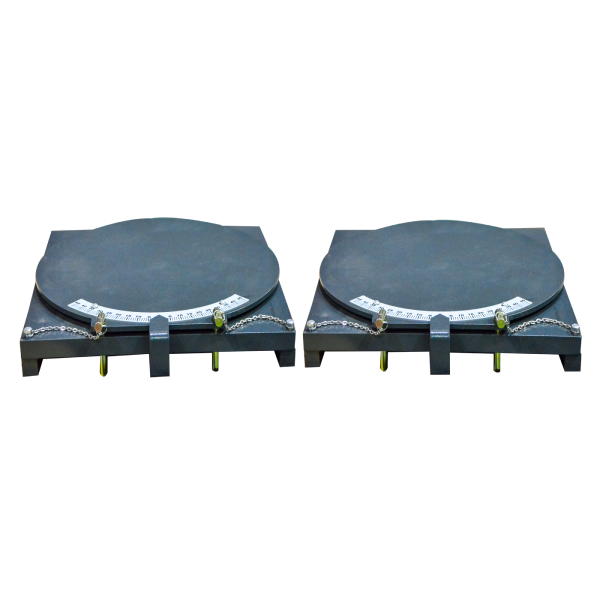

Optional Turnplate.
Each alignment lift need two units. Kits No.: 40101 -

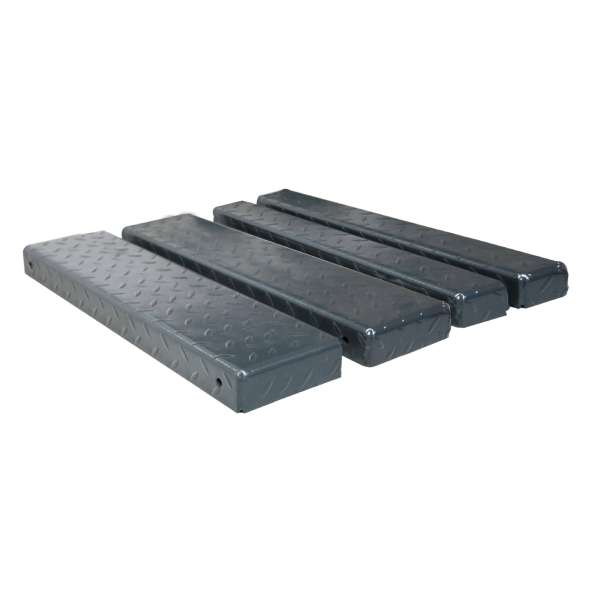

Optional platform extension kits add an extra 660mm (26") length to the platform. Kits No.: 40903
-

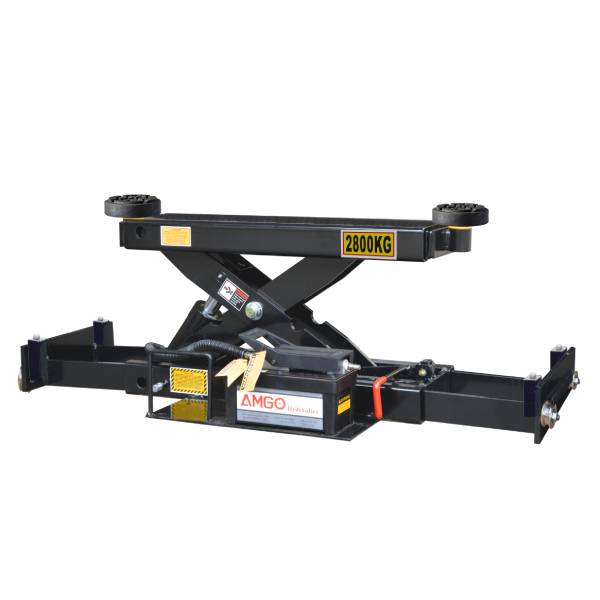

Optional Rolling Jacks
J6H: manual hydraulic type 2,800kg.
J6A: pneumatic hydraulic type 2,800kg.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for KHL-4000A: 1020kgs , include power unit gross weight 25kgs.
- 20'GP loading capacity: 12 units.
- 40'GP loading capacity: 24 units.
-

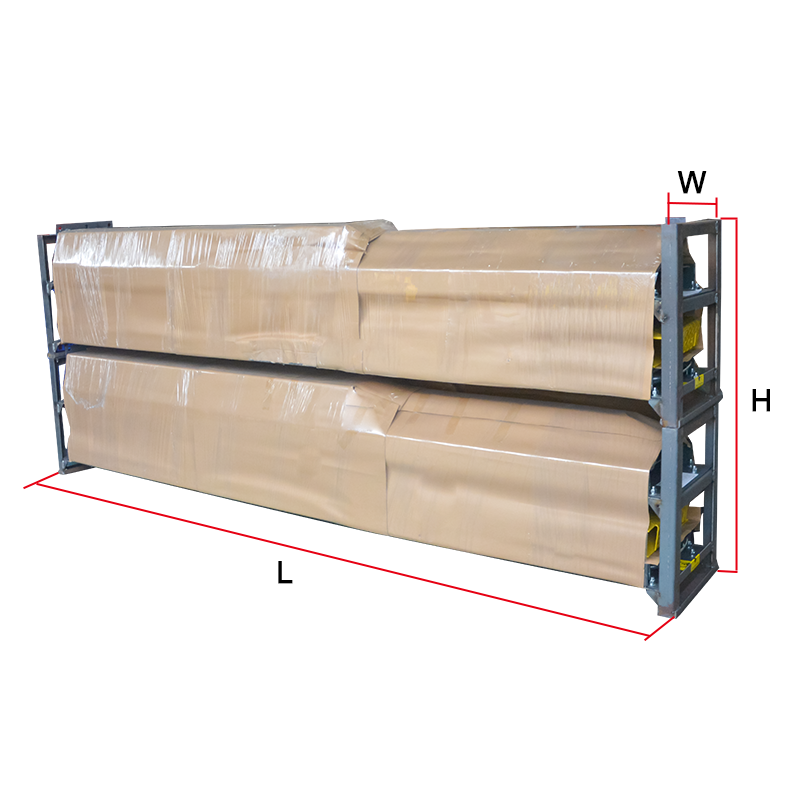

2 units/package,packing measurement (LxWxH):4580x560x1500mm
-

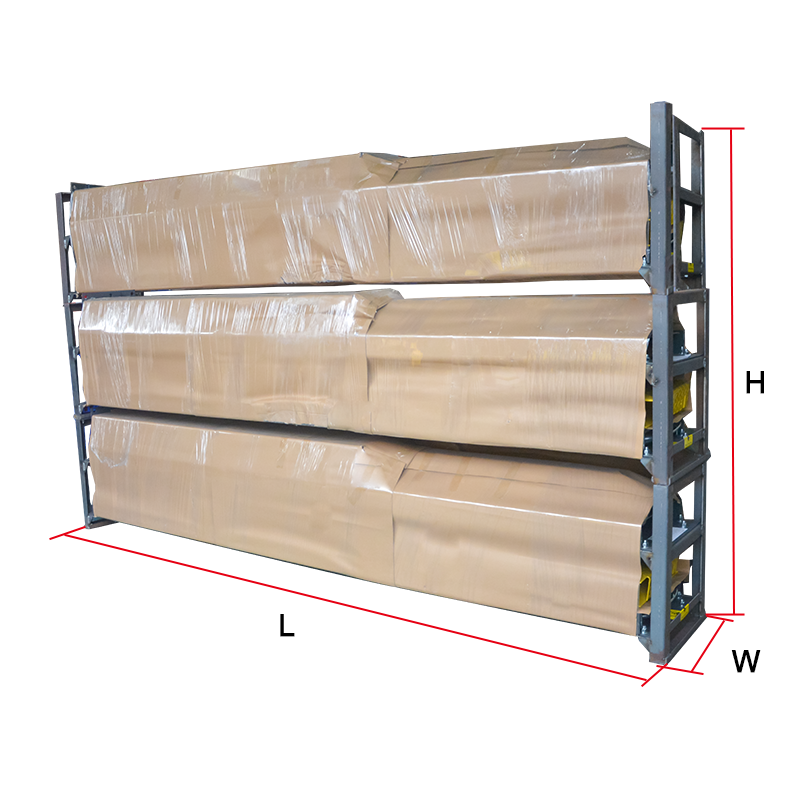

3 units/package, packing measurement (LxWxH): 4580x560x2230mm
-
1 unit/ctn,power unit packing measurement (LxWxH): 920x300x360mm
-

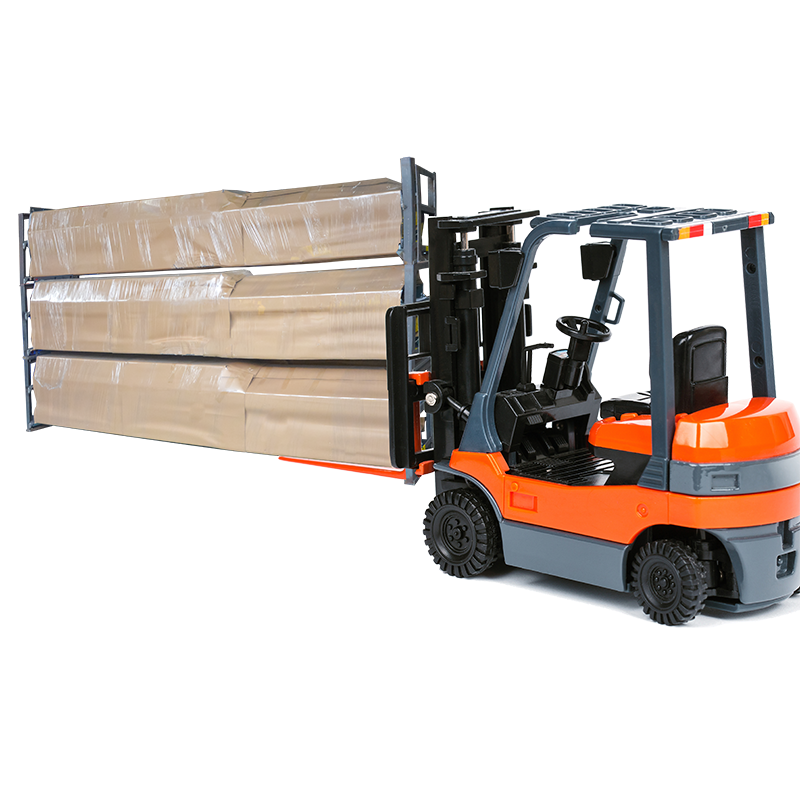

Attention to forklift loading and unloading
