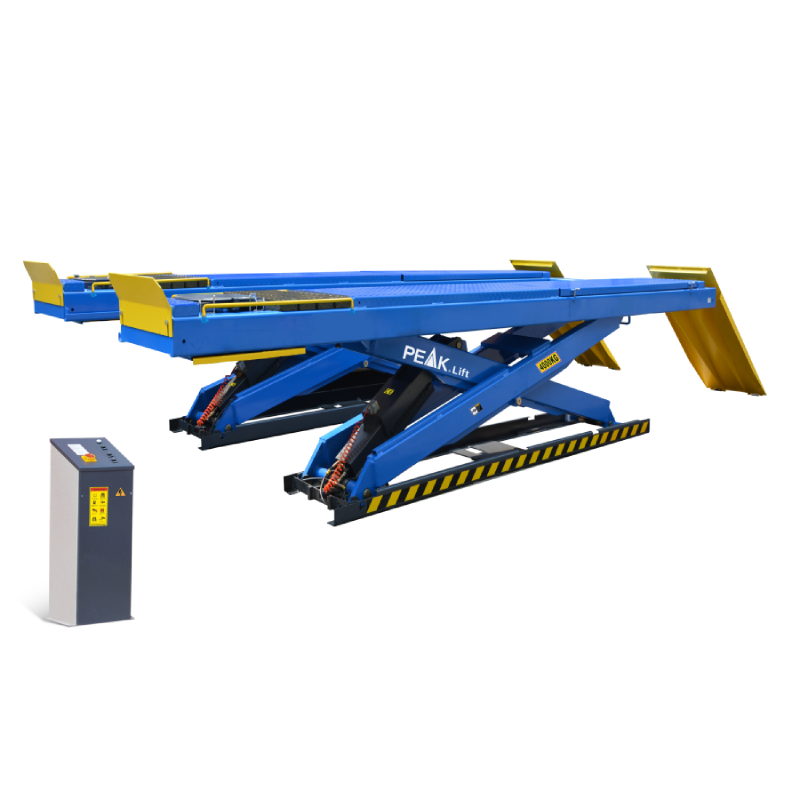

PX09A
Alignment scissors lift
Extraordinary Reliability
PX09A offers all the advantages of PX09 including the Peak X scissors, making it the perfect platform performing alignment taskes on a variety of vehicles, from passenger cars to vans and light trucks, providing stability, reliability, and convenience. It includes integrated rear slip-plates, a pull-out tool tray, and adjustable turnplate blocks to fit different wheelbases.
- Lifting capacity: 4000KG (9000lbs);
- Alignment model;
- Heavy duty structure with X scissors to enhance the durability ;
- Electrical control operation system, with control cabinet;
- Self-locking mechanical safety locks with air-operated lock release;
- Photo cell configuration;
- Automatic safety stop device at 600mm from ground when lowering;
- Pull-out tool shelf comes standard;
- Integrated non-skid diamond platforms;
- Adjustable turnplate pockets to fit various vehicle bases.
| Model PX09A | Alignment Scissors Lift | |
| Lifting Capacity | 4000kg (9,000lbs) | |
| Lifting Time | 55s | |
| Max. Lifting Height | A1 | 1850mm (72 13/16") |
| Minimum Height | A2 | 300mm (11 3/4") |
| Runway Length | B | 4828mm (190 3/4") |
| Overall Width | C | 2190mm (86 1/4") |
| Width Between Runways | D | 940mm (37") |
| Overall Length (Inc. Ramps) | E | 6364mm (250 1/2") |
| Min. Four Wheel Align | F | 2080mm (81 7/8") |
| Max. Four Wheel Align | G | 4070mm (160 1/4") |
| Max. Two Wheel Align | H | 4230mm (166 1/2") |
| Gross Weight | 2175kg (4,795lbs) | |
| Motor | 3.0HP | |
| QTY of Container | 6 Units/20'GP | |
| Packing Dimension | 4950 x 770 x 1045 mm (Lift) | |
| Packing Dimension | 478 x 428 x 1235 mm (Control Cabinet) |
-
Electro-air control system,mechanical safety locks.
-
Extremely long and wide non-skid diamond platforms are capable of servicing varuing wheelbase vehicles.
-
Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
-
Equipped with photocell configuration as standard to ensure the equalization of both platforms.
-
Nice design pull-out tool tray comes as standard.
-
New rear-slip ball sets.
-
Optional extension platform,
Kits No.: PX002 -
Optional Turnplate.
Each alignment lift need one set (two pcs.) of turnplates. Kits No.: 40101 -
Optional air line kits (kits no.: PX004)
-
Optional rolling jacks
J6H: manual hydraulic type 2.8T
J6A: pneumatic hydraulic type 2.8T
2 units as a package ( including parts box,without control cabinet)
- Gross weight for PX09A: 2175kgs , include control cabinet gross weight 75kgs.
- 20' container can load 6 units.
- 40' container can load 12 units.
-

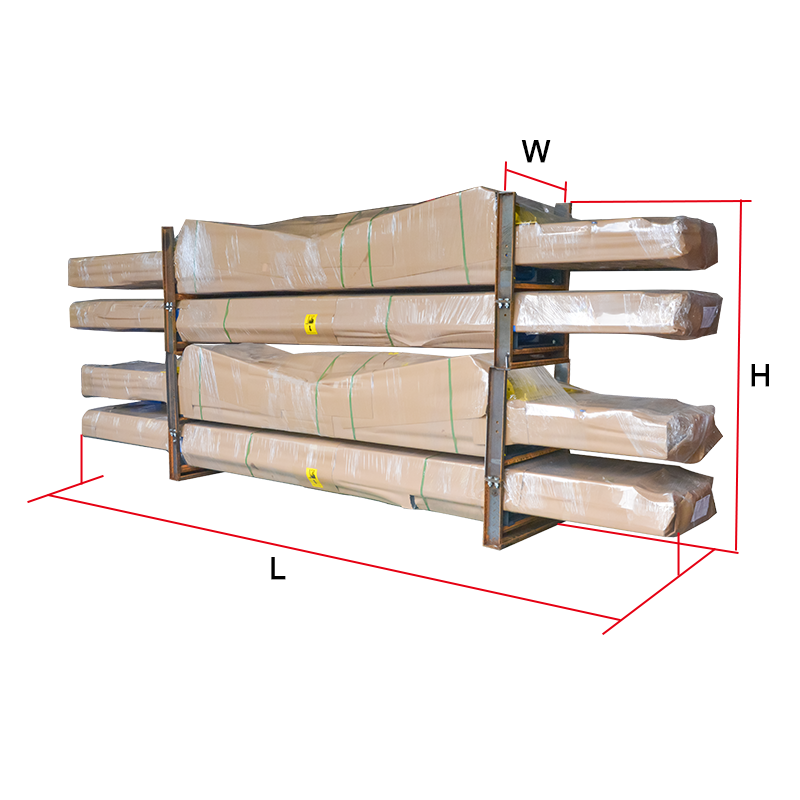

2 units/package,packing measurement (LxWxH):4950x770x2090mm
-

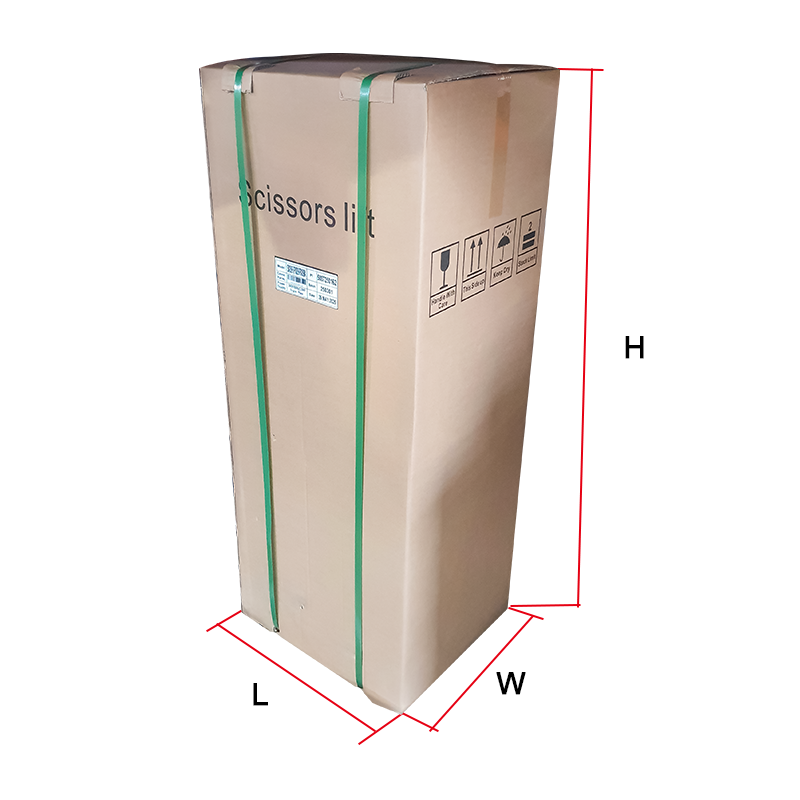

1 unit/ctn, control cabinet packing measurement (LxWxH): 478x428x1250mm
-

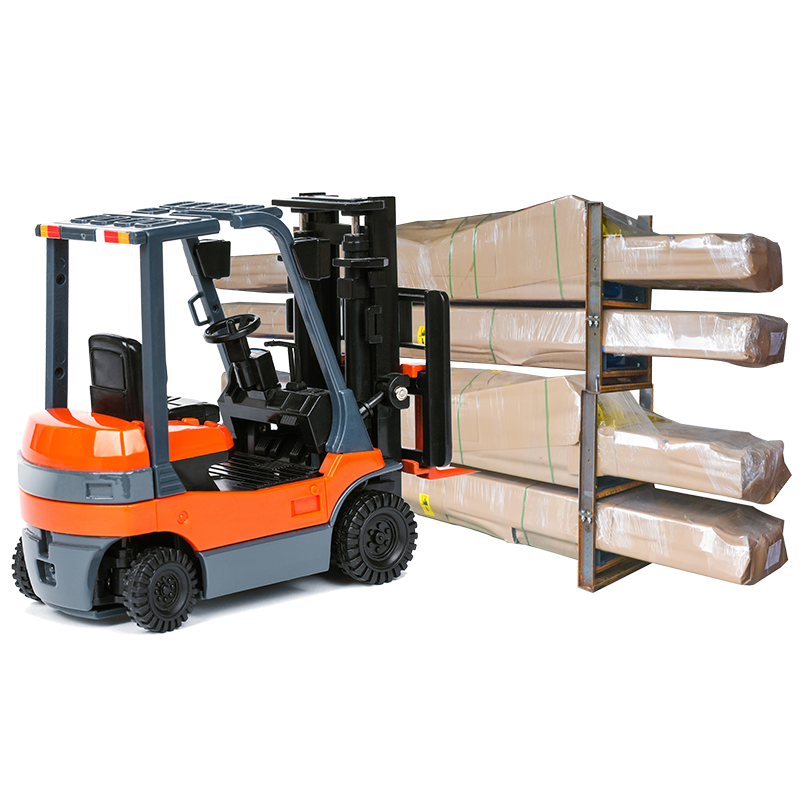

Attention to forklift loading and unloading.
