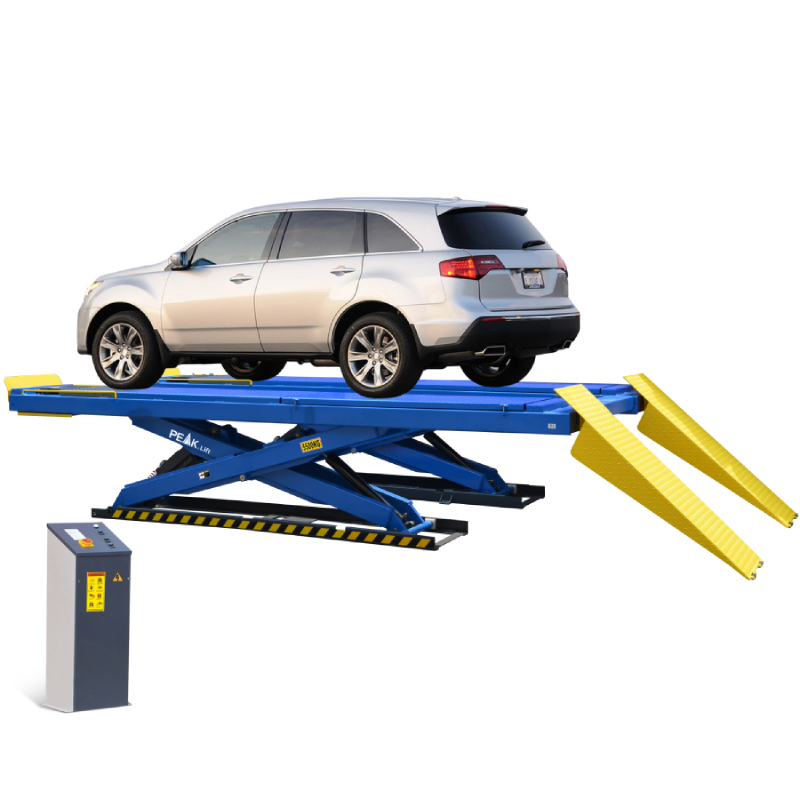

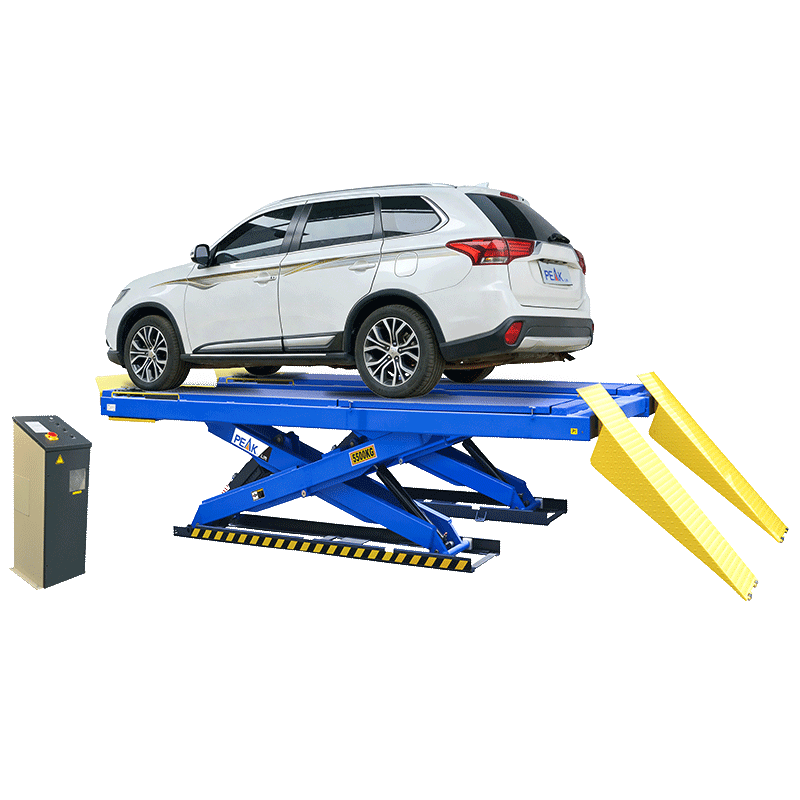

PX12A
Alignment Scissors Lift
Alignment expert
This engineering expert is the ideal companon for commercial auto service workshops that requires a lift for all their needs, supporting both alignment work and general service. With a lifting capacity of 5500KG, PX12A features the almost same as heavy duty design PX12 with addtional alignment function, capable of servicing most vehicles from passenger cars to commercial vehicles.
- Lifting capacity: 5500KG (12000lbs);
- Alignment model;
- Heavy duty structure with X scissors to enhance the durability ;
- Electrical control operation system, with control cabinet;
- Dual groups of total 4 cylinders assure the platforms synchronization;
- Both hydraulic lock and self-locking mechanical lock come standard;
- Automatic safety stop device at 600mm from ground when lowering;
- Pull-out tool shelf comes standard;
- Integrated large non-skid diamond platforms;
- Adjustable turnplate pockets to fit various vehicle bases.
| Model PX12A | Alignment Scissors Lift | |
| Lifting Capacity | 5500kg (12,000lbs) | |
| Lifting Time | 75s | |
| Max. Lifting Height | A1 | 1850mm (72 13/16") |
| Minimum Height | A2 | 305mm (12") |
| Runway Length | B | 5018mm (197 1/2") |
| Overall Width | C | 2290mm (90 1/8") |
| Width Between Runways | D | 1040mm (41") |
| Overall Length (Inc. Ramps) | E | 6554mm (258") |
| Min. Four Wheel Align | F | 2080mm (81 7/8") |
| Max. Four Wheel Align | G | 4260mm (167 3/4") |
| Max. Two Wheel Align | H | 4420mmm (174") |
| Gross Weight | 2624kg (5,785lbs) | |
| Motor | 4.0HP | |
| QTY of Container | 6 Units/20'GP | |
| Packing Dimension | 5160 x 770 x 1045 mm (Lift) | |
| Packing Dimension | 478 x 428 x 1235 mm (Control Cabinet) |
-
Electro-air control system, mechanical safety locks.
-
Extremely long and wide non-skid diamond platforms are capable of servicing varuing wheelbase vehicles.
-

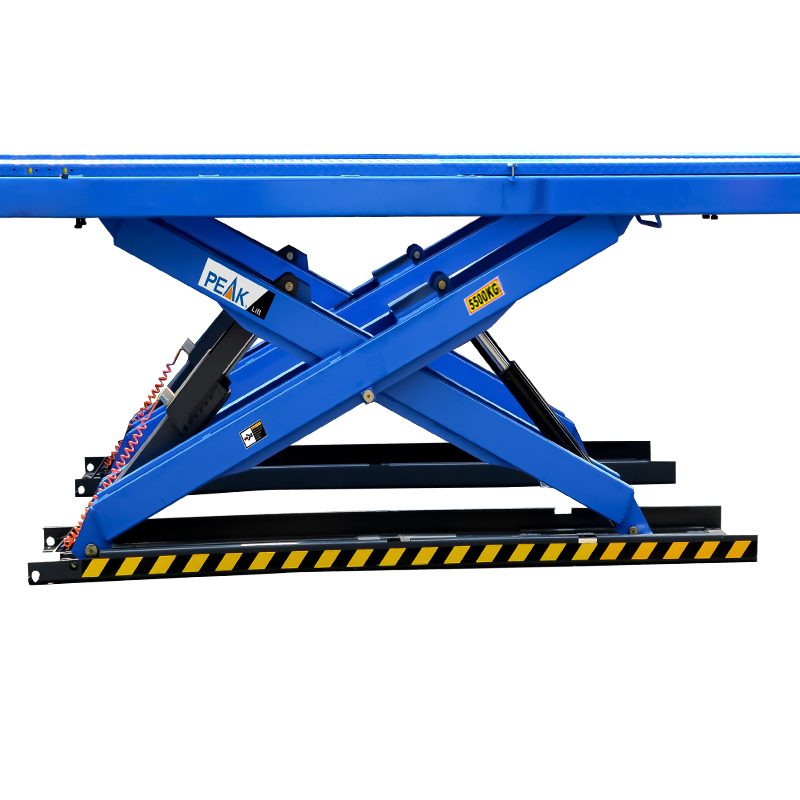

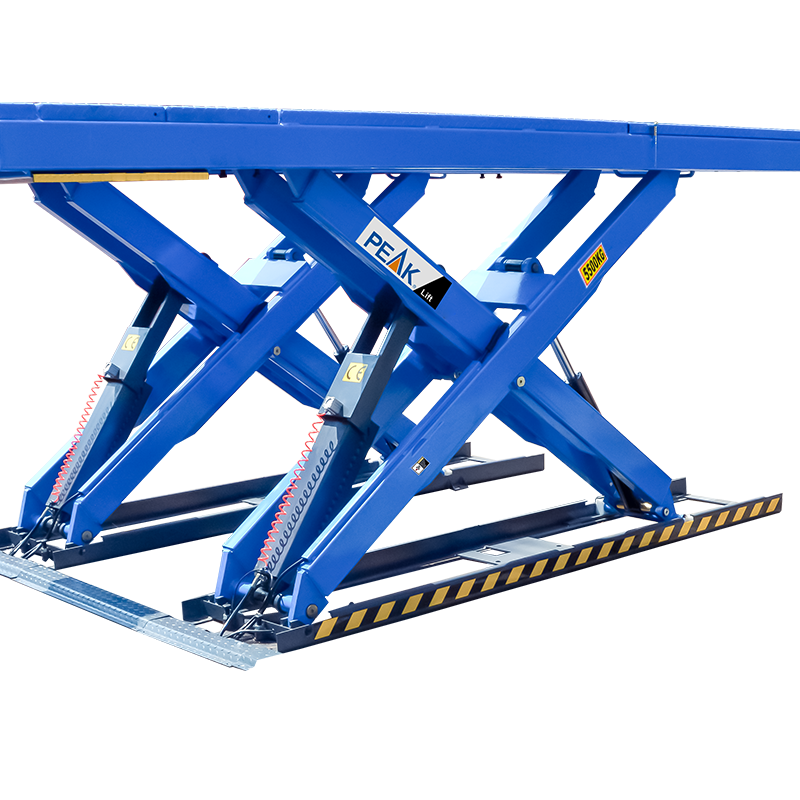

Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
-

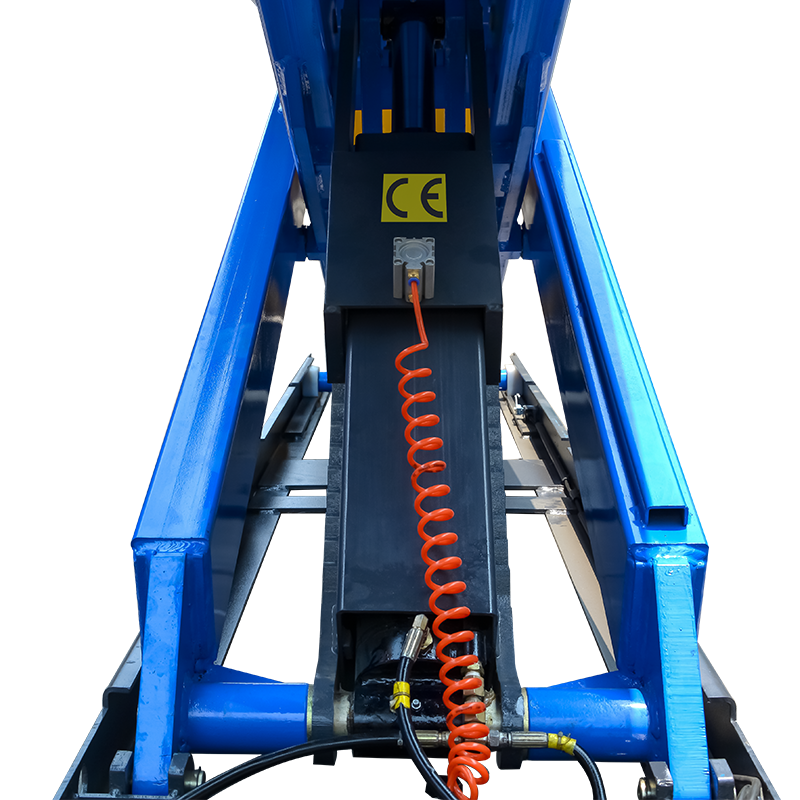

Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.
-

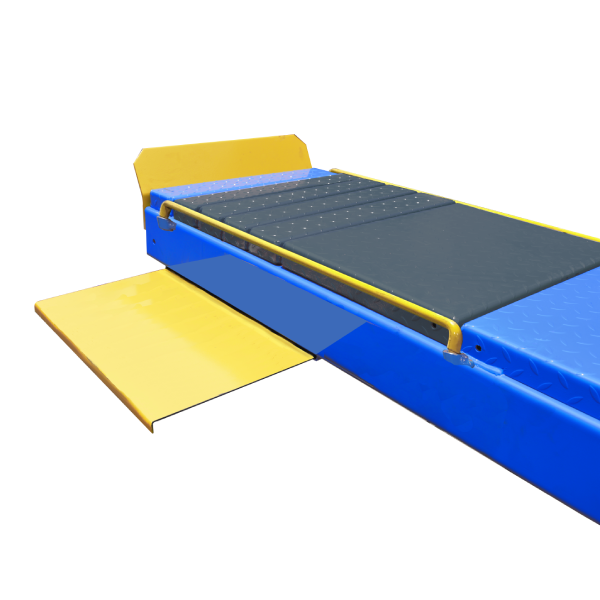

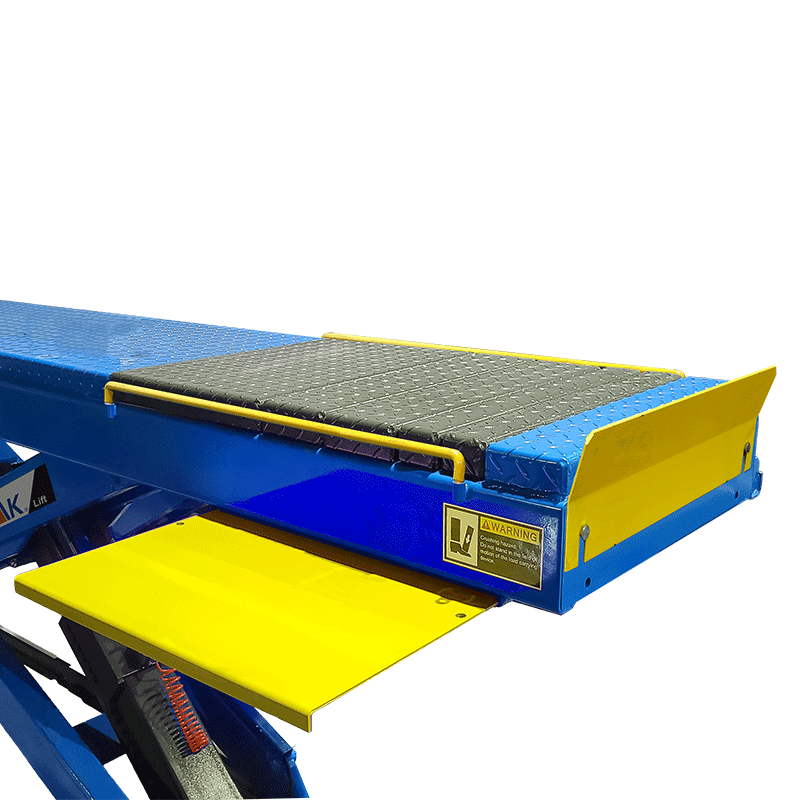

Nice design pull-out tool tray comes as standard.
-

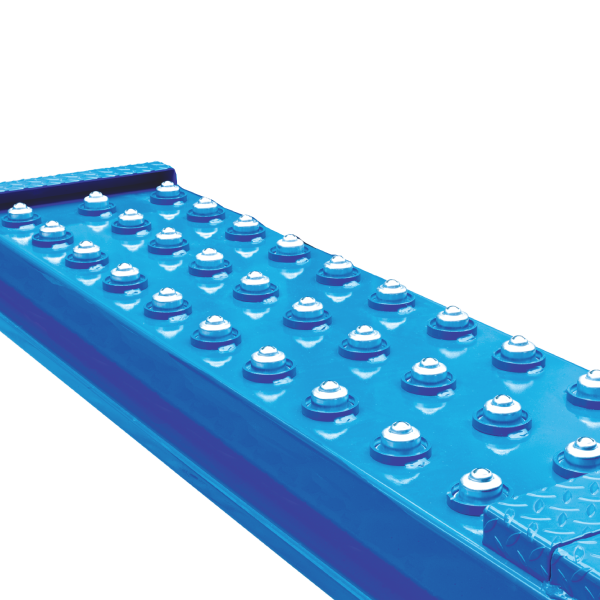

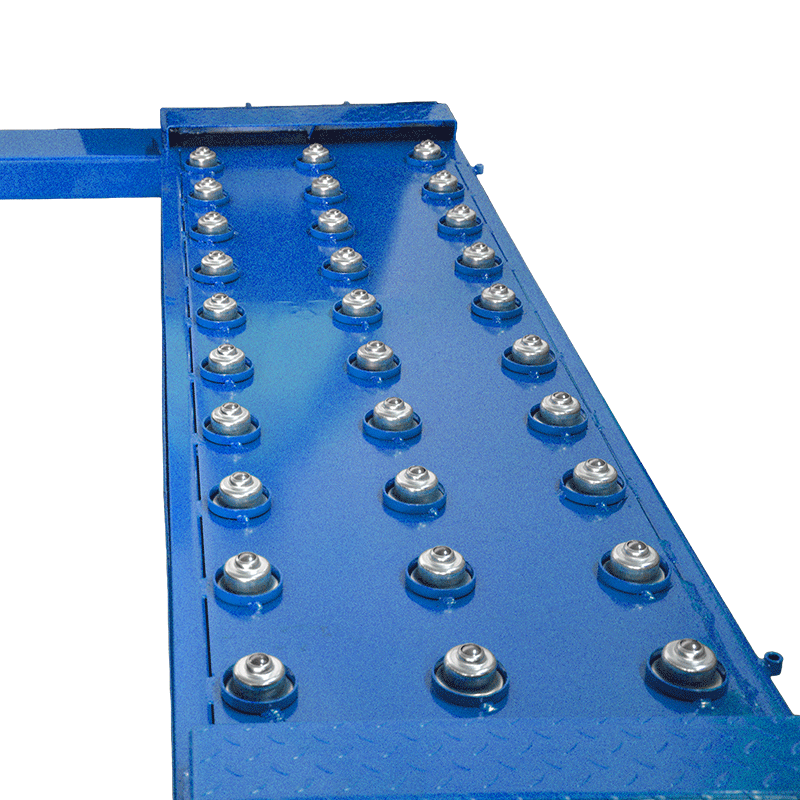

New rear-slip ball sets.
-

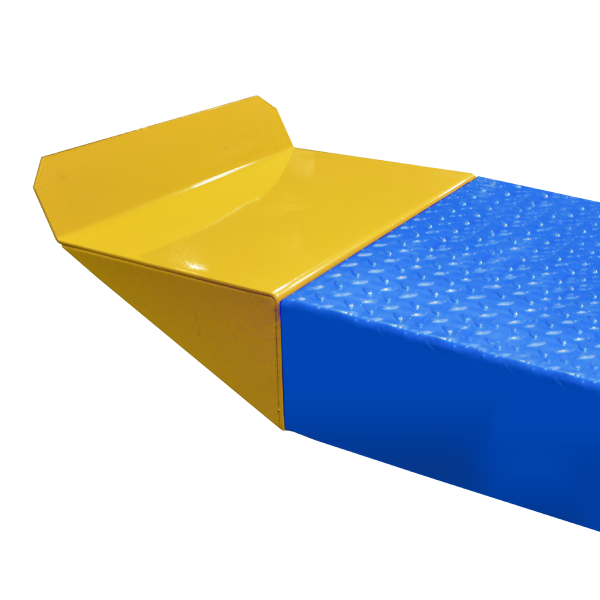

Optional extension platform,
Kits No.: PX002 -

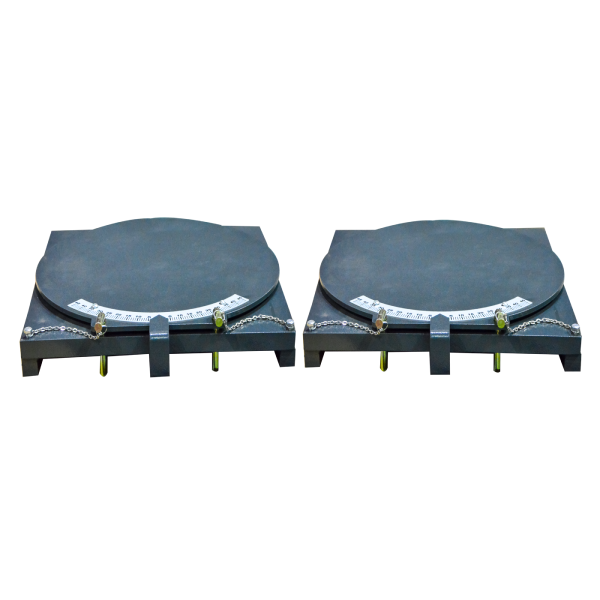

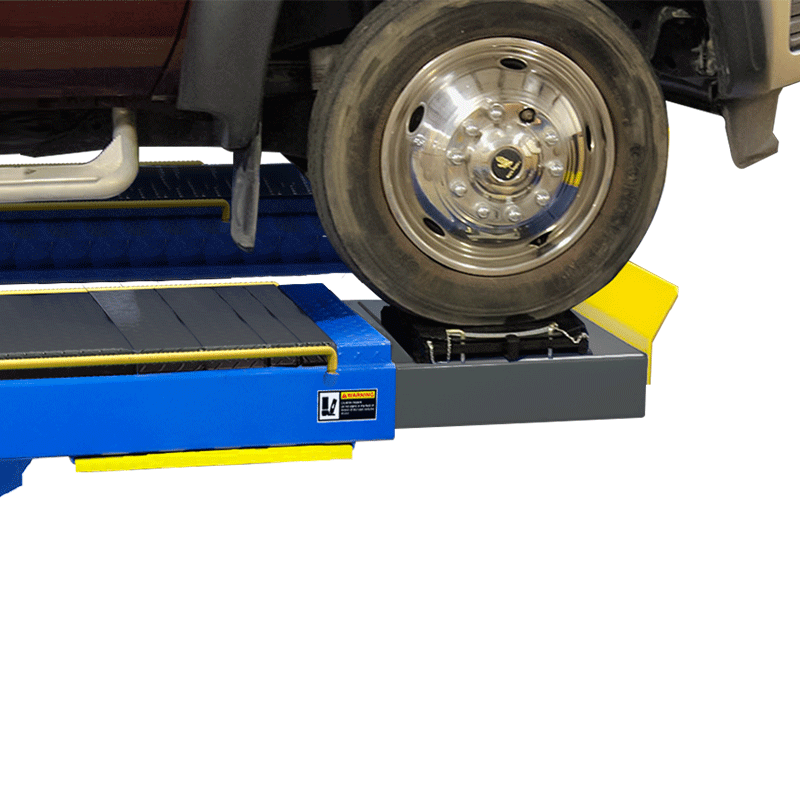

Optional Turnplate.
Each alignment lift need one set (two pcs.) of turnplates. Kits No.: 40101 -

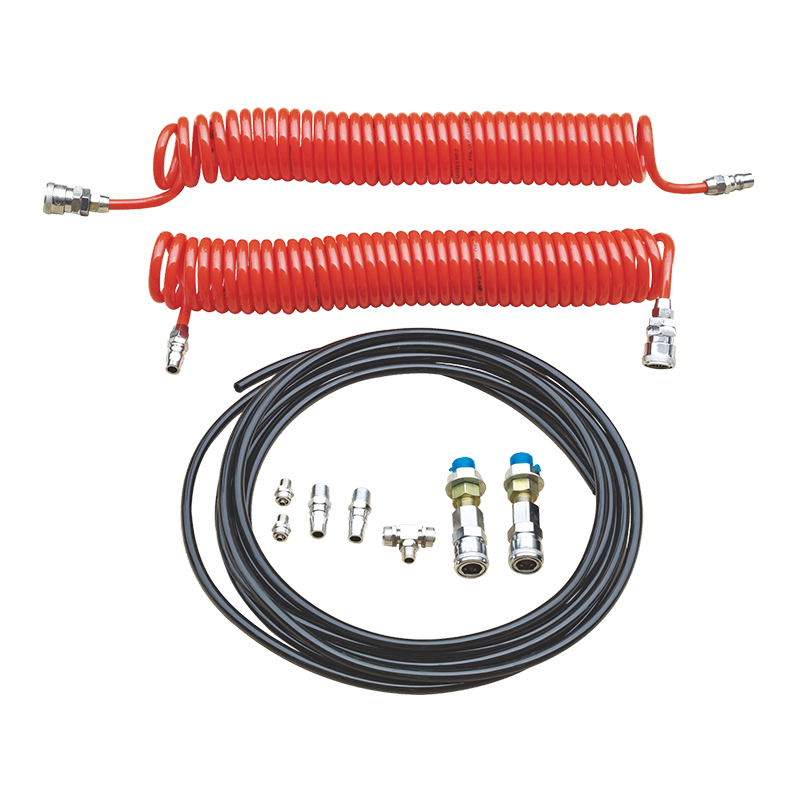

Optional air line kits (kits no.: PX004)
-

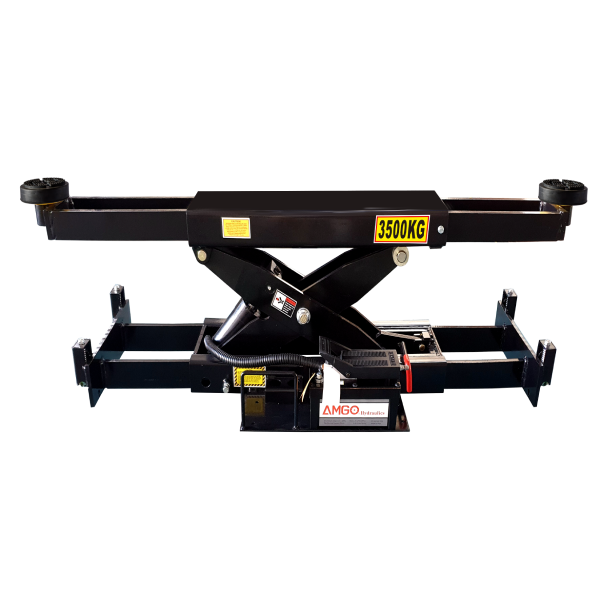

Optional rolling jacks
J6H: manual hydraulic type 2.8T
J6A: pneumatic hydraulic type 2.8T
RJ-8A: pneumaric hydraulic type 3.5T
2 units as a package ( including parts box,without control cabinet)
- Gross weight for PX12A: 2624kgs , include control cabinet gross weight 90kgs.
- 20' container can load 6 units.
- 40' container can load 12 units.
-

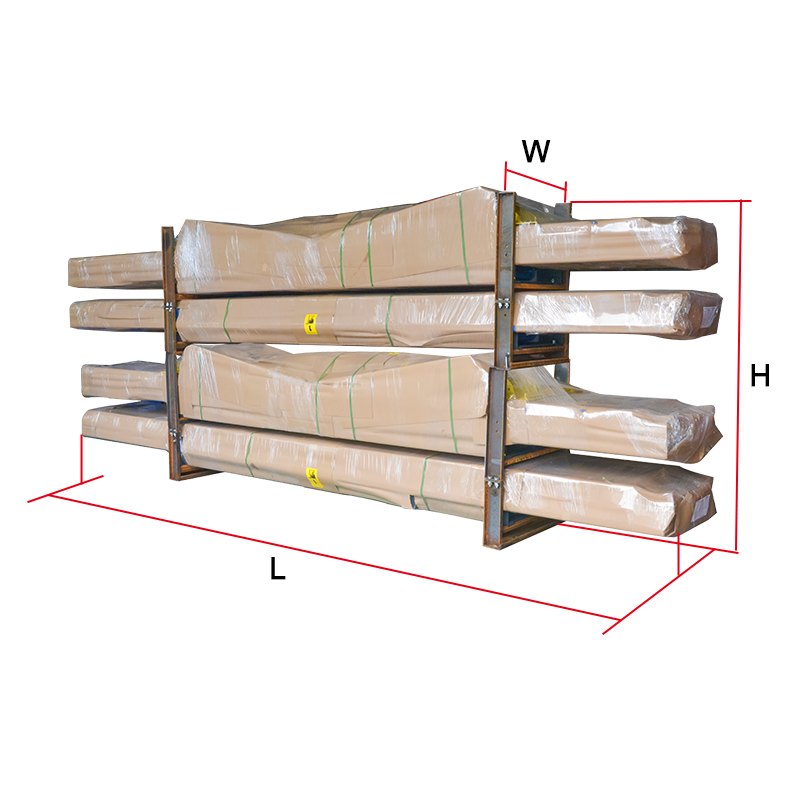

2 units/package,packing measurement (LxWxH):5160x770x2090mm
-

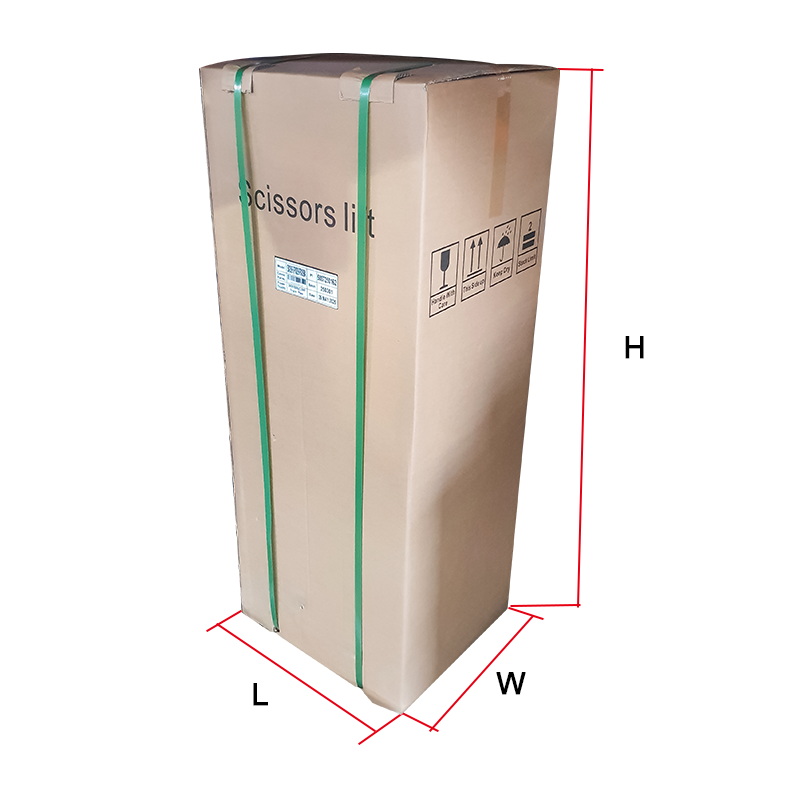

1 unit/ctn, control cabinet packing measurement (LxWxH): 478x428x1250mm
-

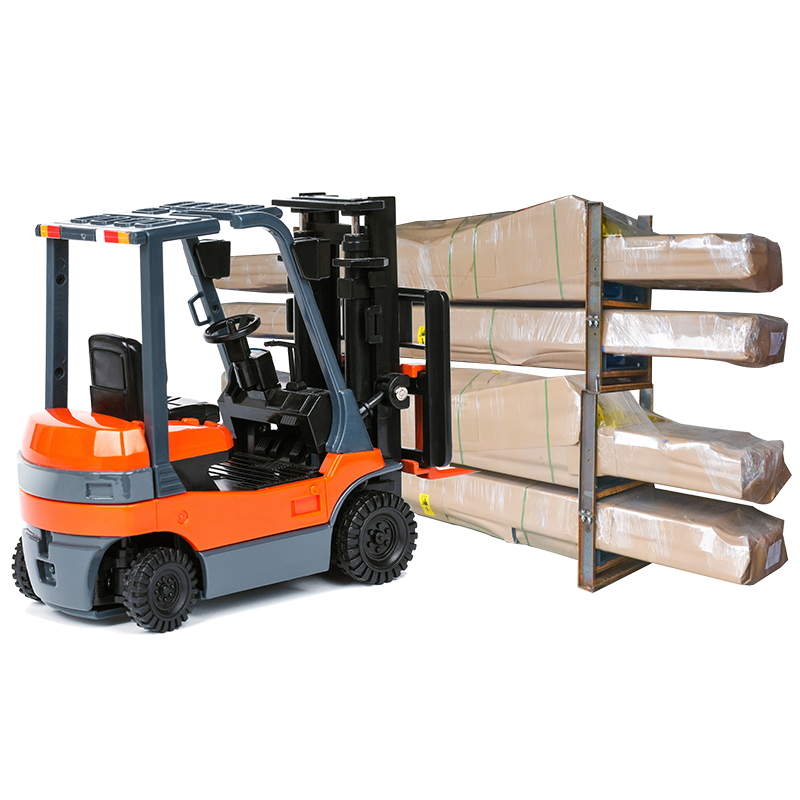

Attention to forklift loading and unloading.
