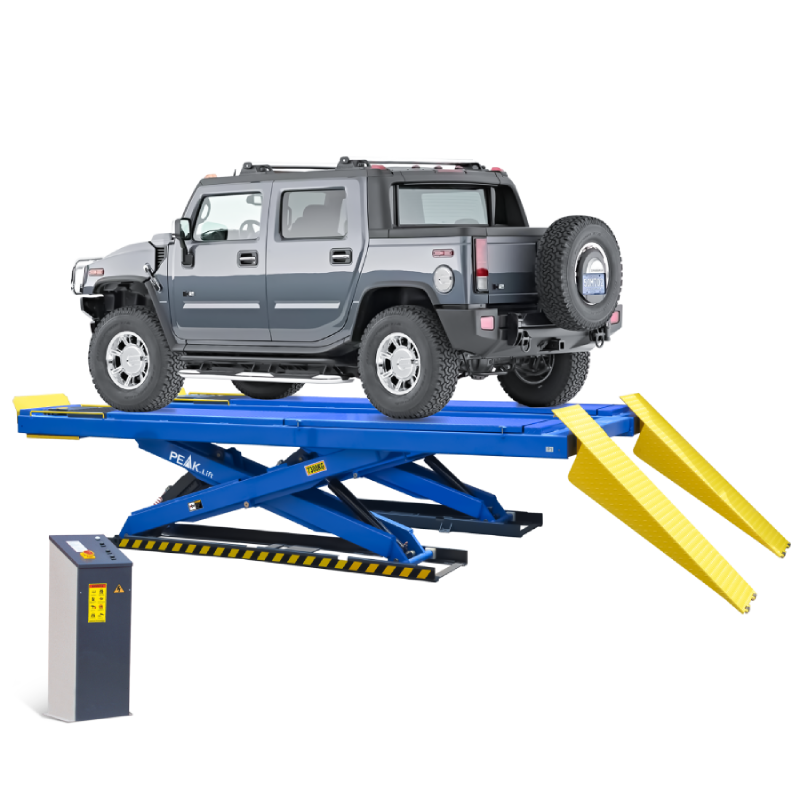

PX16A
Alignment Scissors Lift
Superior in lifting
Boasts a commercial heavy duty constructuion, PX16A offers superior performance for alignment and general repair with a 7300KG loading capacity. It can accommodate various vehicles, from passenger cars to long wheel base trucks and vans. Similar to the PX12A, it features four hydraulic cylinders in two groups for optimal synchronization and large platforms for more compatiability.
- Lifting capacity: 7600KG (16000lbs);
- Alignment model;
- Heavy duty structure with X scissors to enhance the durability ;
- Robust platform connecting bar to enhance the stability;
- Electrical control operation system, with control cabinet;
- Dual groups of total 4 cylinders assure the platforms synchronization;
- Both hydraulic lock and self-locking mechanical lock come standard;
- Automatic safety stop device at 600mm from ground when lowering;
- Pull-out tool shelf comes standard;
- Integrated large non-skid diamond platforms;
- Adjustable turnplate pockets to fit various vehicle bases.
| Model PX16A | Alignment Scissors Lift | |
| Lifting Capacity | 7300kg (16,000lbs) | |
| Lifting Time | 110s | |
| Max. Lifting Height | A1 | 1850mm (72 13/16") |
| Minimum Height | A2 | 330mm (13") |
| Runway Length | B | 5428mm (213 3/4") |
| Overall Width | C | 2390mm (94 1/8") |
| Width Between Runways | D | 1140mm (44 7/8") |
| Overall Length (Inc. Ramps) | E | 6964mm (274 1/8") |
| Min. Four Wheel Align | F | 2490mm (98") |
| Max. Four Wheel Align | G | 4680mm (184 1/2") |
| Max. Two Wheel Align | H | 4840mmm (190 1/2") |
| Gross Weight | 2878kg (6,345lbs) | |
| Motor | 4.0HP | |
| QTY of Container | 6 Units/20'GP | |
| Packing Dimension | 5550 x 770 x 1045 mm (Lift) | |
| Packing Dimension | 478 x 428 x 1235 mm (Control Cabinet) |
-
Electro-air control system, mechanical safety locks.
-
Extremely long and wide non-skid diamond platforms are capable of servicing varuing wheelbase vehicles.
-

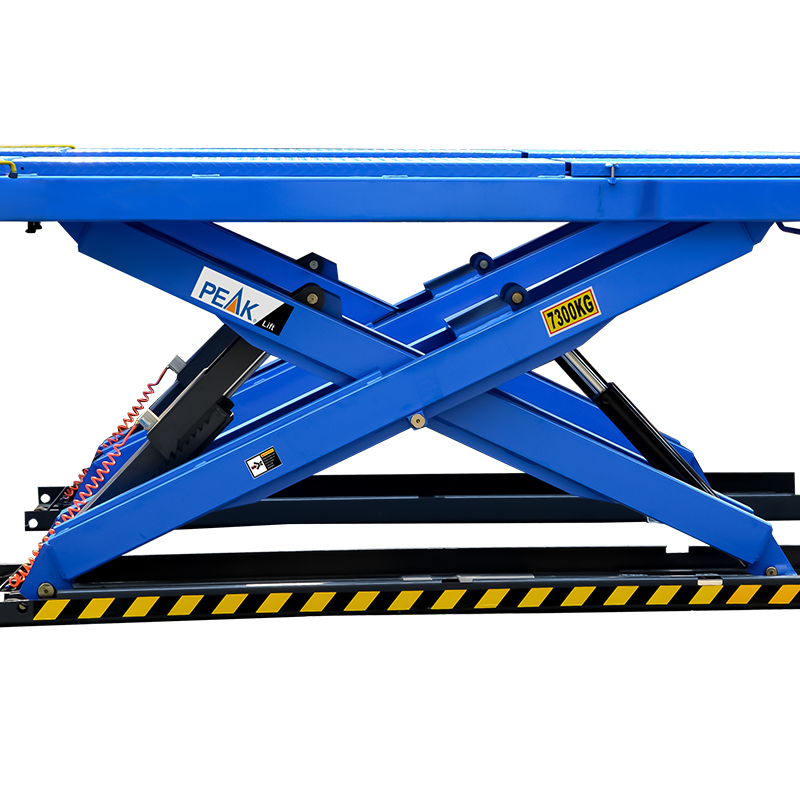

Heavy duty design with robust X scissors made of large steel tubes to ensure strong capabilities under heavy workloads.
-

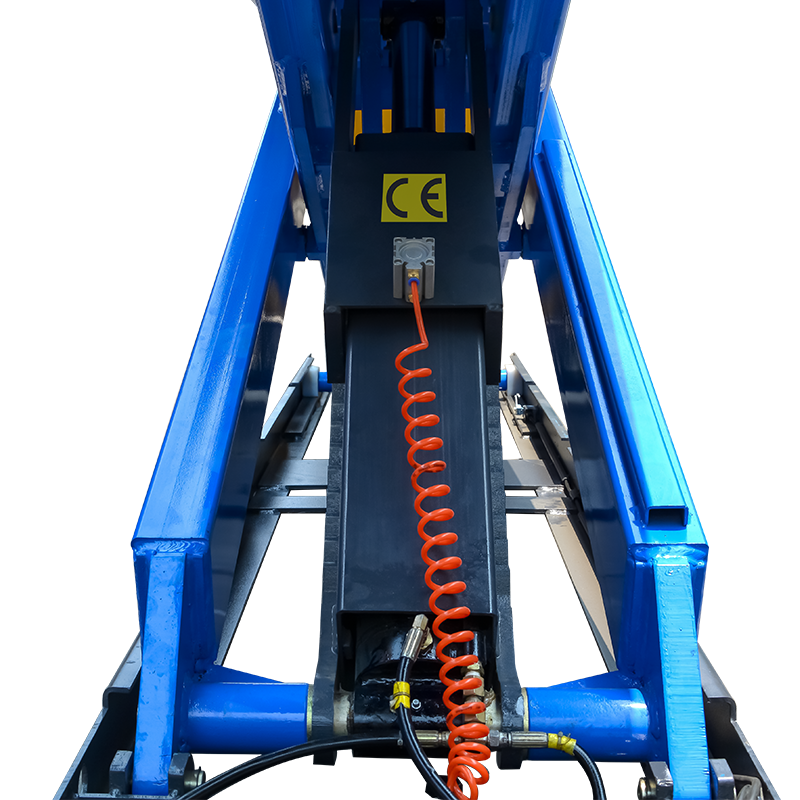

Two groups of total 4 hydraulic cylinders are intergrated to assure the equalization and safety of both platforms.
-
Nice design pull-out tool tray comes as standard.
-
New rear-slip ball sets.
-

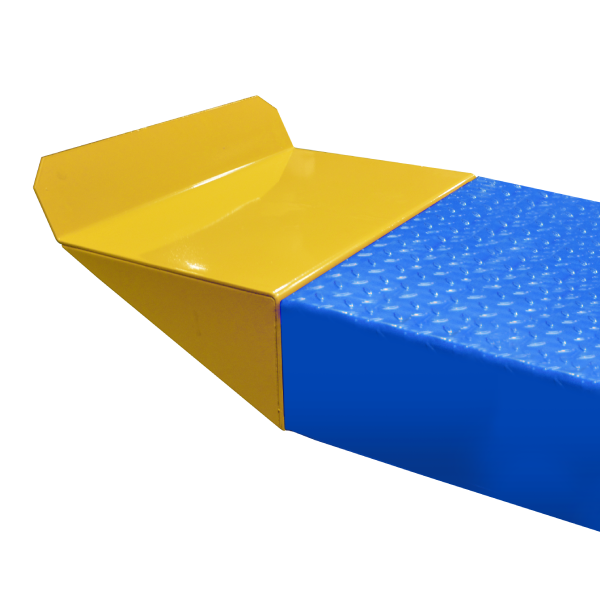

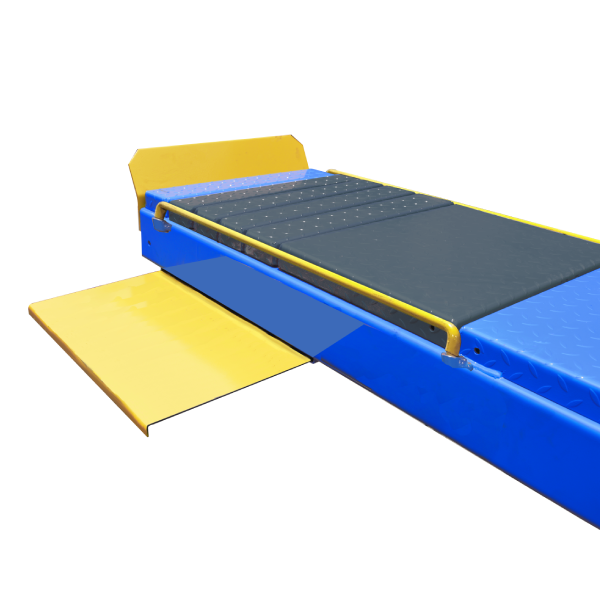

Optional extension platform,
Kits No.: PX003 -

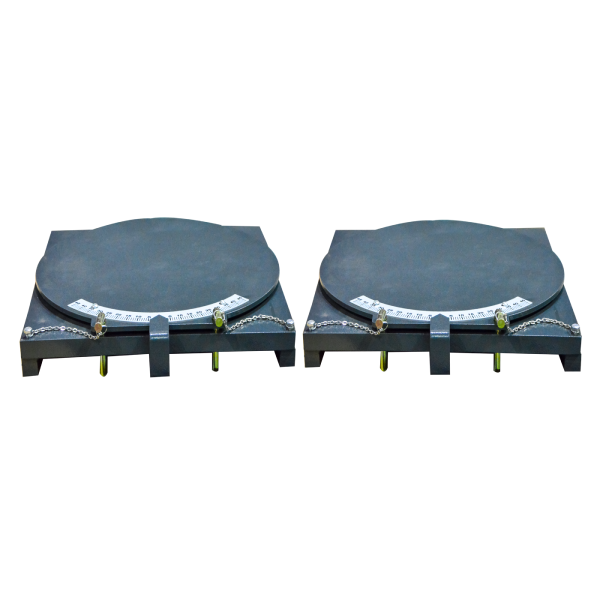

Optional Turnplate.
Each alignment lift need one set (two pcs.) of turnplates. Kits No.: 40101 -

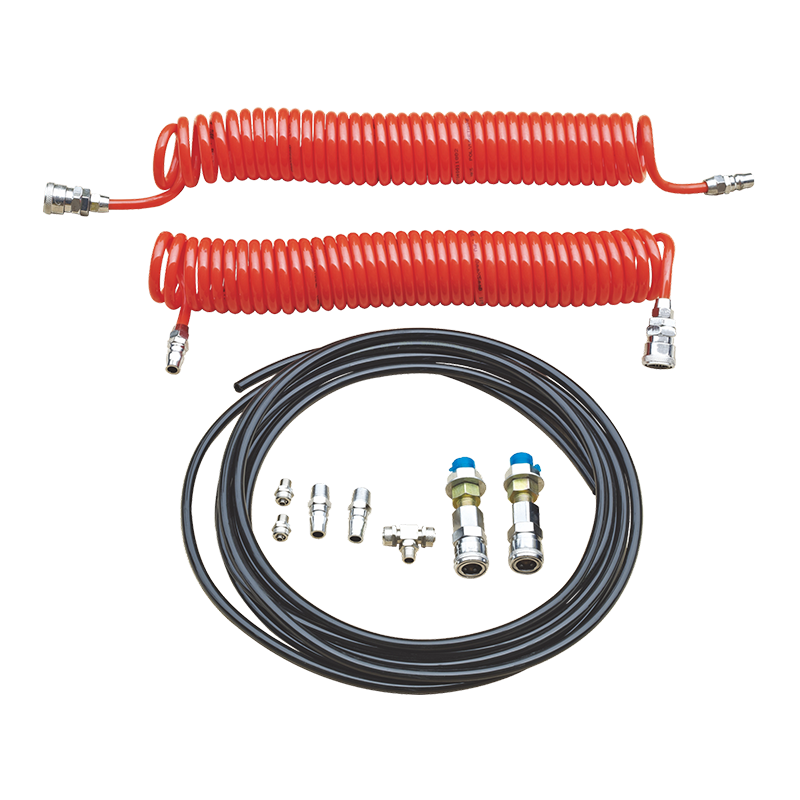

Optional air line kits (kits no.: PX004)
-

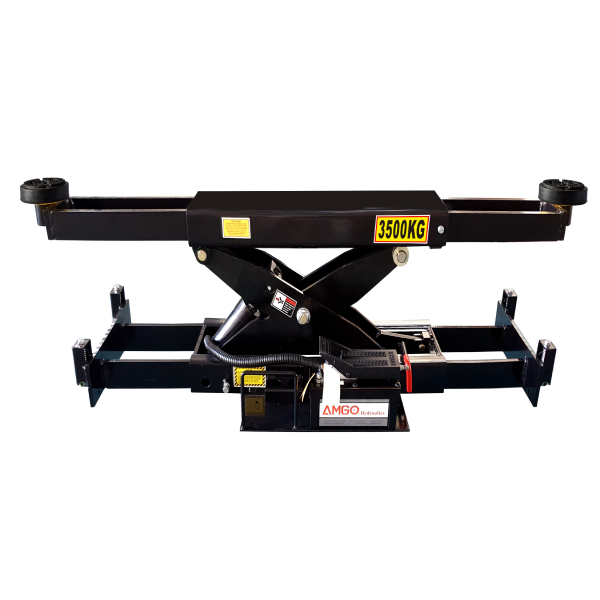

Optional rolling jacks
RJ-8A: pneumatic hydraulic type 3.5T
2 units as a package ( including parts box,without control cabinet)
- Gross weight for PX16A: 2878kgs , include control cabinet gross weight 90kgs.
- 20' container can load 5 units.
- 40' container can load 12 units.
-

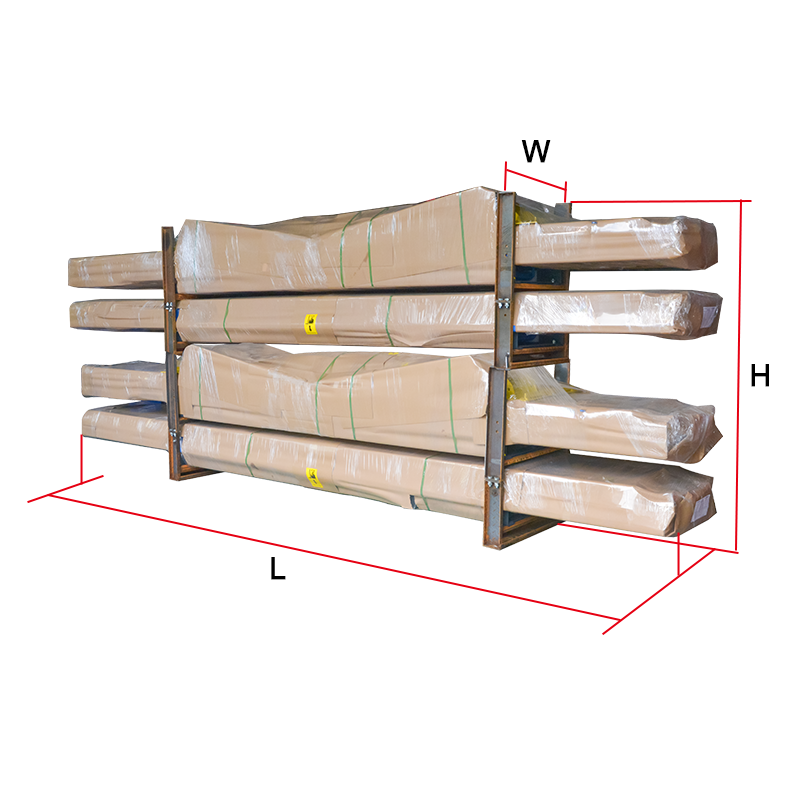

2 units/package,packing measurement (LxWxH):5550x770x2090mm
-
1 unit/ctn, control cabinet packing measurement (LxWxH): 478x428x1250mm
-

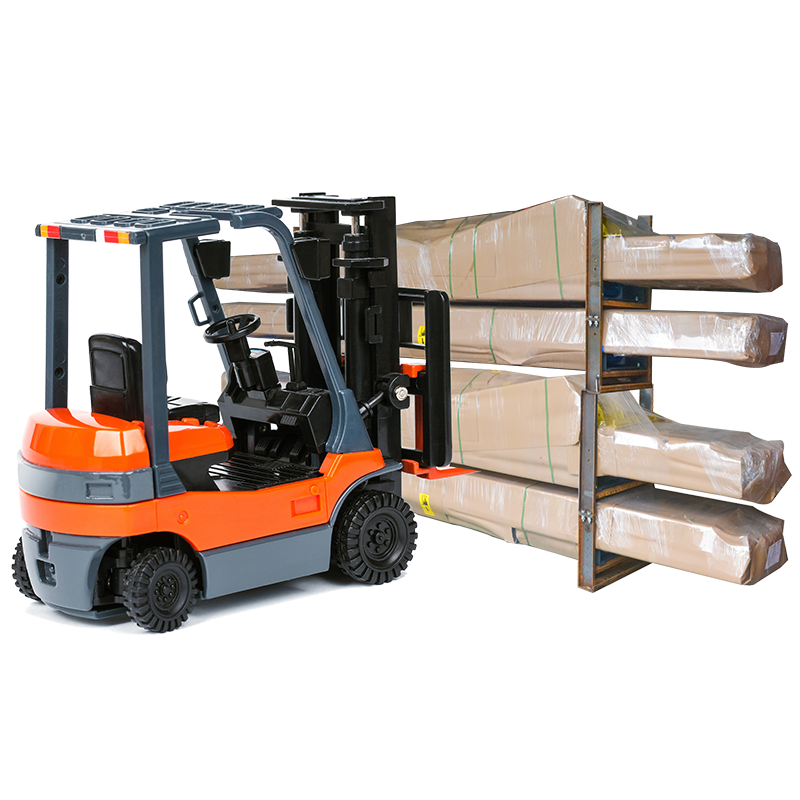

Attention to forklift loading and unloading.
