208

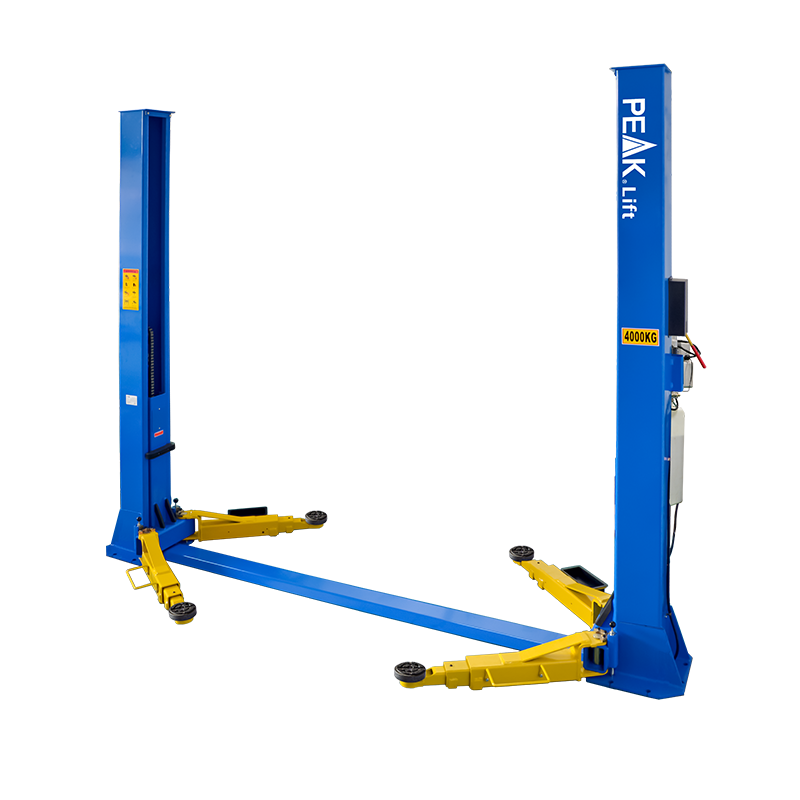

Base Plate Two Post Lift
Cost-effective first choice
PEAK's commitment to world class products continues with Peak 208. As a cost-effective model, it's equipped with various PEAK advancements: manual single-point lock release, 4 three-stage arms, and high-standard cylinders with imported seals. By delivering high efficiency, durability, and safety, 208 is surely your first choice.
- 4000kg (9,000 lbs) capacity;
- Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders and bronze bush;
- Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 208 | Base plate two post lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | A | 37s |
| Max. Lifting height:(w/o extension adapter) | 1809mm( 71 1/4")~1841mm(72 1/2") | |
| Max. Lifting height:(w/ extension adapter) | 1885mm(74 3/16")~1917mm( 36 1/8") | |
| Max. lock height(w/o extension adapter) | 1769mm(69 5/8")~1801mm( 70 15/16") | |
| Max. lock height(w/ extension adapter) | 1845mm(72 5/8")~1877mm (73 7/8") | |
| Overall Height | B | 2850mm(112 1/4") |
| Overall Width | C | 3390mm(133 1/2") |
| Drive-Thru Clearance | D | 2554mm(100 9/16") |
| Width Between Columns | E | 2780mm(109 7/16") |
| Minimum Pad Height | F | 84mm(3 5/16") |
| Gross Weight | 579kg(1,276 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 25 Units/20'GP 50 Units/40'GP |
|
| Packing Dimension | 2910 X 450 X 750 mm |
-
Single point safety release makes it easier for operators to unlock both columns from one column.
-
Chain-drive hydraulic cylinder.
-
4 three-stages arms are suitable for more vehicles.
-
Automatic arm restraints.
-
Single-screw rubber pad with pin dia. 38mm,comes with 3" extension adapter.
-
The optional base plate extension.
Kits no.: 20801.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 208: 577kg , include power unit gross weight 25kgs.
- 20' container can load 25 units.
-

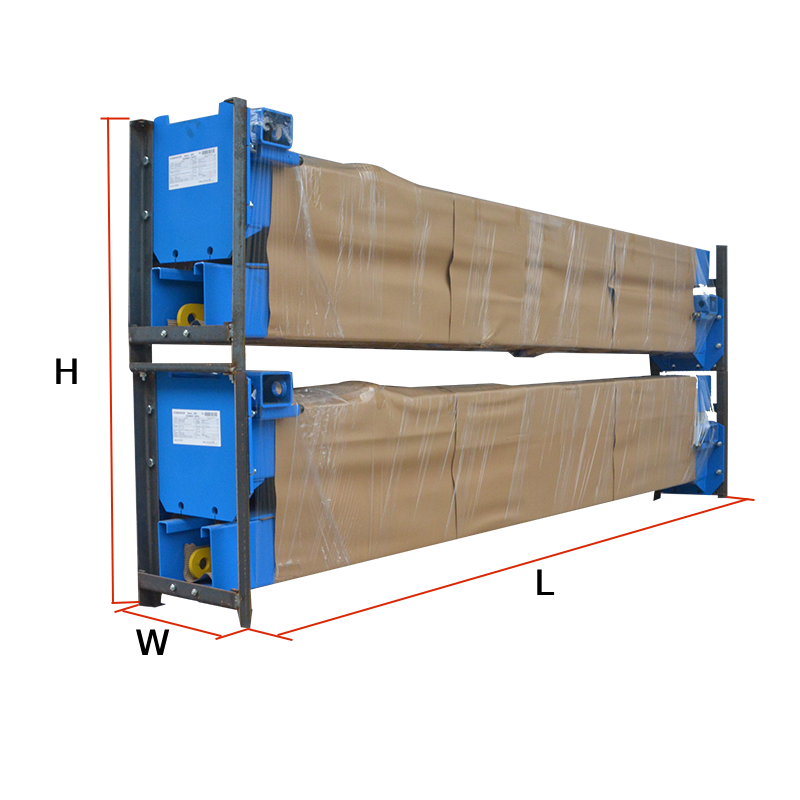

2 units/package,packing measurement (LxWxH):2900x450x1483mm
-

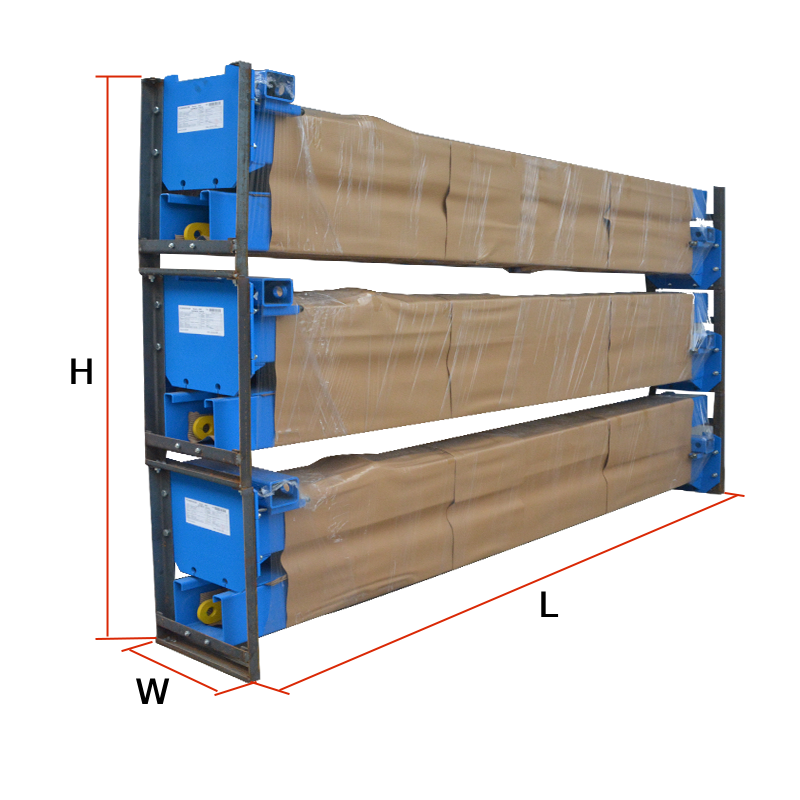

3 units/package, packing measurement (LxWxH): 2900x450x2216mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

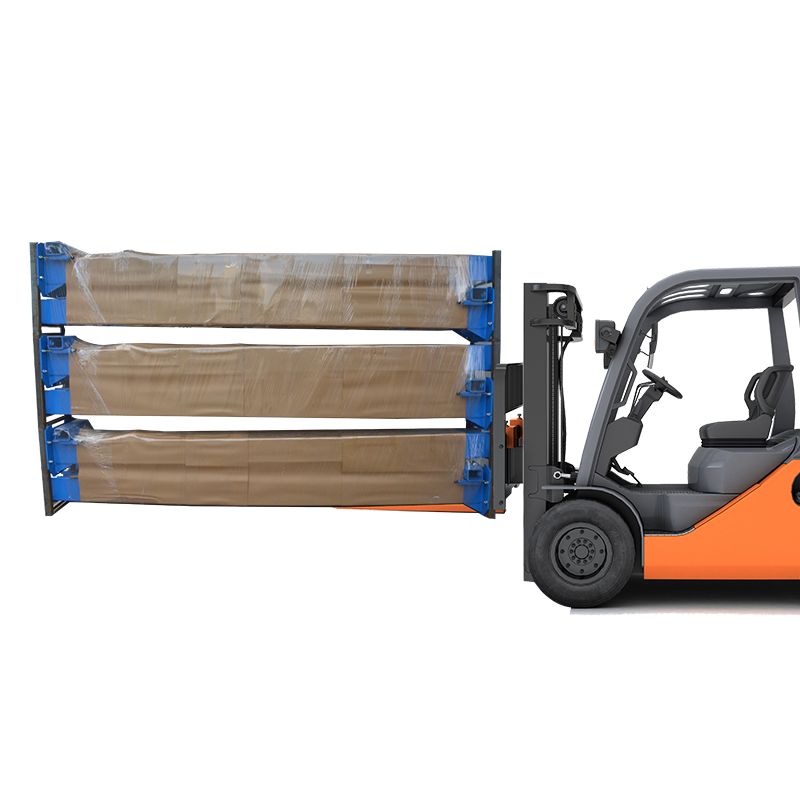

Attention to forklift loading and unloading
