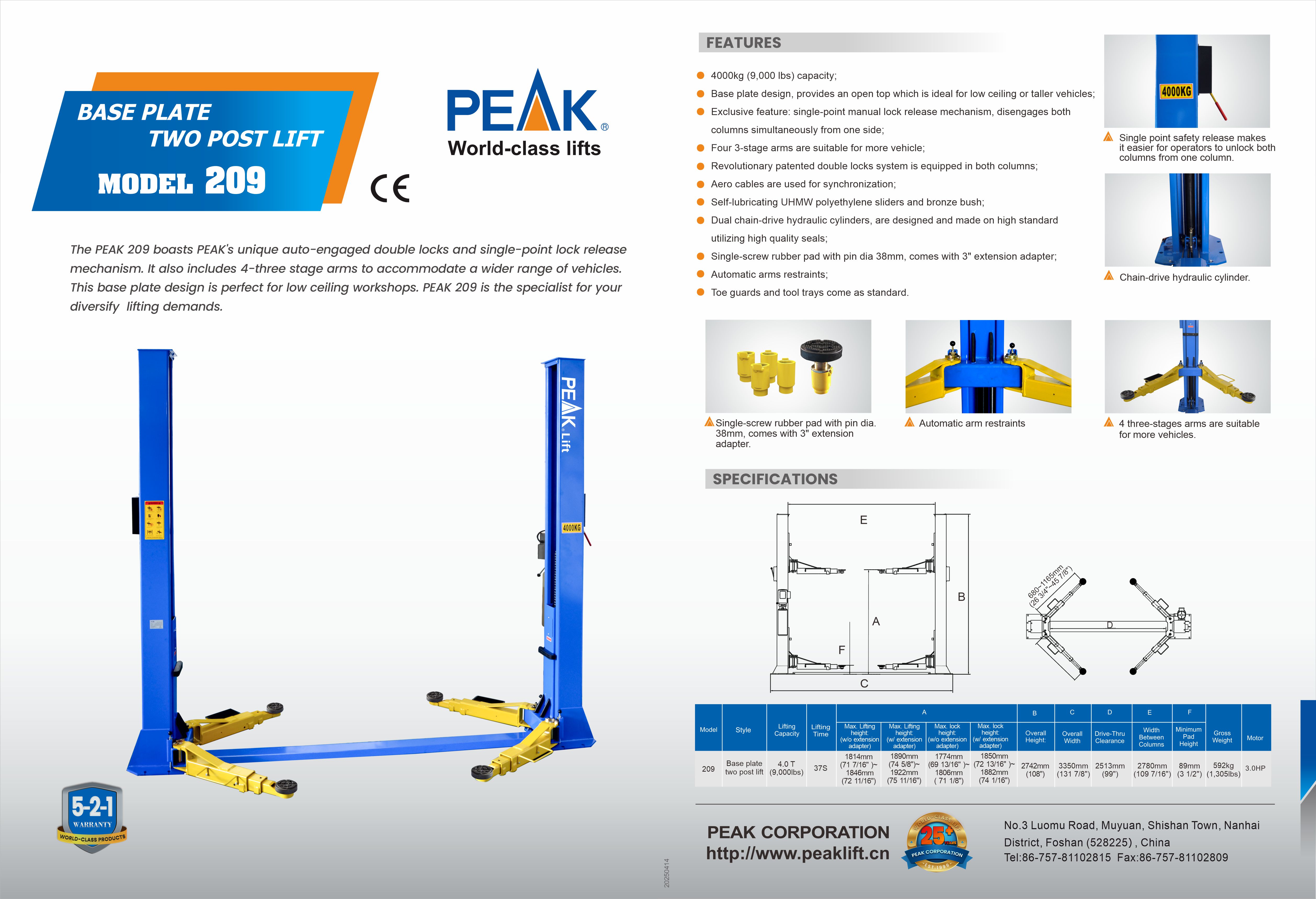

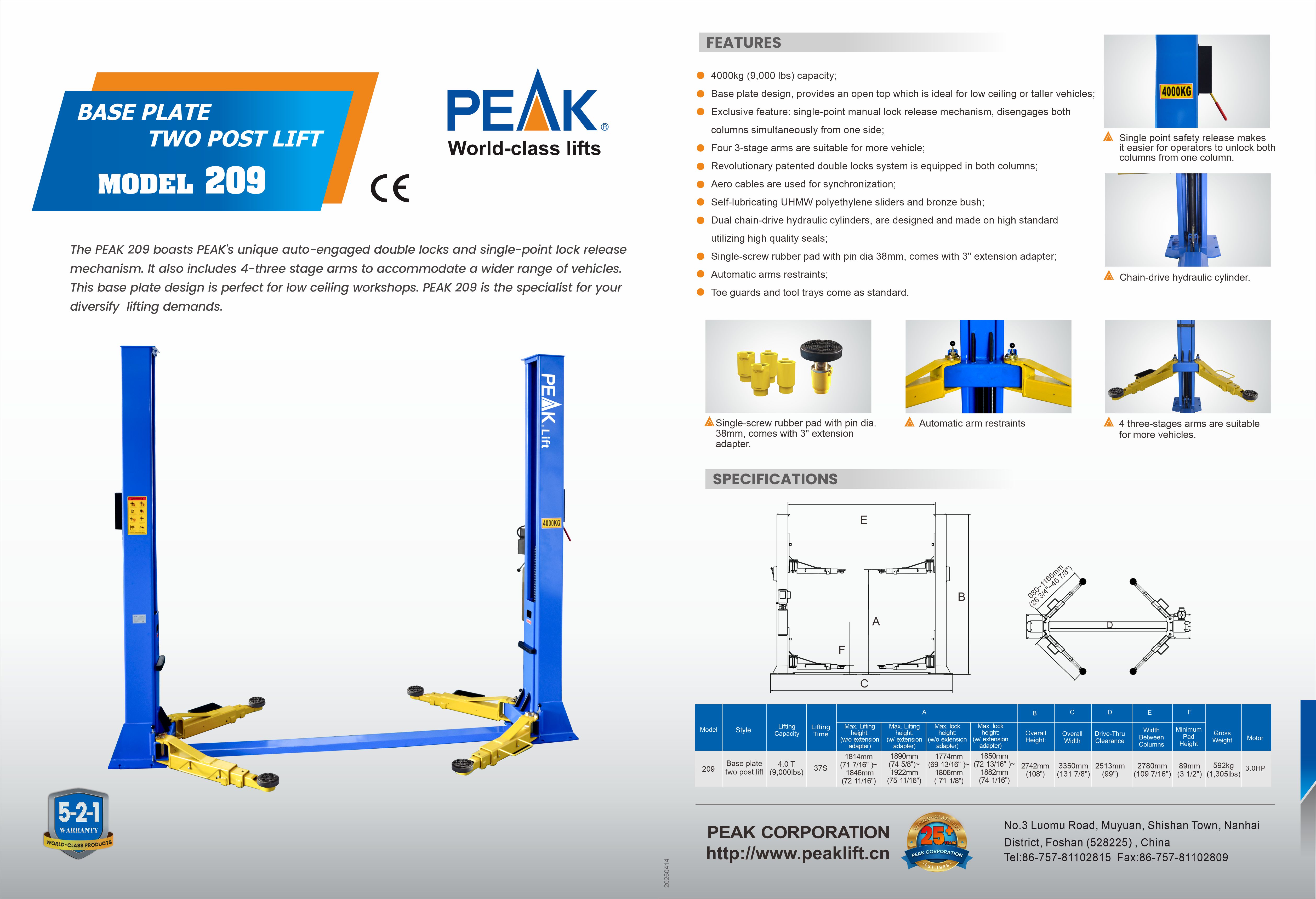

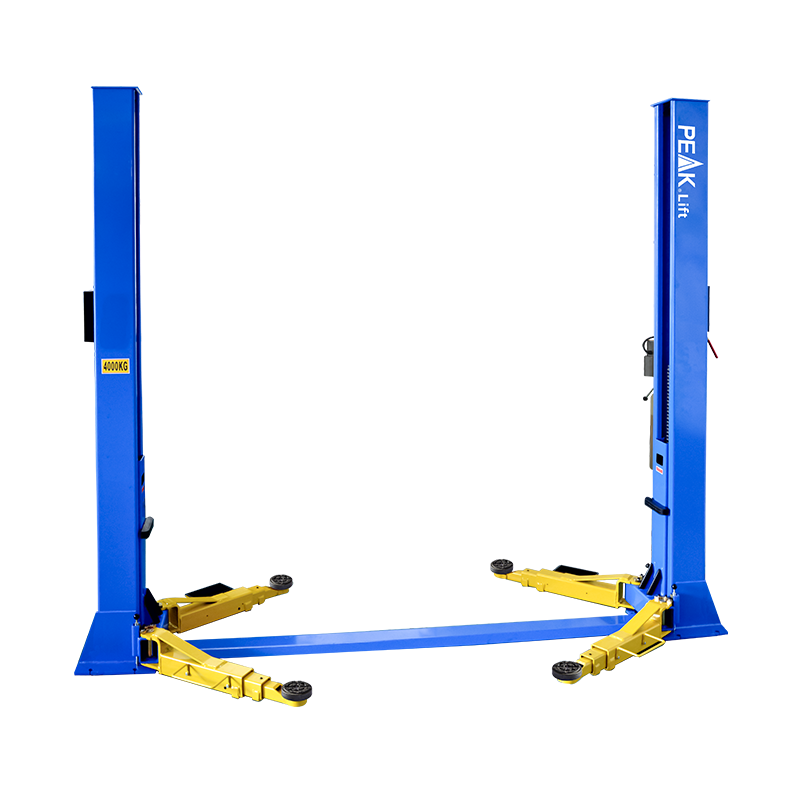

209

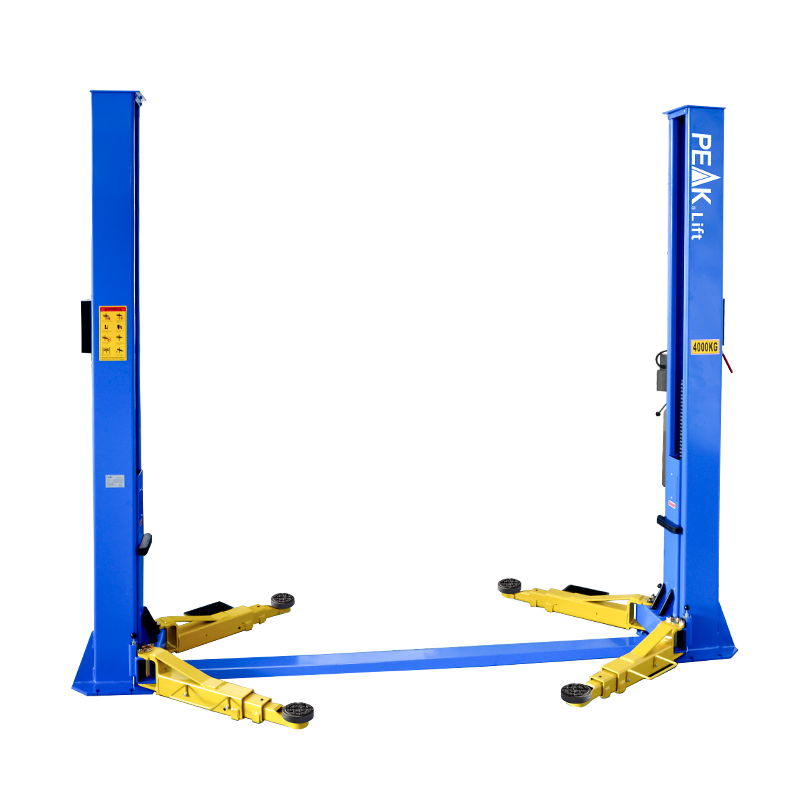

Base Plate Two Post Lift
The Specialist
The PEAK 209 boasts PEAK's unique auto-engaged double lock and single-point lock release mechanism. It also includes 4-three stage arms to accommodate a wider range of vehicles. This base plate design is perfect for low ceiling workshops. PEAK 209 is the specialist for your diversify lifting demands.
- 4000kg (9,000 lbs) capacity;
- Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Revolutionary patented double-lock system is equipped in both columns;
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders and bronze bush;
- Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 209 | Base plate two post lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | A | 37s |
| Max.Lifting height:(w/o extension adapter) | 1814mm(71 7/16")~1846mm(72 11/16") | |
| Max.Lifting height:(w/extension adapter) | 1890mm(74 5/8")~1922mm(75 11/16") | |
| Max.lock height(w/o extension adapter) | 1774mm(69 13/16")~1806mm(71 1/8") | |
| Max.lock height(w/extension adapter) | 1850mm(72 13/16")~1882mm(74 1/16") | |
| Overall Height | B | 2742mm(108") |
| Overall Width | C | 3350mm(131 7/8") |
| Drive-Thru Clearance | D | 2513mm(99") |
| Width Between Columns | E | 2780mm(109 7/6") |
| Minimum Pad Height | F | 89mm(3 1/2") |
| Gross Weight | 592kg(1,305 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 25 Units/20'GP 50 Units/40'GP |
|
| Packing Dimension | 2855X450X760 mm |
-

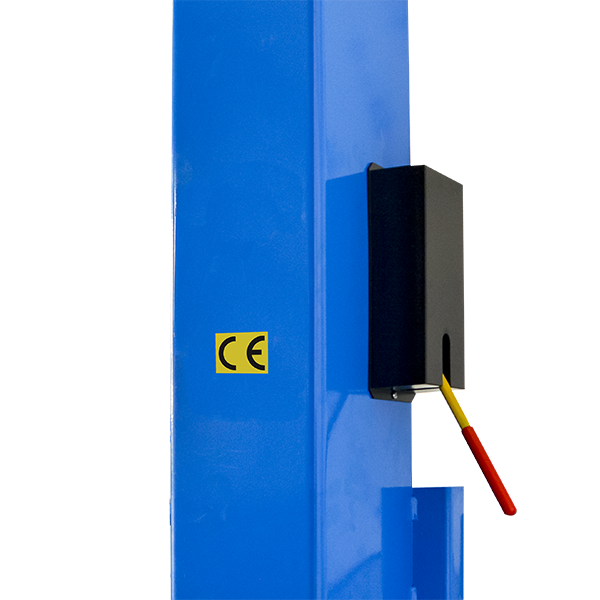

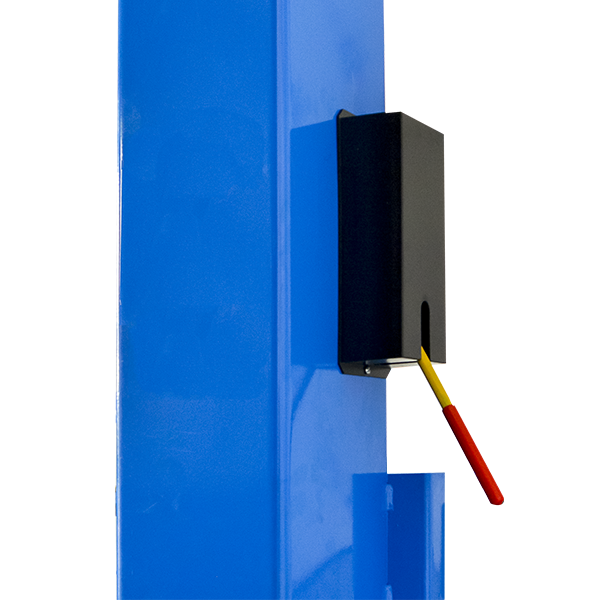

Single point safety release makes it easier for operators to unlock both columns from one column.
-

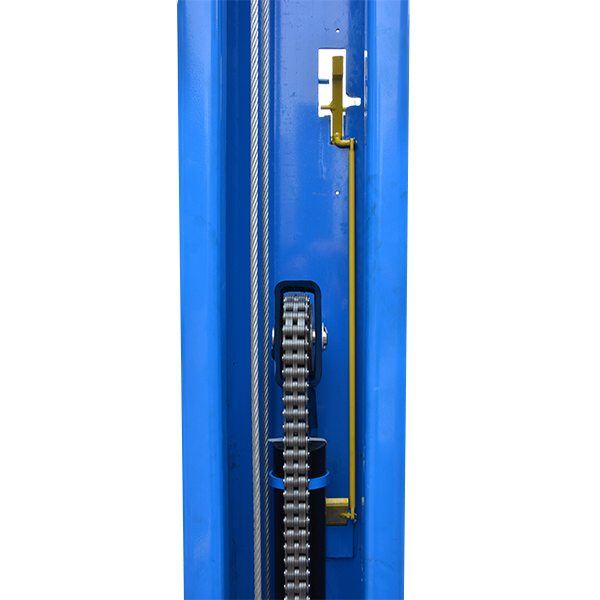

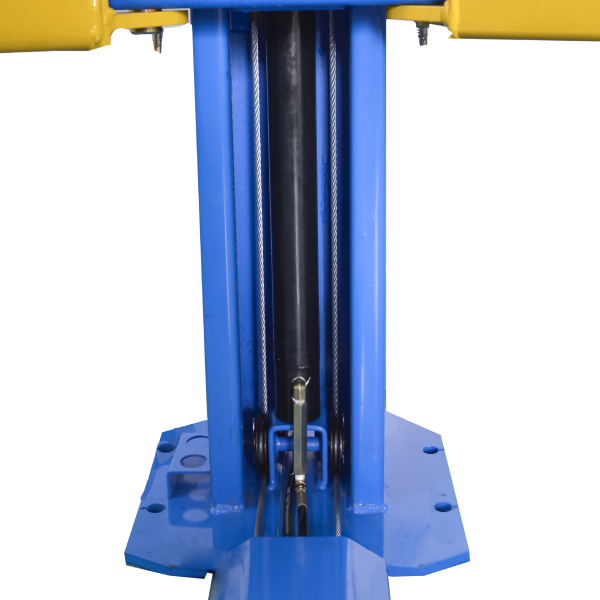

Chain-drive hydraulic cylinder.
-
Revolutionary double lock system installed in both columns.
-

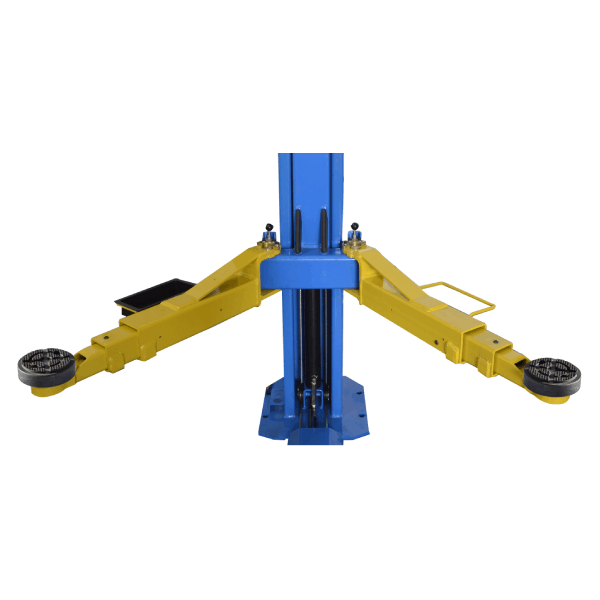

4 three-stages arms are suitable for more vehicles.
-

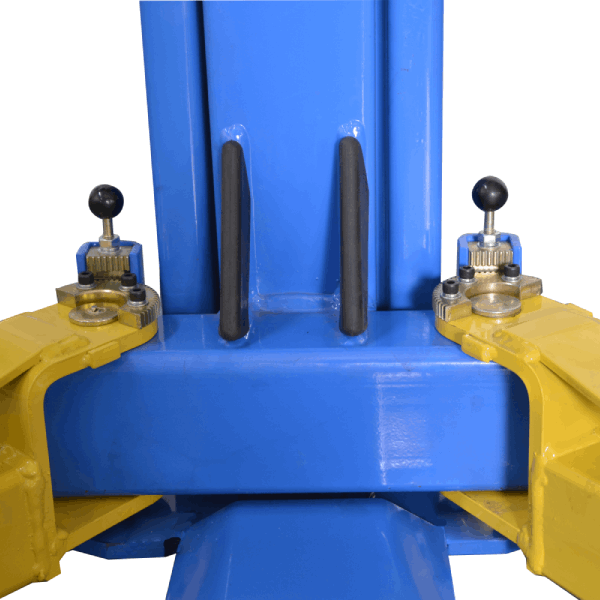

Automatic arm restraints.
-

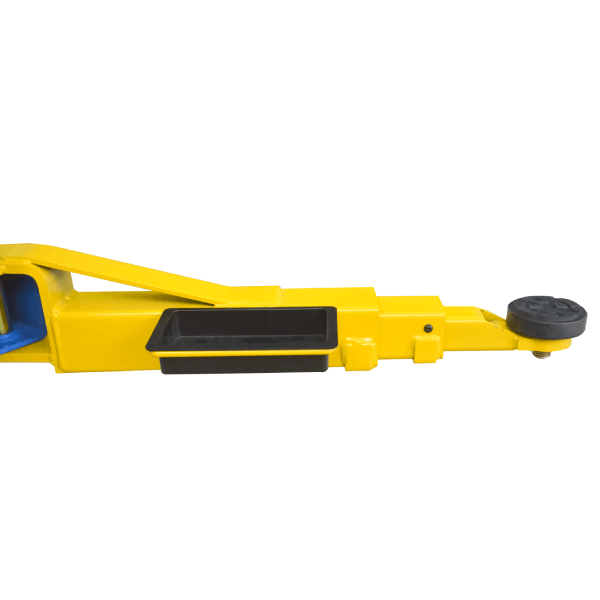

Toe guards and tool trays come as standard.
-

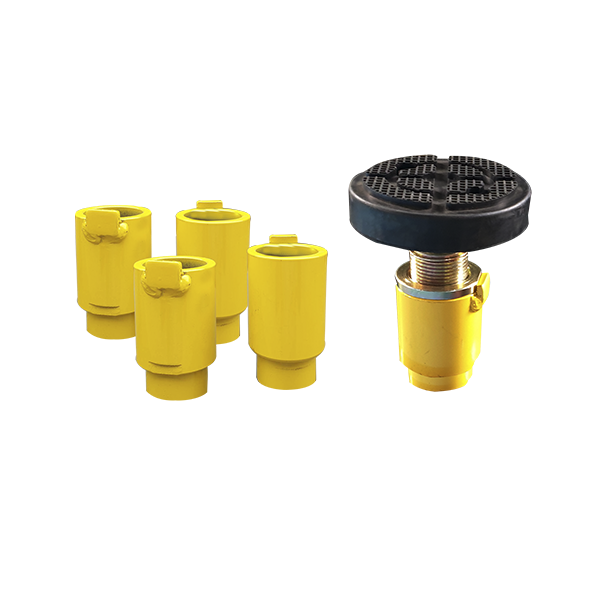

Single-screw rubber pad with pin dia. 38mm, comes with 3" extension adapter.
-

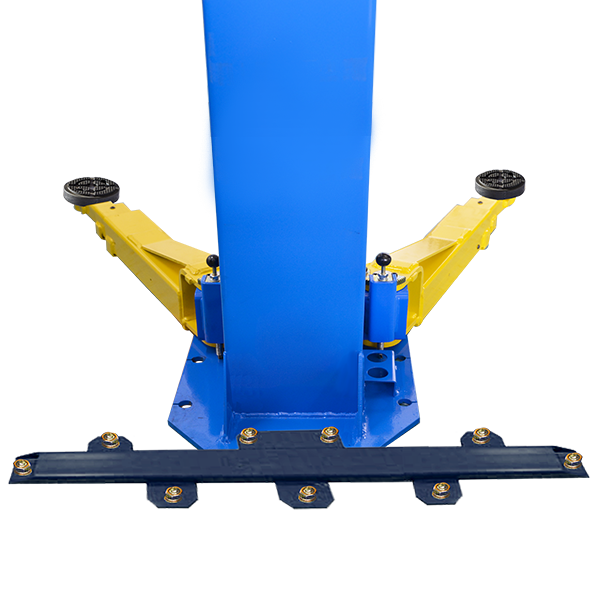

The optional base plate extension. Kits
No.: 20801
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 209: 592kgs , include power unit gross weight 25kgs.
- 20' container can load 25 units.
-

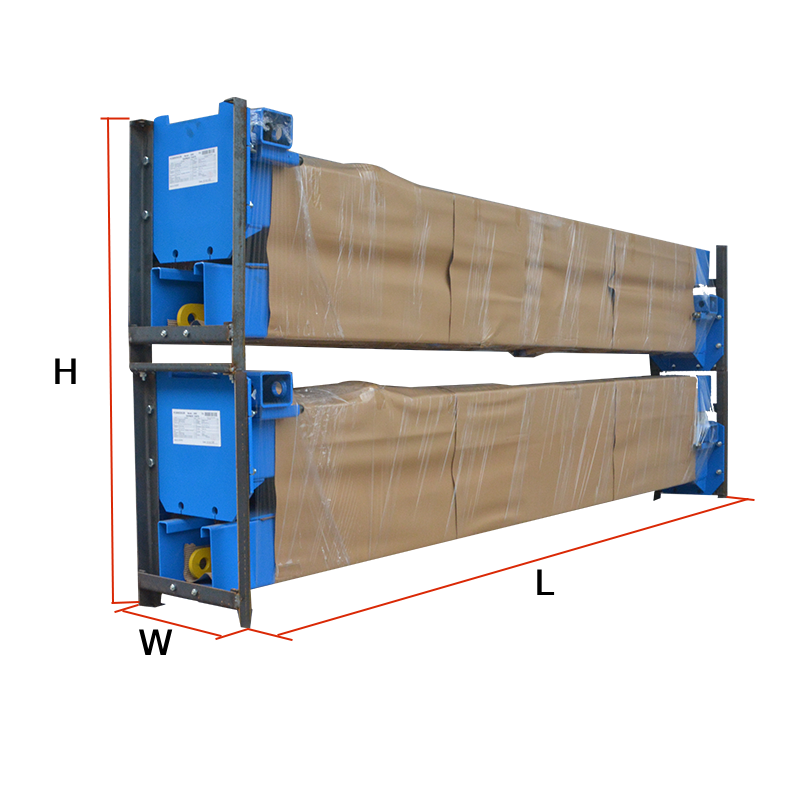

2 units/package,packing measurement (LxWxH):2855x450x1480mm
-

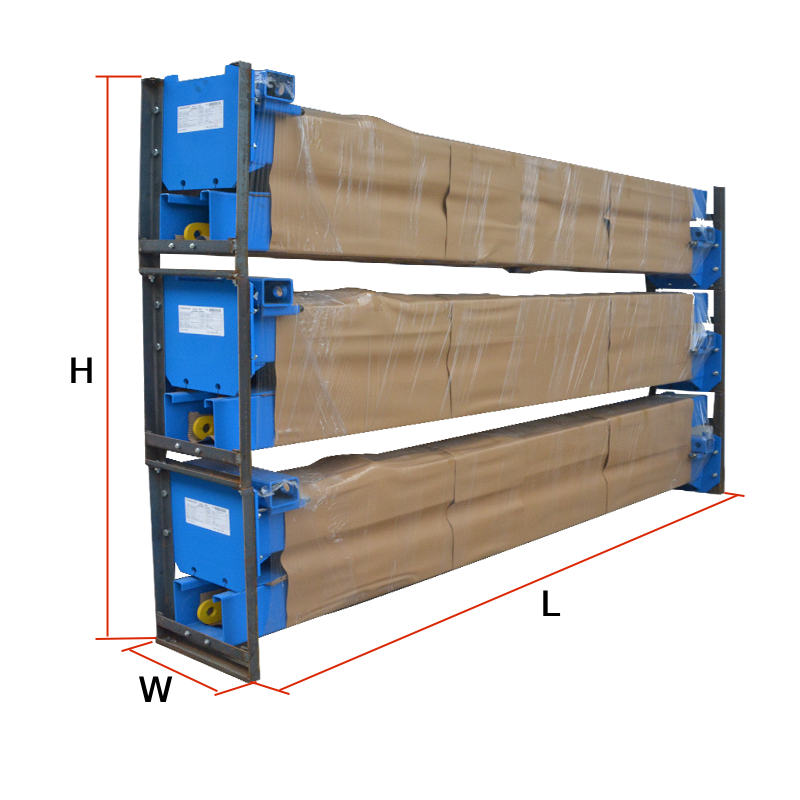

3 units/package, packing measurement (LxWxH): 2855x450x2195mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
