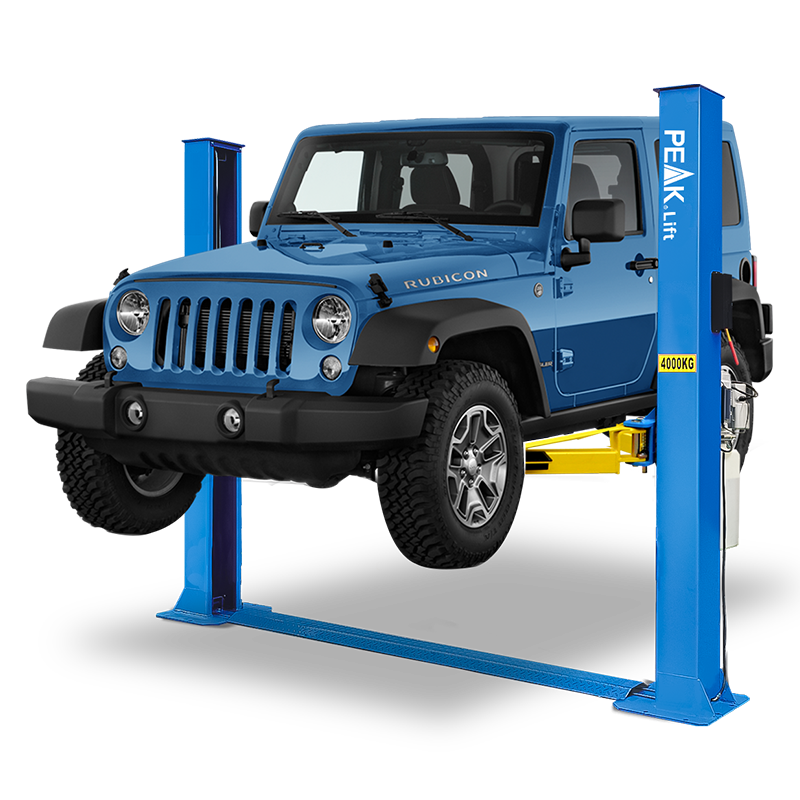

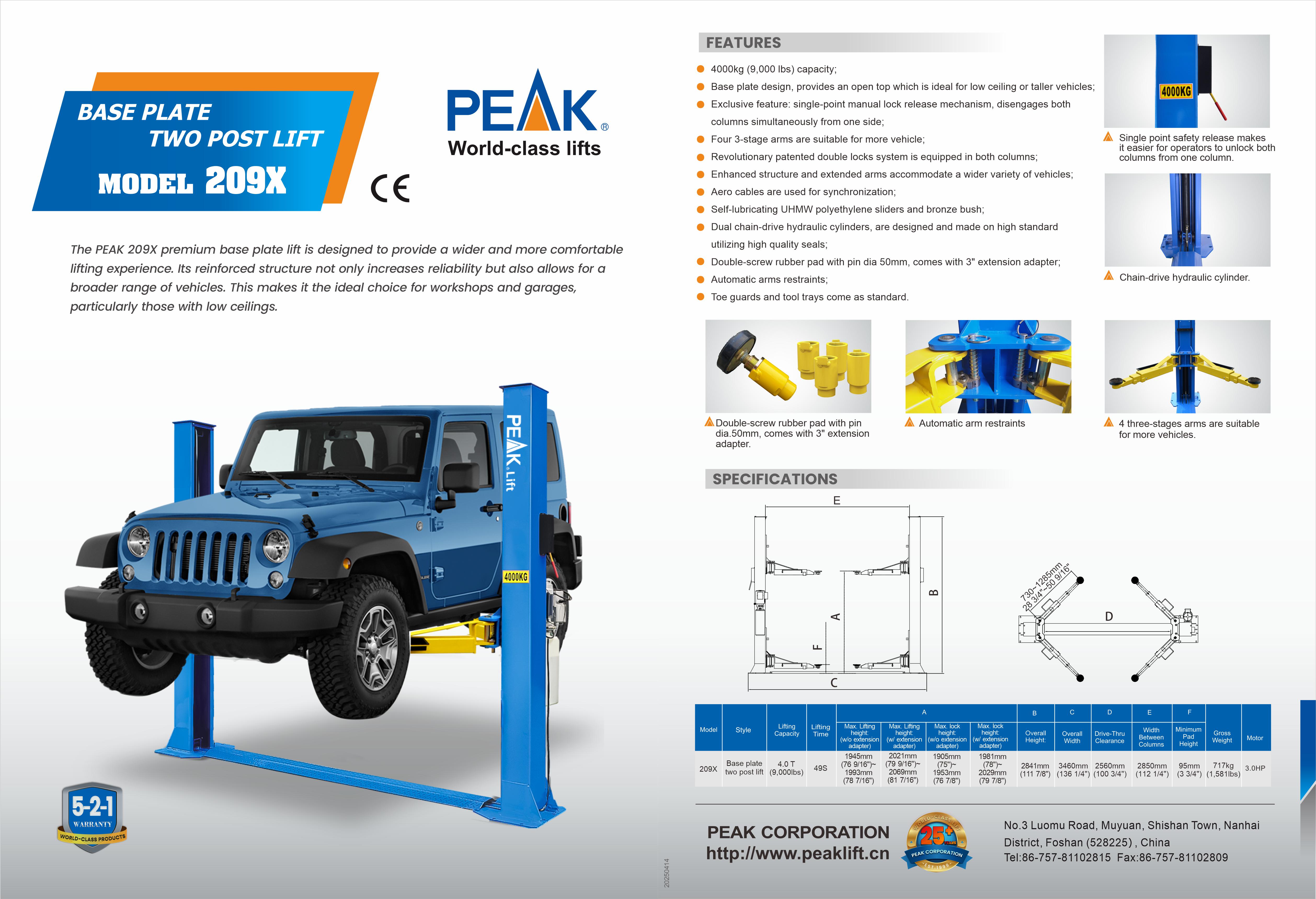

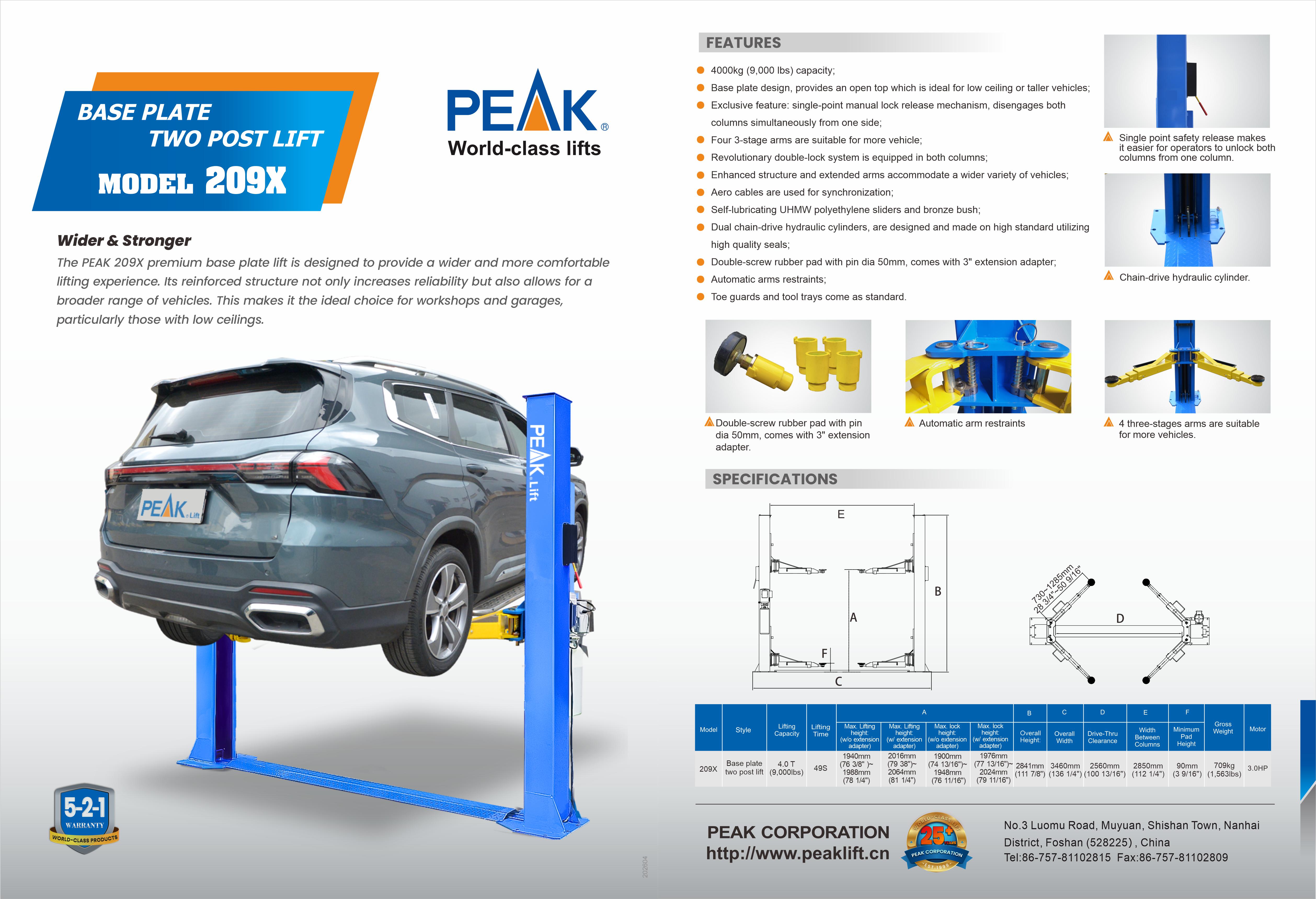

209X

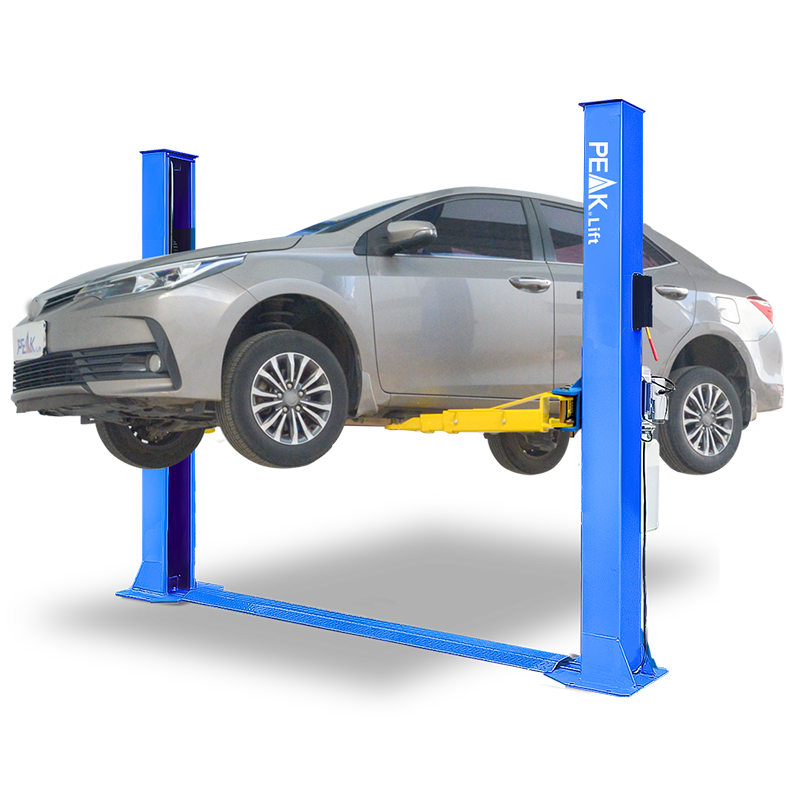

Base Plate Two Post Lift
Wider & Stronger
The PEAK 209X premium base plate lift is designed to provide a wider and more comfortable lifting experience. Its reinforced structure not only increases reliability but also allows for a broader range of vehicles. This makes it the ideal choice for workshops and garages, particularly those with low ceilings.
- 4000kg (9,000 lbs) capacity;
- Base plate design, provides an open top which is ideal for low ceiling or taller vehicles;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Revolutionary patented double-lock system is equipped in both columns;
- Enhanced structure and extended arms accommodate a wider variety of vehicles;
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders and bronze bush;
- Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 209X | Base plate two post lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | A | 49s |
| Max.Lifting height:(w/o extension adapter) | 1940mm(76 3/8")~1988mm(78 1/4") | |
| Max.Lifting height:(w/extension adapter) | 2016mm(79 3/8")~2064mm(81 1/4") | |
| Max.lock height(w/o extension adapter) | 1900mm(74 13/16")~1948mm(76 11/16") | |
| Max.lock height(w/ extension adapter) | 1976mm(38 7/16")~2024mm(79 11/16") | |
| Overall Height | B | 2841mm(111 7/8") |
| Overall Width | C | 3460mm(136 1/4") |
| Drive-Thru Clearance | D | 2560mm(100 3/4") |
| Width Between Columns | E | 2850mm(112 1/4") |
| Minimum Pad Height | F | 90mm(3 9/16") |
| Gross Weight | 709kg(1,563 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 20 Units/20'GP 40 Units/40'GP |
|
| Packing Dimension | 2900 X 510 X 790 mm |
-

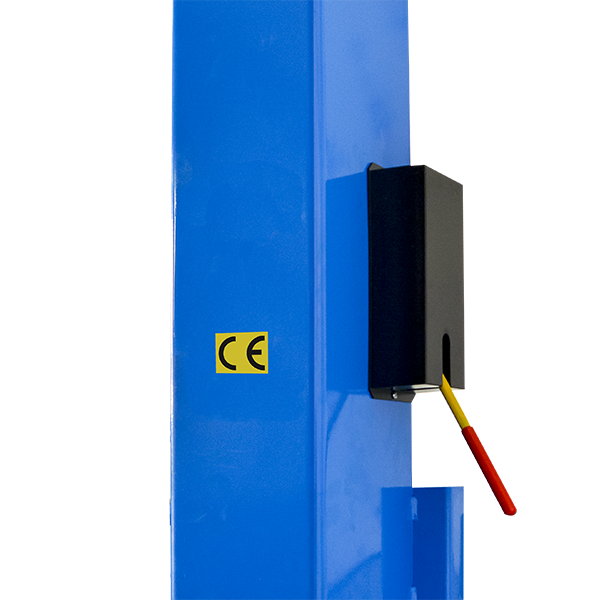

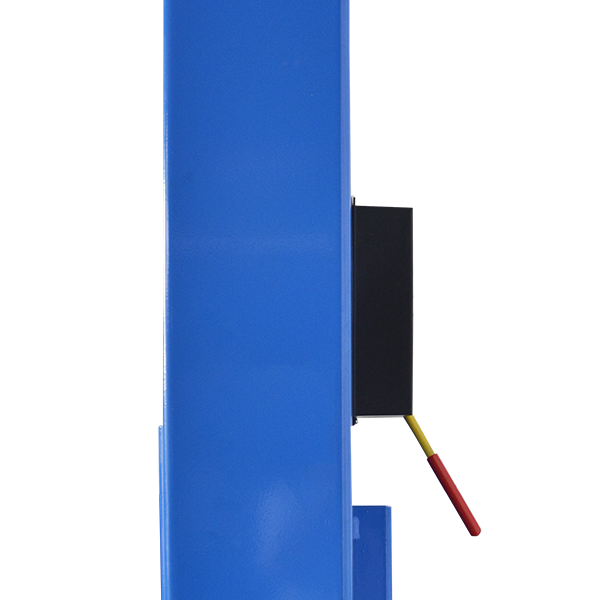

Single point safety relese makes it easier for operators to unlock both columns from one column.
-

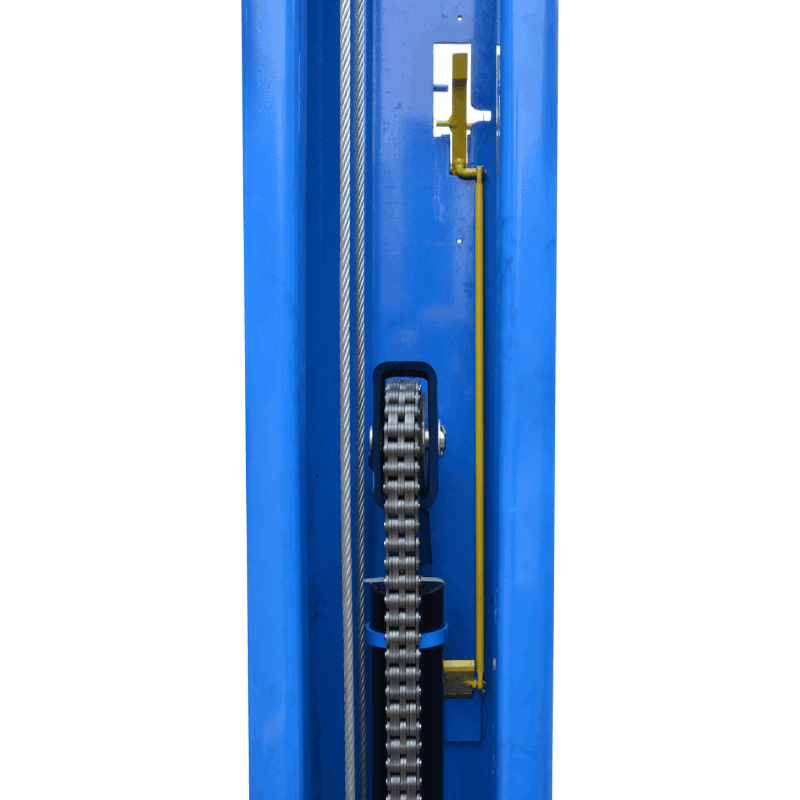

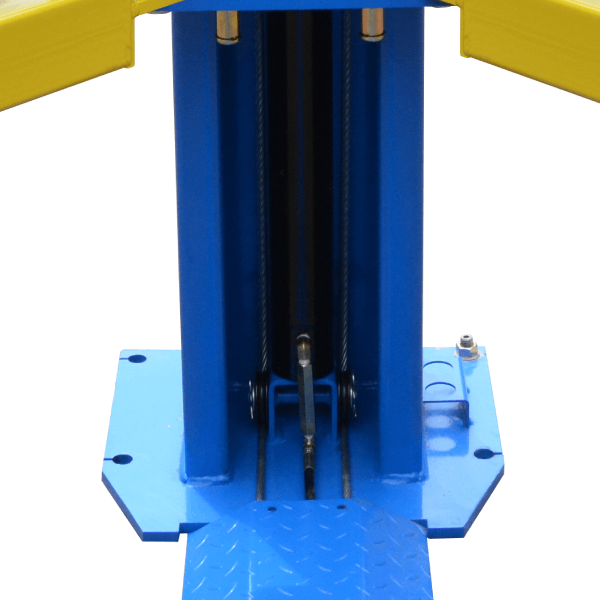

Chain-drive hydraulic cylinder.
-
Revolutionary double lock system installed in both columns.
-

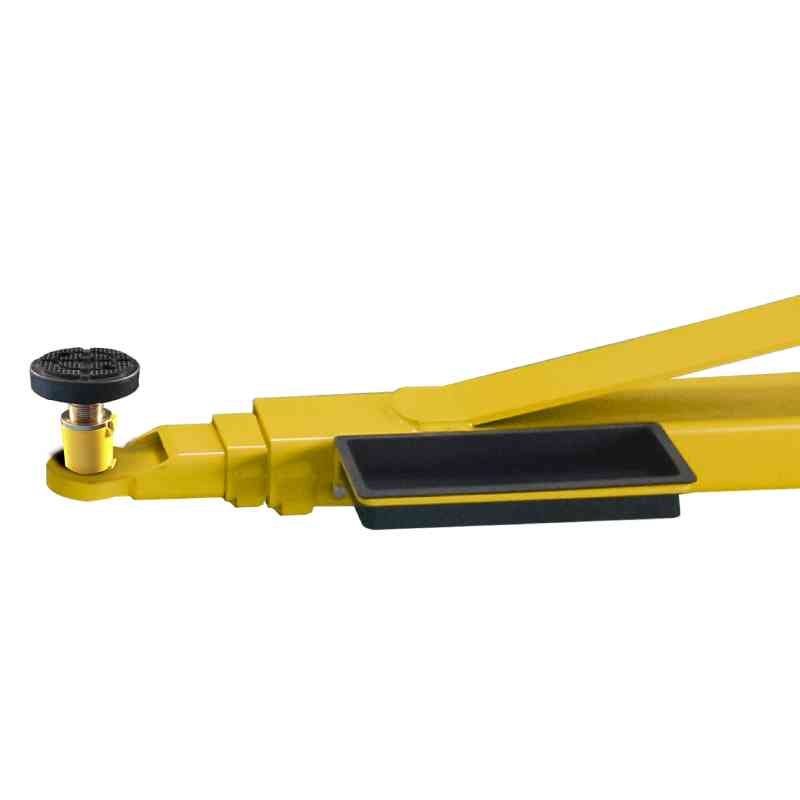

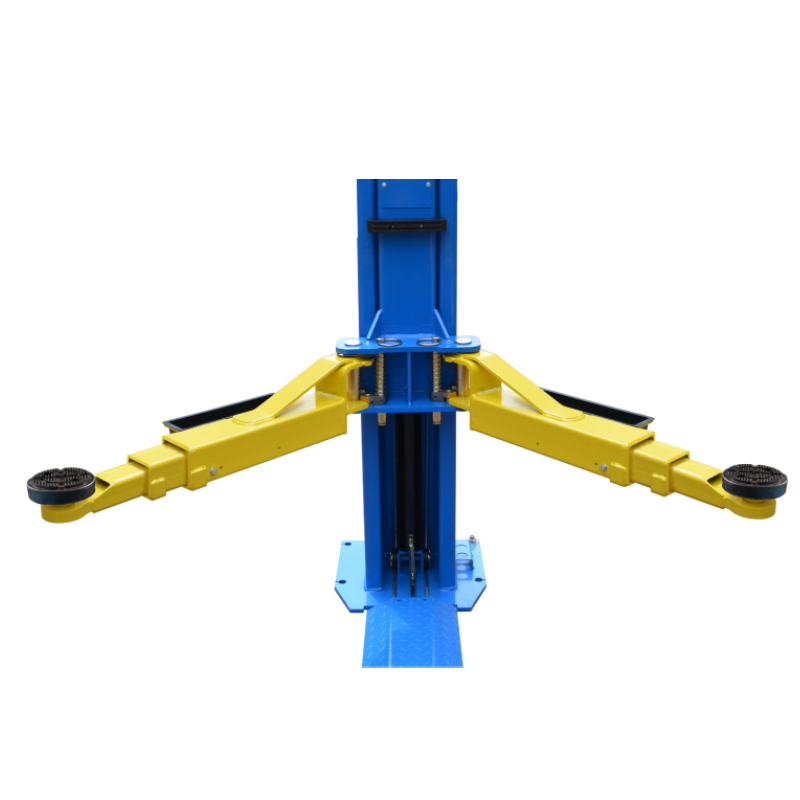

4 three-stages arms are suitable for more vehicles.
-

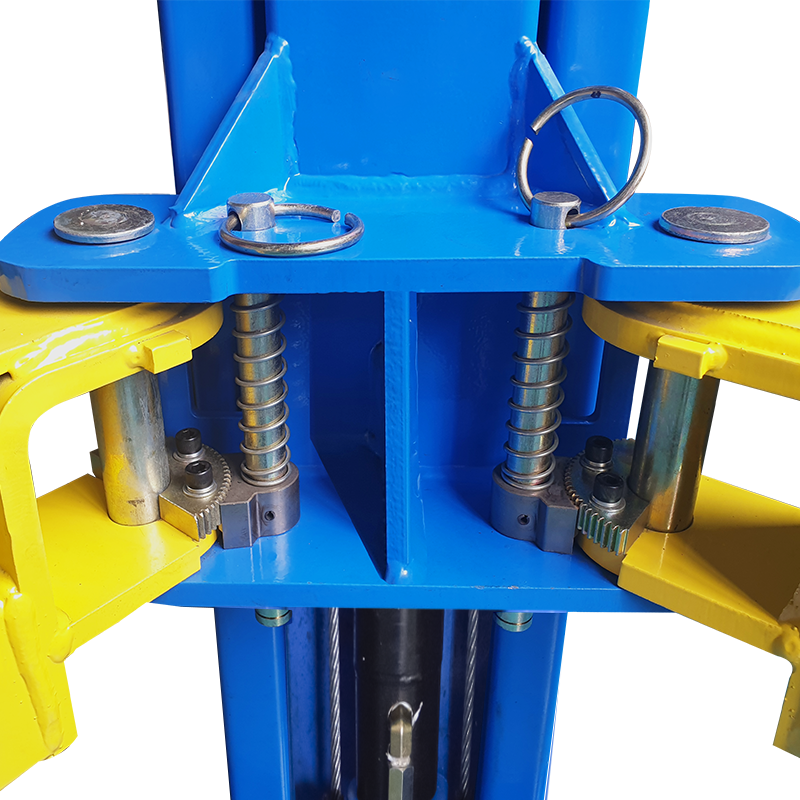

Automatic arm restraints.
-
Toe guards and tool trays come as standard.
-

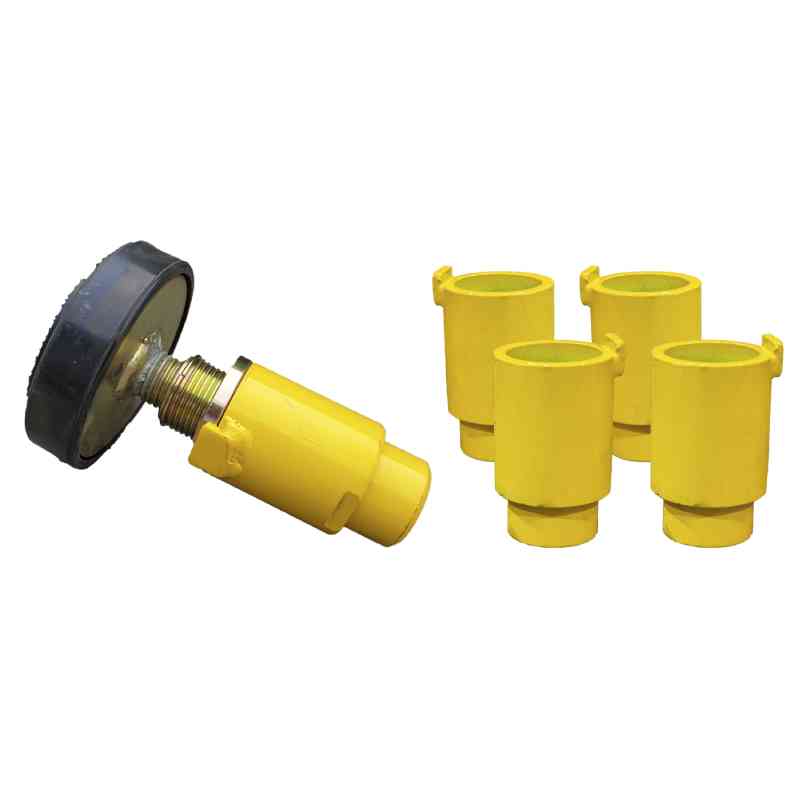

Double-screw rubber pad with pin dia.50mm,comes with 3" extension adapter.
-

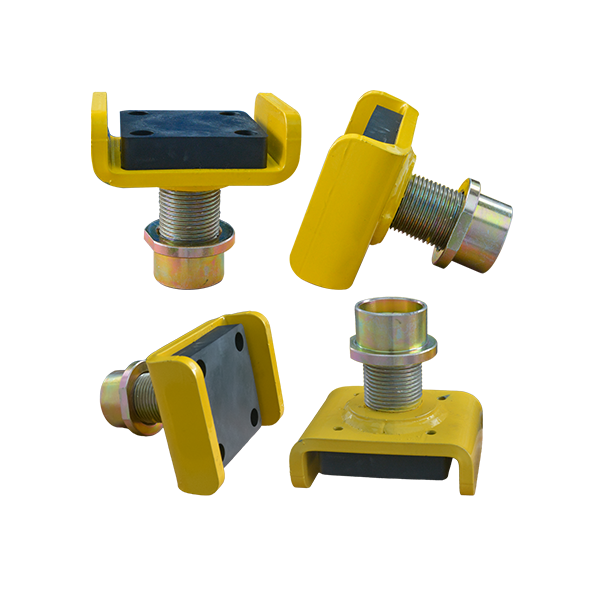

The optional saddle adapter. Kits No.: 1102185006C
-

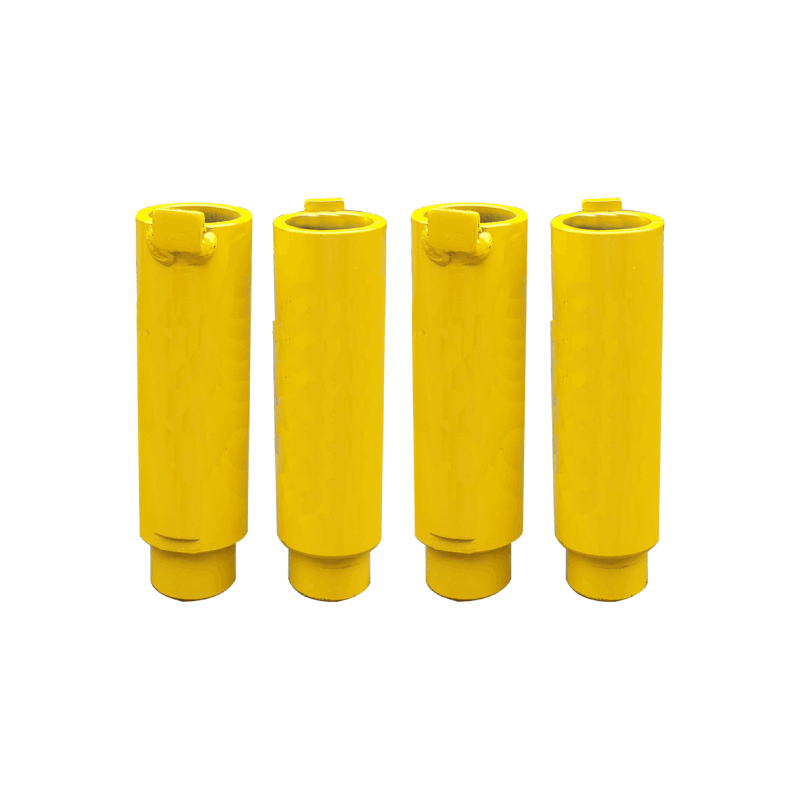

6" extension adapter comes as optional. P/N: 1102504001
-

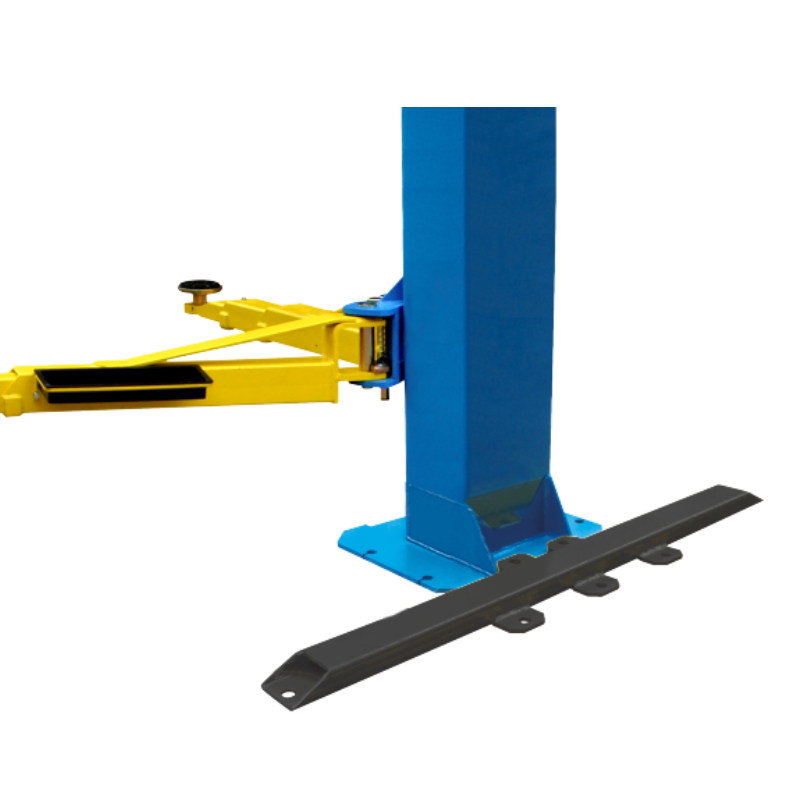

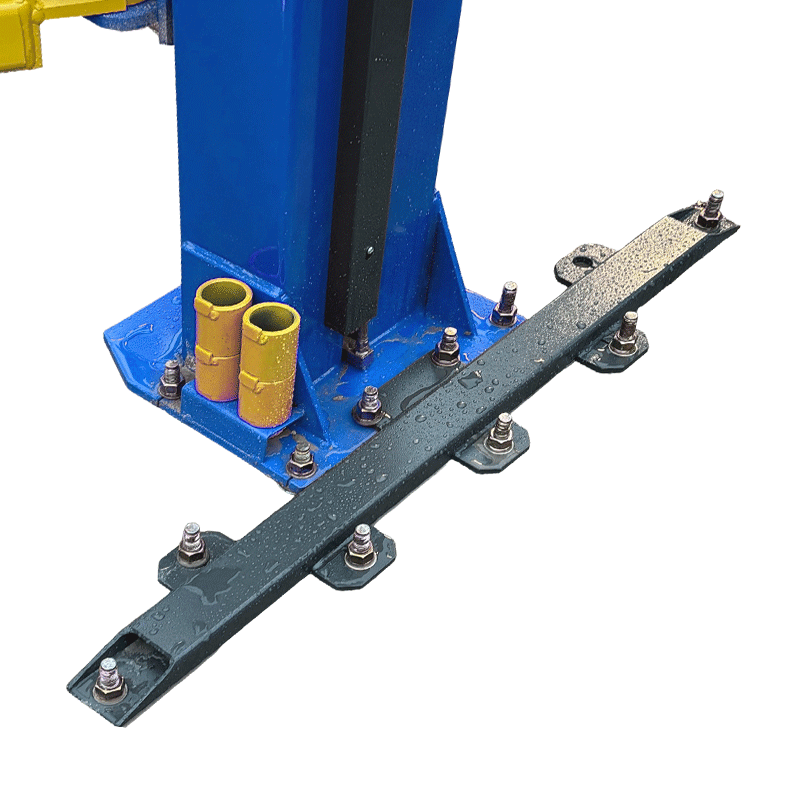

The optional base plate extension. Kits No.: 20903
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 209X: 717kgs , include power unit gross weight 25kgs.
- 20' container can load 20 units.
-

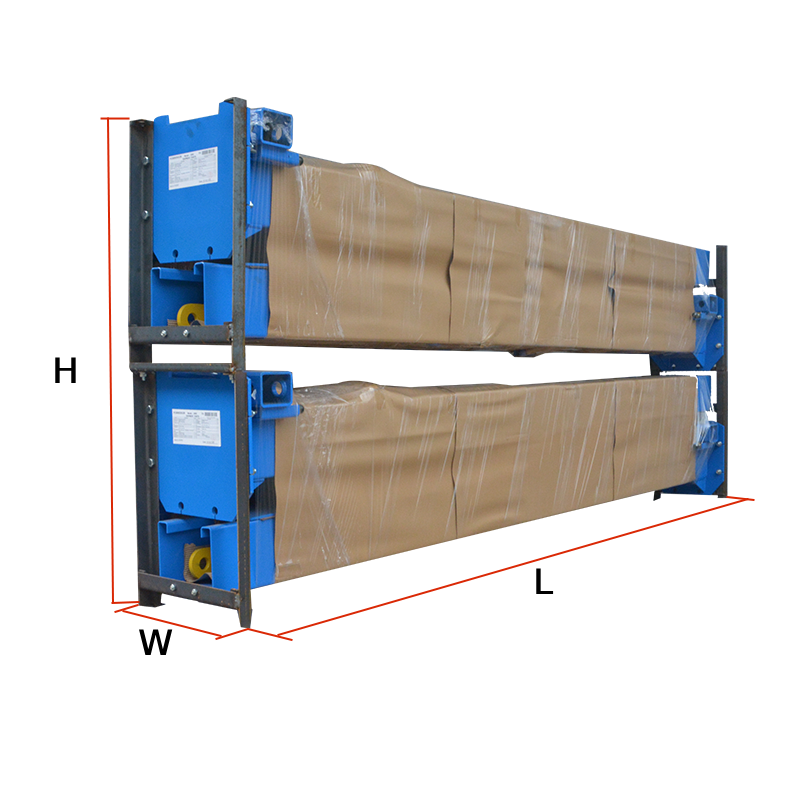

2 units/package,packing measurement (LxWxH):2935x510x1503mm
-

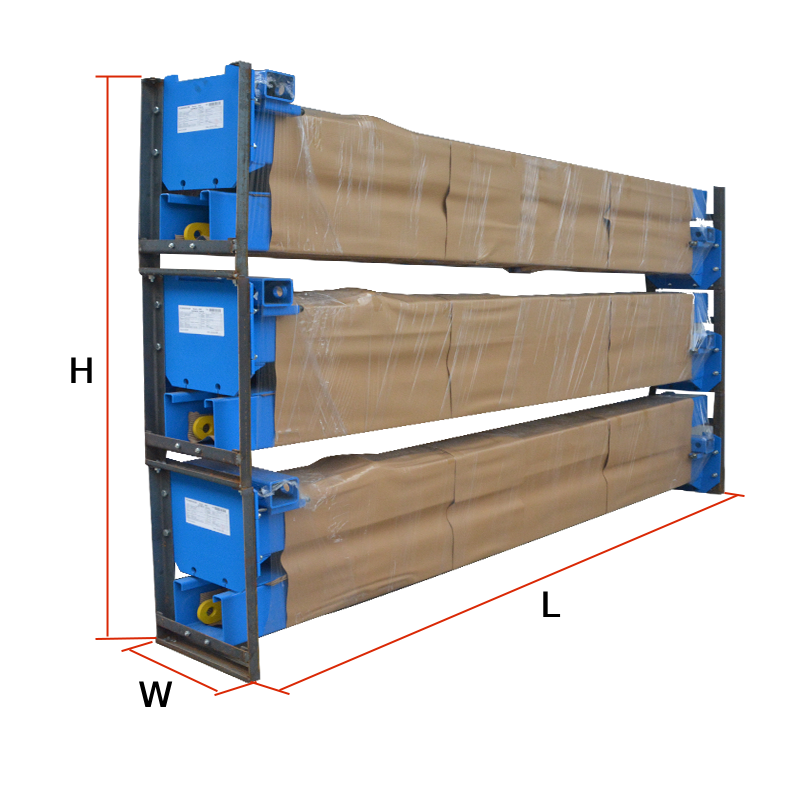

3 units/package, packing measurement (LxWxH): 2935x510x2238mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

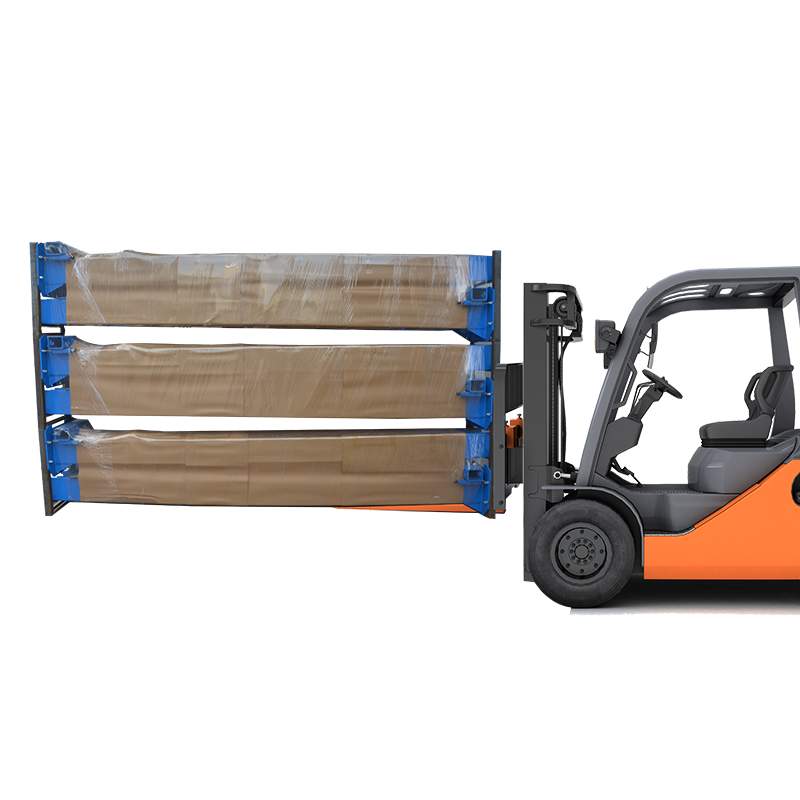

Attention to forklift loading and unloading
