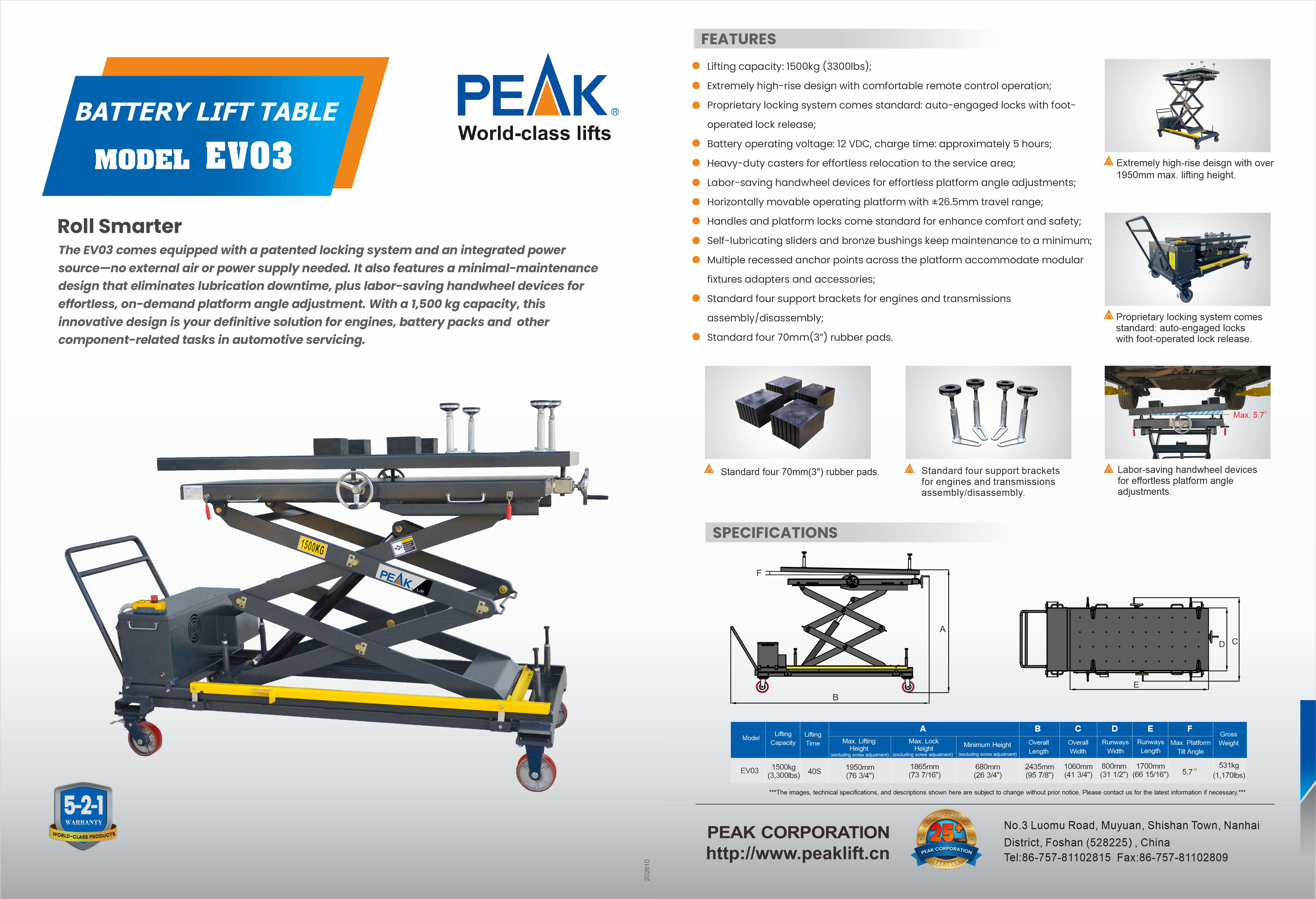

EV03
Battery Lift Table
Roll Smarter
The EV03 comes equipped with a patented locking system and an integrated power source—no external air or power supply needed. It also features a minimal-maintenance design that eliminates lubrication downtime, plus labor-saving handwheel devices for effortless, on-demand platform angle adjustment. With a 1,500 kg capacity, this innovative design is your definitive solution for engines, battery packs and other component-related tasks in automotive servicing.
- Lifting capacity: 1500kg (3300lbs);
- Extremely high-rise design with comfortable remote control operation;
- Proprietary locking system comes standard: auto-engaged locks with foot-operated lock release;
- Battery operating voltage: 12 VDC, charge time: approximately 5 hours;
- Heavy-duty casters for effortless relocation to the service area;
- Labor-saving handwheel devices for effortless platform angle adjustments ;
- Horizontally movable operating platform with ±26.5mm travel range;
- Handles and platform locks come standard for enhance comfort and safety;
- Self-lubricating sliders and bronze bushings keep maintenance to a minimum;
- Multiple recessed anchor points across the platform accommodate modular fixtures adapters and accessories;
- Standard four support brackets for engines and transmissions assembly/disassembly.
- Standard four 70mm rubber pads;
| Model EV03 | Battery lift Table | |
| Lifting Capacity |
1500kg (3,300 lbs) |
|
| Lifting Time | 40s | |
| Max. Lifting height: (excluding screw adjustment) | A | 1950mm (76 3/4" ) |
| Max. lock height: (excluding screw adjustment) | 1865mm (73 7/16" ) | |
| Minimum Height: (excluding screw adjustment) | 680mm (26 3/4" ) | |
| Overall Length | B | 2435mm (95 7/8") |
| Overall Width | C | 1060mm (41 3/4") |
| Runways Width | D | 800mm (31 1/2") |
| Runways Length | E | 66 15/16" |
| Max. Platform Tilt Angle | F | 5.7° |
| Gross Weight | 531kg (1,170 lbs) |
-

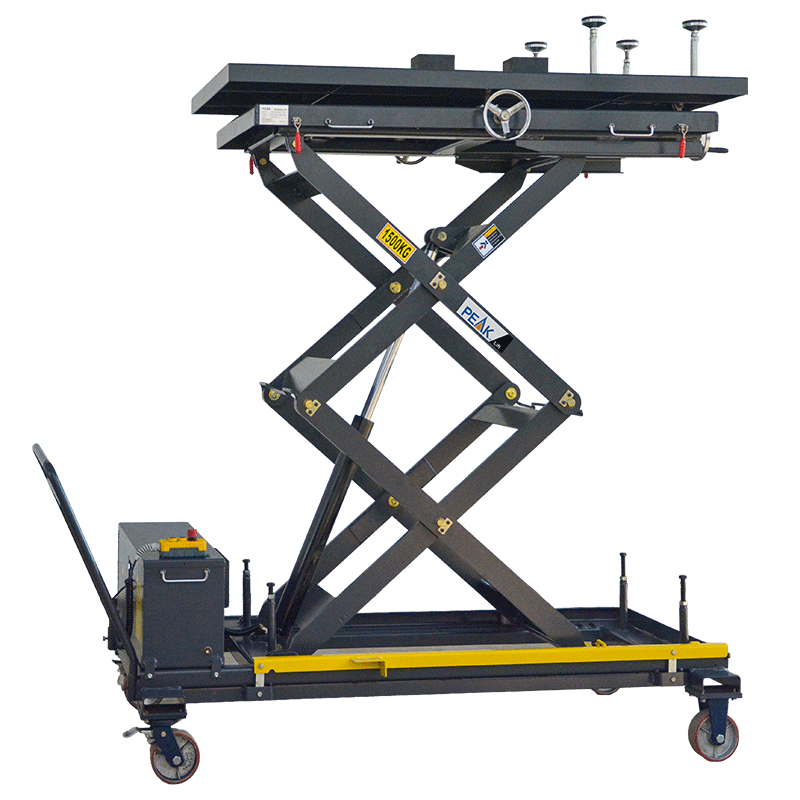

Extremely high-rise deisgn with over 1950mm max. lifting height.
-

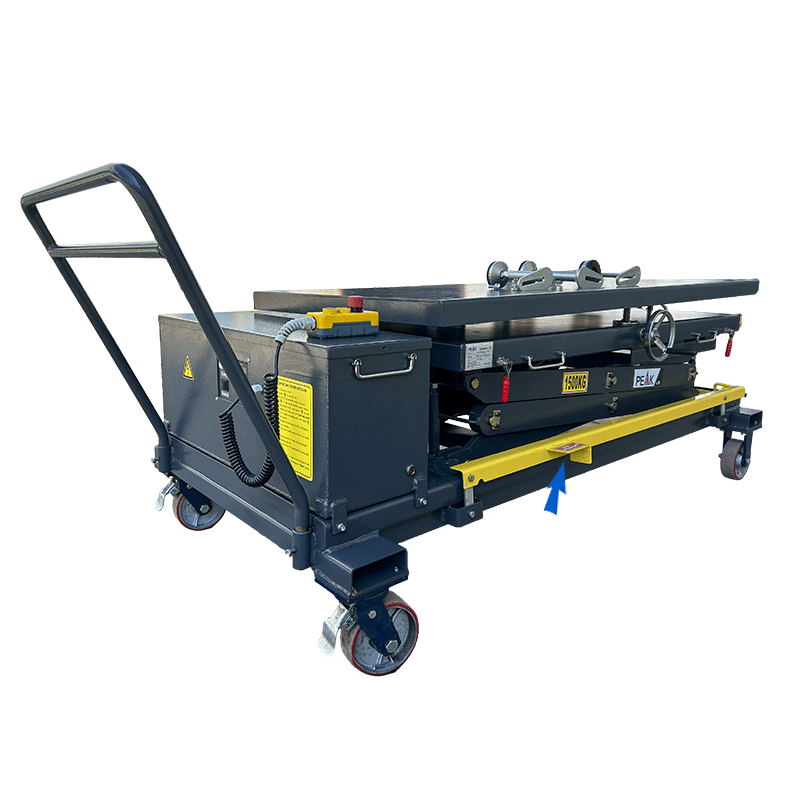

Proprietary locking system comes standard: auto-engaged locks with foot-operated lock release.
-

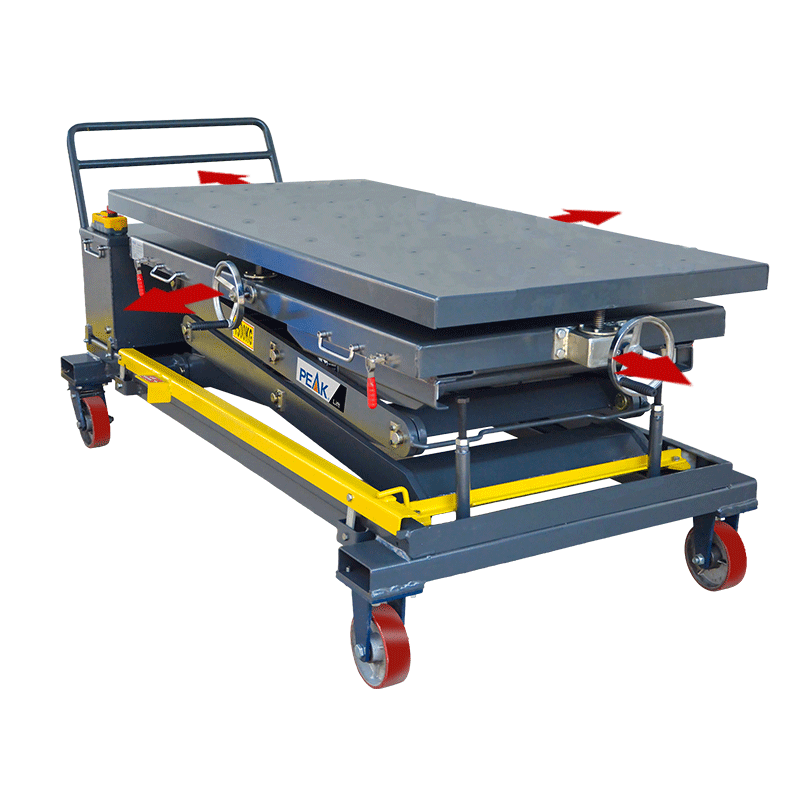

Horizontally movable operating platform with ±26.5mm travel range.
-

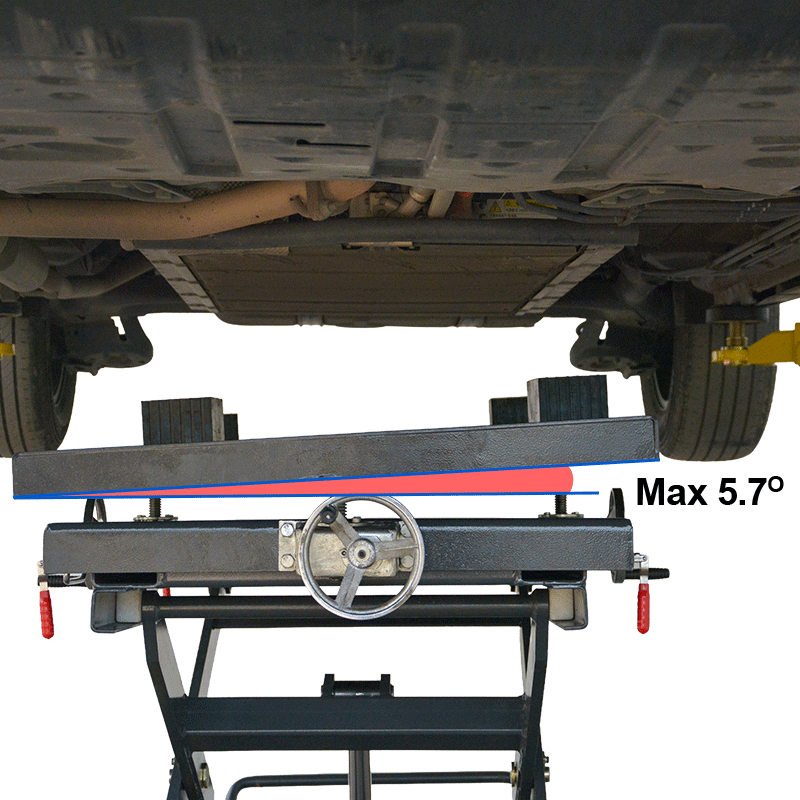

Labor-saving handwheel devices for effortless platform angle adjustments.
-

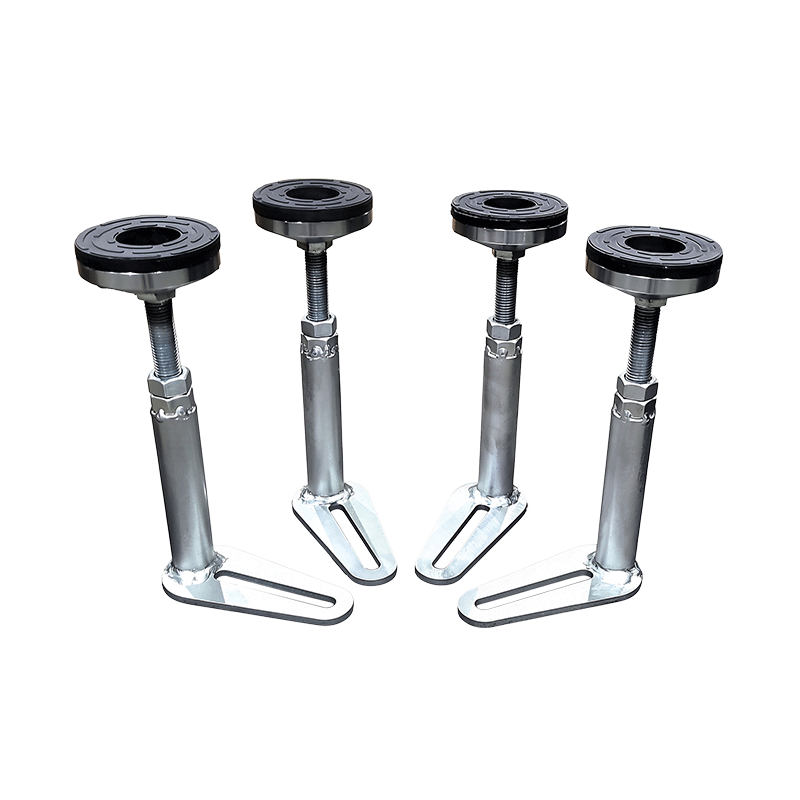

Standard four support brackets for engines and transmissions assembly/disassembly.
-

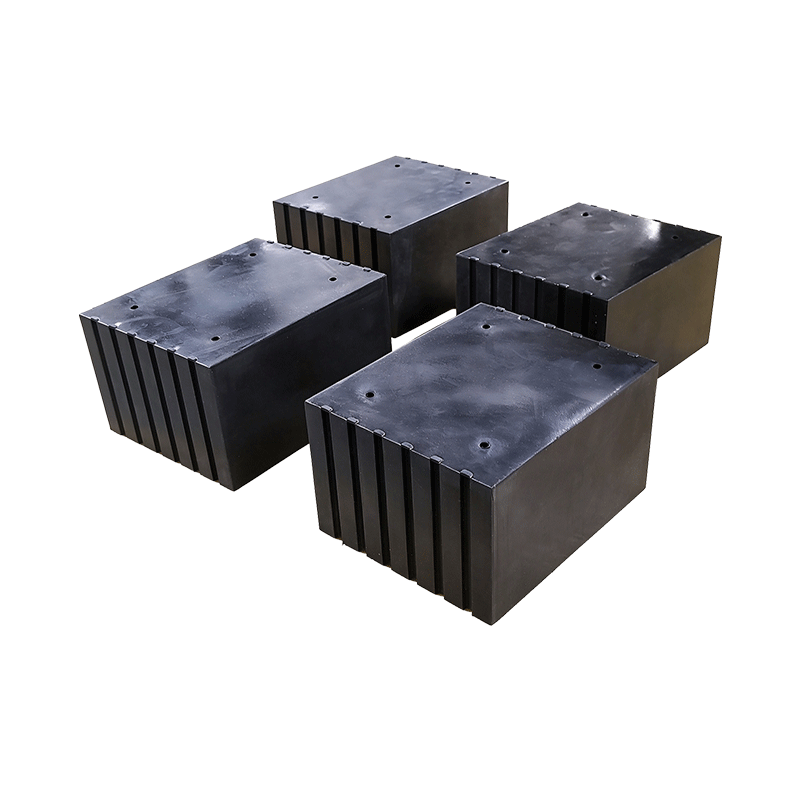

Standard four 70mm(3") rubber pads.
