211CH
Clear Floor Direct-Drived Two Post Lift
A new benchmark
The new 211CH establishes a benchmark for convenience and versatility in automotive lifting solutions, offering reliable performance along with several exclusive features, including extremely long carriages to enhance the overall stabiliby and a two-heights setting that fits a variety of garage layouts. Ideal for everyday use, this model is built to handle everything from compact cars to larger vehicles with ease.
- 5000kg (11,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Overhead safety shut-off device prevents vehicle damage;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Exclusive feature: Extremely long carriages, more than twice the length of comparable models on the market;
- Exclusive feature: Extremely high lifting model to more than 2000mm;
- Exclusive feature: Standard two setting heights to accommodate varying ceiling clearances;
- The width between columns is extremely wide at 3000mm ;
- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Extremely longer 3-stage arms are available as optional to service vehicles with an extra-long wheelbase;
- Dual direct-drive hydraulic cylinders, are designed and made on ANSI standard utilizing high quality seals;
- Sturdy singe-screw rubber pad with pin dia. 50mm, comes with 3" extension adapters;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 211CH | Clear Floor Two Post Lift | |
| Lifting Capacity | 5000kg (11,000 Ibs) | |
| Lifting Time | A | 64s |
| Max. Lifting height: (w/o extension adapter) | 2020~2054mm (79 1/2"~ 80 7/8") | |
| Max. Lifting height: (w/ extension adapter) | 2249~2283mm (88 9/16"~ 89 7/8") | |
| Max. lock height: (w/o extension adapter) | 1980~2014mm (77 15/16"~79 5/16") | |
| Max. lock height: (w/ extension adapter) | 2209~2243mm (87"~ 88 5/16") | |
| Overall Height | B |
4224mm (166 5/16") 4502mm (177 1/4") |
| Overall Width | C |
3666mm (144 5/16") |
| Drive-Thru Clearance | D |
2710mm (106 11/16") |
| Width Between Columns | E |
3000mm (118 1/8") |
| Minimum Pad Height | F | 115mm (4 1/2") |
| Gross Weight | 871kg (1,922 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP |
-

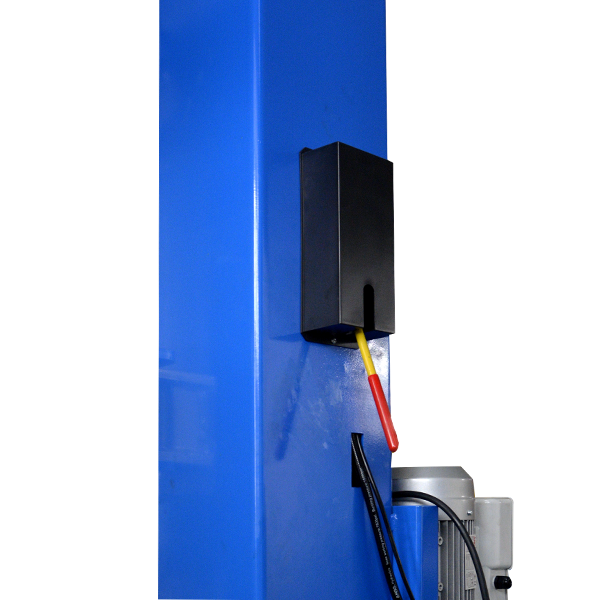

Single point safety release makes it easier for operators to unlock both columns from one column.
-

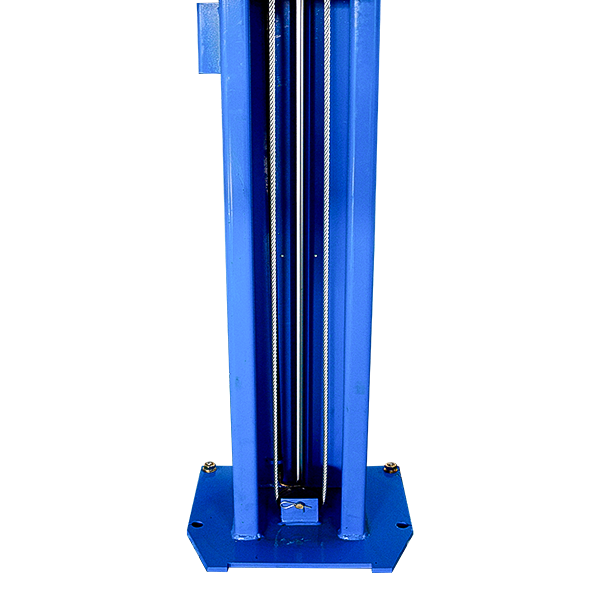

Hydraulic direct-drived cylinders.
-
Four 3-stage arms are suitable for various vehicles.
-

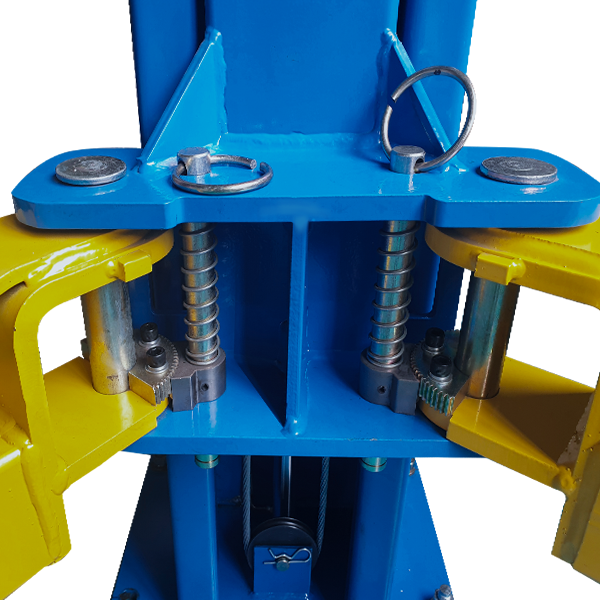

Automatic arm restraints.
-
Clear floor design, two heights setting, with overhead safety shut-off device.
-

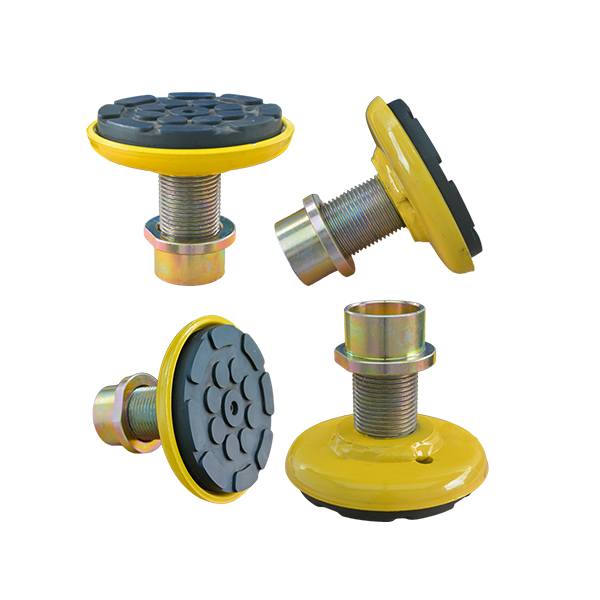

Sturdy single-screw rubber pad with pin dia.50mm.
-

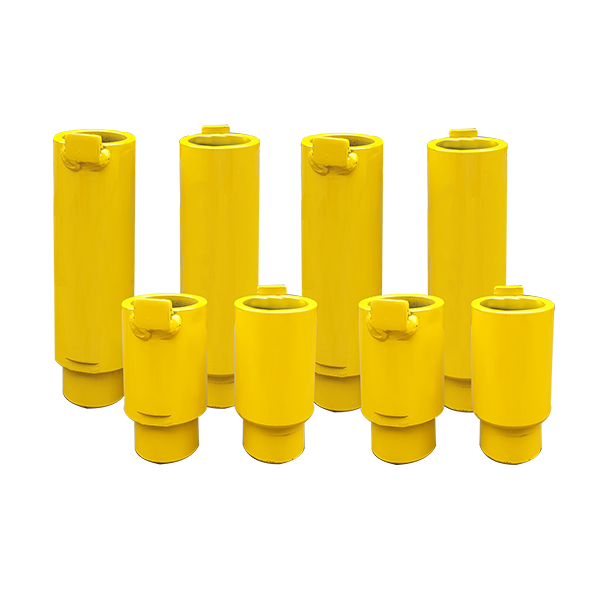

Both 3" and 6" extension adapters come as standard.
-
The optional saddle adapter.
Kits No.: 1102185006C -

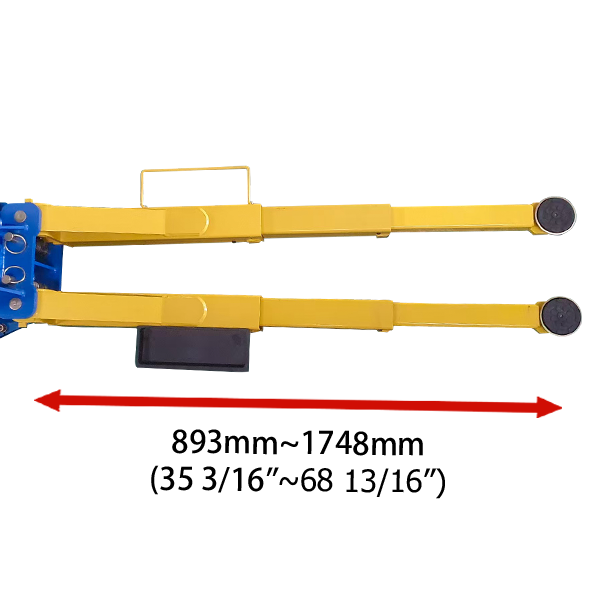

Extremely longer 3-stage arms are available as optional.
Kits No.: 1102924001C-01
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
-
2 units/package,packing measurement (LxWxH):3770x510x1555mm
-
3 units/package, packing measurement (LxWxH): 3770x510x2285mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
