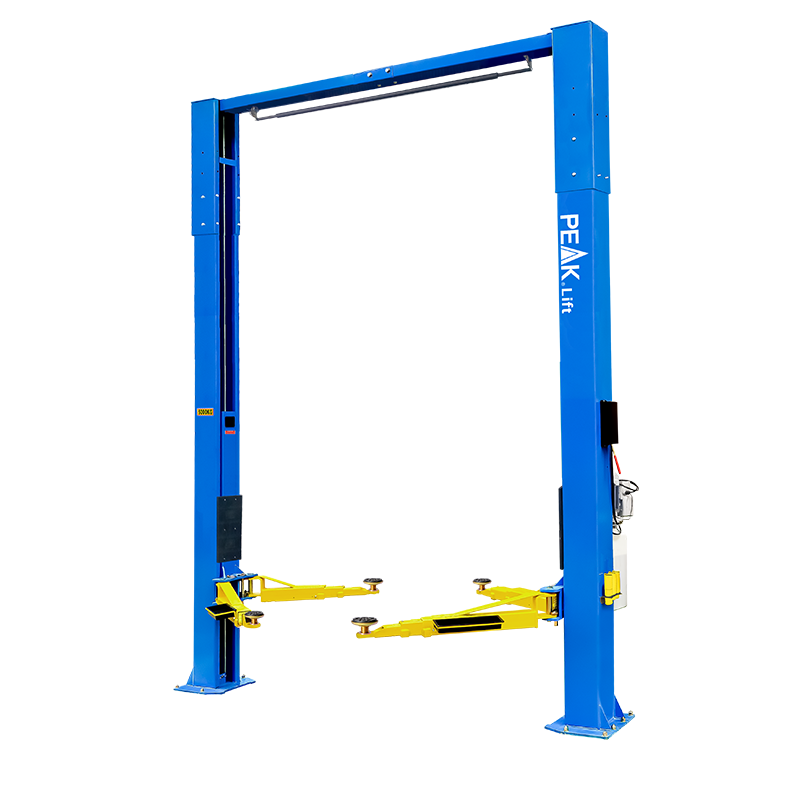

211CX
Clear Floor Direct-Drived Two Post Lift
A new benchmark
The new 211CX establishes a benchmark for convenience and versatility in automotive lifting solutions, offering reliable performance along with several exclusive features, including extremely longer 3-stage arms designed for varying wheelbases and extremely long carriages, as well as two heights setting etc.
- 5000kg (11,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Overhead safety shut-off device prevents vehicle damage;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Exclusive feature: Four extremely longer 3-stage arms accommodate a range of wheelbase vehicles, from passenger cars, Sprinter vans to light trucks ;
- Exclusive feature: Extremely long carriages, more than twice the length of comparable models on the market;
- Exclusive feature: Extremely high lifting model to more than 2000mm;
- Exclusive feature: Standard two setting heights to accommodate varying ceiling clearances;
- The width between columns is extremely wide at 3000mm ;
- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on ANSI standard utilizing high quality seals;
- Sturdy singe-screw rubber pad with pin dia. 50mm, comes with 3" extension adapters;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 211CX | Clear Floor Two Post Lift | |
| Lifting Capacity | 5000kg(11,000 Ibs) | |
| Lifting Time | A | 64s |
| Max. Lifting height:(w/o extension adapter) | 2020mm(79 1/2")~2054mm(80 7/8") | |
| Max. Lifting height:(w/ extension adapter) | 2249mm(88 9/16")~2283mm(89 7/8") | |
| Max. lock height(w/o extension adapter) | 1980mm(77 15/16")~2014mm(79 5/16") | |
| Max. lock height(w/ extension adapter) | 2209mm(87")~2243mm(88 5/16") | |
| Overall Height | B |
4224mm(166 5/16") 4502mm(177 1/4") |
| Overall Width | C |
3666mm(144 5/16") |
| Drive-Thru Clearance | D |
2710mm(106 11/16") |
| Width Between Columns | E |
3000mm(118 1/8") |
| Minimum Pad Height | F | 115mm(4 1/2") |
| Gross Weight | 871kg(1,922 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP 30 Units/40'GP |
|
| Packing | 3920 x 510 x 820 mm |
-
Single point safety release makes it easier for operators to unlock both columns from one column.
-
Hydraulic direct-drived cylinders.
-
Exclusive feature: Four extremely longer 3- stage arms accommodate a range of wheelbase vehicles, from passenger cars,sprinter vans to light trucks.
-
Automatic arm restraints.
-
Clear floor design, two heights setting, with overhead safety shut-off device.
-
Toe guards and tool trays come as standard.
-
Sturdy single-screw rubber pad with pin dia.50mm.
-
Both 3" and 6" extension adapters come as standard.
-
The optional saddle adapter.
Kits No.: 1102185006C
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 211CX: 871kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 30 units.
-

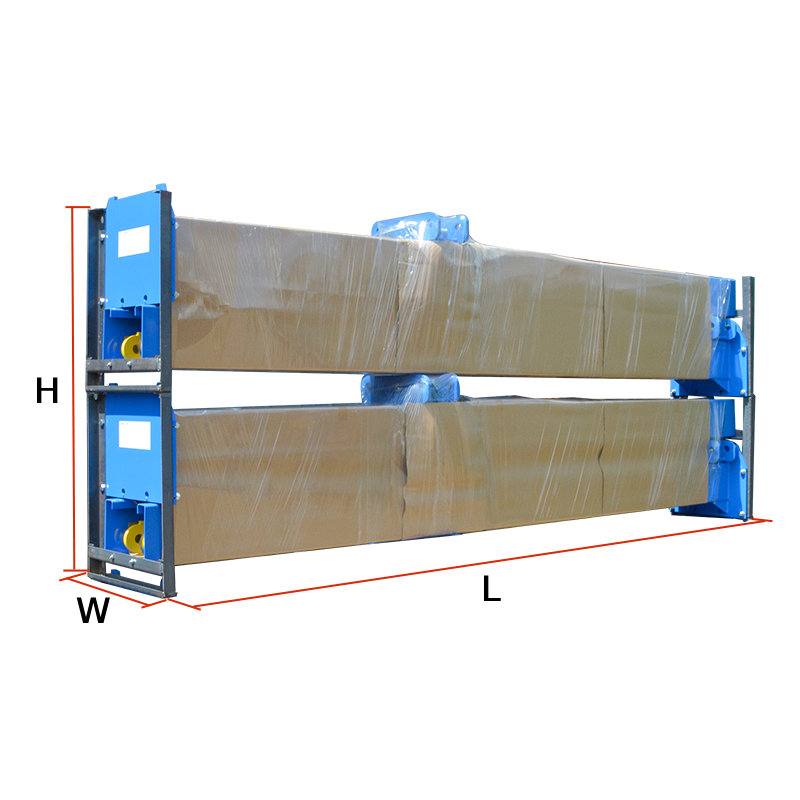

2 units/package,packing measurement (LxWxH):3770x510x1555mm
-

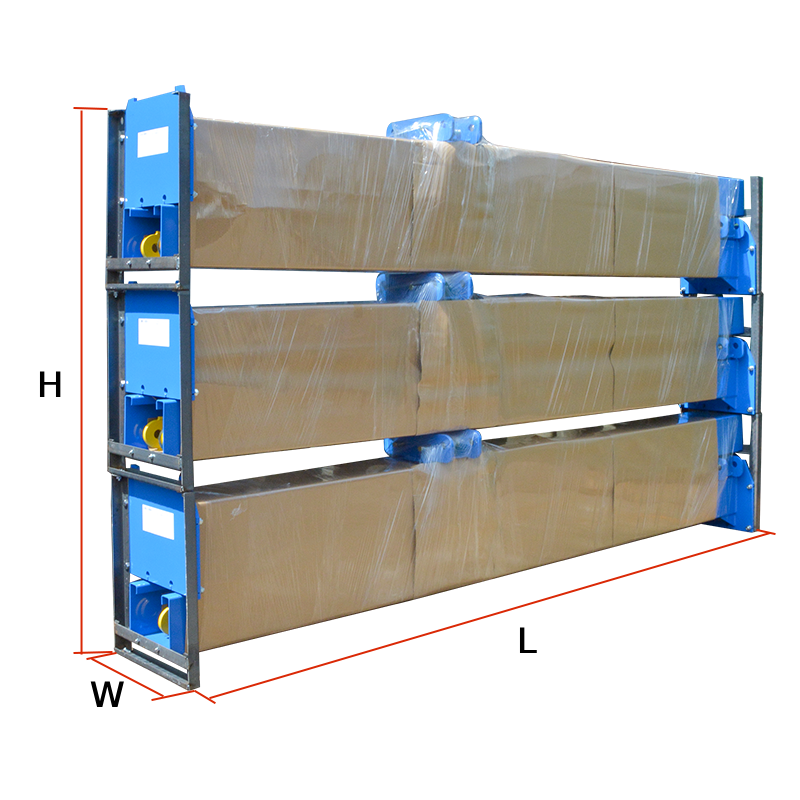

3 units/package, packing measurement (LxWxH): 3770x510x2285mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

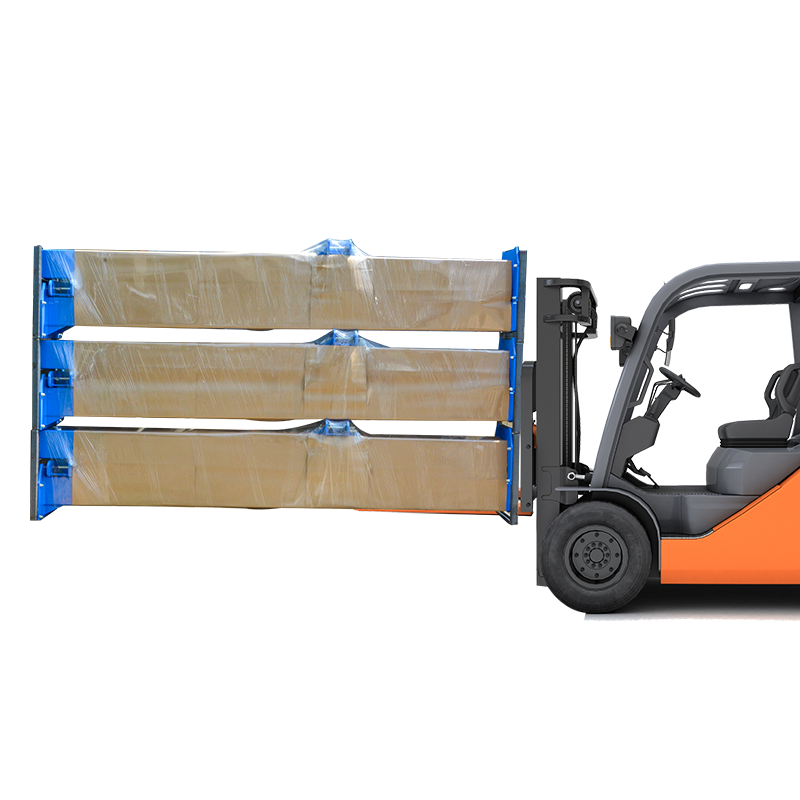

Attention to forklift loading and unloading
