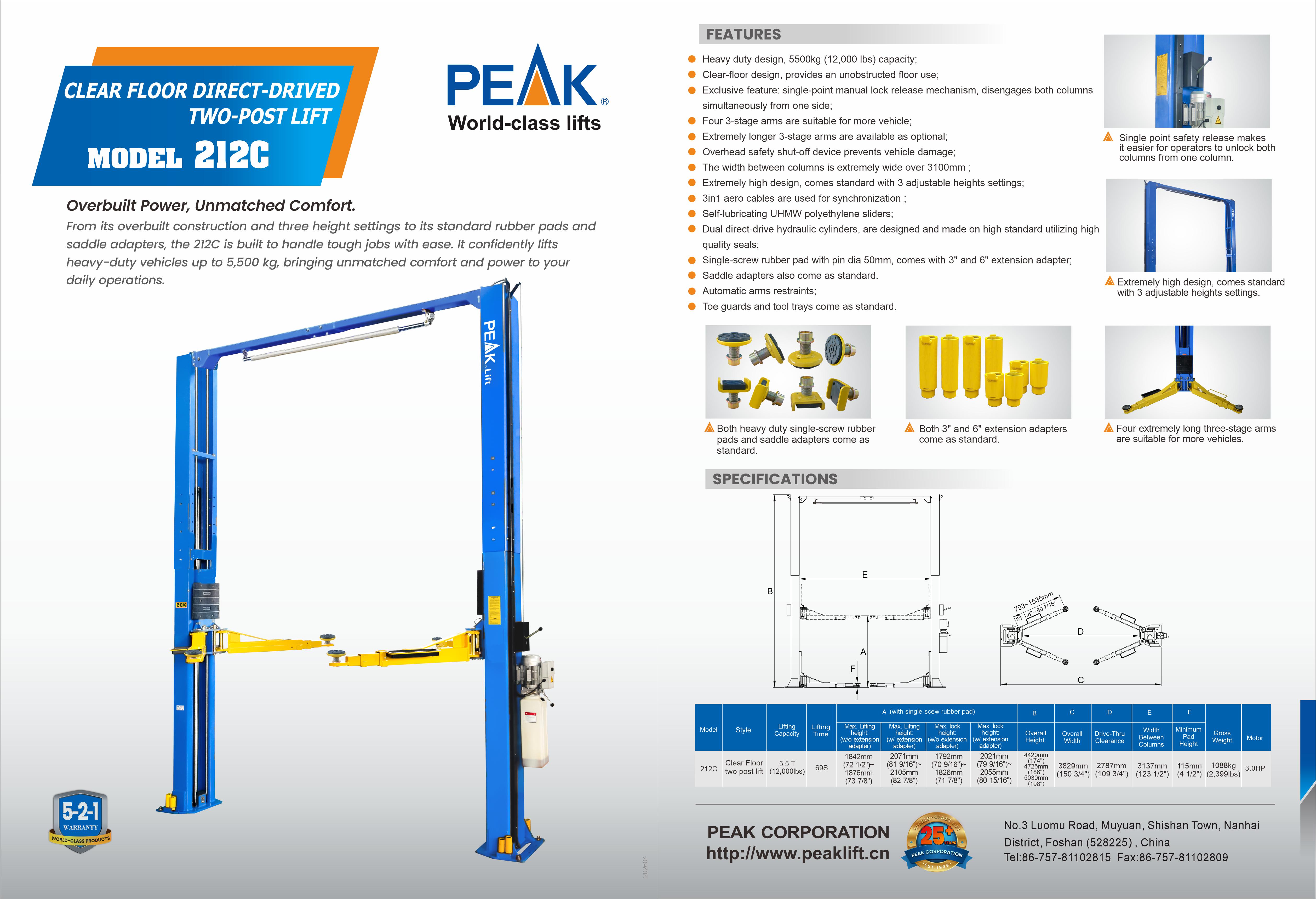

212C
Clear Floor Direct-Drived Two Post Lift

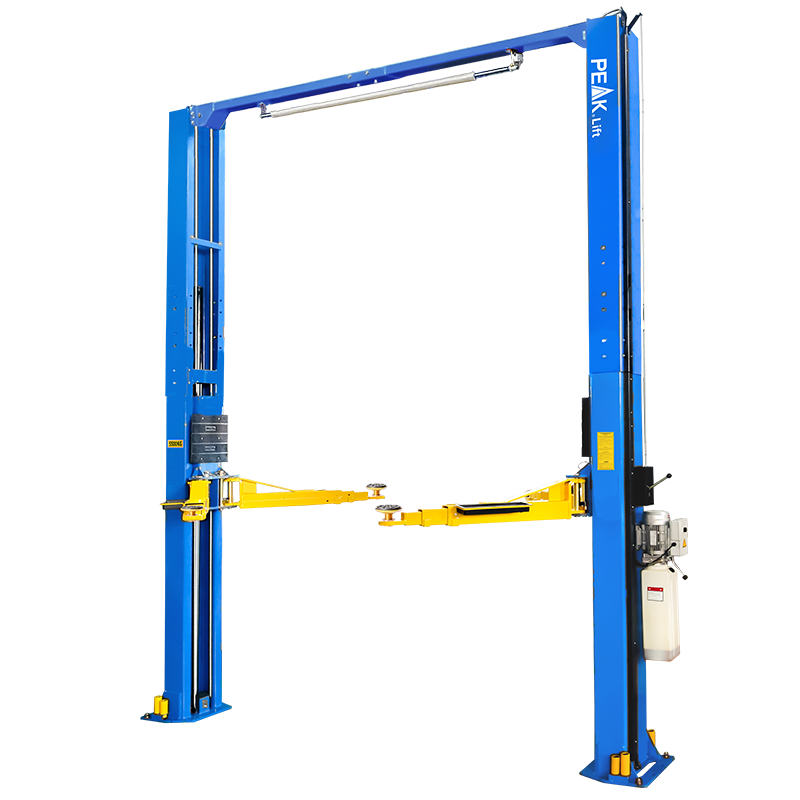

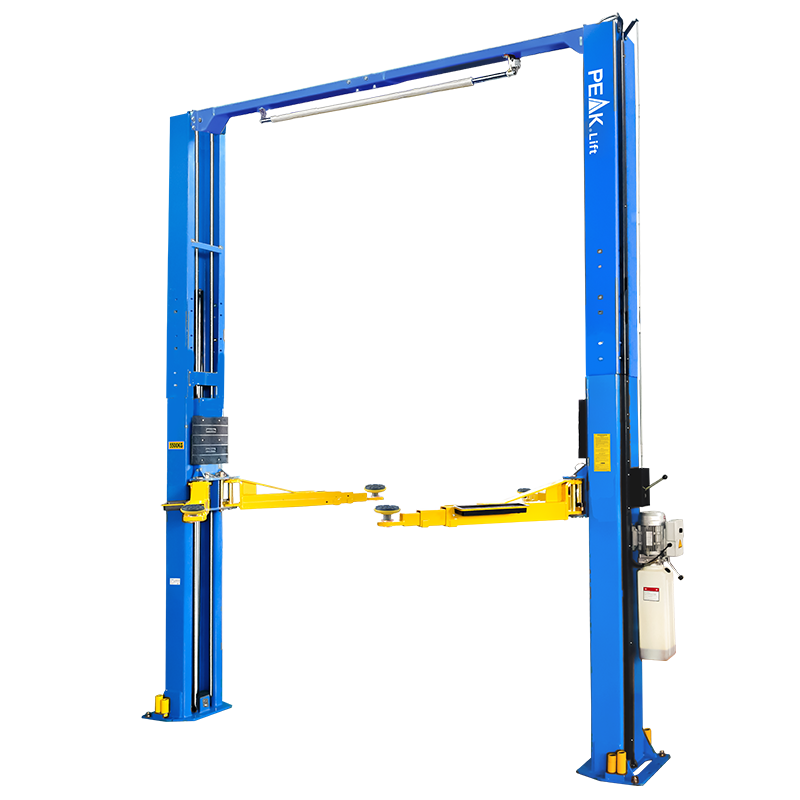

Clear floor direct-drived two-post lift
The 212C is engineered with a overbuilt robust construction to deliver exceptional heavy-duty performance. Its extremely tall frame offers three height settings, thus accommodating a variety of work scenarios. Four reinforced super-long 3-stage arms are capable of servicing a wide range of heavy-duty vehicles of up to 5000 kg. Rubber pads and saddle adapters are included as standard for added comfort.
- Heavy duty design, 5500kg (12,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- The width between columns is extremely wide over 3100mm ;
- Extremely high design, comes standard with 3 adjustable heights settings;
- 3in1 aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Single-screw rubber pad with pin dia 50mm, comes with 3" and 6" extension adapter;
- Saddle adapters also come as standard.
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 212C | Clear Floor Direct-drived | |
| Lifting Capacity | 5500kg(12,000 Ibs) | |
| Lifting Time | A | 69s |
| Max. Lifting height:(w/o extension adapter) | 1842mm(72 1/2")~1876mm(73 7/8") | |
| Max. Lifting height:(w/ extension adapter) | 2071mm(81 9/16")~2105mm(82 7/8") | |
| Max. lock height(w/o extension adapter) | 1792mm(70 9/16")~1826mm(71 7/8") | |
| Max. lock height(w/ extension adapter) | 2021mm(79 9/16")~2055mm(80 15/16") | |
|
Overall Height:(low setting) Overall Height:(Medium setting) Overall Height:(High setting) |
B |
4420mm(174") 4725mm(186") 5030mm(198") |
| Overall Width | C |
3829mm(150 3/4") |
| Drive-Thru Clearance | D |
2787mm(109 3/4") |
| Width Between Columns | E |
3137mm(123 1/2") |
| Minimum Pad Height | F | 115mm(4 1/2") |
| Gross Weight | 1088kg(2,399 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
14 Units/20'GP |
|
| Packing | 2950 x 540 x 1065 mm |
-
Single point safety release makes it easier for operators to unlock both columns from one column.
-

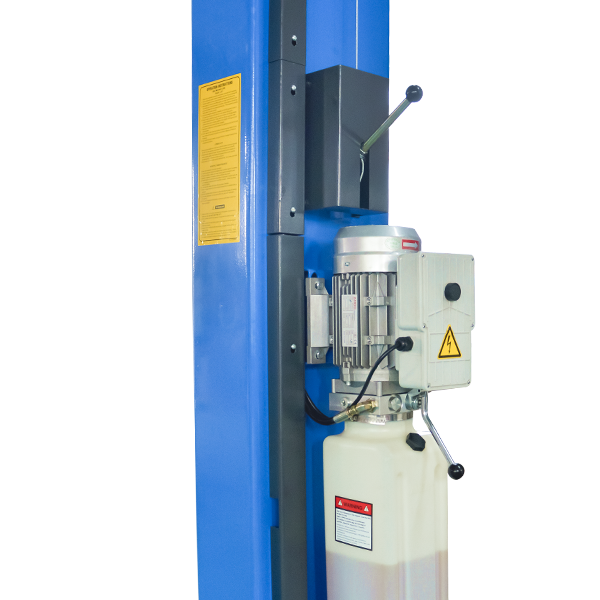

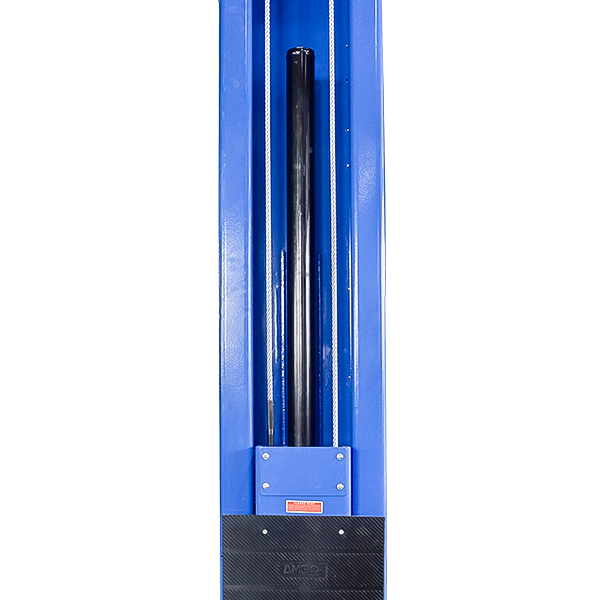

Hydraulic direct-drived cylinders.
-

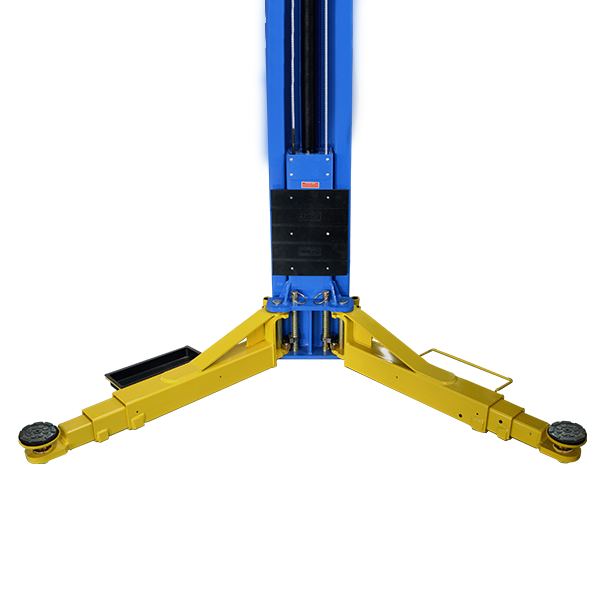

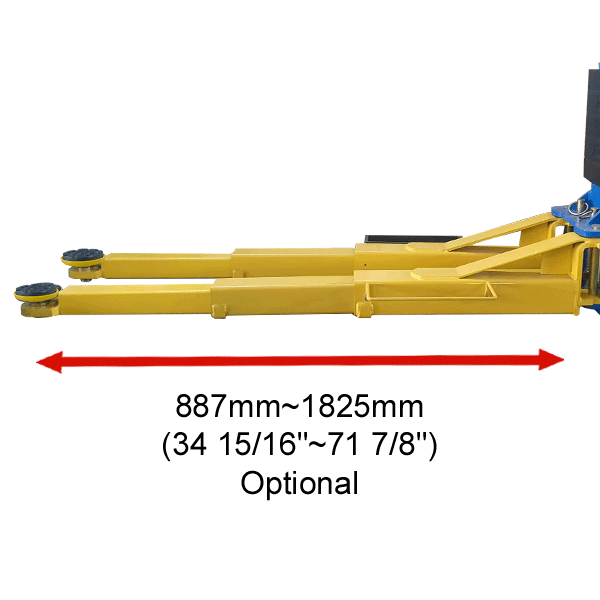

4 three-stages arms are suitable for more vehicles.
-

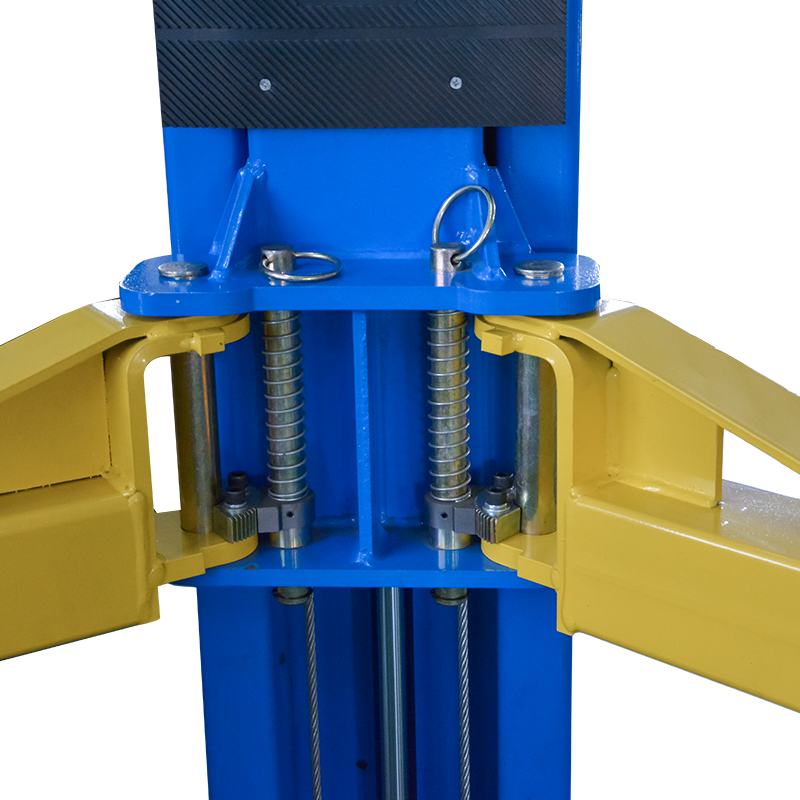

Automatic arm restraints.
-
Toe guards and tool trays come as standard.
-
Self-lubricating bronze bush,no need frequently change.
-

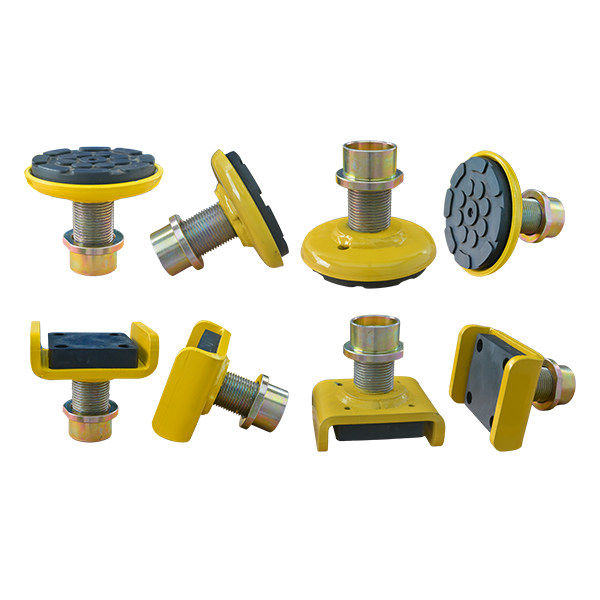

Both heavy duty single-screw rubber pads and saddle adapters come as standard.
-

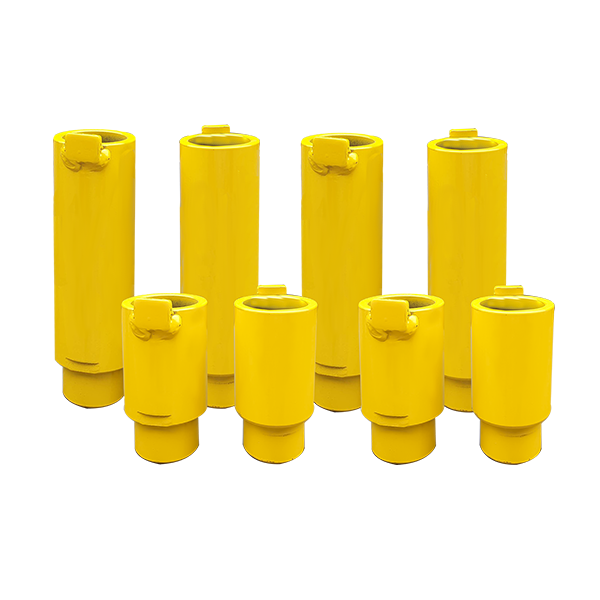

Both 3" and 6" extension adapters come as standard.
-

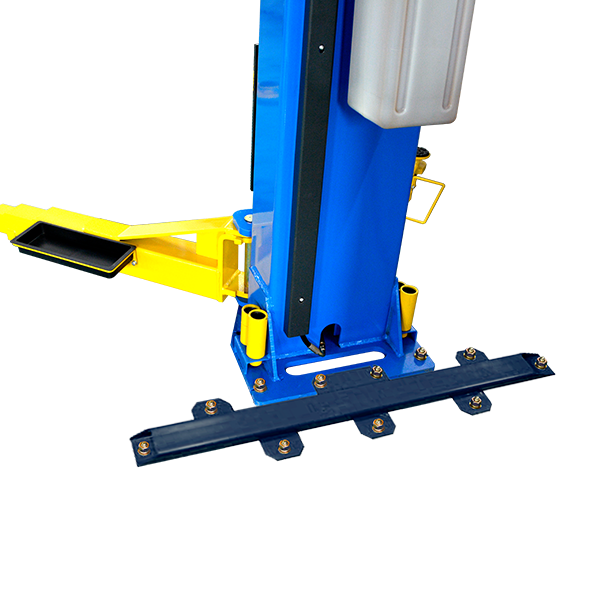

The optional base plate extension.

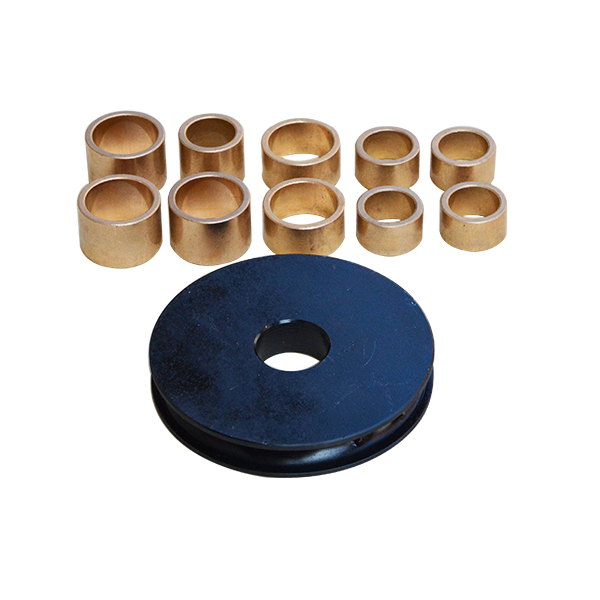

Kits No.: 21501
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 212C: 1088kgs , include power unit gross weight 26kgs.
- 20' container can load 14 units.
-

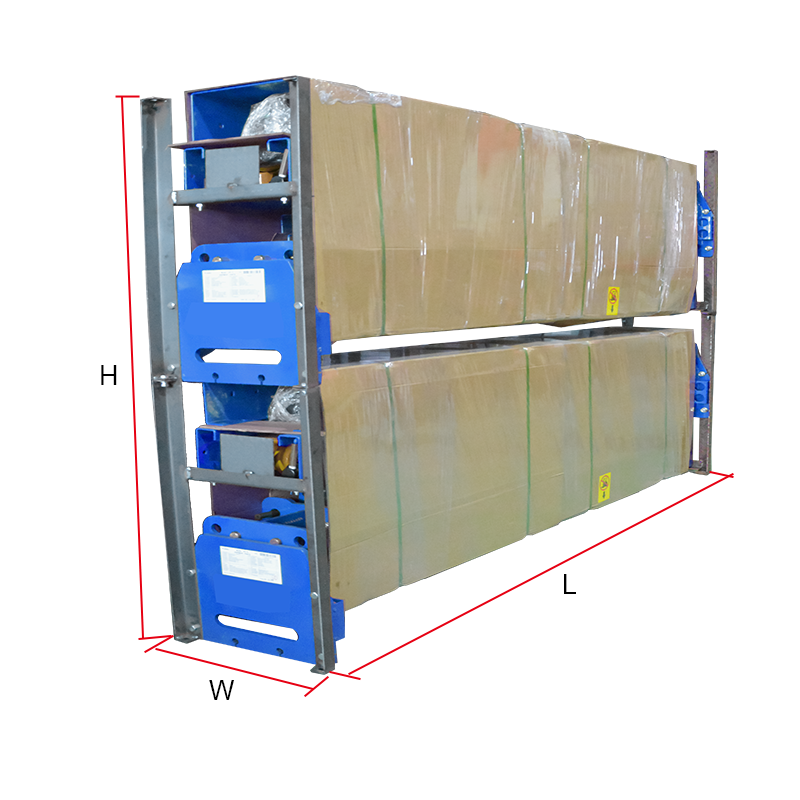

2 units/package,packing measurement (LxWxH):2890x540x2050mm
-
1 unit/ctn, packing measurement (LxWxH): 920x300x360mm
-

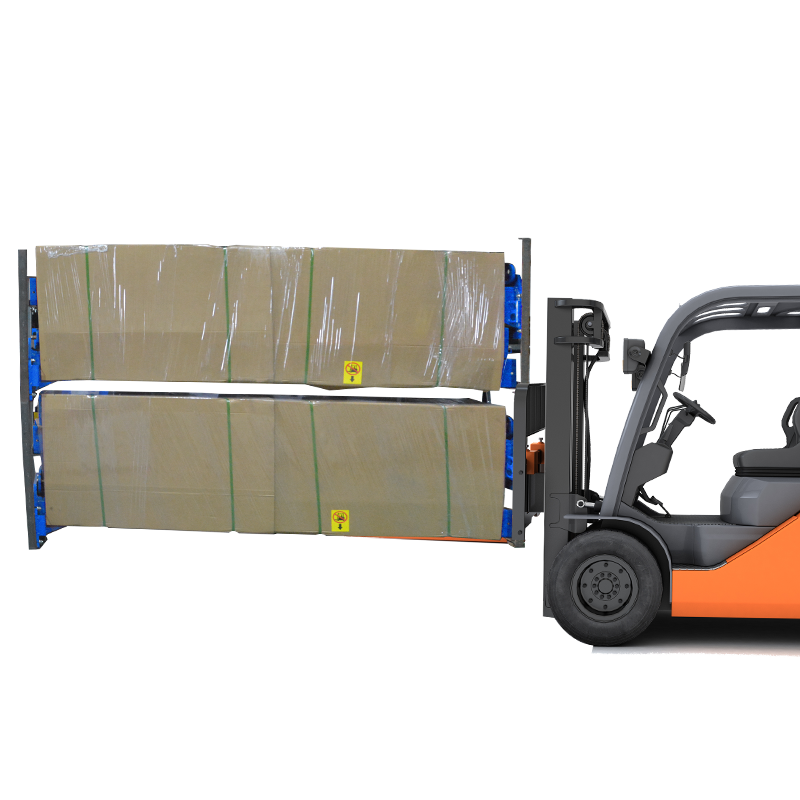

Attention to forklift loading and unloading.
