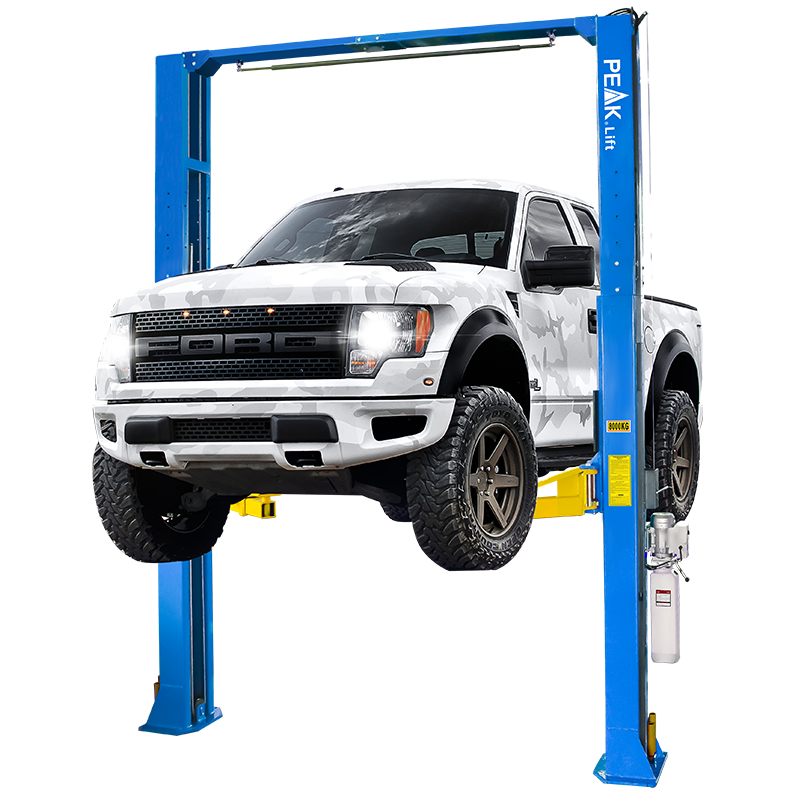

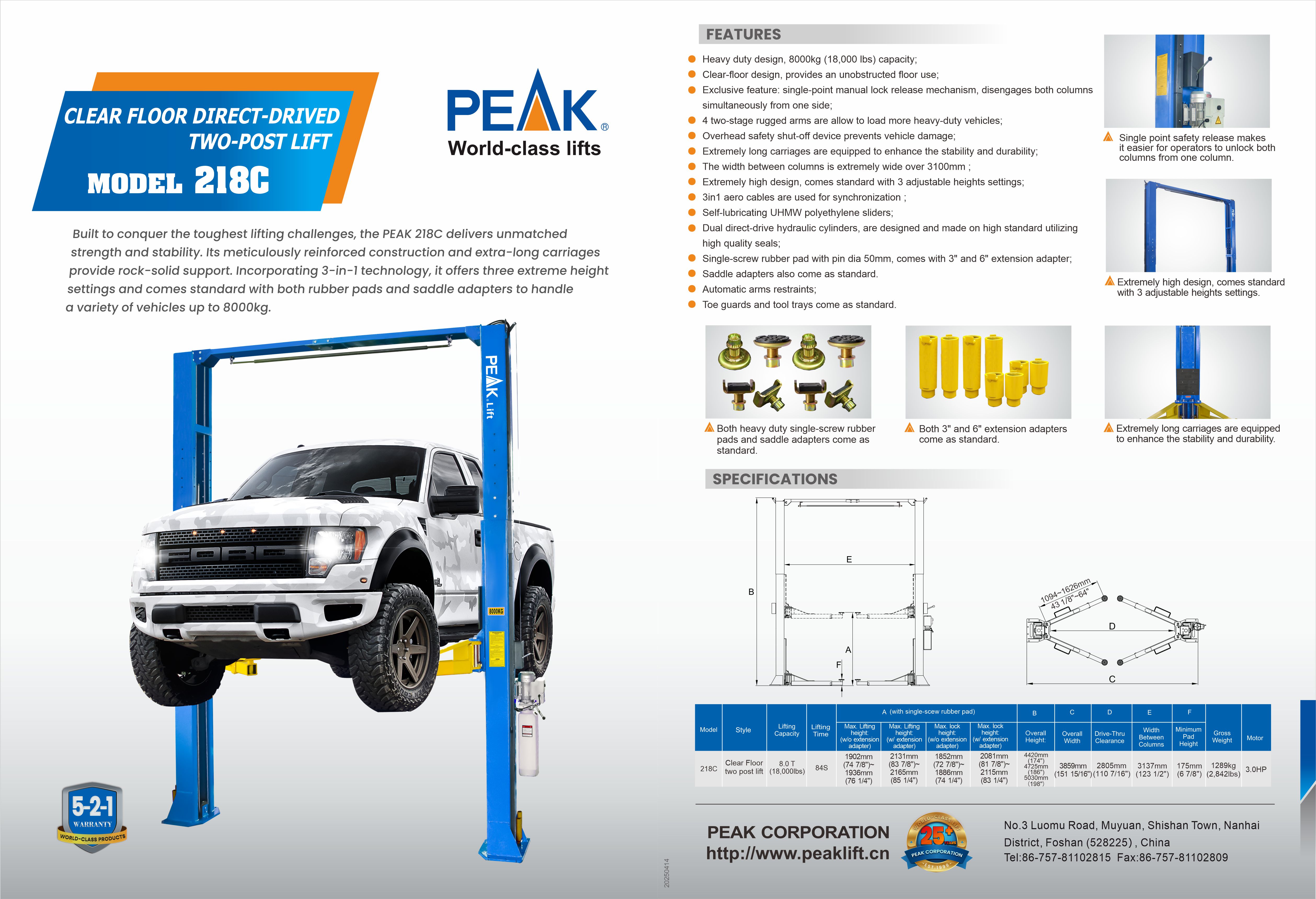

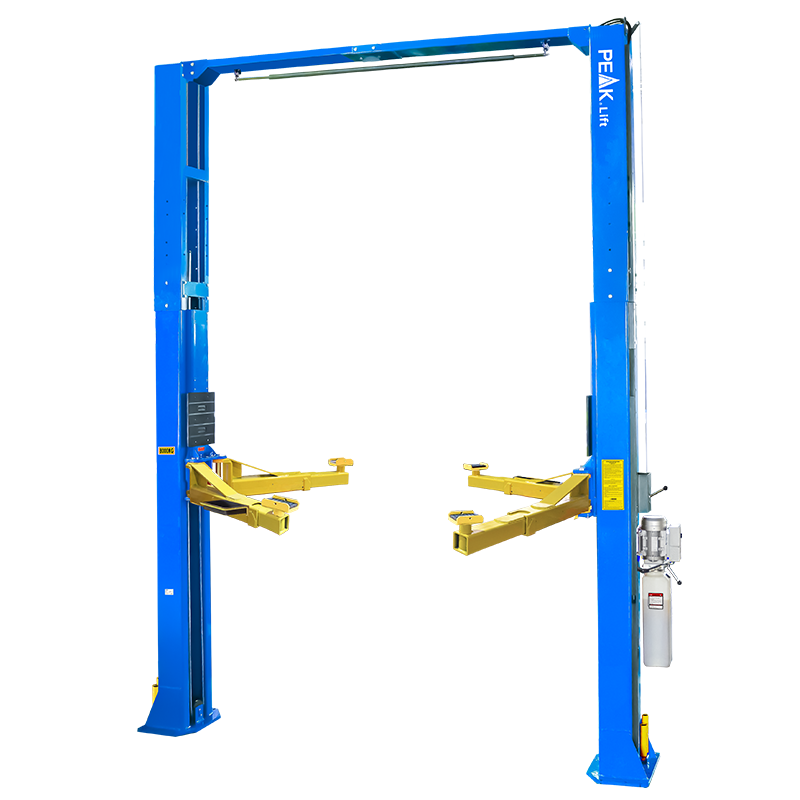

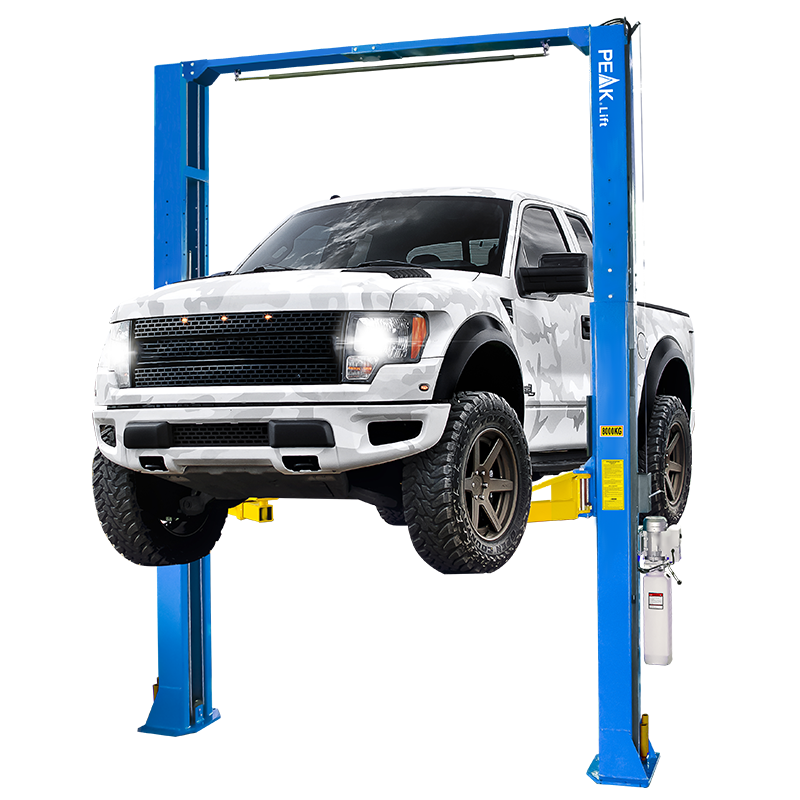

218C
Clear floor direct-drived two-post lift
Great Lifting Giant
Built to conquer the toughest lifting challenges, the PEAK 218C delivers unmatched strength and stability. Its meticulously reinforced construction and extra-long carriages provide rock-solid support. Incorporating 3-in-1 technology, it offers three extreme height settings and comes standard with both rubber pads and saddle adapters to handle a variety of vehicles up to 8000kg.
- Heavy duty design, 8000kg (18,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- 4 two-stage rugged arms are allow to load more heavy-duty vehicles;
- Overhead safety shut-off device prevents vehicle damage;
- Extremely long carriages are equipped to enhance the stability and durability;
- The width between columns is extremely wide over 3100mm ;
- Extremely high design, comes standard with 3 adjustable heights settings;
- 3in1 aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;

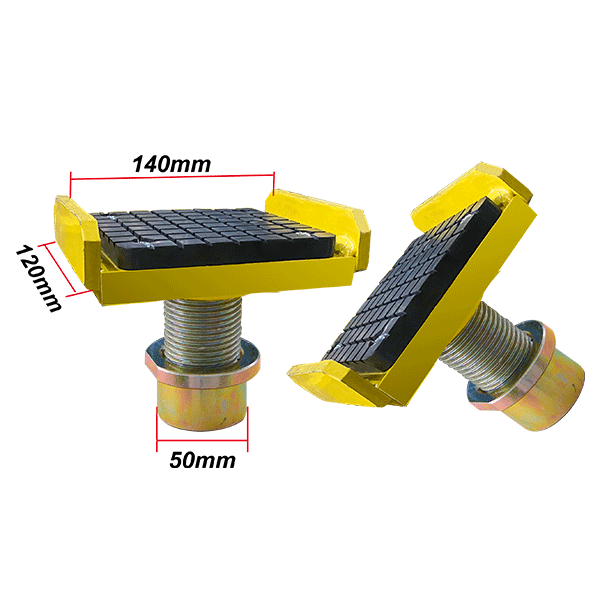

- Single-screw rubber pad with pin dia 50mm, comes with 3" and 6" extension adapter;
- Saddle adapters also come as standard.
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 218C | Clear Floor Two Post Lift | |
| Lifting Capacity | 8000kg(18,000 Ibs) | |
| Lifting Time | A | 84s |
| Max. Lifting height:(w/o extension adapter) | 1902mm(74 7/8")~1936mm(76 1/4") | |
| Max. Lifting height:(w/ extension adapter) | 2131mm(83 7/8")~2165mm(85 1/4") | |
| Max. lock height(w/o extension adapter) | 1852mm(72 7/8")~1886mm(74 1/4") | |
| Max. lock height(w/ extension adapter) | 2081mm(81 7/8")~2115mm(83 1/4") | |
|
Overall Height:(low setting) Overall Height:(Medium setting) Overall Height:(High setting) |
B |
4420mm(174") 4725mm(186") 5030mm(198") |
| Overall Width | C |
3859mm(151 15/16") |
| Drive-Thru Clearance | D |
2805mm(110 7/16") |
| Width Between Columns | E |
3137mm(123 1/2") |
| Minimum Pad Height | F | 175mm(6 7/8") |
| Gross Weight | 1289kg(2,842 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
8 Units/20'GP 24 Units/40'GP |
|
| Packing | 3430 x 570 x 950 mm |
-

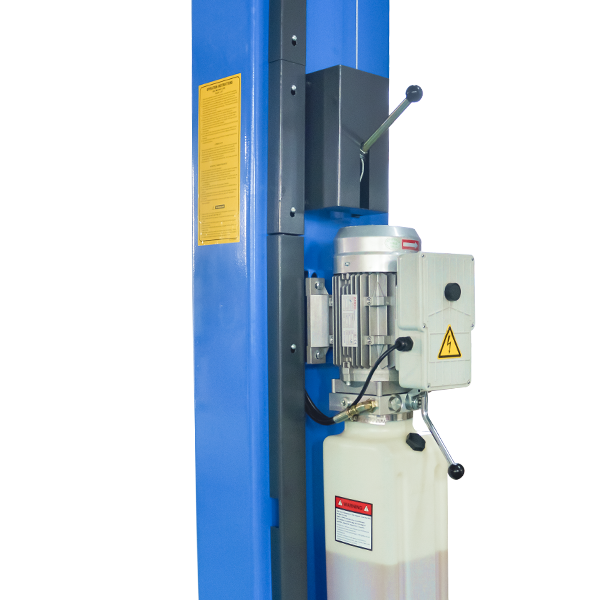

Single point safety release makes it easier for operators to unlock both columns from one column.
-
Hydraulic direct-drived cylinders.
-

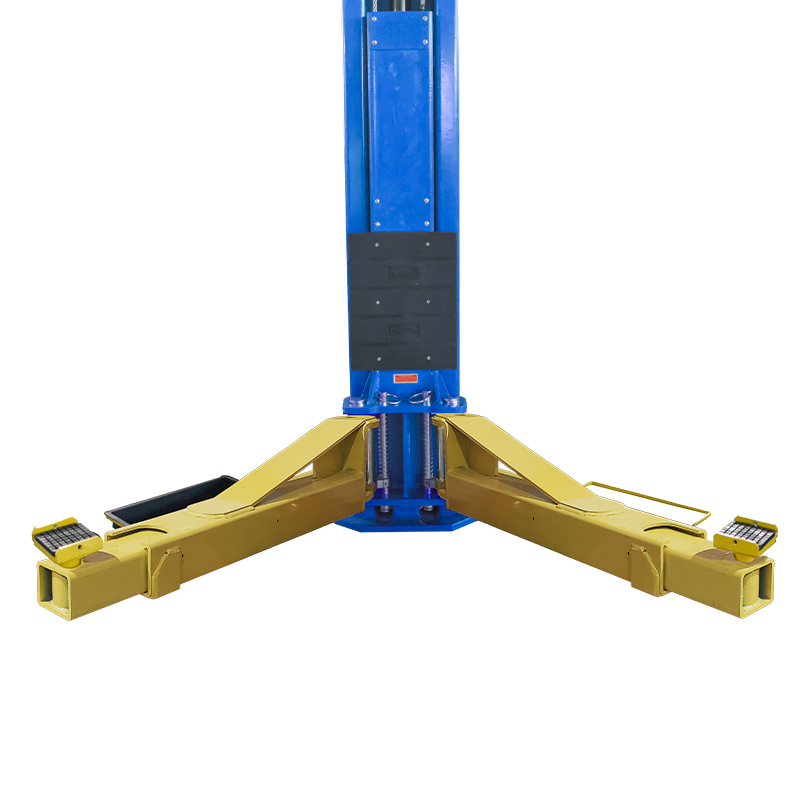

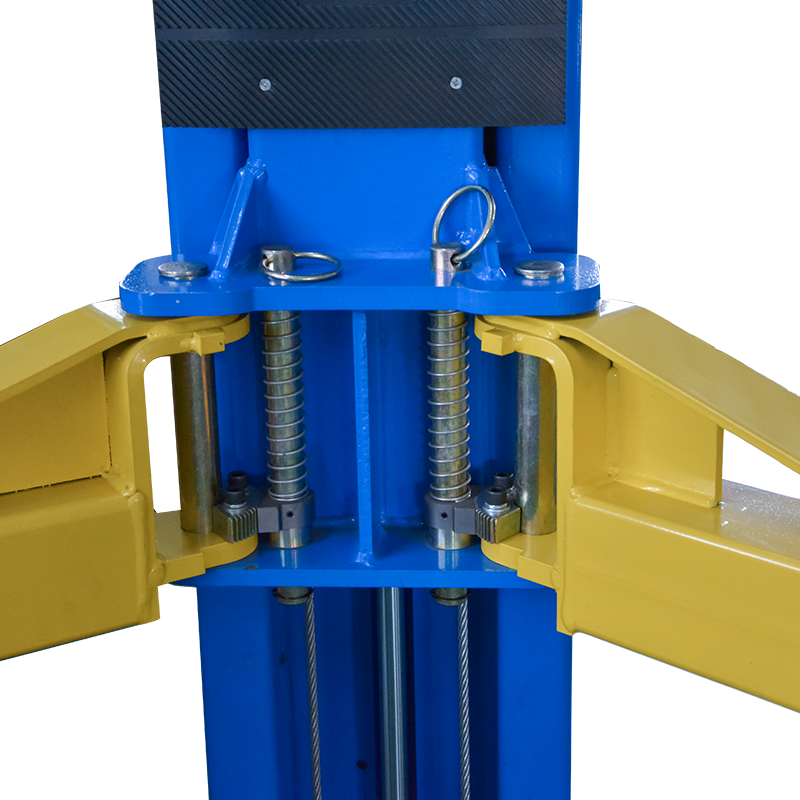

4 two-stages arms are allow to load more heavy-duty vehicles.
-
Automatic arm restraints.
-

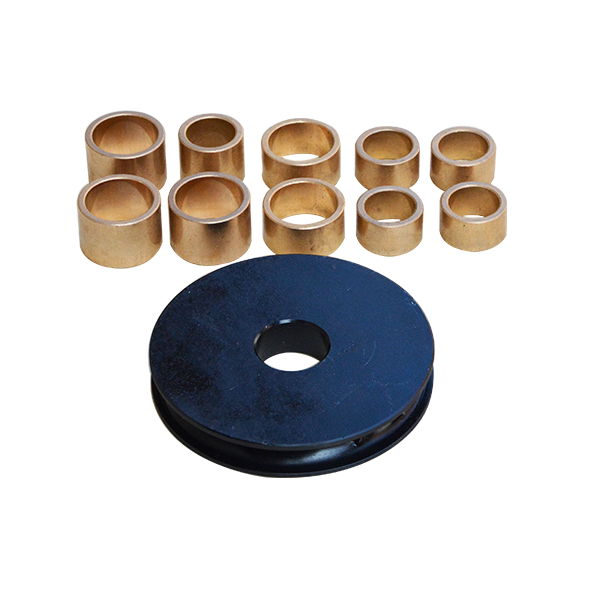

Self-lubricating bronze bush,no need frequently change.
-
Toe guards and tool trays come as standard.
-

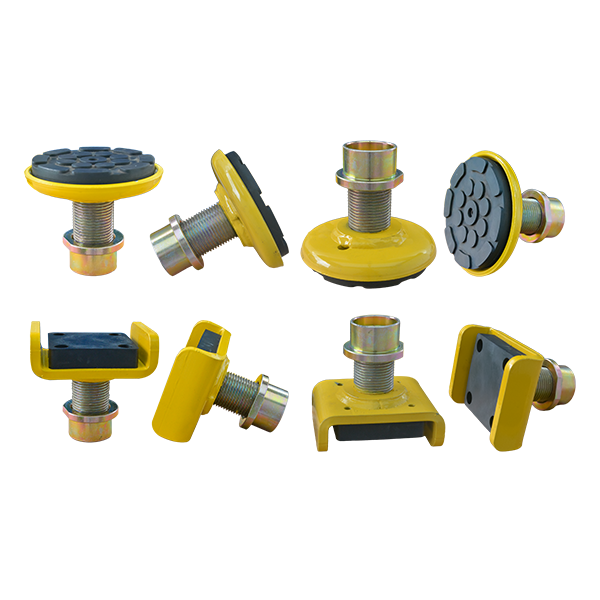

Both heavy duty single-screw rubber pads and saddle adapters come as standard.
-

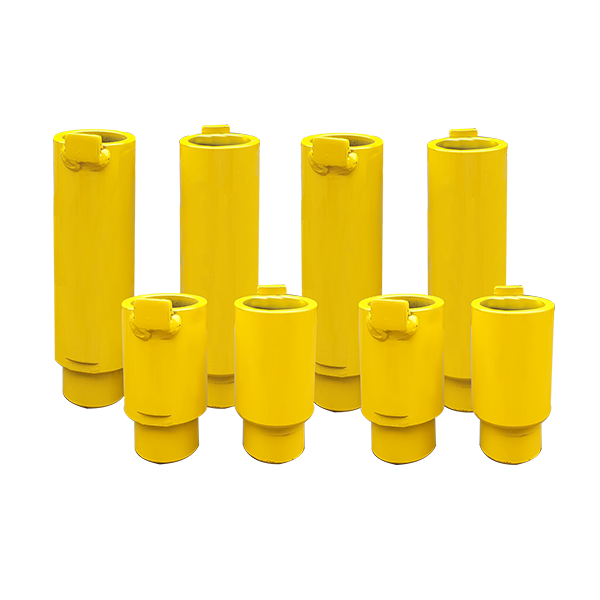

Both 3" and 6" extension adapters come as standard.
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 218C: 1289kgs , include power unit gross weight 26kgs.
- 20' container can load 8 units.
-

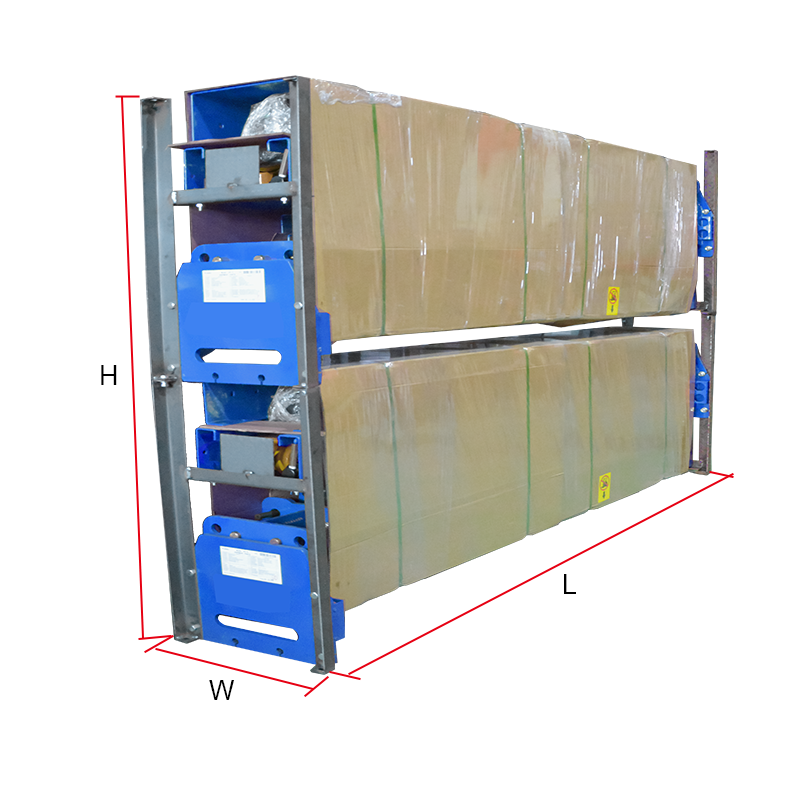

2 units/package,packing measurement (LxWxH):3400x570x1888mm
-

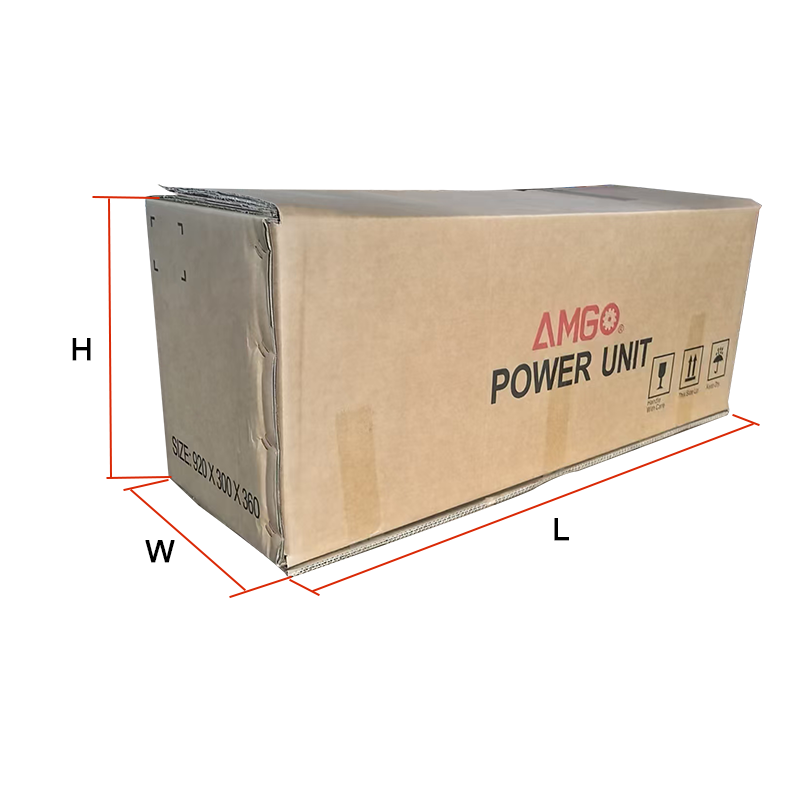

1 unit/ctn, packing measurement (LxWxH): 1005x300x360mm
-

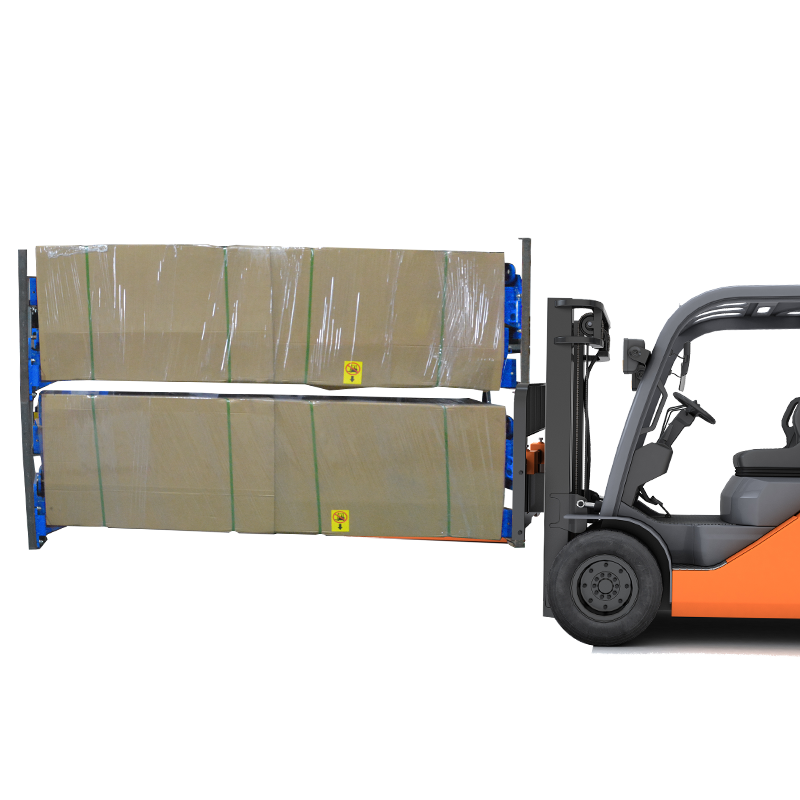

Attention to forklift loading and unloading.
