DP10
Clear Floor Direct-Drived Two-Post Lift
Turly exceptional
The PEAK DP10 exemplifies PEAK's leadership in advanced engineering and manufacturing, certified to meet stringent ALI standards for safety and reliability. Its advanced frame boasts an impressive 4500KG lifting capacity and features PEAK's proprietary Super Asymmetric Technology and dual height adjustment, providing unparalleled versatility and expandability for optimum performance.
- 4500kg (10,000lbs) capacity.
- Dual hydraulic direct-drived cylinders made on high standard.
to load different vehicles in an asymmetric or symmetric configuration.- Aero cable used for synchronization.
- Single-point safety release, allow technican to disengage both column simultaneously.
- Self-lubricating UHMW Polyethylene sliders.
- Clear-floor design, provide unobstructed floor use.
- Overhead safety shut-off device prevents vehicle damage.
- Stackable rubber pads and 1.5'',2.5'',5''adapters as standard supply.
- Standard two height settings accommodate varying ceiling heights.
- Standard door guards.
- Standard toe guards on lifting arms.
| Model DP10 | Clear Floor two post lift | |
| Lifting Capacity | 4500kg(10,000 Ibs) | |
| Lifting Time | A | 57s |
| Max.Lifting height:(w/o extension adapter) | 1815mm(71 1/2") | |
| Max.Lifting height:(w/ extension adapter) | 2044mm(80 1/2") | |
| Max.lock height(w/o extension adapter) | 1765mm(69 1/2") | |
| Max.lock height(w/ extension adapter) | 1994mm(78 1/2") | |
| Overall Height:(low setting) | B |
3620mm(142 1/2") |
| Overall Height:(medium setting) | 3823mm(150 1/2") | |
| Overall Width | C | 3428mm(135") |
| Drive-Thru Clearance | D | 2528mm(99 1/2") |
| Width Between Columns | E | 2850mm(112 3/16") |
| Minimum Pad Height | F | 100mm(3 15/16") |
| Gross Weight | 745kg(1,642 Ibs) | |
| Motor | 2.0HP | |
| QTY of Container | 25 Units/20'GP 50 Units/40'GP |
|
| Packing Dimension | 2800 X 450 X 820 mm |
-

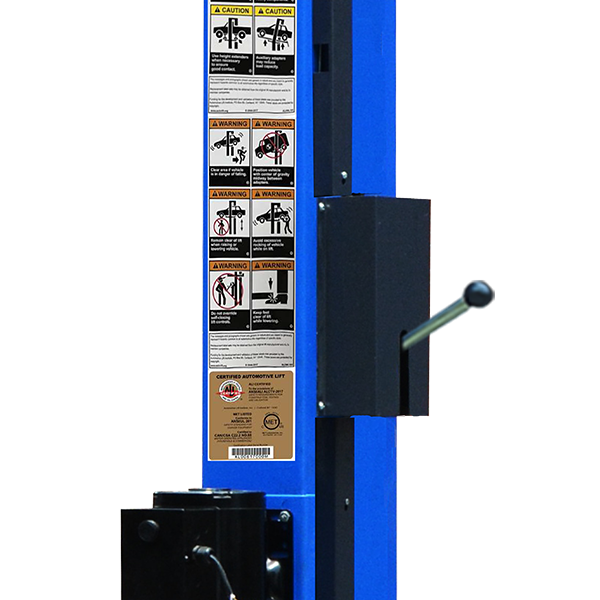

Single point safety release makes it easier for operators to unlock both columns from one column.
-

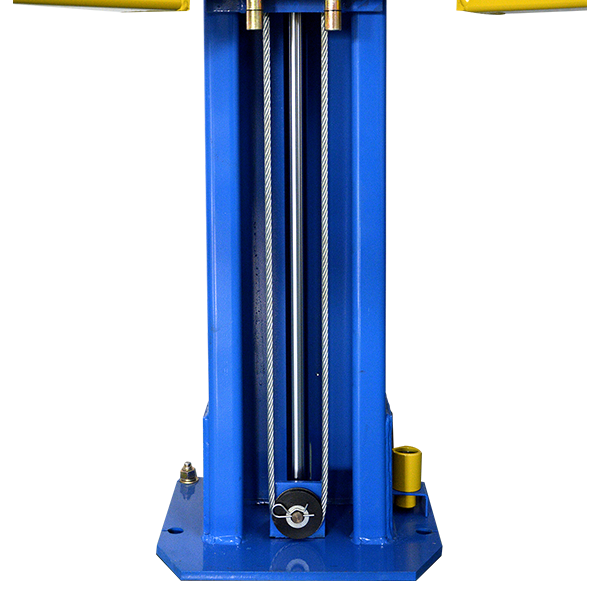

Hydraulic direct-drived cylinders.
-

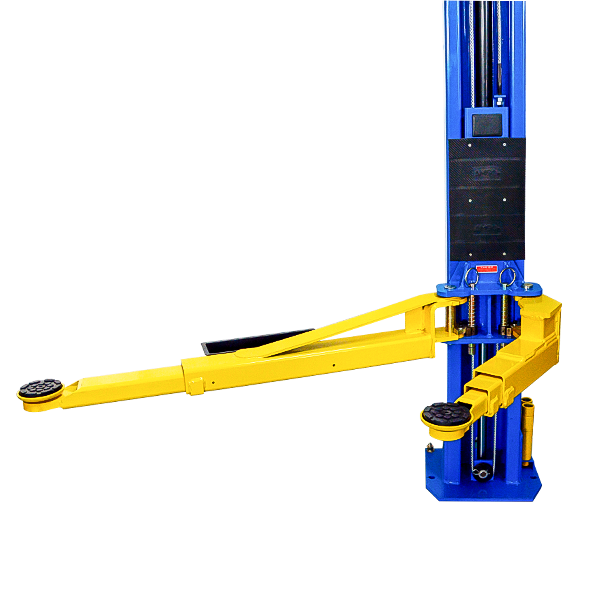

arms allow to load different vehicles in an asymmetric or symmetric configuration. -

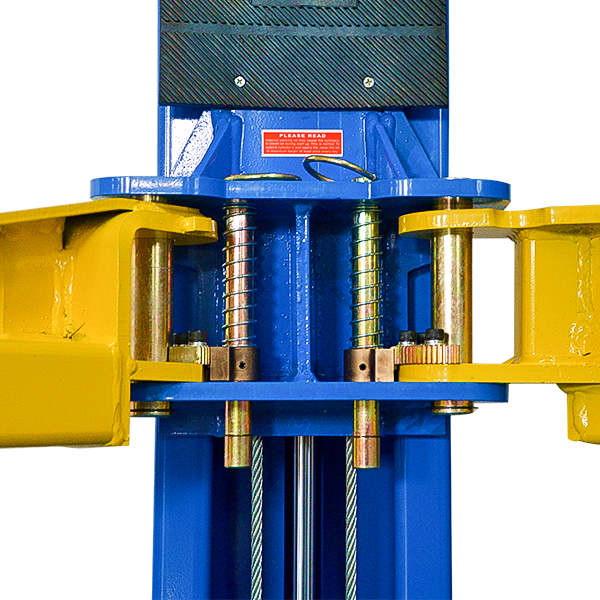

Automatic arm restraints.
-

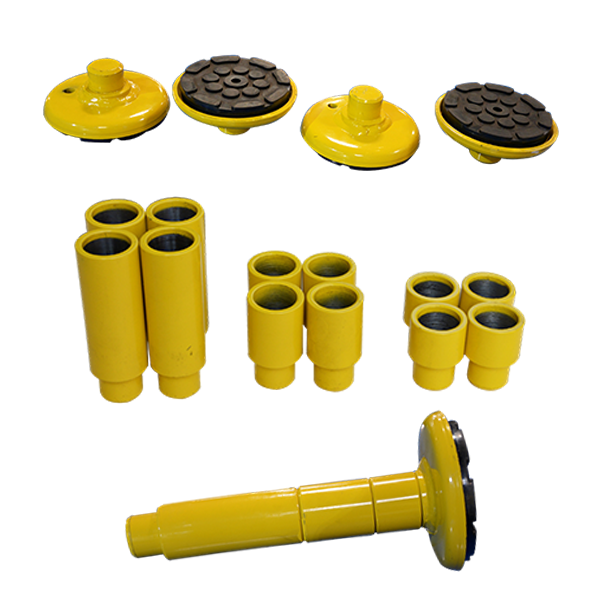

The stackable rubber pads assembly with 1.5",2.5",5" extension adapters.
-

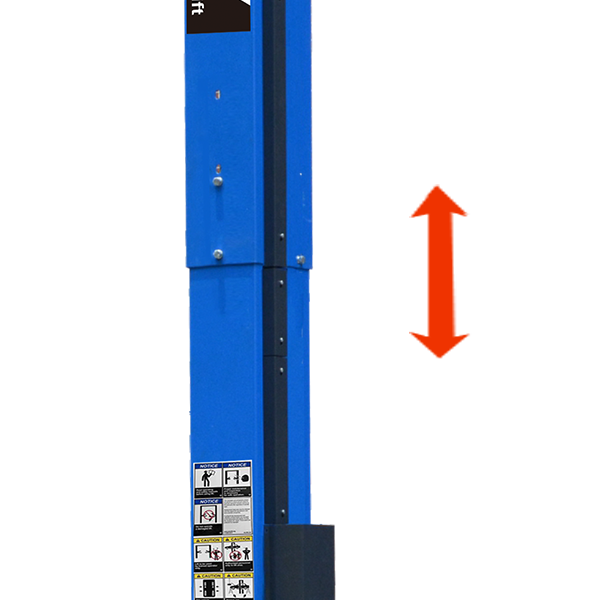

Standard two-height settings to accommodate varying ceiling heights.
-

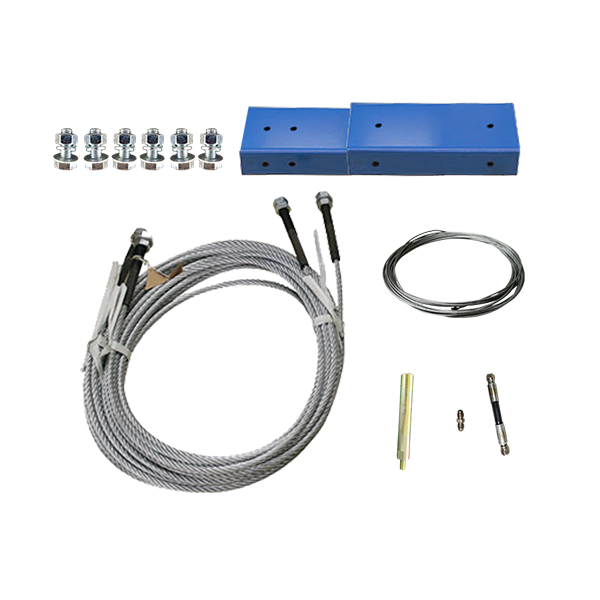

Optional width extension kits,that can extend the width from 2850mm to 3000mm.
Kits No.: 20906 -
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for DP10: 745kgs , include power unit gross weight 25kgs.
- 20' container can load 25 units.
- Attention to forklift loading and unloading.
-

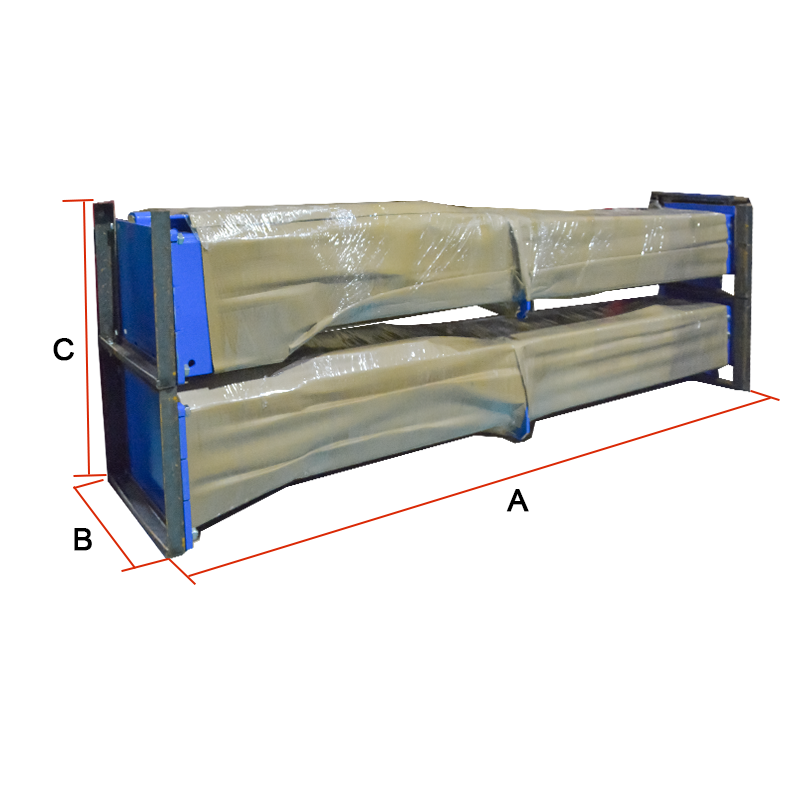

2 units/package,packing measurement (LxWxH):2885x450x1530mm
-

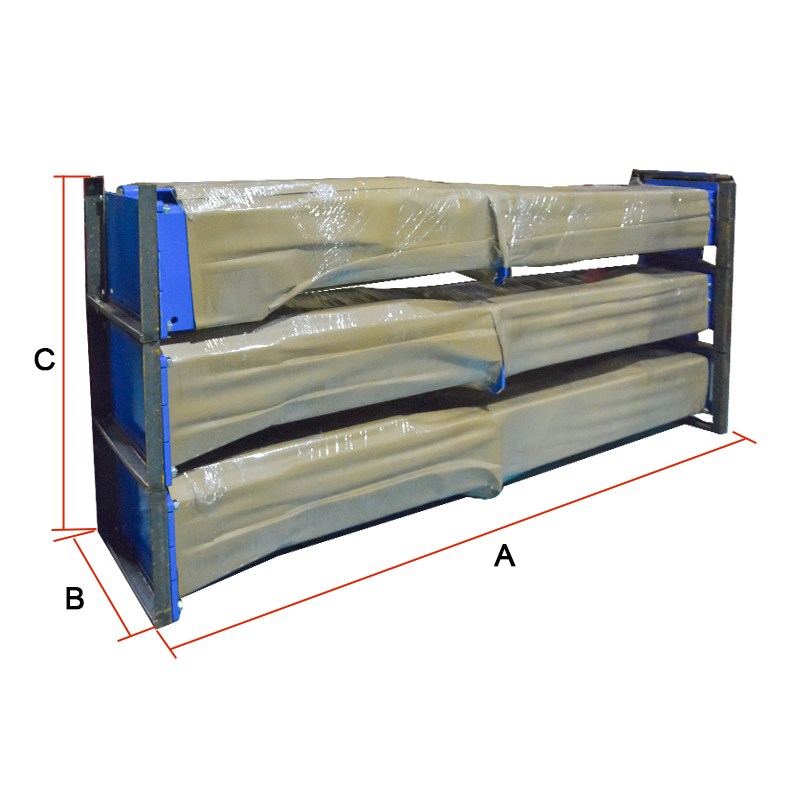

3 units/package, packing measurement (LxWxH): 2910x450x2265mm
-

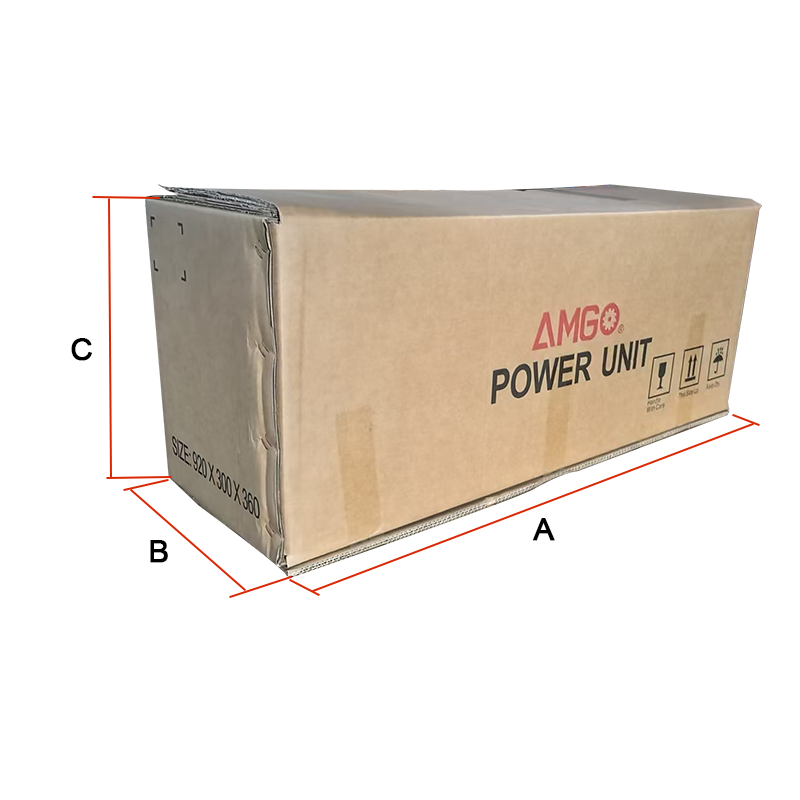

1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

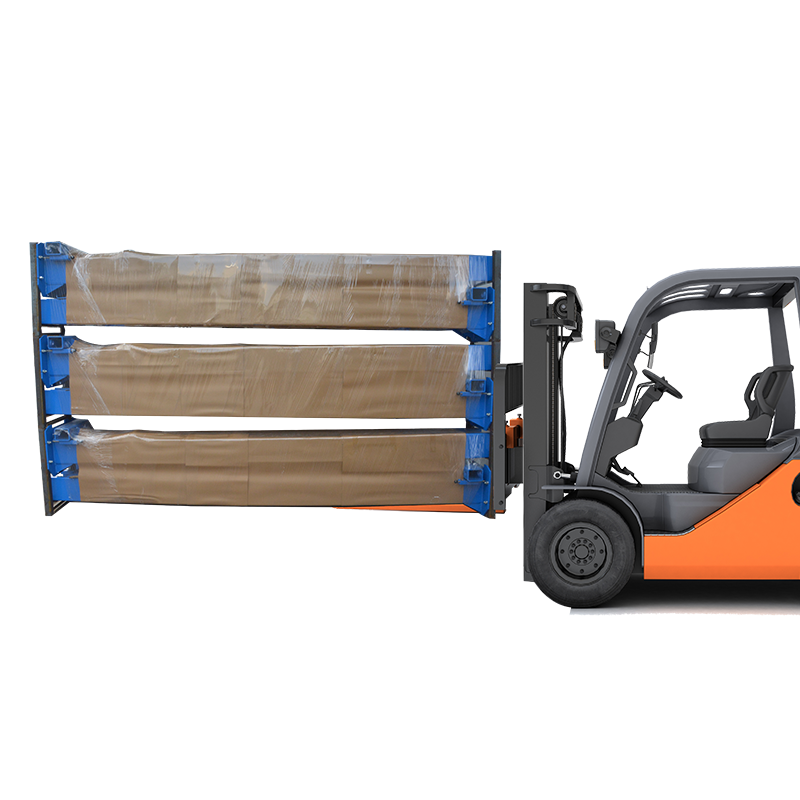

Attention to forklift loading and unloading
