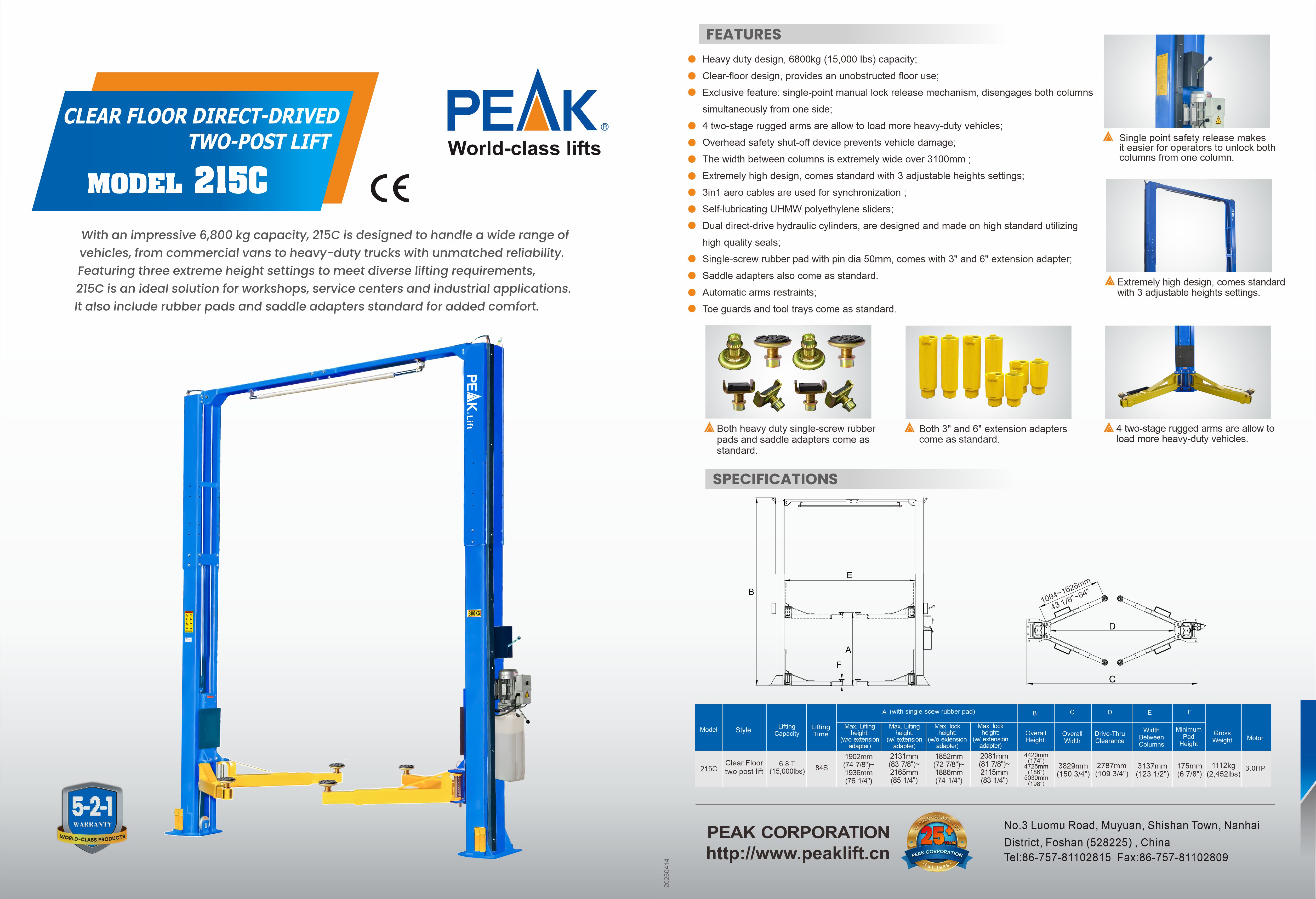

215C

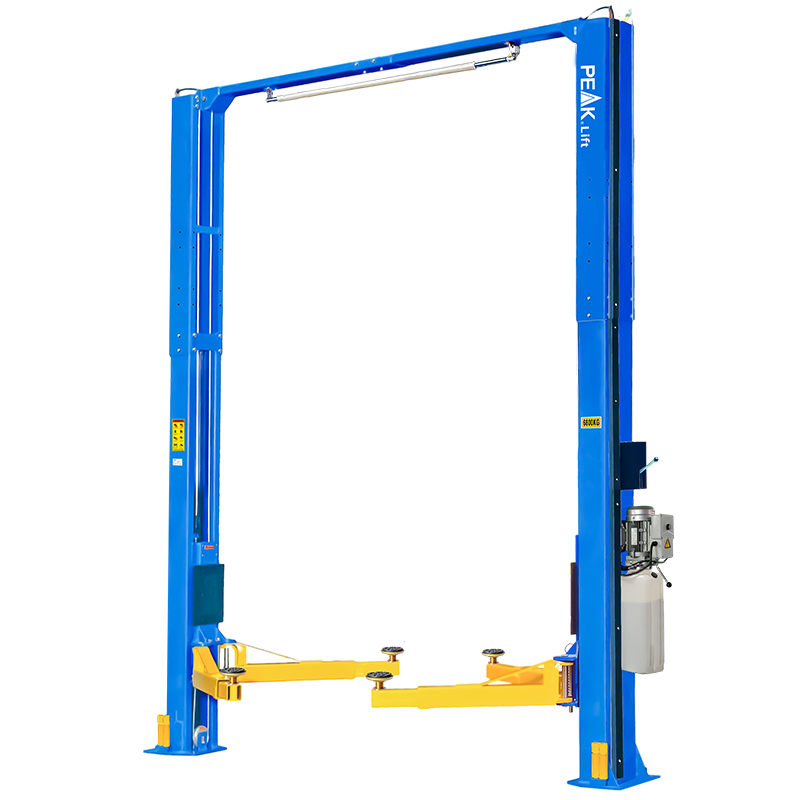

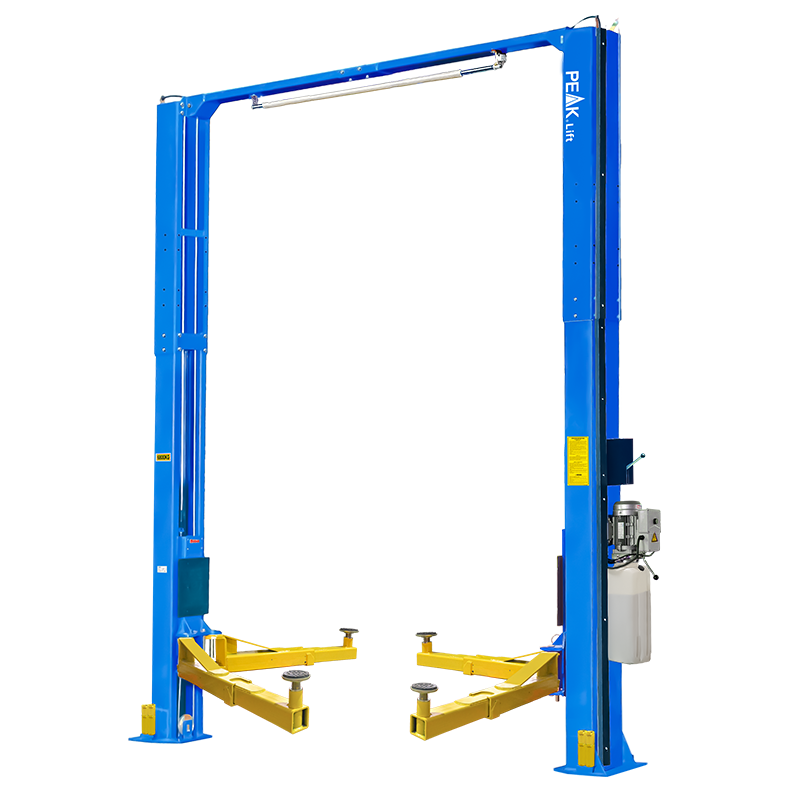

Clear floor direct-drived two-post lift
Borned for higher and heavier
With an impressive 6,800 kg capacity, 215C is designed to handle a wide range of vehicles, from commercial vans to heavy-duty trucks with unmatched reliability. Featuring three extreme height settings to meet diverse lifting requirements, 215C is an ideal solution for workshops, service centers and industrial applications. It also include rubber pads and saddle adapters standard for added comfort.
- Heavy duty design, 6800kg (15,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- 4 two-stage rugged arms are allow to load more heavy-duty vehicles;
- Overhead safety shut-off device prevents vehicle damage;
- The width between columns is extremely wide over 3100mm ;
- Extremely high design, comes standard with 3 adjustable heights settings;
- 3in1 aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Single-screw rubber pad with pin dia 50mm, comes with 3" and 6" extension adapter;
- Saddle adapters also come as standard.
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 215C | Clear Floor Two Post Lift | |
| Lifting Capacity | 6800kg(15,000 Ibs) | |
| Lifting Time | A | 84s |
| Max. Lifting height:(w/o extension adapter) | 1902mm(74 7/8")~1936mm(76 1/4") | |
| Max. Lifting height:(w/ extension adapter) | 2131mm(83 7/8")~2165mm(85 1/4") | |
| Max. lock height(w/o extension adapter) | 1852mm(72 7/8")~1886mm(74 1/4") | |
| Max. lock height(w/ extension adapter) | 2081mm(81 7/8")~2115mm(83 1/4") | |
|
Overall Height:(low setting) Overall Height:(Medium setting) Overall Height:(High setting) |
B |
4420mm(174") 4725mm(186") 5030mm(198") |
| Overall Width | C |
3829mm(150 3/4") |
| Drive-Thru Clearance | D |
2787mm(109 3/4") |
| Width Between Columns | E |
3137mm(123 1/2") |
| Minimum Pad Height | F | 175mm(6 7/8") |
| Gross Weight | 1112kg(2,452 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
14 Units/20'GP |
|
| Packing | 2950 x 540 x 1065 mm |
-

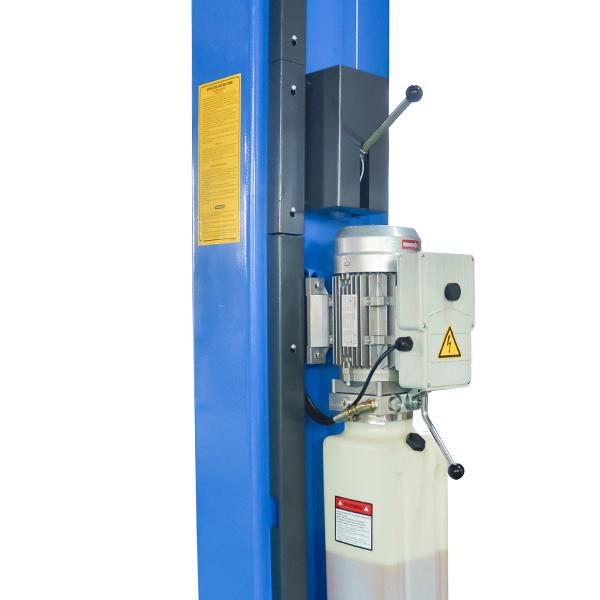

Single point safety release makes it easier for operators to unlock both columns from one column.
-

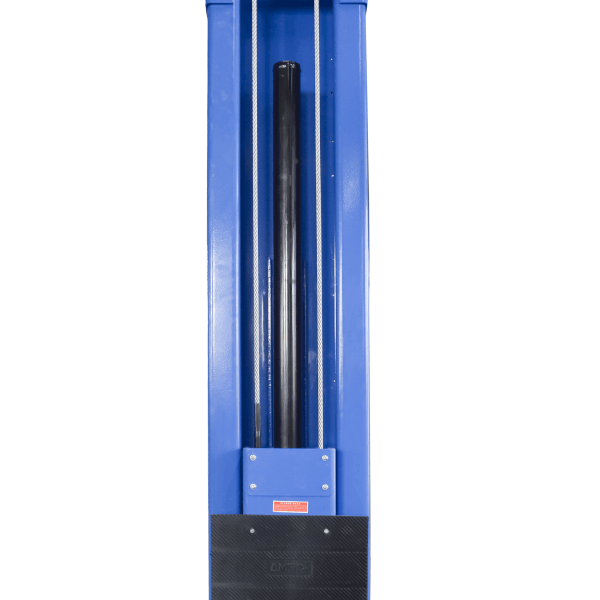

Hydraulic direct-drived cylinders.
-

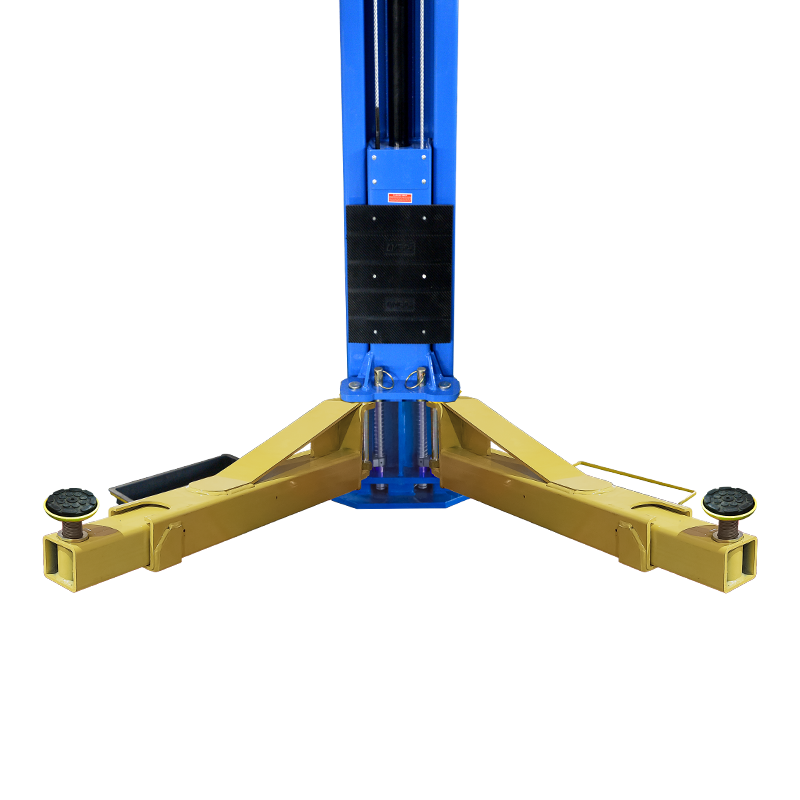

4 two-stages arms are allow to load more heavy-duty vehicles.
-

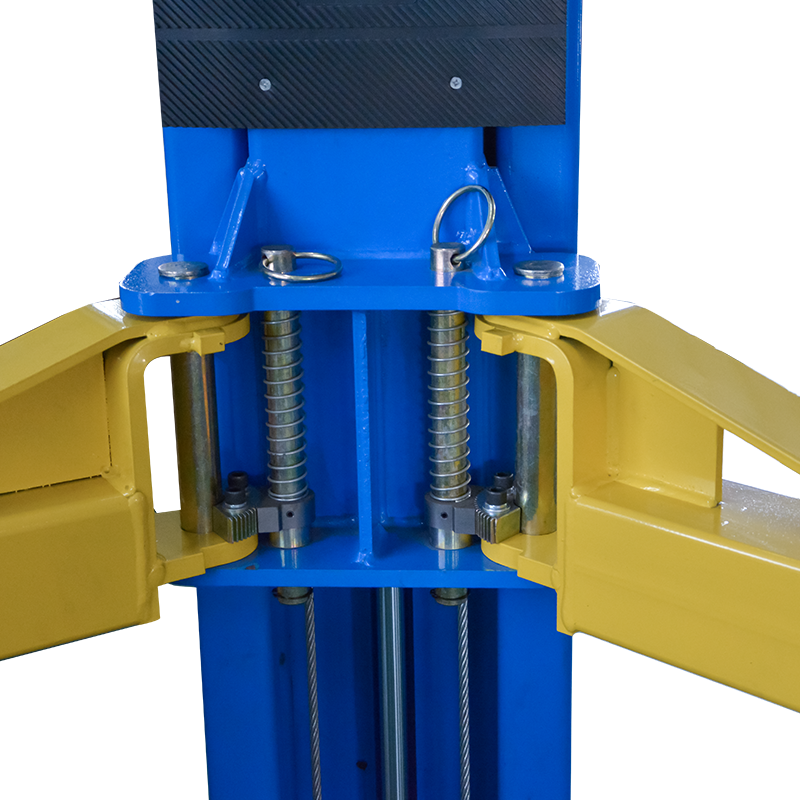

Automatic arm restraints.
-

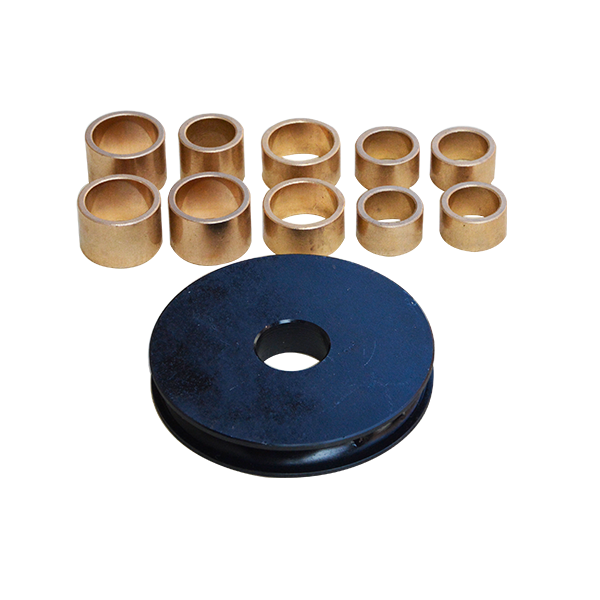

Self-lubricating bronze bush,no need frequently change.
-
Toe guards and tool trays come as standard.
-

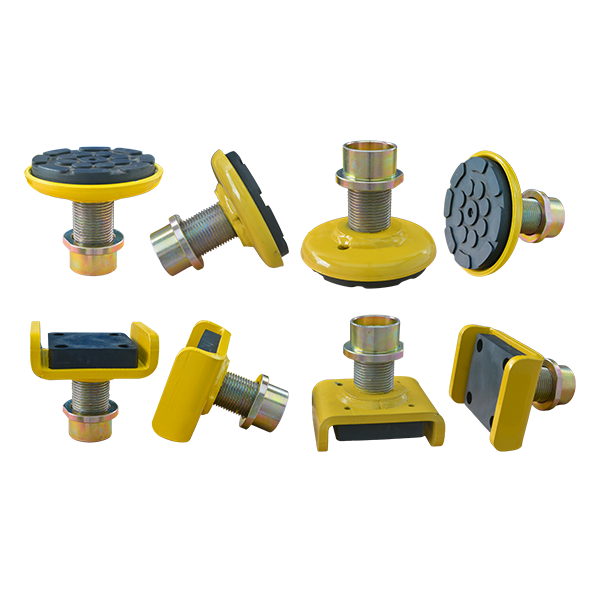

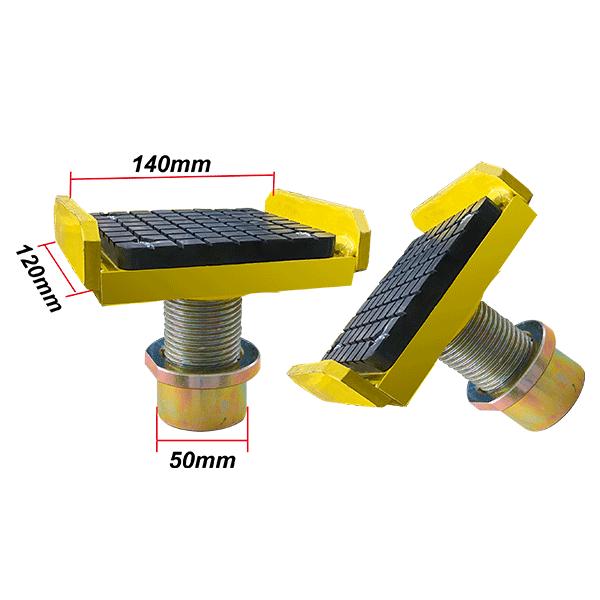

Both heavy duty single-screw rubber pads and saddle adapters come as standard.
-

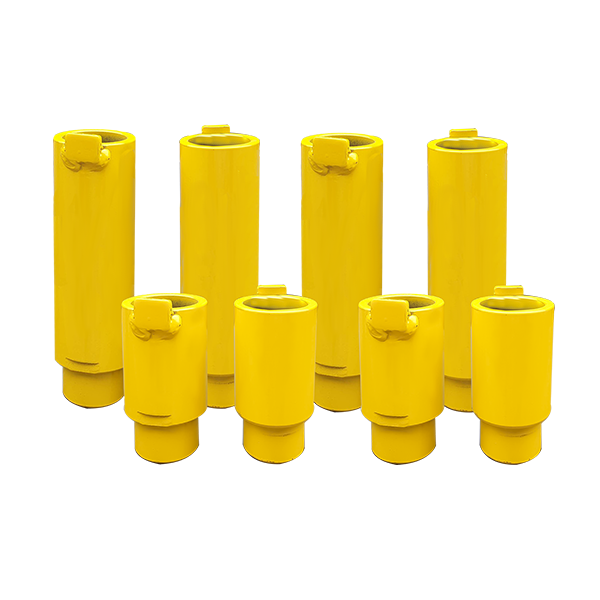

Both 3" and 6" extension adapters come as standard.
-

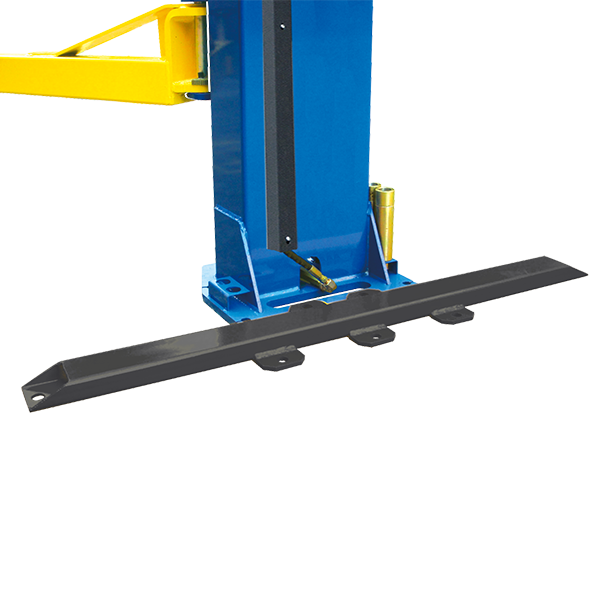

The optional base plate extension.
Kits No.: 21501
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 215C: 1112kgs , include power unit gross weight 26kgs.
- 20' container can load 14 units.
-

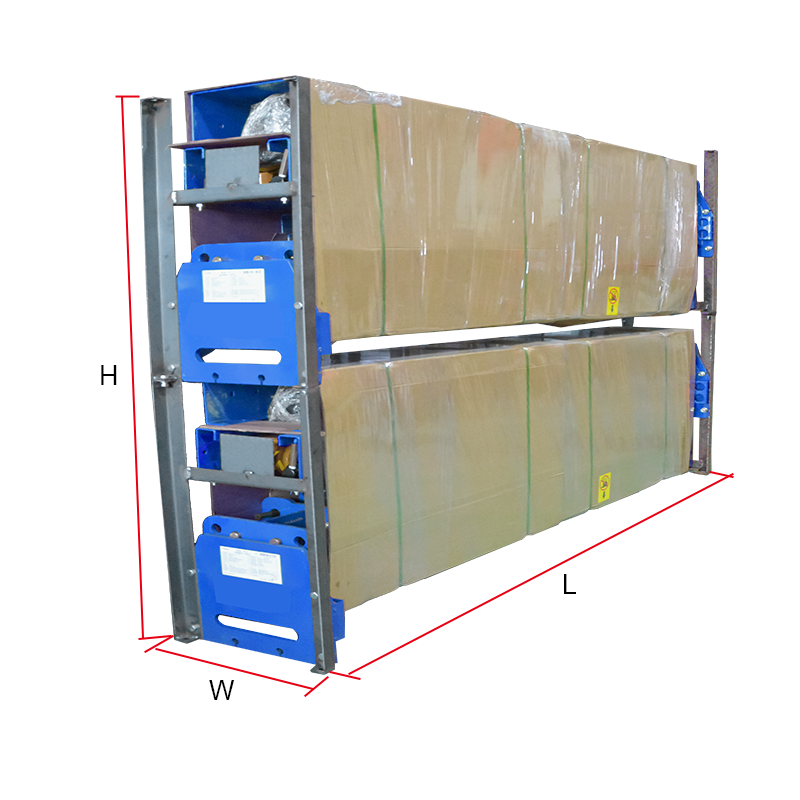

2 units/package,packing measurement (LxWxH):2890x540x2050mm
-

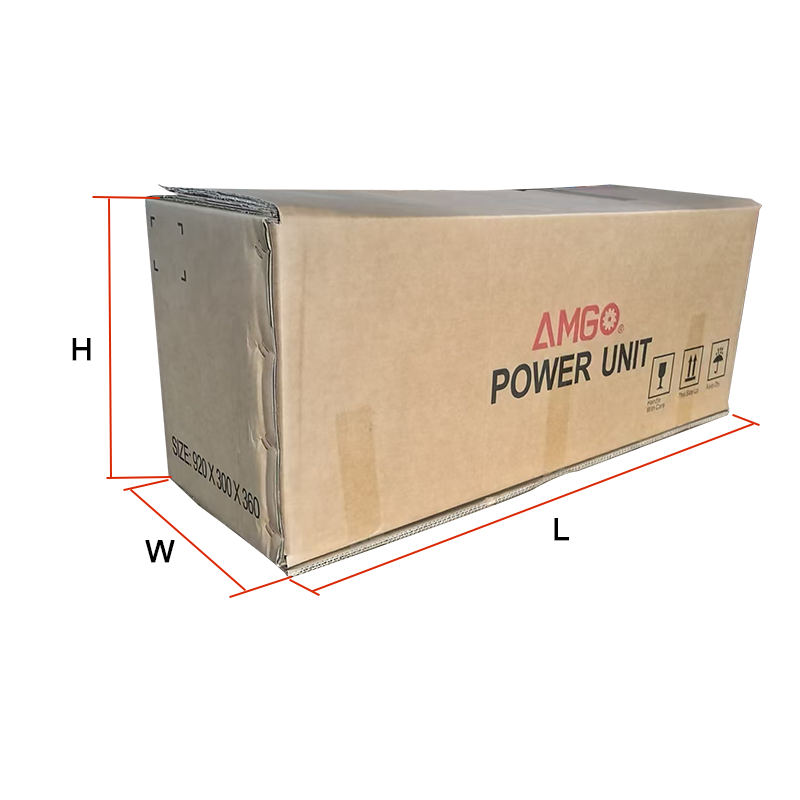

1 unit/ctn, packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
