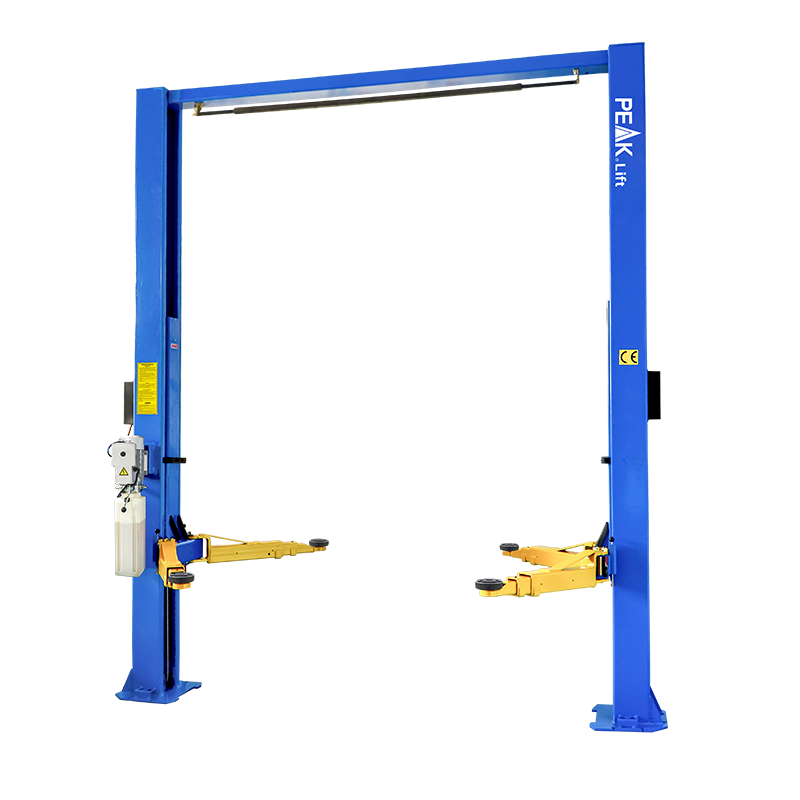

208C
Clear Floor Two Post Lift
Starts your success
A reliable lift, manufactured under PEAK's princinple of world class car lifts, is the key to starting your success. It can easily handle your busy daily service for most vehicle in the market with simple opeation, strong safety design and durability in use. It's equipped with 4 three-stage arms and Single-point lock release mechanism.
- 4000kg (9,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- Extremely long carriages are equipped to enhance the stability and durability;
- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders and bronze bush;
- Dual chain-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Single-screw rubber pad with pin dia. 38mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 208C | Clear Floor Two Post Lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | A | 57s |
| Max. Lifting height:(w/o extension adapter) | 1814mm(71 7/16")~1846mm(72 11/16") | |
| Max. Lifting height:(w/ extension adapter) | 1890mm(74 5/8")~1922mm(75 11/16") | |
| Max. lock height(w/o extension adapter) | 1774mm(69 13/16")~1806mm(71 1/8") | |
| Max. lock height(w/ extension adapter) | 1850mm(72 13/16")~1882mm(74 1/16") | |
| Overall Height | B | 3602mm(141 13/16") |
| Overall Width | C |
3390mm(133 1/2") |
| Drive-Thru Clearance | D |
2554mm(100 9/16") |
| Width Between Columns | E |
2780mm(109 7/16") |
| Minimum Pad Height | F | 89mm(3 1/2") |
| Gross Weight | 612kg(1,349 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
15 Units/20'GP 40 Units/40'GP |
|
| Packing | 3660 x 450 x 750 mm |
-

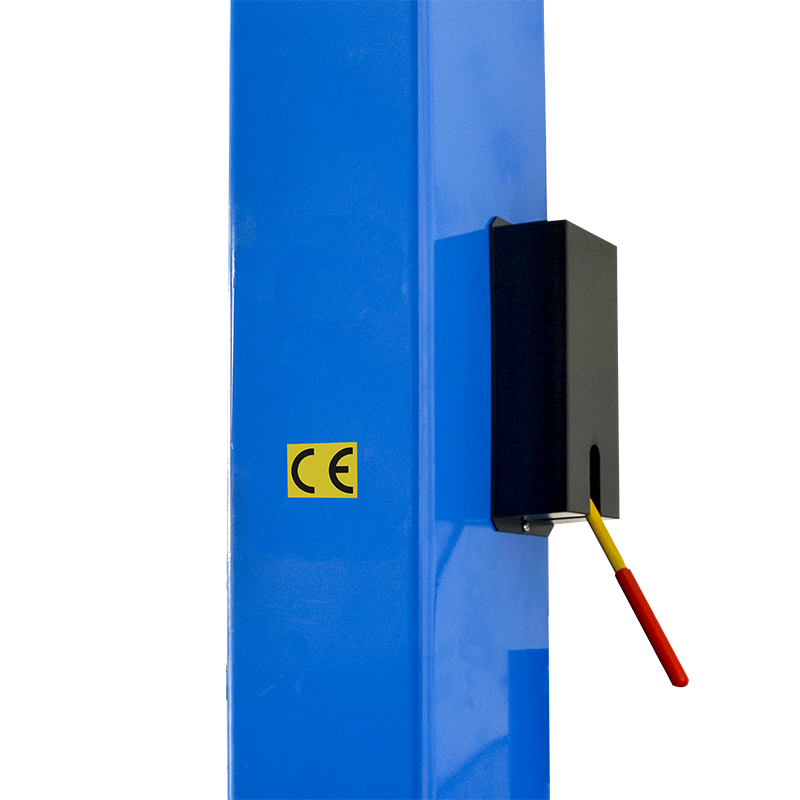

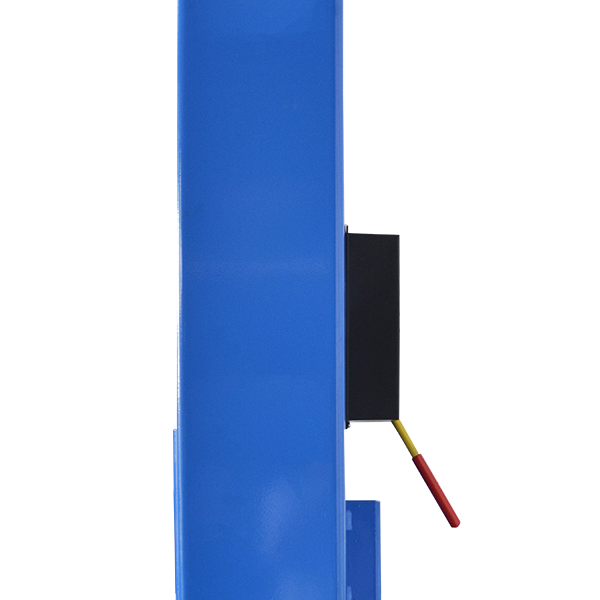

Single point safety release makes it easier for operators to unlock both columns from one column.
-
Aero cables are used for synchronization.
-

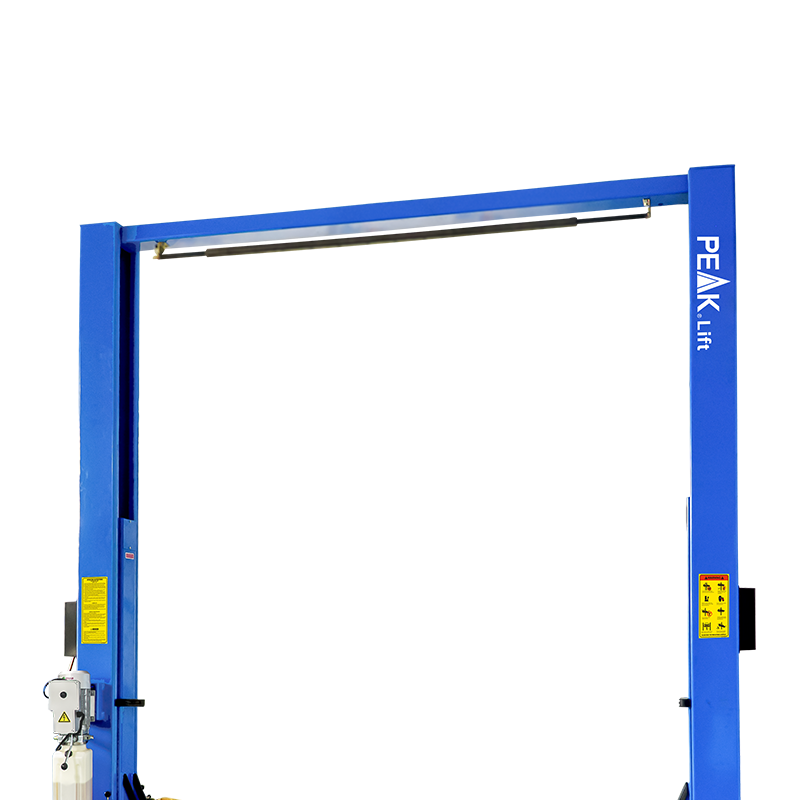

Clear floor design, provides unobstructed floor space. Overhead safety shut-off device prevents vehicle damage.
-

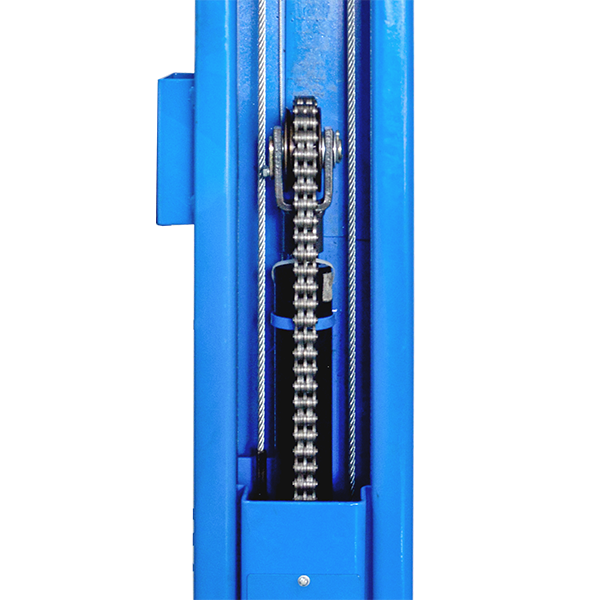

Dual chain-drive hydraulic cylinders.
-

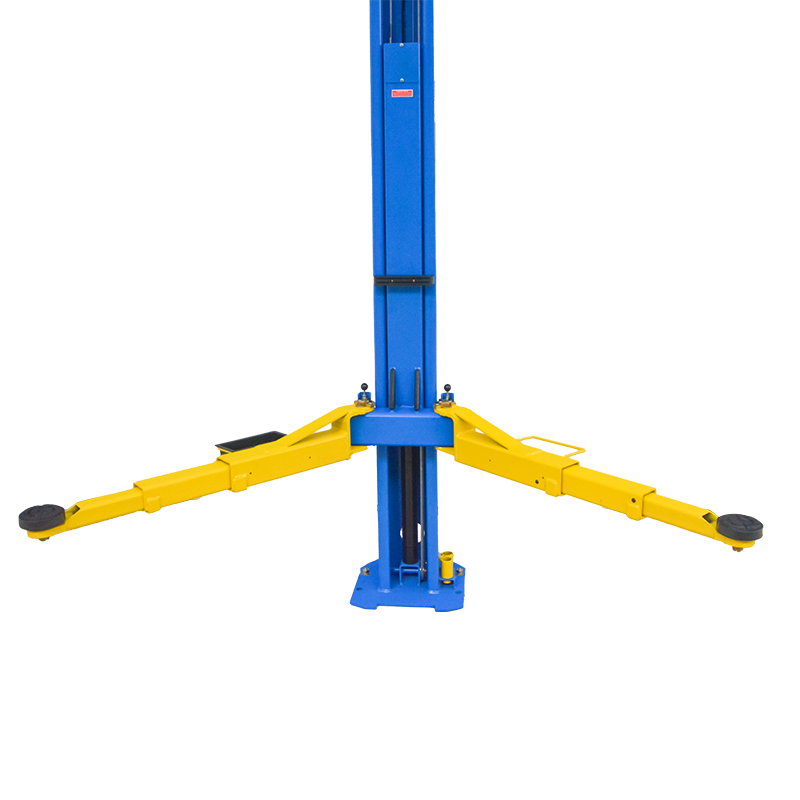

4 three-stages arms are suitable for more vehicles.
-
Automatic arm restraints.
-

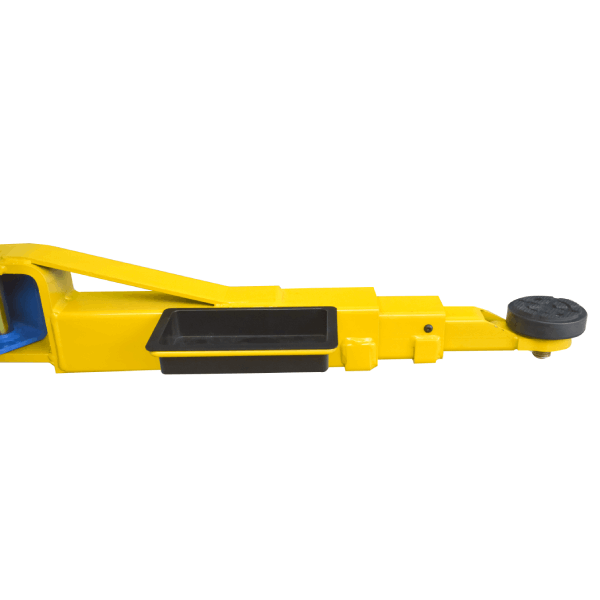

Toe guards and tool trays come as standard.
-
Single-screw rubber pad with pin dia.38mm, comes with 3" extension adapter.
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 208C: 612kgs , include power unit gross weight 25kgs.
- 20' container can load 15 units.
-

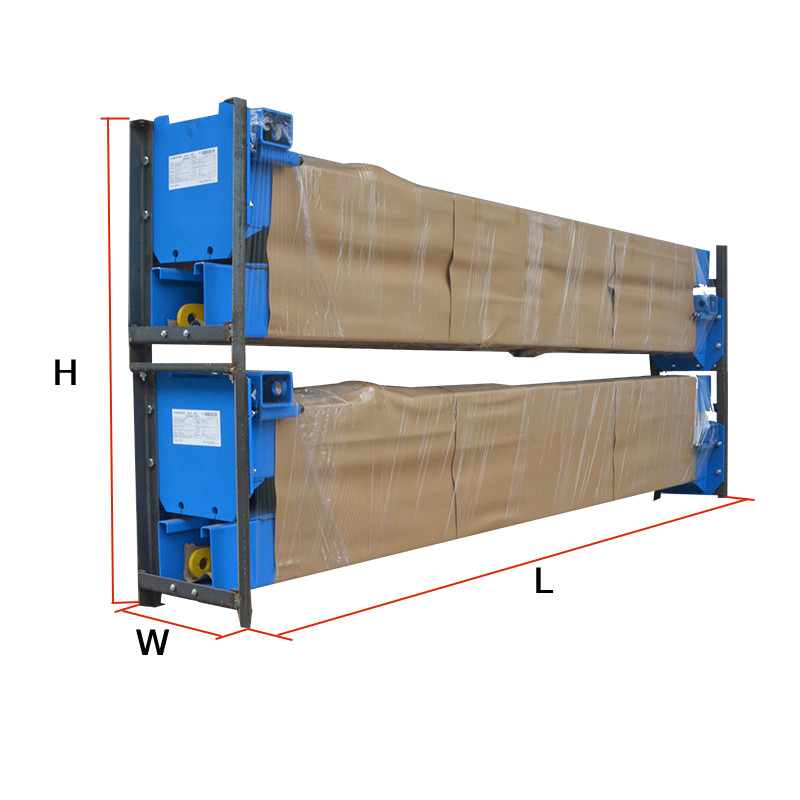

2 units/package,packing measurement (LxWxH):3655x450x1483mm
-

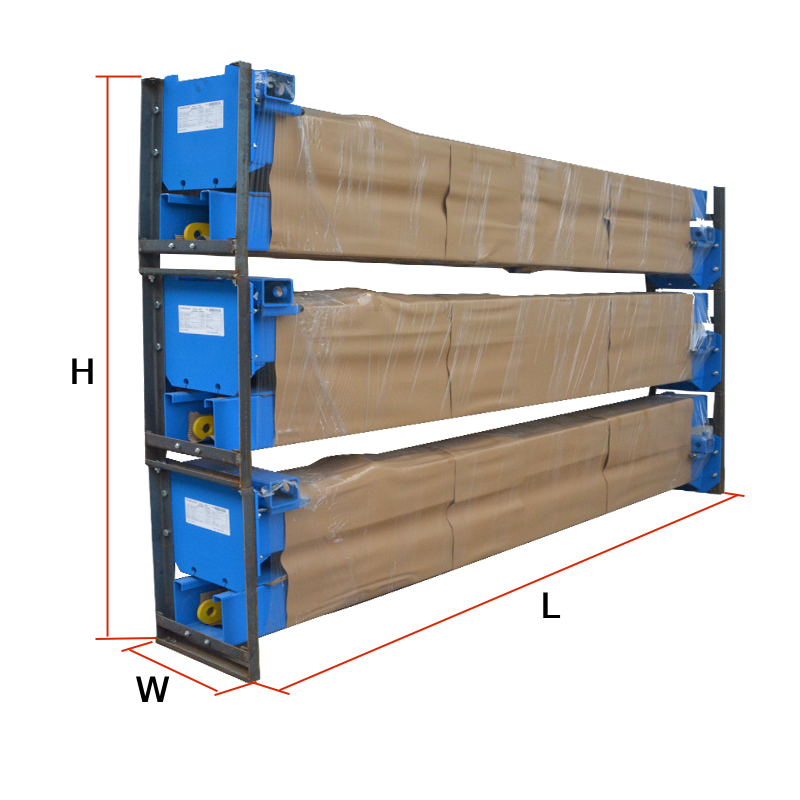

3 units/package, packing measurement (LxWxH): 3655x450x2216mm
-

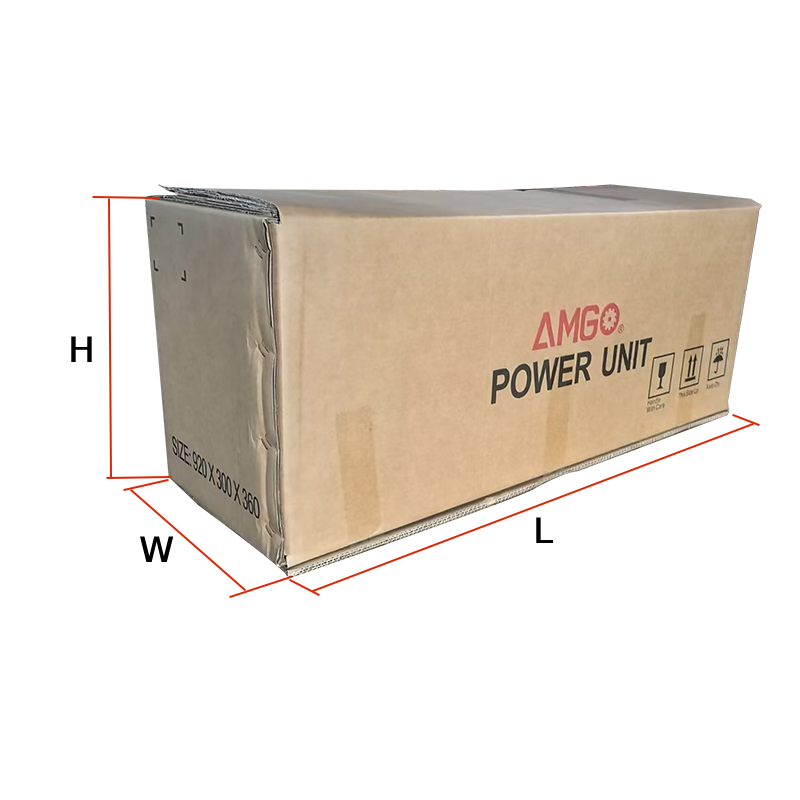

1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

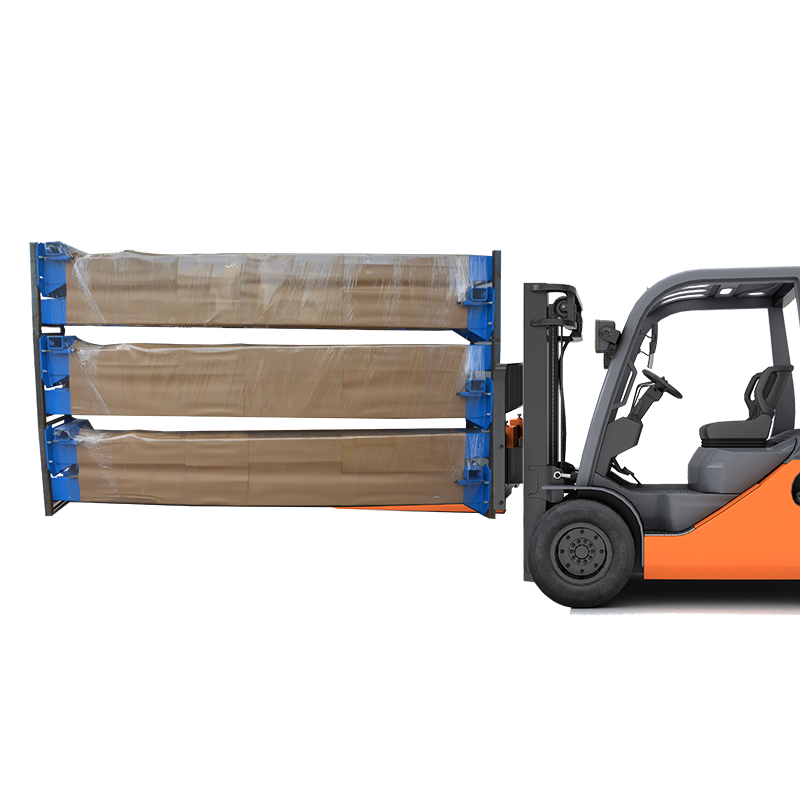

Attention to forklift loading and unloading
