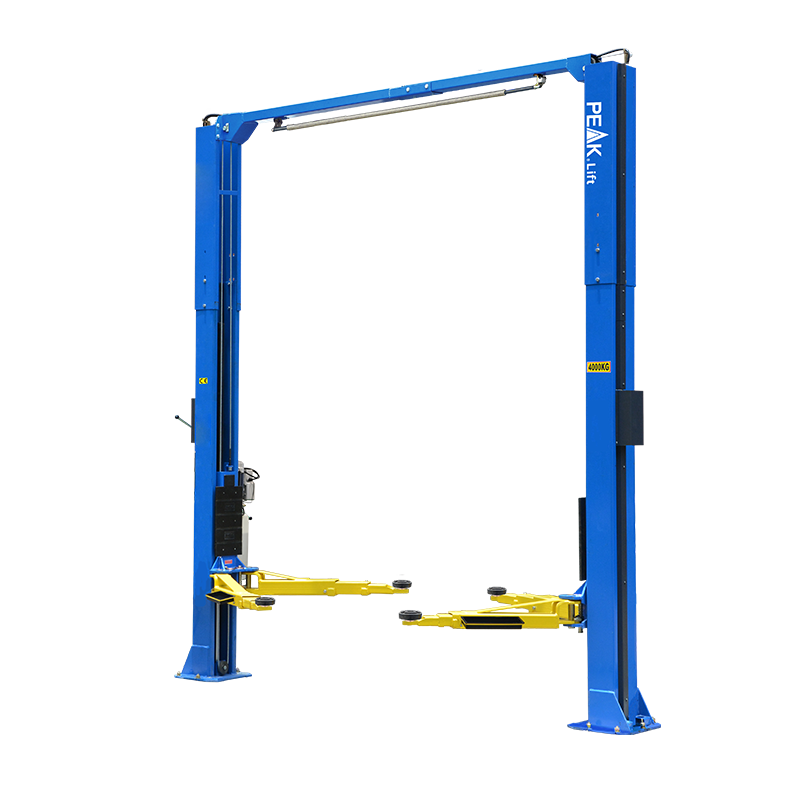

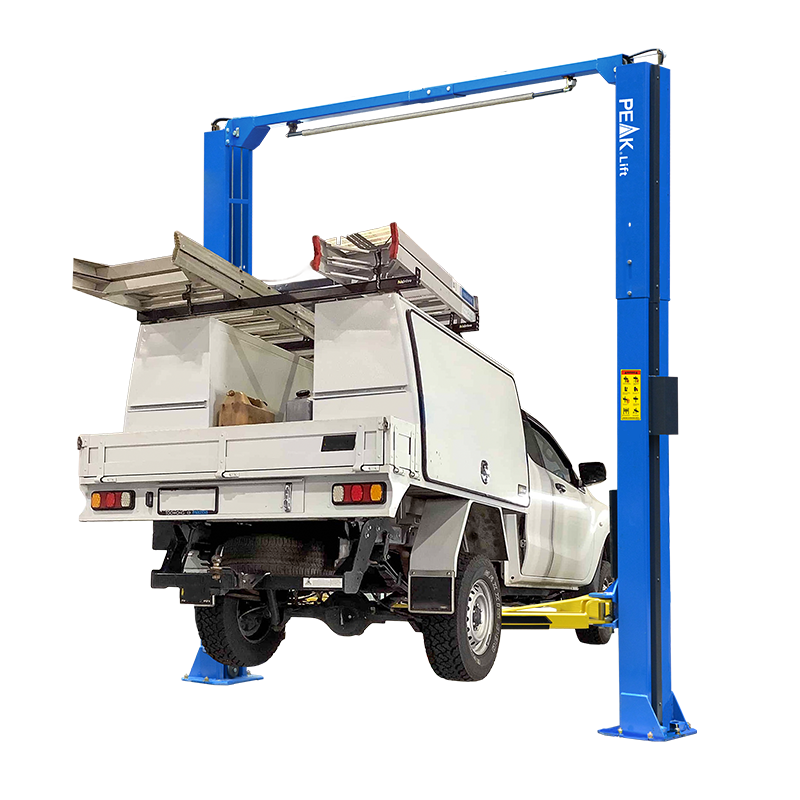

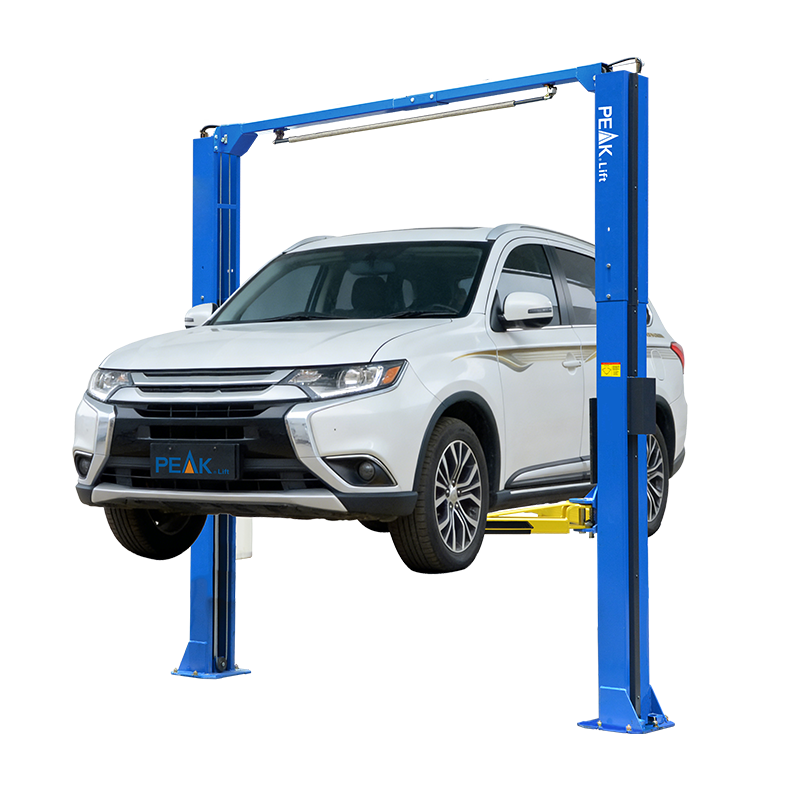

209C
Clear floor two post lift
Advanced & Flexible
With a 4000KG capacity, the advanced 209C offers great flexibility to meet a variety of needs. It comes with two standard height settings for different ceiling heights, and can also be extended in more width or height with additional optional kits. It's equiped with 4 three-stage arms and single-point manual lock release, enabling convenient operation for servicing a range of vehicles.
- 4000kg (9,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 209C | Clear floor two post lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | A | 57s |
| Max.Lifting height:(w/o extension adapter) | 1821mm(71 11/16")~1869mm(73 9/16") | |
| Max.Lifting height:(w/ extension adapter) | 1897mm(74 11/16")~1945mm(76 9/16") | |
| Max.lock height(w/o extension adapter) | 1774mm(69 13/16")~1822mm(71 3/4") | |
| Max.lock height(w/ extension adapter) | 1850mm(72 13/16")~1898mm(74 3/4") | |
| Overall Height | B |
3635mm(143 1/8") 3835mm(151") |
| Overall Width | C | 3428mm(135") |
| Drive-Thru Clearance | D | 2528mm(99 1/2") |
| Width Between Columns | E | 2850mm(112 3/16") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 678kg(1,495 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 25 Units/20'GP 50 Units/40'GP |
|
| Packing Dimension | 2800X450X825 mm |
-

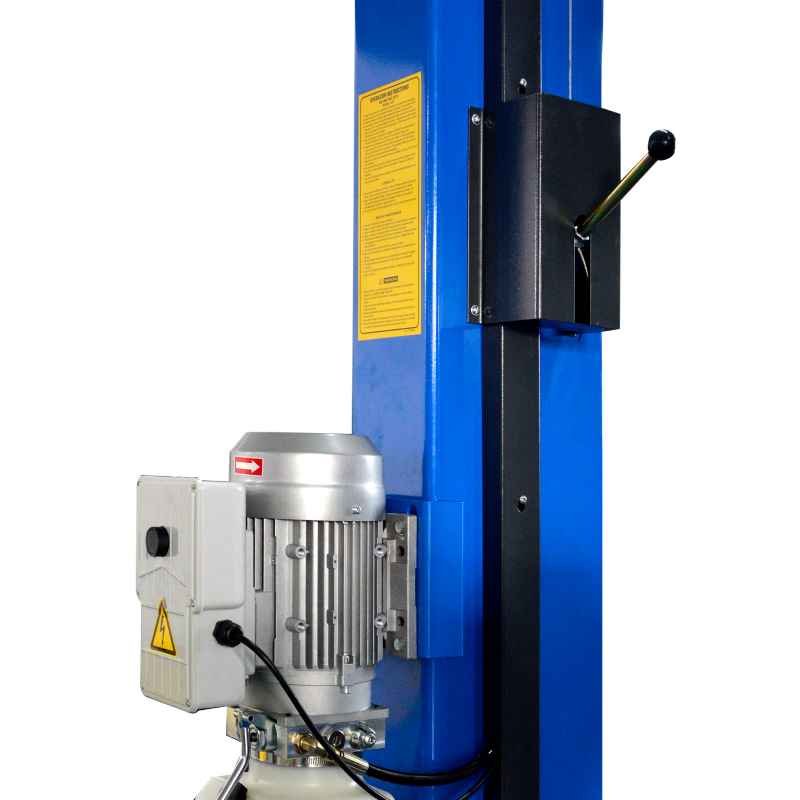

Single point safety release makes it easier for operators to unlock both columns from one column.
-

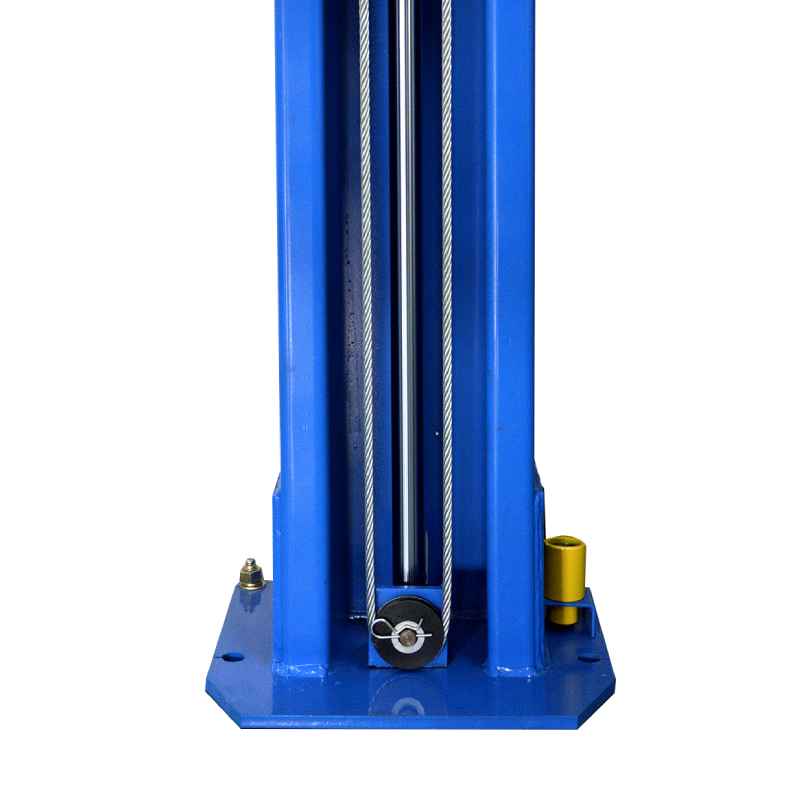

Hydraulic direct-drived cylinders.
-

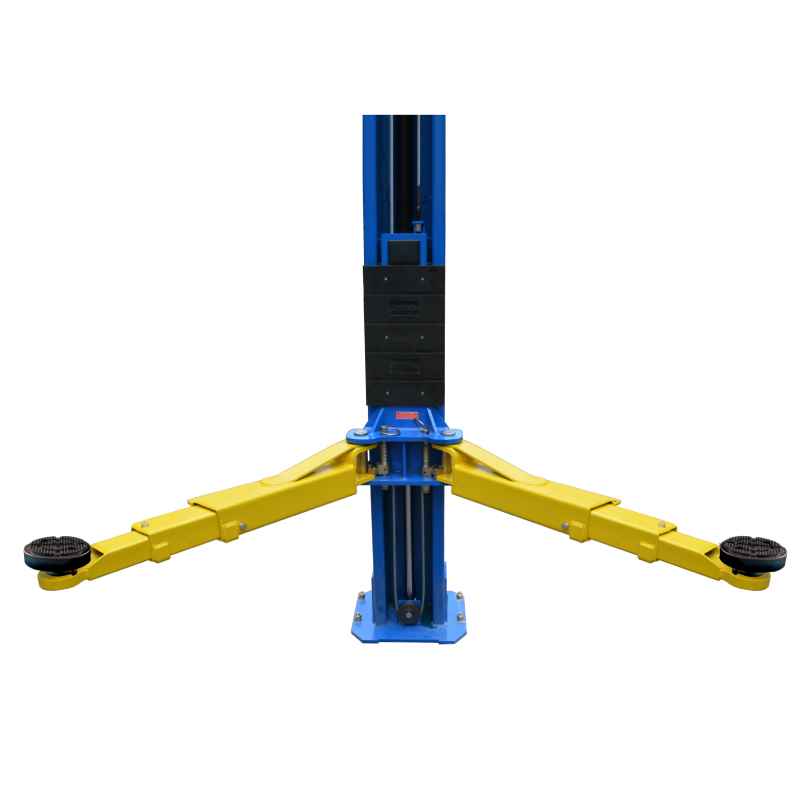

4 three-stages arms are suitable for more vehicles.
-

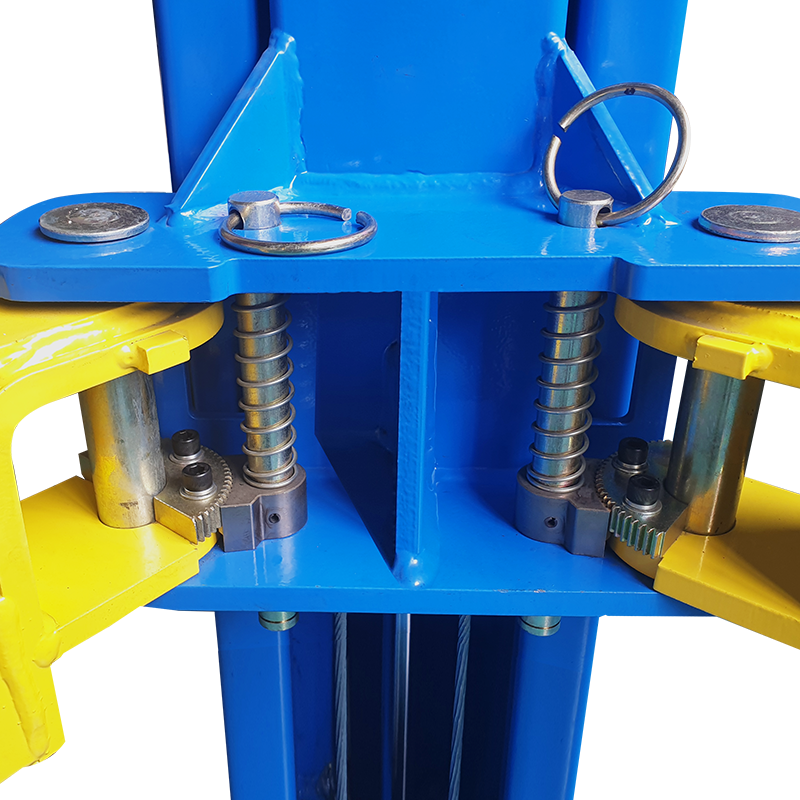

Automatic arm restraints.
-

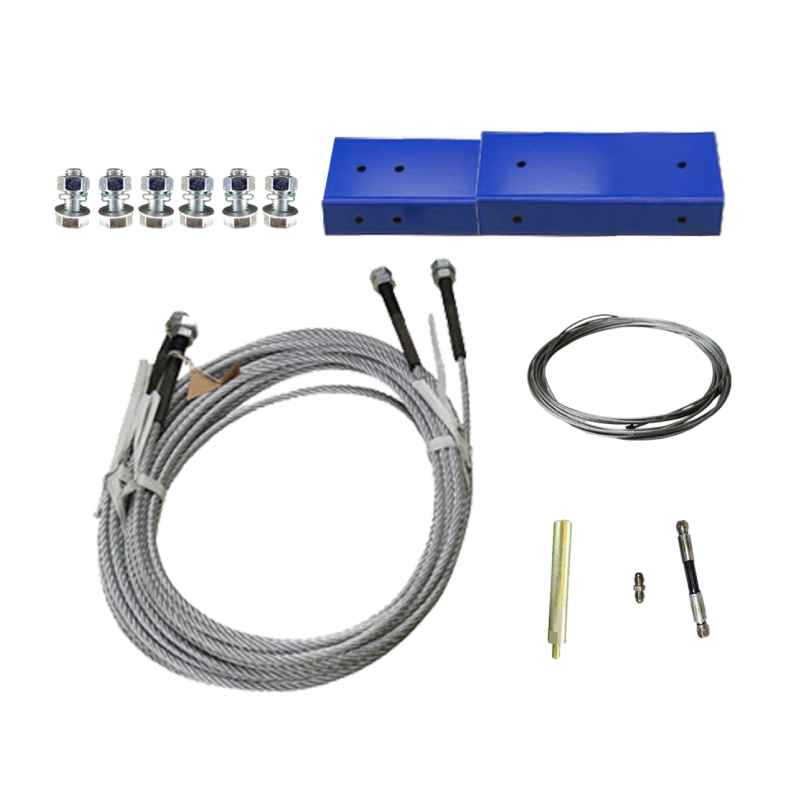

Optional Width Extension Kits.
With these kits the width between posts is adjusted from 2850mm to 3000mm. Kits No.: 20906 -

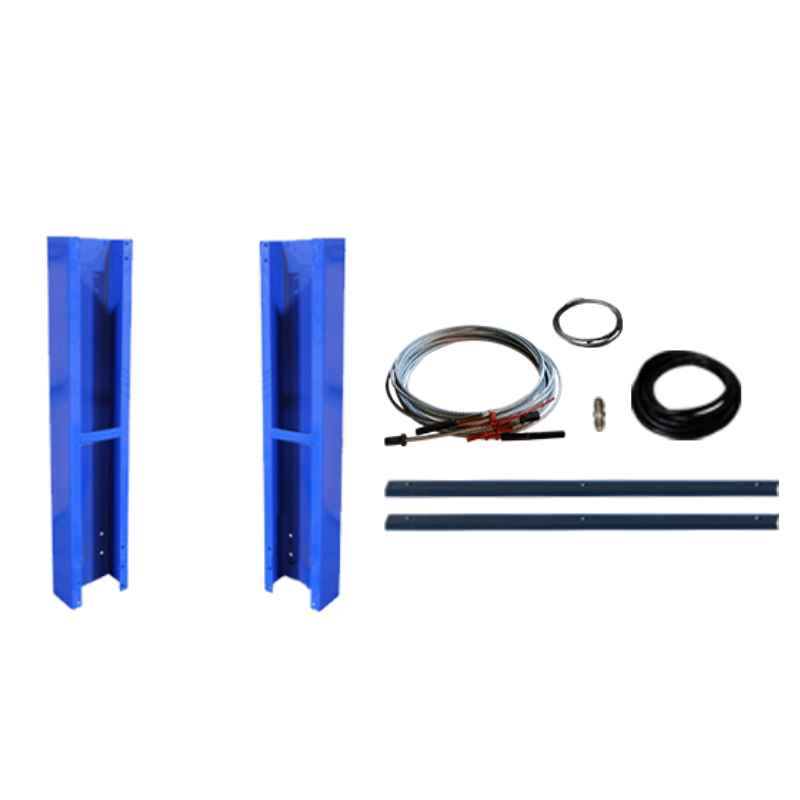

Optional Height Extension Kits.
With these kits the overall height is adjusted from 3821mm to 4431mm. Kits No.: 20902 -

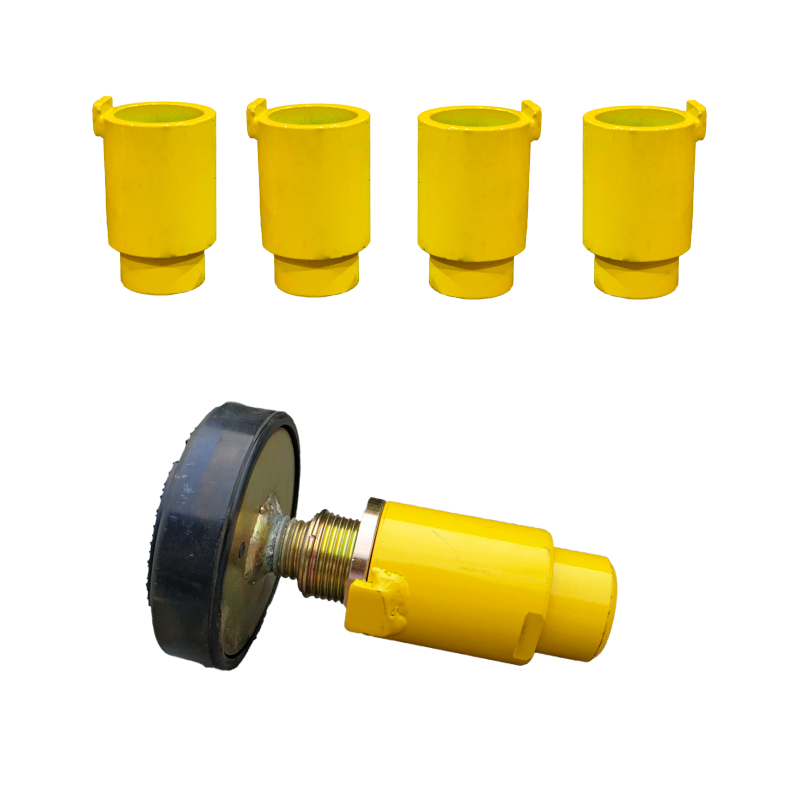

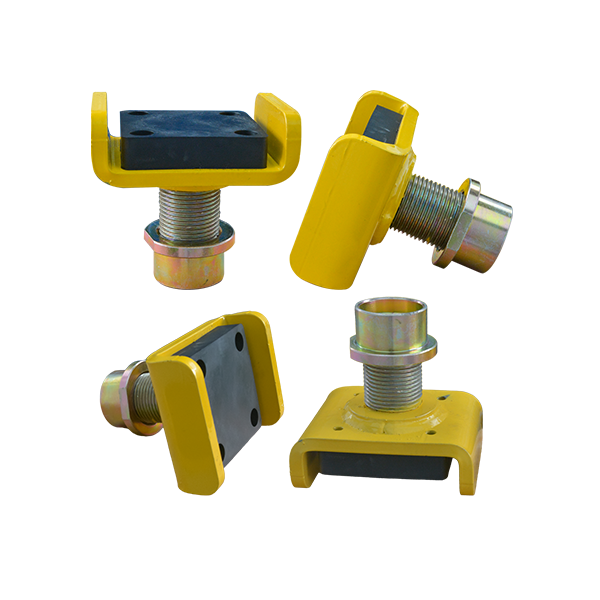

Double-screw rubber pad with pin dia. 50mm,comes with 3" extension adapter.
-
The optional saddle adapter.
Kits No.: 1102185006C -

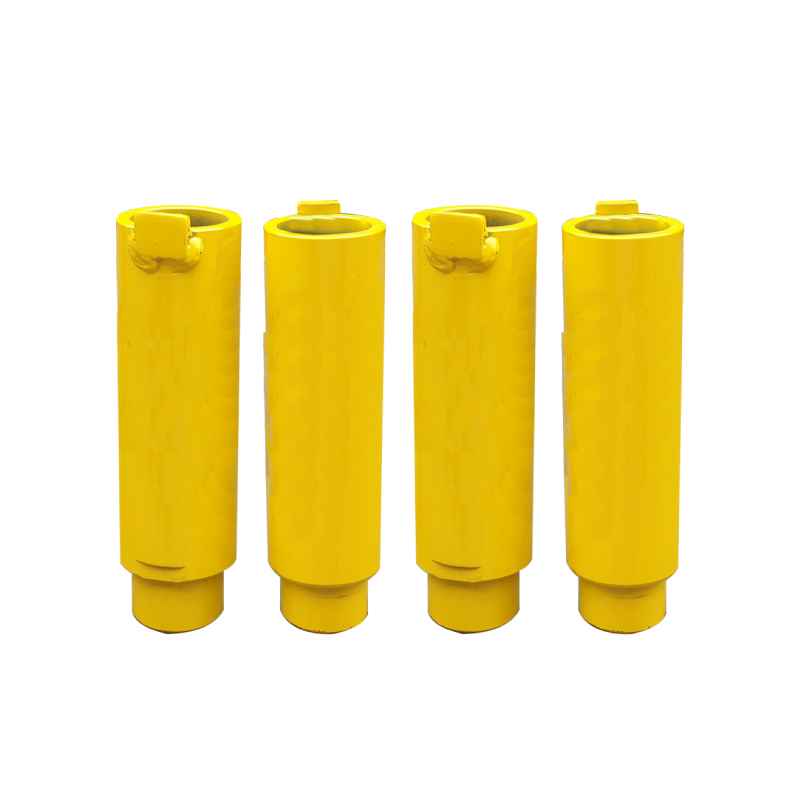

6" extension adapter comes as optional. P/N: 1102504001
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 209C: 678kgs , include power unit gross weight 25kgs.
- 20' container can load 25 units.
-

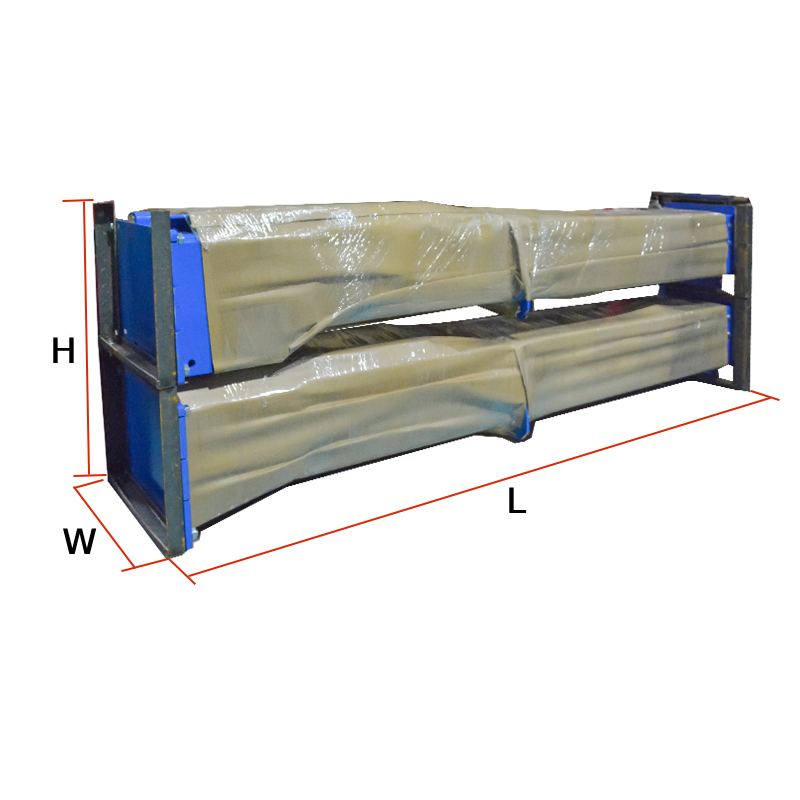

2 units/package,packing measurement (LxWxH):2885x450x1525mm
-

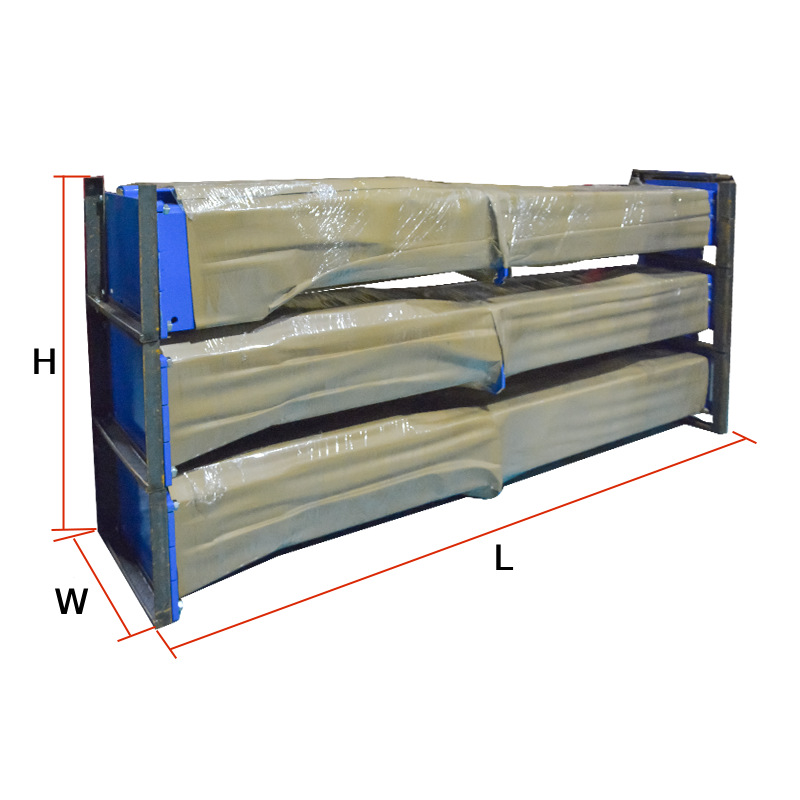

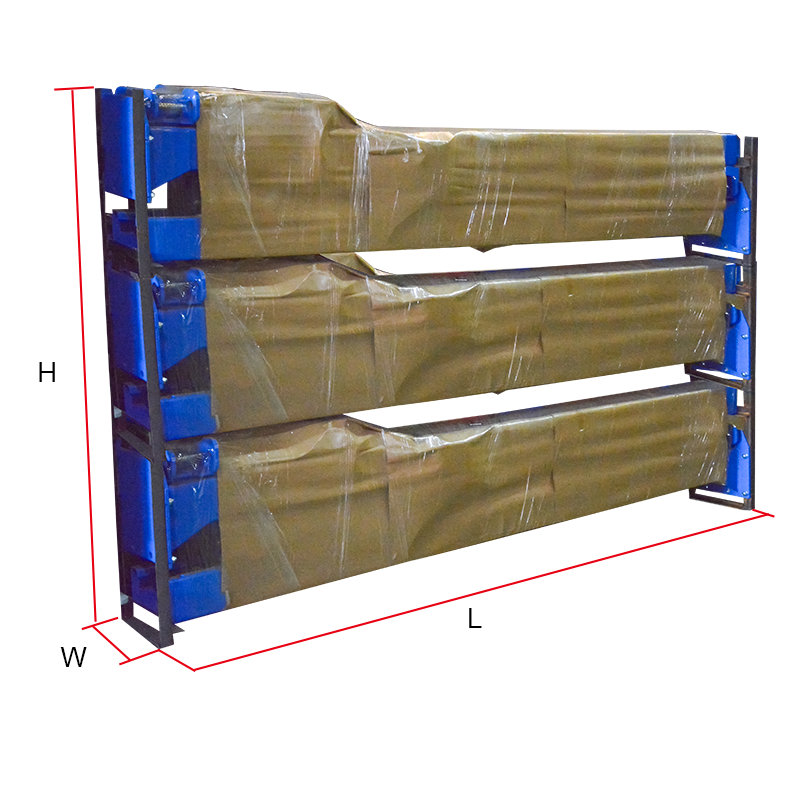

3 units/package, packing measurement (LxWxH): 2910x450x2260mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-
Attention to forklift loading and unloading
