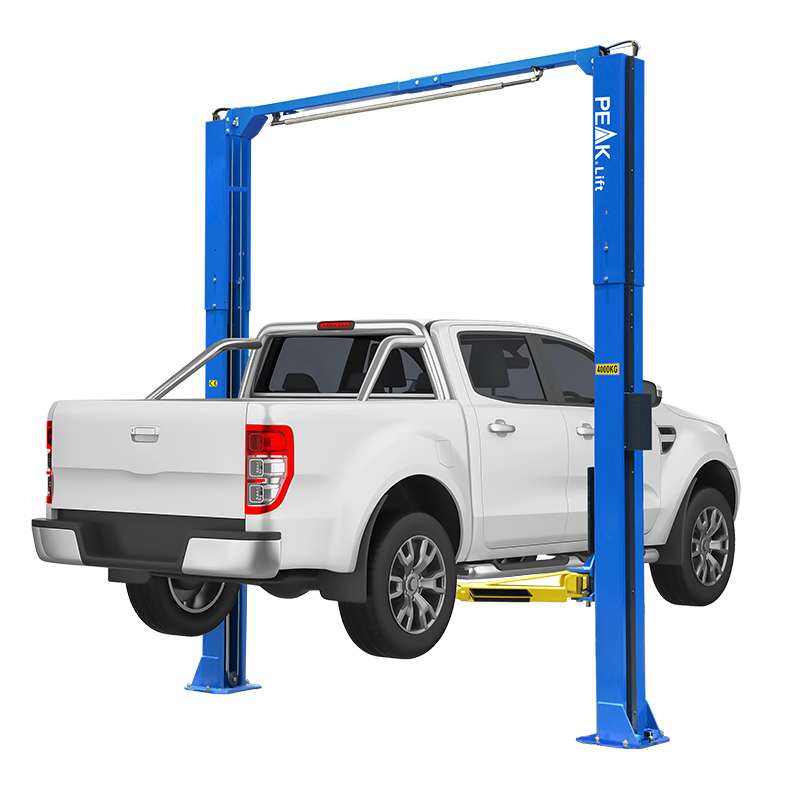

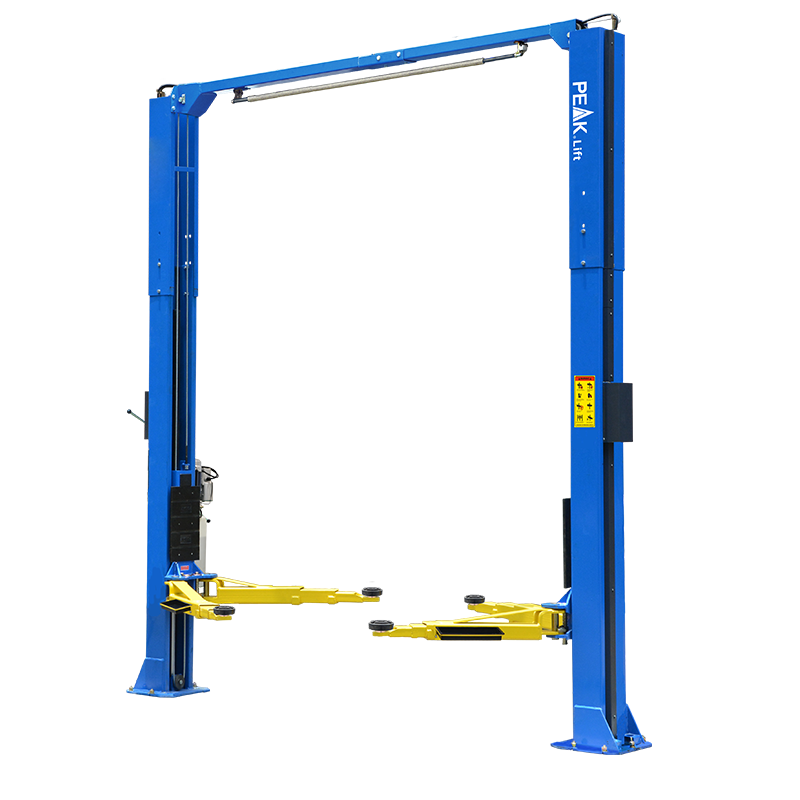

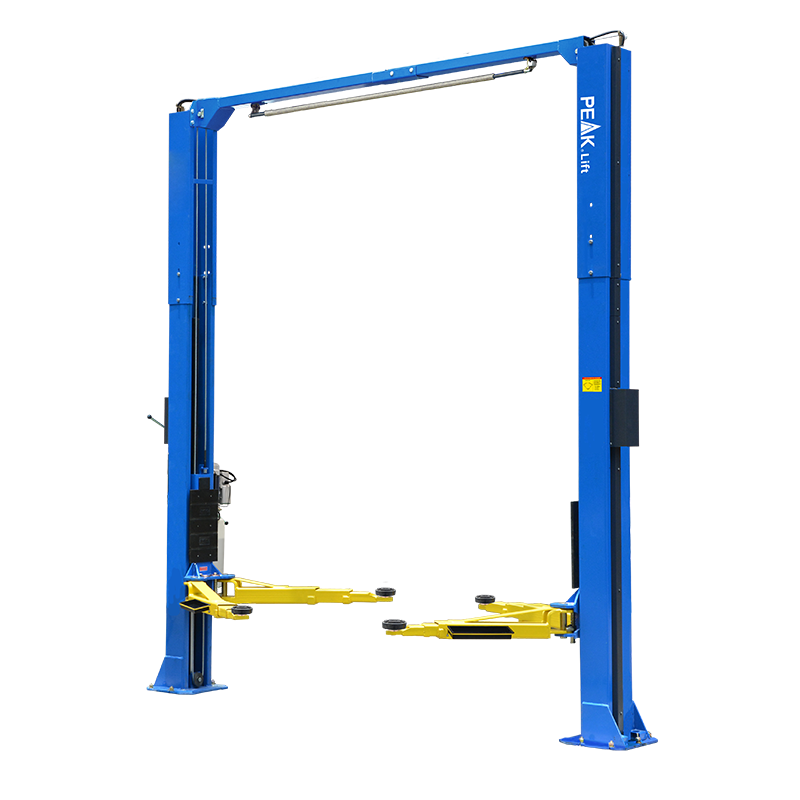

209CH
Clear floor two post lift
Higher,more flexible
The 209CH extension model is built upon the 209C platform with two ultra-tall height settings, reaching a maximum overall height of 4,445mm . This enhanced elevation makes it the ideal solution for servicing taller vehicles with ease. The unit also features adjustable widths (by optional kits) to comfortably accommodate wider vehicle models.
- 4000kg (9,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
- Extremely high model, with a maximum overall height of 4445mm.
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 209CH | Clear floor two post lift | ||
| Lifting Capacity | 4000kg(9,000 Ibs) | ||
| Lifting Time | A | 57s | |
| Max.Lifting height:(w/o extension adapter) | 1815mm (71 7/16")~1863mm (72 15/16") | ||
| Max.Lifting height:(w/ extension adapter) | 1891mm ( 74 7/16")~1939mm (76 5/16") | ||
| Max.lock height(w/o extension adapter) | 1768mm ( 69 5/8")~1816mm ( 71 1/2") | ||
| Max.lock height(w/ extension adapter) | 1844mm (72 5/8")~1892mm (74 1/2") | ||
| Overall Height | B |
4245mm(167 1/8") 4445mm(175") |
|
| Overall Width | C | 3428mm(135") | |
| Drive-Thru Clearance | D | 2528mm(99 1/2") | |
| Width Between Columns | E | 2850mm(112 3/16") | |
| Minimum Pad Height | F | 90mm (3 9/16") | |
| Gross Weight | 715kg(1,576 Ibs) | ||
| Motor | 3.0HP | ||
| QTY of Container | 21 Units/20'GP 42 Units/40'GP |
||
| Packing Dimension | 2800X450X860 mm | ||
-

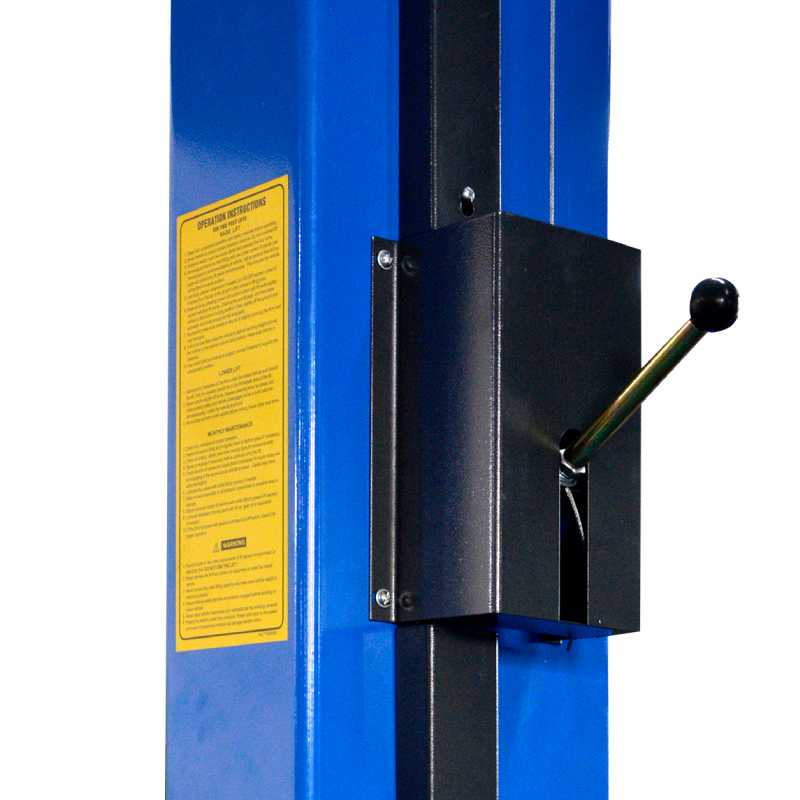

Single point safety release makes it easier for operators to unlock both columns from one column.
-

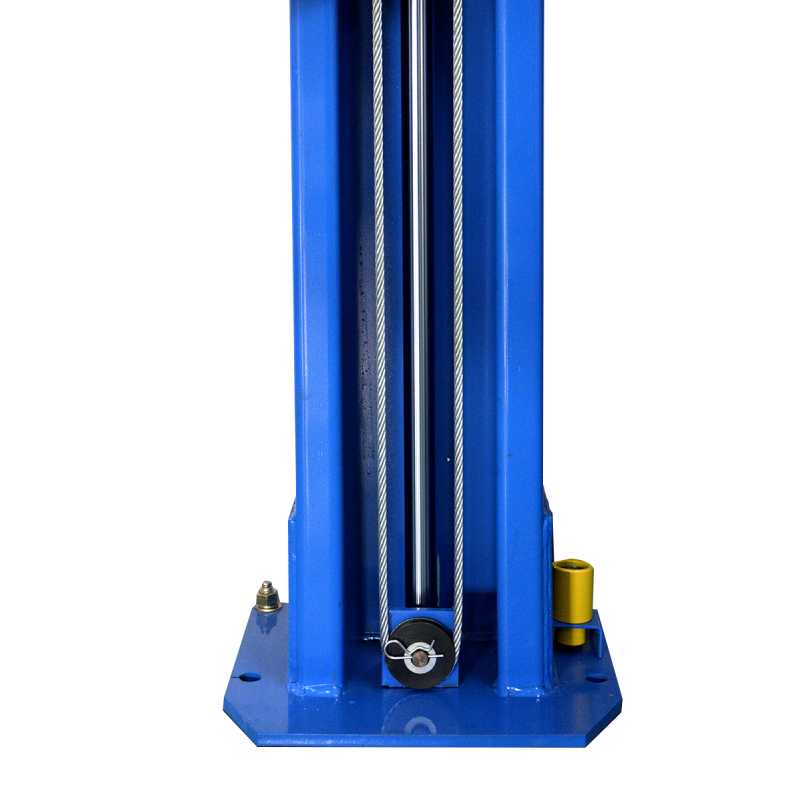

Hydraulic direct-drived cylinders.
-

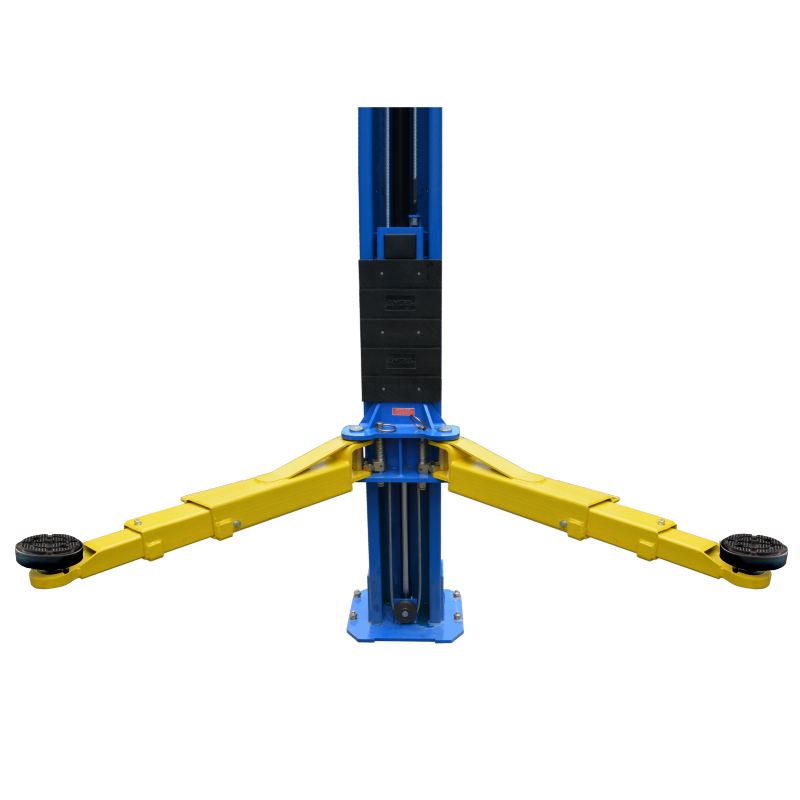

4 three-stages arms are suitable for more vehicles.
-

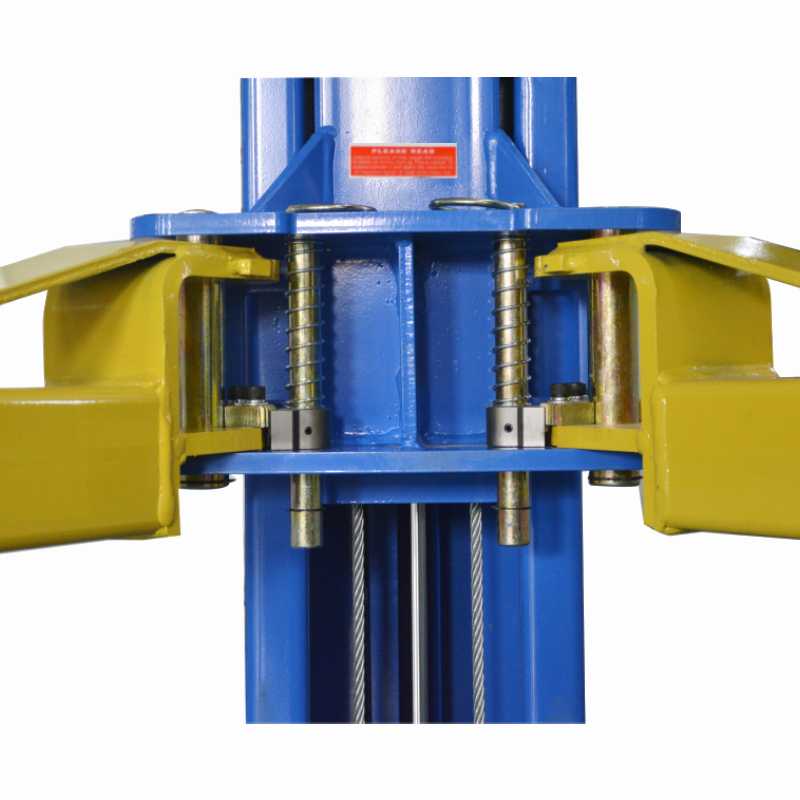

Automatic arm restraints.
-

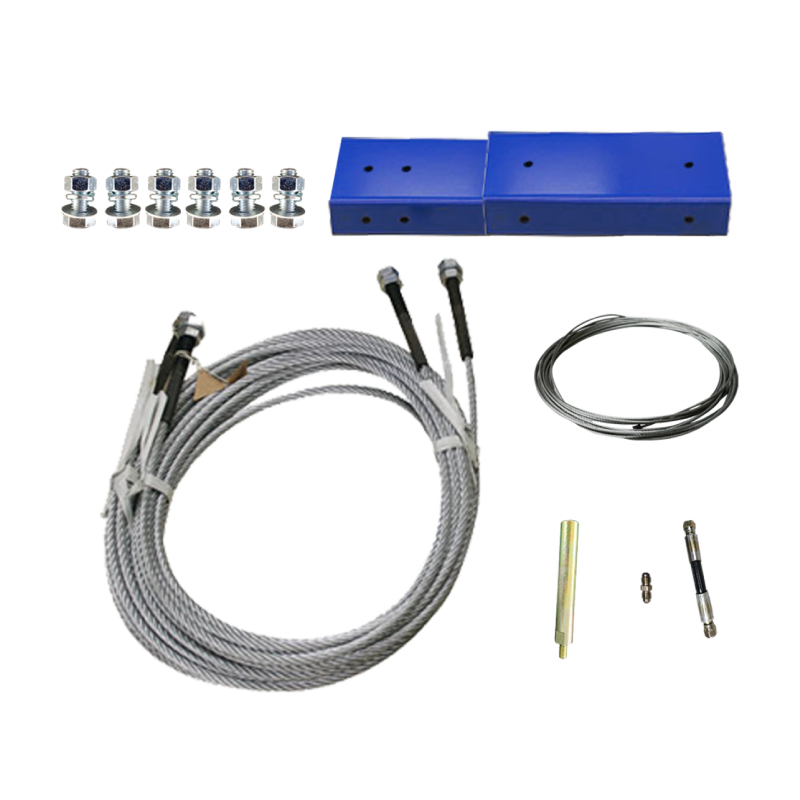

Optional Width Extension Kits.
With these kits the width between posts is adjusted from 2850mm to 3000mm. Kits No.: 20906 -

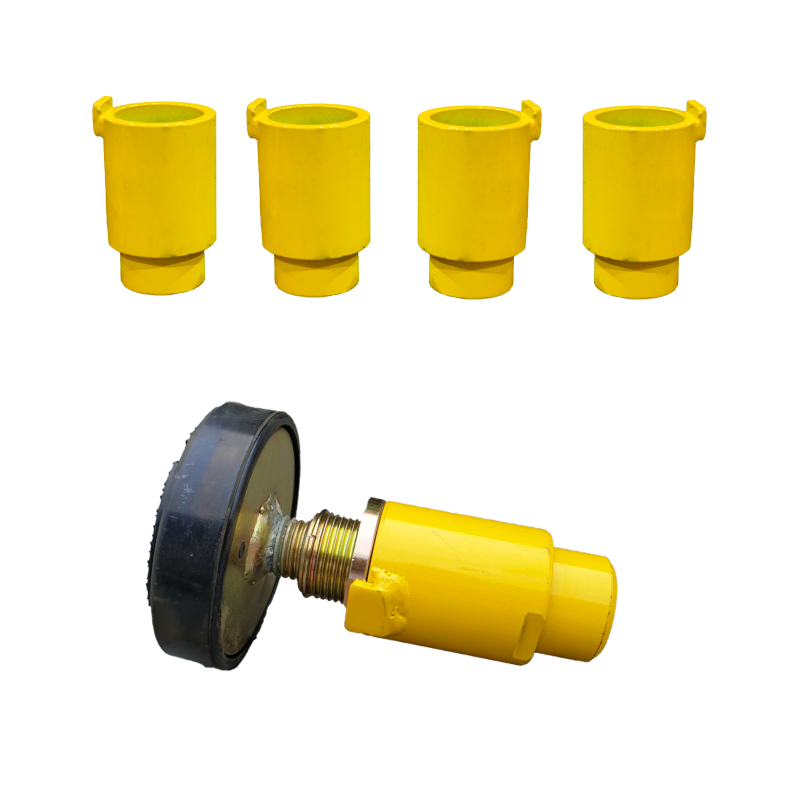

Double-screw rubber pad with pin dia. 50mm,comes with 3" extension adapter.
-

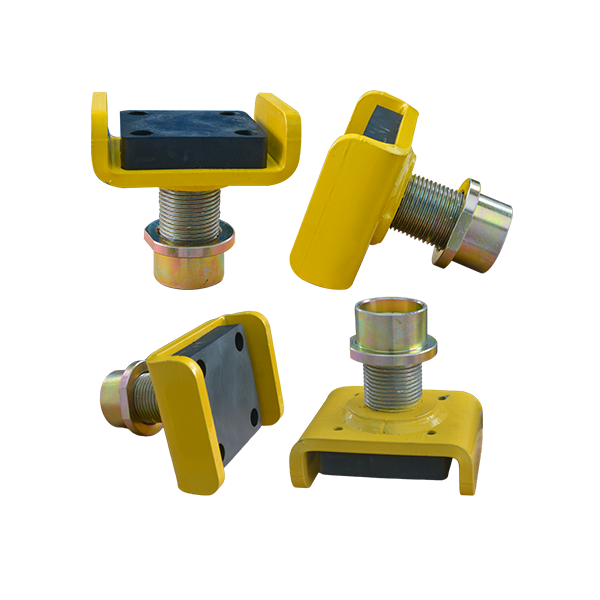

The optional saddle adapter.
Kits No.: 1102185006C -

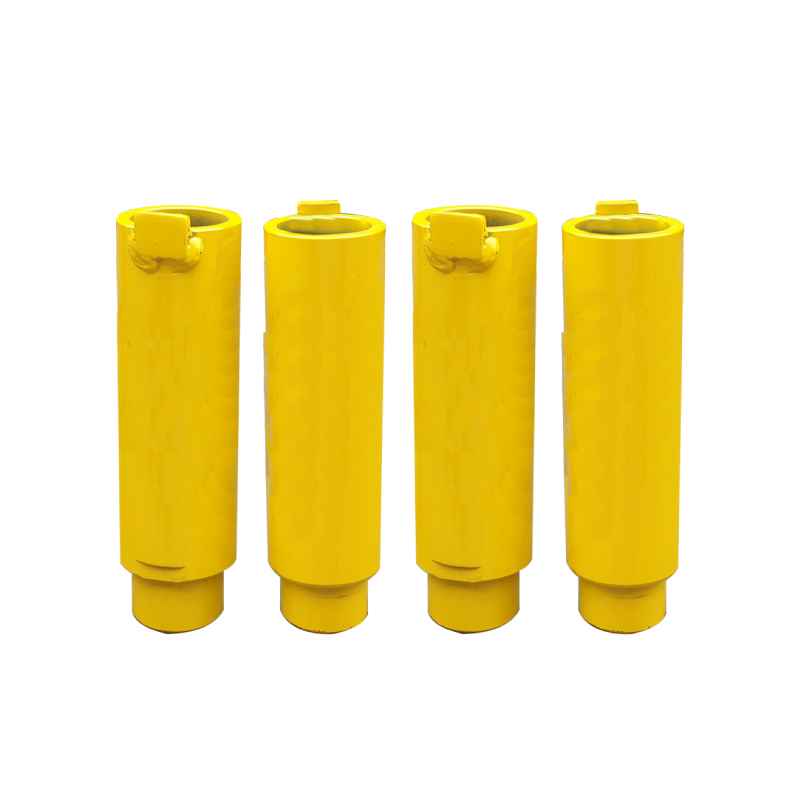

6" extension adapter comes as optional. P/N: 1102504001
2 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 209CH: 715kgs , include power unit gross weight 25kgs.
- 20' container can load 20 units.
-

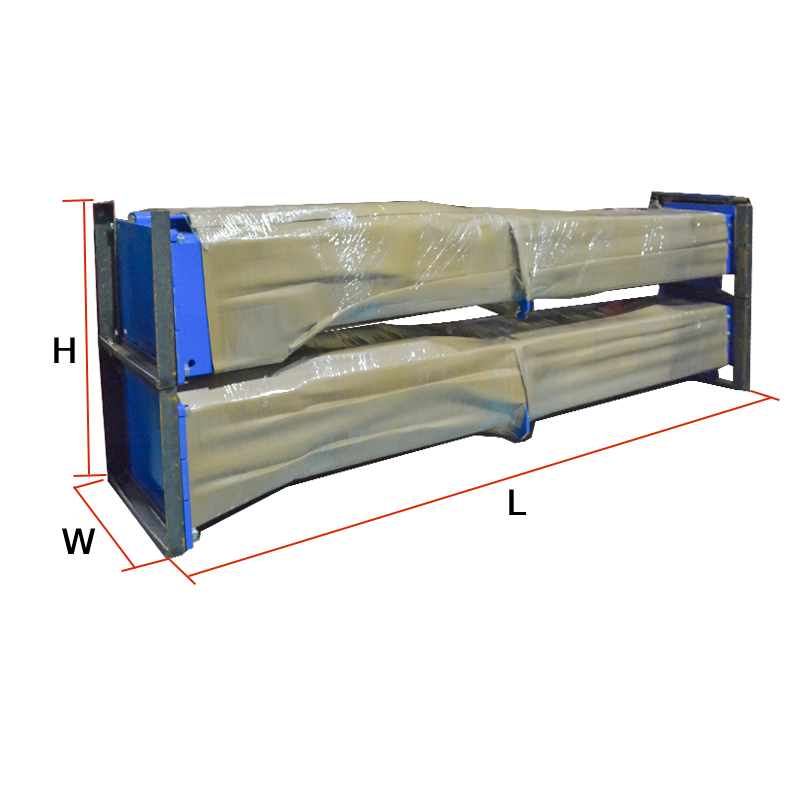

2 units/package,packing measurement (LxWxH):2885x450x1725mm
-
1 unit/ctn, packing measurement (LxWxH): 920x300x360mm
-

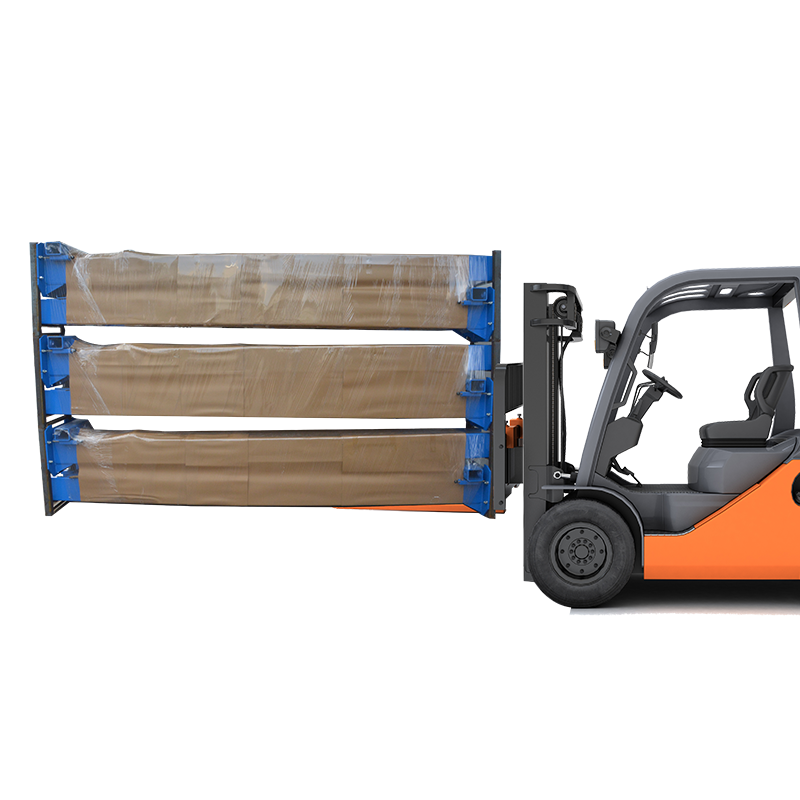

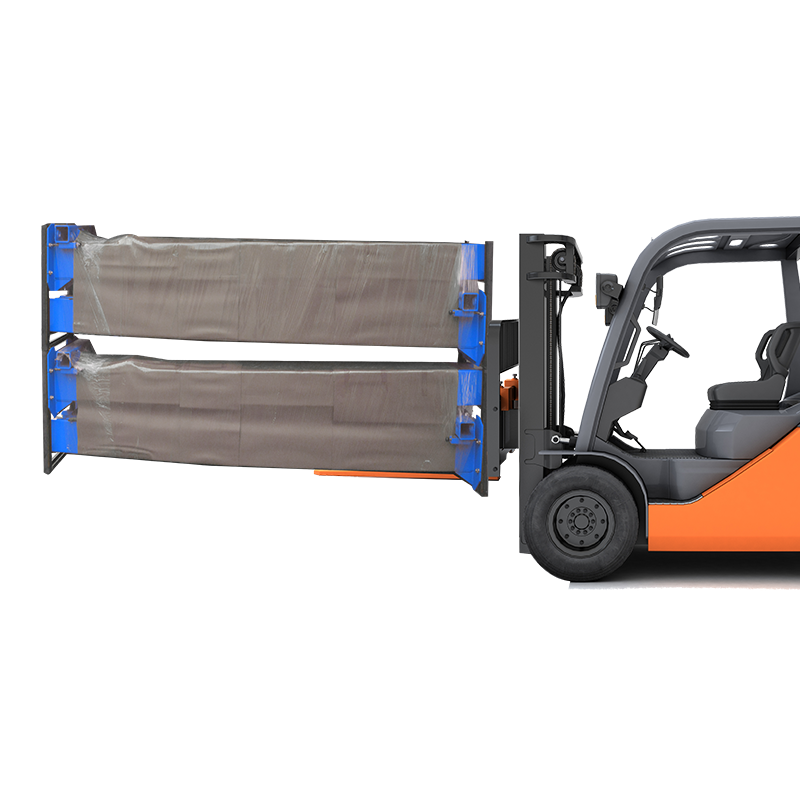

Attention to forklift loading and unloading.
