209CS

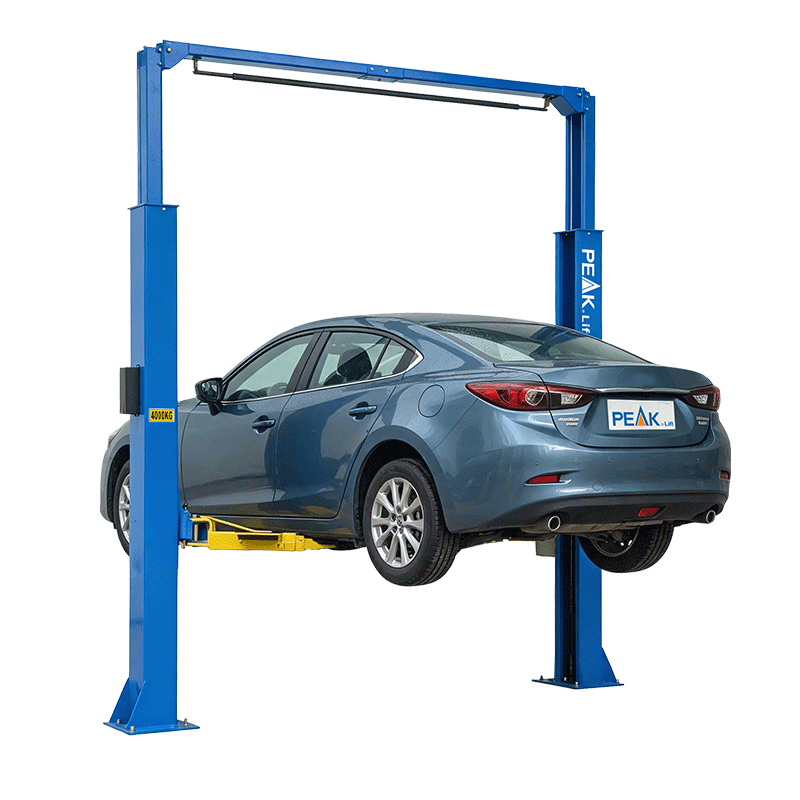

Clear floor two post lift

Slim&Strong, the Dependable Choice.

Engineered with a remarkably slim footprint, the new 209CS delivers reliable, high-performance operation. Its advanced feature set includes a single-point lock release, four 3-stage telescoping arms, and dual safety locks that work in unison to ensure rock‑solid dependability and a 4,000kg lifting capacity. The two-piece column design not only streamlines your inventory management but also reduces shipping and storage costs—boosting your profitability from the very first.

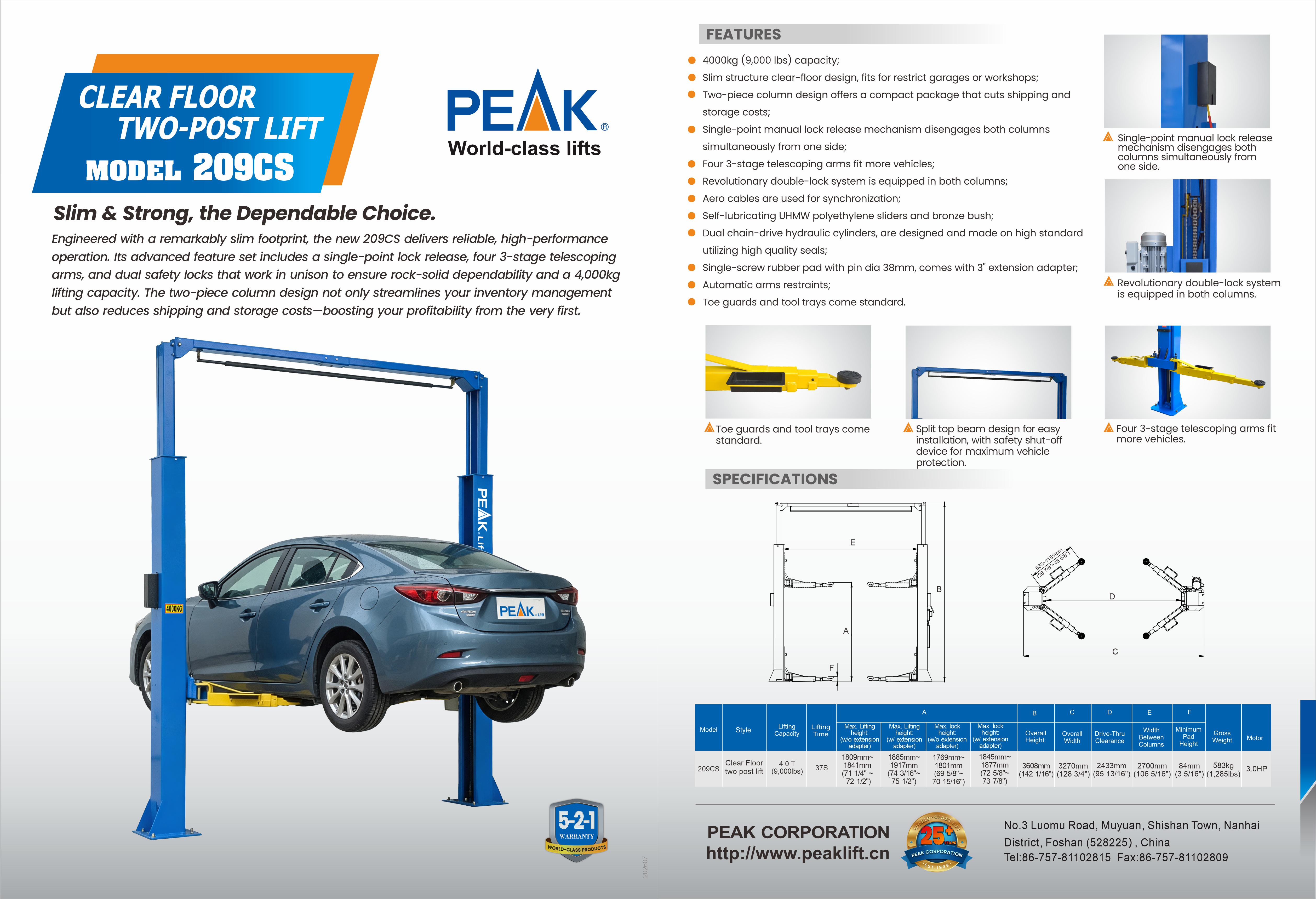

Catalogue Downloads

Get Quotation

4000kg (9,000 Ibs) capacity;
Slim structure clear-floor design, fits for restrict garages or workshops;

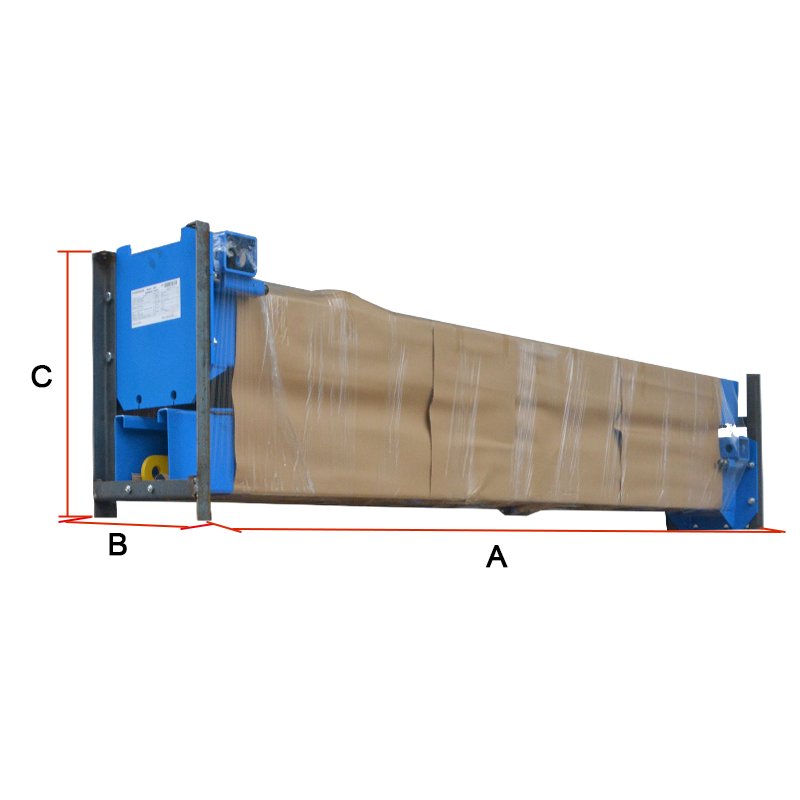

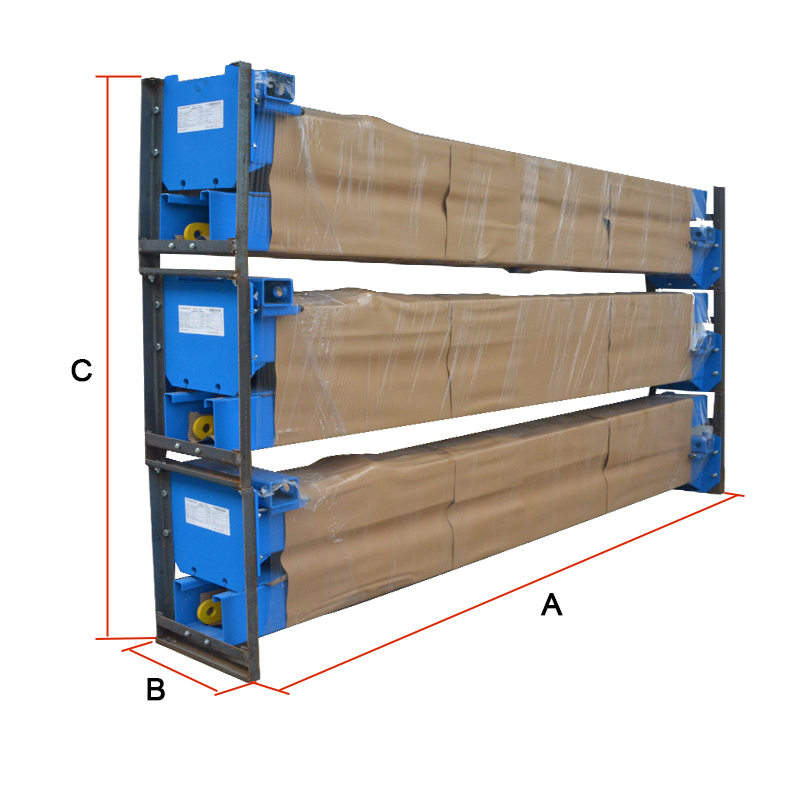

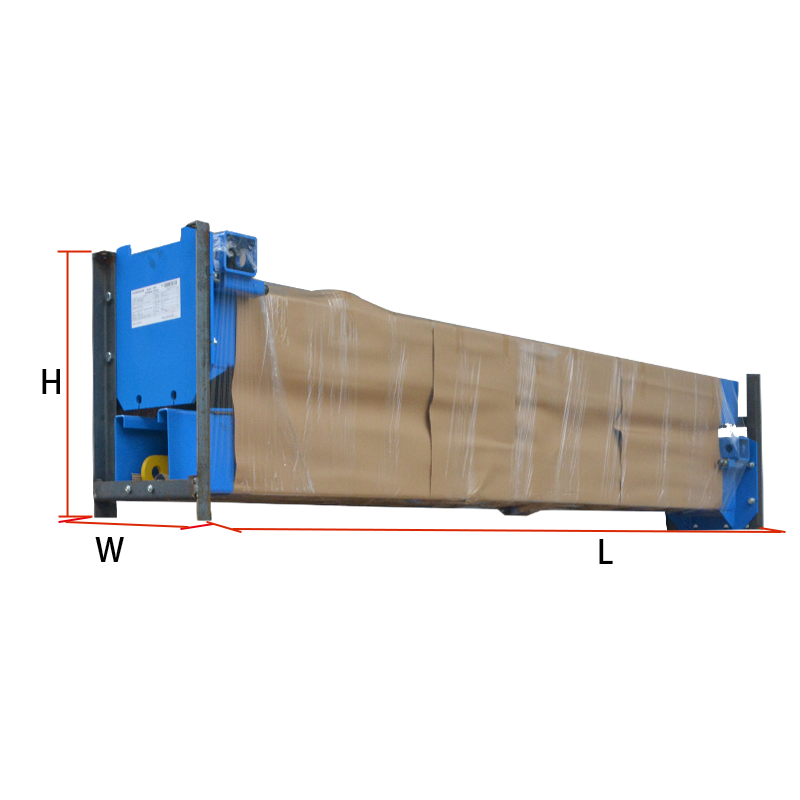

Two-piece column design offers a compact package that cuts shipping and
storage costs;
Single-point manual lock release mechanism disengages both columns
sirmultaneously from one side;
Four 3-stage telescoping arms fit more vehicles;
Revolutionary double-lock system is equipped in both columns;
Aero cables are used for synchronization;
Self-lubricating UHMW polyethylene sliders and bronze bush;

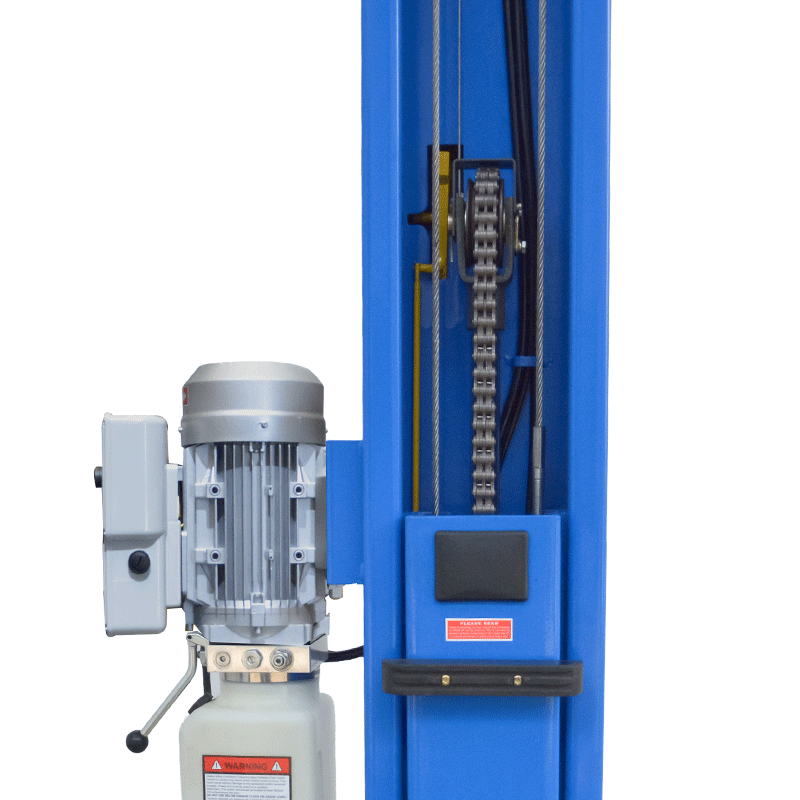

Dual chain-drive hydraulic cylinders, are designed and made on high standard
utilizing high quality seals;
Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
Automatic arms restraints;
Toe guards and tool trays come standard.

Model 209CS		Clear floor two post lift
Lifting Capacity		4000kg (9,000 Ibs)
Lifting Time	A	37s
Max.Lifting height: (w/o extension adapter)		1809~1841mm (71 1/4"~ 72 1/2")
Max.Lifting height: (w/ extension adapter)		1885~1917mm ( 73 3/16"~ 75 1/2")
Max.lock height: (w/o extension adapter)		1769~1801mm ( 69 5/8"~70 15/16")
Max.lock height: (w/ extension adapter)		1845~1877mm (72 5/8"~ 73 3/8")
Overall Height	B	3608mm (142 1/16")
Overall Width	C	3270mm (128 3/4")
Drive-Thru Clearance	D	2433mm (95 13/16")
Width Between Columns	E	2700mm (106 5/16")
Minimum Pad Height	F	84mm (3 5/16")
Gross Weight		583kg (1,285 Ibs)
Motor		3.0HP

/attachment/1/source/Tow_post-209cs_3774.png

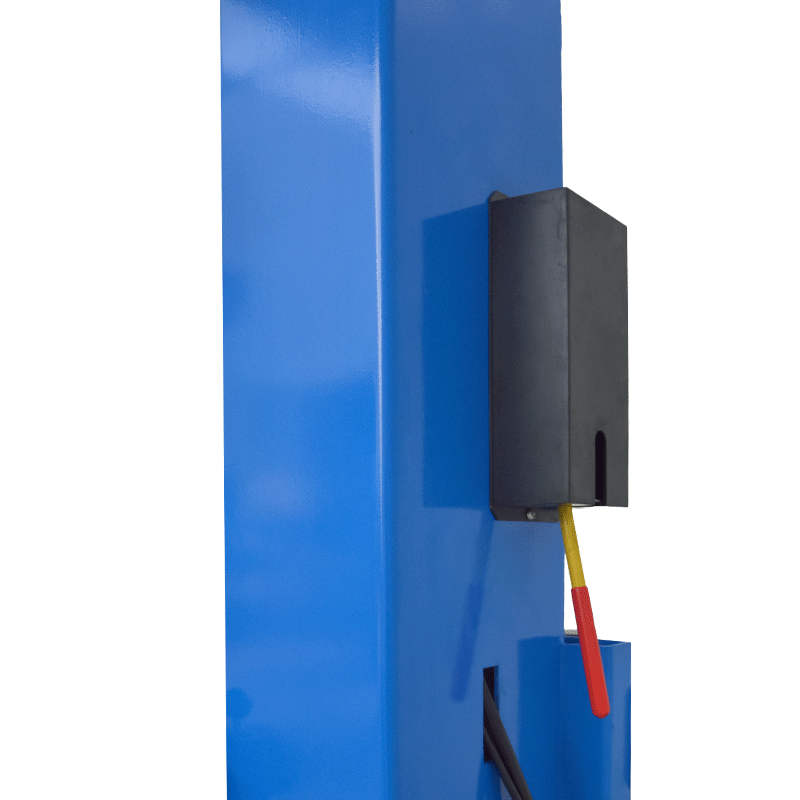

Single-point manual lock release mechanism disengages both columns simultaneously from one side.
Revolutionary double-lock system is equipped in both columns.

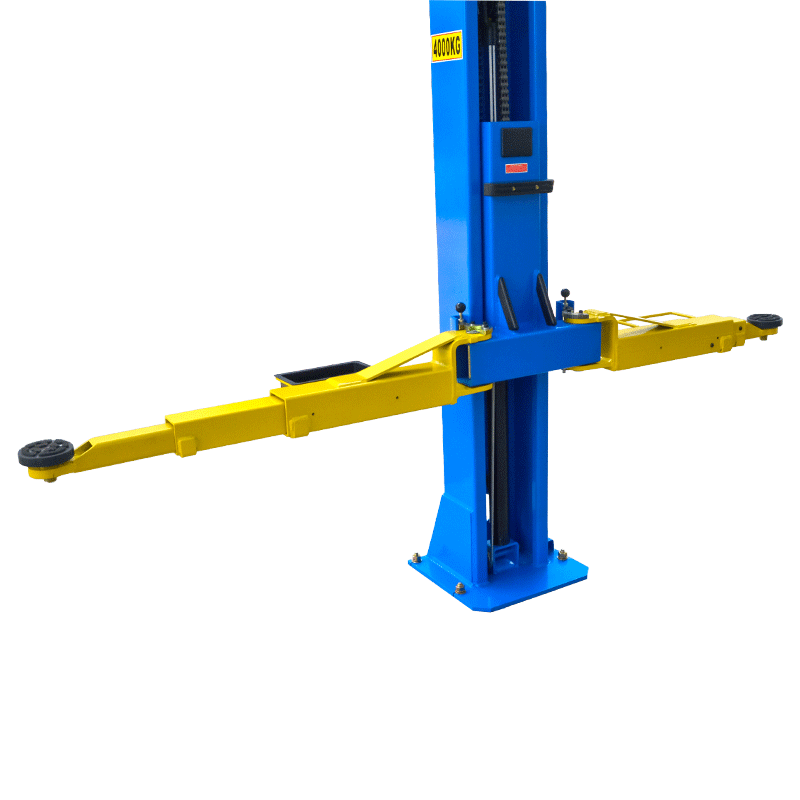

Four 3-stage telescoping arms fit more vehicles.

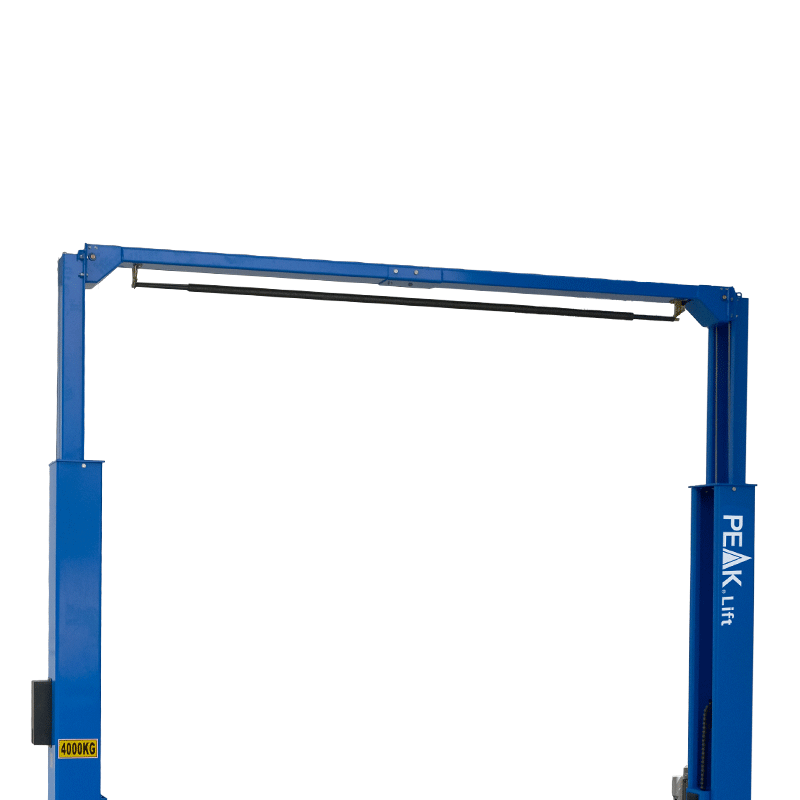

Split top beam design for easy installation,with safety shut-off device for maximum vehicle protection.

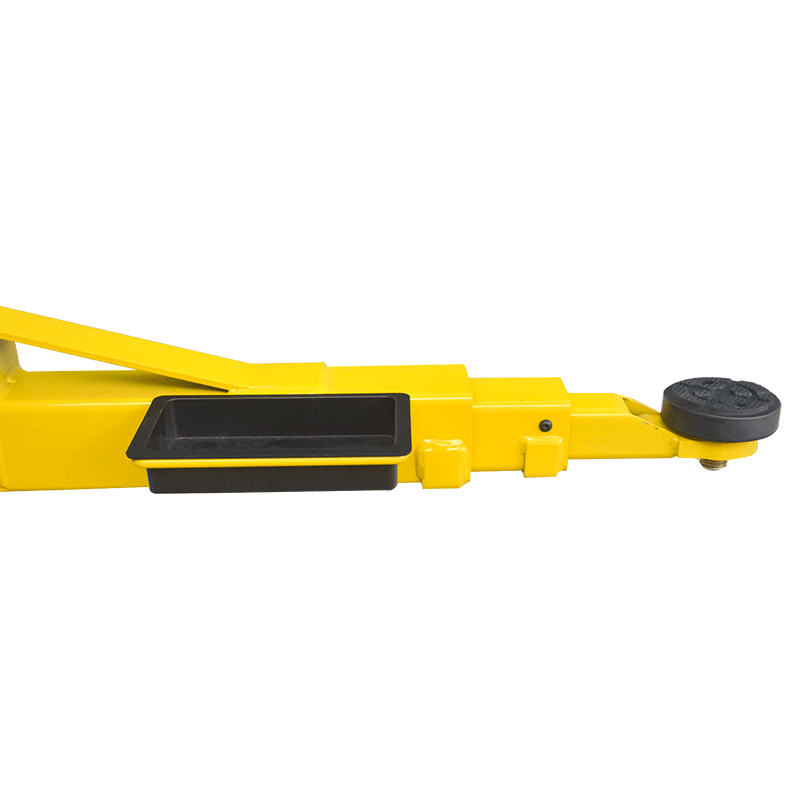

Toe guards and tool trays come standard.
Single-screw rubber pad with pin dia 38mm, comes with 3" extension adapter;
