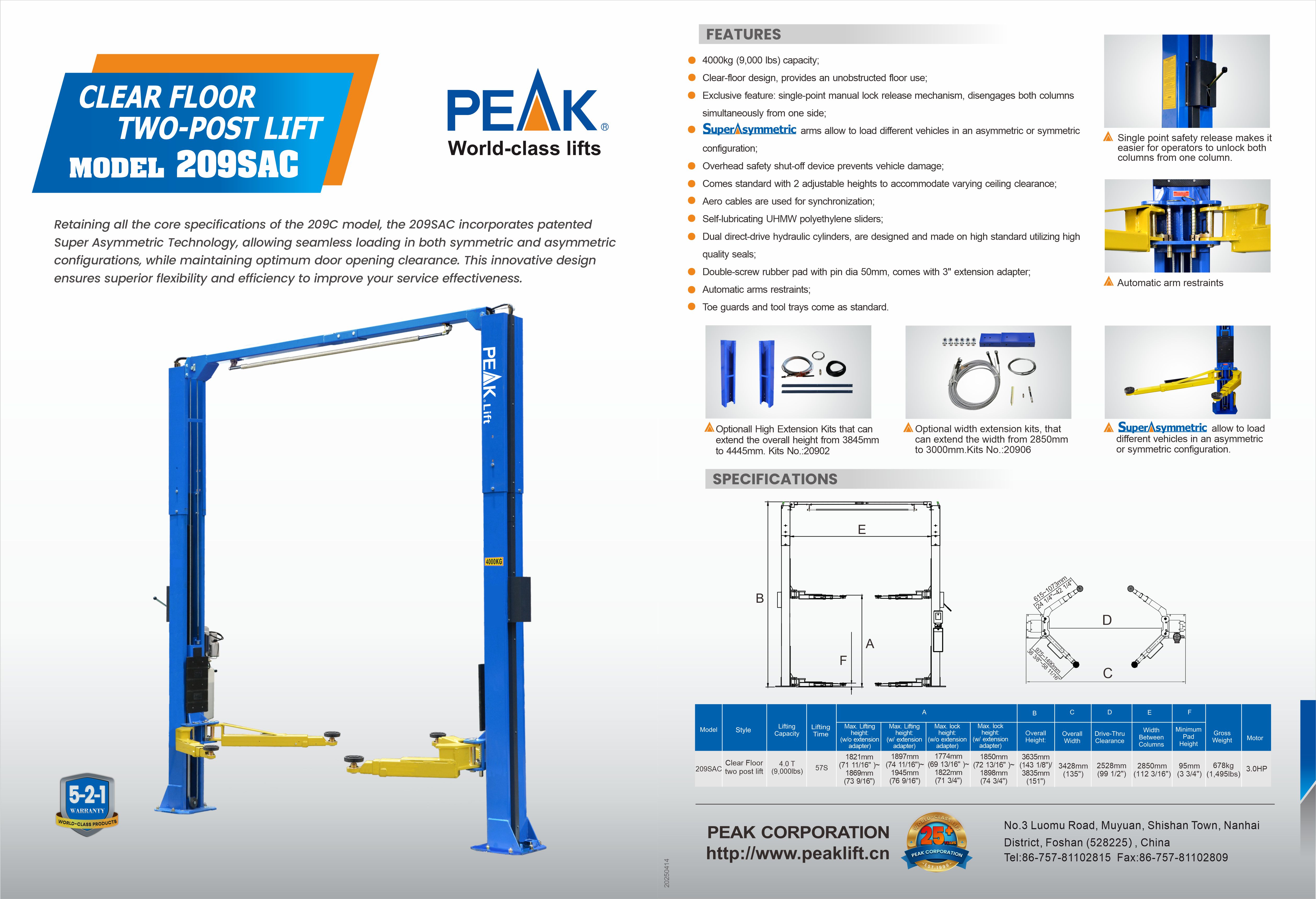

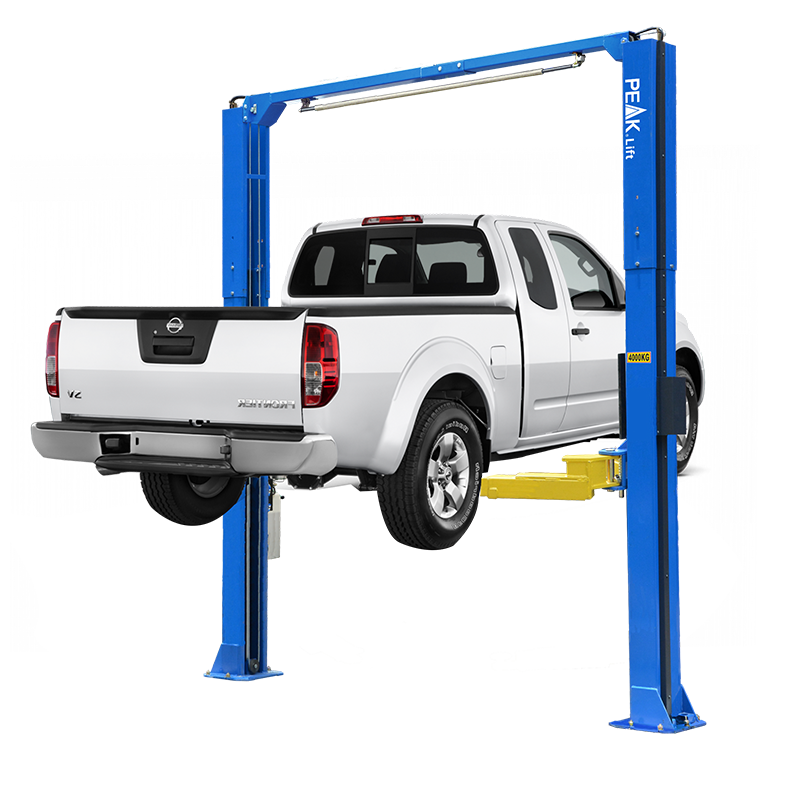

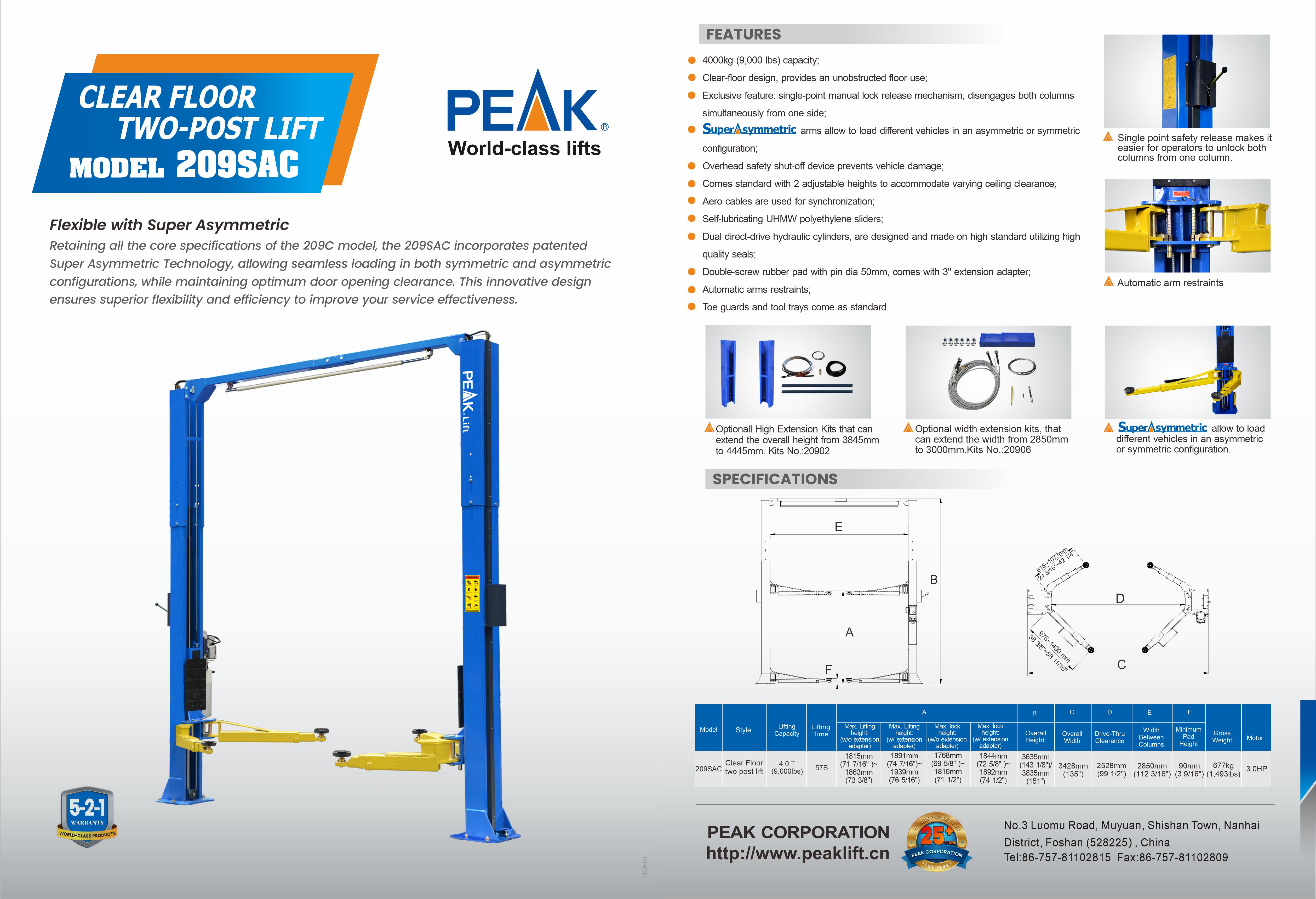

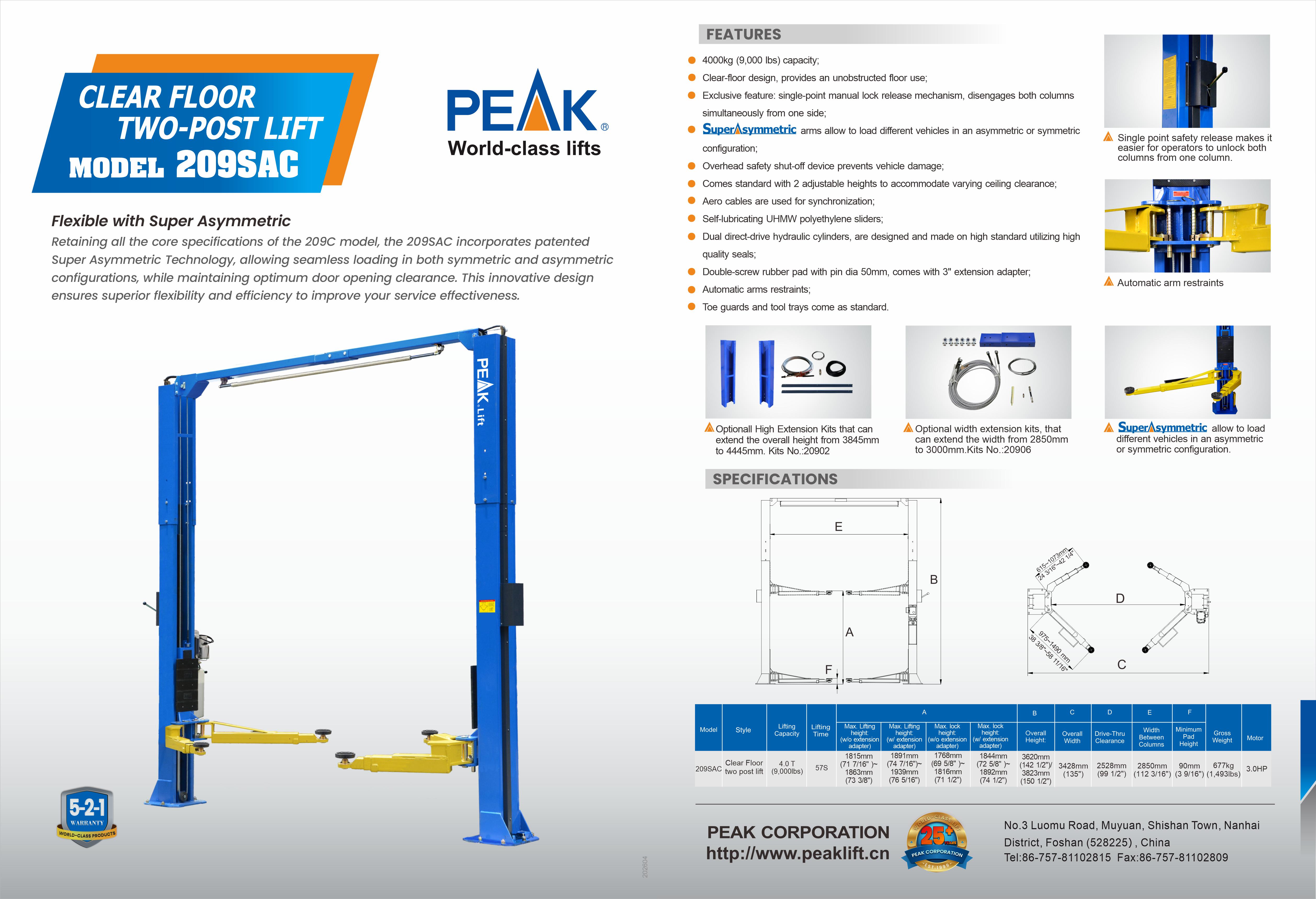

209SAC

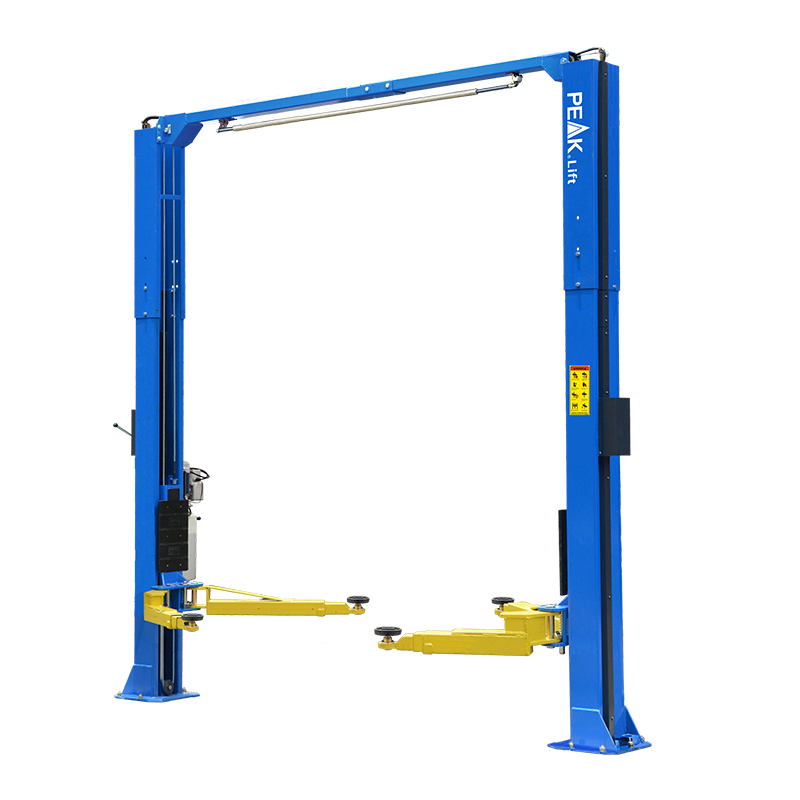

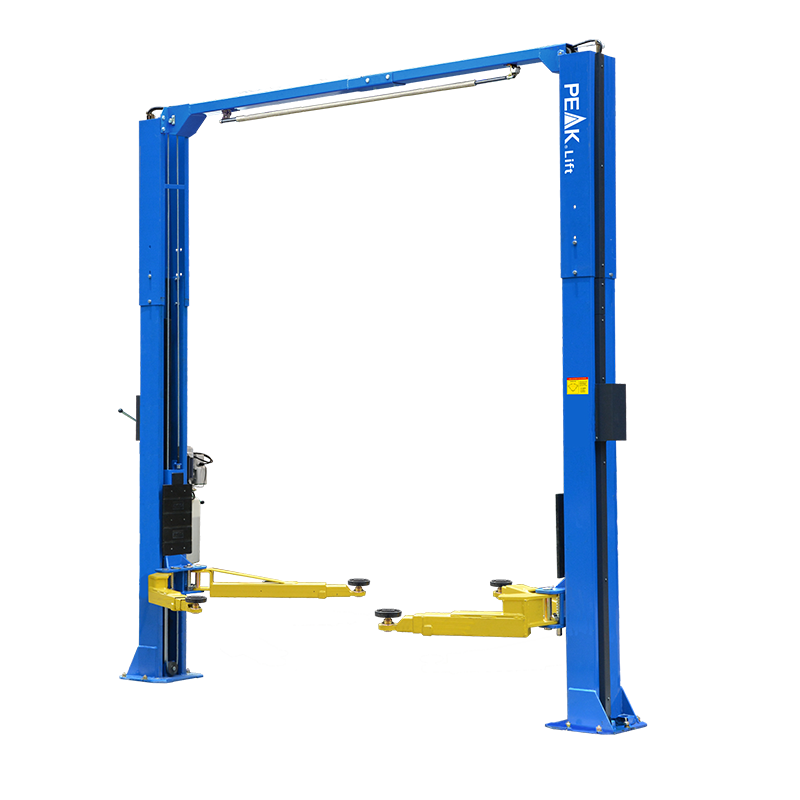

Clear Floor two post lift
Flexible with Super Asymmetric
Retaining all the core specifications of the 209C model, the 209SAC incorporates patented Super Asymmetric Technology, allowing seamless loading in both symmetric and asymmetric configurations, while maintaining optimum door opening clearance. This innovative design ensures superior flexibility and efficiency to improve your service effectiveness.
- 4000kg (9,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
arms allow to load different vehicles in an asymmetric or symmetric configuration; - Overhead safety shut-off device prevents vehicle damage;
- Comes standard with 2 adjustable heights to accommodate varying ceiling clearance;
- Aero cables are used for synchronization;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 209SAC | Clear Floor two post lift | |
| Lifting Capacity | 4000kg(9,000 Ibs) | |
| Lifting Time | A | 57s |
| Max.Lifting height:(w/o extension adapter) | 1821mm(71 11/16")~1869mm(73 9/16") | |
| Max.Lifting height:(w/ extension adapter) | 1897mm(74 11/16")~1945mm(76 9/16") | |
| Max.lock height(w/o extension adapter) | 1774mm(69 13/16")~1822mm(71 3/4") | |
| Max.lock height(w/ extension adapter) | 1850mm(72 13/16")~1898mm(74 3/4") | |
| Overall Height | B |
3635mm(143 1/8") 3835mm(151") |
| Overall Width | C | 3428mm(135") |
| Drive-Thru Clearance | D | 2528mm(99 1/2") |
| Width Between Columns | E | 2850mm(112 3/16") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 679kg(1,497 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 25 Units/20'GP 50 Units/40'GP |
|
| Packing Dimension | 2800X450X825 mm |
-

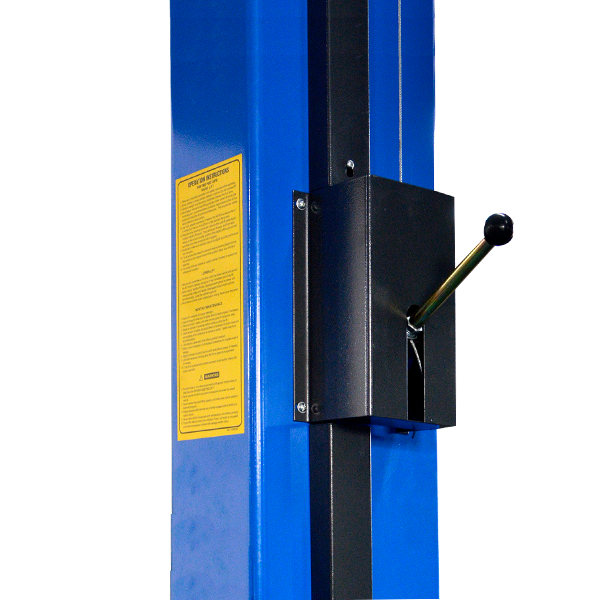

Single point safety release makes it easier for operators to unlock both columns from one column.
-

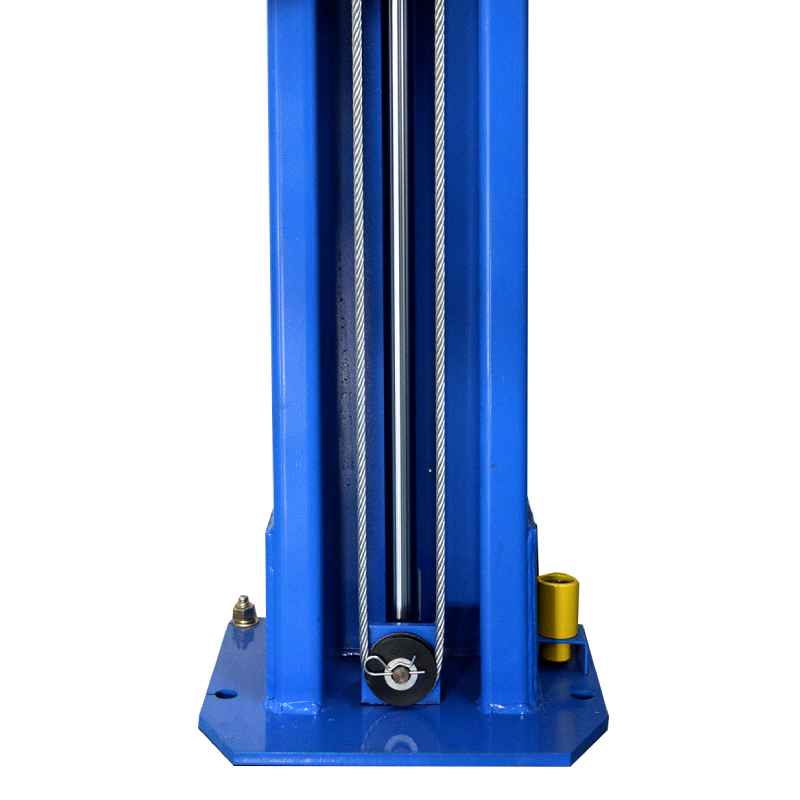

Hydraulic direct-drived cylinders.
-

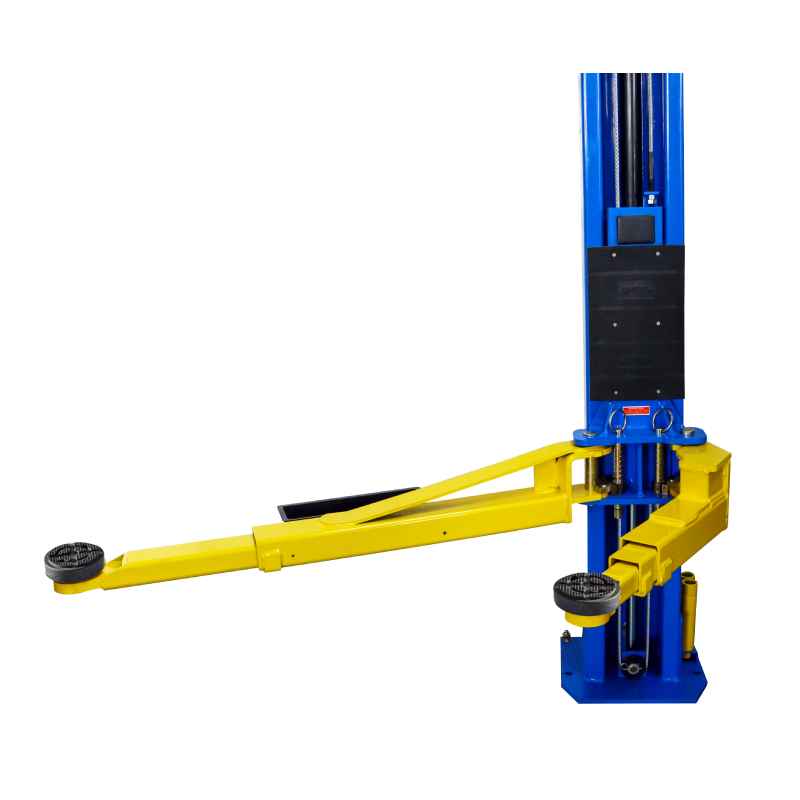

arms allow to load different vehicles in an asymmetric or symmetric configuration. -

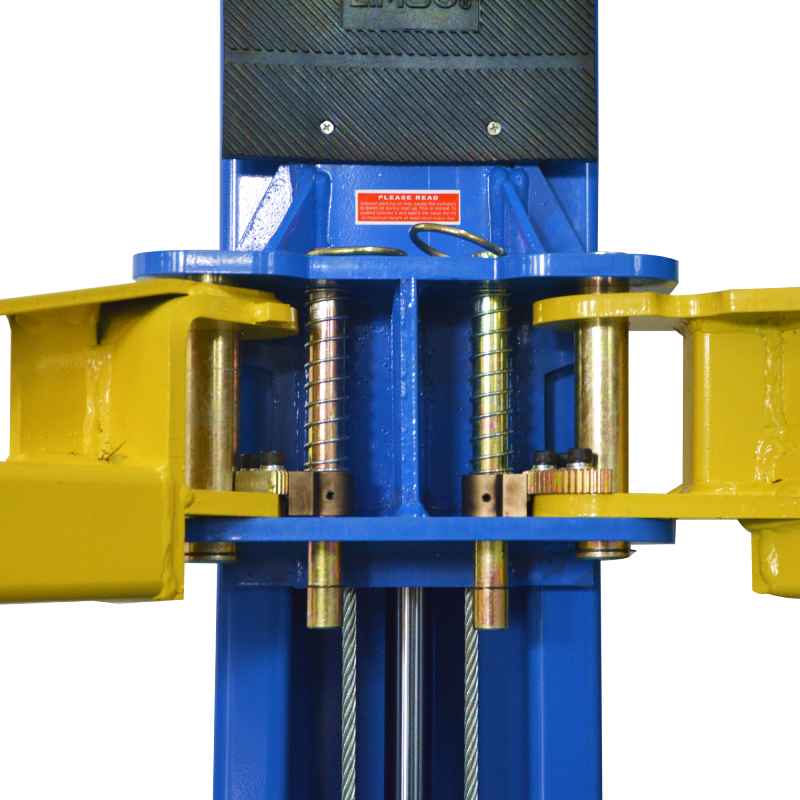

Automatic arm restraints.
-

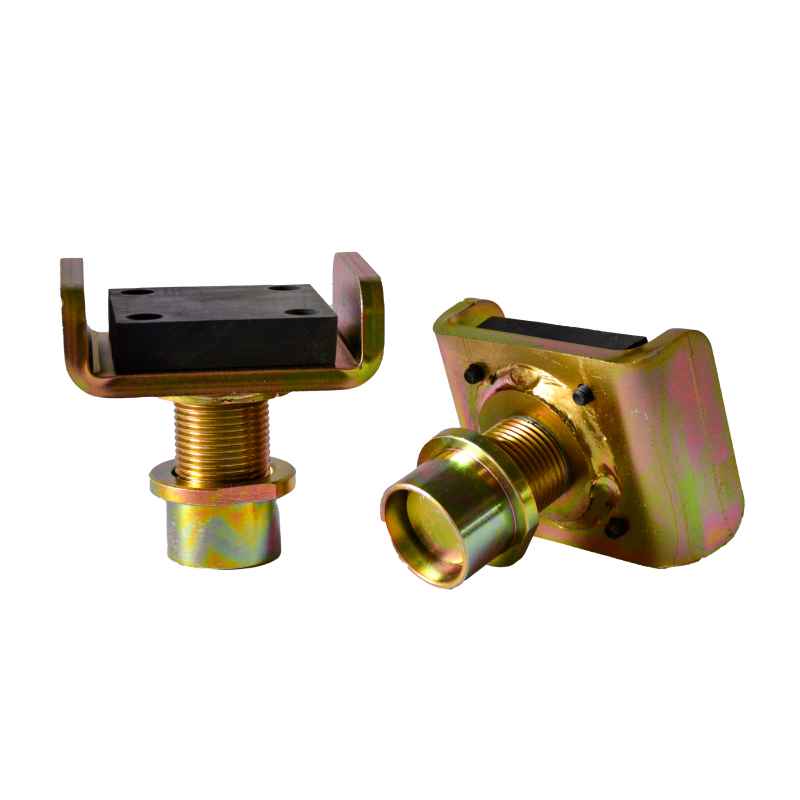

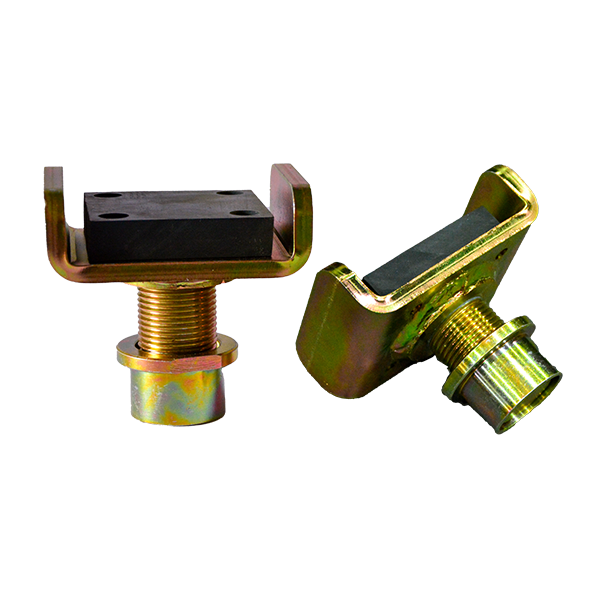

The optional saddle adapter.
Kits No.: 1102185006C -

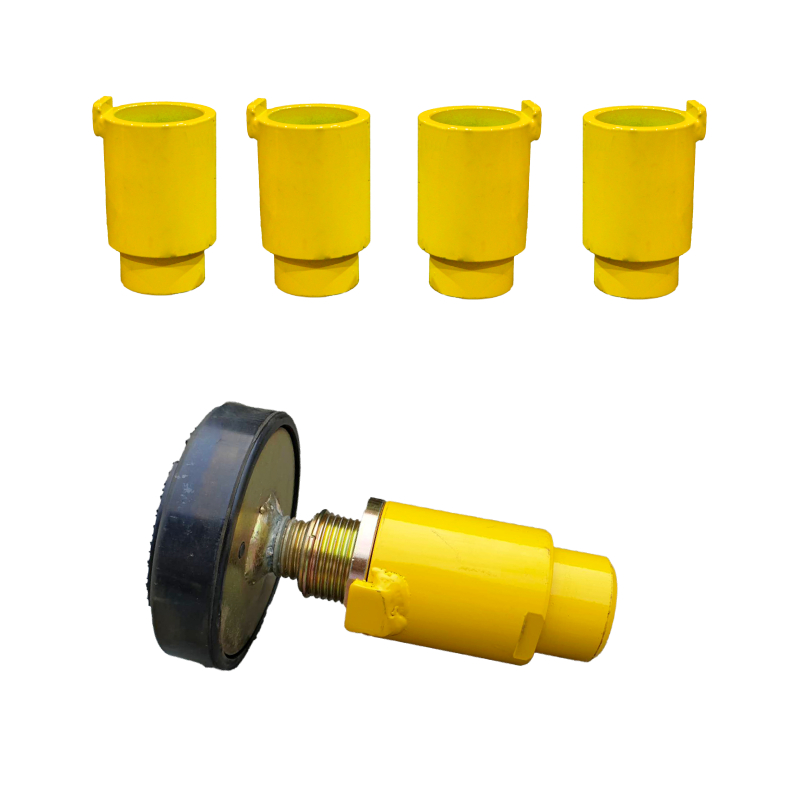

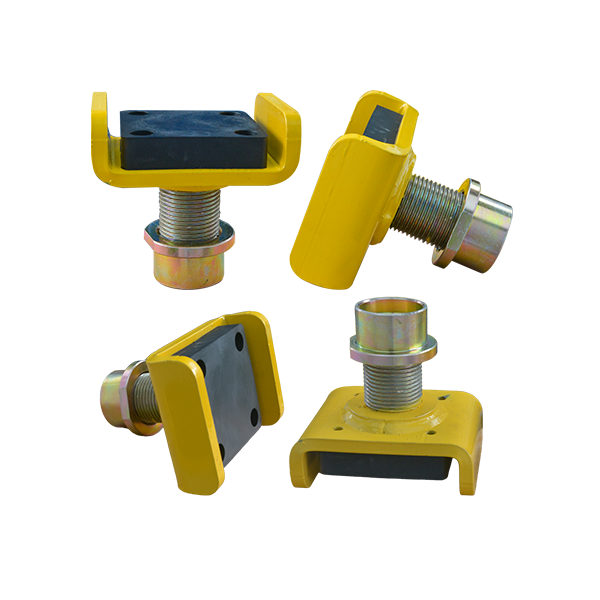

Double-screw rubber pad with pin dia.50mm, comes with 3" extension adapter.
-

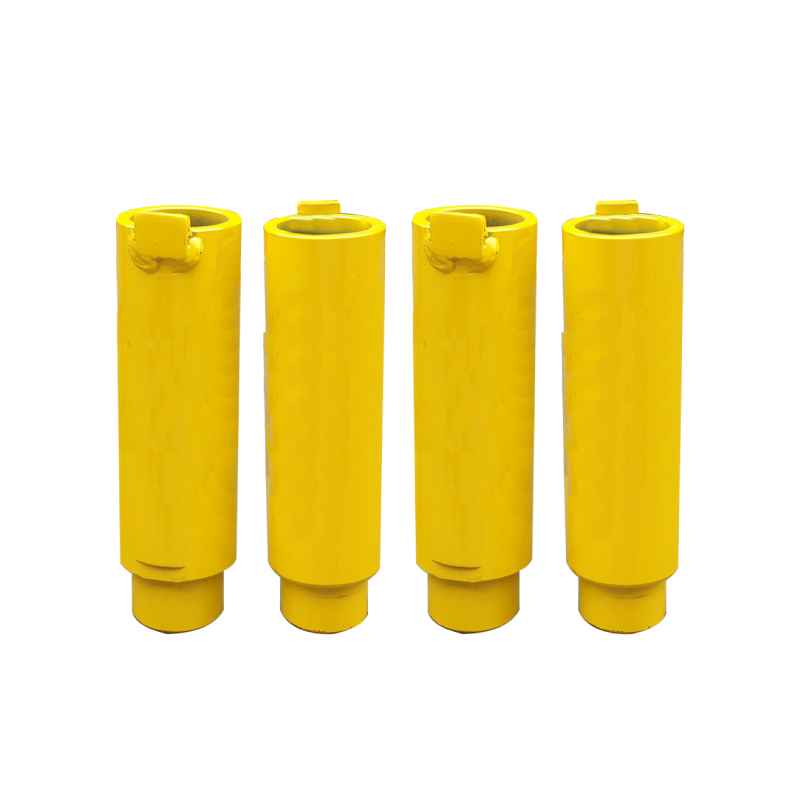

6" extension adapter comes as optional.
P/N: 1102504001. -

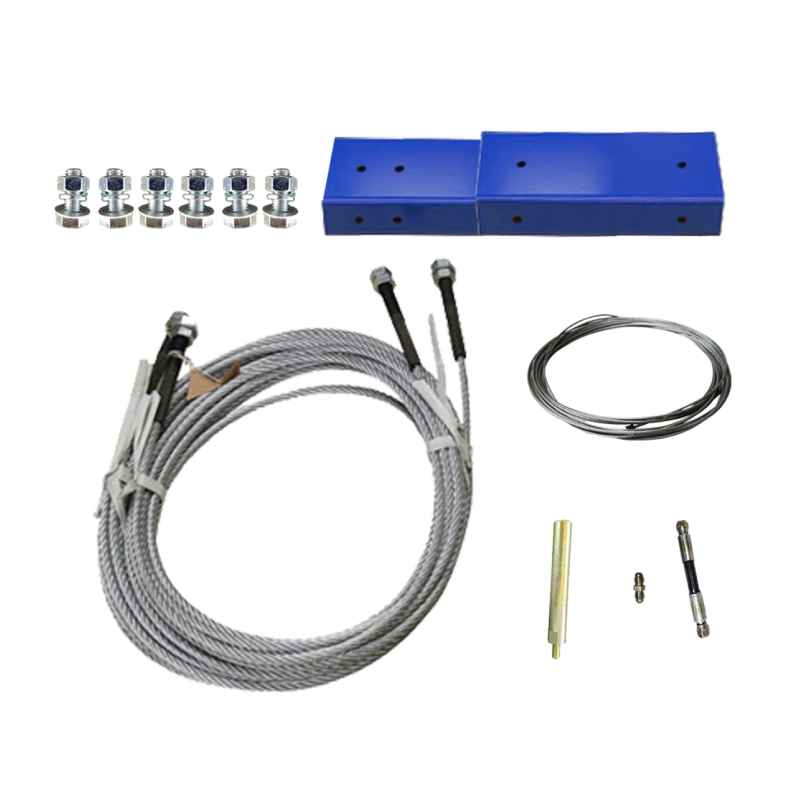

Optional Height ExtensionKits.
With these kits the overall height is adjusted from 3821mm to 4431mm.
Kits No.: 20902 -
Optional Width Extension KitsWith these kits the width between posts is adjusted from 2850mm to 3000mm.Kits No.: 20906

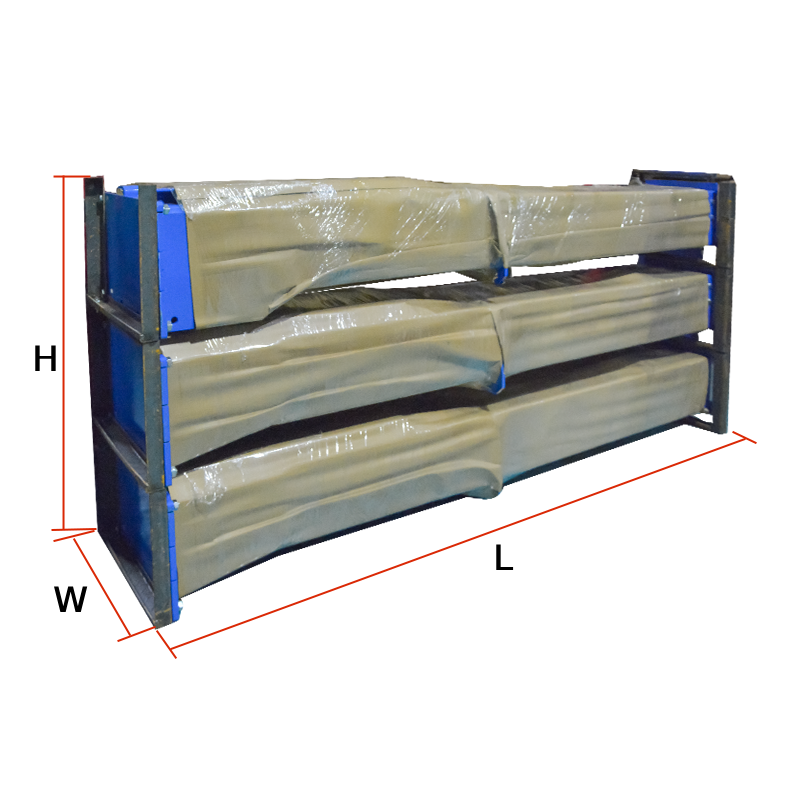

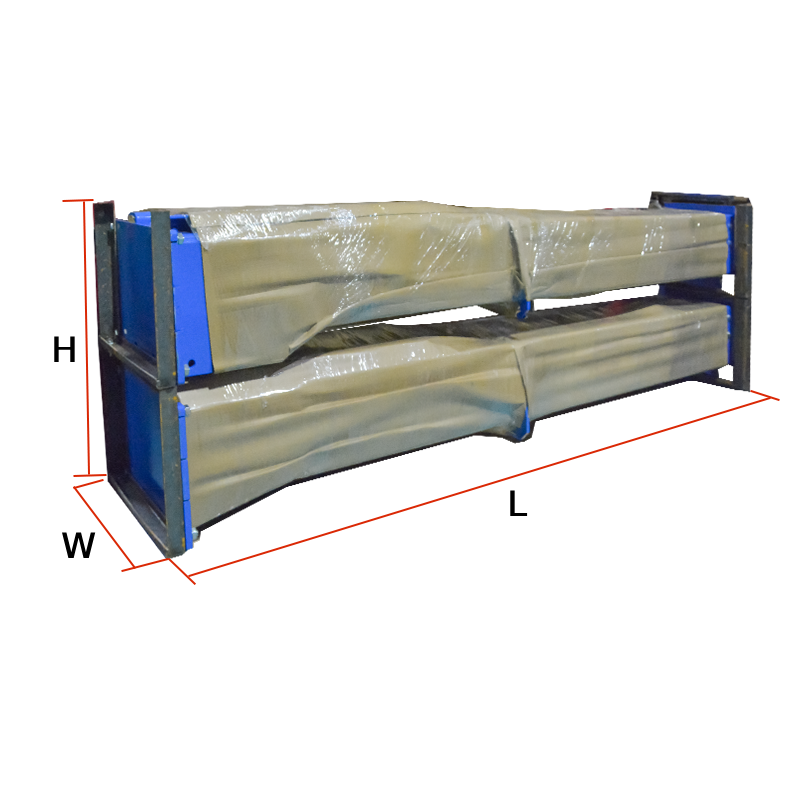

2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 209SAC: 679kgs , include power unit gross weight 25kgs.
- 20' container can load 25 units.
-
2 units/package,packing measurement (LxWxH):2885x450x1525mm
-
3 units/package, packing measurement (LxWxH): 2910x450x2260mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

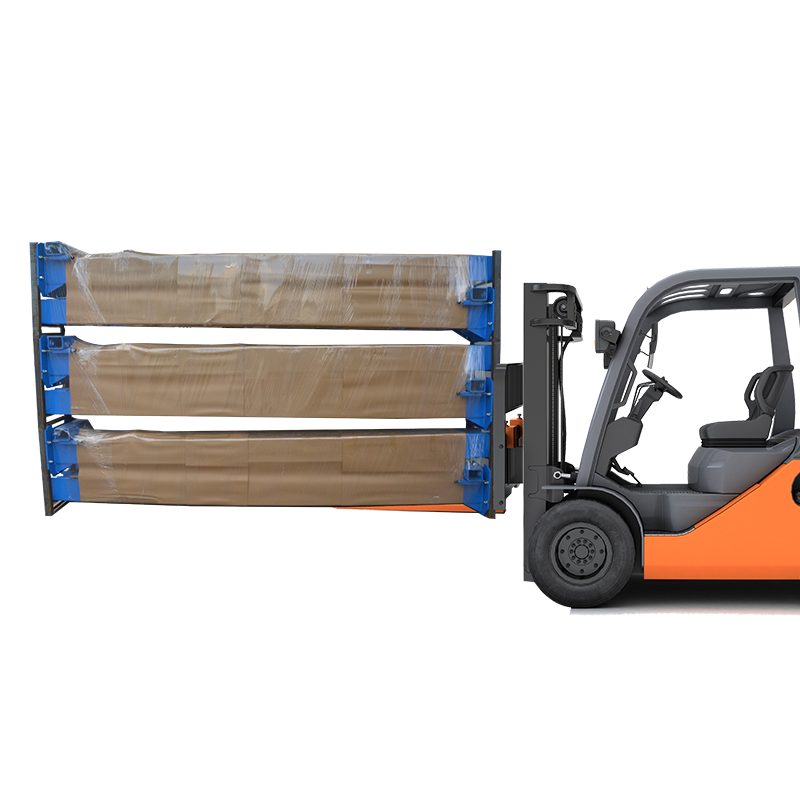

Attention to forklift loading and unloading
