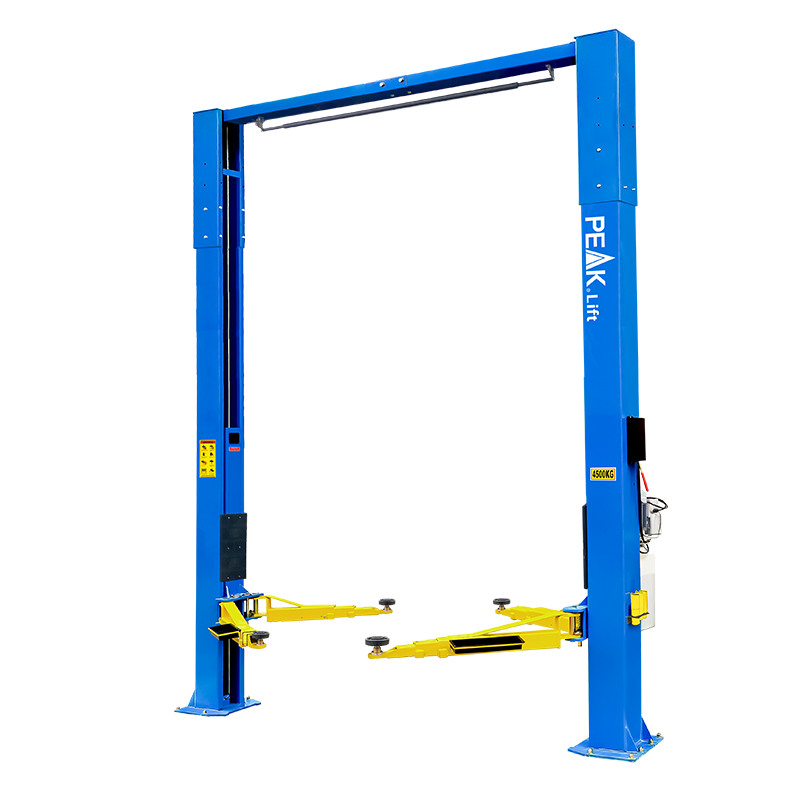

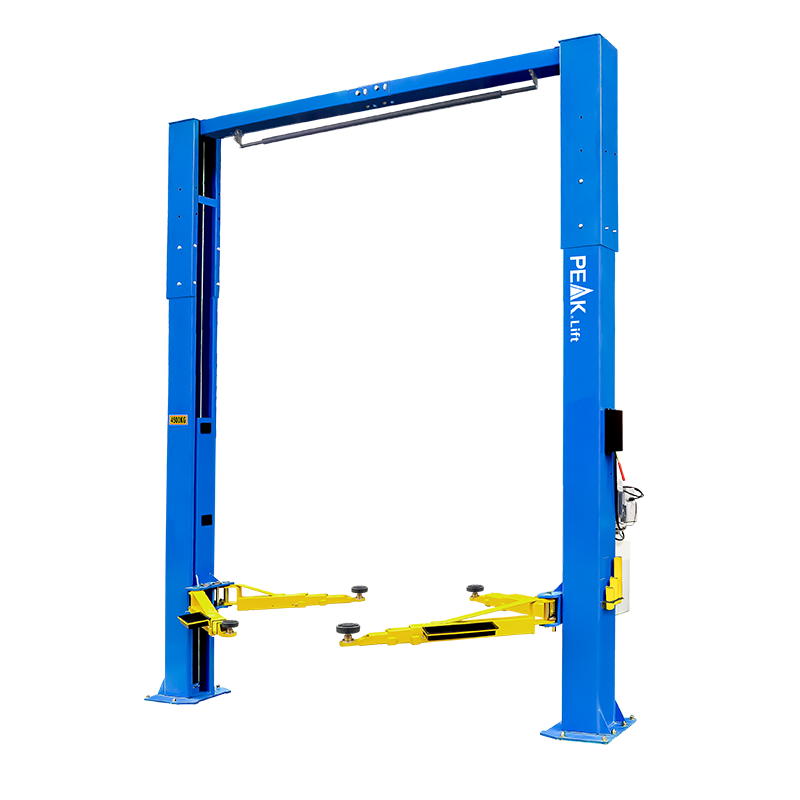

210CHX
Clear Floor Two Post Lift
Extremely high lifting
Engineered for exceptional performance, the 210CHX delivers an impressive high lifting of over 2000mm without extension adapters. The two-section designs applied on the columns and top beam make installation and transportation much easier. And its extra-long carriages provide twice the length of most competitive models for increased stability.
- 4500kg (10,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- Extremely long carriages are equipped to enhance the stability and durability;
- Extremely high lifting model to more than 2000mm;
- The width between columns is extremely wide at 3000mm ;
- Comes standard with 2 adjustable heights to accommodate varying ceiling clearance.
- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 210CHX | Clear Floor Two Post Lift | |
| Lifting Capacity | 4500kg(10,000 Ibs) | |
| Lifting Time | A | 64s |
| Max. Lifting height:(w/o extension adapter) | 2000mm(78 3/4")~2048mm(80 5/8") | |
| Max. Lifting height:(w/ extension adapter) | 2076mm(81 3/4")~2124mm(83 5/8") | |
| Max. lock height(w/o extension adapter) | 1960mm(77 3/16")~2008mm(79 1/16") | |
| Max. lock height(w/ extension adapter) | 2036mm(80 3/16")~2084mm(82 1/16") | |
| Overall Height | B |
4313mm(169 13/16") 4035mm(158 7/8") |
| Overall Width | C |
3666mm(144 5/16") |
| Drive-Thru Clearance | D |
2710mm(106 11/16") |
| Width Between Columns | E |
3000mm(118 1/8") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 788kg(1,737 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP 30 Units/40'GP |
|
| Packing | 3920 x 510 x 820 mm |
-
Single point safety release makes it easier for operators to unlock both columns from one column.
-

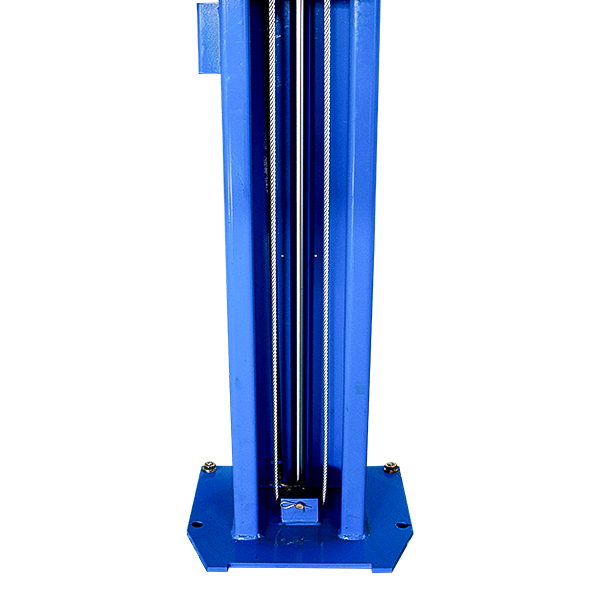

Hydraulic direct-drived cylinders.
-

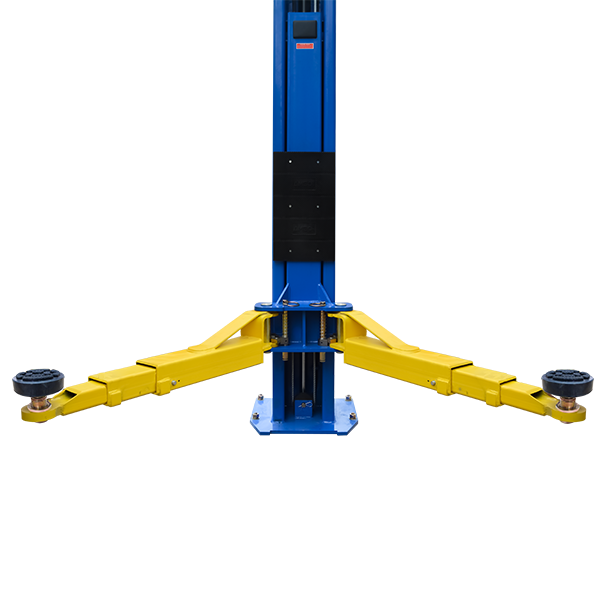

4 three-stages arms are suitable for more vehicles.
-

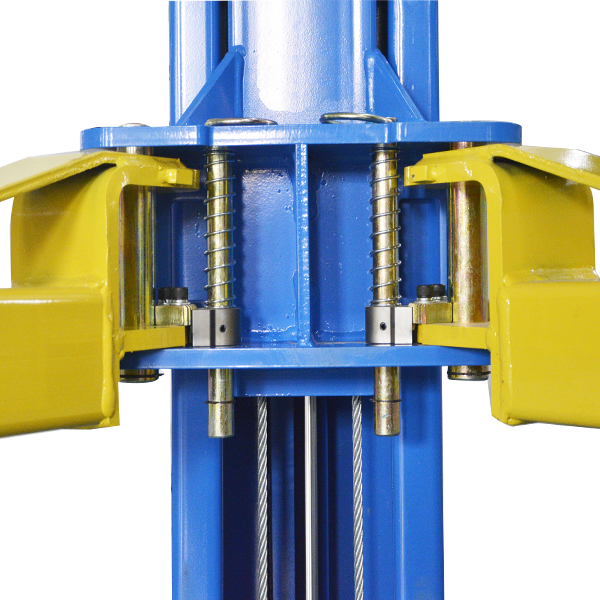

Automatic arm restraints.
-
Clear floor design, provides unobstructed floor space. Overhead safety shut-off device prevents vehicle damage.
-

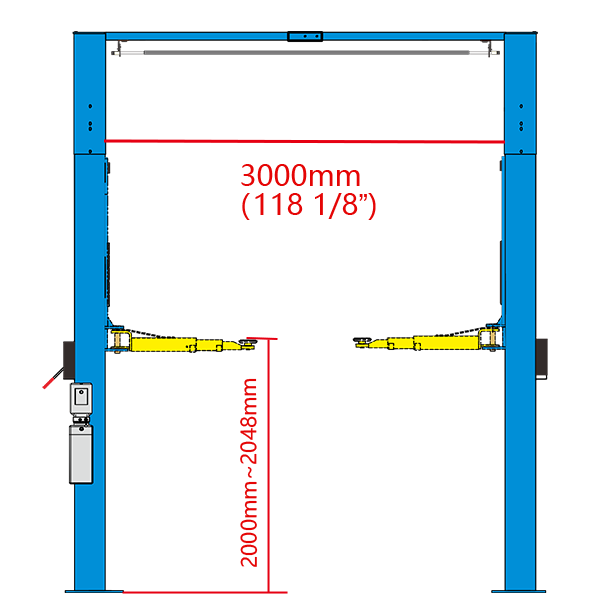

Extremly high lifting dimension for 2000mm (not included the extension adapters).
-

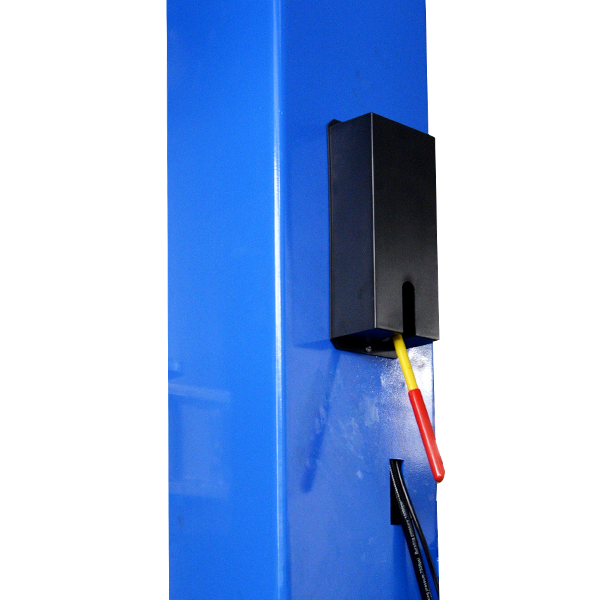

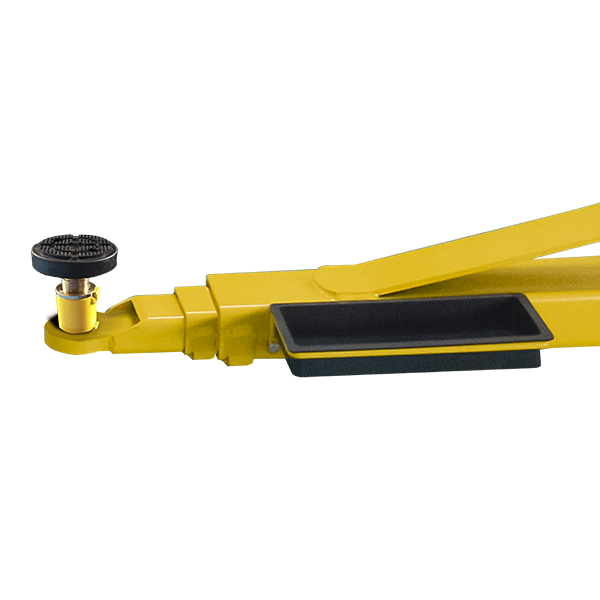

Toe guards and tool trays come as standard.
-

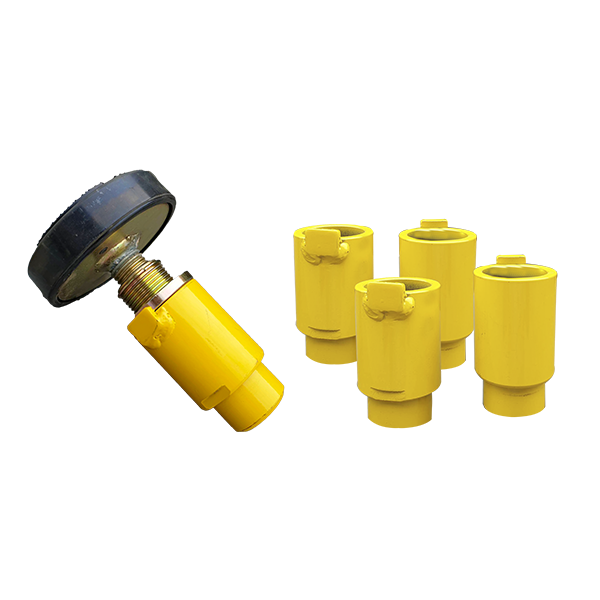

Double-screw rubber pad with pin dia.50mm, comes with 3" extension adapter.
-

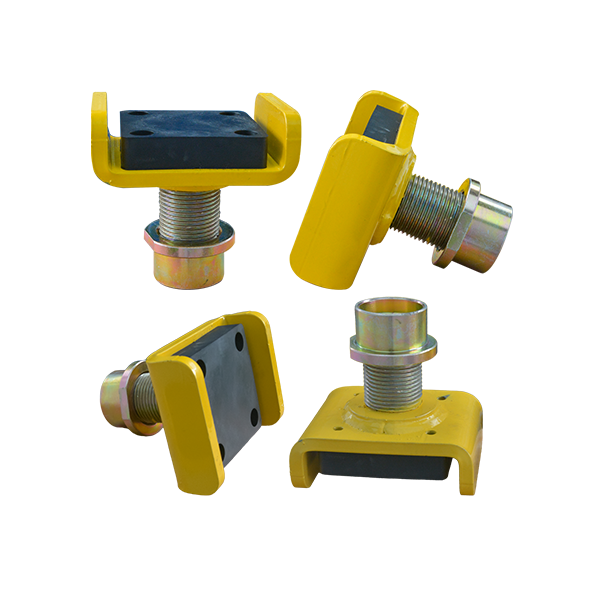

The optional saddle adapter.
Kits No.: 1102185006C -

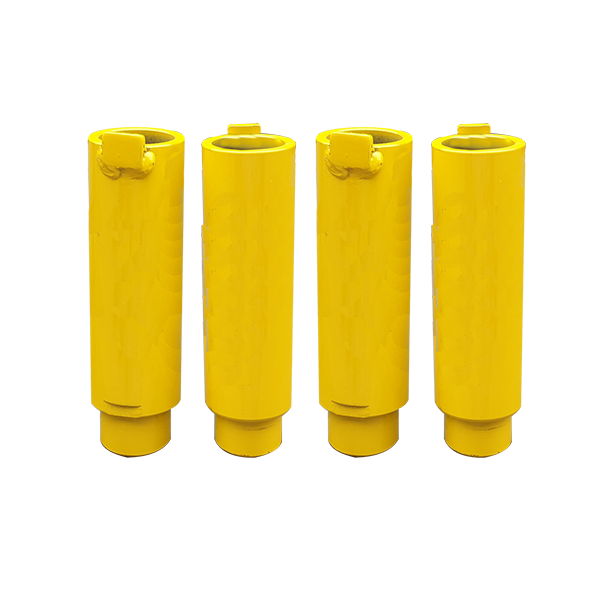

6" extension adapter comes as optional.
P/N: 1102504001
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 210CHX: 788kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
-

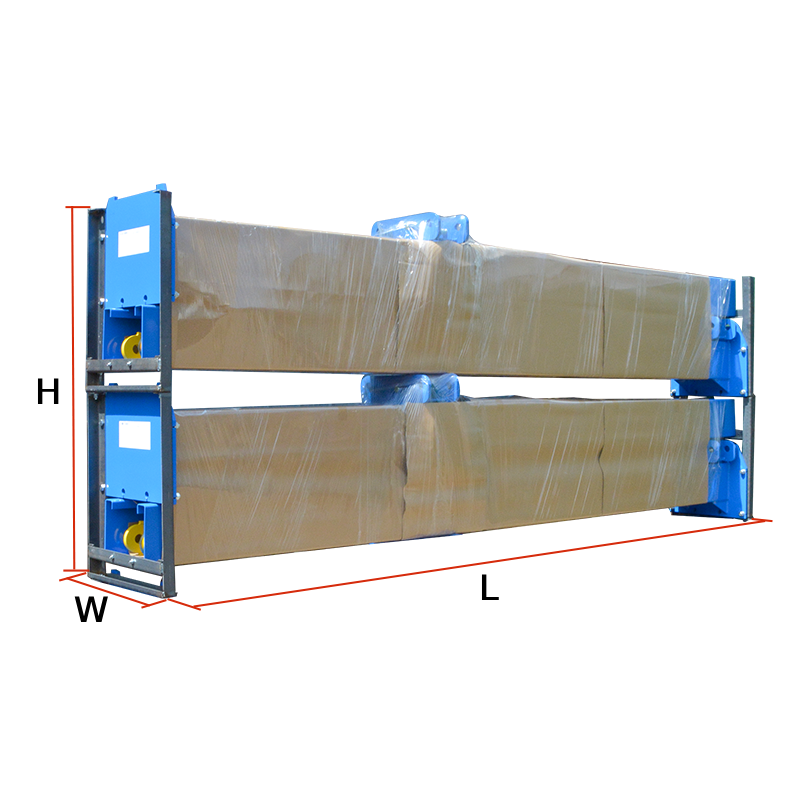

2 units/package,packing measurement (LxWxH):3760x510x1540mm
-

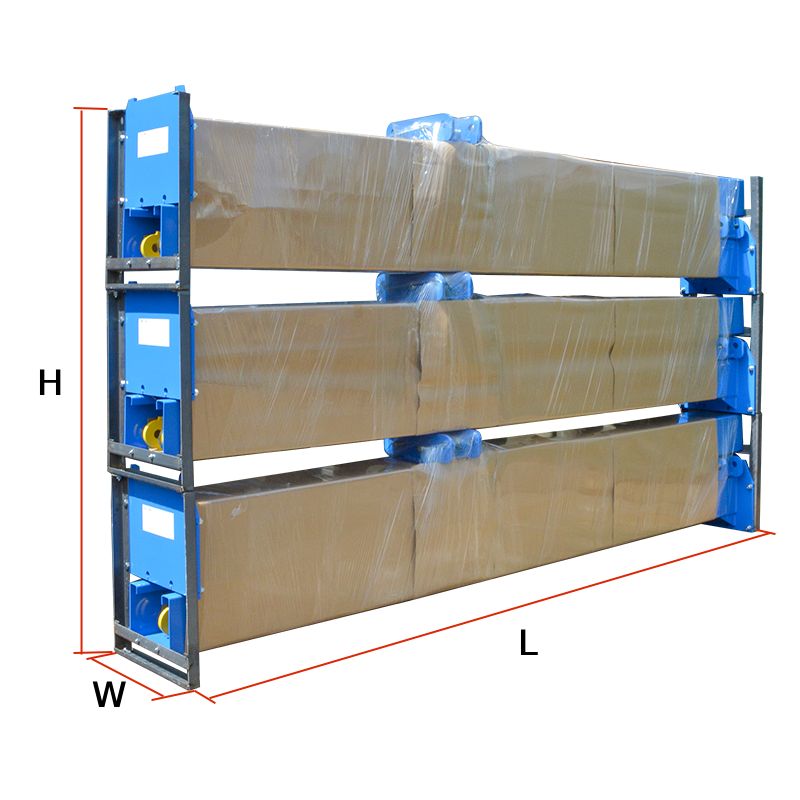

3 units/package, packing measurement (LxWxH): 3760x510x2270mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

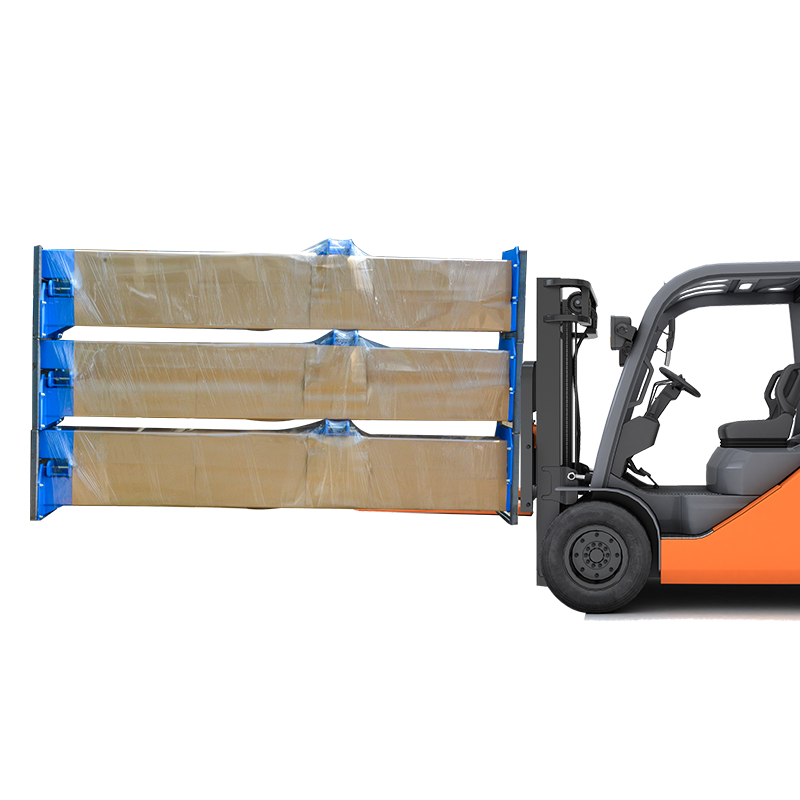

Attention to forklift loading and unloading
