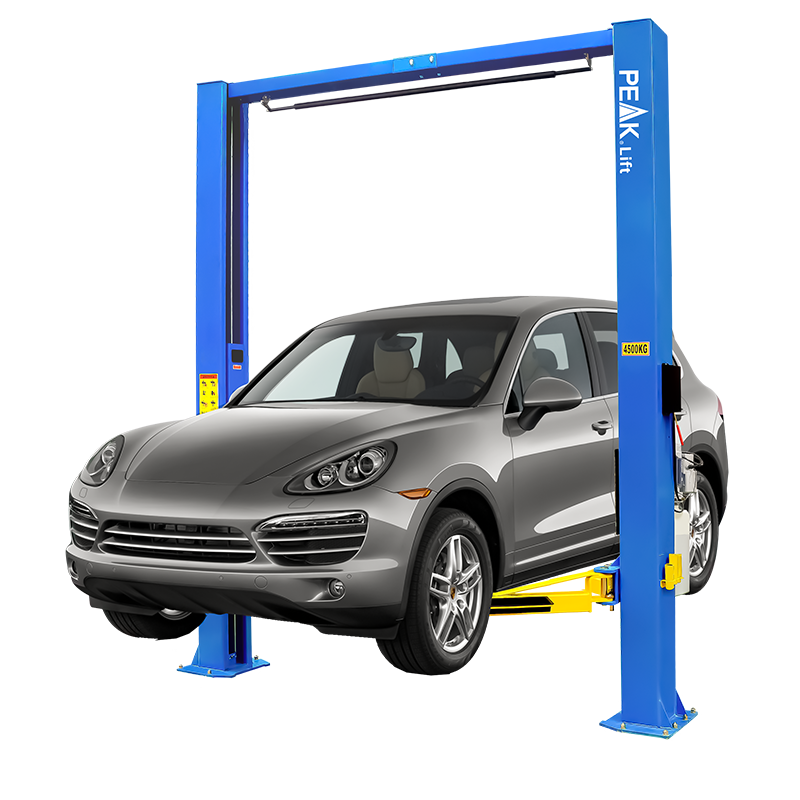

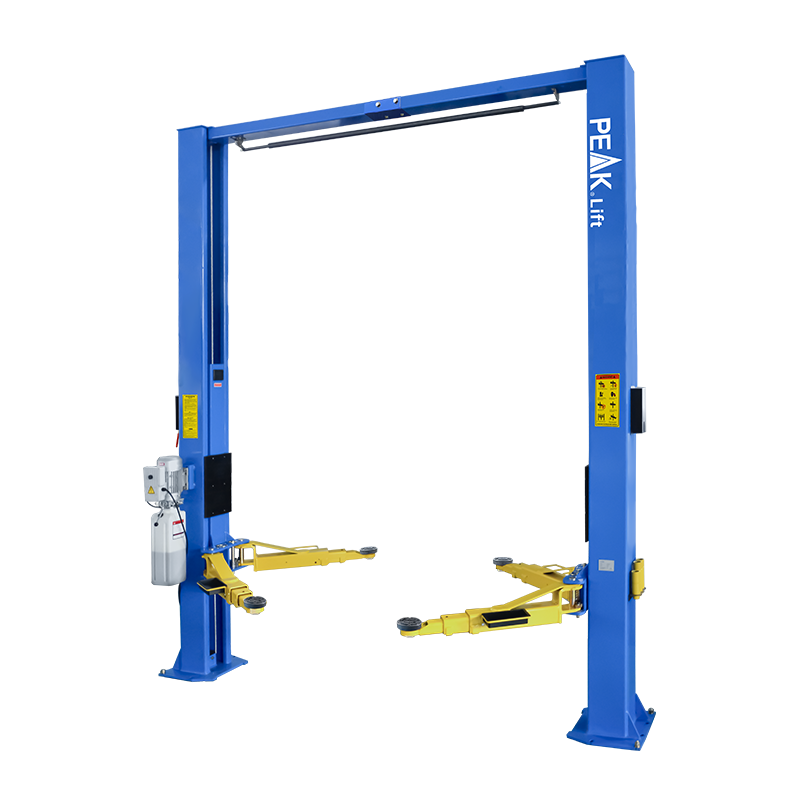

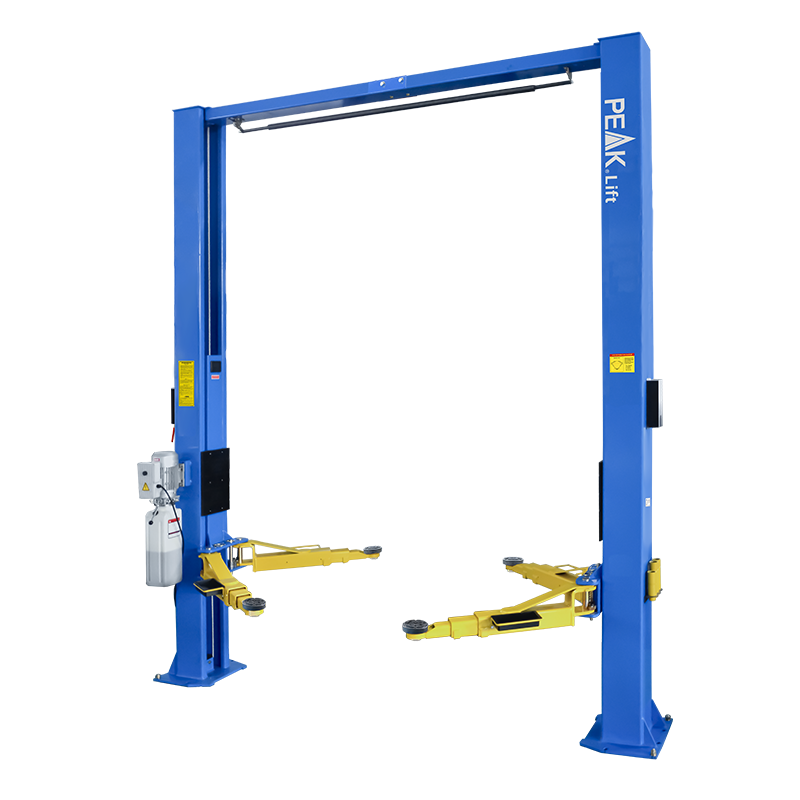

210CX
Clear Floor Two Post Lift
Wider, more clearance
The 210CX boasts a width that is 150mm greater than the PEAK 210C, resulting in a generous 2720mm drive-through clearance suitable for the loading of large vehicles. This makes it the optimal selection for commercial shops.
- 4500kg (10,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
- Four 3-stage arms are suitable for more vehicle;
- Overhead safety shut-off device prevents vehicle damage;
- Extremely long carriages are equipped to enhance the stability and durability;
- The width between columns is extremely wide at 3000mm ;

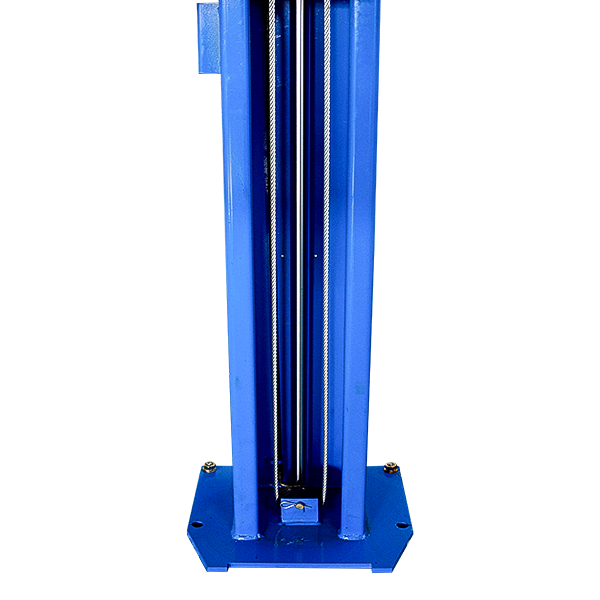

- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 210CX | Clear Floor Two Post Lift | |
| Lifting Capacity | 4500kg(10,000 Ibs) | |
| Lifting Time | A | 61s |
| Max. Lifting height:(w/o extension adapter) | 1896mm(74 5/8")~1944mm(76 9/16") | |
| Max. Lifting height:(w/ extension adapter) | 1972mm(77 5/8")~2020mm(79 1/2") | |
| Max. lock height(w/o extension adapter) | 1846mm(72 11/16")~1894mm(74 9/16") | |
| Max. lock height(w/ extension adapter) | 1922mm(75 11/16")~1970mm(77 9/16") | |
| Overall Height | B |
3854mm(151 3/4") |
| Overall Width | C |
3676mm(144 3/4") |
| Drive-Thru Clearance | D |
2720mm(107 1/16") |
| Width Between Columns | E |
3010mm(118 1/2") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 752kg(1,658 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container |
12 Units/20'GP 30 Units/40'GP |
|
| Packing | 3920 x 510 x 820 mm |
-

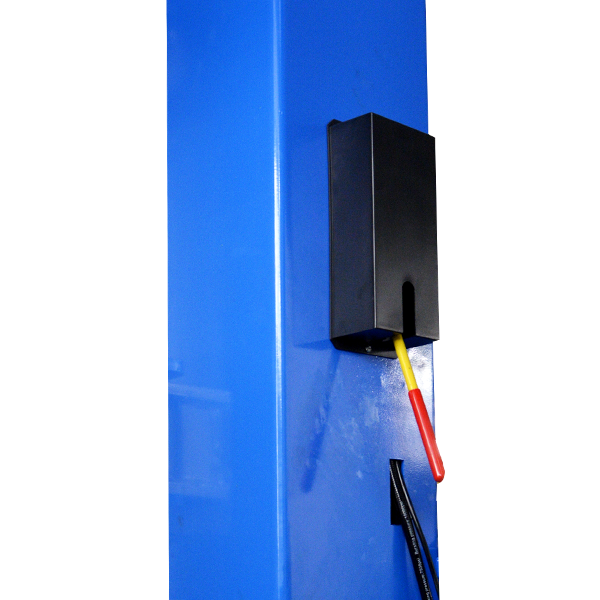

Single point safety release makes it easier for operators to unlock both columns from one column.
-
Hydraulic direct-drived cylinders.
-

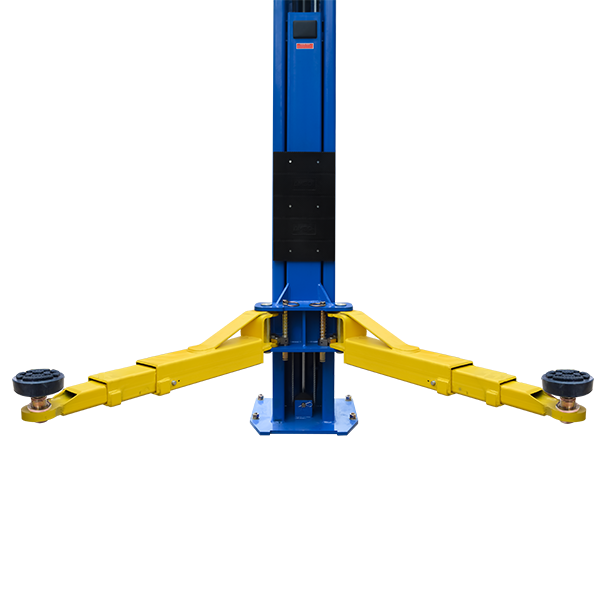

4 three-stages arms are suitable for more vehicles.
-

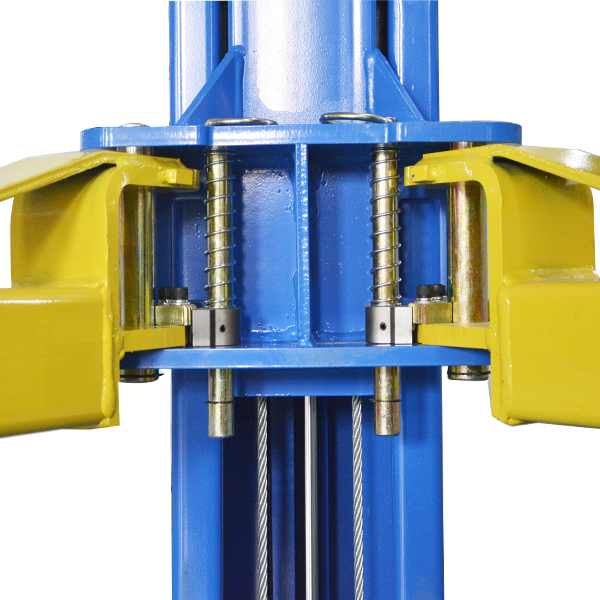

Automatic arm restraints.
-
Clear floor design, provides unobstructed floor space. Overhead safety shut-off device prevents vehicle damage.
-

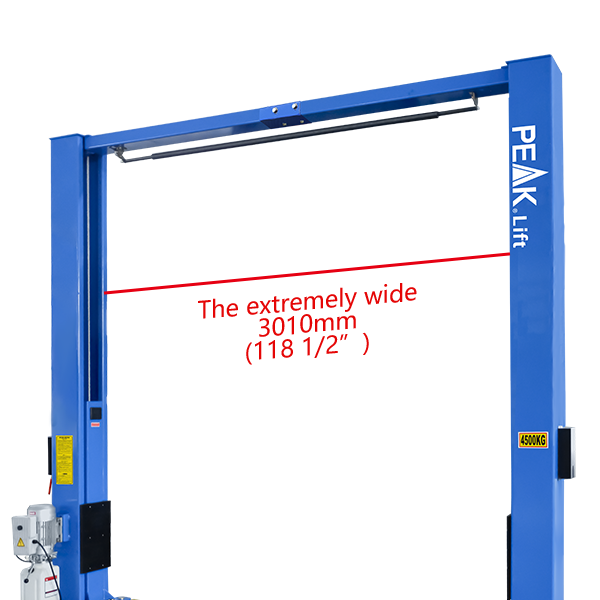

Extra wide width between columns, suitable for wider vehicle.
-

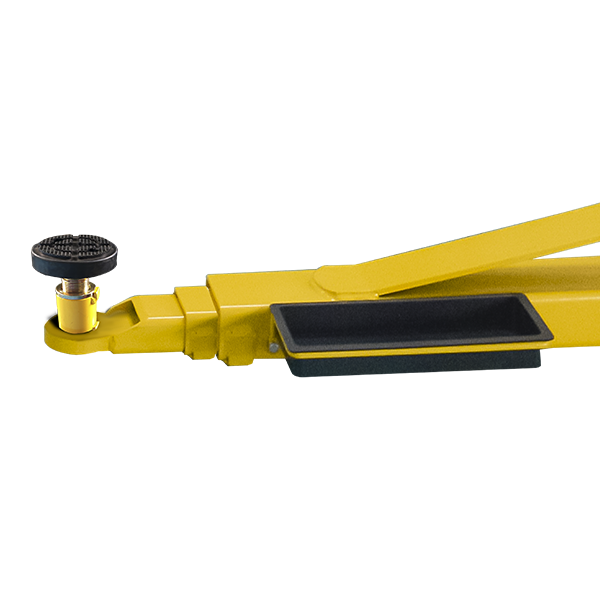

Toe guards and tool trays come as standard.
-

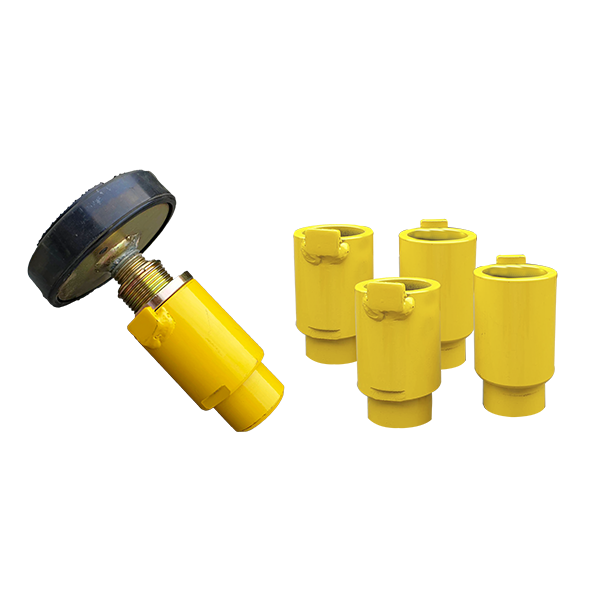

Double-screw rubber pad with pin dia.50mm, comes with 3" extension adapter.
-

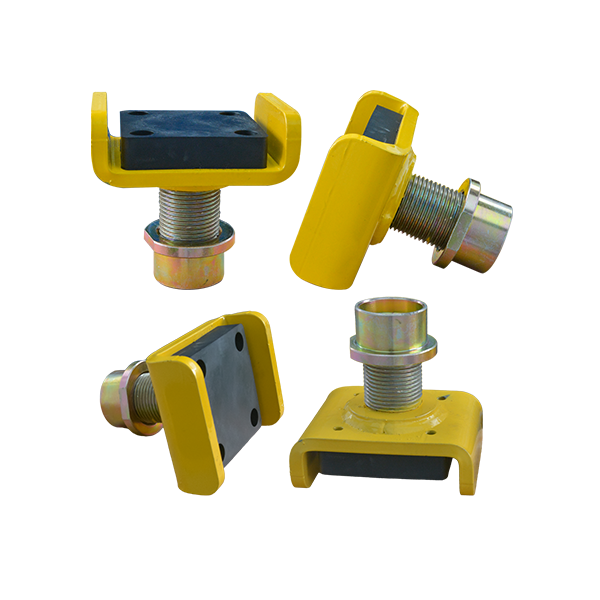

The optional saddle adapter.
Kits No.: 1102185006C -

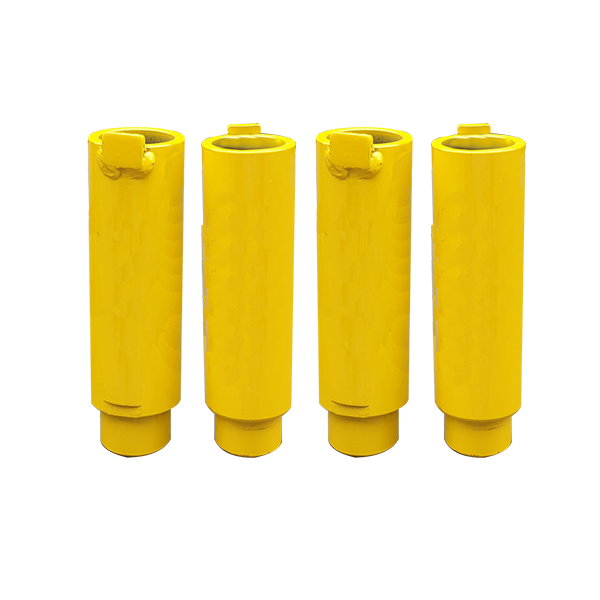

6" extension adapter comes as optional.
P/N: 1102504001
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 210CX: 752kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
-

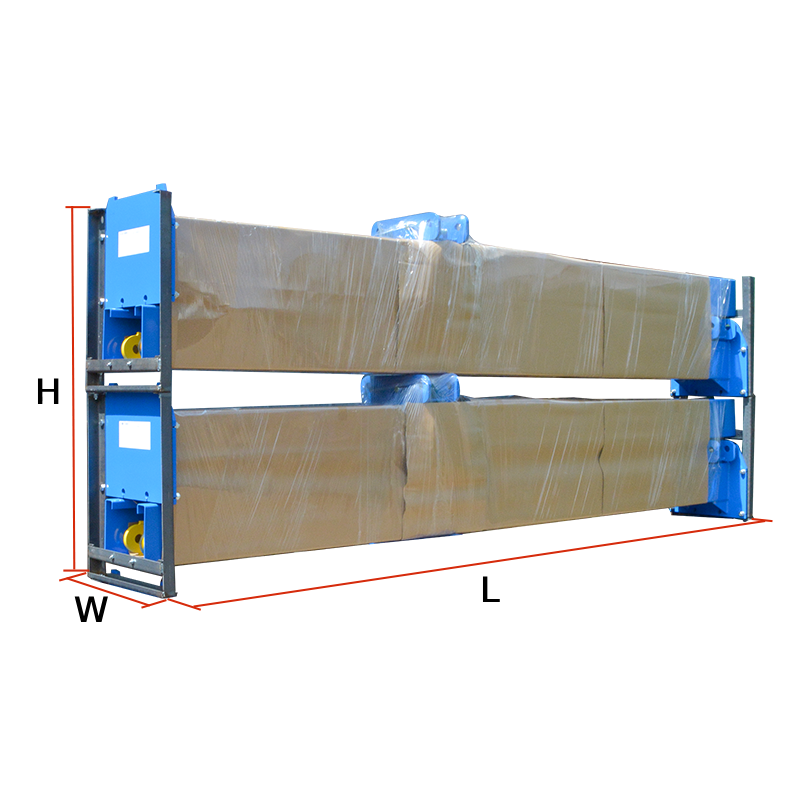

2 units/package,packing measurement (LxWxH):3910x510x1540mm
-

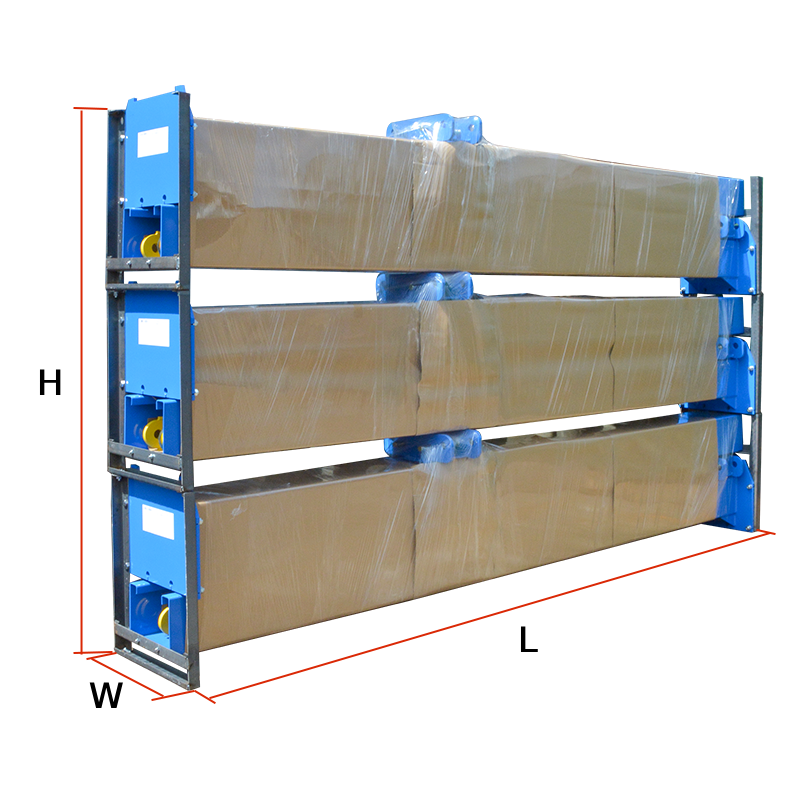

3 units/package, packing measurement (LxWxH): 3910x510x2270mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

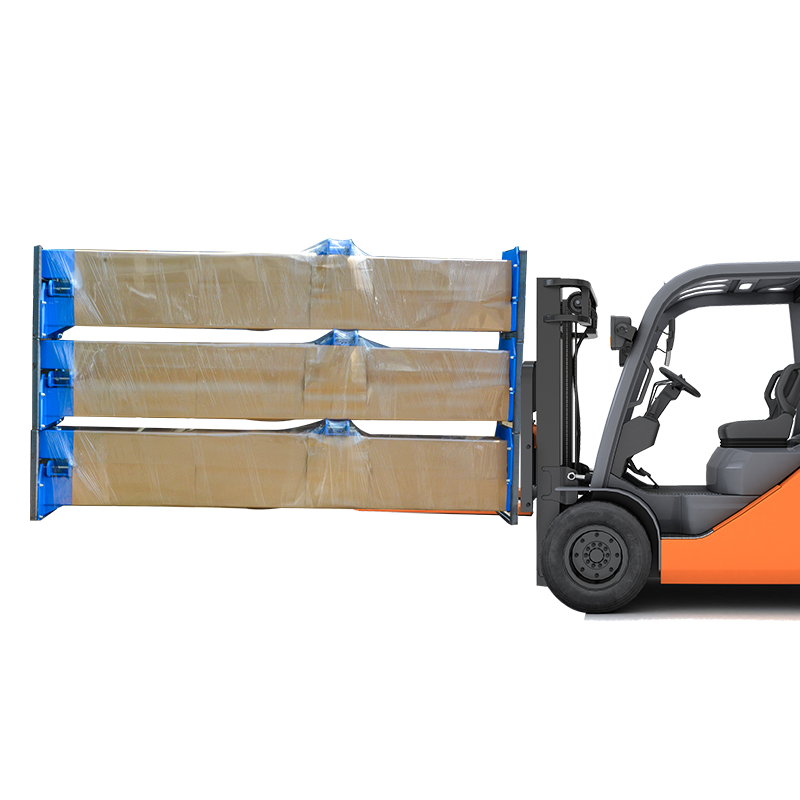

Attention to forklift loading and unloading
