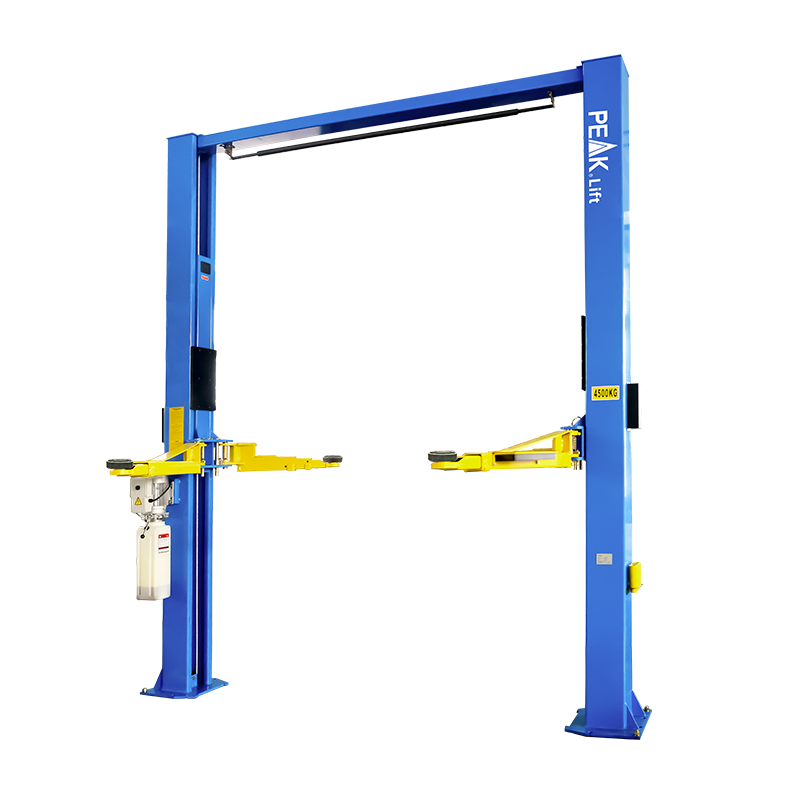

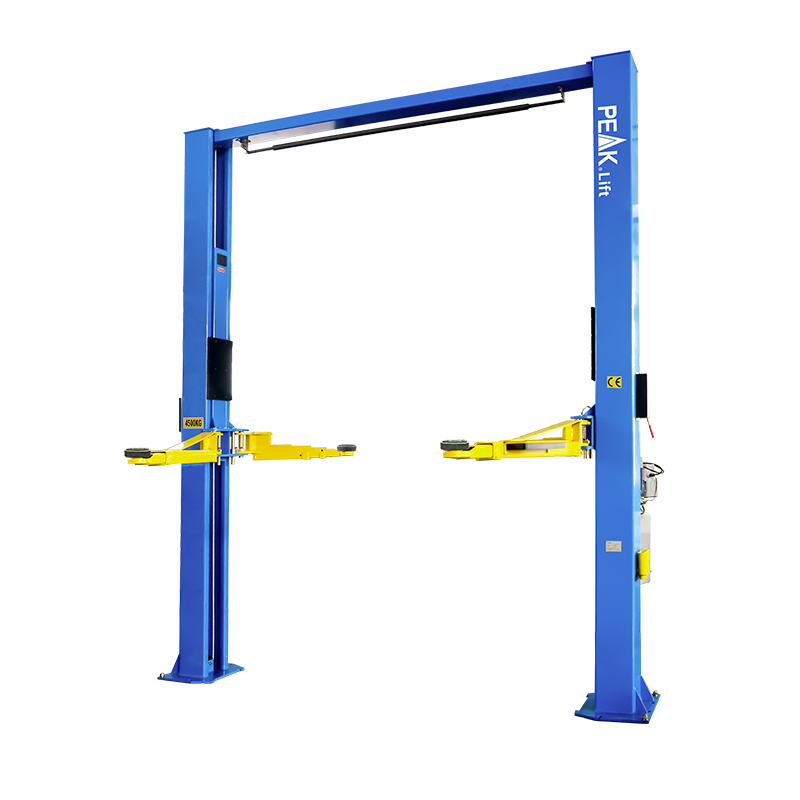

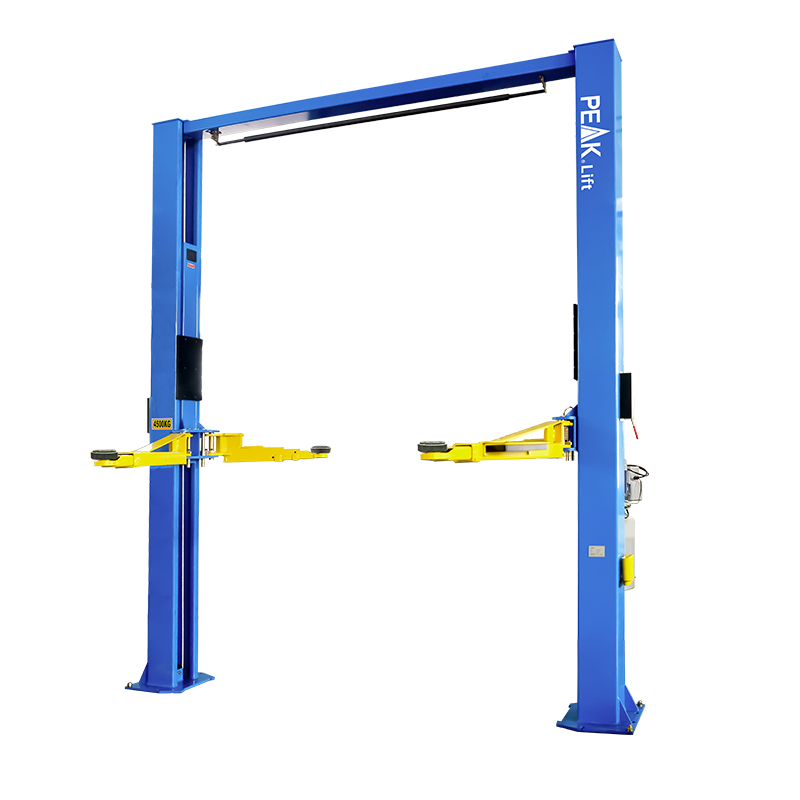

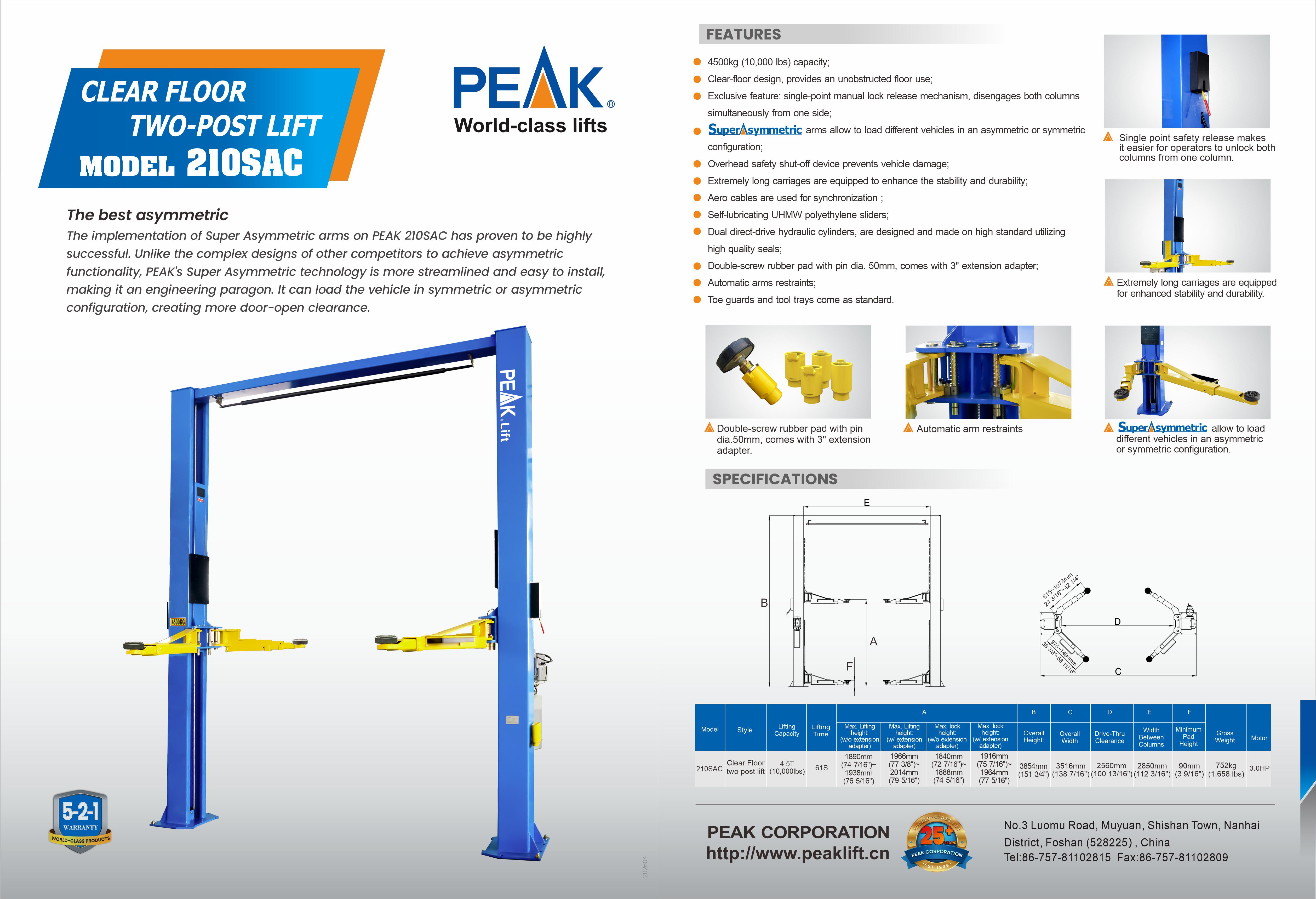

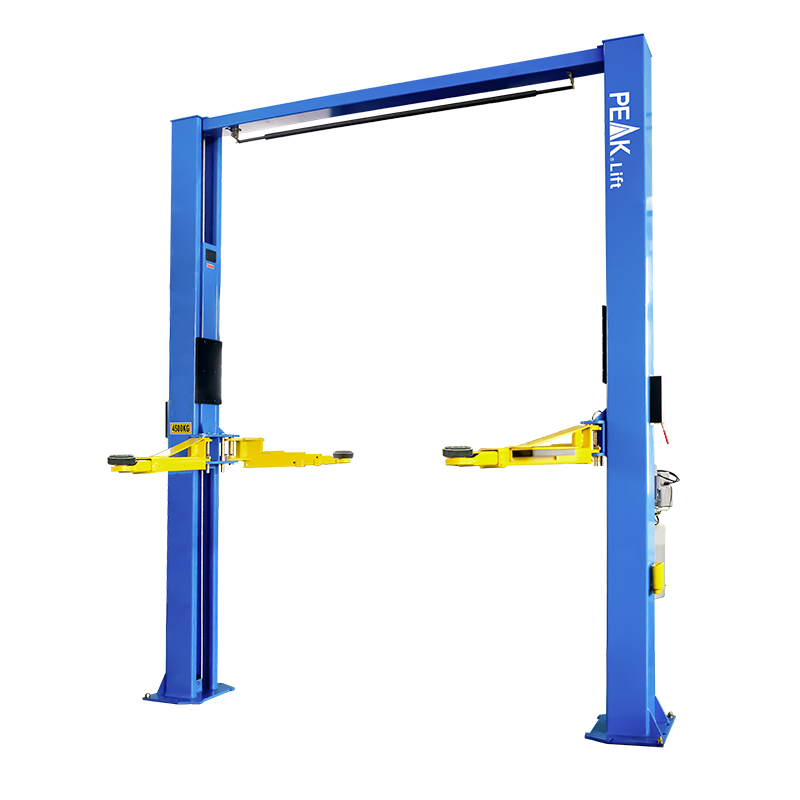

210SAC
Clear Floor two post lift
The best asymmetric
The implementation of Super Asymmetric arms on PEAK 210SAC has proven to be highly successful. Unlike the complex designs of other competitors to achieve asymmetric functionality, PEAK's Super Asymmetric technology is more streamlined and easy to install, making it an engineering paragon.It can load the vehicle in symmetric or asymmetric configuration, creating more door-open clearance.
- 4500kg (10,000 lbs) capacity;
- Clear-floor design, provides an unobstructed floor use;
- Exclusive feature: single-point manual lock release mechanism, disengages both columns simultaneously from one side;
arms allow to load different vehicles in an asymmetric or symmetric configuration; - Overhead safety shut-off device prevents vehicle damage;
- Extremely long carriages are equipped to enhance the stability and durability;
- Aero cables are used for synchronization ;
- Self-lubricating UHMW polyethylene sliders;
- Dual direct-drive hydraulic cylinders, are designed and made on high standard utilizing high quality seals;
- Double-screw rubber pad with pin dia. 50mm, comes with 3" extension adapter;
- Automatic arms restraints;
- Toe guards and tool trays come as standard.
| Model 210SAC | Clear Floor two post lift | |
| Lifting Capacity | 4500kg(10,000 Ibs) | |
| Lifting Time | A | 61s |
| Max.Lifting height:(w/o extension adapter) | 1896mm(74 5/8")~1944mm(76 9/16") | |
| Max.Lifting height:(w/ extension adapter) | 1972mm(77 5/8")~2020mm(79 1/2") | |
| Max.lock height(w/o extension adapter) | 1846mm(72 11/16")~1894mm(74 9/16") | |
| Max.lock height(w/ extension adapter) | 1922mm(75 11/16")~1970mm(77 9/16") | |
| Overall Height | B |
3854mm(151 3/4") |
| Overall Width | C | 3516mm(138 7/16") |
| Drive-Thru Clearance | D | 2560mm(100 13/16") |
| Width Between Columns | E | 2850mm(112 3/16") |
| Minimum Pad Height | F | 95mm(3 3/4") |
| Gross Weight | 750kg(1,653 Ibs) | |
| Motor | 3.0HP | |
| QTY of Container | 12 Units/20'GP 32 Units/40'GP |
|
| Packing Dimension | 3920X510X820 mm |
-

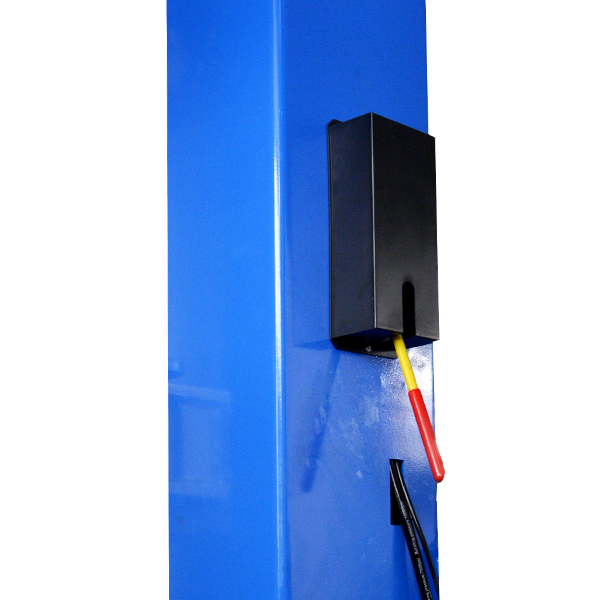

Single point safety release makes it easier for operators to unlock both columns from one column.
-
Hydraulic direct-drived cylinders.
-

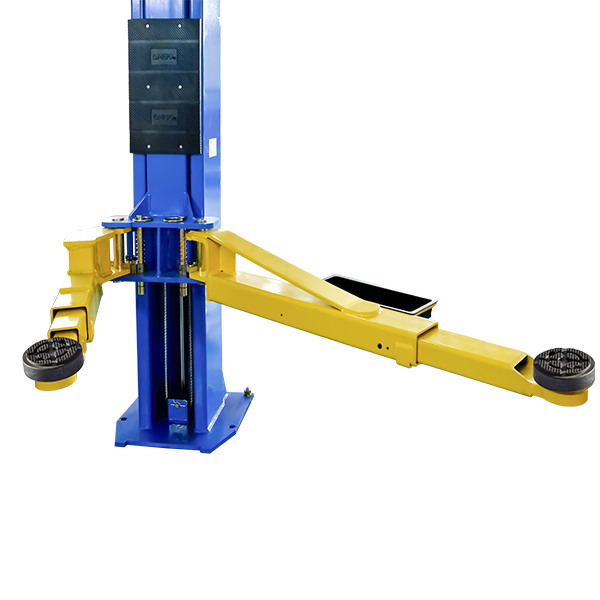

arms allow to load different vehicles in an asymmetric or symmetric configuration. -
Automatic arm restraints.
-

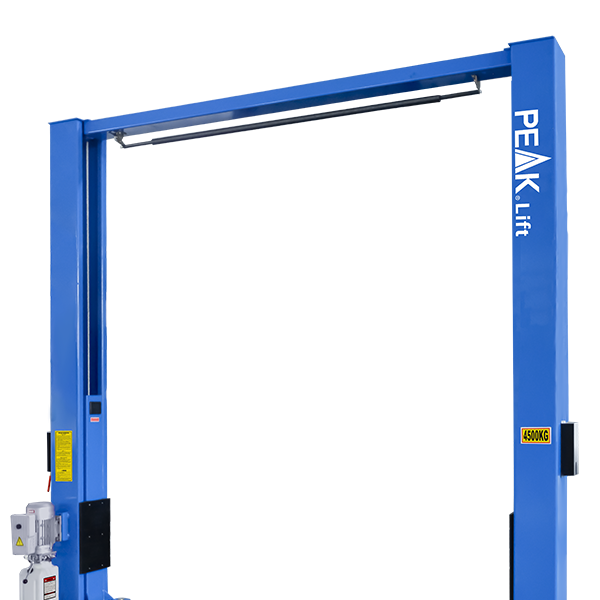

Clear floor design, provides unobstructed floor space.Overhead safety shut-off device prevents vehicle damage.
-

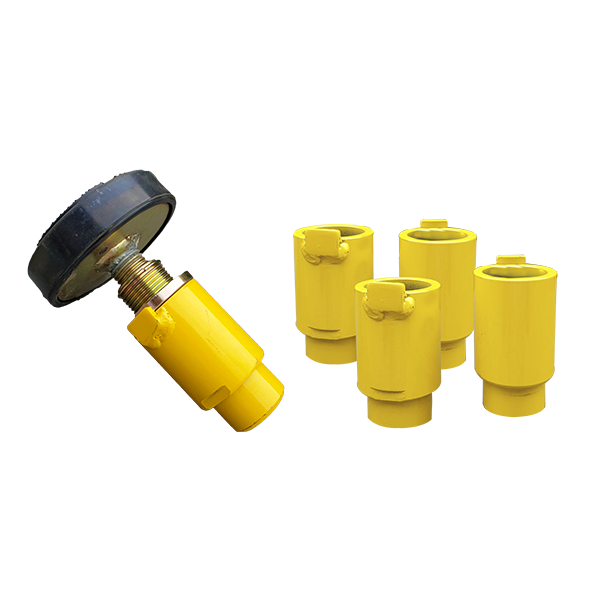

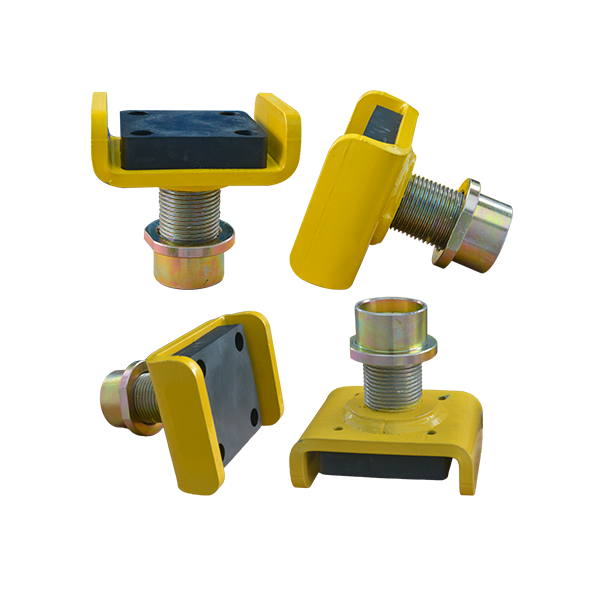

Double-screw rubber pad with pin dia. 50mm,comes with 3" extension adapter.
-

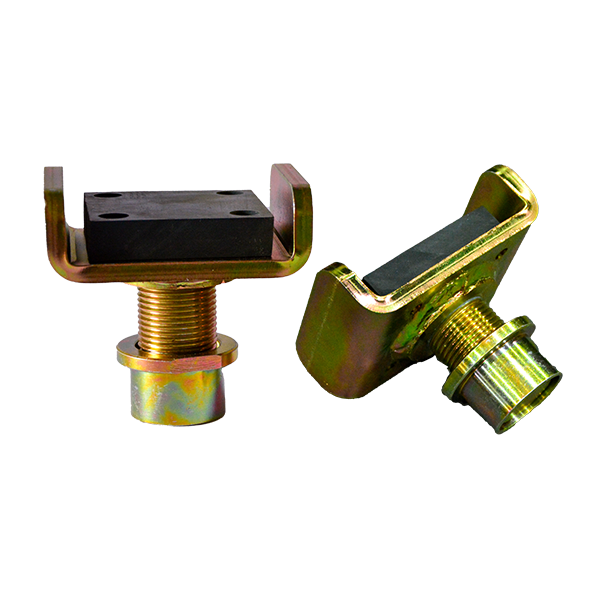

The optional saddle adapter.
Kits No.: 1102185006C -

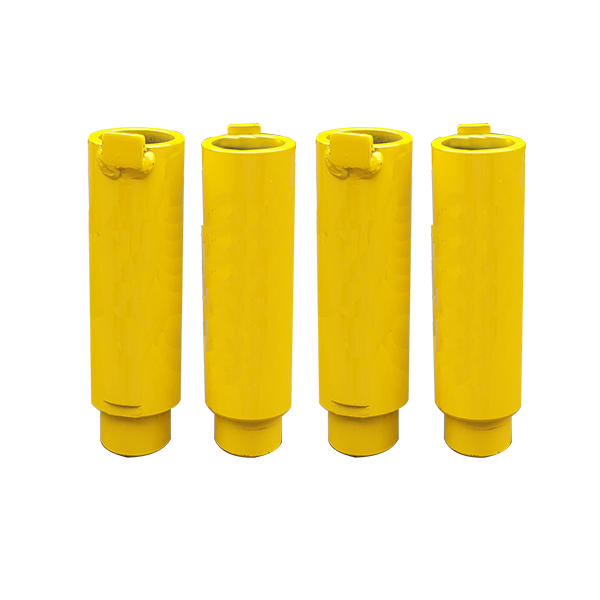

6" extension adapter comes as optional.
P/N: 1102504001. -
2 units or 3 units as a package ( including parts box,without hydraulic power unit )
- Gross weight for 210SAC: 750kgs , include power unit gross weight 25kgs.
- 20' container can load 12 units.
- 40' container can load 32 units.
-

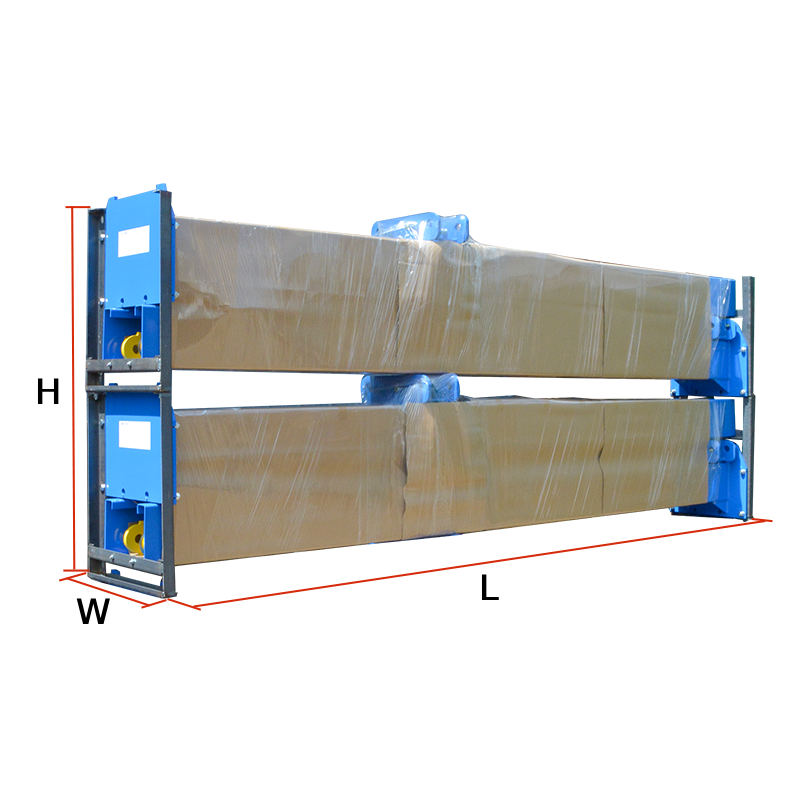

2 units/package,packing measurement (LxWxH):2900x450x1483mm
-

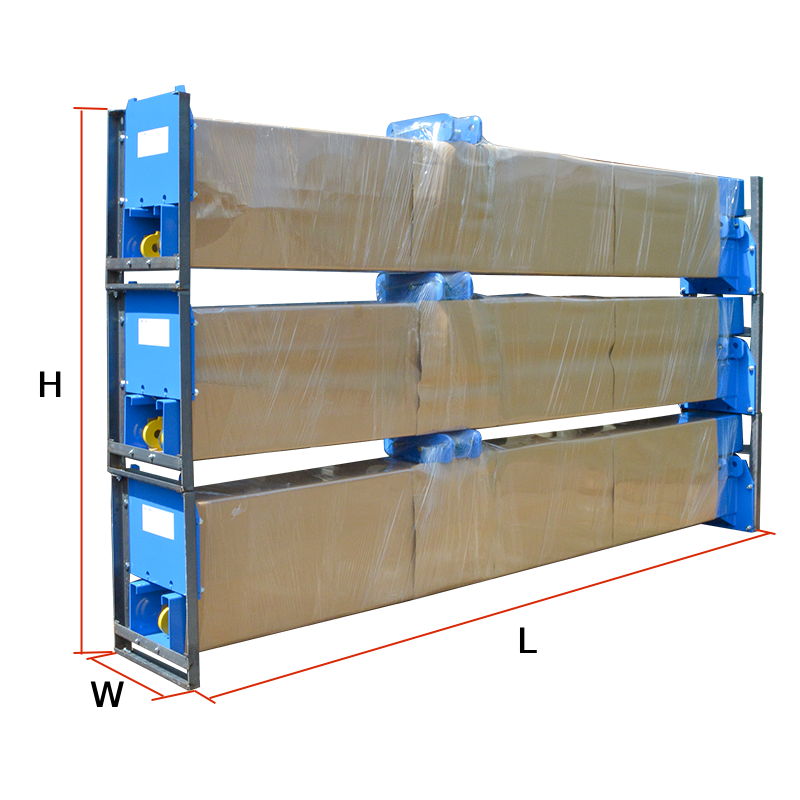

3 units/package, packing measurement (LxWxH): 2900x450x2216mm
-
1 unit/ctn,packing measurement (LxWxH): 920x300x360mm
-

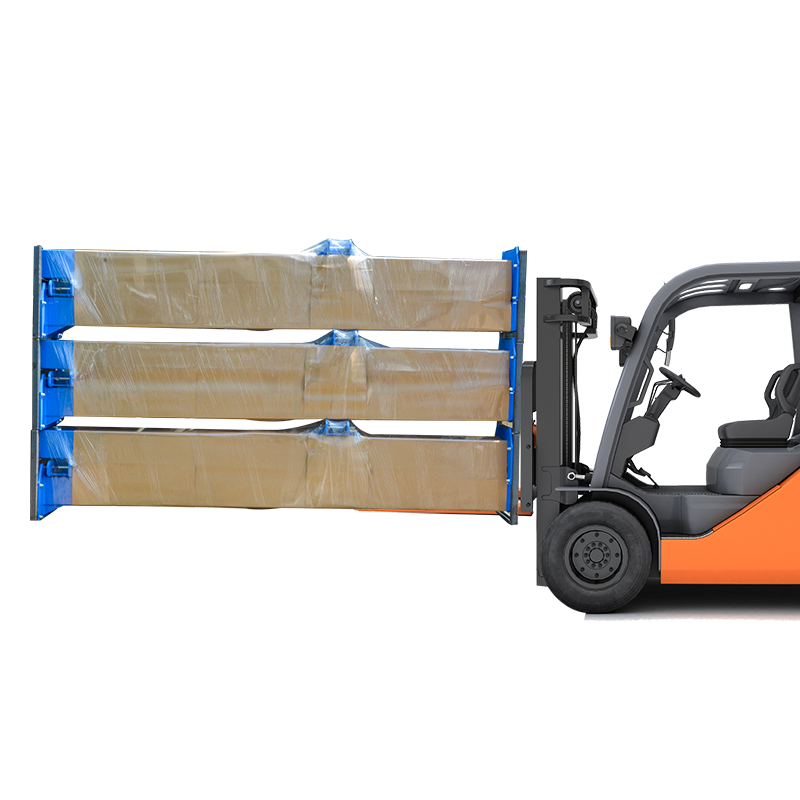

Attention to forklift loading and unloading
